T3PM1100 User Manual
4
Power measurement ................................................ 214
Introduction to IEC-62301........................................ 216
EUP Directive Lot6 specifications ............................ 217
Connection Guide .................................................... 218
CERTIFICATIONS ..........................................................221
EMC Compliance ..................................................... 221
Safety Compliance ................................................... 223
Environmental Compliance ...................................... 224
RESTRICTION OF HAZARDOUS SUBSTANCES
(RoHS) .................................................................... 224
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

T3PM1100 User Manual
5
SAFETY INSTRUCTIONS
This chapter contains important safety
instructions that you must follow during
operation and storage. Read the following before
any operation to ensure your safety and to keep
the instrument in the best possible condition.
Safety Symbols
These safety symbols may appear in this manual or on the
instrument.
WARNING
Warning: Identifies conditions or practices that
could result in injury or loss of life.
CAUTION
Caution: Identifies conditions or practices that
could result in damage to the T3PM1100
or to other properties.
DANGER High Voltage
Attention Refer to the Manual
Protective Conductor Terminal
Earth (ground) Terminal
I
O
On (Supply)
Off (Supply)
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

T3PM1100 User Manual
6
Safety Guidelines
General Guideline
CAUTION
Make sure that the voltage input level does not
exceed AC600V.
Make sure the current input level does not
exceed 20A.
Do not place any heavy object on the
instrument.
Avoid severe impact or rough handling that can
lead to damaging the instrument.
Do not discharge static electricity to the
instrument.
Use only mating connectors, not bare wires, for
the terminals.
Do not block or obstruct the cooling fan vent
opening.
Do not perform measurement at the source of a
low-voltage installation or at building
installations (Note below).
Do not disassemble the instrument unless you
are qualified as service personnel.
Make sure that the COM terminal to earth is
limited to 600Vpk.
Remove all test leads before disconnecting the
mains power cord from the socket.
If the equipment is used in a manner not
specified by the manufacturer, the protection
provided by the equipment may be impaired.
The device should be placed in a way that the
plug connected to it can be removed easily.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

SAFETY INSTRUCTIONS
7
(Note) EN 61010-1:2010 specifies the measurement categories and
their requirements as follows. The T3PM1100 falls under category II
600V.
Measurement category IV is for measurement performed at the
source of low-voltage installation.
Measurement category III is for measurement performed in the
building installation.
Measurement category II is for measurement performed on the
circuits directly connected to the low voltage installation.
Power Supply
WARNING
AC Input voltage: 100-240 VAC 50/60Hz
The power supply voltage should not fluctuate
more than 10%.
Connect the protective grounding conductor of
the AC power cord to an earth ground, to avoid
electrical shock.
Cleaning the
Instrument
Disconnect the power cord before cleaning.
Use a soft cloth dampened in a solution of mild
detergent and water. Do not spray any liquid.
Do not use chemicals containing harsh material
such as benzene, toluene, xylene, and acetone.
Operation
Environment
Location: Indoor, no direct sunlight, dust free,
almost non-conductive pollution (Note below)
Temperature: 0°C to 40°C
Humidity: < 30°C: < 80%RH(non-condensing);
30°C~40°C:<70%RH(non-condensing);
>40°C: <50%RH (non-condensing)
Altitude: <2000m
Overvoltage category: OVC II
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

T3PM1100 User Manual
8
(Note) EN 61010-1:2010 specifies the pollution degrees and their
requirements as follows. The T3PM1100 falls under degree 2.
Pollution refers to “addition of foreign matter, solid, liquid, or
gaseous (ionized gases), that may produce a reduction of
dielectric strength or surface resistivity”.
Pollution degree 1: No pollution or only dry, non-conductive
pollution occurs. The pollution has no influence.
Pollution degree 2: Normally only non-conductive pollution
occurs. Occasionally, however, a temporary conductivity caused
by condensation must be expected.
Pollution degree 3: Conductive pollution occurs, or dry, non-
conductive pollution occurs which becomes conductive due to
condensation which is expected. In such conditions, equipment
is normally protected against exposure to direct sunlight,
precipitation, and full wind pressure, but neither temperature
nor humidity is controlled.
Storage
environment
Location: Indoor
Temperature: -40°C to 70°C
Humidity: <90%RH(non-condensing)
Disposal
Do not dispose this instrument as unsorted
municipal waste. Please use a separate collection
facility or contact the supplier from which this
instrument was purchased. Please make sure
discarded electrical waste is properly recycled to
reduce environmental impact.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

GETTING STARTED
9
GETTING STARTED
This chapter describes the T3PM1100, including
accessories, package contents, its main features
and front / rear panel introduction.
Characteristics ........................................................... 10
Accessories ...............................................................................12
Package Contents .....................................................................12
Appearance................................................................ 13
Front Panel................................................................................13
Main Display Overview.............................................................16
Rear Panel .................................................................................19
Set Up ....................................................................... 22
Tilting the Stand .......................................................................22
Power Up...................................................................................23
Connect the wires to the T3PM1100........................................24
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

T3PM1100 User Manual
10
Characteristics
The T3PM1100 is a high-precision, programmable power meter for
measuring low power devices such as switching power supplies,
transformers, power supplies, and adapters. It is equipped with a
color TFT-LCD screen and also multiple graph displays which are
very convenient for reading the measurement results. The
T3PM1100 has become a reliable power measurement instruments
because of its simple operation, excellent performance, user-
friendly graph displays and automatic measurement interface.
Operation
Press the buttons on the front panel to easily
turn on the T3PM1100 measurement function.
All settings and measurements results are
displayed on the 5-inches TFT-LCD screen panel
for easy use of each function.
Standard display mode: 2 main measurement
results and 8 secondary measurement results are
displayed in this screen.
Simple display mode: 4 major measurement
results are displayed in this screen.
Performance
6 selectable voltage ranges available from 15V to
600V with 0.1% of reading + 0.05% of range.
12 selectable current ranges available from 5mA
to 20A with 0.1% of reading + 0.05% of range.
It can even measure the voltage of abnormal
wave of CF 3. The half-range CF is up to 6 or 6A.
It can even measure the current of abnormal
wave of CF 3. The half-range CF is up to 6 or 6A.
Total harmonic distortion measurement.
50-orders harmonic test and analysis function.
Graph display for measurement results
including harmonic orders distribution.
Plug-in USB disk data store function including
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

GETTING STARTED
11
log and screenshot.
Auto range function for integration measurement.
Features
Full five-digit measurement.
Voltage measurement range: 15V ~ 600V or
automatic switching
Current measurement range: 5mA ~ 20A or
automatic switching
Maximum accuracy of 0.1% of reading + 0.05%
of range
2 main measurement readings and 8 minor
measurement readings are displayed in the
screen of standard display mode.
4 main measurement readings are displayed in
the screen of simple display mode.
Added stand-alone display of total harmonic
distortion measurement function (50 steps)
Test bandwidth of voltage and current: DC ~
100kHz.
Selectable boot settings (Previous / Default)
Waveform display up to 10kHz along with
Harmonic bar and list table
Interface
Standard interface: USB / RS232 / LAN
Application
It can be applied to production test such as
power supplies, transformers, motors, electrical
equipment and other equipment with low
standby power.
It can be applied to power measurement
conforms to IEC 62301
It can be applied to assess the power
consumption of product design.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

T3PM1100 User Manual
12
Accessories
Standard Accessories
Power Cords x 3
Test leads: 1x red, 1x black
Test leads: 1x yellow, 1x blue
Package Contents
Check the contents before using the instrument.
Opening the box
Contents
(single unit)
Main unit
Test leads (red x1,
black x1, yellow x1,
blue x1)
Power cords x 3
Quick Start Guide
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

GETTING STARTED
13
Appearance
Front Panel
POWER
V-Range
MAX Hold
Mode Setup Hold
I-Range
Start Stop Reset
Local
Trigger ESC
INTEGRATOR
Enter
Key Lock
Hardcopy
: Long Push
LCD Display Function Keys
Enter
Key
Soft
keys Arrow Keys Trigger Key ESC Key
Power
key USB Host Port
Hardcopy Key
Power Key
POWER
Turns On or Off the main
power. For the power up sequence,
see page 23.
USB Host Port
Connects with USB flash drive for
data storage or screenshot.
Hardcopy Key
Hardcopy
Captures the current screenshot or
saves the data log for reading. For
details, refer to page 57.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

T3PM1100 User Manual
14
Function Keys
V-Range
Enter
V-Range key, up/down arrow keys
and Enter key can be used together
to select a voltage range or auto
range measurement mode. Also,
press and hold the V-Range key to
toggle between manual and auto
range setting. See page 26.
I-Range
Enter
I-Range key, up/down arrow keys
and Enter key can be used together
to select a current range or auto
range measurement mode. Also,
press and hold the I-Range key to
toggle between manual and auto
range setting. See page 26.
MAX Hold
Press this button to display the
maximum measurement reading.
See page 76.
Mode
Press this key to select measure
mode (DC/AC/AC+DC/V-MEAN).
See page 78.
Setup
Press this key to enter the
measurement settings menu. See
page 30.
Hold
Press this key to switch window and
stop refreshing. See page 77.
Enter
Start Stop Reset
INTEGRATOR
Use the left and right
arrow keys to select
Integrator mode, and
press Enter button to
enter the time integrator
function. See page 79.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

GETTING STARTED
15
Key Lock
Local
Press this key to toggle to key lock. In
Remote control mode, press this button
to switch to local mode. See page 77.
Enter Key
Enter
This button is used to enter the menu,
confirm the settings and switch
between the standard display mode
and simple display mode (no function
table and display icon). See page 77.
Trigger key
Trigger
Activates the Trigger function. See
page 77.
ESC Key
ESC
Press this button to cancel the
current setting. The cursor returns to
the default position or return to the
previous menu according to the
situation. See page 77.
Arrow Keys
These four arrow keys are
used to edit the parameters,
browse the menu system and
select the parameter range.
Soft Keys
The 5 soft keys have varied functions
from the OSD (On-Screen Display)
options, individually, per different
settings.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

T3PM1100 User Manual
16
Main Display Overview
Current Range
Voltage Range Mode Update Rate CF
VT
Remote
CT SF
Max. Hold
Average
Key Lock
Sync
Source External
Display Hold
Peak Voltage
Peak Current
Harmonic
Calculation
Measure
Storage
Frequency
Filter
Remote Error
Secondary Menus
Minor
Measurement
Display
Line Filter
Main
Measurement
Display
Item
Status icon
Description
Voltage Range
V-Range 15V
Voltage measurement range.
Example here range is 15V.
V-Auto means that Voltage Auto
Range is turned on.
Current Range
I-Range 10A
Current measurement range.
Example here range is 10A.
I-Auto means that Current Auto
Range is turned on.
Mode
AC+DC
Measurement mode
(AC, DC, AC+DC, V-MEAN)
Date Update
Rate
Update 0.25s
Data update rate
(0.1/0.25/0.5/1/2/5/10/20/Auto)
Crest Factor
CF3
Crest Factor (3/6/6A)
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

GETTING STARTED
17
VT Ratio State
VT
External voltage magnification
(On/Off)
CT Ratio State
CT
External current magnification
(On/Off)
Power Ratio
State
SF
External power magnification
(On/Off)
Remote
RMT
Remote control mode (On/Off)
Line Filter
L.F
Voltage and current filters (On/Off)
Frequency Filter
F.F
Frequency filters (On/Off)
Maximum Hold
MAX Hold
Retain and display the maximum
measurement reading.
Average
AVG-8
Average number of sampling
(8/16/32/64)
Sync Source
SYNC.V
Synchronization source (V/I/Off)
Keyboard Lock
Key Lock
Lock Key button
Harmonic
Calculation
HRM.I
Harmonic calculation method
(IEC/CSA/Off)
Measure Storage
STORE
Measured date storage (On/Off)
External Input
EXT1
External signal input function
(Ext1/Ext2/Off)
Display Hold
Hold
Retain and display the current
measurement reading.
Peak Voltage
P.V
The voltage exceeds the
measurement range
Peak Current
P.I
The current exceeds the
measurement range
Remote Error
Error-XXX
An error occurs in remote
command
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

T3PM1100 User Manual
18
Standard Display
Mode
Display the measurement result of 2 major and 8
minor measurement parameters
Simple Display
Mode
Display the measurement result of 4 major
measurement parameters
Secondary menus
Display secondary function menu
To navigate the secondary function menu, use left
and right arrow keys alternately. The arrow keys
are loopback, which means, for example, when it
stops at Graph, press the right arrow key to move
to Enlarge in a promptly loopback manner.
Enlarge
This function key is used to
switch display of measurement
result from 2 major plus 8 minor
to 4 major ones.
Integrator
This function key is used to set up
integrator measurement
parameters and execute integrator
measurement function.
Parameter
This function key is used to set up
measurement parameters.
System
This function key is used to enter
the system setting and system
configuration screens.
Graph
This function key is used to set up
graph measurement settings and
execute measurement in the
intuitive graph displays.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

GETTING STARTED
19

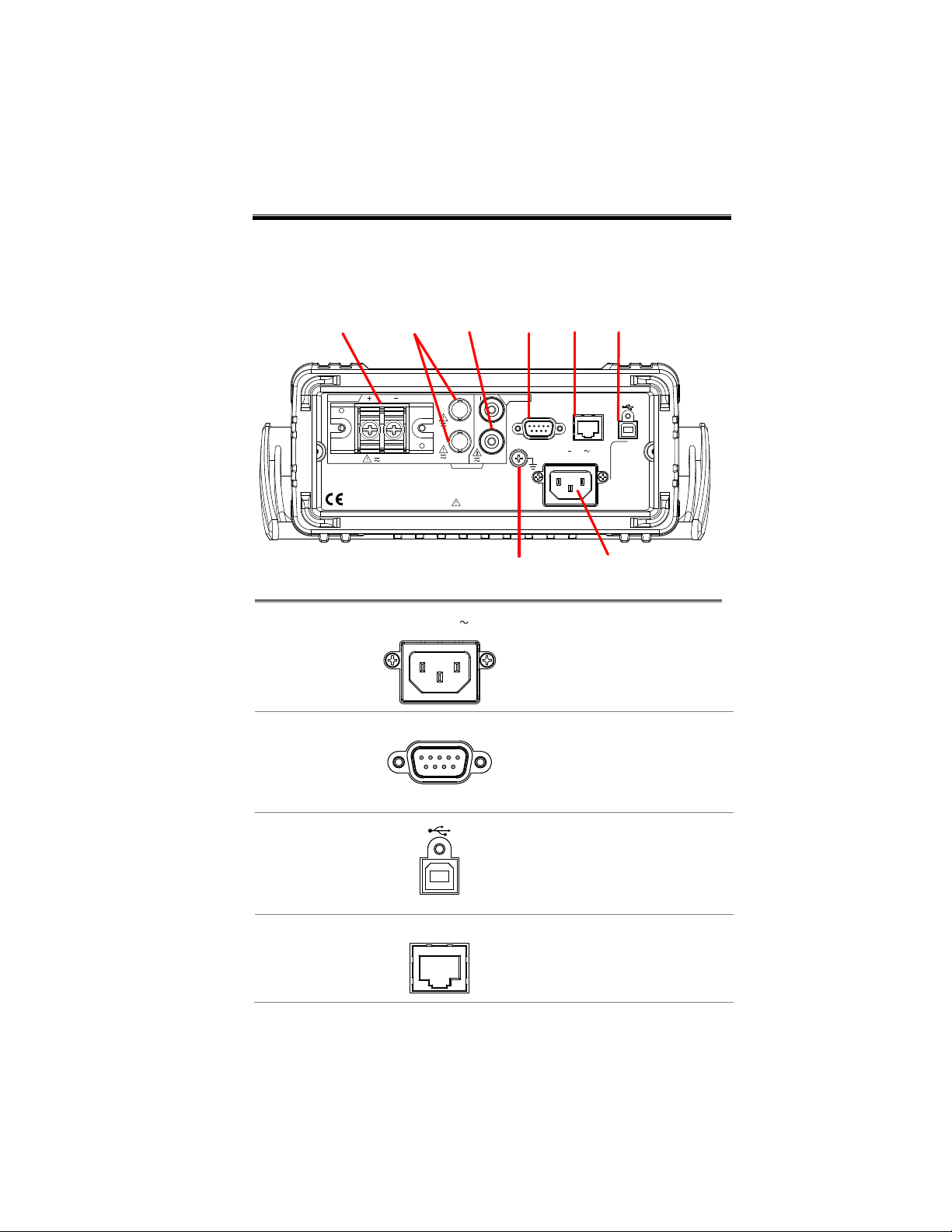

Rear Panel
I I
20A MAX
100 240V
30VA MAX
AC 50 / 60Hz
CAT II 600V
REMOVE INPUTS
TO AVOID SHOCK,
WARNING
CURRENT V VOLTAGE
V
600VMAX
EXT1
EXT2
LAN
RS232
GPIB
SER.NO. LABEL
BEFORE OPENING.
10V MAX
2V MAX
Current
Input External
Input 1/2 Voltage Input RS-232 Connector LAN Port USB Device Port
GND
Terminal Power Cord
Socket
Power Cord
Socket
100 - 240V
30VA MAX
AC 50 / 60Hz
Connects the power cord. AC
100~240V ±10%, 50/60Hz
RS232 Connector
RS232
Accepts an RS-232C cable for
remote control; DB-9 male
connector. For remote control
details, see page 110.
USB Device Port
Accepts a USB device cable for
remote control; Type B, female
connector. For remote control
details, see page 109.
LAN Port
LAN
Accepts a LAN for remote
control. For remote control
details, see page 112.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

T3PM1100 User Manual
20
GND Terminal
Connects the GND (ground)
terminal to the earth ground.
Voltage/Current
input terminal
I I
20A MAX CAT II 600V
CURRENT V VOLTAGE
V
600VMAX
EXT1
EXT2
GPIB
10V MAX
2V MAX
Voltage/Current
input terminal is
used to connect
the main
measurement
signals.
External Input 1/2
EXT1
EXT2
10V MAX
2V MAX
Connects output signal to the EXT1
terminal which receives up to 10V, or
the EXT2 terminal that receives at the
maximum of 2V. See page 53 for setting.
Warning
Do not use damaged device. Before using the
equipment, check its housing first to sure ensure
there are no cracks. Do not operate this device in
an environment containing explosive gases, steam
or dust.
The maximum measurable current and voltage are
600 V and 20A for voltage and current terminals of
the rear panel of the T3PM1100. Do not input
exceeded voltage and current, otherwise it will burn
the device.
The maximum input voltage are 10 V and 2V for
EXT1 and EX2 terminals of the rear panel of the
T3PM1100. Do not input exceeded voltage,
otherwise it will burn the device.
Always use the supplied cable for connection.
Before connecting the device, observe all the safety
symbols marked on the device.
Turn off the power to the device and the application
system before connecting I/O terminals.
Do not install replacement parts on the device or
perform any unauthorized modifications.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]
