Teledyne T3LCR1002 User manual

www. .com [e-mail]1.800.561.8187

www. .com [e-mail]1.800.561.8187

T3LCR Series User Manual
i
Warning Dangerous
When you notice any of the unusual conditions listed below, immediately
terminate operation and disconnect the power cable.
Please contact the TELEDYNE service center representative for repair of the
instrument. If you continue to operate without repairing the instrument, there
is a potential fire or shock hazard for operators.
The instrument is operating abnormally if:
The instrument emits abnormal noise, smell, smoke, or a spark-like light
during the operation.
The instrument generates high temperature or electrical shock during
operation.
The power cable, plug, or receptacle on the instrument is damaged.
Foreign substances or liquid has fallen into the instrument.
The following general safety precautions must be observed during all phases
of operation, service, and repair of this instrument. Failure to comply with
these precautions or with specific WARNINGS elsewhere in this manual may
impair the protection provided by the equipment. In addition it violates safety
standards of design, manufacture, and intended use of the instrument.
TELEDYNE assumes no liability for the
customer's failure to comply with these
requirements.
To avoid electric shock hazards, the instrument
chassis and cabinet must be connected to a safety
earth ground by the supplied power cable with
earth blade.
Do not operate the instrument in the presence of
inflammable gasses or fumes. Operation of any
electrical instrument in such an environment
constitutes a definite safety hazard.
www. .com [e-mail]1.800.561.8187

Safety Summary
ii
Operating personnel must not remove instrument
covers. Component replacement and internal
adjustments must be made by qualified
maintenance personnel. Do not replace
components with the power cable connected.
Under certain conditions, dangerous voltages may
exist even with the power cable is removed. To
avoid injuries, always disconnect the power and
discharge the circuits before touching them.
Do not attempt internal service or adjustment
unless another person, capable of rendering first
aid and resuscitation, is present.
Because of the danger of introducing additional
hazards, do not install substitute parts or perform
unauthorized modifications to the instrument.
Return the instrument to a TELEDYNE
authorized service center for service and repair to
ensure that safety features are maintained.
www. .com [e-mail]1.800.561.8187

T3LCR Series User Manual
3
1.1 Incoming Inspection ........................................................................ 10
1.2 Environmental Requirements ......................................................... 11
1.3 Cleaning ............................................................................................ 11

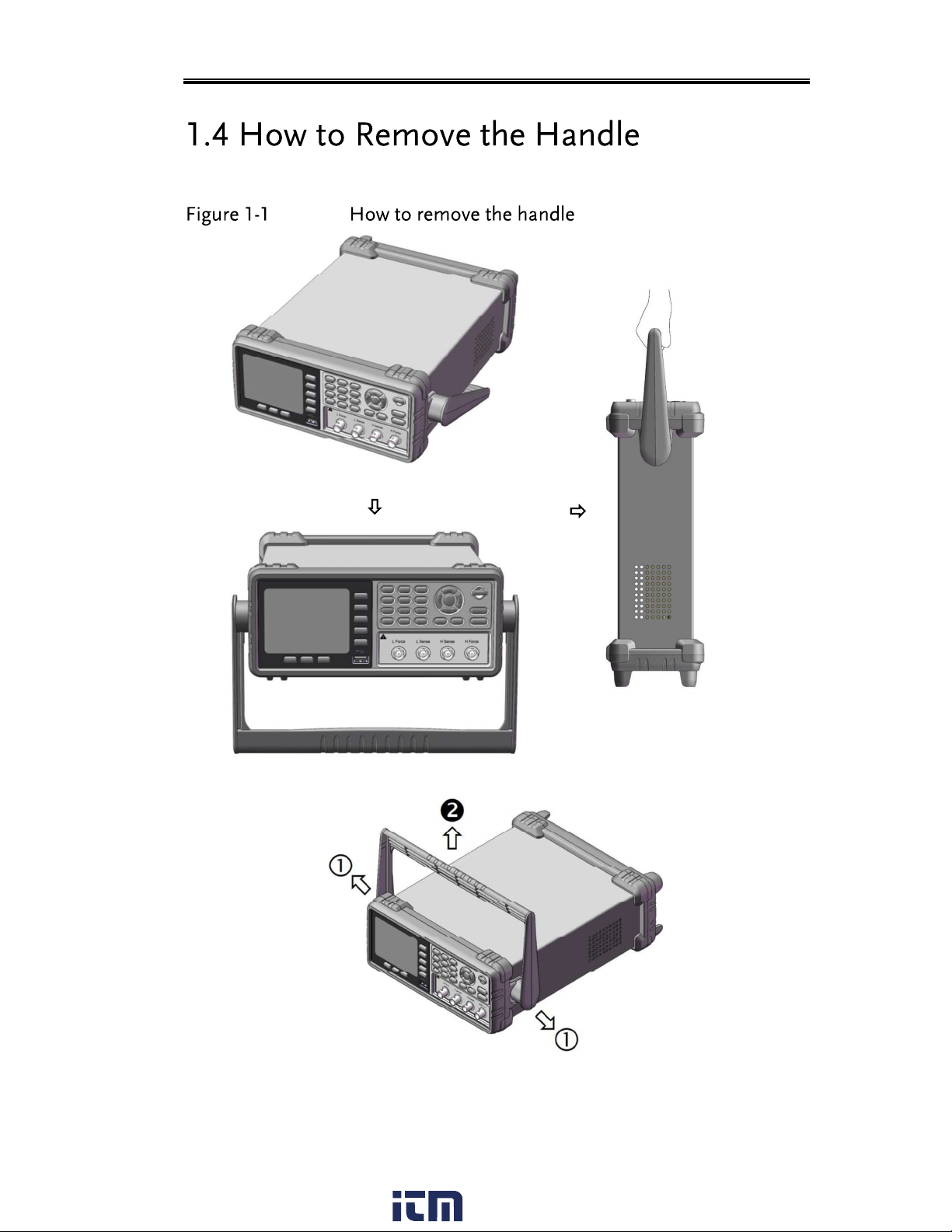

1.4 How to Remove the Handle ........................................................... 12
2.1 Introduction ..................................................................................... 13
2.2 Main Specifications and Features ................................................... 14
2.2.1 Test Function ............................................................................ 14
2.2.2 Equivalent Circuit ..................................................................... 14
2.2.3 Ranging ...................................................................................... 14
2.2.4 Measurement Speed ................................................................. 14
2.2.5 Trigger Mode ............................................................................. 15
2.2.6 Basic Accuracy .......................................................................... 15
2.2.7 Display Range ........................................................................... 15
2.3 Test Signal ......................................................................................... 15
2.3.1 Test Signal Frequency .............................................................. 15
2.3.2 Test Signal Level ....................................................................... 16
2.3.3 Output impedance .................................................................... 16
2.4 Main Functions................................................................................. 16
2.4.1 Correction Function ................................................................ 16
2.4.2 Comparator Function (Sorting) .............................................. 16
2.4.3 List Sweep ................................................................................. 17
2.5 Measurement Assistance Functions ............................................... 17
2.5.1 Files ............................................................................................ 17
2.5.2 Key Lock ................................................................................... 17
2.5.3 RS 232/USB ............................................................................. 17
2.6 Options ............................................................................................. 17
2.6.1 USB host port ........................................................................... 17
2.6.2 DC Bias Voltage ........................................................................ 19
www. .com [e-mail]1.800.561.8187

Table of Contents
4
3.1 Front panel ....................................................................................... 20
3.2 Rear Panel ......................................................................................... 21
3.3 Power On/Off ................................................................................. 21
3.3.1 Power On .................................................................................. 21
3.3.2 Power Off ................................................................................. 21
3.4 Warm up Time ................................................................................. 22
3.5 Connect to the Device Under Test (DUT) ................................... 22
4.1 [MEAS DISPLAY] Page ................................................................. 23
4.1.1 Measurement Function [FUNC] ............................................ 24
4.1.2 Impedance Range [RANGE] ................................................. 26
4.1.3 Test Frequency [FREQ] .......................................................... 28
4.1.4 Trigger Mode [TRIG] .............................................................. 29
4.1.5 Test Signal Voltage/Current Level [LEVEL] ...................... 30
4.1.6 Measurement Speed [SPEED] ............................................... 31
4.1.7 Measurement log [LOG] ......................................................... 32
4.2 [OPEN/SHORT] Page ................................................................... 34
4.2.1 Open Correction [OPEN] ...................................................... 35
4.2.2 Short Correction [SHORT] .................................................... 36
4.2.3 SPOT Correction ..................................................................... 37
4.3 [LIST SETUP] Page ........................................................................ 39
4.3.1 Measurement Function [FUNC] ............................................ 40
4.3.2 Test Mode [MODE] ................................................................ 40
4.3.3 List Measurement Parameters ................................................ 41
4.3.4 List Point and Limit Modes .................................................... 42
4.4 [LIST MEAS] Page .......................................................................... 43
4.4.1 Trigger Mode [TRIG] .............................................................. 43
4.4.2 Test Mode [MODE] ................................................................ 44
4.4.3 Range Mode [RANGE] ........................................................... 45
4.4.4 Measurement log [LOG]......................................................... 45
4.5 [ENLARGE DISPLAY ] Page ...................................................... 47
www. .com [e-mail]1.800.561.8187

T3LCR Series User Manual
5
4.5.1 Enlarge Display ........................................................................ 47
4.5.2 Direct Comparison Function ................................................. 48
5.1 [MEAS SETUP] Page ...................................................................... 49
5.1.1 Source Output Impedance [SRC RES] ................................. 50
5.1.2 Averaging Factor [AVG] ......................................................... 51
5.1.3 DC Bias Voltage [BIAS] .......................................................... 51
5.1.4 Auto LCZ Function [AUTO LCZ] ....................................... 52
5.1.5 Monitor 1 and Monitor 2 [MON 1][MON 2] ...................... 52
5.1.6 Measurement Delay [DELAY] ............................................... 53
5.1.7 AUTO LEVEL CONTROL [ALC] ...................................... 53
5.1.8 Nominal Value [NOMINAL] ................................................. 54
5.2 [BIN SETUP] Page .......................................................................... 55
5.2.1 Measurement Function [FUNC] ............................................ 56
5.2.2 Comparator Function ON/OFF ........................................... 56
5.2.3 Auxiliary Bin [AUX] ................................................................ 58
5.2.4 Primary Parameter Comparator limit mode [MODE] ........ 58
5.2.5 Nominal value for tolerance mode ........................................ 61
5.2.6 Beep feature .............................................................................. 61
5.2.7 Total Number of Bins [# BINS] ........................................... 61
5.2.8 Lower and Upper Limits ......................................................... 62
5.3 [BIN MEAS] Page ........................................................................... 62
5.3.1 Comparator Function ON/OFF ........................................... 63
5.3.2 Auxiliary Bin [AUX] ................................................................ 64
5.4 [BIN COUNT] Page ....................................................................... 64
5.4.1 Counter Function [COUNT] ................................................. 65
6.1 [SYSTEM CONFIG] Page ............................................................. 66
6.1.1 Setting the system date and time ............................................ 67
6.1.2 Account Setting ........................................................................ 68
6.1.3 KEY BEEP Setting ................................................................. 69
6.1.4 Baud rate ................................................................................... 69
www. .com [e-mail]1.800.561.8187

Table of Contents
6
6.1.5 Remote control interface......................................................... 70
6.1.6 TERMINATOR....................................................................... 70
6.1.7 Hand Shake ............................................................................... 71
6.1.8 Error Code ................................................................................ 71
6.1.9 Result ......................................................................................... 73
6.1.10 DATA BUFFER ...................................................................... 73
6.1.11 DEFAULT SET ...................................................................... 74
6.2 [SYSTEM INFO] Page ................................................................... 75
7.1 [FILE] Page ....................................................................................... 76
7.1.1 [MEDIA] ................................................................................... 77
7.1.2 Recall a File at Startup [AUTO RECALL] ........................... 77
7.1.3 Auto save data to last file [AUTO SAVE] ............................ 78
7.1.4 File operation ............................................................................ 78
8.1 Pin Assignment ................................................................................ 80
8.2 Connection ....................................................................................... 82
8.3 Timing Chart for Handler Interface .............................................. 83
9.1 Basic Measurement Procedure........................................................ 84
9.2 Example ............................................................................................ 85
10.1 RS 232 Interface .............................................................................. 89
10.2 USB Interface ................................................................................... 90
10.3 Install USB Driver ........................................................................... 92
11.1 Terminator ........................................................................................ 95
11.2 Notation Conventions and Definitions ........................................ 95
11.3 Command Structure ........................................................................ 95
11.4 Header and Parameters ................................................................... 98
11.5 Command Reference ....................................................................... 99
11.6 DISPlay Subsystem ........................................................................ 100
www. .com [e-mail]1.800.561.8187

T3LCR Series User Manual
7
11.6.1 DISP:LINE ............................................................................. 100
11.6.2 DISP:PAGE ........................................................................... 100
11.7 FUNCtion Subsystem ................................................................... 102
11.7.1 FUNCtion ............................................................................... 102
11.7.2 FUNCtion:IMPedance:AUTO ............................................. 103
11.7.3 FUNCtion:IMPedance:RANGe ........................................... 103
11.7.4 FUNCtion:DCR:RANGe ..................................................... 103
11.7.5 FUNCtion:RANGe:AUTO .................................................. 104
11.7.6 FUNCtion:MONitor 1 /2..................................................... 104
11.8 LEVel Subsystem ........................................................................... 106
11.8.1 LEVel:VOLTage (=VOLTage[:LEVel]) ............................. 106
11.8.2 LEVel:CURRent (=CURRent[:LEVel]) .............................. 107
11.8.3 LEVel:SRESistance (= VOLTage:SRESistance) ............... 107
11.8.4 LEVel:ALC (=AMPlitude:ALC) .......................................... 108
11.8.5 LEVel:MODe? ....................................................................... 108
11.9 APERture Subsystem .................................................................... 109
11.9.1 APERture:RATE? .................................................................. 109
11.9.2 APERture:AVG? .................................................................... 109
11.10 FETCh Subsystem ......................................................................... 110
11.10.1 FETCh? ........................................................................... 110
11.10.2 FETCh:IMPedance? ...................................................... 111
11.10.3 FETCh:MAIN? .............................................................. 111
11.10.4 FETCh:MONitor1? /2? ................................................ 111
11.10.5 FETCh:MONitor? ......................................................... 111
11.10.6 FETCh:LIST? ................................................................. 112
11.11 COMParator Subsystem ............................................................... 113
11.11.1 COMParator:STATe ...................................................... 113
11.11.2 COMParator:MODE ..................................................... 114
11.11.3 COMParator:AUX ......................................................... 114
11.11.4 COMParator:BINS ........................................................ 114
11.11.5 COMParator:TOLerance:NOMinal............................. 115
11.11.6 COMParator:TOLerance:BIN ...................................... 115
www. .com [e-mail]1.800.561.8187

Table of Contents
8
11.11.7 COMParator:SLIM ........................................................ 115
11.11.8 COMParator:BEEP ....................................................... 116
11.11.9 COMParator:OPEN ...................................................... 116
11.12 LIST Subsystem ............................................................................. 117
11.12.1 LIST:PARAmeter ........................................................... 117
11.12.2 LIST:STAT ..................................................................... 117
11.12.3 LIST:BAND ................................................................... 118
11.13 CORRection Subsystem ............................................................... 119
11.13.1 CORRection:OPEN ...................................................... 119
11.13.2 CORRection:OPEN:STATe ......................................... 120
11.13.3 CORRection:OPEN:LCR ............................................. 120
11.13.4 CORRection:OPEN:DCR ............................................ 120
11.13.5 CORRection:SHORt ..................................................... 120
11.13.6 CORRection:SHORt:STATe ........................................ 121
11.13.7 CORRection:SHORt:LCR ............................................ 121
11.13.8 CORRection:SHORt:DCR ........................................... 121
11.13.9 CORRection:SPOT:STATe .......................................... 121
11.13.10 CORRection:SPOT:FREQuency ................................. 122
11.13.11 CORRection:SPOT:OPEN .......................................... 122
11.13.12 CORRection:SPOT:SHORt .......................................... 122
11.14 TRIGger Subsystem ...................................................................... 123
11.14.1 TRIGger[:IMMediate] .................................................... 123
11.14.2 TRIGger:SOURce .......................................................... 123
11.14.3 TRIGger:DELAY .......................................................... 123
11.15 BIAS Subsystem ............................................................................. 124
11.16 FILE Subsystem ............................................................................ 125
11.16.1 FILE? ............................................................................... 125
11.16.2 FILE:SAVE .................................................................... 125
11.16.3 FILE:LOAD ................................................................... 125
11.16.4 FILE:DELete .................................................................. 126
11.17 ERRor Subsystem .......................................................................... 126
11.17.1 ERRor? ............................................................................ 126
www. .com [e-mail]1.800.561.8187

T3LCR Series User Manual
9
11.18 SYSTEM Subsystem ..................................................................... 126
11.18.1 SYSTem:SHAKehand.................................................... 126
11.18.2 SYSTem:CODE ............................................................. 126
11.18.3 SYSTem:KEYLock ........................................................ 127
11.18.4 SYSTem:RESult.............................................................. 127
11.19 Common Commands .................................................................... 127
11.19.1 *IDN? .............................................................................. 127
11.19.2 *TRG ............................................................................... 127
11.19.3 *SAV ................................................................................ 128
11.19.4 *RCL ................................................................................ 128
12.1 General Specification ..................................................................... 129
12.2 Dimensions ..................................................................................... 133
13.1 Accuracy .......................................................................................... 135
13.1.1 L, C, R |Z| Measurement Accuracy ................................... 135
13.1.2 Accuracy for D ....................................................................... 135
13.1.3 Accuracy for Q ....................................................................... 136
13.1.4 Accuracy for ........................................................................ 136
13.1.5 Accuracy for Rp ..................................................................... 136
13.1.6 Accuracy for Rs ...................................................................... 137
13.2 Correction factors that affect measurement accuracy ............... 137
Certifications ................................................................................................ 141
EMC Compliance .................................................................................. 141
Safety Compliance ................................................................................. 143
Environmental Compliance ................................................................. 143
RESTRICTION OF HAZARDOUS SUBSTANCES (RoHS) ..... 144
www. .com [e-mail]1.800.561.8187

UNPACKING AND PREPERATION
10
This chapter describes how to set up and start the T3LCR Series LCR Meter.
Incoming Inspection
Environmental Requirements
Cleaning
How to Remove the Handle
After you receive the instrument,
perform the following
checks during unpacking according to the following
procedure:
Make sure that the packing box or shock-absorbing
material used to package the instrument has not been
damaged.
Check that all packaged items supplied with the meter
have been provided as specified:
LCR
Test Lead
Power Cord
D-sub
www. .com [e-mail]1.800.561.8187

T3LCR Series User Manual
11
If an abnormality is detected, contact the company and
transport the meter to your nearest TELEDYNE
sales or
service office. Save the packing box, shock-absorbing
material, and packaged items as you received them
in case
you need to mail the instrument to an authorized
TELEDYNE distributor or service center.
Set up the T3LCR Series where the following
environmental requirements are satisfied.
Operating Environment
Ensure that the operating environment meets the
following requirements:
Temperature: 0ºC to 50ºC
Temperature range
at calibration:
23ºC±5ºC (<1ºC deviation from the
temperature when performing
calibration)
Humidity: <70% at wet bulb temperature
-condensation)
Altitude:
0 to 2000m
To prevent electrical shock, disconnect the T3
LCR Series
power cable from the receptacle before cleaning. Use a
dry cloth or a cloth slightly dipped in water to clean the
casing. Do not attempt to clean the T3LCR Series
internally.
www. .com [e-mail]1.800.561.8187

UNPACKING AND PREPERATION
12
A handle kit is attached to the T3LCR Series:
1 Retracted
3 Carrying Position
2 Extended
Remove Handle
(Lift the handle perpendicular to the unit while pulling it in the direction of 1.)
www. .com [e-mail]1.800.561.8187

T3LCR Series User Manual
13
This chapter contains general information about T3LCR Series .The
information is organized as follows.
Introduction
Main Specifications
Feature overview
Thank you for purchasing an T3LCR Series LCR meter.
The TELEDYNE T3LCR Series is a general-purpose
LCR meter for incoming inspection of components,
quality control, and laboratory use.
The T3LCR Series is used for evaluating LCR
components, materials, and semiconductor devices over a
wide range of frequencies (10 Hz to 300 kHz) and test
signal levels (10.00mV to 2.00V & 100.0uA to 20.00mA).
With its built
-in comparator, the T3LCR Series can
output comparison/decision results for sorting
components into a maximum of ten bins. Furthermore,
by using the handler interface, the T3LCR Series can be
easily combined with a component handler, and a system
controller to fully automate component testing, sorting,
and quality-control data processing.
The list measure function permits entry of up to 10
frequencies or test signal levels points to be automatically
measured.
www. .com [e-mail]1.800.561.8187

Overview
14
Cs-Rs, Cs-D, Cp-Rp, Cp-D, Lp-Rp, Lp-Q, Ls-Rs, Ls-Q,
Rs-Q, Rp-Q, R-X, DCR, Z- - -D, Z-Q
Circuit Dissipation
Factor
Conversion
L
Lp
Rp
D=2
FLp/Rp=1/Q Ls=Lp/(1+D2)
Rs=RpD2/(1+D2
)
Ls
Rs D=Rs/2
FLs=1/Q Lp=(1+D2)Ls
Rp=(1+D2)Rs/D
2
C
Cp
Rp
D=1/2
FCpRp=1/Q Cs=(1+D2)Cp
Rs=RpD2/(1+D2
)
Cs Rs D=2
FCsRs=1/Q Cp=Cs/(1+D
2
)
Rp=Rs(1+D2)/D
2
Q=Xs/Rs, D=Rs/Xs,
Auto, Hold and Nominal range. Total 9 Ranges.
About Nominal ranges: The
T3LCR Series will
automatically select the best range according to the
nominal value.
Fast: 40 readings per second; 25ms/per reading*1
Medium: 10 readings per second; 100ms/per reading*1
Slow: 3 readings per second; 333ms/per reading*1
Y
ou can also
specify the averaging factor within the range
of 1 to 256 in steps of 1 to improve performance.
www. .com [e-mail]1.800.561.8187

T3LCR Series User Manual
15
Includes Internal, Manual, External and Bus Trigger.
0.05%@SLOW/MED
0.1%@FAST
Parameter Display Range
L 0.00001uH-9999.99H
C 0.00001pF-9999.99mF
R, X, |Z| -
G, B, |Y| 0.01nS-999.999S
D 0.00001-9.99999
Q 0.00001-99999.9
-179.999°-179.999°
-3.14159-3.14159
DCR -
-999999%-999999%
T3LCR1300: 10Hz-300kHz
T3LCR1100: 10Hz-100kHz
T3LCR1002: 10Hz-2kHz
Frequency Accuracy: ±0.01%
www. .com [e-mail]1.800.561.8187

Overview
16
AC:
10.00mV-2.00V (±10%)
CV mode:10.00mV-2.00V(±6%)
100.0uA-20.00mA (±10%)
CC mode:100.0uA-20.00mA(±6%) @2VMax
DCR: +2V, 0.066A(Max.), Output impedance fixed
30
30 , 50 and 100
Eliminates measurement errors due to stray parasitic
impedance in the test fixtures.
The primary parameter can be sorted into BIN1-BIN9,
AUX,
OUT and HI/IN/LO for each of the primary
measurement parameters.
The sequential mode or tolerance mode can be selected as
the sorting mode.
Absolute
value, deviation value, and % deviation value
can be used for setup.
Countable from 0 to 999999
www. .com [e-mail]1.800.561.8187

T3LCR Series User Manual
17
There is a maximum of 10 points.
Test frequency, test voltage, test current.
The comparator function enables you to set one pair of
lower and upper limits for each measurement point.
You can select from:
Judge with the first sweep parameter/Judge with the
second parameter/Not used for each pair of limits.
Up to 10 setup conditions can be written to/read from
the built-in non-volatile memory.
The front panel keys can be locked.
Complies with SCPI.
Universal serial bus jack, type-A (4 contact positions,
contact 1 is on your left); female; for connection to USB
memory devices only.
USB disk type: Flash disk only.
Format: FAT / FAT32 / exFAT.
Max memory size: 128GB.
www. .com [e-mail]1.800.561.8187

Overview
18
After a USB disk
has been inserted into the USB host
port of the LCR meter and if the meter detects that the
Ready. Press <Enter> to save screen. on the lower part
of the LCD screen.
If the keypad is not needed to enter a numeric value, a
and saved to the
USB disk by depressing the Enter key. If
the screen shot is saved successful
be shown in the message area at the bottom of the
screen. The location and name of the screenshot will also
be shown, for example:
F:\T3LCR1300\Screen\ScreenShot001.bmp.
www. .com [e-mail]1.800.561.8187
