TeleEye NF610 III Plus NF Series User manual

NF Series
Network Camera
NF610
Installation Guide

Notice:
Signal Communications Limited reserves the right to make improvements to the
product described in this manual at any time and without notice.
This manual is copyrighted. All rights are reserved. This manual may not be copied,
reproduced or translated in whole or part without prior consent from Signal Communications
Limited.
Tele Eye is a trademark of Signal Communications Limited and is registered in China, Hong Kong,
US and other countries.
All other trademarks are the property of their respective owners.
Copyright (c) 2003 Signal Communications Limited (A member of Tele Eye Group). All rights
reserved.
Version 1.1
Limits of Liability and Disclaimer of Warranty
Signal Communications Limited have taken care in preparation of this manual, but
makes no expressed or implied warranty of any kind and assume no responsibility for errors or
omissions. No liability is assumed for incidental or consequential damages in connection with or
arising out of the use of the information or accessories contained herein.
Features and specifications are subject to change without prior notice.

FCC Statement on Class B
WARNING
Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
NOTE
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and receiver.
 Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
 Consult the dealer or an experienced radio/TV technician for help.
Shielded cables must be used with this unit to ensure compliance with the Class
B FCC limits.

Table of Contents
PREFACE
BEFORE YOU BEGIN 1
SECTION 1
INTRODUCTION 4
•Features 5
SECTION 2
INTERFACE DESCRIPTION
•Model:NF610 6
SECTION 3
FIRST TIME SET UP OF THE NETWORK CAMERA
•Network Camera Setup with IP Setup Utility 8
•Network Camera Setup with Crossover Ethernet Cable 10
•Network Camera Setup with Built-in Web-based Configuration 10
SECTION 4
SYSTEM CONFIGURATION AND INSTALLATION
•General System Configuration 12
•What you need
•General Configuration of Network Camera 14
A1. For Internal LAN Access 17
A2. For Broadband Internet Connection with Static IP 18
SECTION 5
NORMAL OPERATIONS OF THE NETWORK CAMERA
•Using Built-in Web Server 19

SECTION 6
GENERAL TERMS DISCUSSION
•Registration Checking 22
•Video Mode 22
•Built-in Web Server 22
•Site Monitoring Method 23
SECTION A
APPENDIX
•IP Address Setup for Window 98/ME 24
•IP Address Setup for Window NT/2000/XP 27
•Router Configuration 38
SECTION B
SPECIFICATIONS
•Model: NF610 29

Tele Eye III+ Network Camera Installation Guide Page 1
Before You Begin
BEFORE YOU BEGIN
Modification of the Power Adapter
The connector of the power adapter might require some modifications before connecting it
to the Network Camera.
1. Use a cutting tool to cut off the connector of the adapter
2. Strip the plastic covering off from the cable. You should see the cable is of the coaxial
type
3.After stripping off the plastic cover, you should see the braided GND wrapping
around the plastic shield. Unwrap the braided GND and twist it into a single
wire.
4.Strip off the plastic shield to reveal the 12V wire
5.Now, you should have a 12V wire and a separated GND wire.
PREFACE
Plastic Covering
Braided GND
Plastic
Shield
12V wire
CAUTIONS: NEVER SHORT THE 12V AND GND WIRES. With
the power on, damages may be incurred to the adapter.

Tele Eye III+ Network Camera Installation Guide Page 2
Before You Begin
Repositioning of the Mounting Plate
At the bottom of the Network Camera is a mounting plate. The mounting plate can also be
removed and re-attached to the top of the Network Camera. The following is the procedure
for repositioning the mounting plate from the bottom to the top of the Network Camera.
IMPORTANT: TO PREVENT DISMANTLING OF THE NETWORK CAMERA, DO
NOT SIMPLY REMOVE ALL THE SCREWS FROM THE MOUNTING PLATE.
Please follow the procedures below.
1. Remove all the screws (1 – 4) from the bottom of the Network Camera.
2. Take off the plate.
3. Remove the 7
th
, and the 8
th
screws at the top of the Network
5
6 7 8
Bottom View
Top View
1
2 34
Wrong!!!

Tele Eye III+ Network Camera Installation Guide Page 3
Before You Begin
4. Re-secure the screws just removed to position 1 and 2 at the bottom of the Network
Camera. This is to prevent the dismantling of the camera.
5. Remove the screws in position 5 and 6.
6. Re-attach the screws just removed to position 3 and 4 at the bottom of the Network
Camera
7. Position and align the mounting plate to the screw holes at the top of the camera
8. Put on the rest of the screws to fasten the plate to the camera.

Tele Eye III+ Network Camera Installation Guide Page 4
Introduction
1
INTRODUCTION
The Tele Eye III+ Network Camera NF 610 is a brand new member of the Tele Eye III+
Network CCTV family. It combined the power of high performance imaging technology
and swift video transmission into a single module.
With the built-in web server, remote video surveillance can readily be conducted with
standard web browsers over the Internet or LAN. The availability of simple connections
with the Internet or LAN makes the construction of scalable network surveillance easy.
Further enhanced with the proprietary sureLINK technology, low cost dynamic IP
broadband Internet connection is also supported.
The Network Camera also comes with Intelligent Event Handling. With the embedded event
handling mechanism, the Network Camera is prepared to accept the challenges of real-life
situation such as alarm trigger or system failure. Actions will be taken automatically by the
camera to counter each different scenario.
With its many powerful features, remote video monitoring has never been made easier than
before. Simply connect to the Network Camera anytime, anywhere, and be ready to view
some high quality live streaming video, at your convenience.
SECTION

Tele Eye III+ Network Camera Installation Guide Page 5
Introduction
Features
•1/3” colour CCD
•Illumination 1 Lux
•Back light compensation
•Flexible connections – Internet, LAN, ADSL and cable modem
•Real time video transmission up to 30 fps over LAN for NTSC; up to 25 fps over
LAN for PAL
•Resolution up to 640x480 pixels
•Support static and dynamic IP
•Built-in web server
•Event-driven recording
•Composite video output
•Web video development tool
•Mobile video on pocket PC
•Event management
•Pre- & post-alarm recording
•Multiple users video access
•Single- & multi-site monitoring
•Internet clock synchronization

Tele Eye III+ Network Camera Installation Guide Page 6
Interface Description
2
INTERFACE
DESCRIPTION
Model: NF610
The rear panel of the Tele Eye III+ Network Camera NF610 is shown below:
Functional Description of NF610
Collision & Link LED Status
-COL LED: when on, indicates that collision is occurring on the network
-LINK LED: when on, indicates that
Tele Eye III+ Network Camera is connecting to the
network and ready to function
Ethernet Socket (10/100 Base-T)
-This socket is used for connecting
Tele Eye III+ Network Camera to the corporate
computer network (e.g. LAN)
ALARM & SWITCH Port
-This port is used for connecting the alarm sensor input
-It can also be remotely controlled by the Reception Software
SECTION

Tele Eye III+ Network Camera Installation Guide Page 7
Interface Description

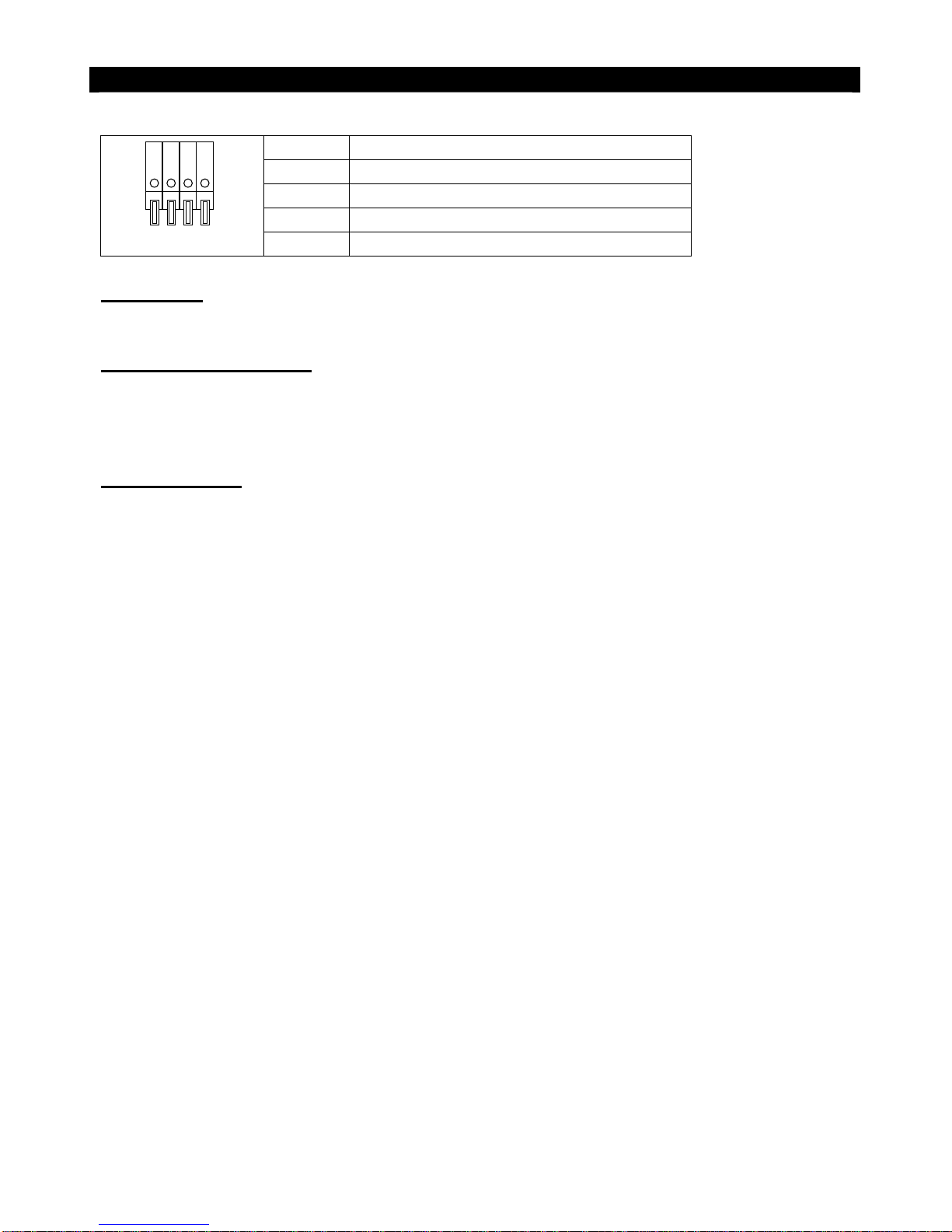

PIN Signal
P1 PIN for alarm device (NC / NO)
P2 Common GROUND
P3 Dry Contact
P2 P1P3P4
P4 Dry Contact
Power LED
-PWR LED: when on, indicates that the Network Camera has been power up successfully
VIDEO OUT Connector
-Standard BNC connector for color video
-A composite video signal should be supplied from this connector
Power Terminal
-A power terminal for the connection to the power supply (12V D.C.)

Tele Eye III+ Network Camera Installation Guide Page 8
First Time Setup of Network Camera
3
FIRST TIME SETUP OF THE
NETWORK CAMERA
Before installing the Network Camera, its IP address must be set so that an Ethernet
connection can be established to the Network Camera from a computer. In order to do this,
either the IP address of the Network Camera or the IP address of the PC should be modified.
This is very important since the Network Camera has default IP address, 192.168.0.2, which
might not be suitable for your existing network.
You can use either IP Setup Utility or Crossover Ethernet Cable for configuration of
Network Camera.
Network Camera Setup with IP Setup Utility
IP Setup Utility is a simple, user-friendly software to set a new IP address to a Network
Camera. To assign a new, valid IP address to the Network Camera, follow the steps
described below.
Step 1: Connect the Network Camera to your network by connecting a straight Ethernet cable from
the Network Camera Ethernet Port to a hub/switch. Alternatively, use a crossover Ethernet
cable to direct connect a computer with the Network Camera alone. Actually, there are
different approaches in installing the Network Camera to different types of network. For details
on installing Network Camera, please refer to Section 4 System Configuration and Installation.
IMPORTANT: IP Setup Utility can only be used to configure the Network Camera IP address within
the first 20 MINUTES immediately after the Network Camera is power up. After the first 20 minutes
expired, IP Setup Utility cannot configure the Network Camera IP at all. After this time frame has
been expired, you must turn off the Network Camera by disconnecting the power source from the
Network Camera, then power up the Network Camera again to regain the 20 minutes time window.
Step 2: Power on the Network Camera. The green power indicator light should be on. The LINK
indicator light should also be on. If not, check the power and the network connection between
the Network Camera and the hubs/switches/computer.
Step 3: Run IP Setup Utility from your computer.
SECTION

Tele Eye III+ Network Camera Installation Guide Page 9
First Time Setup of Network Camera

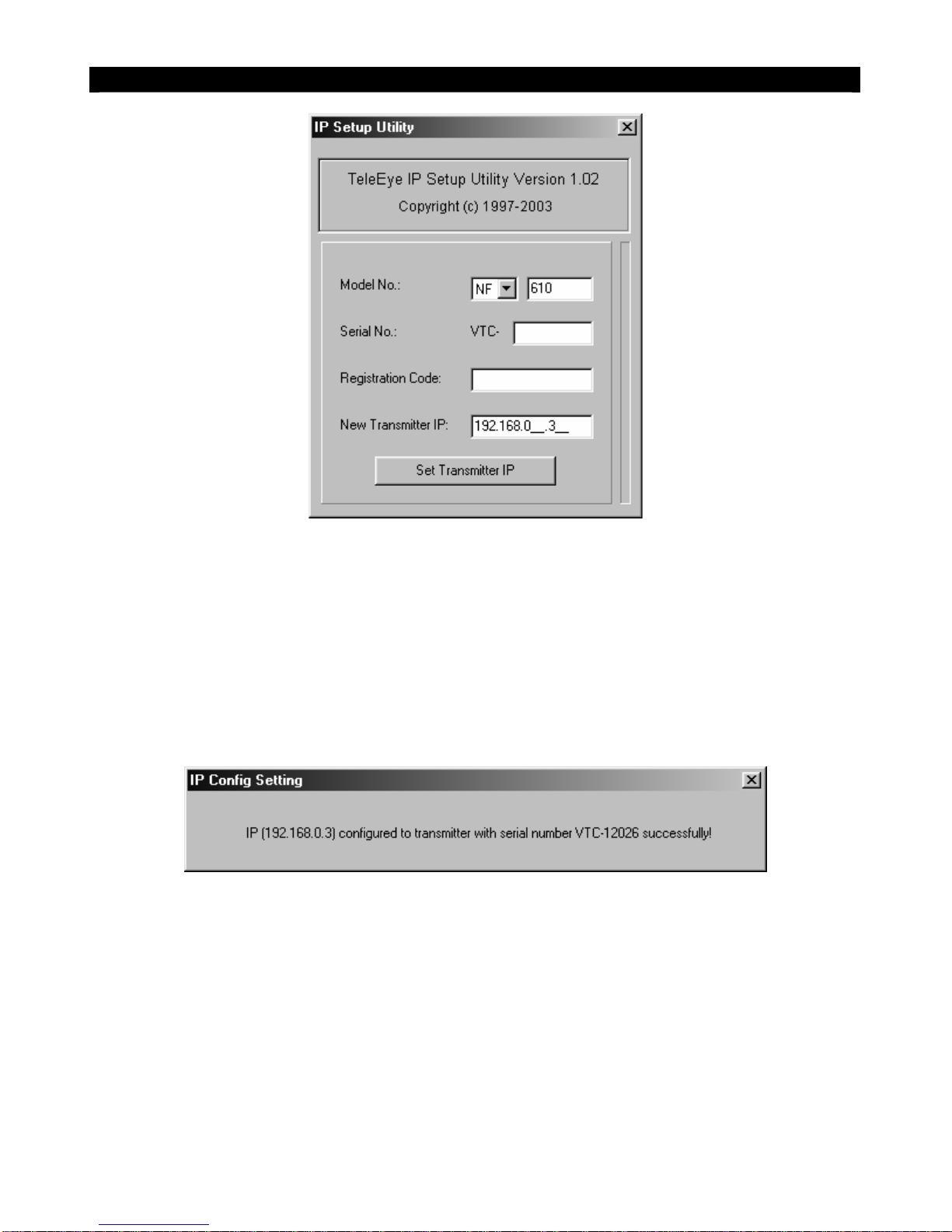

Step 4: Select “NF” and enter Model No. (e.g. NF-610).
Step 5: Enter the Network Camera Serial Number and Registration Code to the fields provided.
Step 6: Insert a new, valid IP address of your desire to the provided field (e.g. 192.168.0.3).
Step 7:Click on Set Transmitter IP button to set the Network Camera to the new IP address.
Step 8:The program should now searching through the network to verify that the IP address you
requested is not already in use. The indicator bar on the right side shows the progress of the
current operation. If the setup is successful, the following window message should appear.
The Network Camera should have a valid IP address by now. You can continue to setup
Network Camera using built-in web-based configuration.

Tele Eye III+ Network Camera Installation Guide Page 10
First Time Setup of Network Camera
Network Camera Setup with Crossover Ethernet Cable
Your computer is required to change the IP address (e.g. 192.168.0.3). Please refer to
Section A Appendix for a detailed descriptions for IP configuration on different operating
systems.
If your computer has changed the IP address, you can connect Network Camera by plugging
Crossover Ethernet Cable from your computer to Ethernet port of Network Camera. You
can continue to setup Network Camera using built-in web-based configuration.

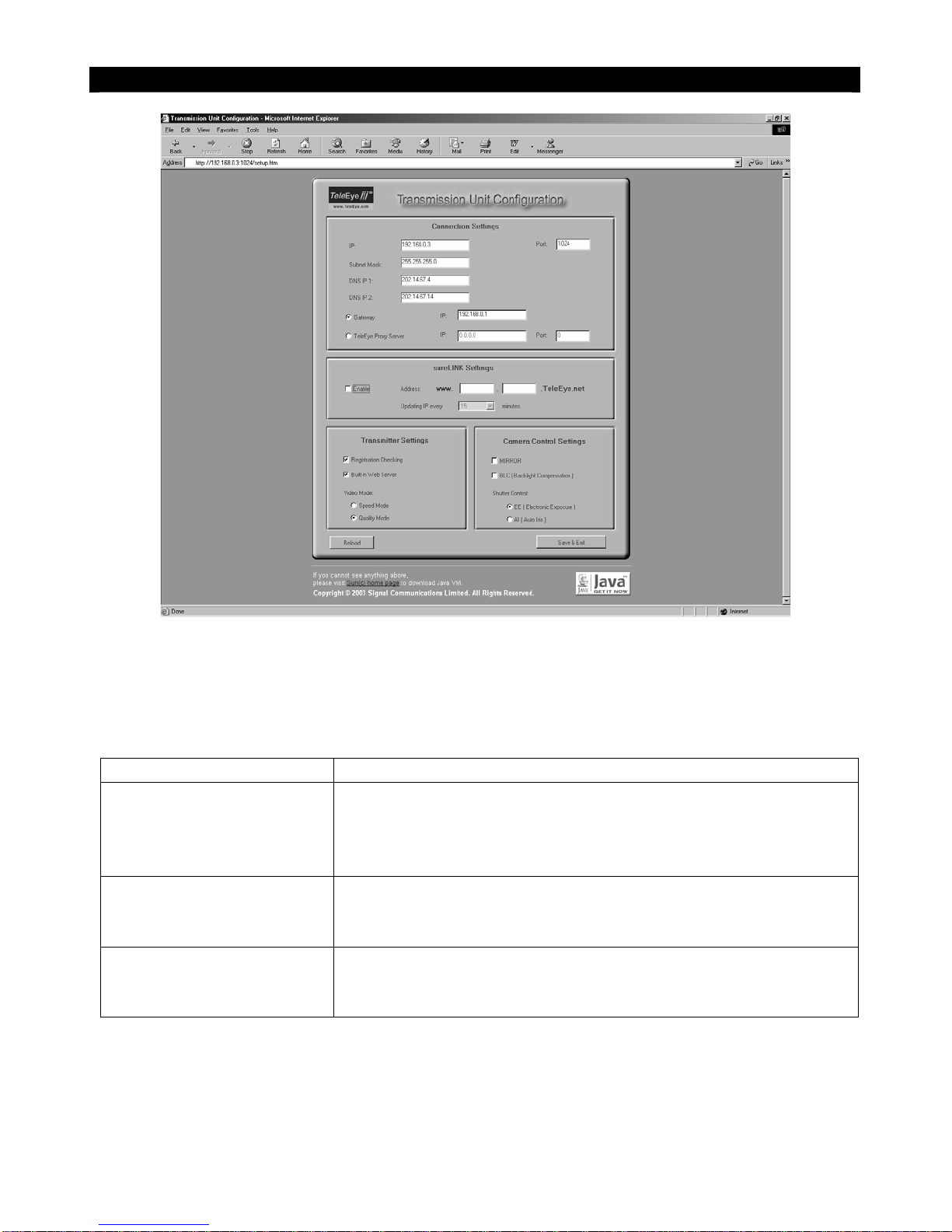

Network Camera Setup with Built-in Web-based Configuration
After you have assigned an IP address to your Network Camera, you can access Network
Camera configuration page in your web browser (e.g.
http://192.168.0.3:1024/setup.htm ). You
might need to enable Java in your web browser or to download the latest version of the Java
VM (go to
http://java.sun.com/getjava/index.html ).
To enter Network Camera configuration, follow the steps below:
Step 1: Enter default administrator password “000000” and click on Enter button. The following
page will be displayed and loaded with current Network Camera Settings.

Tele Eye III+ Network Camera Installation Guide Page 11
First Time Setup of Network Camera
Step 2: You can change the connection, sureLINK, transmitter properties and camera control
settings. You can reload the configuration by clicking Reload button. Click on Save & Exit
button to save the changes.
The description of each setting type is listed below:
Setting Type Description
Connection Settings You can set IP address, port, subnet mask, gateway and DNS
as well as
Tele Eye Proxy Server settings. For a detailed
description, please refer to section “System Configuration and
Installation”.
sureLINK Settings You can enable sureLINK support in Network Camera. For a
detailed description, please refer to section “sureLINK
Technology”.
Transmitter Settings You can setup Network Camera for the other functions. For a
detailed description, please refer to section “General Terms
Discussion”.

Tele Eye III+ Network Camera Installation Guide Page 12
System Configuration and Installation
4
SYSTEM CONFIGURATION
AND INSTALLATION
This section will discuss how to setup the Network Camera and modify its settings in details.
Installations of the Network Camera with different types of network will also be discussed.
Specifically, installations with the following types of network will be discussed.
Network Types:
A1. For Internal LAN Access
A2. For Broadband Internet Connection with Static IP
B1. For Broadband Internet Connection with Dynamic IP using Router
B2. For Broadband Internet Connection with Dynamic IP using Broadband Dialer
Procedures that are common to all configurations and installations approaches will be
discussed first followed by the steps that are specific to each particular network setup. The
configuration utility is web-based. Furthermore, it is assumed that a valid IP address has
been assigned to the Network Camera and a connection can be established to the Network
Camera.
What You Need
To configure and set up the Network Camera, the following basic items are required:
Hardware:
 Tele Eye III+ Network Camera
This is what you have purchased.
 PC - Minimum Requirement:
 Pentium II 350 MHz or above
 Windows 98/ME/NT/2000/XP Operating System
 64MB RAM for Windows 98/ME, 128MB RAM for Windows
NT/2000/XP
 Power Adaptor
A 12 VDC power adaptor.
SECTION

Tele Eye III+ Network Camera Installation Guide Page 13
System Configuration and Installation
 RJ-45 Network Cable
It is a shielded, straight-through RJ-45 network cable. The cable will connect
the
Tele Eye III+ Network Camera to the hub of the LAN for typical
application.
 Crossover Network Cable
Used to connect between a router and PC or the Network Camera
Software
 Web-browser
A standard web-browser such as IE, and Netscape…etc.
 Information
 Valid IP address for the Network Camera.
 Administrator Password for the Network Camera (The default
administrator password is “000000”. You can change it in the
Reception Software)
 Port number for the Network Camera (default value is 1024)
 Your network subnet mask
 Your network gateway address (required by Network Types B1 & B2)
 2 DNS addresses ( Please ask your ISP for this information; required by
Network Types B1 & B2)

Tele Eye III+ Network Camera Installation Guide Page 14
System Configuration and Installation
General Configuration of Network Camera
After you prepared all the things discussed in previous section, you should be ready to
configure the Network Camera.
Note: Make sure the computer in use is capable of connecting to the Internet or the Local Area
Network (LAN). Also make sure your browser supports Java.
Step 1: Plug the RJ-45 network cable into the socket on the hub's/switch’s rear panel. Afterwards,
plug the other end of the network cable into the socket on the
Tele Eye III+ Network
Camera's Ethernet Port.
Step 2: Power on the hub/switch
Step 3: Another way to connect to the Network Camera is to attach a crossover Ethernet cable from
a computer to the Network Camera directly.
Step 4: Turn on the
Tele Eye III+ Network Camera. The green POWER light should be activated if
the Network Camera is successfully turned on. The LINK indicator light should also be on if
it is connected to the network. If the POWER light remains off, check the power supply and
connection. If the LINK light remains off, check the network connection.
Step 5: If a valid IP address has not been assigned to the Network Camera, run IP Setup Utility
from your computer.
Step 6: Enter the Network Camera Serial Number and Registration Number to the fields provided.
Step 7: Insert a valid, new IP address of your desire to the provided field.
Step 8: Press on the Set Network Camera IP button to set the Network Camera to the new IP
address.
Step 9: Run your favourite web-browser
Step 10: You are now ready to configure the Network Camera. Enter the Network Camera’s IP
address and port number to the address field of your web-browser. The format should
conform with:
http://xxx.xxx.xxx.xxx:yyyy/setup.htm where xxx.xxx.xxx.xxx is IP
address and yyyy is port number.

Tele Eye III+ Network Camera Installation Guide Page 15
System Configuration and Installation
The Network Camera’s web-based configuration should already be displayed in your web-
browser. It should be similar to the captured screen shown below. Please enter the default
administrator password “000000” to login.
