Televes 233306, 233311 User manual

www.televes.com

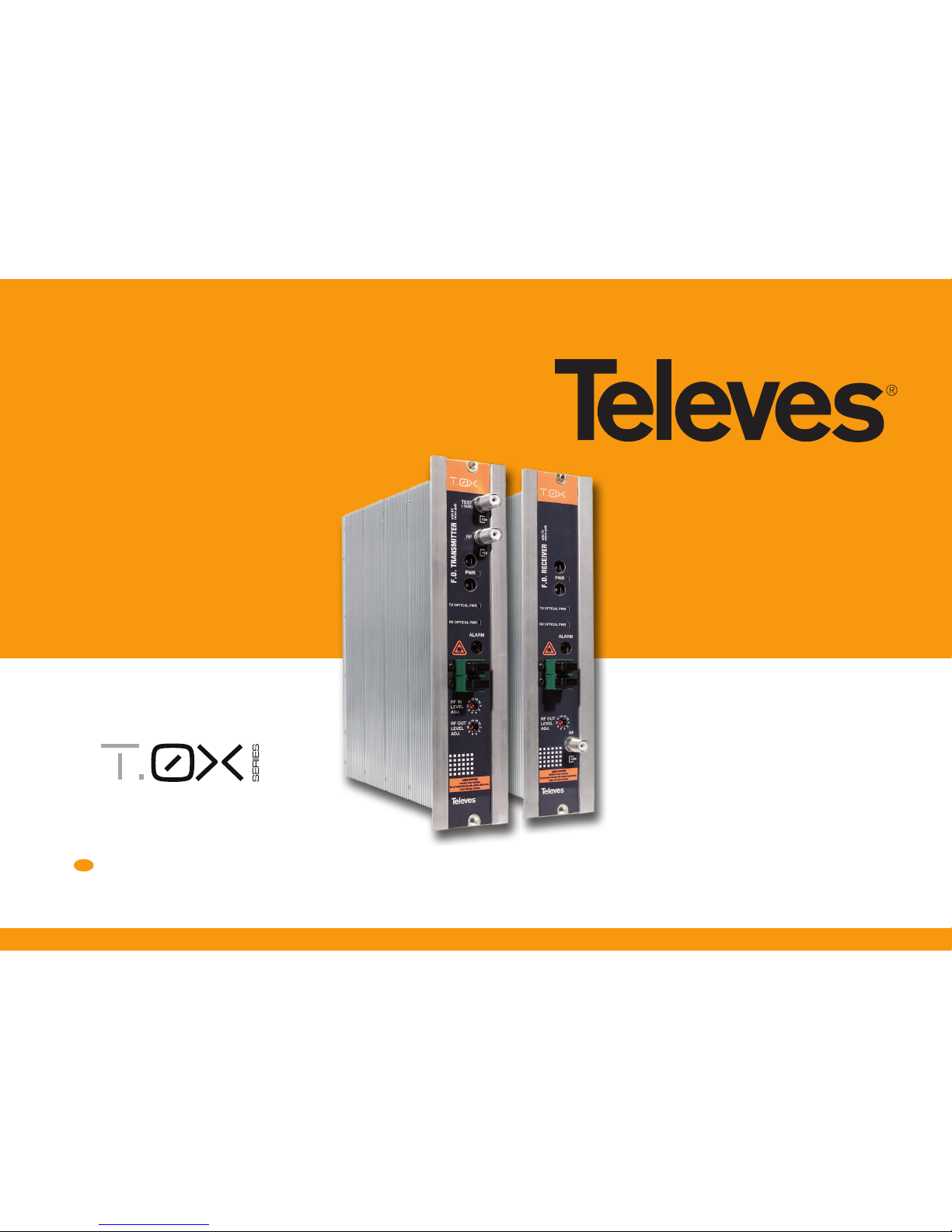

Optical Fiber Transmitter and Receiver
with return path channel
EN User manual
Refs. 233306, 233311
233411, 234305
234311, 233501
233601

ENGLISH
EN
Index
1. Technical specifications ...................................................................................................................... 6
2. Ordering information ........................................................................................................................... 10
3. Mounting ............................................................................................................................................. 11
3.1. 19” rack mounting ...................................................................................................................... 11
4. Product description ............................................................................................................................ 12
4.1. Optical transmitter ................................................................................................................... 12
4.2. Optical receiver ......................................................................................................................... 13
4.3. Power supply unit ..................................................................................................................... 14
5. Example applications .......................................................................................................................... 15
6. Tables for attenuation and gain installations calculation .................................................................... 19
Optical Fiber Transmitter and Receiver

Optical Fiber Transmitter and Receiver 4
Safety instructions:
Caution Statements
Product inspection - Inspect the equipment
for shipping damage. Should any damage be
discovered, immediately le a claim with the carrier.
Important Safety Instructions - To ensure proper
installation and operation, take a moment to read
this guide before proceeding with the installation.
If you have any questions or comments about the
T.0X Series Optical Fiber Transmitters and Receivers
please contact your dealer.
WARNING: TO PREVENT FIRE OR ELECTRICAL SHOCK
DO NOT EXPOSE TO RAIN OR MOISTURE.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER.
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
PERSONNEL.
A product and cart combination should be
moved with care. Quick stops, excessive force
and uneven surfaces may cause the product and
cart combination to overturn.
The lightning ash with arrow head symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
“dangerous voltage” within the product’s
enclosure that may be of sucient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to
the presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the product.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS PRODUCT
TO RAIN OR MOISTURE. DO NOT OPEN
THE CABINET, REFER SERVICING TO
QUALIFIED PERSONNEL ONLY.
CAUTION: TO PREVENT ELECTRIC SHOCK, DO NOT
USE THIS (POLARIZED) PLUG WITH AN
EXTENSION CORD RECEPTACLE OR OTHER
OUTLET UNLESS THE BLADES CAN BE FULLY
INSERTED TO PREVENT BLADE EXPOSURE.
Important Safety Instructions
1. Read and Follow All Instructions - All the safety
and operating instructions should be read prior to and
followed while operating this product.
2. Retain Instructions - The safety and operating
instructions should be retained for future reference.
3. Heed Warnings - All warnings on the product and
in the operating instructions should be adhered to
4. Cleaning - Disconnect this product from any
electrical source before cleaning. Use a damp cloth; do
not use liquid or aerosol cleaners.
5. Attachments - Do not use attachments that are not
recommended by the product manufacturer as they
may cause hazards.
6. Water and Moisture - Do not use this product near
any source of water.
7. Mounting – Do not place this product on an
unstable cart, stand, tripod, bracket, or table. The
product may fall, causing serious injury to persons or
nearby objects, and serious damage to this product.
Use only with a cart, stand, tripod, bracket, or table
recommended by the manufacturer, or sold with
the product. Any mounting of the product should
follow the manufacturer’s instructions, and should
use a mounting accessory recommended by the
manufacturer.
8. Ventilation – Slots and openings in the cabinet
are provided for ventilation and to ensure reliable
operation of the product. These openings should
never be blocked or covered in any way. This product
should not be placed in any case, cabinet, or rack unless
proper ventilation is provided and the manufacturer’s
instructions have been adhered to.
9. Power Sources - This product should be operated
only from the type of power source indicated on the
marking label.
10. Grounding or Polarization - Do not bypass or
defeat electrical plug polarization or grounding.
Doing so will violate the warranty and may pose a risk
of re or electrocution.
11. Wire Protection – Ensure all connected wiring is

EN
5
connected to cables to prevent the laser beam from
damaging the eyes.
Do not turn the transmitter on without a ber optic
cable connected to it.
Warning.-
This product emits an invisible laser beam. Avoid
contact with laser radiation. The use of binoculars
or magnifying glasses may increase damage caused
to the eyes.





According to EN60825-1_ 2007
The use of the equipment in any other way than the
specied in this manual may lead to exposure to
harmful radiation.
Do not use the equipment in any way that does
not comply with the operating instructions or
in any conditions that exceed the stipulated
environmental specications.
Never point the laser beam at people or animals.
16. Replacement Parts - Ensure that repairs are
performed by qualied technicians and that only
manufacturer supplied or authorized parts are used.
17. Safety Check – Upon completion of any service
or repairs to this product, ensure safety checks
to determine that the product is functioning per
manufacturer specications are performed.
18. Heat - The product should be situated away from
heat sources such as radiators, heat registers, stoves,
or other products (including ampliers) that produce
heat. Ensure that ambient temperature is maintained
in the manufacturer specied operating range.
Optical connection instructions:
An SC/APC single mode ber cable must be used.
Remove the protective cover from the optical
connector on the unit and the cap on the cable
connector.
Carefully align the guides on both connectors
when plugging a cable to the device, then push the
connector all the way in.
Take special care to avoid damaging the unprotected
ends of the connectors, as small scratches,
impurities and/or particles of dirt, oil, grease, sweat,
etc. may signicantly aect the quality of the signal.
To clean the ends of the connectors, gently rub
with a lint-free lens cleaning cloth, dampened
using additive-free isopropyl alcohol. Make sure the
alcohol evaporates fully before connecting. Keep
the connector covers and cable caps in a safe place
in case they are needed in the future. Always t the
covers on the connectors of devices that are not
routed correctly to avoid damage including pinching,
excessive bends, or compression.
12. Electrical Supply, Grounding, and Surge
Protection – Ensure that all local or national electrical
codes are followed. Seek the advice of a licensed
electrician, profesional engineer, or other licensed

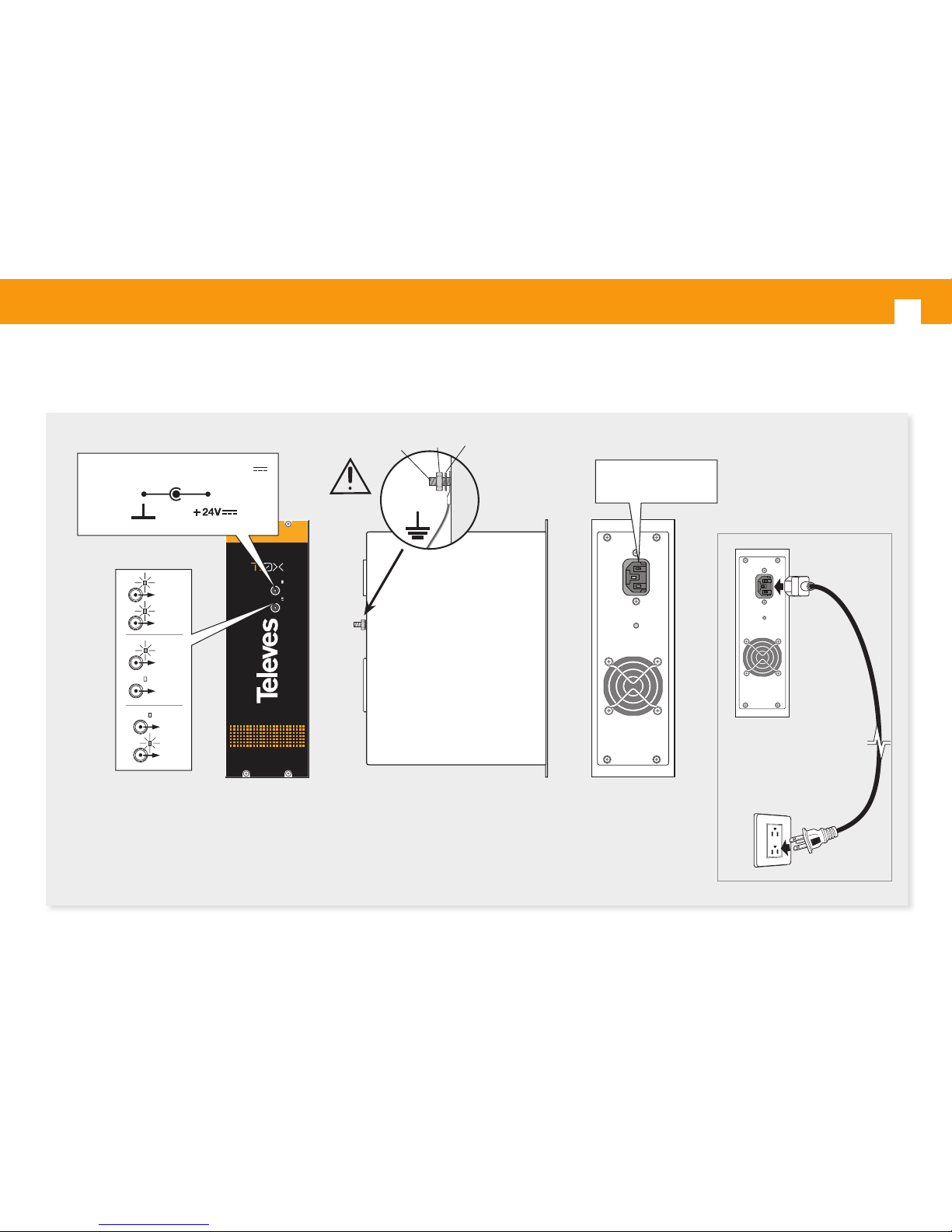

expert. See example wiring gure.
13. Power Lines - Always use caution and avoid
operating this or any connected equipment near
uninsulated power line or any other hazards.
14. Object and Liquid Entry - Never allow objects or
liquid of any kind into this product through openings.
Doing so could result in re or electric shock.
15. Servicing – There are no user serviceable parts. Do
not attempt to service this product or remove covers.
Doing so may expose you to dangerous voltage or
other hazards. Refer all servicing to qualied service
personnel. Examples of damage requiring service
include but are not limited to:
- Damage to power-supply wiring.
- If liquid has been spilled, or objects have fallen into
the product.
- If the product has been exposed to rain or water.
- If the product does not operate normally by
following the operating instructions. Adjust only
those controls that are covered by the operating
instructions as an improper adjustment of other
controls may result in damage and will often
require extensive work by a qualied technician to
restore the product to its normal operation.
- If the product has been dropped or physically
damaged.
- When the product exhibits a distinct change in
performance.

Optical Fiber Transmitter and Receiver 6
1. Technical specifications
Optical transmitters 233306 233311 233411 234305 234311
RF
Input/Output
Frequency range Forward channel MHz 54 - 2150
Return channel ---- ---- 5 - 42 ---- ----
Maximum input level for
CSO & CTB >= 60dB (1)
54 - 870 MHz dBmV 31 27 27 25 27
950-2150 MHz 20
Input level regulation margin (in 2 dB steps) dB 0-18
Output level regulation margin (in 2 dB steps) dB ---- ---- 0-18 ---- ----
Return path maximum RF output level dBmV ---- ---- 52 (2) ---- ----
Equivalent input noise EIN 850 MHz dBm/Hz -150
2000 MHz - 146
Flatness dB ± 1.5
Return losses dB >= 10
Impedance ohm 75
Test port attenuation (typical) dB 16
Optical output
(forward
channel)
Laser type MQW-DFB
Wavelength nm 1310 ± 20 1550 ± 20
Output optical power mW/dBm 4 / 6 10 / 10 10 / 10 2.5 / 4 10 / 10
Optical input
(return
channel)
Optical device type ---- ----
InGaAs Pin Photodiode ---- ----
Wavelength nm ---- ---- 1200 -1600 ---- ----
Detection bandwidth MHz ---- ---- 1 - 3000 ---- ----
Max. Optical power received mW/dBm ---- ---- 2 / 3 ---- ----
General
Powering/Consumption 12 Vdc mA 210 270 330 265 325
24 Vdc 104 140 170 140 160
RF connectors type female F
Optical connectors SC/APC
Operating temperature Fº +23 ··· +113
Weight lbs 1.87 1.87 1.98 1.87 1.87
Dimensions inches 1.96 x 8.54 x 6.88
(1) Input: 41 TV CH CENELEC and 1 complete satellite transponder. The input attenuator in 0dB position.
(2) According to DIN45004B.

EN
7
Optical receivers 233501 233601
RF
Input/Output
Frequency range Forward channel MHz 54 - 2150
Return channel ---- 5 - 42
Maximum Output Level for
CSO and CTB >= 60dB (1)
54 - 870 MHz dBmV 33
950-2150 MHz 30
Output level regulation margin (in 2 dB steps) dB 0 - 18
Return path maximum input level (2) dBmV ---- 35
Return path equivalent input noise, measured at 30 MHz and the
transmitter output connected directly to the receiver dBm/Hz ---- -152.5
Flatness dB ± 1.5
Return losses dB >= 11
Impedance ohm 75
Optical input
(forward channel)
Optical device type InGaAs Pin Photodiode
Wavelength nm 1200 -1600
Detection bandwidth MHz 1 - 3000
Maximum Optical power received mW/dBm 4 / 6
Optical output
(return channel)
Laser type ---- DFB
Wavelength nm ---- 1310 ± 20
Maximum output power mW/dBm ---- 4 / 6
General
Powering/Consumption 12 Vdc mA 300 355
24 Vdc 155 175
RF connectors type female F
Optical connectors SC/APC
Operating temperature Fº +23 ··· +113
Weight lbs 1.87 1.98
Dimensions inches 1.96 x 8.54 x 6.88
(1) Output: 42 TV CH CENELEC and 1 complete satellite transponder. The output attenuator in 0dB position.
(2) According to DIN45004B.

Optical Fiber Transmitter and Receiver 8
Amplier
5575
Frequency range MHz 46 ... 862 Connector type “F”
Gain dB 44 ± 2.5 Powering V 24
Regulation margin dB 20 Consumption at 24 V : mA 450
Output level (at 60 dBc): dBmV 45 (42 CH CENELEC) Test port dB -30
Power Supply Unit
563901
Mains voltage V~ / Hz 108 - 132 / 50 - 60 Total max. current
(output1 + output2): A 5 (24V )
Output voltage V 24 Max. current per output A 4 (24V )
1.5. Amplier technical specications
1.6. Power Supply Unit technical specications
1.7. Block diagram
Diplexer
Fwd path / Rtn path
RF INPUT
(forward path)
RF OUTPUT
(return path)
Attenuator
Forward path
Converter
RF  FO
Forward path
Control
LED Relay
Attenuator
Return path Return path
Converter
RF  FO FO INPUT
Return path
Return path
Control
LED Relay
FO OUTPUT
Forward path
PWR PWR
ref. 233311
ref. 233306
ref. 233411
ref. 234305
ref. 234311
ref. 233311
ref. 233306
ref. 233411
ref. 234305
ref. 234311
ref. 233411
234305
233311
233306
233411
234311

9
Diplexer
Fwd path / Rtn path RF OUTPUT Fwd path
RF INPUT Rtn path
Return path
attenuator
Converter
RF  FO
Return path
control
LED Relay
Forward path
attenuator
Forward path

Converter
FO  RF
FO OUTPUT
Return path
ref. 233601
ref. 233501
ref. 233601
Forward path
control
LED Relay
FO INPUT
Forward path
233501
PWR
233601
PWR
ref. 233501
ref. 233601

Optical Fiber Transmitter and Receiver 10
2. Ordering information
Fiber Optics
233306 T.0X Optical Transmitter (1310nm/6dBm)
233311 T.0X Optical Transmitter (1310nm/10dBm)
233411 T.0X Optical Transmitter (1310nm/10dBm) / Return path receiver
233501 T.0X Optical Receiver
233601 T.0X Optical Receiver / Return Path Transmitter (1310nm/6dBm)
234305 T.0X Optical Transmitter (1550nm/4dBm)
234311 T.0X Optical Transmitter (1550nm/10dBm)
2337 T.0X 2-way Optical Splitter
2339 T.0X 4-way Optical Splitter
234401 T.0X 8-way Optical Splitter
234501 T.0X 16-way Optical Splitter
234601 T.0X 32-way Optical Splitter
563901 Power Supply Unit (110 Vac UL)
SMATV
563701 T.0X 8PSK-QAM TWIN Transmodulator
555902 T.0X CDC Headend Manager IP
Accessories
7234 Programming Unit
5301 19in Chassis (7 modules+1PSU)
422603 Control BUS lead T.0X L=1 m
140057 Power Bus Jumper (15 inches)
When ordering, please, specify reference number as per table below.

EN
11
3. Mounting
3.1. 19” rack mounting
UQQA-S2-T

UQQA-S2-T

UQQA-S2-T

UQQA-S2-T

UQQA-S2-T

UQQA-S2-T


TEST
(-12dB)
RF
TX OPTICAL PWR
RF IN
LEVEL
ADJ.
ALARM










PWR
TX




5301
F.O. transmitter
T.0X Headend
563901
Optical
output

Optical Fiber Transmitter and Receiver 12
4. Product description

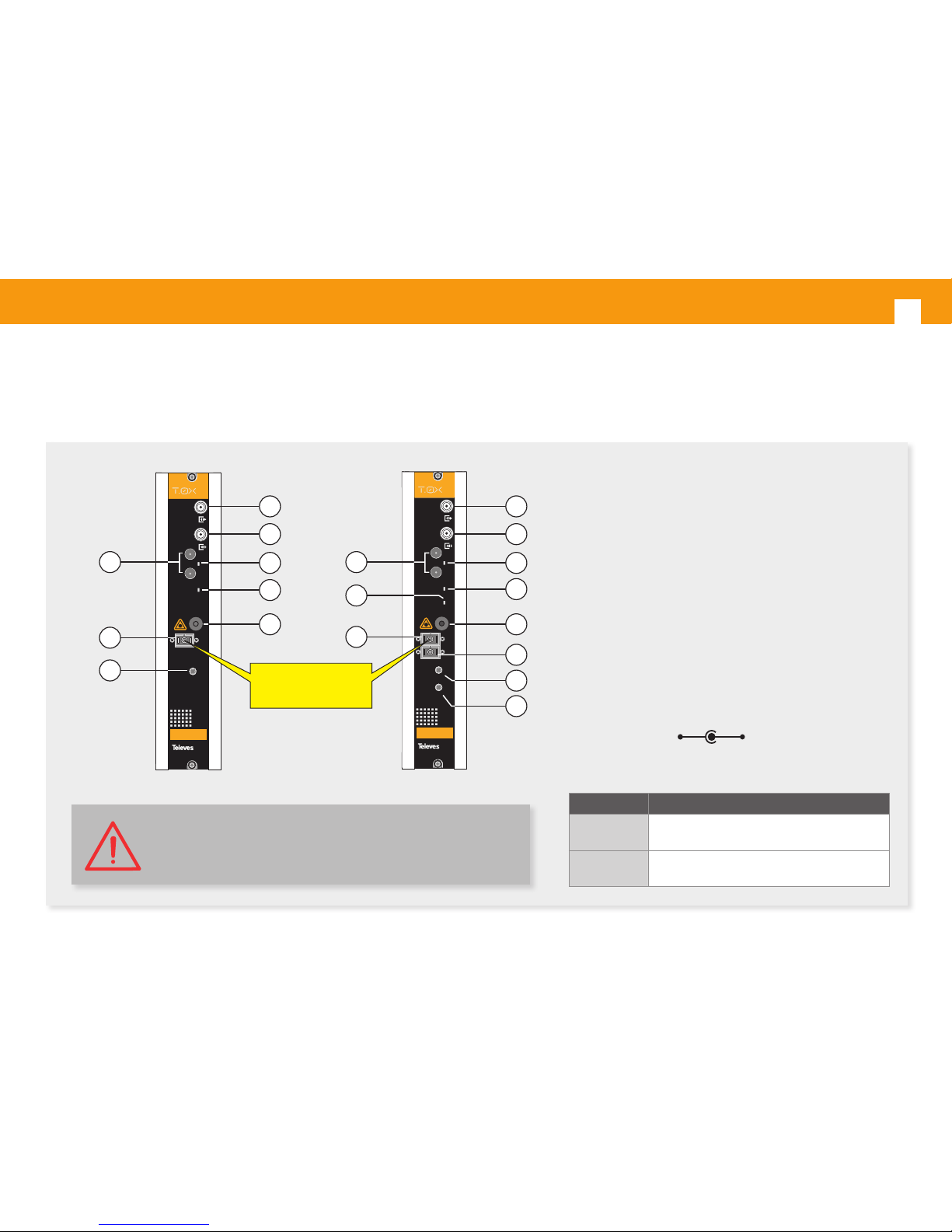

4.1. Optical transmitter





























































 

























1. Test output (-16dB)
2. RF Input
54-2150 MHz (forward path)
5 - 42 MHz (return path)
3. Power
4. Power LED
5. Forward path power LED
6. Return path power LED
7. Alarm connector
8. Forward path optical output
9. Return path optical input
10. Forward path RF attenuator
11. Return path RF attenuator
CAUTION:
The use of the device outside of the specications provided in this
user manual can lead to hazardous radiation exposure.
LED ON Indicates
TX Optical PW Forward path optical power delivered between
9.5 to 10.5dBm
RX Optical PW Return path optical level received between -7
to 3dBm
Ground +12 ... 24V
Ref. 233306
Ref. 233311
Ref. 234305
Ref. 234311 Ref. 233411

EN
13

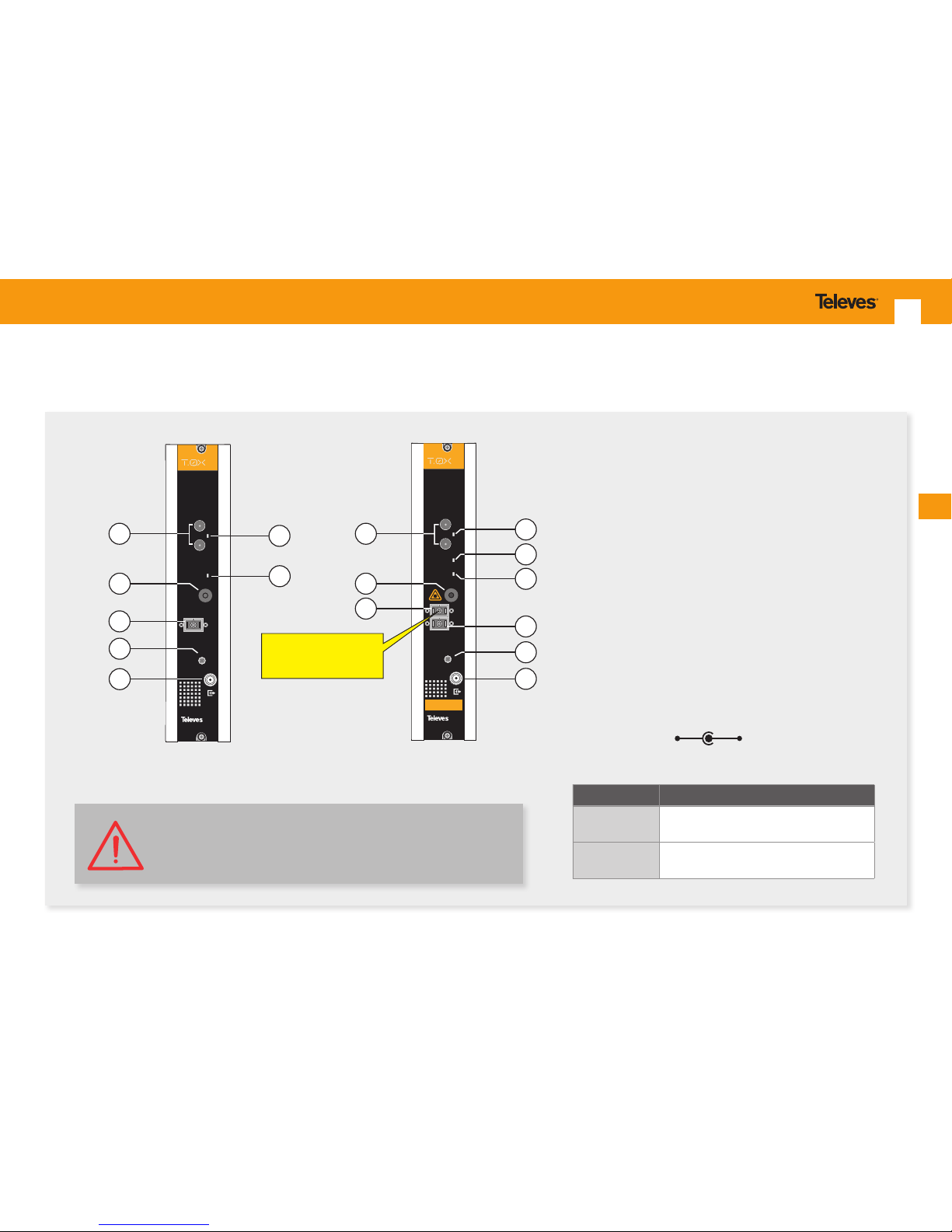

4.2. Optical receiver
1. Power
2. Power LED
3. Forward path power LED
4. Return path power LED
5. Alarm connector
6. Return path optical output
7. Forward path optical input
8. Return path attenuator
9. RF output
54 - 2150 MHz (forward path)
5 - 42 MHz (return path)
CAUTION:
The use of the device outside of the specications provided in this
user manual can lead to hazardous radiation exposure.

RF
TX OPTICAL PWR
RF OUT
LEVEL
ADJ.
ALARM










PWR
RX OPTICAL PWR
TX
RX
 





RF
RX OPTICAL PWR
RF OUT
LEVEL
ADJ.
ALARM










PWR
RX
2
1
4
7
6
8
2
1
9
3
5
4
5


8
9
7
Ref. 233501 Ref. 233601
LED ON Indicates
RX Optical PW Forward path optical power received
between -10 to 5dBm.
TX Optical PW * Return path optical power delivered
between 5.5 to 6.5dBm.
* other options under request
Ground +12 ... 24V

Optical Fiber Transmitter and Receiver 14
4.3. Power Supply Unit
NOTE: Maximum output is 4 amps. Use second output if more than 4 amps is needed.
24V: OK
0V: Overload or
short circuit
LEDS
Mains
108 - 132V~ 50/60Hz
Star washer
M4 nut
M4x10
Grounding
connection


















Connectors to power modules (24V )

EN
15
5. Example applications
These technical specications are maximums and
should be complied with appropriately.
Use the calculations in the table shown below and
the following formulas to calculate the RF input
level:
EIN= EINn +10×log(BW) [1]
C/N=Vin - EIN [2]
where:
• EIN stands for equivalent input noise. This is
the RF noise that would have to be present
at the input of the transmitter in an ideal
system that did not add noise, in order to
obtain the same output level at the output of
the receiver in the real system (which always
add noise).
• EINn is the EIN for a bandwidth of 1Hz.
• BW is the bandwidth of the RF signal.
• Vin is the RF input level, and is given in dBm.
Examples:
Opt. Link
attenuation
(dB)
Gain
at 870 MHz
(dB)
EINn
(dBm/Hz)
Gain
at 1.5 GHz
(dB)
EINn
(dBm/Hz)
Gain
at 2.15 GHz
(dB)
EINn
(dBm/Hz)
0 16.2 -150.4 17.0 -150.4 17.4 -146.4
2 12.3 -148.4 13.13 -148.9 13.4 -145.7
4 8.7 -146.6 9.4 -147.0 9.7 -144.9
4.5 7.7 -145.85 8.4 -146.3 8.7 -144.6
5 6.6 -144.9 7.4 -145.6 7.7 -144.2
5.5 5.6 -144.1 6.4 -144.8 6.7 -143.7
6 4.6 -143.3 5.4 -144.1 5.7 -143.2
6.5 3.6 -142.5 4.4 -143.2 4.7 -142.7
7 2.6 -141.6 3.4 -142.4 3.7 -142.1
7.5 1.6 -140.8 2.4 -141.6 2.7 -141.5
8 0.6 -139.9 1.4 -140.7 1.7 -140.8
8.5 -0.3 -139.1 0.4 -139.8 0.7 -140.1
9 -1.3 -138.2 -0.5 -139.1 -0.3 -139.4
9.5 -2.3 -137.25 -1.5 -138.1 -1.3 -138.7
10 -3.3 -136.35 -2.5 -137.2 -2.2 -138.0
10.5 -4.3 -135.4 -3.5 -136.3 -3.2 -137.2
11 -5.3 -134.5 -4.5 -135.5 -4.3 -136.3
11.5 -6.3 -133.5 -5.5 -134.47 -5.3 -135.5
12 -7.3 -132.55 -6.5 -133.5 -6.3 -134.6
12.5 -8.3 -131.6 -7.5 -132.57 -7.3 -133.7
13 -9.3 -130.6 -8.5 -131.6 -8.3 -132.8
13.5 -10.3 -129.7 -9.5 -130.65 -9.3 -131.9
14 -11.3 -128.7 -10.5 -129.67 -10.3 -131.0
14.5 -12.3 -127.7 -11.5 -128.7 -11.3 -130.1
15 -13.3 -126.7 -12.5 -127.7 -12.3 -129.2
15.5 -14.3 -125.8 -13.5 -126.7 -13.3 -128.2
16 -15.3 -124.8 -14.5 -125.7 -14.3 -127.3
16.5 -16.3 -123.8 -15.5 -124.8 -15.3 -126.3
17 -17.3 -122.8 -16.5 -123.8 -16.3 -125.4
Measurements made using a 6.1dBm transmitter feeding 3 miles of ber cable. An optical attenuator was used at the optical
receiver’s input.

Optical Fiber Transmitter and Receiver 16
the row of 8 dB of loss calculated for the optical
ber link in the value of 0.6 dB, which would
correspond EINn =-139.9 dB/Hz.
Apply the formula [1] and we obtain:
EINTV= -139.9 + 10×log(5×106)= -72.9 dBm
Now apply the formula [2] to calculate the C/N, as
follows:
C/NTV=Vin - EINTV
C/NTV = -26 dBm -(- 72.9 dBm) = -26+72.9
Then, C/NTV = 46.9 dB
In practice, combining satellite and o-air/CATV
channels makes the o air/CATV C/N 1dB worse.

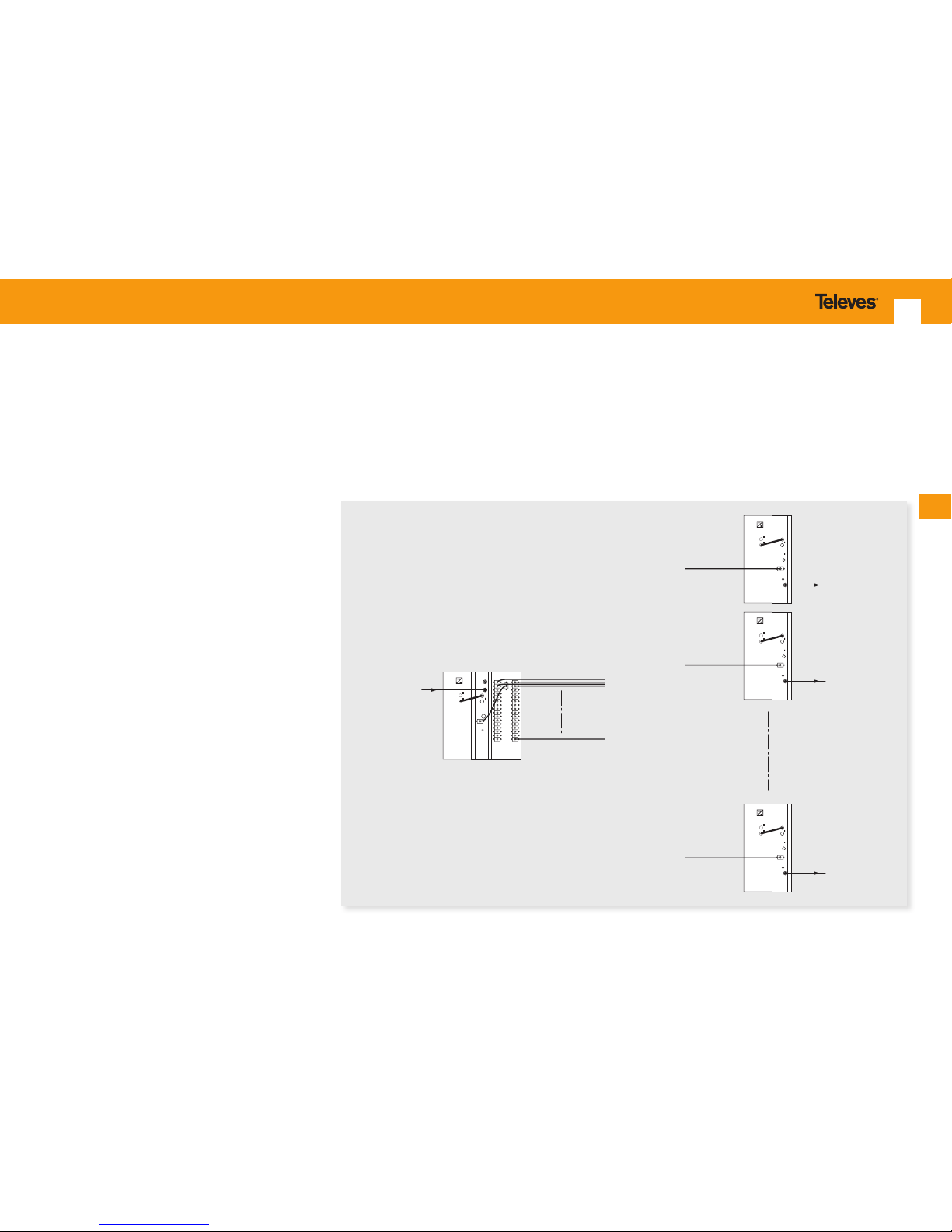

Example 1
Calculate the C/N at the output of the optical
receiver (C/N link), in the installation of the gure
below:
This is a link where the optical signal is split
between 4 bers of 0.62 miles (1Km), using a
splitter ref. 2339. The signal received at the other
end is converted back to RF using of the optical
receiver ref. 233501.
The transmitter input levels:
- 23 dBmV (-26 dBm 42CH CENELEC) analog
channels, o-air/CATV band.
- 13 dBmV (-36 dBm) digital channels, o-air/
CATV+SAT.
Analog terrestrial channel bandwidth: 5 MHz
Satellite digital transponder bandwidth: 27 MHz
On the other hand:
• 0.62 miles (1Km) optical ber is equivalent to 0.4
dB of attenuation.
• The splitter features 6.8 dB loss.
• The 2 ber optic connectors represent 0.8 dB (2
× 0.4).
Therefore, total losses of the optical ber link are:
FO losses+Optical splitter losses+Connectors losses
This is: 0.4 + 6.8 + 0.8 = 8 dB
Now we use the formulas and data given in the
table above.
For the o-air/CATV band, we consider the column
of the Gain at 807 MHz. This column intersects with




INPUT signal
o-air/
CATV+SAT
RF signal
o-air/
CATV+SAT
0.62 miles
(1 Km)
RF signal
o-air/
CATV+SAT
RF signal
o-air/
CATV+SAT
RF signal
o-air/
CATV+SAT
(1)
(2)
(4)
(3)

EN
17
For the o-air/CATV band, in the column Gain at
807 MHz
EINn (TV)= -122.8 dBm/Hz
G(807 MHz)= -17.3 dB
And for SAT band, look in the Gain at 2.1 GHz
column.
• The 2 ber optic connectors represent 0.8 dB.
Therefore, the total losses of the ber optics are:
0.4 + 16 + 0.8 = 17.2 dB
(let’s take 17 dB for this case, maximum value
shown in the table)
The table provides the following information:
Now we do the calculation for digital satellite
channels, following the same process above, but
by looking at the column Gain at 2 .1 GHz of the
table (band in which are delivered digital channels)
and the following results :
EINn= -140.8 dB/Hz
EINSAT = -140.8 + 10×log(27×106) = - 65.7 dBm
As the input level is -36 dBm, C/N is:
C/NSAT = -36-(-65.7) = -36 + 65.7
C/NSAT = 29.7 dB
Example 2
Let’s repeat the example above but applied to an
installation with a 32 output optical splitter. The
channels will be digital only.
Thus, the TV channels will be COFDM channels
with a C/NCOFDM = 23 dB.
SAT channels will be DVB-S2, with a
C/NDVBS2= 14 dB.
The transmitter input level will be the same for TV
and SAT: 19 dBmV (-30dBm).
The bandwidth will be now:
For COFDM: BW = 8×106 Hz (8 MHz)
For SAT: BW = 27×106 Hz (27 MHz)
As in Example 1, the attenuations are:
• 0.62 miles (1Km) of ber is 0.4 dB.
• The 32 output optical splitter represents about
16 dB




INPUT signal
o-air/
CATV+SAT
RF signal
o-air/
CATV+SAT
(1)
(2)
(32)
0.62 miles
(1 Km)
RF signal
o-air/
CATV+SAT
RF signal
o-air/
CATV+SAT

Optical Fiber Transmitter and Receiver 18
RETURN CHANNEL
For the return channel transmitter, the table of
attenuations, link gain and equivalent noise is:
Link attenuation
(dB)
Gain at 30 MHz
(dB)
EINn
(dBm/Hz)
0 23 -152.5
3 16.6 -149.5
4 14.6 -147.6
5 12.7 -145.7
6 10.7 -143.9
7 8.7 -141.9
8 6.7 -140
9 4.7 -138.1
10 2.6 -136
11 0.4 -133.4
12 -1.5 -132
13 -3.5 -130.5
14 -5.5 -128.5
Measurements made with a transmitter that delivers 2.9dBm
followed by an optical attenuator connected between the
transmitter and the optical receiver.
Use the formulas 1 and 2 for making calculations.
The calculation process is the same as in the case
of the forward channel.
EINn(SAT) = -125.4 dBm/Hz
G(2.1 GHz)= -16.3 dB
Therefore, the RF signal level delivered by the
receiver is:
Vout rcvr (dBmV) = Vin xmtr (dBmV) + G (dB)
This is:
Vout rcvr TERR (dBmV) = 19 -17.3 = 1.7 dBmV
Vout rcvr SAT (dBmV) = 19 -16.3 = 2.7 dBmV
Applying the formula [1]:
EINTV = EINn(TV) + 10×log(8×106) [dBm]
EINTV = -122.8 + 69
EINTV = -53.8 dBm
And by the formula [2] is obtained:
C/N TV= - 30 dBm - (- 53.8 dBm) = 23.8 dB en TV
Likewise, we calculate the C/N for SAT channels,
resulting in:
EINSAT= - 51.1 dBm
C/NSAT= -30 - (-51.1) = 21.1 dB en SAT
If the resulting C/N is close to the threshold it
is advisable to increase the input levels to the
transmitter by one or two dB to ensure enough
margin before distortion.

EN
19
6. Tables for attenuation and gain installations calculation
Opt. Link
atenuattion
(dB)
Popt IN in RX
(dBm)
Gain
at 870 MHz
(dB)
EINn
(dBm/Hz)
Gain
at 1.5 GHz
(dB)
EINn
(dBm/Hz)
Gain
at 2.15 GHz
(dB)
EINn
(dBm/Hz)
0 6 16,2 -150,4 17 -150,4 17,4 -146,4
2 4 12,3 -148,4 13,13 -148,9 13,4 -145,7
4 2 8,7 -146,6 9,4 -147 9,7 -144,9
4,5 1,5 7,7 -145,85 8,4 -146,3 8,7 -144,6
5 1 6,6 -144,9 7,4 -145,6 7,7 -144,2
5,5 0,5 5,6 -144,1 6,4 -144,8 6,7 -143,7
6 0 4,6 -143,3 5,4 -144,1 5,7 -143,2
6,5 -0,5 3,6 -142,5 4,4 -143,2 4,7 -142,7
7 -1 2,6 -141,6 3,4 -142,4 3,7 -142,1
7,5 -1,5 1,6 -140,8 2,4 -141,6 2,7 -141,5
8 -2 0,6 -139,9 1,4 -140,7 1,7 -140,8
8,5 -2,5 -0,3 -139,1 0,4 -139,8 0,7 -140,1
9 -3 -1,3 -138,2 -0,5 -139,1 -0,3 -139,4
9,5 -3,5 -2,3 -137,25 -1,5 -138,1 -1,3 -138,7
10 -4 -3,3 -136,35 -2,5 -137,2 -2,2 -138
10,5 -4,5 -4,3 -135,4 -3,5 -136,3 -3,2 -137,2
11 -5 -5,3 -134,5 -4,5 -135,5 -4,3 -136,3
11,5 -5,5 -6,3 -133,5 -5,5 -134,47 -5,3 -135,5
12 -6 -7,3 -132,55 -6,5 -133,5 -6,3 -134,6
12,5 -6,5 -8,3 -131,6 -7,5 -132,57 -7,3 -133,7
13 -7 -9,3 -130,6 -8,5 -131,6 -8,3 -132,8
13,5 -7,5 -10,3 -129,7 -9,5 -130,65 -9,3 -131,9
14 -8 -11,3 -128,7 -10,5 -129,67 -10,3 -131
14,5 -8,5 -12,3 -127,7 -11,5 -128,7 -11,3 -130,1
15 -9 -13,3 -126,7 -12,5 -127,7 -12,3 -129,2
15,5 -9,5 -14,3 -125,8 -13,5 -126,7 -13,3 -128,2
16 -10 -15,3 -124,8 -14,5 -125,7 -14,3 -127,3
16,5 -10,5 -16,3 -123,8 -15,5 -124,8 -15,3 -126,3
17 -11 -17,3 -122,8 -16,5 -123,8 -16,3 -125,4
Refs. 233306 (TRANSMISSION)
Measurements made using a 6.1dBm transmitter feeding 3 miles of ber cable. An optical attenuator was used at the optical receiver’s
input.

Optical Fiber Transmitter and Receiver 20
Opt. Link
attenuation
(dB)
Popt IN in RX
(dBm)
Gain
at 870 MHz
(dB)
EINn
(dBm/Hz)
Gain
at 1.5 GHz
(dB)
EINn
(dBm/Hz)
Gain
at 2.15 GHz
(dB)
EINn
(dBm/Hz)
6 4 7.5 -144.8 8.1 -144.1 6.7 -142.7
6.5 3.5 6.5 -144.2 7.1 -143.6 5.7 -142.4
7 3 5.5 -143.5 6.1 -143.1 4.7 -142
7.5 2.5 4.5 -142.6 5.1 -142.6 3.7 -141.7
8 2 3.5 -142 4.1 -142.1 2.7 -141.2
8.5 1.5 2.5 -141.3 3.1 -141.4 1.7 -141
9 1 1.5 -140.5 2.1 -140.8 0.7 -140.5
9.5 0.5 0.5 -139.8 1.1 -140.2 -0.3 -140
10 0 -0.5 -139 0.1 -139.5 -1.3 -139.2
10.5 -0.5 -1.5 -138.2 -0.9 -138.7 -2.3 -138.9
11 -1 -2.5 -137.4 -1.9 -138.1 -3.3 -138.3
11.5 -1.5 -3.5 -136.5 -2.9 -137.3 -4.3 -137.7
12 -2 -4.5 -135.8 -3.9 -136.6 -5.3 -137
12.5 -2.5 -5.5 -134.8 -4.9 -135.5 -6.3 -136.2
13 -3 -6.5 -133.9 -5.9 -134.7 -7.3 -135.4
13.5 -3.5 -7.5 -132.9 -6.9 -133.6 -8.3 -134.5
14 -4 -8.5 -132.1 -7.9 -132.8 -9.3 -133.7
14.4 -4.5 -9.5 -131.2 -8.9 -132 -10.3 -133
15 -5 -10.5 -130.2 -9.9 -131.1 -11.3 -132.2
15.5 -5.5 -11.5 -129.4 -10.9 -130.1 -12.2 -131.5
16 -6 -12.5 -128.4 -11.9 -129.3 -13.3 -130.6
16.5 -6.5 -13.5 -127.5 -12.9 -128.4 -14.3 -130
17 -7 -14.5 -126.6 -13.9 -127.6 -15.3 -129
17.5 -7.5 -15.5 -125.7 -14.9 -126.6 -16.3 -128.1
18 -8 -16.5 -124.7 -15.9 -125.6 -17.3 -127.3
18.5 -8.5 -17.5 -123.6 -16.9 -124.7 -18.3 -126.2
19 -9 -18.5 -122.6 -17.9 -123.7 -19.3 -125.3
Measurements made using a 10dBm transmitter feeding 3 miles of ber cable. An optical attenuator was used at the optical receiver’s
input.
Refs. 233311, 233411 (TRANSMISSION) Ref. 233601 (RETURN)
Link attenuat.
(dB)
Gain at 30 MHz
(dB)
EINn
(dBm/Hz)
0 23 -152.5
3 16.6 -149.5
4 14.6 -147.6
5 12.7 -145.7
6 10.7 -143.9
7 8.7 -141.9
8 6.7 -140
9 4.7 -138.1
10 2.6 -136
11 0.4 -133.4
12 -1.5 -132
13 -3.5 -130.5
14 -5.5 -128.5
Measurements made with a transmitter that delivers
2.9dBm followed by an optical attenuator connected
between the transmitter and the optical receiver.
