Teltonika U3G150 User manual

Address: Žirmūnųg. 27, Vilnius LT-09105,
Tel.: [phone],
Fax: [phone], E-mail: [email protected]
TELTONIKA
ModemUSB/H7.2 (U3G150;
U3G15L; U3G15S modems)
User Manual v0.2

ModemUSB/H7.2 User Manual
2
TABLE OF CONTENTS
TABLE OF CONTENTS.................................................................................................................2
1. ATTENTION...........................................................................................................................3
2. FOR YOUR SAFETY .............................................................................................................3
3. USER‘S SERVICE..................................................................................................................5
4. BASIC INFORMATION.........................................................................................................6
4.1 Introduction......................................................................................................................6
4.2 Legal Notice.....................................................................................................................6
4.3 Contacts............................................................................................................................6
4.4 Acronyms.........................................................................................................................6
5. PACKAGE CONTENTS.........................................................................................................7
6. TECHNICAL SPECIFICATION ............................................................................................7
6.1 Data transferring ..............................................................................................................7
6.2 Indication .........................................................................................................................9
6.3 Operating parameters.......................................................................................................9

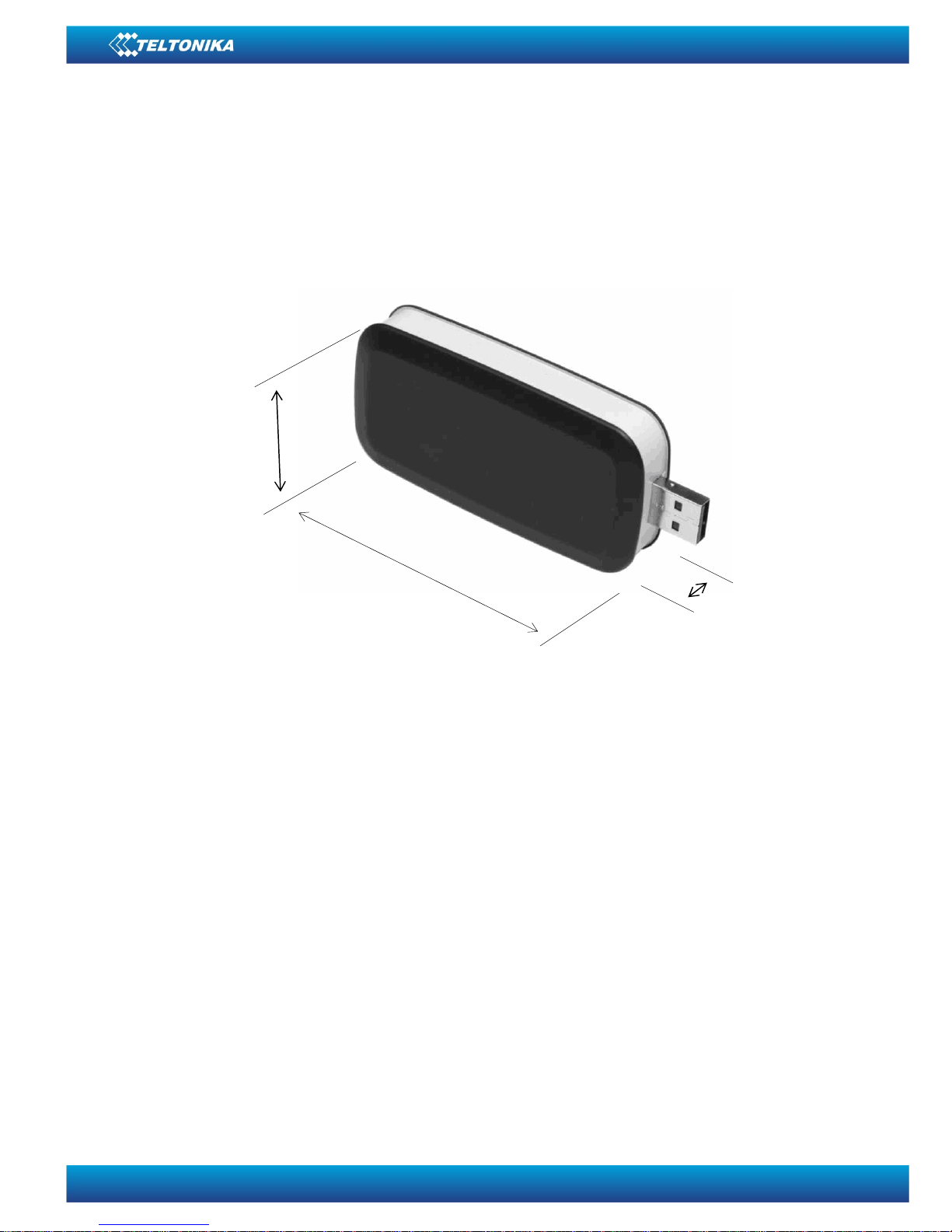

6.4 Mechanical characteristics.............................................................................................10
7. HOW TO START? ................................................................................................................11

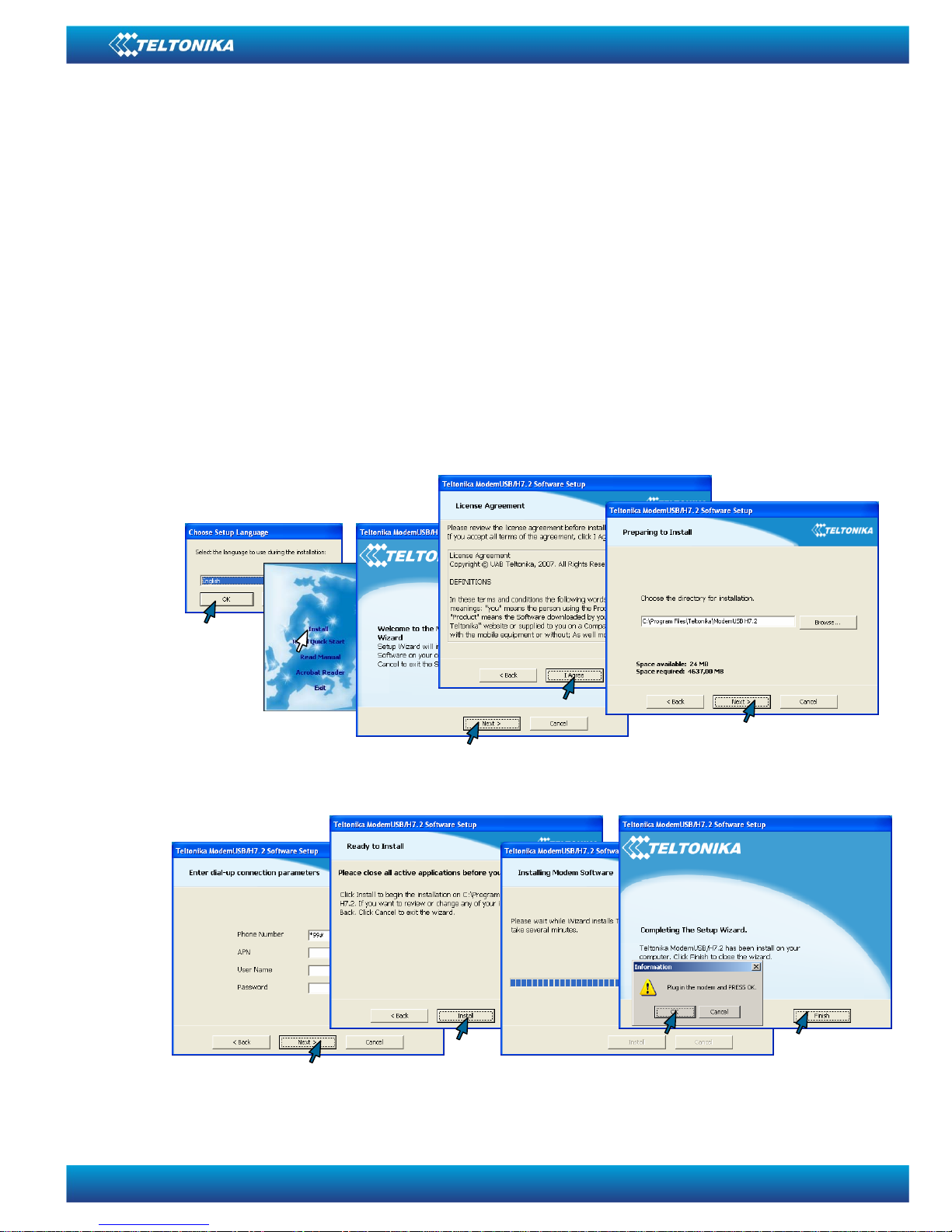

7.1 Driver and Software Installation on Windows XP ........................................................11
7.2 Driver and Software Installation on Windows 2000......................................................12
7.3 Driver and Software Installation on Windows Vista OS...............................................12
7.4 Uninstall of the Driver and Software.............................................................................13
7.5 Software description ......................................................................................................13
7.5.1 Modem Control Tool Preparation to Work............................................................13
7.5.2 Connecting to Internet............................................................................................14
7.5.3 Sending SMS .........................................................................................................18

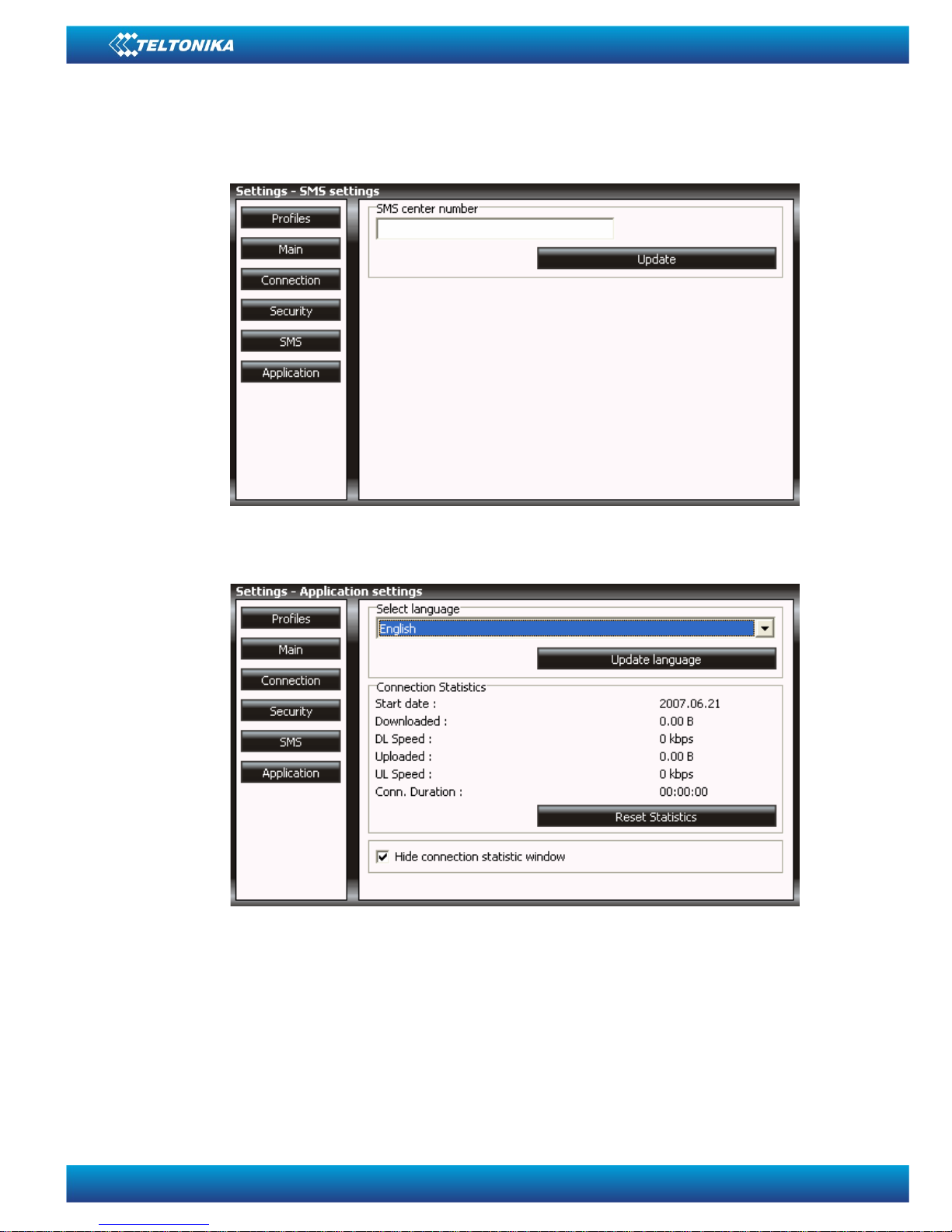

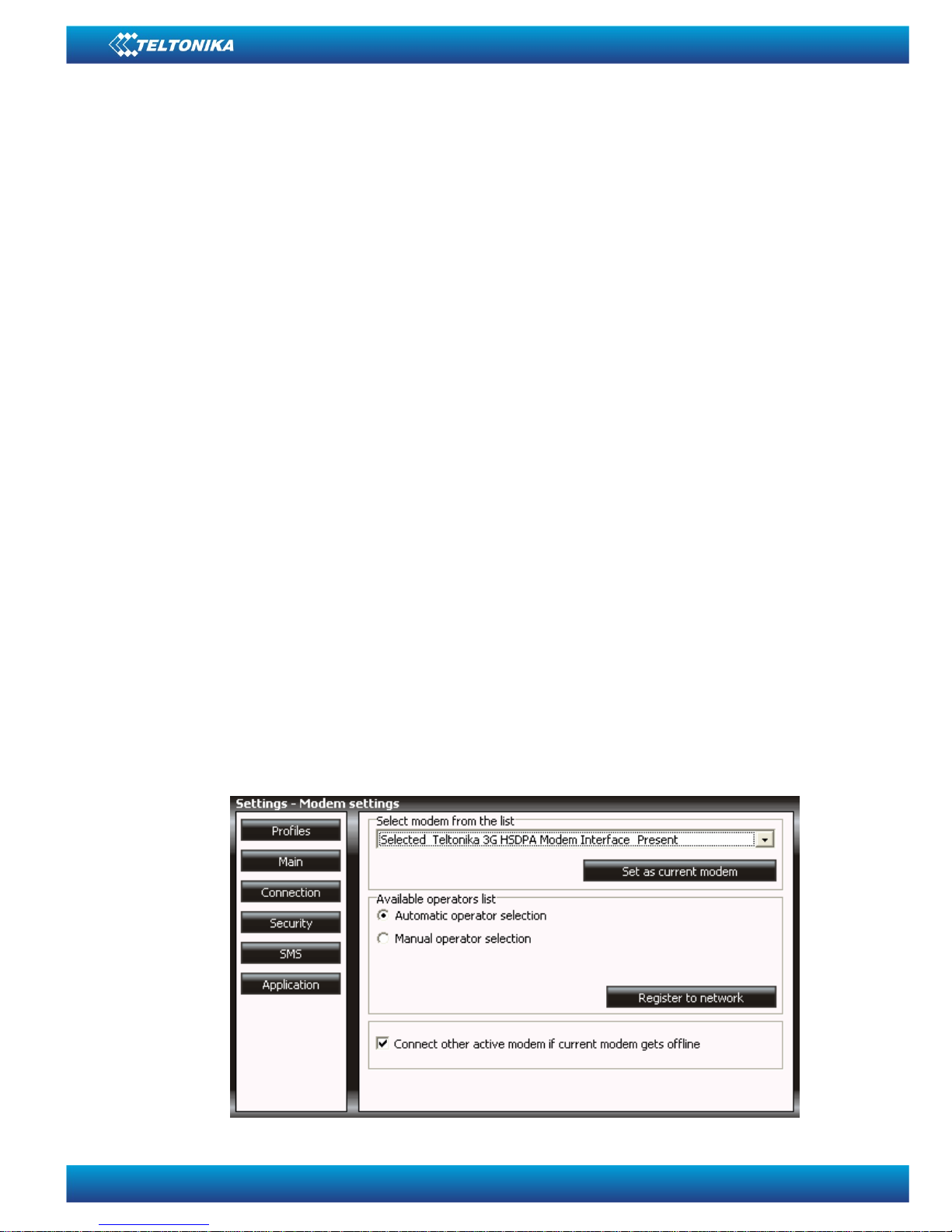

7.5.4 Settings of ModemUSB/H7.2................................................................................19
7.6 Uninstalling ModemUSB/H7.2......................................................................................21
8. TECHNICAL SUPPORT ......................................................................................................22
9. ENDING ................................................................................................................................22

ModemUSB/H7.2 User Manual
3
1. ATTENTION
All wireless devices for data transferring are susceptible to
interference, which could affect performance
Only qualified personnel may install or repair this product
The device is not water-resistant. Keep it dry.
IMPORTANT NOTES!
IT IS MANDATORY TO READ THE NOTES AND
MANUAL CAREFULLY BEFORE STARTING TO USE
THE DEVICE.
2. FOR YOUR SAFETY
In this document you will be introduced how to use ModemUSB/H7.2 (U3G150; U3G15L;
U3G15S) devices safely, later in the manual will be used only ModemUSB/H7.2 name. We suggest
you to adhere to following recommendations so as to avoid any damage to person or property.
You have to be familiar with the safety requirements before starting to use the device!
Installation and technical support of the device can be
performed only by a qualified personnel or a person who has
enough knowledge about this device and safety requirements.
The PC to which the ModemUSB/H7.2 device is to be connected must have a USB port applied to
USB 2.0 standards. Modem is supplied from +V5 USB port.
The PC and power supply source to which the device is
connected should satisfy LST EN 60950-1 standard.
ModemUSB/H7.2 modem can be used on first (Personal
Computer) or second (Notebook) computer safety class.

ModemUSB/H7.2 User Manual
4
To avoid mechanical damage of the device, it is recommended to transport the device
packed in damage-proof pack.
While using the device, place it such that the LEDs are visible to the user. It’s because these
LEDs provide information about the working modes and condition of the device.
Signal level of the modem depends on the environment in which it is working.
If the device fails to work properly only qualified personnel may repair this product. We
recommend to forward device to repair centre or to the manufacturer. The modem does not contain
any parts which can be replaced.
In the installation place and supply circuits should be tool up protective devices (bipolar
release device) which will protect from short-circuit and wrong ground installation. The power of
connected device should satisfy power of release device. The interstice between contacts should be
no less than 3mm. Power supply network should be installed near device on easy accessible place

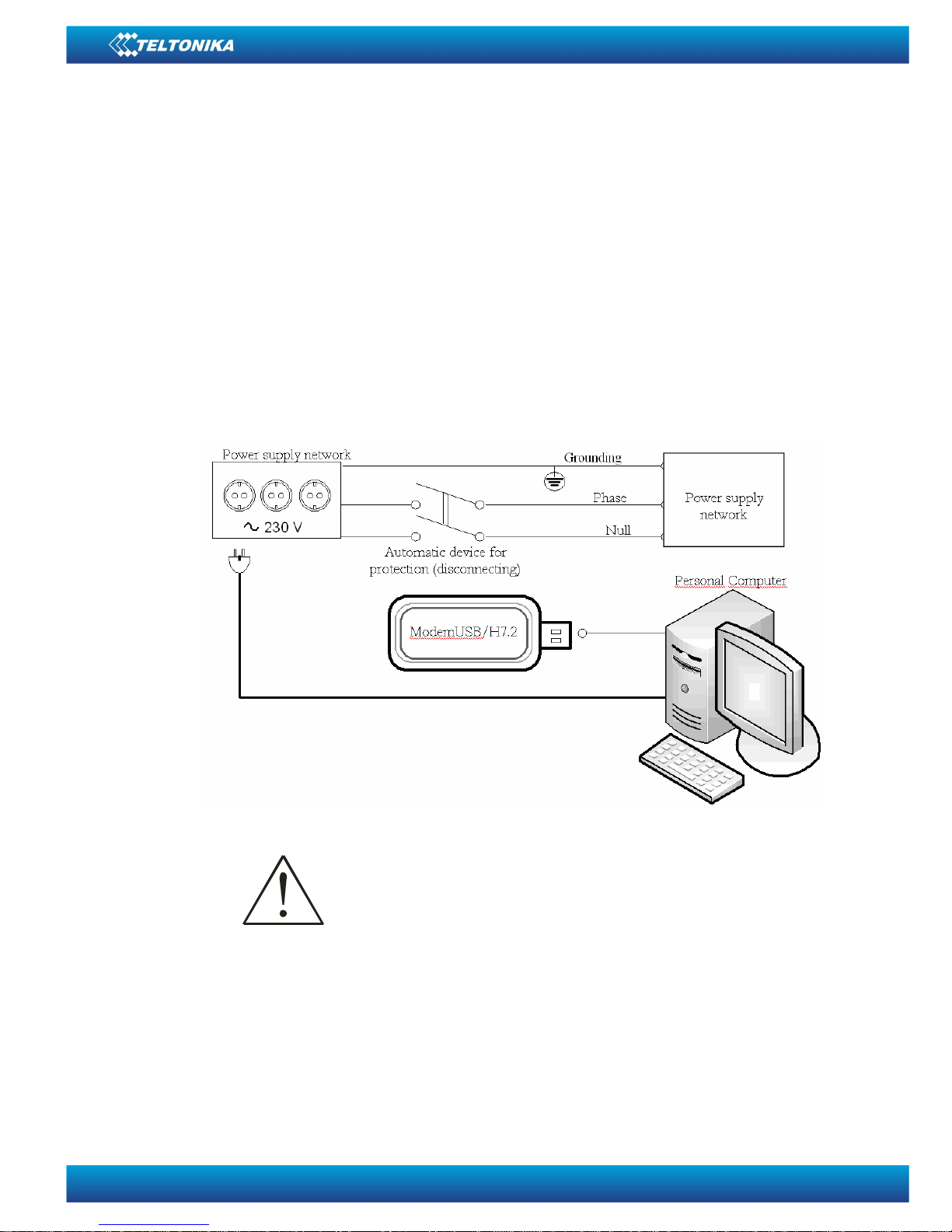

2.1.pic. Device release circuit.
To turn off the modem, unplug it from the USB port of the PC
or unplug the PC from the power supply.

ModemUSB/H7.2 User Manual
5
IT IS MANDATORY TO READ THE NOTES PRESENTED BELOW
CAREFULLY BEFORE STARTING TO USE THE DEVICE
ªU should install the drivers from the CD provided with modem before connecting device to
your PC or connect it when prompted
ªSIM card is mandatory for setting up connection to the GSM network. However the
manufacturer of this equipment does not supply the SIM card. The SIM card can be
purchased from your GSM (mobile) service provider!
ªFor APN, user name and password please contact your GSM (mobile) service provider.
ªThe modem must be unplugged from the PC while inserting or taking out the SIM card. If
the SIM card will be inserted or taken out from the modem while it is still plugged to the PC
– it may cause damage to the modem or the SIM card.
ªThe modem can be unplugged from the PC only if it is disconnected from the Internet and
the MTC is properly closed.
ªIf the modem is unplugged properly from the PC wait for at least 10 seconds before plugging
it back to the PC.
3. USER‘S SERVICE
Then the device is not working or working bad the technical service of device can perform
only qualified personnel. The strongly recommended to hand the modem over to repairer or
manufacturer. No exchangeable parts inside of modem.
Do not mount or serve device during a thunderbolt

ModemUSB/H7.2 User Manual
6
4. BASIC INFORMATION
4.1 Introduction
Basically ModemUSB/H7.2 is a device designed for data transmission via GSM Network.
There are few tipes of the ModemUSB/H7.2, differences are described in 6.1 chapter. The user-
friendly design allows you to directly connect the device to one of the USB ports of your
PC/laptops. Once a SIM card is inserted in the modem and the device is connected to the PC, you
would be able to send SMS, access internet via UMTS/GSM networks (mobile networks).
“ModemUSB/H7.2” supports the following data-bearers: HSDPA, EDGE, GPRS, CSD, and SMS.
4.2 Legal Notice
Copyright © 2007 TELTONIKA Ltd. All rights reserved. Reproduction, transfer,
distribution or storage of part or all of the contents in this document in any form without the prior
written permission of TELTONIKA Ltd is prohibited.
Other product and company names mentioned herein may be trademarks or trade names of
their respective owners.
4.3 Contacts
If you face any problems related to the device, which you are not able to solve by yourself,
you are always welcome to address our technical support department by e-mail [email protected].
We will be very glad to help you.
4.4 Acronyms
APN Access Point Name.
CSD Circuit Switched Data.
CSF Circuit Switched Fax.
EDGE Enhanced Data rates for GSM Evolution.
FDD Frequency Division Duplex.
GPRS General Packet Radio Service.
GSM Global System for Mobile communications.
HSCSD High Speed Circuit Switched Data.
IMEI International Mobile Equipment Identity.
ISP Internet Service Provider.
PIN Personal Identification Number.
SIM Subscriber Identity Module.
SMS Short Message Service.
TCP/IP Transmission Control Protocol/Internet Protocol.
USB Universal Serial Bus.
WCDMA Wideband Code Division Multiple Access.
HSDPA High Speed Downlink Packet Access.

ModemUSB/H7.2 User Manual
7
5. PACKAGE CONTENTS
ModemUSB/H7.2 modem is packed in a box and contains all the accessories required for
normal operation:
ªModemUSB/H7.2 (U3G150; U3G15L or U3G15S type).
ªCD with User Manual and drivers.
ª“USB A jack ↔USB A socket“connection cable.
ªLeaflet “Quick Start Guide”.
If any of the components is missing, please contact your local distributor.
6. TECHNICAL SPECIFICATION
6.1 Data transferring
The data type and data transfer speed depends on the service provided by your GSM
operator. ModemUSB/H7.2 supports the following data-bearers depending on the modem type
(U3G150; U3G15L or U3G15S).
MODEM
TYPE HSDPA/UMTS EGPRS/GPRS/CSD
U3G150
850/1900/2100 MHz
Power Class 3 (+24dBm).
Supports UL and DL compressed
modes.
HSDPA 7.2: categories 1-4, 11 and
12.
HSDPA 3.6: categories 5 and 6.
HSDPA 7.2: category 7 and 8 (SW
upgrade).
Rx diversity. Equalization
UMTS: 384 kbps operation in
downlink and uplink.
CSD: 64.0, 14.4 and 9.6 kbps.
EDGE 850/900/1800/1900
MHz
GSM Power Class 4 (2W) for
850/900 bands.
GSM Power Class 1 (1W) for
1800/1900 bands.
EDGE class E2 (+27 dBm in
850/900 bands, +26 dBm in
1800/1900 bands).
GPRS/EGPRS Multislot Class
12 (4 slots Rx, 4 slots Tx).
GPRS/EGPRS Class B Type 1
MT.
GPRS CS1-CS4; EGPRS
MCS1-MCS9.CSD: 14.4 and
9.6 kbps.
Note:
T
he manufacturer does not supply the SIM card, which is mandatory for setting up a connection to
the GSM network! The SIM card may be purchased from your GSM(mobile) service provider!!

ModemUSB/H7.2 User Manual
8
MODEM
TYPE HSDPA/UMTS EGPRS/GPRS/CSD
U3G15L
2100 Mhz
Power Class 3 (+24 dBm). HSDPA
modes:
HSDPA 1.8: Categories 1-4, 11 and
12
HSDPA 3.6: Categories 5 and 6
HSDPA 7.2: Category 7 and 8 (SW
upgrade).
Equalization
UMTS: 384 Kbps operation in
downlink, 384 Kbps in uplink.
Support UL and DL Compressed
Modes.
Circuit-switched data: 64, 14.4 and
9.6 Kbps
850 / 900 / 1800 / 1900 MHz
EDGE
GSM Power Class 4 (2W) for
850 / 900 bands, GSM.
Power Class 1 (1W) for 1800 /
1900 bands.
EDGE class E2 (+27 dBm in
850 / 900 bands, +26 dBm in
1800 / 1900 bands).
GPRS / EDGE Multislot Class
12 (4 slots Rx, 4 slots Tx).
GPRS / EDGE Class B Type 1
MT. GPRS CS1-CS4; EDGE
MCS1-MCS9.
Circuit-switched data: 14.4 and
9.6 Kbps
Circuit-switched voice calls
over GSM / WCDMA air
interfaces, MO and MT
U3G15S
850 / 1900 / 2100
2100 MHz Rx diversity (MO 0301)
Power Class 3 (+24 dBm)
HSUPA mode: 2Mbps: Category 5
HSDPA modes:
HSDPA 1.8: Categories 1-4, 11 and
12
HSDPA 3.6: Categories 5 and 6.
HSDPA 7.2: Category 7 and 8.
Equalization and Rx Diversity at
the same time.
UMTS: 384 Kbps operation in
downlink, 384 Kbps in uplink.
Support UL and DL Compressed
Modes.
Circuit-switched data: 64, 14.4 and
9.6 Kbps
850 / 900 / 1800 / 1900 MHz
GSM Power Class 4 (2W) for
850 / 900 bands,
GSM Power Class 1 (1W) for
1800 / 1900 bands
EDGE class E2 (+27 dBm in
850 / 900 bands, +26 dBm in
1800 / 1900 bands)
GPRS / EDGE Multislot Class
12 (4 slots Rx, 4 slots Tx)
PRS / EDGE Class B Type 1
MT
GPRS CS1-CS4; EDGE
MCS1-MCS9
Circuit-switched data: 14.4 and
9.6 Kbps

ModemUSB/H7.2 User Manual
9
6.2 Indication
Two LED indicators (“Power“and “Status“) are located on the side of ModemUSB/H7.2
These LEDs indicate the operating mode and failure conditions of the modem. Modem operating
modes are described in Table 3.2.1.
Table 6.2.1. Modem operating modes
LED Status Description
„Power“ LED is On Modem power supply is on.
„Status“ LED is blinking Not inserted SIM card or need PIN code.
„Status“ LED is On Modem is ready for data transferring.
6.3 Operating parameters
ModemUSB/H7.2 modem derives +5V power from the USB port, therefore, the PC
must have a USB port conforming to the USB 2.0 standards. The device does not require any
external power supply for its operation.
Table 6.3.1. Modem operating parameters
Parameter Minimal
Nominal Maximal Units
Power supply voltage 4.5 5.0 5.5 V
Power consumption 34 360 mA
Marginal operating
temperature -10 +55 ºC
Storage temperature -40 +65 ºC
Modem weight 51 g
Reliative air humidyti 85 %
Note: modem may malfunction if the environment conditions do not conform to
those provided in the Table!

ModemUSB/H7.2 User Manual
10
6.4 Mechanical characteristics
ModemUSB/H7.2 modem housing is made of plastic. External view and measurements (in
mm) of the device are shown in Figure 6.4.1.
Figure 6.4.1. External view of ModemUSB/H7.2
15.1
85.5
42.0

ModemUSB/H7.2 User Manual
11
7. HOW TO START?
In order to install ModemUSB/H7.2 drivers and software, do the following:
ªModemUSB/H7.2 modem can only be connected after the driver installation has finished.
Unplug the device ModemUSB/H7.2 from USB port of the PC (if it is plugged)! Otherwise,
the PC will have to be restarted after completion of driver installation.
ªInsert the CD into CD-ROM.
ªClick Install in automatically opened window. If the window did not appear, run autorun.exe
file located on the CD. The installation procedure of the ModemUSB/H7.2 modem will
begin.
7.1 Driver and Software Installation on Windows XP
Step 6 Step 7
1
Step 8 Step 9
Step 1
Step 2
Step 3
Step 4
Step 5

ModemUSB/H7.2 User Manual
12
7.2 Driver and Software Installation on Windows 2000
Installation procedure is same as on Windows XP.
7.3 Driver and Software Installation on Windows Vista OS

ModemUSB/H7.2 User Manual
13
7.4 Uninstall of the Driver and Software
How to Un-Install:
1) Remove the modem from the USB port of the PC, and go to
•StartÆProgramsÆTeltonika ÆModem USB H7.2 Æclick on “Uninstall”, and
then please follow instructions.
2) Or alternatively you can remove “Modem Control Tool” program from “Add or Remove
Programs”
Start ÆSettings ÆControl Panel ÆAdd or Remove Programs & remove Modem USB H7.2
7.5 Software description
This section provides the main information about MCT (Modem Control Tool), its settings and
features.
7.5.1 Modem Control Tool Preparation to Work
Before start working with Modem Control Tool, make sure that:
ªYou have a GSM SIM card with activated data transfer service;
ªModemUSB/H7.2 is set to work – drivers and software are installed, SIM card is inserted,
modem is connected to the PC, LEDs “Status” and “Power” is on.
To run the Modem Control Tool, double click the MCT pictogram located on the desktop,
or go to Start →Programs →Teltonika ModemUSB/H7.2 →Modem Control Tool USB H7.2. If
the program is run for the first time or there are more than one modems installed, a window asking
to select modem from the list will appear, click OK in this window. In the opened window choose
Teltonika 3G Modem Interface and click Set As Current Modem, and OK.

ModemUSB/H7.2 User Manual
14
If PIN code request is active in your SIM card, a window for inserting the PIN code will appear.
If you will enter wrong PIN code three times in a row, the program will ask to enter the
PUK code! When the required data inserted correctly, click OK and the main Modem Control Tool
window will open.
7.5.2 Connecting to Internet
Five profiles for the user to set are available; this is very suitable if you are using more than
one SIM card for your Modem. You can set up connection parameters for each SIM card (Operator)
in these profiles and rename them in manner you like. This feature available in Settings/Profiles tab.
By clicking on the Profile settings you are able quickly review and edit all parameters of the
available profiles.

ModemUSB/H7.2 User Manual
15
In the Main menu you can select modem and set Automatic or Manual operator selection
option.
It is advisable to use automatic Operator selection, manual operator selection is usable for
the roaming usually.
If you are using more than one modem – it is possible to automatically connect via other
available modem if current become unavailable.
One of the following connecting types can be used in order to connect to the Internet using
the ModemUSB/H7.2 modem:
ªGPRS/EDGE/HSDPA. In this case, you have to know the APN, and sometimes user name
and password;
ªCSD/HSCSD. In this case you have to know the phone number of the dial-up server.
Note: APN, user name and password are provided by the GSM operator.

ModemUSB/H7.2 User Manual
16
In order to connect to the Internet, enter the required data in Connection window. In the
main MCT window click Settings →Connection. Enter connection data as shown below. To save
the entered data, click Update.
One of the four connection types can be chosen in the Connection window:
ªGPRS only. Only GPRS and EDGE (depends upon the operator) technology will be used
for connection to the Internet. If the operator does not provide these services, modem will
not be able to connect to the Internet.
ªGPRS preferred. Modem will always use GPRS/EDGE whenever it will be possible. If the
operator does not provide this service, another high speed connection type will be used.
ªHSDPA only. Only HSDPA technology will be used, if the operator does not provide this
service, the modem will not be able to connect the Internet.
ªHSDPA preferred. Modem will always use HSDPA whenever it will be possible. When
GPRS is not provided, another high speed connection type will be used.
Before connecting to the Internet, check the GSM signal quality (see the indicator located on
the right side of the Modem Control Tool program). Also check if the Network indicator is green. If
the signal indicator shows low signal quality, place the modem to more open place, where the signal
will not be blocked by thick walls or ceilings. Placing the device near window may also help.
Modem will start connecting to the Internet after the Connect picture is clicked in the main
MCT window (if the APN, user name and password were entered correctly).

ModemUSB/H7.2 User Manual
17
If the ModemUSB/H7.2 modem connects to the Internet, red indicator denoted as
Disconnected on the left corner of MCT window turns green and will be denoted as Connected.
In order to disconnect from the Internet, click Disconnect in the main Modem Control
Tool window.
In application tab – you can select preferred language of MCT and check statistic of the
transferred data.

ModemUSB/H7.2 User Manual
18
7.5.3 Sending SMS
With ModemUSB/H7.2 you can send and receive SMS messages and browse in the Internet
at the same time! In order to send SMS, click SMS in the main MCT window. A Short message
service window will open.
In the opened window, enter the receiver’s phone number in the Phone number field. “+“is
entered automatically. The message text is entered in the Message text field. Message can be of 160
characters. If you tick the Use extended character set, you will be able to use specific symbols in
your message, but the number of characters will be reduced to 70.
If you want to look for received, read or sent SMS messages, click Unread, Read or Sent in
the Short message service window. If you want to forward or reply, double click on the message. A
Message window will appear.
To make a reply to the message, click Reply. To close the window – Close.

ModemUSB/H7.2 User Manual
19
7.5.4 Settings of ModemUSB/H7.2
There are few profiles available for the user to set
To set ModemUSB/H7.2 modem parameters or to change them, click Settings in the main
Modem Control Tool window. If you click Main in the Settings window, you will be able to choose
a modem from the list of modems installed in your PC.
If you click Connection in the Settings window, you will be able to change the
ModemUSB/7.2 modem Internet connection parameters.
If you click Settings →Security, a Security window will open where you can enable or
disable PIN code query. To set ModemUSB/H7.2 modem parameters or to change them, click
Settings in the main Modem Control Tool window. If you click Main in the Settings window, you
will be able to choose a modem from the list of modems installed in your PC.
If you click Connection in the Settings window, you will be able to change the
ModemUSB/7.2 modem Internet connection parameters.
If you click Settings →Security, a Security window will open where you can enable or
disable PIN code query.
To enable PIN code query, choose PIN Code Query Enabled in Security State frame and
click Update. A pop-up window will appear. Enter the PIN code of your SIM card in the Insert
Pin Code field and click OK.
Now, the Modem Control Tool program will ask for the PIN code each time you connect
the ModemUSB/H7.2 modem to your PC USB port
To disable PIN code query, choose PIN Code Query Disabled in Security State frame
and click Update.

ModemUSB/H7.2 User Manual
20
SMS center number is shown in Settings →SMS.
To change Modem Control Tool program language, go to Settings →Application. In
Application window choose the language from Set Language field and click Update Language.
Click About to see the Modem Control Tool program version and other Information.
