Tempo Fitness T81 User manual

TREADMILL OWNER’S MANUAL
Read the TREADMILL GUIDE before using this OWNER’S MANUAL.
T81
T82
T85
T86

2

3
ASSEMBLY
There are several areas during the assembly process that special attention must be paid. It is very important to follow the assembly
instructions correctly and to make sure all parts are firmly tightened. If the assembly instructions are not followed correctly, the
treadmill could have frame parts that are not tightened and will seem loose and may cause irritating noises. To prevent damage
to the treadmill, the assembly instructions must be reviewed and corrective actions should be taken.
Before proceeding, find your treadmill’s serial number located on the front stabilizer tube and enter it in the space provided
below. Also locate the model name which is next to the serial number.
ENTER YOUR SERIAL NUMBER AND MODEL NAME IN THE BOXES BELOW:
WARNING
SERIAL NUMBER:
MODEL NAME: TEMPO TREADMILL

4
T86
shown
WATER BOTTLE HOLDER
CONSOLE
ON/OFF SWITCH
CIRCUIT BREAKER
POWER CORD
CONSOLE CONTROLS AND DISPLAY WINDOWS
SAFETY KEY PLACEMENT
S/N STICKER
REAR ROLLER TENSION/ADJUSTMENT BOLTS
HANDRAIL TOGGLE (T86 ONLY)
MOBILE PHONE HOLDER (T86 ONLY)
GRIP PULSE HANDRAILS
TRANSPORT WHEEL
COMFORTGEL CUSHIONING (T86 ONLY)
HANDLEBARS
MOTOR COVER
SIDE RAIL
CONSOLE MAST
COMFORTSTEP (T86 ONLY)
RUNNING BELT / RUNNING DECK

5
TOOLS INCLUDED:
F5 mm L-Wrench /screwdriver
(T81/82)
F6 mm L-Wrench (T81/82)
F5 mm L-Wrench (T85/86)
F5 mm T-Wrench (T85/86)
PARTS INCLUDED:
F1 Console Assembly
F2 Console Masts
F1 Hardware Kit
F1 Safety Key
F1 Power Cord
F1 Silicone
F1 Cellphone/MP3 Holder
(T86 only)
If you have questions or if
there are any missing parts,
contact your local dealer.
NEED HELP?
DO NOT ATTEMPT TO LIFT THE TREADMILL! Do not move or lift treadmill
from packaging until specified to do so in the assembly instructions. You may
remove the plastic wrap from console masts.
WARNING
UNPACKING
Place the treadmill carton on a level flat surface. It is recommended that you place a
protective covering on your floor. Take CAUTION when handling and transporting this
unit. Never open box when it is on its side. Once the banding straps have been removed,
do not lift or transport this unit unless it is fully assembled. Unpack and assemble the unit
where it will be used. Never grab hold of any portion of the incline frame and attempt to
lift or move the treadmill.
FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN INJURY!
WARNING
NOTE: During each assembly step, ensure that ALL nuts and bolts are in place and
partially threaded in before completely tightening any ONE bolt.
NOTE: A light application of grease may aid in the installation of hardware. Any grease,
such as lithium bike grease is recommended.
PRE ASSEMBLY
ALL
MODELS

6

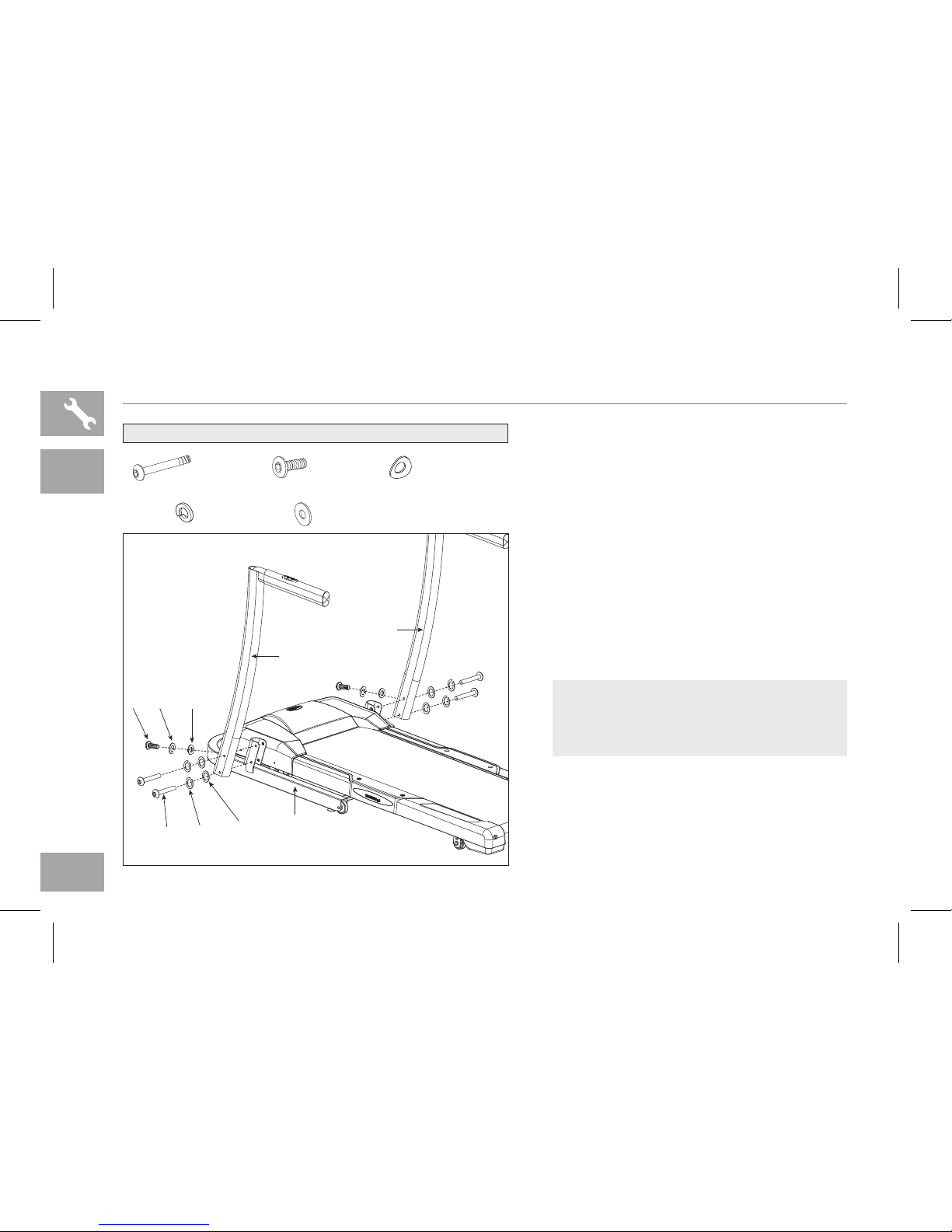

T81 & T82 ASSEMBLY STEP 1
T82
Shown
HARDWARE FOR STEP 1 : A A Open the box and remove all parts underneath the
running deck by lifting the running deck upward.
B Open HARDWARE pARts for Step 1
C Align and attach LEFt CONsOLE MAst with base
frame bracket by using 2 LONG BOLts (a),
1 sHORt BOLts (b), 2 FLAt WAsHERs (d)and 1
ARC WAsHER (c).
D Connect the CONsOLE CABLEs at RIGHt
CONsOLE MAst and carefully tuck wires to
CONsOLE MAst to avoid damage.
E Repeat Step C on the RIGHt CONsOLE MAst.
LONG BOLT (a)
M8 x 50L
Qty: 4
SHORT BOLT (b)
M8 x 16L
Qty: 2
ARC WASHER (c)
Ø 8
Qty: 2
FLAT WASHER (d)
Ø 8
Qty: 4
NOTE: Do not pinch or break any wire when
assembling the console mast. You may need extra
help assembling step 1 o 2 and DO NOT fully
tighten the bolts until step 2 is completed.
MAIN FRAME BRACKET
RIGHT CONSOLE MAST
LEFT CONSOLE MAST
b
c
ad
(T82 SHOWN)

7

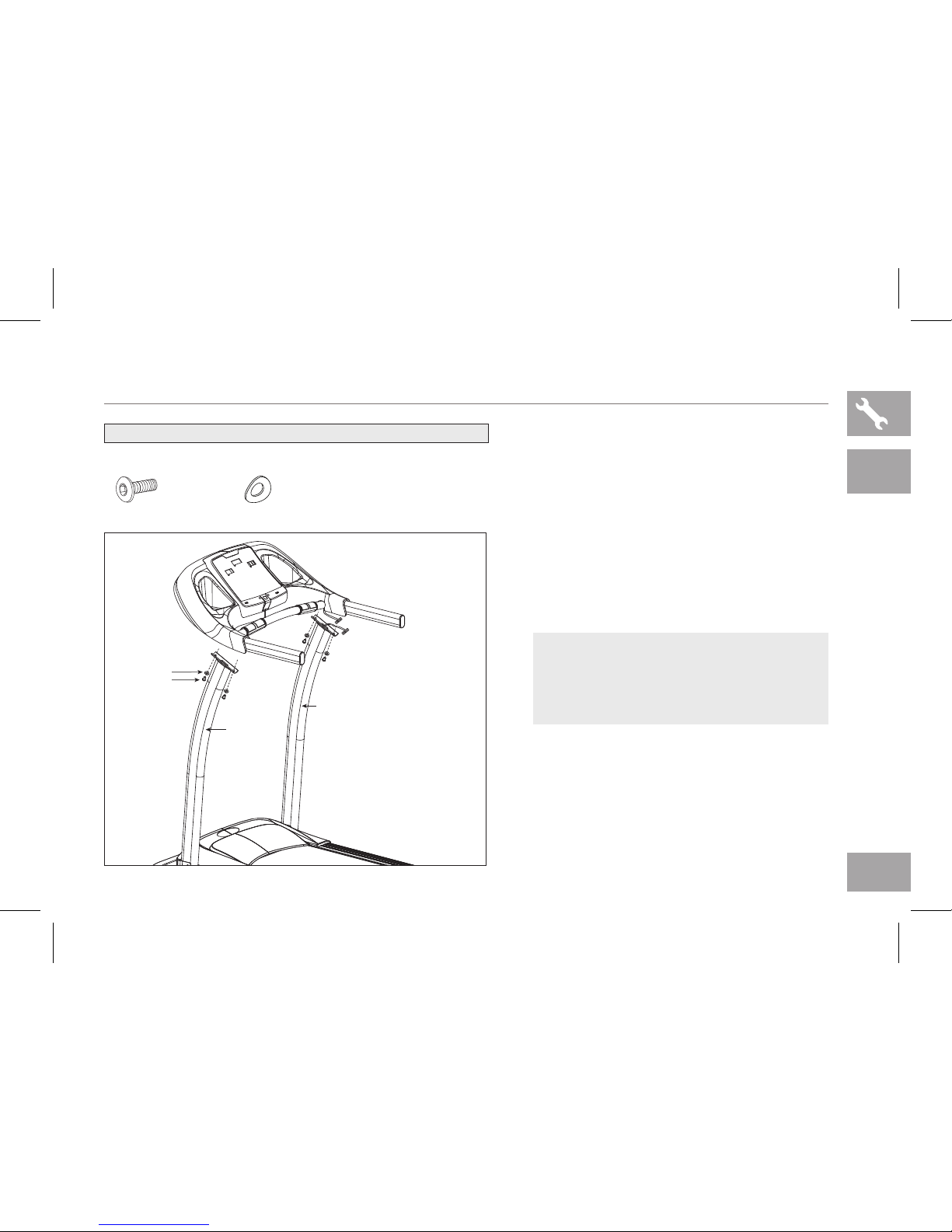

T81 & T82 ASSEMBLY STEP 2
T82
Shown
SHORT BOLT (b)
M8 x 16 L
Qty: 4
ARC WASHER (c)
Ø 8
Qty: 4
HARDWARE FOR STEP 2 : A Open HARDWARE pARts for Step 2
B Gently hold the CONsOLE above the CONsOLE
MAst.
C Connect the CONsOLE CABLEs at right hand side,
carefully tucking wires in RIGHt CONsOLE MAst
to avoid damage.
D Attach the CONsOLE to the CONsOLE
MAst using 4 sHORt BOLts (b)and 4 FLAt
WAsHERs (c).
NOTE: T81 & 82 console fixing from beneath while
T85 & 86 is screw in from inner side as shown in
the left image. Be careful not to pinch any wires and
make sure you fully tighten all bolts before starting
using the treadmills.
(T82 SHOWN)
LEFT CONSOLE MAST
RIGHT CONSOLE MAST
c
b

8
HARDWARE FOR STEP 1 :
T85 & T86 ASSEMBLY STEP 1
A A Open the box and remove all parts underneath the
running deck by lifting the running deck upward.
B Open HARDWARE pARts for Step 1
C Align and attach LEFt CONsOLE MAst with base
frame bracket by using 2 LONG BOLts (A),
1 sHORt BOLts (B), 3 spRING WAsHERs (D),
2 FLAt WAsHERs (E) and 1 ARC WAsHER (C).
D Connect the CONsOLE CABLEs at RIGHt
CONsOLE MAst and carefully tuck wires to
CONsOLE MAst to avoid damage.
E Repeat Step C on the RIGHt CONsOLE MAst.
LONG BOLT (A)
M8 x 55L
Qty: 4
SHORT BOLT (B)
M8 x 20L
Qty: 2
ARC WASHER (C)
Ø 8.4
Qty: 2
SPRING WASHER (D)
Ø 8.2
Qty: 6
FLAT WASHER (E)
Ø 8.2
Qty: 4
NOTE: Do not pinch or break any wire when
assembling the console mast. You may need extra
help assembling step 1 o 2 and DO NOT fully
tighten the bolts until step 2 is completed.
T86
Shown
RIGHT CONSOLE MAST
LEFT CONSOLE MAST
MAIN FRAME BRACKET
B D C
AE
D
(T86 SHOWN)

9
T85 & T86 ASSEMBLY STEP 2
SHORT BOLT (B)
M8 x 20L
Qty: 4
SPRING WASHER (D)
Ø 8.2
Qty: 4
FLAT WASHER (E)
Ø 8.2
Qty: 4
HARDWARE FOR STEP 2 : A Open HARDWARE pARts for Step 2
B Gently hold the CONsOLE above the CONsOLE
MAst.
Connect the CONsOLE CABLEs at right hand side,
carefully tucking wires in RIGHt CONsOLE MAst
to avoid damage.
(t86 ONLY)
Connect HANDRAIL tOGGLE KEY CABLEs
at LEFt and RIGHt CONsOLE MAst, carefully
tucking wires in CONsOLE MAst.
C Attach the CONsOLE to the CONsOLE MAst
using 4 sHORt BOLts (B), 4 spRIN WAsHERs
(D) and 4 FLAt WAsHERs (E).
NOTE: T81 & 82 console fixing from beneath while
T85 & 86 is screw in from inner side as shown in
the left image. Be careful not to pinch any wires and
make sure you fully tighten all bolts before starting
using the treadmills.
T86
Shown
(T86 SHOWN)
LEFT CONSOLE MAST
RIGHT CONSOLE MAST
E
B
D
C-1

10
ASSEMBLY STEP 3
YOU ARE FINISHED!
T81
Max. User Weight: 115 kg / 253 lbs.
Product Weight: 54 kg / 119 lbs.
Overall Dimension: 171 x 71 x 132 cm / 67” x 28” x 52”
Folding Dimension: 103 x 71 x 139 cm / 40.5” x 28” x 55”
Complies with EN957-1, EN957-6, HB
T82
Max. User Weight: 115 kg / 253 lbs.
Product Weight: 58 kg / 128 lbs.
Overall Dimension: 171 x 71 x 132 cm / 67” x 28” x 52”
Folding Dimension: 108 x 71 x 135 cm / 42.5” x 28” x 53”
Complies with EN957-1, EN957-6, HB
T85
Max. User Weight: 115 kg / 253 lbs.
Product Weight: 60 kg / 132 lbs.
Overall Dimension: 173 x 79 x 136 cm / 68” x 31” x 53.5”
Folding Dimension: 96 x 79 x 145 cm / 38”x 31” x 57”
Complies with EN957-1, EN957-6, HB
T86
Max. User Weight: 115 kg / 253 lbs.
Product Weight: 60 kg / 132 lbs.
Overall Dimension: 173 x 79 x 136 cm / 68” x 31” x 53.5”
Folding Dimension: 96 x 79 x 145 cm / 38”x 31” x 57”
Complies with EN957-1, EN957-6, HB
T86
Shown
(T86 SHOWN)

11
T81
Max. User Weight: 115 kg / 253 lbs.
Product Weight: 54 kg / 119 lbs.
Overall Dimension: 171 x 71 x 132 cm / 67” x 28” x 52”
Folding Dimension: 103 x 71 x 139 cm / 40.5” x 28” x 55”
Complies with EN957-1, EN957-6, HB
T82
Max. User Weight: 115 kg / 253 lbs.
Product Weight: 58 kg / 128 lbs.
Overall Dimension: 171 x 71 x 132 cm / 67” x 28” x 52”
Folding Dimension: 108 x 71 x 135 cm / 42.5” x 28” x 53”
Complies with EN957-1, EN957-6, HB
T85
Max. User Weight: 115 kg / 253 lbs.
Product Weight: 60 kg / 132 lbs.
Overall Dimension: 173 x 79 x 136 cm / 68” x 31” x 53.5”
Folding Dimension: 96 x 79 x 145 cm / 38”x 31” x 57”
Complies with EN957-1, EN957-6, HB
T86
Max. User Weight: 115 kg / 253 lbs.
Product Weight: 60 kg / 132 lbs.
Overall Dimension: 173 x 79 x 136 cm / 68” x 31” x 53.5”
Folding Dimension: 96 x 79 x 145 cm / 38”x 31” x 57”
Complies with EN957-1, EN957-6, HB
TREADMILL OPERATION
This section explains how to use your treadmill’s console and programming. The BASIC OPERATION section in the
TREADMILL GUIDE has instructions for the following:
• LOCATION OF THE TREADMILL
• USING THE SAFETY KEY
• FOLDING THE TREADMILL
• MOVING THE TREADMILL
• LEVELING THE TREADMILL
• TENSIONING THE RUNNING BELT
• CENTERING THE RUNNING BELT
• USING THE HEART RATE FUNCTION

12
T81
Shown
BMI TEST
体脂测试
A
HEART RATE
心率
CALORIES
卡路里
DISTANCE
距离
SPEED
速度
节能模式
Energy Saver
4km/h
公里/时 6km/h 公里/时 8km/h 公里/时 10 km/h 公里/时 12 km/h 公里/时
2km/h
公里/时
SPEED
速度
SPEED
速度
ENTER
确认
CHANGE DISPLAY
切换显示
STOP
停止
HOLD TORESET
按住重设
START
开始
QUICK START
快速启动
C
E F G IHD
TIME
时间 STEP
步伐
.
C
B

13

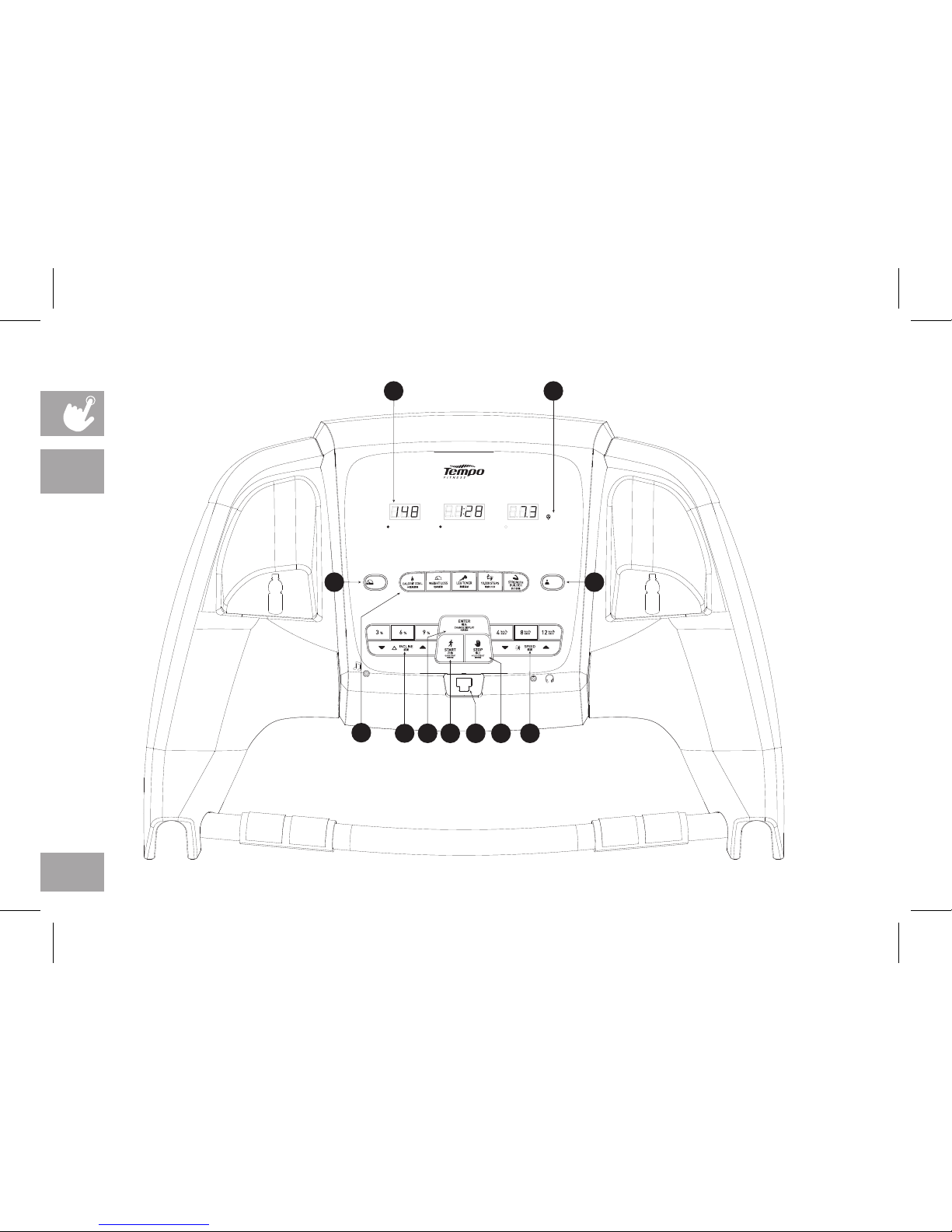

T81 CONSOLE OPERATION
Note: There is a thin protective sheet of clear plastic on the overlay of the console that should be removed before use.
A) LED DISPLAY WINDOWS: Time, Distance,Speed, Calories, Heart Rate and Steps (with 10K Steps program only).
B) BMI TEST: BMI test direct key. Input your weight and height after pressing this key. Your machine will help you calculate your BMI index for
furture tracking.
C) ENERGY SAVER : To minimize energy consumption, your machine will enter energy saver mode automatically (after entering stand-by mode
for 15 mins) and could be quickly waken up with a touch of a button.
D) PROGRAM DIRECT KEYS: Intuitive direct key help you set your program more easily. (Refer to program information for more details).
E) SPEED KEYS: used to adjust speed in small increments (0.1 KMH increments).
F) ENTER BUTTON : used to confirm setting of workout program or user profile.
G) START: press to begin exercising, start your workout, or resume exercising after pause.
H) SAFETY KEY POSITION: enables treadmill when safety key is inserted.
I) STOP: press to pause/end your workout. Hold for 3 seconds to reset the console.
T81
Shown

14
T82
Shown
BMI TEST
体脂测试
6 %9 %
3 %
INCLINE
坡度
ENTER
确认
CHANGE DISPLAY
切换显示
STOP
停止
HOLD TORESET
按住重设
START
开始
QUICK START
快速启动
4km/h
公里/时 8km/h 公里/时 12 km/h 公里/时
SPEED
速度
INCLINE
坡度
CALORIES
卡路里
DISTANCE
距离
SPEED
速度
HEART RATE
心率
节能模式
Energy Saver
A
C
E JF G IHD
C
B
TIME
时间 STEP
步伐
.

15

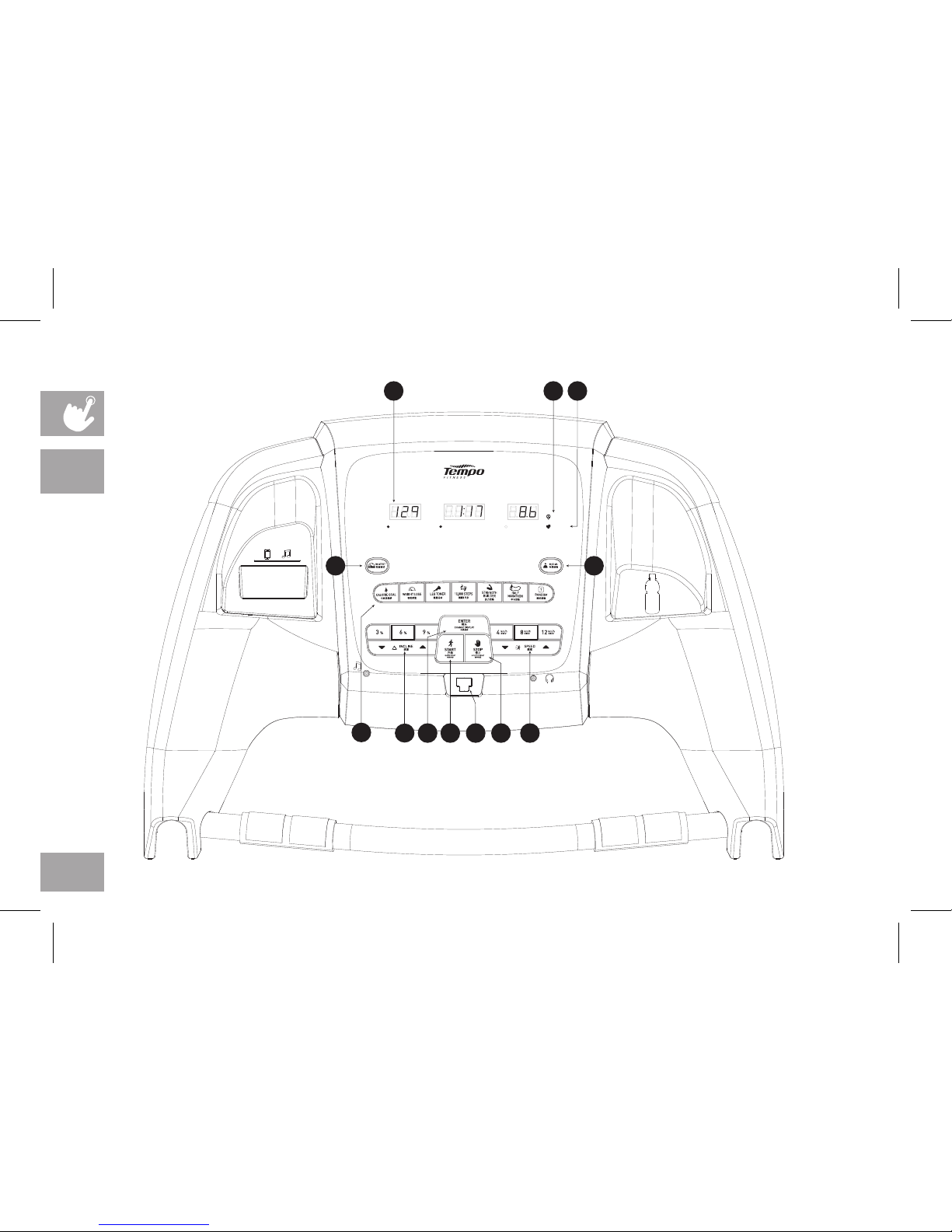

T82 CONSOLE OPERATION
Note: There is a thin protective sheet of clear plastic on the overlay of the console that should be removed before use.
A) LED DISPLAY WINDOWS: Time, Distance,Speed, Incline, Calories, Heart Rate and Steps (with 10K Steps program only).
B) BMI TEST: BMI test direct key. Input your weight and height after pressing this key. Your machine will help you calculate your BMI index for
furture tracking.
C) ENERGY SAVER : To minimize energy consumption, your machine will enter energy saver mode automatically (after entering stand-by mode
for 15 mins) and could be quickly waken up with a touch of a button.
D) PROGRAM DIRECT KEYS: Intuitive direct key help you set your program more easily. (Refer to program information for more details).
E) INCLINE KEYS: used to adjust incline in small increments (0.5% Increments).
F) ENTER BUTTON : used to confirm setting of workout program or user profile.
G) START: press to begin exercising, start your workout, or resume exercising after pause.
H) SAFETY KEY POSITION: enables treadmill when safety key is inserted.
I) STOP: press to pause/end your workout. Hold for 3 seconds to reset the console.
J) SPEED KEYS: used to adjust speed in small increments (0.1 KMH increments).
T82
Shown

16
T85
Shown
A B
MyTrain
专属课程
BMI TEST
体脂测试
TIME
时间 STEP
步伐
.
节能模式
CALORIES
卡路里 HEART RATE 心率
Energy Saver
INCLINE
坡度 DISTANCE 距离 SPEED 速度
D
C
G H I J K
C
E
F

17
T85 CONSOLE OPERATION
Note: There is a thin protective sheet of clear plastic on the overlay of the console that should be removed before use.
A) LED DISPLAY WINDOWS: Time, Distance,Speed, Incline, Calories, Heart Rate and Steps (with 10K Steps program only).
B) ENERGY SAVER : To minimize energy consumption, your machine will enter energy saver mode automatically (after entering stand-by mode
for 15 mins) and could be quickly waken up with a touch of a button.
C) BMI TEST: BMI test direct key. Input your weight and height after pressing this key. Your machine will help you calculate your BMI index for
furture tracking.
D) MY TRAIN: A quick program key to help you save your workout settings and ready for next exercise. After finish any workout press this key
for 3 seconds to save all the changes you made and press this program key to re-experience your favorite workout.
E) PROGRAM DIRECT KEYS: Intuitive direct key help you set your program more easily. (Refer to program information for more details).
F) INCLINE KEYS: used to adjust incline in small increments (0.5% Increments).
G) ENTER BUTTON : used to confirm setting of workout program or user profile.
H) START: press to begin exercising, start your workout, or resume exercising after pause.
I) SAFETY KEY POSITION: enables treadmill when safety key is inserted.
J) STOP: press to pause/end your workout. Hold for 3 seconds to reset the console.
K) SPEED KEYS: used to adjust speed in small increments (0.1 KMH increments).
T85
Shown

18
T86
Shown
A B C
CALORIES
卡路里
INCLINE
坡度 DISTANCE 距离 SPEED 速度
节能模式
Energy Saver
HEART RATE
心率
TIME
时间 STEP
步伐
.心率提示系统
Heart Rate
Indicator
ED
H I G K L
C
F
G

19
T86 CONSOLE OPERATION
Note: There is a thin protective sheet of clear plastic on the overlay of the console that should be removed before use.
A) LED DISPLAY WINDOWS: Time, Distance,Speed, Incline, Calories, Heart Rate and Steps (with 10K Steps program only).
B) ENERGY SAVER : To minimize energy consumption, your machine will enter energy saver mode automatically (after entering stand-by mode
for 15 mins) and could be quickly waken up with a touch of a button.
C) HEART RATE INDICATOR (T86 ONLY): A monitor system to help you stay in your best heart rate range and reach desired performance.
(See page 26 for more information)
D) BMI TEST: BMI test direct key. Input your weight and height after pressing this key. Your machine will help you calculate your BMI index for
furture tracking.
E) MY TRAIN: A quick program key to help you save your workout settings and ready for next exercise. After finish any workout press this key
for 3 seconds to save all the changes you made and press this program key to re-experience your favorite workout.
F) PROGRAM DIRECT KEYS: Intuitive direct key help you set your program more easily. (Refer to program information for more details).
G) INCLINE KEYS: used to adjust incline in small increments (0.5% Increments).
H) ENTER BUTTON : used to confirm setting of workout program or user profile.
I) START: press to begin exercising, start your workout, or resume exercising after pause.
J) SAFETY KEY POSITION: enables treadmill when safety key is inserted.
K) STOP: press to pause/end your workout. Hold for 3 seconds to reset the console.
L) SPEED KEYS: used to adjust speed in small increments (0.1 KMH increments).
T86
Shown

20
• INCLINE (T82 ONLY): Shown as percent. Indicates the
incline of your walking or running surface.
• STEPS: (Use on 10K Steps program only). To display the
steps remained in your workout.
• TIME: Shown as minutes : seconds. View the time
remaining or the time elapsed in your workout.
• DISTANCE: Shown as km or miles. Indicates distance
traveled or distance remaining during your workout.
• SPEED: Shown as MPH or KMPH. Indicates how fast
your walking or running surface is moving.
• CALORIES: Total calories burned or calories remaining
left to burn during your workout.
• HEART RATE: Shown as BPM (beats per minute). Used
to monitor your heart rate (displayed when contact is
made with both pulse grips).
HEART RATE
心率
CALORIES
卡路里
DISTANCE
距离
SPEED
速度
TIME
时间
节能模式
Energy Saver
T81 DISPLAYS
DISPLAY WINDOWS
T81
T82
Shown
INCLINE
坡度
CALORIES
卡路里
DISTANCE
距离
SPEED
速度
TIME
时间
HEART RATE
心率
节能模式
Energy Saver
T82 DISPLAYS
