Overview
Digital Bench-Type Multimeter Model 72-14615 is the maximum reading 1999 and 3 1/2 digits, models in manual range, DC / AC current type digital
multimeter. This is also the extra large characters in LCD display backlight with full function, full measurement and full overload protection as well as
a good product design outlook. In addition to all the conventional features include DC/AC voltage, DC/AC current, resistance, frequency, capacitance,
temperature ℃, Transistor hFE, diode and continuity buzzer.
This operating manual covers information on safety and cautions. Please read the relevant information carefully and observe all the Warnings and
Notes strictly.
Unpacking Inspection
Open the package case and take out the Meter. Check the following items carefully to see any missing or damaged part. If you find any missing or
damage, please contact your dealer in your country.
• Operating Manual 1 piece
• Test Lead 1 pair
• Alligator Clip 1 pair
• K Type Temperature Probe (For the temperature under 230℃testing) 1 piece
• Multi-Purpose Socket 1 piece
• Power Code (AC220V 50Hz DC9V/200mA) 1 piece
Safety Information
This Meter complies with the standards IEC61010-1 in pollution degree 2, overvoltage category (CAT II 1000V) and double insulation. If you can
not follow up this operating instruction to use the meter and it reduces the chance to have an using protection.
1. Before using the Meter and Test Leads inspect both items. Do not use the Meter and Test Leads if it is damaged or the case (or part of the case) is
removed or no reaction on LCD display. Prohibited to use the meter without housing or housing without screw fix up in order to avoid possible electric
shock or to avoid possible damage to the meter or to the equipment under test.
2. If the damage of test leads, use only the same model number or identical electrical specifications replacement parts.
3. Do not use your finger to touch on any testing cable, connector, unused terminal input or circuit during the testing stage
4. When the meter working at an effective voltage over 60V in DC or 30V rms in AC, special care should be taken for there is danger of electric shock.
5. Selecting the correct terminal input and turn the rotary switch to select the measuring function. In case of no any idea on the value input of the
current, just simply test from the high value to low one.
6. Do not overload voltage or current on EITHER between terminal and terminal OR between terminal and grounding which indicate on meter limitation.
7. The rotary switch should be placed in the right position and no any changeover of range shall be made during measurement is conducted to prevent
damage of the Meter.

2
8. Do not use or store the meter in an environment of high temperature, humidity, flammable and electromagnetic environment. The performance of the
meter may deteriorate after dampened.
9. The internal circuit of the meter shall not be altered at will to avoid damage of the meter and any accident
10. Replace the battery as soon as the battery indicator “ ”Appears. With a low battery, the meter might produce false readings that can lead to
electric shock and personal injury.
11. Turn the meter off when it is not is use and take out the battery when not using for a long time.
General Specifications
1. Maximum Voltage between terminal input and COM: 1000V (except 200mV, 230V)
2. μA mA terminal input protection: (CE)250mA 265V auto recovery fuse
3. 10A terminal input protection: (CE)F1 (10A H 1000V) Fast type melted fuse Φ10.3x38mm
4. Resistance input protection: PTC/1000V
5. Capacitance input protection: (CE)F2, F3 (0.5A H 1000V) Fast type melted fuse Φ6.35x31.8mm
6. Frequency input protection: PTC/1000V
7. Temperature input protection: (CE)0.5A 1000V fuse
8. terminal input protection: PTC/1000V
9. hFE input protection: (CE)250mA 265V auto recovery fuse, F3 (0.5A H 1000V) Fast type melted fuse Φ6.35x31.8mm
10. Display LCD full function signal display, maximum reading is 1999 (72-14615),
Updates 2-3 times / second
11. Range Manual
12. Polarity Display: Auto
13. Overload indication: 1
14. Battery Deficiency
15. Operating Temperature: 0 to 40℃
16. Storing Temperature: -10 to 50℃
17. Relative Humidity: 0℃ to 30℃ below ≤75%，30℃to 40℃ ≤50%
18. Electromagnetic Field: Under 1V/m the influence of radiated radio-frequency electromagnetic field phenomenon，Total accuracy= specific
accuracy+ measurement 5%, Over 1V/m radiated radio-frequency electromagnetic which do not have any reference data on this topic.

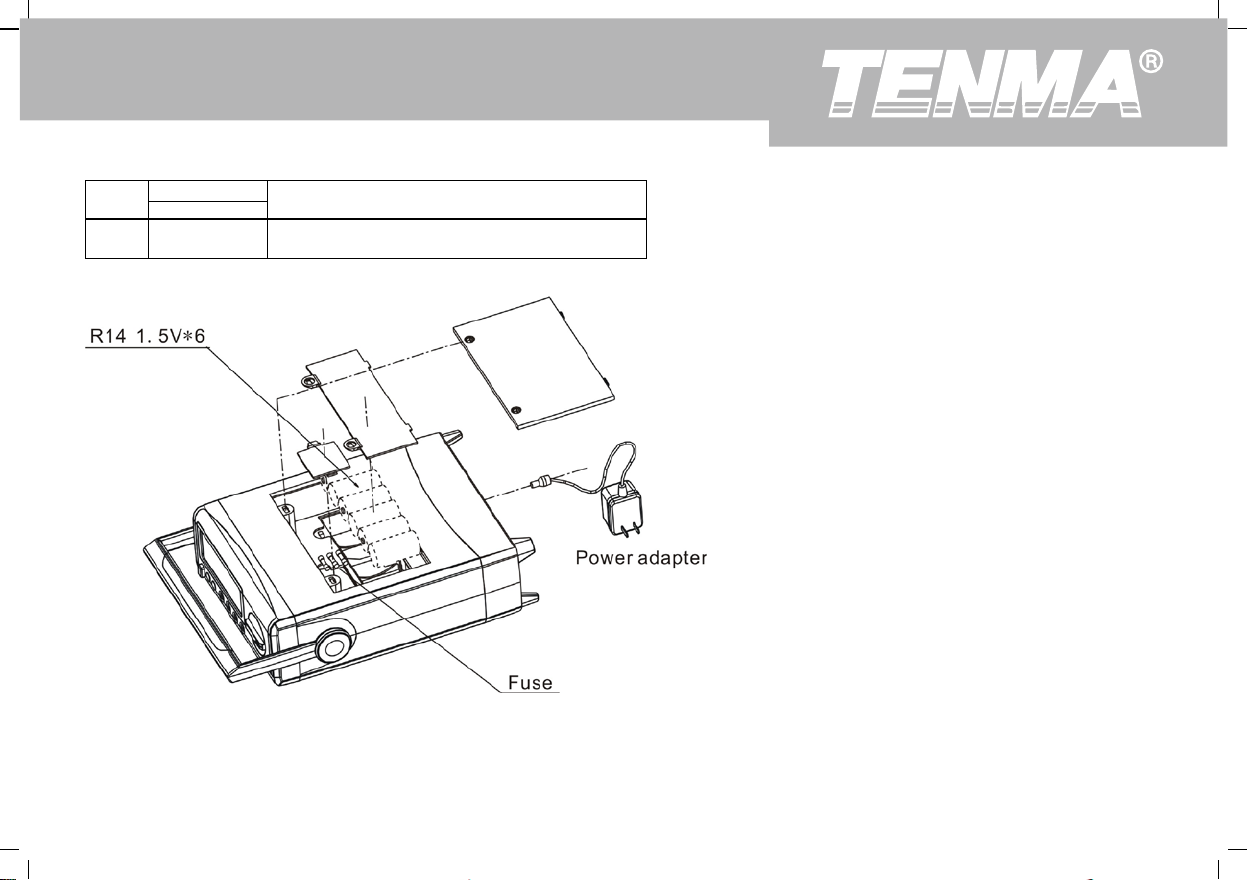

19. Power AC (external power adapter AC220V/DC9V-200mA) or DC(internal battery type 2 R14/1.5V 6 pieces)
20. Product size : (300 x 245 x 105) mm
21. Product Net Weight : About1500g (without the accessories)
22. Safety Compliances IEC 61010: CATⅡ1000V
LCD Display
72-14615 Operating Manual

3
1. Manual Range Indicator of manual range
2. Warning ！Indicator for Warning signal
3. The battery is low
4. Indicator for high voltage signal
5. Indicator for Negative reading display
6. AC Indicator for AC voltage or current( DC indicator do not display)
7. Data hold is active
8. Test of diode
9. The continuity buzzer is on
10. Indicates testing reading
11. Units of measurement:
mV,V Unit of Voltage: The millivolt, volt
μA,mA,A Unit of current: Microampere, milliampere, ampere
Ω,kΩ,MΩ Unit of electrical resistance: Ohm, thousand ohms, trillion ohm
nF,μF Unit of electrical capacity: Accepts the farad, the microfarad
kHz Unit of Frequency: Kilohertz
℃ Unit of Temperature：Degree Celsius
β Factor Unit of Triode enlargement：Times
1.Functions
Symbol
V
V
Ω
kHz
A
A
F
℃
hFE
Terminal Input
V ←→ COM
V ←→ COM
V ←→ COM
V ←→ COM
V ←→ COM
mA μA ←→ COM
10A ←→ COM
mA μA ←→ COM
10A ←→ COM
V ←→ mA μA(Use Multi-Purpose Socket)
V ←→ mA μA( Use Multi-Purpose Socket)
V ←→ mA μA( Use Multi-Purpose Socket)
Explanation
DC Voltage Measurement
AC Voltage Measurement
Resistance Measurement
Diode / Continuity Buzzer Measurement
Frequency Measurement
mA/μA DC Current Measurement
A DC Current Measurement
mA/μA AC Current Measurement
A AC Current Measurement
Capacitance Measurement
Temperature Measurement
Triode Enlargement Factor Measurement
72-14615 Operating Manual

4
2. Functional Buttons
Turn the power on and off
LIGHT Turn the display backlight on and off (suitable for battery supply，backlight turn on about 10 seconds after auto shut down.)
HOLD Press Hold to enter and exit the hold mode in any mode, the meter beeps
Operational Measurement Guide (see Diagram 1, 2, 3)
Diagram 1 Diagram 2
72-14615 Operating Manual

5
Diagram 3
Warning:
1. Selecting the correct terminal input and turns the rotary switch to select the measuring function. If fails to do that, the buzzer beep and the warning
signal ash on！
Range
V Hz Ω
mAμA ℃hFE F
10A
Alarm Alert On False Terminal Input
10A mAμA
10A
mAμA
72-14615 Operating Manual

6
2. DC or AC Voltage Measurement
•. To avoid harms to you or damages to the Meter from electric shock, please do not attempt to measure voltages higher than 1000 V although
reading may be obtained!
•. The Meter has an input impedance of 10MΩ，This loading effect can cause measurement errors in high impedance circuits and so you need to
take a note on it.
3. DC or AC Current Measurement
•. Before connect the Meter in serial with the tested return circuit, closed
the return circuit current to avoid the dangerous of sparking.
•. Do not use over ＞10A current measurement ! Although the meter can work on below 20A current testing but for the avoiding any harms to you or
damages to the Meter !
4. Measuring Resistance, Diodes, Continuity or Capacitance
•. To maintain the measurement accuracy, discount circuit power and discharge all the high voltage capacitors during the measuring resistance.
•. When measuring high resistance on 1MΩ or above, it is normal to take several seconds to obtain a stable reading. In order to obtain
stable reading, choose shorter test lead to carrying out measurement.
•. The test leads and the Meter inside wire will bring around 0.1Ω to 0.2Ω of error to resistance measurement when measuring low resistance. To
obtain accurate readings in low-resistance, short –circuit the test leads beforehand and record the reading obtained, call this reading as X. Then
use the equation: measured resistance value (Y) – (X) = accurate readings of resistance.
•. During measurement，Diodes is in a good silicon junction drops between 500mV to 800mV as the normal value；The continuity
measurement, the poles between resistance is >100Ω，it is a short circuit，but on the poles between resistance is ≤10Ω，it is a good
connection，buzzer is continually beep on，and the reading value is nearly to the circuit resistance value，Unit is Ω.
Accuracy Specications
Accuracy： ±(% reading + digits)，guarantee for 1 year
Operating temperature：18 to 28℃
Environmental humidity： Less than 75%RH
72-14615 Operating Manual

72-14615
72-14615 72-14615
72-14615 72-14615
72-14615 72-14615

72-14615 Operating Manual
72-14615 72-14615
72-14615 72-14615
72-14615 72-14615

9
7. Frequency
Range
Range
Range
Resolution
Resolution
Resolution
Accuracy Tolerance：±(％Reading ＋Digits)
Remarks
Remarks
Accuracy Tolerance：±(％Reading ＋Digits)
72-14615
±(1.5%+5)
Open circuit voltage is around 3 V，Silicon junction
drops between 0.5 to 0.8V as the normal value.
Open circuit voltage is approximate 3V；
When circuit disconnected with resistance value
：＞100Ω，buzzer does not beep；
When circuit is in good connection with resistance
value ：≤10Ω，buzzer beeps continuously.
72-14615
72-14615
72-14615
1Hz
100Hz
1mV
1Ω*
2kHz
200kHz
Input Amplitude：(2kHz range)50mV≤a≤30Vrms, (200kHz range) 150mV≤a≤30Vrms
8. Temperature
Range
-40 to -20℃
＞-20 to 0℃
＞0 to 100℃
＞100 to1000℃
1℃
72-14615 72-14615
-(8%+5)
±(1.2%+4
±(1.2%+3)
±(2.5%+2)
Resolution
*Thermocouple: It is suitable to use K type thermocouple. This include point contact K type thermocouple can only be used on less than 230℃
temperature measurement.
9. Diode Test
10. Continuity Test
72-14615 Operating Manual

10
Range
hFE
Resolution Remarks
Ib0 is about 10μA；Vce is about 2.5V
72-14615
1β*
11. Transistor hFE
see Diagram 4
Specifications and other information shown on this instruction
manual are subject to change without notice
Diagram 4
72-14615 Operating Manual

P/N:110401108710X
REV.0
DATE：2019-03-12
Tenma Test Equipment
300 S. Riverside Plaza #2200
Chicago IL, 60606
USA
www.Tenma.com
