Terex Genie Superlift Advantage User manual

Operator's Manual
Serial Number Range
Superlift®
Advantage
with
Maintenance
Information
Original Instructions
Fourth Edition
First Printing
Part No. 1314199GT
Front Matter

Operator's Manual Fourth Edition • First Printing
Genie Superlift®Advantage Part No. 1314199GT
Manufacturer:
Terex Global GmbH
Bleicheplatz 2
Schaffhausen, 8200
Switzerland
EU Authorized representative:
Genie Industries B.V.
Boekerman 5
4751 XK OUD GASTEL
The Netherlands
UK Authorized representative:
Genie UK Limited
The Maltings
Wharf Road
Grantham
NG31 6BH
UK
Contents
Introduction ........................................................... 1
Symbol and Hazard Pictorials Definitions............. 6
General Safety ...................................................... 7
Work Area Safety................................................ 11
Legend ................................................................ 15
Inspections.......................................................... 17
Operating Instructions......................................... 27
Transport and Lifting Instructions ....................... 30
Load Capacity Charts ......................................... 32
Specifications...................................................... 34
Copyright © 1994 by Genie Industries
Fourth Edition: First Printing, October 2022
Genie is a registered trademark of Terex South Dakota, Inc. in
the U.S.A. and many other countries.
Complies with EC Directive 2006/42/EC
See EC Declaration of Conformity
Supply of Machinery (Safety) Regulations 2008

Fourth Edition • First Printing Operator's Manual
Introduction
Part No. 1314199GT Genie Superlift®Advantage 1
Introducti on
About this manual
Genie appreciates your choice of our machine for
your application. Our number one priority is user
safety, which is best achieved by our joint efforts.
This book is an operation and daily maintenance
manual for the user or operator of a Genie
machine.
This manual should be considered a permanent
part of your machine and should remain with the
machine at all times. If you have any questions,
contact Genie.
Product Identification
The machine serial number is located on the serial
label.
Serial label Serial number stamped on
chassis
Intended Use and Familiarization
Guide
The intended use of this machine is to lift material.
Before operating the machine, it’s the operator’s
responsibility to read and understand this
familiarization guide.
Each person must be trained to operate a
material lift.
Familiarization with the material lift must be
given to each person who is authorized,
competent and trained.
Only trained and authorized personnel should
be permitted to operate the machine.
The operator is responsible to read,
understand, and obey the manufacturer’s
instructions and safety rules provided in the
Operator’s Manual.
The Operator’s Manual is located in the
manual storage container, on the machine.
For specific product applications, see
Contacting The Manufacturer.

Operator's Manual Fourth Edition • First Printing
Introduction
2 Genie Superlift®Advantage Part No. 1314199GT
Related machine movement:
Lower the leg to down
position.
Inserting the adjustable
fork
Fork pin inserted
Swivel caster lock
Raise and lowering
carriage
Limitations of use:
•The intended use of this machine is to lift
materials to an aerial work site.
•Do not raise the carriage unless the machine is
on a firm level surface.
Stability enhancing means:
•Stabilizer (if equipped)
•Leg
Restricted operating envelope:
•Load handling attachments (See Load Capacity
Charts section.)

Fourth Edition • First Printing Operator's Manual
Introduction
Part No. 1314199GT Genie Superlift®Advantage 3
Bulletin Distribution and
Compliance
Safety of product users is of paramount
importance to Genie. Various bulletins are used by
Genie to communicate important safety and
product information to dealers and machine
owners.
The information contained in the bulletins is tied to
specific machines using the machine model and
serial number.
Distribution of bulletins is based on the most
current owner on record along with their
associated dealer, so it is important to register
your machine and keep your contact information
up to date.
To ensure safety of personnel and the reliable
continued operation of your machine, be sure to
comply with the action indicated in a respective
bulletin.
To view any open bulletins for your machine, visit
us on the web at www.genielift.com.
Contacting the Manufacturer
At times it may be necessary to contact Genie.
When you do, be ready to supply the model
number and serial number of your machine, along
with your name and contact information. At
minimum, Genie should be contacted for:
Accident reporting
Questions regarding product applications and
safety
Standards and regulatory compliance information
Current owner updates, such as changes in
machine ownership or changes in your contact
information. See Transfer of Ownership, below.
Transfer of Machine Ownership
Taking a few minutes to update owner information
will ensure that you receive important safety,
maintenance and operating information that
applies to your machine.
Please register your machine by visiting us on the
web at www.genielift.com or by calling us toll free
at 1-800-536-1800.

Operator's Manual Fourth Edition • First Printing
Introduction
4 Genie Superlift®Advantage Part No. 1314199GT
Danger
Failure to obey the instructions and
safety rules in this manual will result
in death or serious injury.
Do Not Operate Unless:
You learn and practice the principles of safe
machine operation contained in this operator’s
manual.
1 Avoid hazardous situations.
Know and understand the safety rules
before going on to the next section.
2 Always perform a pre-operation inspection.
3 Always perform function tests prior to use.
4 Inspect the workplace.
5 Only use the machine as it was intended.
You read, understand and obey the
manufacturer’s instructions and safety rules—
safety and operator’s manuals and machine
decals.
You read, understand and obey employer’s
safety rules and worksite regulations.
You read, understand and obey all applicable
governmental regulations.
You are properly trained to safely operate the
machine.
Safety Sign Maintenance
Replace any missing or damaged safety signs.
Keep operator safety in mind at all times. Use mild
soap and water to clean safety signs. Do not use
solvent-based cleaners because they may
damage the safety sign material.

Fourth Edition • First Printing Operator's Manual
Introduction
Part No. 1314199GT Genie Superlift®Advantage 5
Decal Legend
Genie product decals use symbols, color coding
and signal words to identify the following:
Safety alert symbol
—used to
alert personnel to potential
personal injury hazards. Obey all
safety messages that follow this
symbol to avoid possible injury or
death.
Red
—used to indicate the
presence of an imminently
hazardous situation which, if not
avoided, will result in death or
serious injury.
Orange—used to indicate the
presence
of a potentially
hazardous situation which, if not
avoided, could result in death or
serious injury
Yellow with safety alert symbol
—
used to indicate the presence of
a potentially hazardous situation
which, if not avoided, may cause
minor or moderate
injury.
Yellow without safety alert
symbol
—used to indicate the
presence of a potentially
hazardous situation which, if not
avoided, may result in property
damage.
Green
—used to indicate
operation or maintenance
information.

Operator's Manual Fourth Edition • First Printing
Symbol and Hazard Pictorials Definitions
6 Genie Superlift®Advantage Part No. 1314199GT
Symbol and Hazard Pic torials Definiti ons
Read the operator’s
manual
Read the service
manual
Crush hazard No smoking Collision hazard
Crush hazard Tip-over hazard Electrocution hazard Collision hazard Bodily injury hazard
Damaged Machine
Hazards

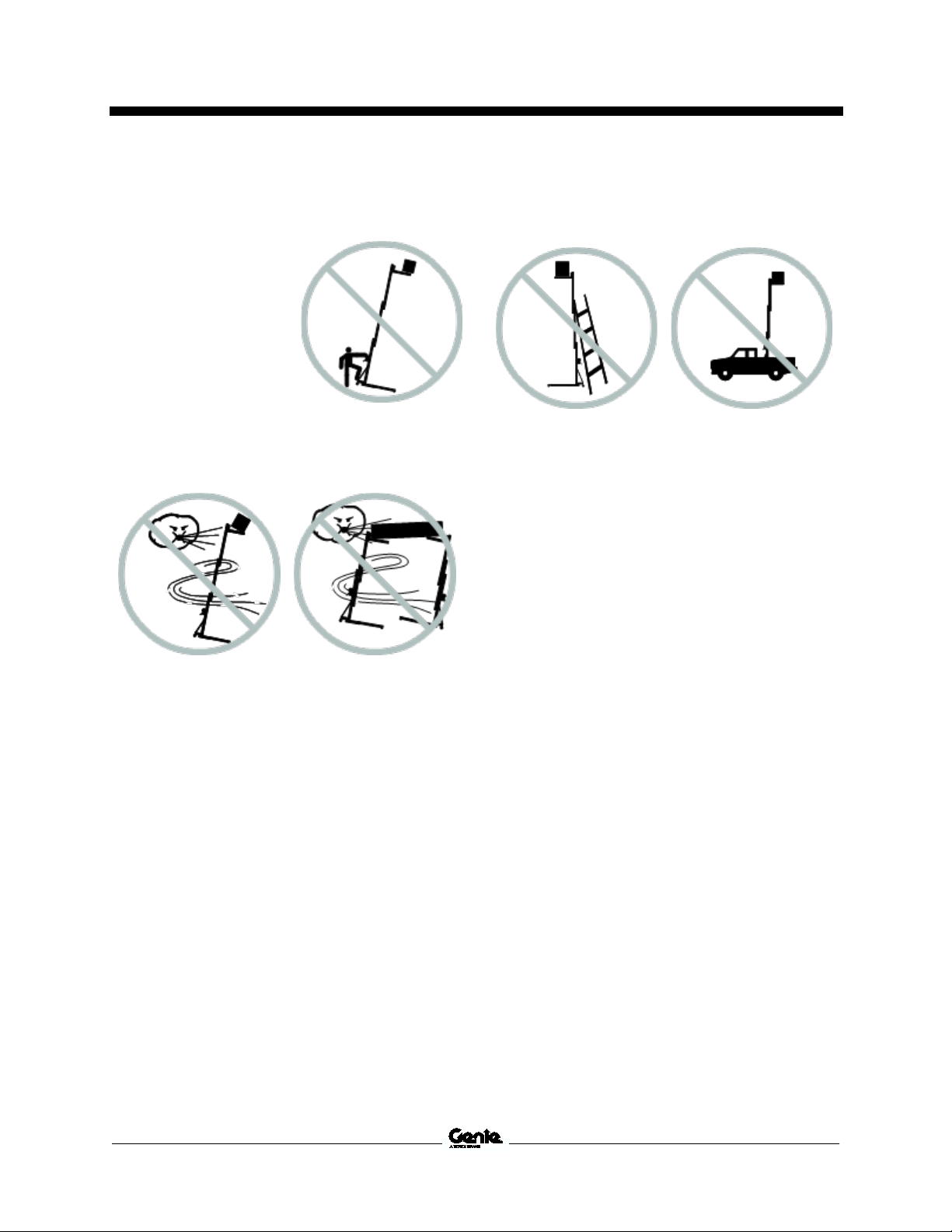

Transport diagram Lifting point Do not operate in
Strong winds
Electrocution hazard
Fall hazard Fall hazard Lifting point Release brakes Do not place ladder
against the machine
Do not use the
machine on moving
vehicle or surface

Fourth Edition • First Printing Operator's Manual
General Safety
Part No. 1314199GT Genie Superlift®Advantage 7
General Safety
1
Australia models only

Operator's Manual Fourth Edition • First Printing
General Safety
8 Genie Superlift®Advantage Part No. 1314199GT

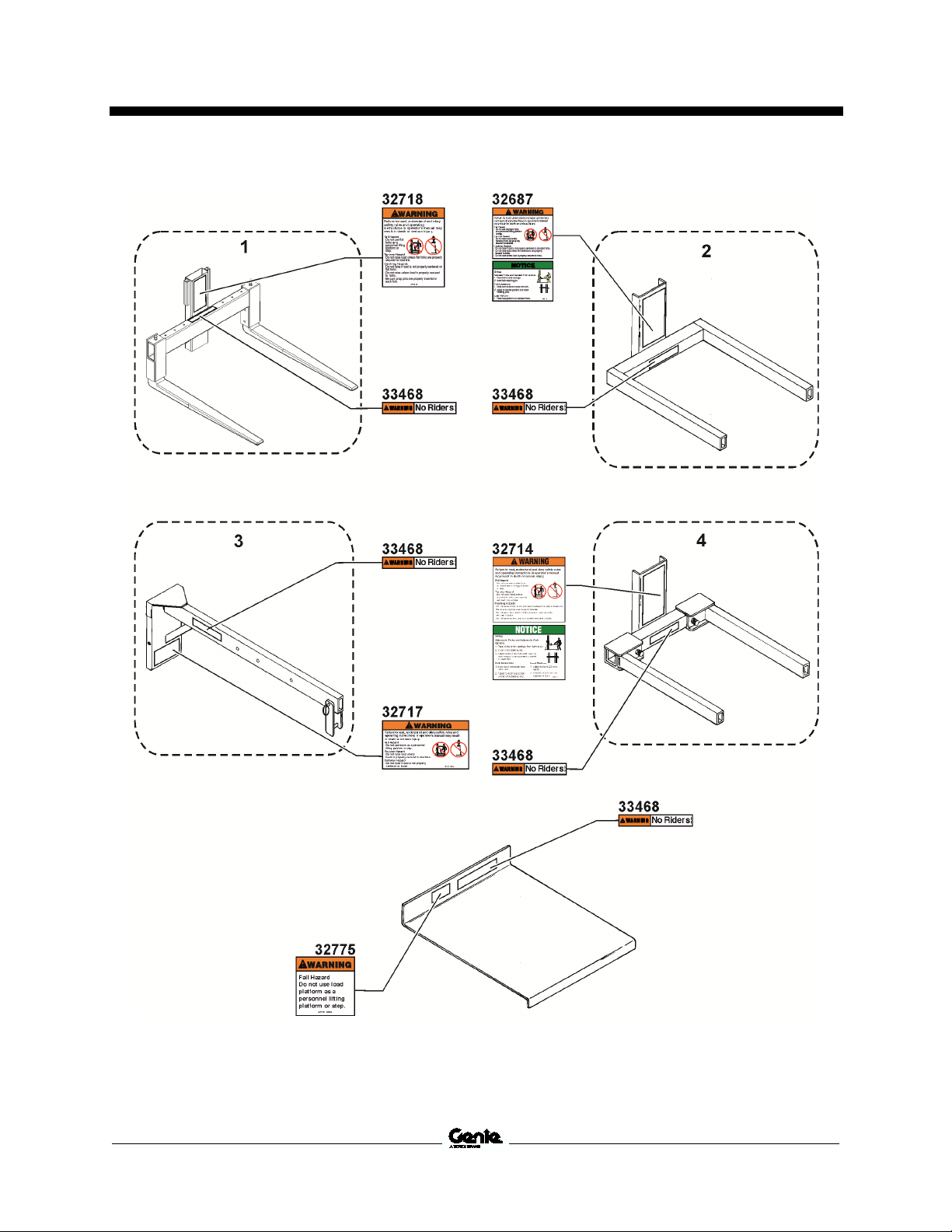

1
Flat Forks
3
Adjustable Forks
2
Standard Forks
4
Boom

Fourth Edition • First Printing Operator's Manual
General Safety
Part No. 1314199GT Genie Superlift®Advantage 9

Operator's Manual Fourth Edition • First Printing
General Safety
10 Genie Superlift®Advantage Part No. 1314199GT

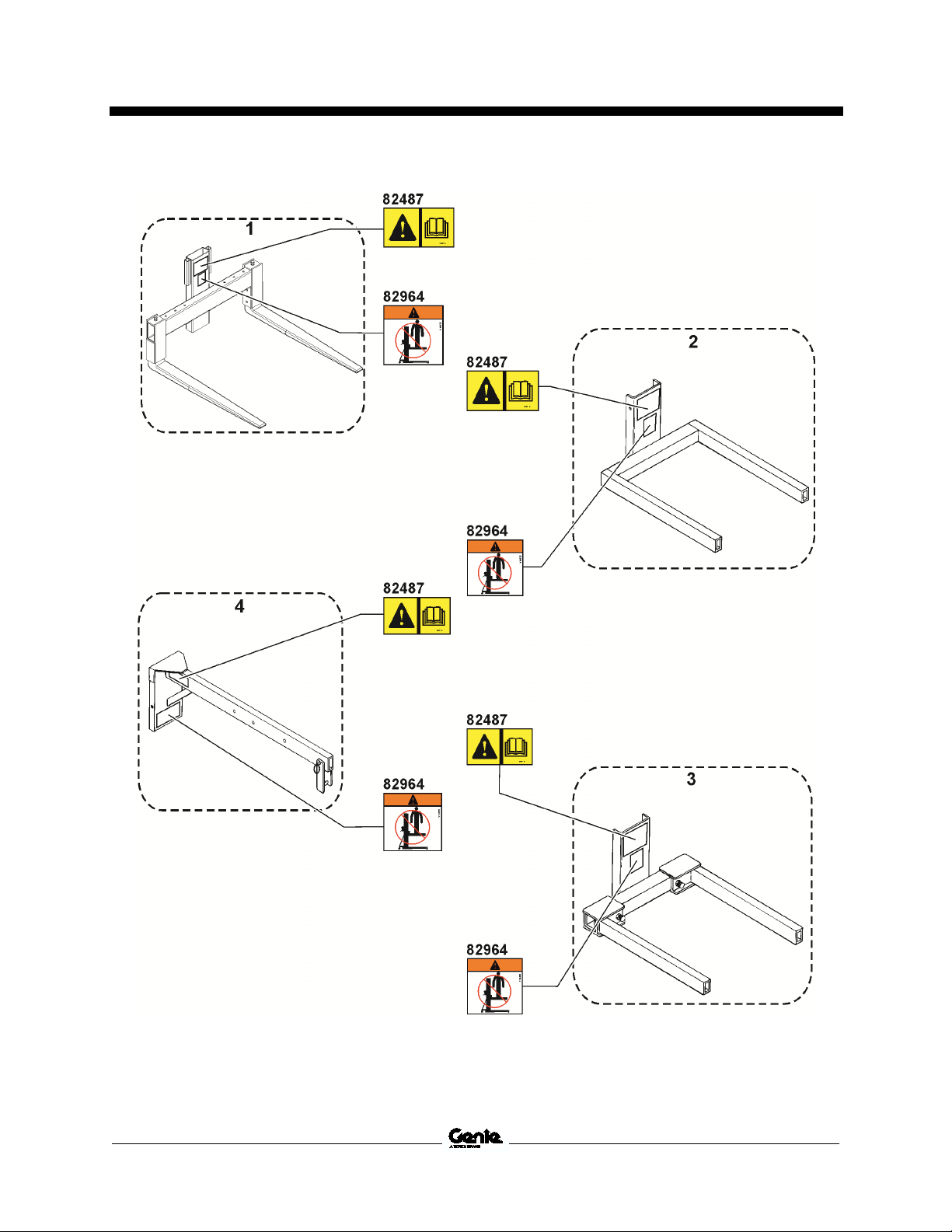

1
Flat Fork
3
Adjustable Fork
2
Standard Fork
4
Boom

Fourth Edition • First Printing Operator's Manual
Work Area Safety
Part No. 1314199GT Genie Superlift®Advantage 11
Work Area Safet y
Electrocution Hazards
This machine is not electrically insulated and will
not provide protection from contact with or
proximity to electrical current.
Keep away from the
machine if it contacts
energized power lines.
Personnel must not touch
or operate the
machine
until energized power lines
are shut off.
Maintain safe distances from electrical power lines
and apparatus in accordance with applicable
governmental regulations and the following chart.
Voltage
Phase to Phase
Minimum Safe
Approach Distance
0
to 300V
Avoid Contact
300V to 50KV
10 f
t
3.05
m
50KV to 200KV
15 f
t
4.60
m
200KV to 350KV
20 f
t
6.10
m
350KV to 500KV
25 f
t
7.62
m
500KV to 750KV
35 f
t
10.67
m
750KV to 1000KV
45 f
t
13.72
m
Allow for mast movement, electrical line sway or
sag, and beware of strong or gusty winds.
Do not use the machine as a ground for welding.
Tip-over Hazards
Do not raise the load unless the stabilizers (if
equipped) and legs have been fully lowered and
locked and the casters are in full contact with the
ground.
Do not raise the load
unless the leg retainer
pins are properly inserted
through the leg and the
base.
Do not remove the leg
retainer pins while the
machine is loaded and/or
raised.
Do not raise the load unless the machine is on a
firm, level surface.
Prior to use, check the work area for drop-offs,
holes, bumps, debris, unstable or slippery surfaces
or other possible hazardous conditions.

Operator's Manual Fourth Edition • First Printing
Work Area Safety
12 Genie Superlift®Advantage Part No. 1314199GT
Do not raise the load unless the load handling
attachment is properly secured to the machine.

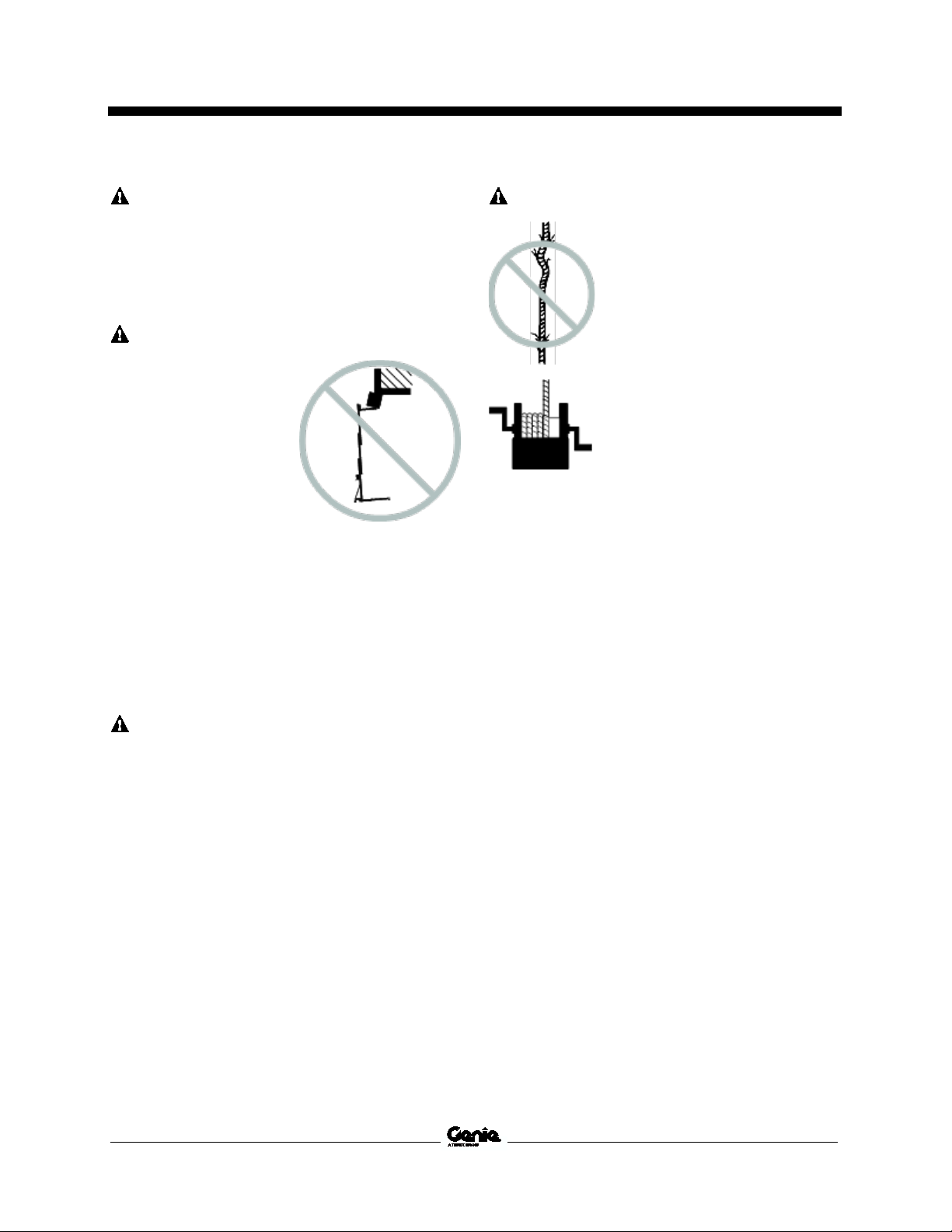

Do not use blocks to level
the machine.
Do not move the machine
with a raised load, except
for minor positioning.
Do not operate the machine in strong or gusty
winds. Increasing the load surface area will
decrease machine stability in windy conditions.
Do not leave a load raised when windy conditions
may occur unless the machine(s) are properly
guywired.
Do not cause a horizontal force or side load to
machine by raising or lowering a fixed or
overhanging load.
Do not place ladders or scaffolding against any
part of the machine.
Do not use the machine on a moving or mobile
surface or vehicle.
Do not exceed the rated load capacity. See Load
Capacity Charts section.
Avoid debris and uneven surfaces while rolling a
machine with the legs folded up.
Do not replace machine parts critical to stability or
structure with items of different weight or
specification.
Do not use a straddle base or the flat forks on an
SLA-20 or an SLA-25.

Fourth Edition • First Printing Operator's Manual
Work Area Safety
Part No. 1314199GT Genie Superlift®Advantage 13
Fall Hazards
Do not use as a personnel lifting platform or step.
Do not stand on the load handling attachments.
Do not climb on the mast.
Collision Hazards
Check the work area for
overhead obstructions or
other possible hazards.
Do not tilt the machine back unless the area is
clear of personnel and obstructions.
Use common sense and planning when
transporting the machine on an incline or slope.
Do not load for transport unless the machine and
vehicle are on a level surface. Use proper lifting
techniques to load the machine.
Bodily Injury Hazard
Do not grasp the cable.
Damaged Machine Hazards
Do not use a damaged or
malfunctioning machine.
Do not use a machine with a
worn, frayed, kinked or damaged
cable.
Do not use a machine with less
than
4 wraps of cable on the
winch drum when the carriage is
fully lowered.
Conduct a thorough pre-operation inspection prior
to each use.
Be sure all decals are in place and legible. See
Decals section.
Be sure that the operator's manual is complete,
legible and in the storage container located on the
machine.
Maintain proper lubrication on the winch. See
Genie Superlift Parts and Service Manual for
details.
Do not allow oil or grease on braking surfaces.
Do not use any type of lubrication on the column
surfaces.

Operator's Manual Fourth Edition • First Printing
Work Area Safety
14 Genie Superlift®Advantage Part No. 1314199GT
Crushing Hazard
Do not raise if the load is not properly centered on
the load handling attachment.
Do not raise unless the load is properly secured to
the load handling attachment.
Do not stand under or
allow
personnel under the
machine when the load is
raised.
Do not stand under the
load. The mast brake
system (if equipped) will
allow the load to drop
1 to
3
feet / 30 to 92 c
m before
locking the columns.
Do not lower the load unless the area below is
clear of personnel and obstructions.
Keep hands and fingers away from folding legs
and other potential pinch points.
Maintain a firm grasp on the stabilizer when the
lock plates are released. The stabilizer will drop.
Maintain a firm grasp on the leg when the retaining
pin is removed. The leg will drop.
Maintain a firm grasp on the winch handle until the
brake is locked. The brake is locked when the load
will not cause the winch handle to turn.
Adjustable Flat Forks
Do not raise the load unless the snap
pins are properly inserted in the
forks.
Fork Extensions
Do not raise the load unless the fork extensions
are properly secured to the forks.
Lifting Hazards
Use proper lifting techniques to load or tip the
machine.
Use proper lifting techniques when installing or
removing the load handling attachments.
Improper Use Hazard
Never leave a machine unattended with a load.
Unauthorized personnel may attempt to operate
the machine without proper instruction, creating an
unsafe condition.

Fourth Edition • First Printing Operator's Manual
Legend
Part No. 1314199GT Genie Superlift®Advantage 15
Legend
1 Winch
2 Cable
3 Mast
4 Carriage
5 Adjustable arm
6 Traveling wheels (if
equipped)
7 Leg
8 Leg swivel caster
9 Straddle base
10 Arm lock knob
11 Leg retaining pin
12 Stabilizer (if equipped)
13 Hold-down bar (on opposite
side of machine)
14 Stabilizer brace
15 Standard base
16 Base swivel/lock caster with
brake
17 Load handling attachment
retaining pin

Operator's Manual Fourth Edition • First Printing
Legend
16 Genie Superlift®Advantage Part No. 1314199GT

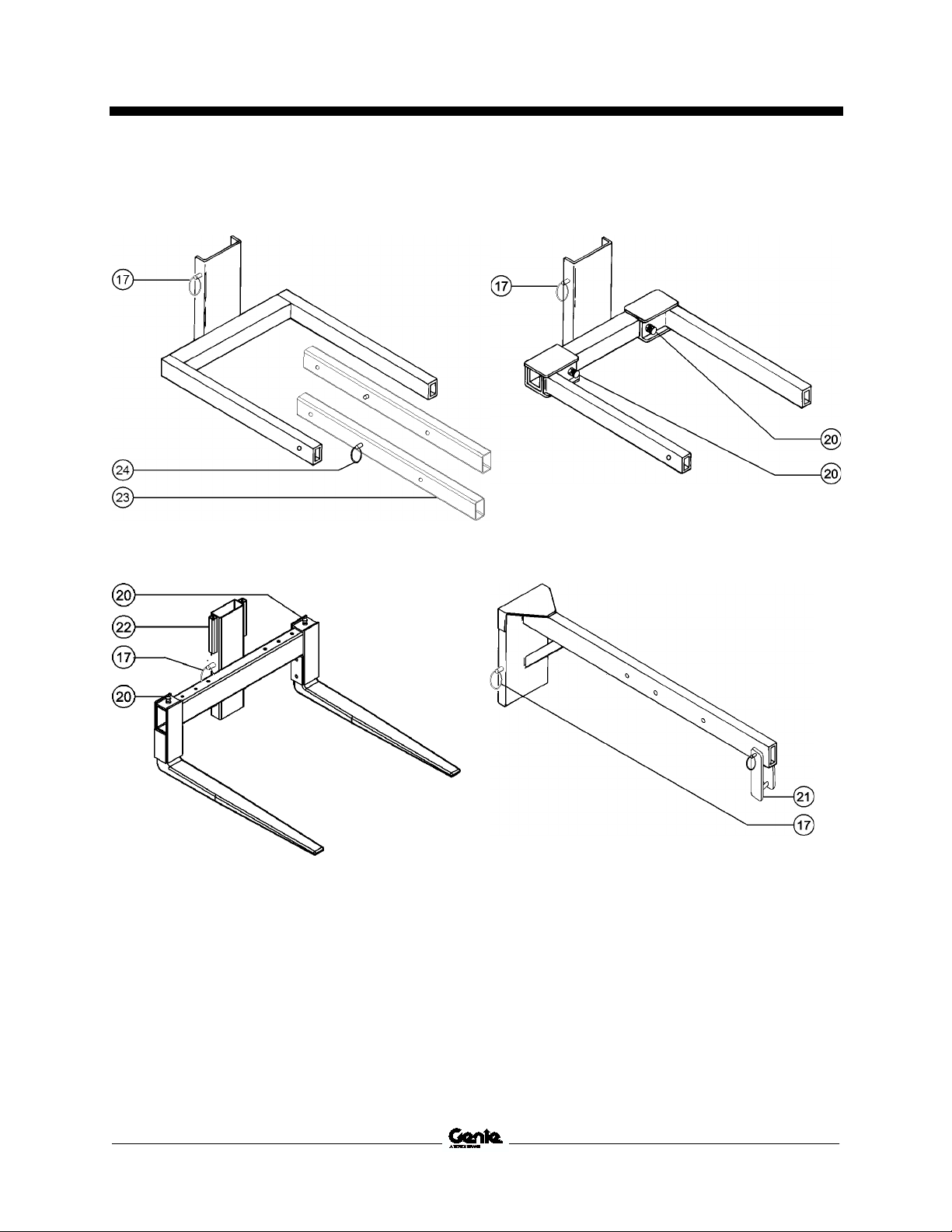

Standard Forks
Adjustable Forks
Adjustable Flat Forks
Boom
18 Mast brace
19 Loading wheels/steer handles
20 Snap pin
21 Lifting shackle
22 Fork mounting bracket
23 Fork Extensions
24 Fork extension retaining pin

Fourth Edition • First Printing Operator's Manual
Inspections
Part No. 1314199GT Genie Superlift®Advantage 17
Inspections
Do Not Operate Unless:
You learn and practice the principles of safe
machine operation contained in this operator’s
manual.
1 Avoid hazardous situations.
2 Always perform a pre-operation
inspection.
Know and understand the pre-operation
inspection before going on to the next
section.
3 Always perform function tests prior to use.
4 Inspect the workplace.
5 Only use the machine as it was intended.
Pre-operation Inspection
Fundamentals
The pre-operation inspection is a visual inspection
performed by the operator prior to each work shift.
The inspection is designed to discover if anything
is apparently wrong with a machine before the
operator performs the function tests.
Refer to the list on the next page and check each
of the items.
If damage or any unauthorized variation from
factory delivered condition is discovered, the
machine must be tagged and removed from
service.
Repairs to the machine may only be made by a
qualified service technician, according to the
manufacturer’s specifications. After repairs are
completed, the operator must perform a pre-
operation inspection again before going on to the
function tests.

Operator's Manual Fourth Edition • First Printing
Inspections
18 Genie Superlift®Advantage Part No. 1314199GT
Pre-operation Inspection
Be sure that the operator’s manual is
complete, legible and in the storage container
located on the machine.
Be sure that all decals are legible and in place.
See Decals section.
Check the following components or areas for
damage, improperly installed, or missing parts and
unauthorized modifications:
Winch and related components
Base components
Legs
Stabilizers and latch plates (if equipped)
Mast columns
Exterior plastic shim for safety brake (if
equipped)
Carriage hold-down bar
Cable anchor
Cable and pulleys
Wheels and casters
Load handling attachments
Nuts, bolts and other fasteners
Cable (kinks, frays and abrasions)
Check entire machine for:
Cracks in welds or structural components
Dents or damage to machine
Excessive rust, corrosion or oxidation
Verify that all structural and other critical
components are present and all associated
fasteners and pins are in place and properly
tightened.
Be sure there is a minimum of 4 wraps of
cable around the winch drum when the
carriage is fully lowered.
