Toro 30669 User manual

FormNo.3434-434RevA
UniversalSunshade
Groundsmaster®orReelmaster®TractionUnitsorMultiPro®1750
TurfSprayer
ModelNo.30669
ModelNo.30671
InstallationInstructions
Important:IfyouinstalltheUniversalSunshadeonaReelmaster3100tractionunitoraGroundsmaster
3500/3505tractionunit,installtheWheelWeightKit.ContactyourauthorizedTorodistributorfor
thecorrectWheelWeightKit.
Safety
General
BeforeOperating
1.Reviewandunderstandthecontentsofthe
InstallationInstructionsbeforeinstallingthe
sunshade.
2.Keepallshields,safetydevicesanddecals
inplace.Ifashield,safetydeviceordecal
isdefective,illegible,ordamaged,repairor
replaceitbeforeoperatingthemachine.
3.Donotweld,cut,drill,modify,orremovetheroll
barinanymanner.
4.Tightenanyloosenuts,bolts,orscrewsto
ensurethatthemachineisinsafeoperating
condition.
WhileOperating
1.Useextremecarewhenworkingclosetofences,
ditches,oronhillsides.
2.Checkcarefullyforoverheadclearances(i.e.,
branches,doorways,electricalwires)before
drivingunderanyobjectsanddonotcontact
them.
3.Tiedownthesunshadeframewhentransporting
themachine.
4.Wearhearingprotectionwhenoperatingany
machinewithasunshade.
MaintenanceandService
1.Beforeservicingormakingadjustments,lower
theimplement,shutofftheengine,engagethe
parkingbrake,andremovethekey.
2.Makesurethatthemachineisinsafeoperating
conditionbykeepingallnuts,bolts,andscrews
tight.
3.Whenworkingonthesunshadeinstallation,
weareyeprotection.
4.Replaceadamagedsunshade.Donotrepair
orrevise.
5.Wheninstallingthesunshadeorperforming
service,usecorrectsupports,hoists,andjacks.
Ifthesunshadeisnotproperlysupported,itmay
moveorfall,whichmayresultinpersonalinjury.
6.Toensureoptimumperformanceandsafety,
alwayspurchasegenuineTororeplacement
partsandaccessories.Replacementpartsand
accessoriesmadebyothermanufacturerscould
bedangerous.Suchusecouldvoidtheproduct
warrantyofTheT oroCompany.
©2019—TheToro®Company
8111LyndaleAvenueSouth
Bloomington,MN55420
Registeratwww.T oro.com.OriginalInstructions(EN)
PrintedintheUSA
AllRightsReserved*3434-434*A

SafetyandInstructionalDecals
Safetyandinstructiondecalsareafxedtoyoursunshade.Ifanydecalbecomesillegibleordamaged,installa
newdecal.
decal98-4387
98-4387
1.Warning—wearhearingprotection.
Installation
LooseParts
Usethechartbelowtoverifythatallpartshavebeenshipped.
DescriptionQty.Use
Nopartsrequired–Preparethemachine.
Nopartsrequired–IdentifytheU-bolt.
Bolt(3/4x4inches)2
Nut(3/4inch)2
Washer(13/16x1-1/2inches)4
Frameassembly1
ROPS-mountbracket1
Brace2
Bracebracket2
Extensionlink2
Bolt(1/2x1-1/2inches)4
Bolt(1/2x2-1/2inches)4
Bolt(1/2x2-3/4inches)4
Largewasher10
Flangenut(1/2inch)10
U-bolt(4-7/8x2-3/4inches)2
U-bolt(3-7/8x2-3/4inches)2
U-bolt(3-7/8x4inches)2
U-bolt(4-7/8x4inches)2
U-bolt(3-7/8x5inches)4
Flangenut(3/8inch)8
Sunshade1
Flange-headbolt(5/16x1-1/4inches)4
Smallwasher4
Grommet4
Clipnut4
Installthesunshadeonthemachine.
2

PreparingtheMachine
1.Parkthemachineonalevelsurface.
2.Lowerthecuttingunitsandengagetheparking
brake.
3.Shutofftheengineandremovethekey.
Note:Noteverymachineusesthesamepartsto
installthekit.
IdentifyingtheU-Bolts
Thereare5differentU-boltsincludedwiththiskit.
U-boltsarelistedbydimension(spanxlength)in
thepartslist.RefertoFigure1todeterminethe
dimensionsoftheU-bolts.
g246183
Figure1
1.Span2.Length
InstallingtheSunshade
Groundsmaster5900Machine
1.PositiontheROPS-mountbracketontothetop
ofthetractionunitrollbar(Figure2).
Note:Makesurethattherollbariscentered
inthemountbracket.
g246182
Figure2
1.Bolt(1/2x2-1/2inch)3.Flangenut(3/8inch)
2.Flangenut(1/2inch)4.U-bolt(4-7/8x4inches)
2.InstalltheframeassemblytotheROPS-mount
bracket(Figure2).
3.UsingthemountingholesshowninFigure2,
mounttheROPS-mountbrackettothetopof
therollbarwith2U-bolts(4-7/8x4inches)and
4angenuts.
4.UsingthemountingholesshowninFigure3,
looselysecureeachofthebracebracketstothe
rollbarpostswithaU-bolt(3-7/8x4inches)and
2angenuts.
3

g246184
Figure3
1.Flangenut(3/8inch)2.U-bolt(3-7/8x4inches)
5.Oneachsideofthesunshadeframe,loosely
mountabracetothesecondholeofthebrace
mountwithabolt(1/2x2-3/4inches),washer
(1/2inch),andangenut(1/2inch)asshown
inFigure4.
g267172
Figure4
Leftsideshown
1.Flangenut(1/2inch)5.Bolt(1/2x2-1/2inches)
2.Mounthole6.Bracebracket
3.Washer(1/2inch)7.Brace
4.Bolt(1/2x2-3/4inches)
6.Looselyinstallabracebrackettoeachbrace
withabolt(1/2x2-1/2inches),washer(1/2
inch),andangenut(1/2inch)asshownin
Figure4.
7.Movethebracebracketsupordown,onthe
verticalrollbarposts,untilthesunshadeframe
isleveltotheoor.
Note:Usealeveltomakesurethattheframe
isleveltotheground.
Note:Usethefrontorrearmountingholesin
thebracebracket,ifyouneedmoreadjustability.
8.TightentheU-boltangenuts,securingthe
mountingbracketstotheposts.
9.Tightenalltheremainingangenutsasfollows:
•T orquetheangenuts(3/8inch)41to55
N∙m(34to41ft-lb).
•T orquetheangenuts(1/2inch)113to141
N∙m(84to104ft-lb).
10.Whilealigningthemountingholes,positionthe
sunshadeontotheframeasshowninFigure5.
g245151
Figure5
1.Flange-headbolt(5/16x
1-1/4inches)
3.Grommet
2.Smallwasher4.Clipnut
11.Looselymounteachcornerofthesunshadeto
theframewithaange-headbolt(5/16x1-1/4
inches),asmallwasher,andagrommet(Figure
5).
12.Tightenthesunshade-mountingbolts5to6N∙m
(45to55in-lb).
Important:Donotovertightenthemounting
boltsasthesunshademaycrack.
4

InstallingtheSunshade
Groundsmaster3200or3300
Machine
1.Withtherollbarintheraisedposition,remove
thehairpincottersandthe2pins(Figure6).

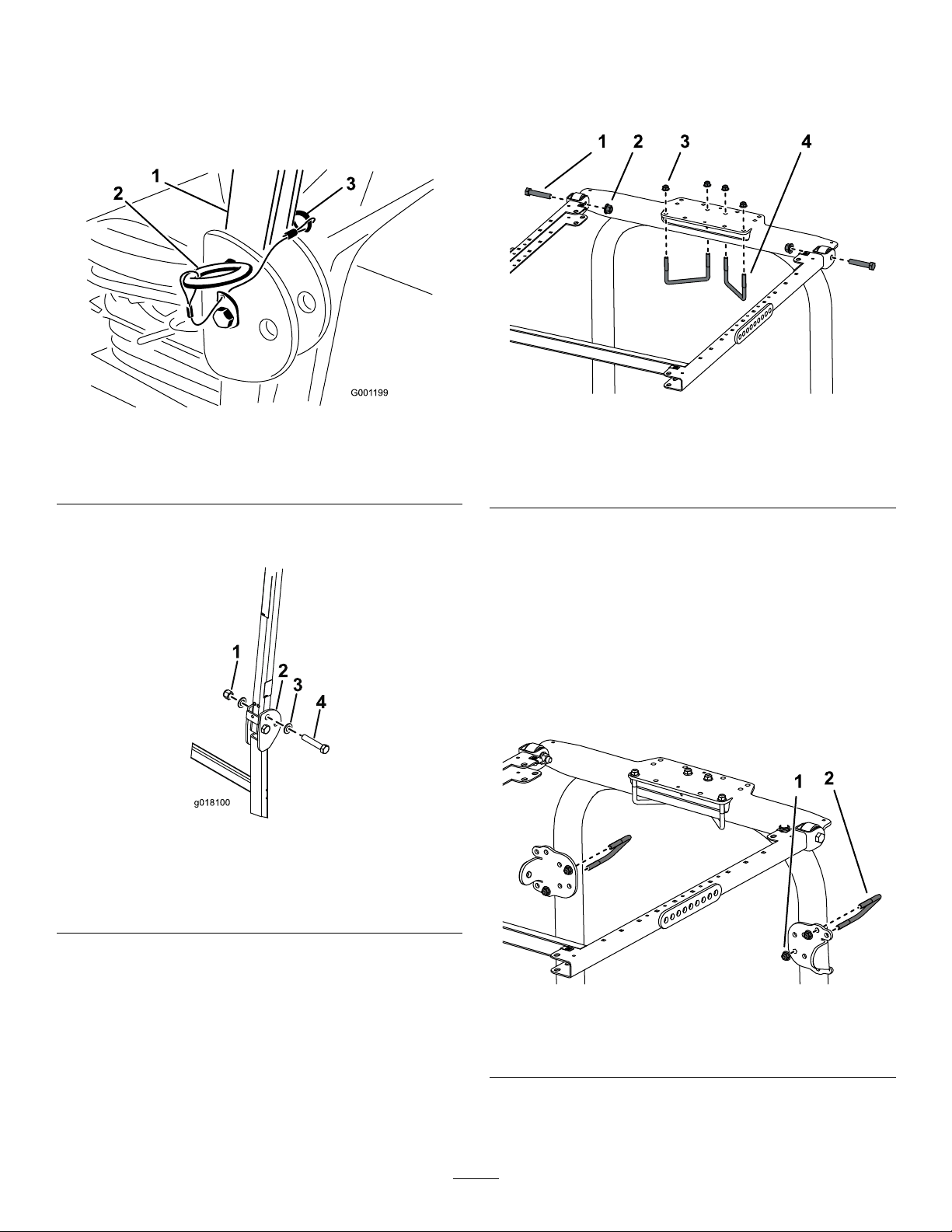

g001199
Figure6
1.Rollbar3.Hairpincotter
2.Pin
2.Insertawasher(13/16x1-1/2inches)ontoeach
bolt(3/4x4inches)asshowninFigure7.
g018100
Figure7
1.Nut(3/4inch)3.Washer(13/16x1-1/2
inches)
2.Rollbar4.Bolt(3/4x4inches)
3.Intheholeswherethepinswereremoved,
installtheboltsandwashers(Figure7).
4.Installanotherwasherontoeachboltandsecure
withnuts(3/4inch)asshowninFigure7.Torque
thenuts323to396N∙m(238to292ft-lb).
5.TorquetheROPSpivotbolt(Figure7)91to113
N∙m(67to83ft-lb)toavoidanybouncingofthe
rollbarandsunshade.
6.PositiontheROPS-mountbracketontothetop
oftheturfsprayerrollbar(Figure8).
Note:Makesurethattherollbariscenteredin
theROPS-mountbracket.
g246185
Figure8
1.Bolt(1/2x2-1/2inches)3.Flangenut(3/8inch)
2.Flangenut(1/2inch)4.U-bolt(4-7/8x2-3/4
inches)
7.InstalltheframeassemblytotheROPS-mount
bracket(Figure8).
8.UsingthemountingholesshowninFigure9,
mounttheROPS-mountbrackettothetopof
therollbarwith2U-bolts(4-7/8x2-3/4inches)
and4angenuts.
9.UsingthemountingholesshowninFigure43,
looselysecureeachofthebracebracketstothe
rollbarpostswithaU-bolt(3-7/8x2-3/4inches)
and2angenuts.
g262468
Figure9
1.Flangenut(3/8inch)2.U-bolt(4-7/8x2-3/4
inches)
5

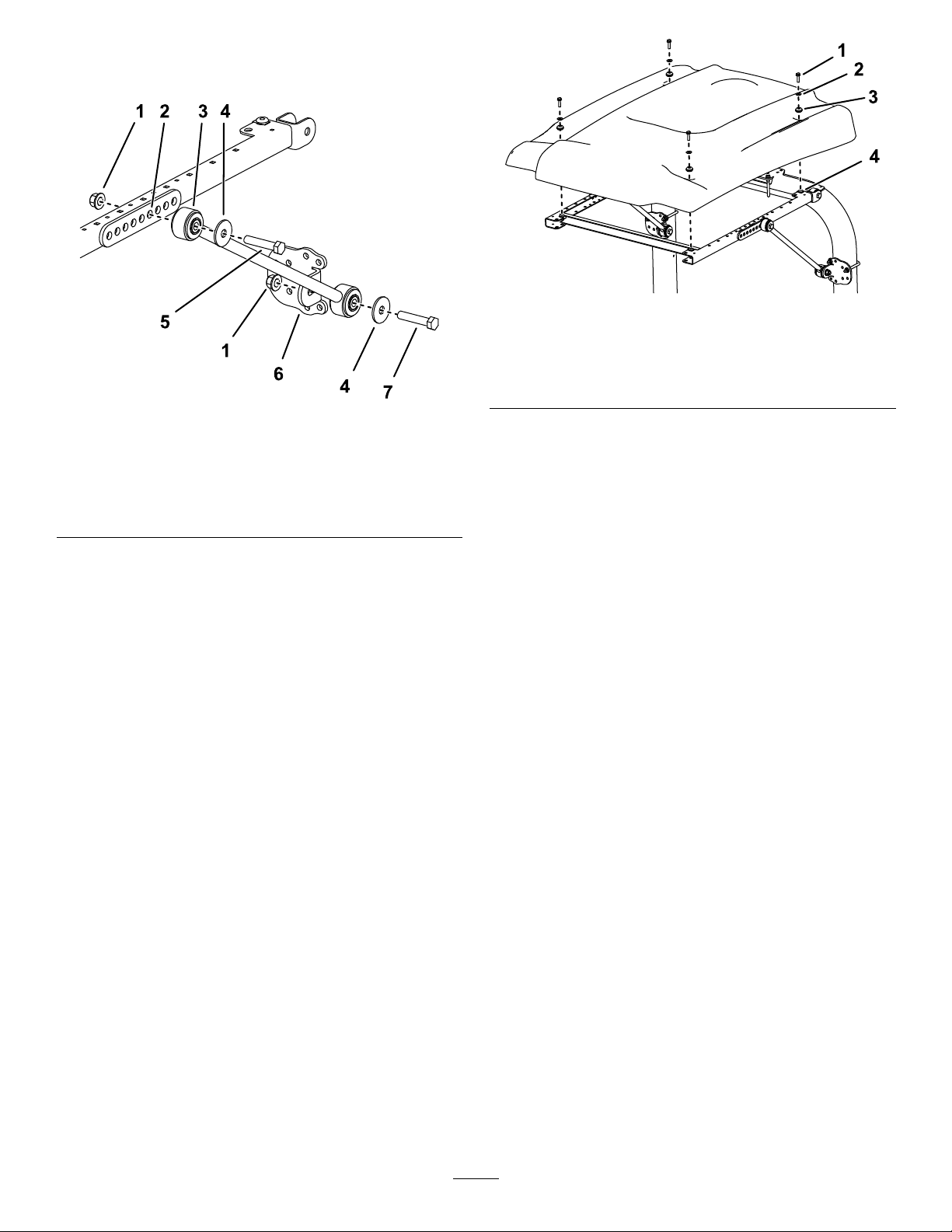

10.Oneachsideofthesunshadeframe,loosely
mountanextensionlinktothefourthholeofthe
bracemountwith2bolts(1/2x2-3/4inches),2
largewashers,and2angenuts(1/2inch)as
showninFigure10.
g297973
Figure10
1.Flangenut(1/2inch)3.Bolt(1/2x2-3/4inches)
2.Largewasher

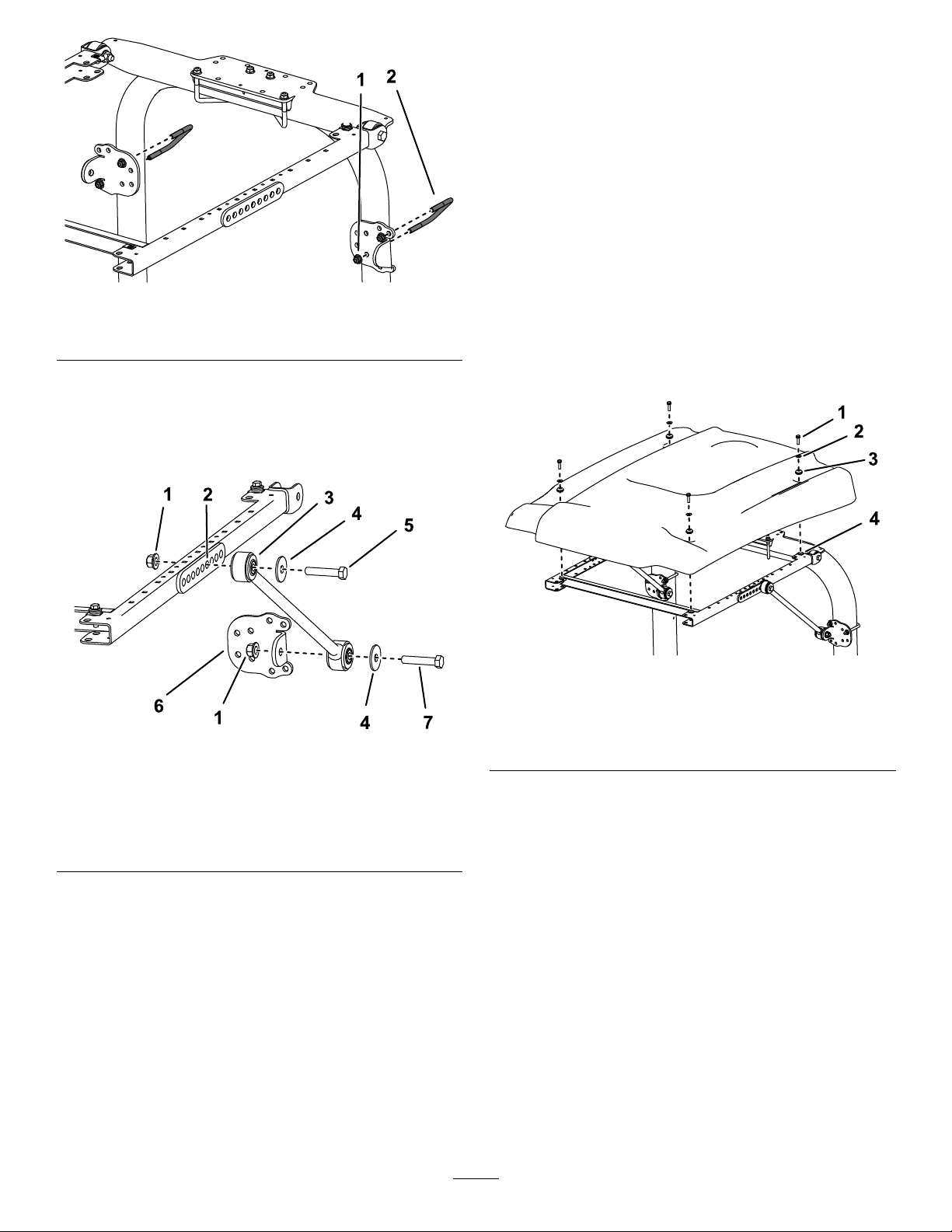

11.Oneachsideofthemachine,looselyinstalla
bracebrackettoeachbracewithabolt(1/2x
2-3/4inches),3largewashers,andangenut
(1/2inch)asshowninFigure11.
g297972
Figure11
1.Flangenut(1/2inch)3.Bolt(1/2x2-3/4inches)
2.Largewasher
12.Movethebracebracketsupordownonthe
verticalrollbarpostsuntilthesunshadeframe
isleveltotheground,thentightentheU-bolt
angenuts,securingthemountingbracketsto
theposts.
Note:Usealeveltomakesurethattheframe
isleveltotheground.
13.Tightenalltheremainingangenutsasfollows:
•T orquetheangenuts(3/8inch)41to55
N∙m(34to41ft-lb).
•T orquetheangenuts(1/2inch)113to141
N∙m(84to104ft-lb).
14.Whilealigningthemountingholes,positionthe
sunshadeontotheframeasshowninFigure12.
g245151
Figure12
1.Flange-headbolt(5/16x
1-1/4inches)
3.Grommet
2.Smallwasher4.Clipnut
15.Looselymounteachcornerofthesunshadeto
theframewithaange-headbolt(5/16x1-1/4
inches),asmallwasher,andagrommet(Figure
12).
16.Tightenthesunshade-mountingbolts5to6N∙m
(45to55in-lb).
Important:Donotovertightenthemounting
boltsasthesunshademaycrack.
6

InstallingtheSunshade
Groundsmaster3280Machine

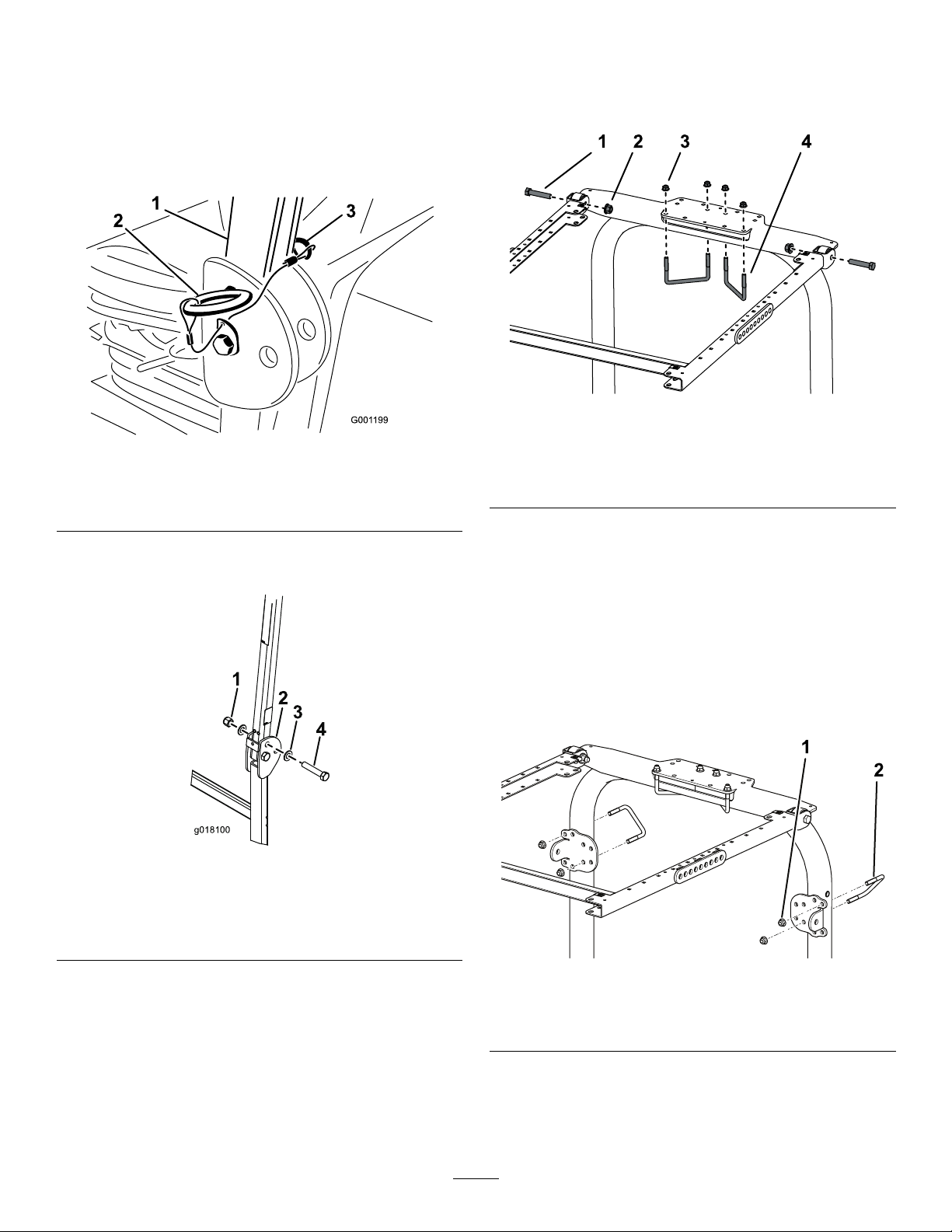

1.Withtherollbarintheraisedposition,remove
thehairpincottersandthe2pins(Figure13).
g001199
Figure13
1.Rollbar3.Hairpincotter
2.Pin
2.Insertawasher(13/16x1-1/2inches)ontoeach
bolt(3/4x4inches)asshowninFigure14.
g018100
Figure14
1.Nut(3/4inch)3.Washer(13/16x1-1/2
inches)
2.Rollbar4.Bolt(3/4x4inches)
3.Intheholeswherethepinswereremoved,
installtheboltsandwashers(Figure14).
4.Installanotherwasherontoeachboltand
securewithnuts(3/4inch)asshowninFigure
14.Torquethenuts323to396N∙m(238to292
ft-lb).
5.TorquetheROPSpivotbolt(Figure14)91to
113N∙m(67to83ft-lb)toavoidanybouncingof
therollbarandsunshade.
6.PositiontheROPS-mountbracketontothetop
ofthetractionunitrollbar(Figure15).
Note:Makesurethattherollbariscenteredin
theROPS-mountbracket.
g246185
Figure15
1.Bolt(1/2x2-1/2inches)3.Flangenut(3/8inch)
2.Flangenut(1/2inch)4.U-bolt(4-7/8x2-3/4
inches)
7.InstalltheframeassemblytotheROPS-mount
bracket(Figure15).
8.UsingthemountingholesshowninFigure15,
mounttheROPS-mountbrackettothetopof
therollbarwith2U-bolts(4-7/8x2-3/4inches)
and4angenuts.
9.UsingthemountingholesshowninFigure16,
looselysecureeachofthebracebracketstothe
rollbarpostswithaU-bolt(3-7/8x2-3/4inches)
and2angenuts.
g246187
Figure16
1.Flangenut(3/8inch)2.U-bolt(3-7/8x2-3/4
inches)

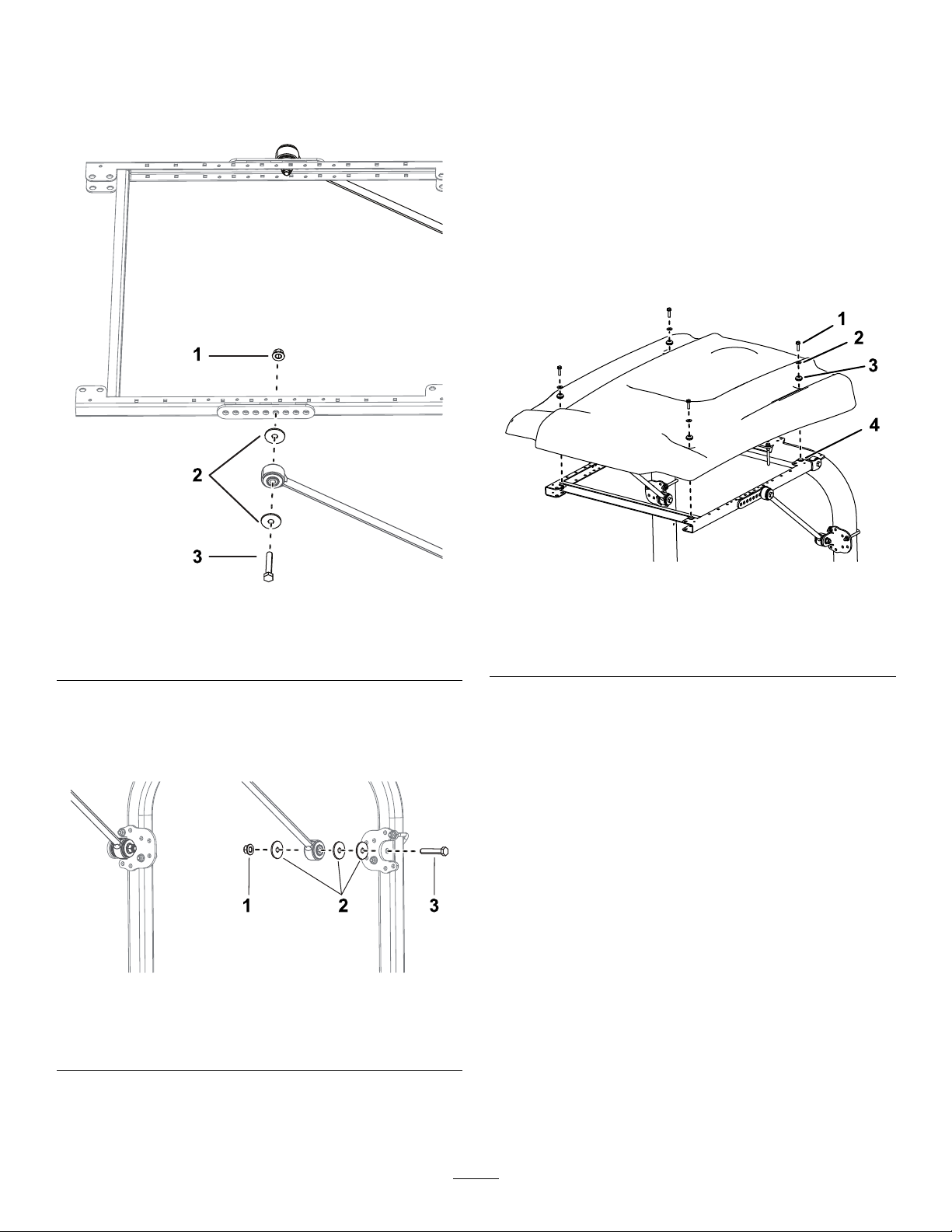

10.Oneachsideofthesunshadeframe,loosely
mountanextensionlinktothefourthholeofthe
7

bracemountwith2bolts(1/2x2-3/4inches),
and2angenuts(1/2inch)asshowninFigure
17.

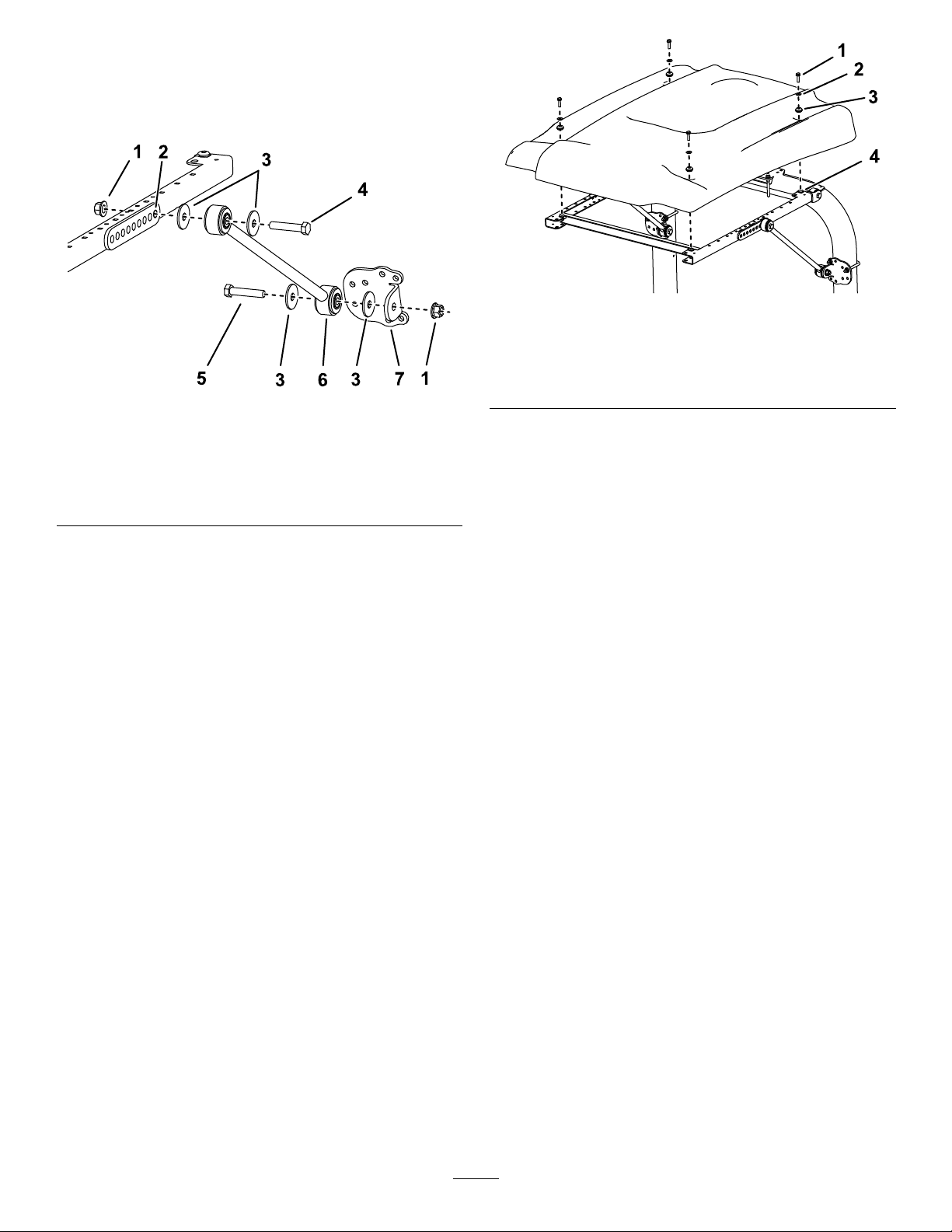

g267174
Figure17
1.Flangenut(1/2inch)5.Bolt(1/2x2-3/4inches)
2.Mounthole6.Bracebracket
3.Brace7.Bolt(1/2x2-1/2inches)
4.Washer(1/2inch)
11.Looselyinstallabracebrackettoeachbrace
withabolt(1/2x2-1/2inches),washer(1/2
inch),andangenut(1/2inch)asshownin
Figure17.
12.Movethebracebracketsupordownonthe
verticalrollbarpostsuntilthesunshadeframe
isleveltotheground,thentightentheU-bolt
angenuts,securingthemountingbracketsto
theposts.
Note:Usealeveltomakesurethattheframe
isleveltotheground.
13.Tightenalltheremainingangenutsasfollows:
•T orquetheangenuts(3/8inch)41to55
N∙m(34to41ft-lb).
•T orquetheangenuts(1/2inch)113to141
N∙m(84to104ft-lb).
14.Whilealigningthemountingholes,positionthe
sunshadeontotheframeasshowninFigure18.
g245151
Figure18
1.Flange-headbolt(5/16x
1-1/4inches)
3.Grommet
2.Smallwasher4.Clipnut
15.Looselymounteachcornerofthesunshadeto
theframewithaange-headbolt(5/16x1-1/4
inches),asmallwasher,andagrommet(Figure
18).
16.Tightenthesunshade-mountingbolts5to6N∙m
(45to55in-lb).
Important:Donotovertightenthemounting
boltsasthesunshademaycrack.
8

InstallingtheSunshade
Groundsmaster360or7200
Machines

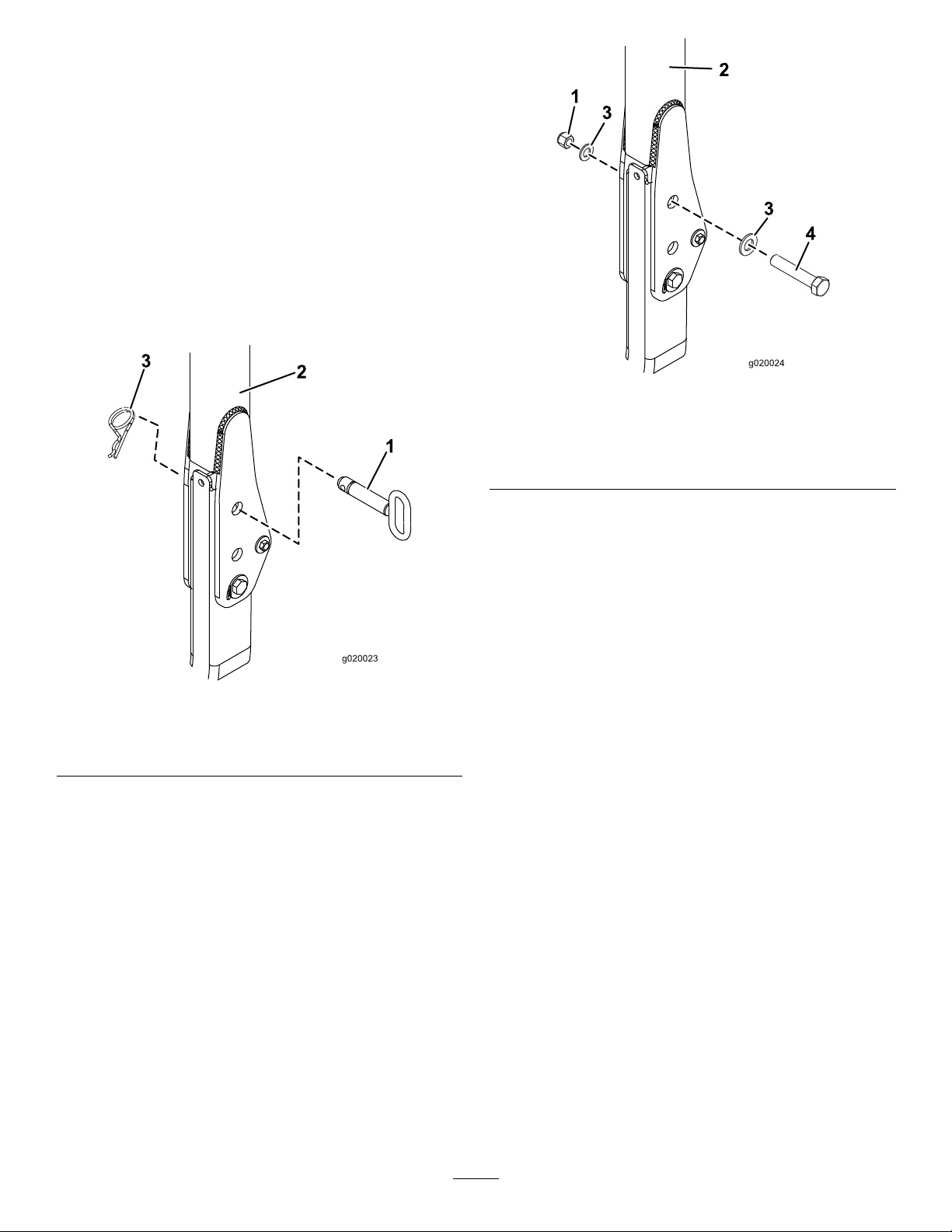

1.Withtherollbarintheraisedposition,remove
thehairpincottersandthe2pins(Figure19).
g187726
Figure19
1.Pin3.Rollbar(raisedposition)
2.Hairpincotter4.Rollbar(loweredposition)
2.Insertawasher(13/16x1-1/2inches)ontoeach
bolt(3/4x4inches)asshowninFigure20.
g018099
Figure20
1.Nut(3/4inch)3.Washer(13/16x1-1/2
inches)
2.Rollbar4.Bolt(3/4x4inches)
3.Intheholeswherethepinswereremoved,
installtheboltsandwashers(Figure20).
4.Installanotherwasherontoeachboltand
securewithnuts(3/4inch)asshowninFigure
20.Torquethenuts323to396N∙m(238to292
ft-lb).
5.TorquetheROPSpivotbolt(Figure20)91to
113N∙m(67to83ft-lb)toavoidanybouncingof
therollbarandsunshade.
6.PositiontheROPS-mountbracketontothetop
ofthetractionunitrollbar(Figure21).
Note:Makesurethattherollbariscenteredin
theROPS-mountbracket.

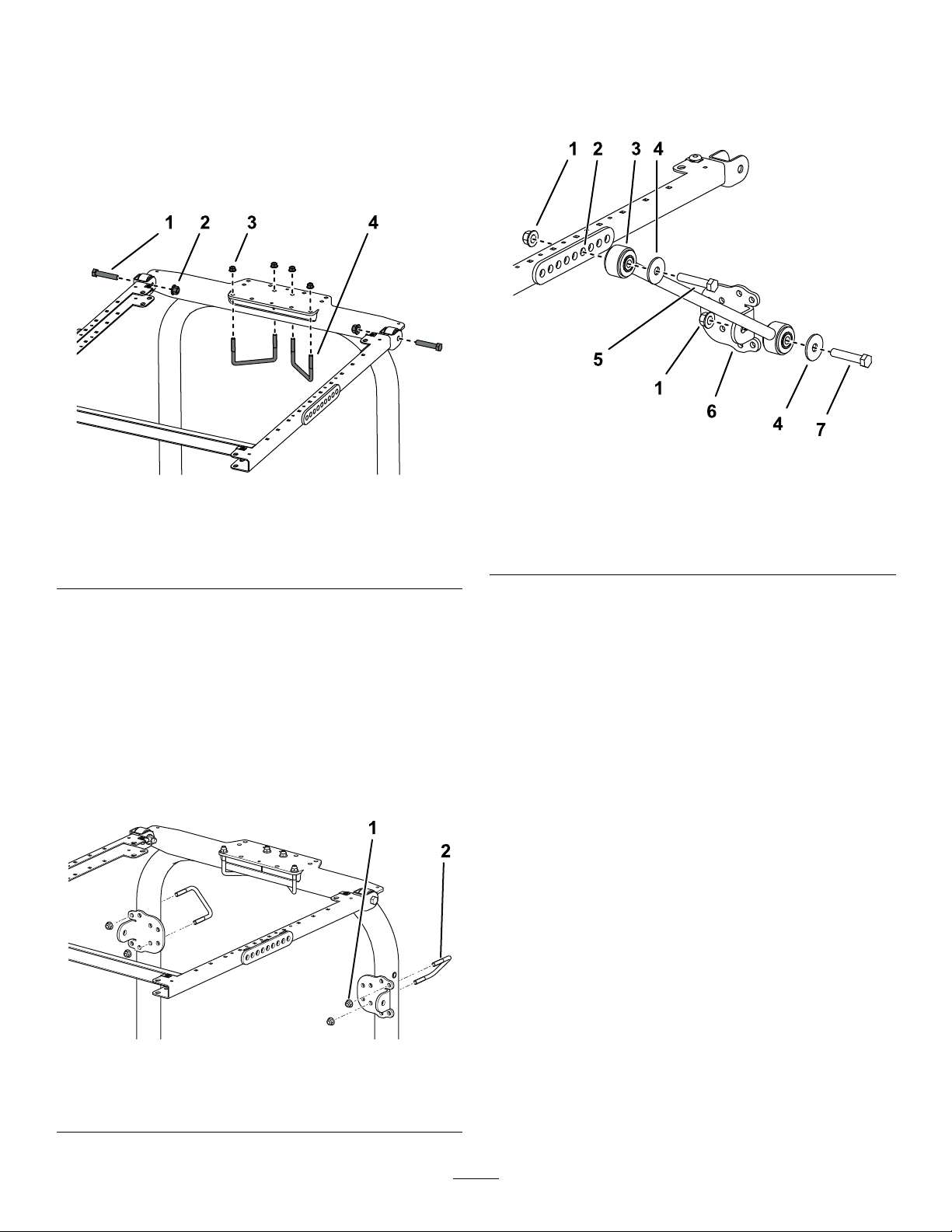

g246185
Figure21
1.Bolt(1/2x2-1/2inch)3.Flangenut(3/8inch)
2.Flangenut(1/2inch)4.U-bolt(4-7/8x2-3/4inch)
7.UsingthemountingholesshowninFigure21,
mountthebrackettothetopoftherollbarwith2
U-bolts(4-7/8x2-3/4inch)and4angenuts.
8.UsingthemountingholesshowninFigure22,
looselysecureeachofthebracebracketstothe
rollbarpostswithaU-bolt(3-7/8x2-3/4inches)
and2angenuts.
9

g246188
Figure22
1.Flangenut(3/8inch)2.U-bolt(3-7/8x2-3/4)
9.Oneachsideofthesunshadeframe,loosely
mountabracetothesixthholeofthebracket
mountwithabolt(1/2x2-3/4inches),washer
(1/2inch),andangenut(1/2inch)asshown
inFigure23.
g267175
Figure23
1.Flangenut(1/2inch)5.Bolt(1/2x2-3/4inches)
2.Mountinghole6.Bracebracket
3.Brace7.Bolt(1/2x2-1/2inches)
4.Washer(1/2inch)
10.Looselyinstallabracebrackettoeachbrace
withabolt(1/2x2-1/2inches),washer(1/2
inch),andangenut(1/2inch)asshownin
Figure23.
Note:TheU-boltsarenotinstalled
symmetrically.
11.Movethebracebracketsupordownonthe
verticalrollbarpostsuntilthesunshadeframe
isleveltotheoor.Usealeveltomakesure
thattheframeisleveltotheground.Then,
tightentheU-boltangenuts,securingthebrace
bracketstotheposts.
Note:Usethefrontorrearmountingholes,
inthebracebracket,ifmoreadjustabilityis
required.
12.Tightenalltheremainingangenutsasfollows:
•T orquetheangenuts(3/8inch)41to55
N∙m(34to41ft-lb).
•T orquetheangenuts(1/2inch)113to141
N∙m(84to104ft-lb).
13.Whilealigningthemountingholes,positionthe
sunshadeontotheframeasshowninFigure24.
g245151
Figure24
1.Flange-headbolt(5/16x
1-1/4inches)
3.Grommet
2.Smallwasher4.Clipnut
14.Looselymounteachcornerofthesunshadeto
theframewithaange-headbolt(5/16x1-1/4
inches)asmallwasher,andagrommet(Figure
24).
15.Tightenthesunshade-mountingbolts5to6N∙m
(45to55in-lb).
Important:Donotovertightenthemounting
boltsasthesunshademaycrack.
10

InstallingtheSunshade
Groundsmaster3500,3505,4000,
and4100MachinesorReelmaster
3100,3555,and3575Machines
1.WhenyouinstalltheUniversalSunshade
onaReelmaster3100tractionunitora
Groundsmaster3500/3505tractionunit,
installtheWheelWeightKit.
2.ForReelmaster3555and3575tractionunits,
skiptostep10.Forallothermodels,withthe
rollbarintheraisedposition,removethehairpin
cottersandthe2pins(Figure25).
g020023
Figure25
1.Pin3.Hairpincotter
2.Rollbar
3.Insertawasher(13/16x1-1/2inches)ontoeach
bolt(3/4x4inches)asshowninFigure26.
g020024
Figure26
1.Nut(3/4inch)3.Washer(13/16x1-1/2
inches)
2.Rollbar4.Bolt(3/4x4inches)
4.Intheholeswherethepinswereremoved,
installtheboltsandwashers(Figure26).
5.Installanotherwasherontoeachboltandsecure
withnut(3/4inch)asshownin(Figure26).
Torquethenuts323to396N∙m(238to292
ft-lb).
6.TorquetheROPSpivotbolt(Figure26)91to
113N∙m(67to83ft-lb)toavoidanybouncingof
therollbarandsunshade.
11

7.PositiontheROPS-mountbracketontothe
topofthetractionunitrollbar(Figure27).
Makesurethattherollbariscenteredinthe
ROPS-mountbracket.
g246190
Figure27
1.Flangenut(3/8inch)3.Bolt(1/2x2-1/2inch)
2.Flangenut(1/2inch)4.U-bolt(4-7/8x4inches)
8.UsingthemountingholesshowninFigure27,
securetheROPS-mountbrackettothetopof
therollbarwith2U-bolts(4-7/8x4inches)and
4angenuts.
9.UsingthemountingholesshowninFigure28,
looselysecureeachofthebracebracketstothe
rollbarpostswithaU-bolt(3-7/8x4inches)and
2angenuts.
g246189
Figure28
1.Flangenut(3/8inch)2.U-bolt(3-7/8x4inches)
10.Oneachsideofthesunshadeframe,loosely
mountabracetothebracebracketasfollows:
•ForModels03820,03821,30604,30605,
30608,and30609oneachsideofthe
sunshadeframe,looselymountabraceto
therearholeofthebracebracketwitha
bolt(1/2x2-1/2inches),washer(1/2inch)
washer,andangenut(1/2inch)asshown
inFigure29.
•ForModels30446,30446N,30447,and
30447N,oneachsideofthesunshade
frame,looselymountabracetothesecond
holeofthebracebracketwithabolt(1/2x
2-1/2inches),washer(1/2inch),andange
nut(1/2inch)asshowninFigure30.
g267177
Figure29
Models03820,03821,30604,30605,30608,and30609
1.Flangenut(1/2inch)5.Bolt(1/2x2-1/2inches)
2.Mounthole6.Brace
3.Washer(1/2inch)7.Bracebracket
4.Bolt(1/2x2-3/4inches)
12

g267178
Figure30
Models30446,30446N,30447,and30447N
1.Flangenut(1/2inch)5.Bolt(1/2x2-1/2inches)
2.Mounthole6.Brace
3.Washer(1/2inch)7.Bracebracket
4.Bolt(1/2x2-3/4inches)
11.Looselyinstallabracebrackettoeachbrace
withabolt(1/2x2-1/2inches),washer(1/2
inch),andangenut(1/2inch)asshownin
Figure29.
12.Movethebracebracketupordown,onthe
verticalrollbarposts,untilthesunshadeframe
isleveltotheoor.
Note:Usealeveltomakesurethattheframe
isleveltotheground.
13.TightentheU-boltangenuts,securingthe
mountingbracketstotheposts.
14.Tightenalltheremainingangenutsasfollows:
•T orquetheangenuts(3/8inch)41to55
N∙m(34to41ft-lb).
•T orquetheangenuts(1/2inch)113to141
N∙m(84to104ft-lb).
15.Whilealigningthemountingholes,positionthe
sunshadeontotheframeasshowninFigure31.
g245151
Figure31
1.Flange-headbolt(5/16x
1-1/4inches)
3.Grommet
2.Smallwasher4.Clipnut
16.Looselymounteachcornerofthesunshadeto
theframewithaange-headbolt(5/16x1-1/4
inches),asmallwasher,andagrommet(Figure
31).
17.Tightenthesunshade-mountingboltsto5to6
N∙m(45to55in-lb).
Important:Donotovertightenthemounting
boltsasthesunshademaycrack.
InstallingtheSunshade
Groundsmaster4500and4700
MachinesorReelmaster6700and
7000Machines
1.Withtherollbarintheraisedposition,remove
thehairpincotterandpin.
g215450
Figure32
1.Pin3.Hairpincotter
2.Rollbar
13

2.Insertawasher(13/16x1-1/2inches)ontoeach
bolt(3/4x4inches)asshowninFigure33.
3.Intheholeswherethepinswereremoved,
installtheboltsandwashers(Figure33).
4.Installanotherwasherontoeachboltandsecure
withnut(3/4inch)asshowninFigure33.
5.TorquetheROPSpivotboltto91to113N∙m
(67to83ft-lb)toavoidanybouncingoftheroll
barandsunshade.
g215449
Figure33
1.Nut(3/4inch)3.Washer(13/16x1-1/2
inches)
2.Rollbar4.Bolt(3/4x4inches)
6.PositiontheROPS-mountbracketontothetop
ofthetractionunitrollbar(Figure34).Ensure
thattherollbariscenteredintheROPS-mount
bracket.
g246186
Figure34
1.Flangenut(1/2inch)3.U-bolt(3-7/8x5inches)
2.Flangenut(3/8inch)4.Bolt(1/2x2-1/2inch)
7.UsingthemountingholesshowninFigure34,
mounttheROPS-mountbrackettothetopof
therollbarwith2U-bolts(3-1/2inches)and4
angenuts.
8.UsingthemountingholesshowninFigure35,
looselysecureeachofthebracebracketstothe
rollbarpostswithaU-bolt(3-7/8x5inches)and
2angenuts.
g245424
Figure35
1.U-bolt(3-7/8x5inches)2.Flangenut(3/8inch)
9.Oneachsideofthesunshadeframe,loosely
mountanextensionlinktotherearandcenter
holesofthemountbracketwith2bolts(1/2x
1-1/2inches),and2angenuts(1/2inch)as
showninFigure36.
10.Attachabracetotheoutsideofeachextension
linkwithabolt(1/2x2-1/2inches),washer(1/2
inch),andangenut(1/2inch)asshownin
Figure36.
g245195
Figure36
1.Flangenut(1/2inch)5.Washer(1/2inch)
2.Bolt(1/2x2-1/2inches)6.Brace
3.Extensionlink7.Bracebracket
4.Bolt(1/2x1-1/2inch)
14

11.Looselyinstallabracebrackettoeachbrace
withabolt(1/2x2-1/2inches),washer(1/2
inch),andangenut(1/2inch)asshownin
Figure36.
12.Movethebracebracketsupordown,onthe
verticalrollbarposts,untilthesunshadeframe
isleveltotheoor.
Note:Usealeveltomakesurethattheframe
isleveltotheground.
13.TightentheU-boltangenuts,securingthe
mountbracketstotheposts.
14.Tightenalltheremainingangenutsasfollows:
•T orquetheangenuts(3/8inch)41to55
N∙m(34to41ft-lb).
•T orquetheangenuts(1/2inch)113to141
N∙m(84to104ft-lb).
15.Whilealigningthemountingholes,positionthe
sunshadeontotheframeasshowninFigure37.
g245151
Figure37
1.Flange-headbolt(5/16x
1-1/4inches)
3.Grommet
2.Smallwasher4.Clipnut
16.Looselymounteachcornerofthesunshadeto
theframewithaange-headbolt(5/16x1-1/4
inches),asmallwasher,andagrommet(Figure
37).
17.Tightenthesunshade-mountingboltsto5to6
N∙m(45to55in-lb).
Important:Donotovertightenthemounting
boltsasthesunshademaycrack.
InstallingtheSunshade
Reelmaster5010Machineor
Groundsmaster4300Machine
1.PositiontheROPS-mountbracketsontothe
topofthetractionunitrollbar(Figure38).
Makesurethattherollbariscenteredinthe
ROPS-mountbracket.
g246190
Figure38
1.Flangenut(3/8inch)3.Bolt(1/2x2-1/2inch)
2.Flangenut(1/2inch)4.U-bolt(4-7/8x2-3/4
inches)
2.UsingthemountingholesshowninFigure38,
mounttheROPS-mountbrackettothetopof
therollbarwith2U-bolts(4-7/8x2-3/4inches)
and4angenuts.
3.UsingthemountingholesshowninFigure39,
looselysecureeachofthebracebracketstothe
rollbarpostswithaU-bolt(3-7/8x4inches)and
2angenuts.
g246191
Figure39
1.Flangenut(3/8inch)2.U-bolt(3-7/8x4inches)
15

4.Oneachsideofthesunshadeframe,loosely
mountabracetotherearholeofthebrace
mountwithabolt(1/2x2-3/4inches),2washers
(1/2inch),andaangenut(1/2inch)asshown
inFigure40.
g267177
Figure40
1.Flangenut(1/2inch)5.Bolt(1/2x2-1/2inches)
2.Mounthole6.Brace
3.Washer(1/2inch)7.Bracebracket
4.Bolt(1/2x2-3/4inches)
5.Looselyinstallabracebrackettoeachbrace
withabolt(1/2x2-1/2inches),2washers(1/2
inch),andaangenut(1/2inch)asshownin
Figure40.
6.Movethebracebracketsupordownonthe
verticalrollbarpostsuntilthesunshadeframeis
leveltotheoor.
Note:Usealeveltoensurethattheframeis
leveltotheground.
7.TightentheU-boltangenuts,securingthe
mountingbracketstotheposts.
8.Tightenalltheremainingangenutsasfollows:
•T orquetheangenuts(3/8inch)41to55
N∙m(34to41ft-lb).
•T orquetheangenuts(1/2inch)113to141
N∙m(84-104ft-lb).
9.Whilealigningthemountingholes,positionthe
sunshadeontotheframeasshowninFigure41.
g245151
Figure41
1.Flange-headbolt(5/16x
2-1/4inches)
3.Grommet
2.Smallwasher4.Clipnut
10.Looselymounteachcornerofthesunshadeto
theframewithaange-headbolt(5/16x1-1/4
inches),asmallwasher,andagrommet(Figure
41).
11.Tightenthesunshade-mountingboltsto5to6
N∙m(45to55in-lb).
Important:Donotovertightenthemounting
boltsasthesunshademaycrack.
16

InstallingtheSunshade
MultiPro1750Machine
1.PositiontheROPS-mountbracketontothetop
oftheturfsprayerrollbar(Figure42).
Note:Makesurethattherollbariscenteredin
theROPS-mountbracket.
g246185
Figure42
1.Bolt(1/2x2-1/2inches)3.Flangenut(3/8inch)
2.Flangenut(1/2inch)4.U-bolt(4-7/8x2-3/4
inches)
2.InstalltheframeassemblytotheROPS-mount
bracket(Figure42).
3.UsingthemountingholesshowninFigure42,
mounttheROPS-mountbrackettothetopof
therollbarwith2U-bolts(4-7/8x2-3/4inches)
and4angenuts.
4.UsingthemountingholesshowninFigure43,
looselysecureeachofthebracebracketstothe
rollbarpostswithaU-bolt(3-7/8x2-3/4inches)
and2angenuts.
g262468
Figure43
1.Flangenut(3/8inch)2.U-bolt(3-7/8x2-3/4
inches)
5.Oneachsideofthesunshadeframe,loosely
mountanextensionlinktothefourthholeofthe
bracemountwith2bolts(1/2x2-3/4inches),
and2angenuts(1/2inch)asshowninFigure
44.
g267174
Figure44
1.Flangenut(1/2inch)5.Bolt(1/2x2-3/4inches)
2.Mounthole6.Bracebracket
3.Brace7.Bolt(1/2x2-1/2inches)
4.Washer(1/2inch)
6.Looselyinstallabracebrackettoeachbrace
withabolt(1/2x2-1/2inches),washer(1/2
inch),andangenut(1/2inch)asshownin
Figure44.
7.Movethebracebracketsupordownonthe
verticalrollbarpostsuntilthesunshadeframe
isleveltotheground,thentightentheU-bolt
angenuts,securingthemountingbracketsto
theposts.
Note:Usealeveltomakesurethattheframe
isleveltotheground.
8.Tightenalltheremainingangenutsasfollows:
•T orquetheangenuts(3/8inch)41to55
N∙m(34to41ft-lb).
•T orquetheangenuts(1/2inch)113to141
N∙m(84to104ft-lb).
9.Whilealigningthemountingholes,positionthe
sunshadeontotheframeasshowninFigure45.
17

g245151
Figure45
1.Flange-headbolt(5/16x
1-1/4inches)
3.Grommet
2.Smallwasher4.Clipnut
10.Looselymounteachcornerofthesunshadeto
theframewithaange-headbolt(5/16x1-1/4
inches),asmallwasher,andagrommet(Figure
45).
11.Tightenthesunshade-mountingbolts5to6N∙m
(45to55in-lb).
Important:Donotovertightenthemounting
boltsasthesunshademaycrack.
Operation
TransportingtheMachine
Whentransportingthemachine,usethe2holesin
thefrontofthesunshadeframe(underthesunshade)
totiedownthesunshadetoasecurelocationonthe
machineandpreventitfromraisingupinthewind
(Figure46).
g018101
Figure46
1.Tiedownholes
Maintenance
CheckingandTightening
theHardware
Checkandtightenthemountinghardwareafter8
hoursofoperation.Periodicallyinspectandtighten
thehardware.
CleaningtheSunshade
Washwithamildsoapordetergentusingyourbare
hands,softcloth,orspongetofreeordislodgeany
caked-ondirtorotherforeignparticles.
Note:Usingsomecleanersorclothsmayscratchor
degradethesurfaceofthesunshade.Testthecleaner
orclothinaninconspicuousarea.
18

Notes:

DeclarationofIncorporation
TheT oroCompany,8111LyndaleAve.South,Bloomington,MN,USAdeclaresthatthefollowingunit(s)
conform(s)tothedirectiveslisted,wheninstalledinaccordancewiththeaccompanyinginstructionsontocertain
ToromodelsasindicatedontherelevantDeclarationsofConformity.
ModelNo.SerialNo.ProductDescriptionInvoiceDescriptionGeneralDescriptionDirective
30669—
WhiteUniversalSunshade,
Groundsmasteror
ReelmasterTractionUnitsor
MultiPro1750TurfSprayer
UNIVERSALSUNSHADE
-WHITESunshade2006/42/EC
30671—
RedUniversalSunshade,
Groundsmasteror
ReelmasterTractionUnitsor
MultiPro1750TurfSprayer
UNIVERSALSUNSHADE
-REDSunshade2006/42/EC
RelevanttechnicaldocumentationhasbeencompiledasrequiredperPartBofAnnexVIIof2006/42/EC.
Wewillundertaketotransmit,inresponsetorequestsbynationalauthorities,relevantinformationonthispartly
completedmachinery.Themethodoftransmissionshallbeelectronictransmittal.
ThismachineryshallnotbeputintoserviceuntilincorporatedintoapprovedToromodelsasindicatedonthe
associatedDeclarationofConformityandinaccordancewithallinstructions,wherebyitcanbedeclaredin
conformitywithallrelevantDirectives.
Certied:AuthorizedRepresentative:
MarcelDutrieux
ManagerEuropeanProductIntegrity
ToroEuropeNV
Nijverheidsstraat5
2260Oevel
Belgium
JohnHeckel
Sr.EngineeringManager
8111LyndaleAve.South
Bloomington,MN55420,USA
August15,2019
