Toro Kevlar 02878 User manual

FormNo.3440-859RevA
Kevlar™TyreKit
LT3340TripleReelMowerorLT-F3000TripleFlailMower
ModelNo.02878
InstallationInstructions
PreparingtheMachine
1.Parkthemachineonalevelsurface.
2.Lowerthecuttingunits.
3.Engagetheparkingbrake.
4.Shutofftheengineandremovethekey.
5.Waitforallmovingpartstostop.
RemovingtheCurrentWheels
1.Slightlyloosenthewheelnutswiththemachineontheground.
2.Raisethemachineandsupportitwithjackstandswiththespeciedliftcapacity;refertotheOperator’s
Manualforyourmachine.
3.Removethewheels.

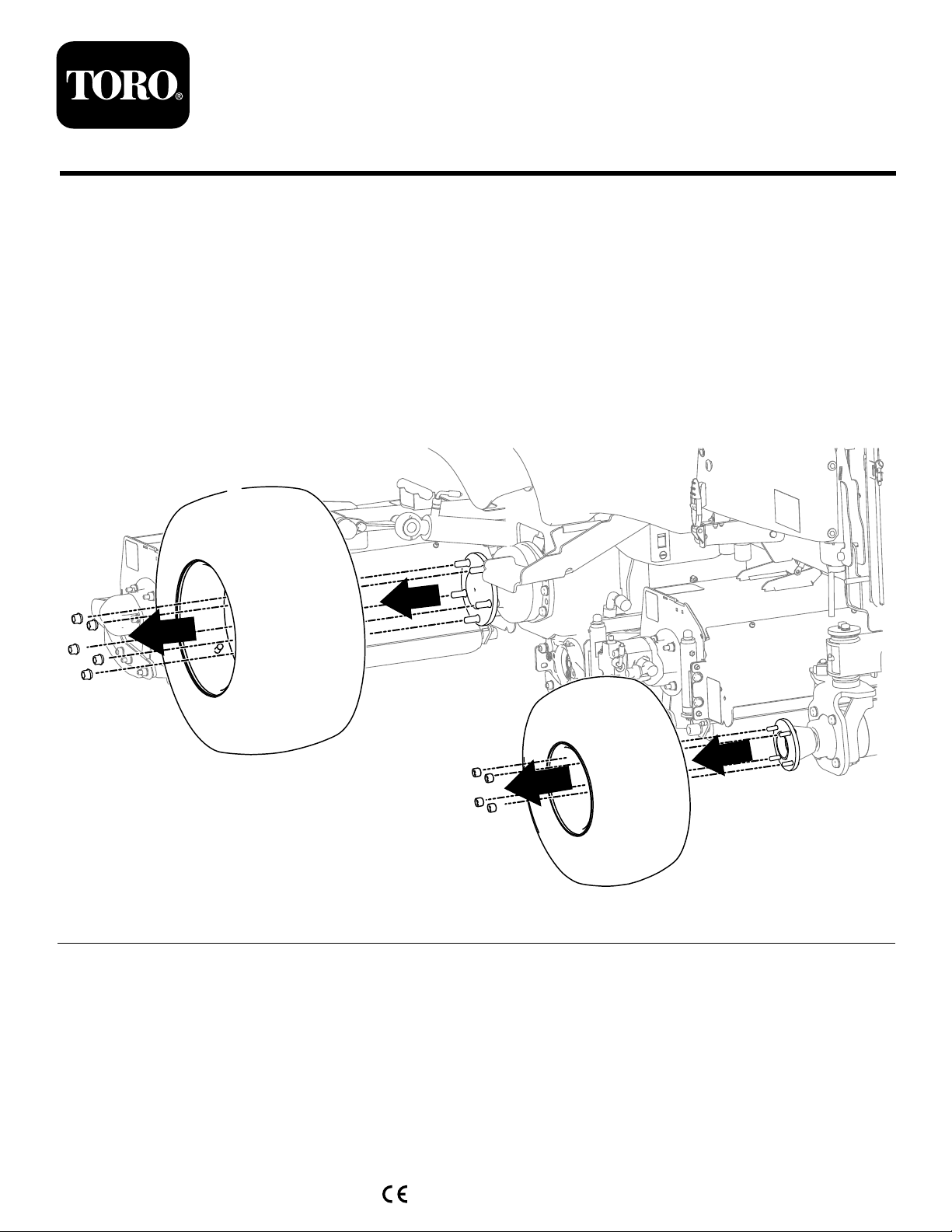

g197207
Figure1
InstallingtheNewWheels
1.InstallthenewwheelswithKevlar™tyresontothemachine.
2.Securethewheelswiththewheelnuts.
3.Removethejackstandsandlowerthemachinetotheground.
4.Tightenthenutsonthefrontwheelassemblyto200N∙m(147.5ft-lb).
5.Tightenthenutsontherearwheelassemblyto100N∙m(74ft-lb).
©2020—TheToro®Company
8111LyndaleAvenueSouth
Bloomington,MN55420
Registeratwww.T oro.com.OriginalInstructions(EN)
PrintedintheUK
AllRightsReserved*3440-859*

6.VerifythatthetyrepressurematchestherecommendedpressureintheOperator'sManual.
