Toshiba IK-4KE User manual

CAMERA CONTROL UNIT
IK-4KE
INSTRUCTION MANUAL
U.S.A INFORMATION
NOTE:This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part
15 of the FCC Rules.These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment.This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to
radio communications.Operation of this equipment in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his own expense.
USER-INSTALLER CAUTION:Your authority to operate this FCC verified equipment could be voided if
you make changes or modifications not expressly approved by the party responsible for compliance to
Part 15 of the FCC Rules.
This manual is made from recycled paper.
For Customer Use
Enter below the Serial No.
which is located on the
bottom of the cabinet. Retain
this information for future ref-
erence.
Model No.: IK-4KE
Serial No.:
Following information is only for EU-member states:
In residential areas this product may cause radio interference, therefore this product must not be used
in residential areas.
The use of the symbol indicates that this product may not be treated as household waste.
By ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be caused by
inappropriate waste handling of this product. For more detailed information about the take-
back and recycling of this product, please contact your supplier where you purchased the
product or consult.
cev.fr

4
Protection of Personal Information
Images taken by the camera that reveal the likeness of an individual person may be considered
personal information. To disclose, exhibit or transmit those images over the internet or otherwise,
consent from such individual person may be required.You are solely responsible to obtain such
consent.
Limitation of Usage
The product is not designed for any “critical applications.” “Critical applications” means life support
systems, exhaust or smoke extraction applications, medical applications, commercial aviation,
mass transit applications, military applications, homeland security applications, nuclear facilities or
systems or any other applications where product failure could lead to injury to persons or loss of life
or catastrophic property damages. Accordingly, Toshiba disclaims any and all liability arising out of
the use of the product in any critical applications.
TABLE OF CONTENTS
1. CAUTIONS ON USE AND INSTALLATION...............................................................................................6
2. COMPONENTS..........................................................................................................................................6
3. ITEMS CONTROLLED BYTHE SCREEN DISPLAY.................................................................................7
4. NAMES AND FUNCTIONS........................................................................................................................9
5. CONNECTION..........................................................................................................................................10
5. 1 Standard Connection.......................................................................................................................10
5.1.1 4K mode................................................................................................................................10
5.1.2 1080 i/p mode.......................................................................................................................11
5. 2 Cautions on Connection...................................................................................................................11
5. 3 Connector Pin Assignments.............................................................................................................12
6. OPERATION.............................................................................................................................................13
6. 1 Automatic Black Balance .................................................................................................................13
6. 2 White Balance..................................................................................................................................13
6. 3 Scene File........................................................................................................................................15
6. 4 Gain .................................................................................................................................................15
6. 5 Shading Correction..........................................................................................................................16
6. 6 Switching of Video Signal Output.....................................................................................................17
6. 7 Freeze operation..............................................................................................................................17
7. MODE SETTING BY ON SCREEN DISPLAY..........................................................................................18
7. 1 Using the Menus..............................................................................................................................18
7. 2 Menus..............................................................................................................................................19
( 1 ) SHUTTER (Electronic shutter).........................................................................................................19
(1. 1) Changing the setting in AUTO mode.....................................................................................20
(1. 2) Changing the setting in MANUAL mode................................................................................22
(1. 3) Changing the setting in SS (Synchro. Scan) mode................................................................22

5
( 2 ) GAIN (Video gain)............................................................................................................................23
(2. 1) Changing the setting in AUTO (AGC: Automatic gain control) mode.....................................23
(2. 2) Changing gain in MANUAL mode..........................................................................................23
( 3 ) WHT BAL (White balance)...............................................................................................................24
(3. 1) Changing the setting in AWB (Automatic White Balance) mode ...........................................24
(3. 2) Changing gain in MANUAL mode..........................................................................................25
( 4 ) PROCESS1.....................................................................................................................................26
(4. 1) Changing gamma correction ON/OFF...................................................................................26
(4. 2) Changing gamma correction level .........................................................................................26
(4. 3) Changing black gamma correction level................................................................................27
(4. 4) Changing the knee correction point.......................................................................................27
(4. 5) Changing the knee correction slope......................................................................................27
(4. 6) Changing pedestal.................................................................................................................28
(4. 7) Change of white clip ..............................................................................................................28
( 5 ) PROCESS2.....................................................................................................................................29
(5. 1) Changing detail (outline) gain................................................................................................29
(5. 2) Change of detail boost frequency..........................................................................................29
(5. 3) Change of horizontal and vertical detail balance...................................................................29
( 6 ) PROCESS3.....................................................................................................................................30
(6. 1) Changing matrix color correction ON/OFF ...........................................................................30
(6. 2) Selection of color for correction.............................................................................................30
(6. 3) Changing HUE and GAIN of selected color...........................................................................30
(6. 4) Changing the total Chroma gain (simultaneously for all colors in the matrix)........................30
( 7 ) SYNC...............................................................................................................................................31
(7. 1) INT screen.............................................................................................................................31
(7. 2) Changing EXT. setting ...........................................................................................................31
( 8 ) OPTION...........................................................................................................................................32
(8. 1) Changing shading correction mode.......................................................................................32
(8. 2) Changing manual shading correction mode..........................................................................32
(8. 3) Changing detail signal output ................................................................................................32
(8. 4) Change of vertical inversion setting.......................................................................................33
(8. 5) Change of horizontal inversion setting...................................................................................33
(8. 6) Switching of inversion mode display......................................................................................33
(8. 7) Changing the freeze display ..................................................................................................33
(8. 8) Changing 4K OSD (On Screen Display) output.....................................................................34
(8. 9) Changing the output mode ....................................................................................................34
(8. 10) Changing RS-232C baud rate .............................................................................................34
( 9 ) Setting USER area ..........................................................................................................................35
( 10 ) Returning to factory settings..........................................................................................................36
7. 3 External Sync...................................................................................................................................36
( 1 ) External sync signal input conditions...............................................................................................36
( 2 ) External sync frequency range........................................................................................................36
( 3 ) Using the unit with external sync signal...........................................................................................36
7. 4 Synchro. Scan Operation.................................................................................................................36
( 1 ) Setting by 1H...................................................................................................................................36
8. BEFORE MAKING SERVICE CALL........................................................................................................37
9. SPECIFICATIONS....................................................................................................................................38
10. EXTERNAL APPEARANCE DIAGRAM................................................................................................39

6
2. COMPONENTS
(1) Camera Control Unit......................................................................................................................1
(2) Accessories
(a) Instruction manual .................................................................................................................. 1
1. CAUTIONS ON USE AND INSTALLATION
•Handlingtheunit.
Do not drop, jolt, or vibrate, as this may result in
damage to the unit and may cause problems.Treat the
camera cables carefully to prevent cable problems,
such as breaks in the cable and loose connections.
•Installthecamerainalocationfreefromnoise.
If the camera or the cables are located near power
utility lines or aTV, etc. undesirable noise may appear
on the screen. In such a case, try to change the
location of the camera or the cable wiring.
•Operatingambienttemperatureandhumidity.
Do not use the camera in places where temperature
and humidity exceed the specifications.Picture quality
will deteriorate and internal parts may be damaged.
Be particularly careful when using in places exposed
to direct sunlight.When shooting in hot environments,
depending on the conditions of the object and the
camera (for example when the gain is increased),
noise in the form of vertical strips or white dots may
occur.This is not a malfunction.
•Whennotusingthecameraforextendedperiods
of time.
Switch the control unit off and disconnect the power
supply.
•Avoidusingorstoringthecamerainthefollowing
places:
Places filled with highly flammable and corrosive gas.
Places near gasoline, benzene, or paint thinner.
Places subject to strong vibration.
Places containing chemicals (such as pesticides),
rubber or vinyl products for extended periods of time.
•Thisproductisforindooruseonly.
The following descriptions are for a camera head “IK-
4KH” connected to this camera control unit.
•Donotshootintenselight.
If a strong light is imaged, vertical stripes or traverse
bands may appear on the screen but this is not a
failure.
•Moire
A moire pattern is an interference pattern generated
when two repetitive line patterns overlap.This is not a
malfunction.Eliminating the repetitive line patterns, or
aligning the two patterns, will eliminate the moire.
•Handlingofthecameraheadandprotectioncap.
Keep the camera head and protection cap away
from children as they may pose a choking hazard.
The protection cap protects the image sensing plane
when the lens is removed from the camera head, do
not discard the protection cap.
•Whencleaningthecamera.
Unplug the power source before cleaning. Clean
with a soft dry cloth only. Do not use chemicals or
chemically treated cloths. Chemicals may damage
coatings and printed letters. When cleaning the lens,
use lens cleaning paper.
•Installationwithoutatripod.
Before installing the camera head, make sure that the
location can withstand the total weight of the camera
head.
If this is not the case, reinforce the area to prevent the
unit from dropping, which may result in damage to the
unit or personal injury.

7
3. ITEMS CONTROLLED BYTHE SCREEN DISPLAY
Item Available selections Preset value
(Factory setting)
Electronic shutter
MODE AUTO, MANUAL, SS MANUAL
AUTO level -100 – 0 – 100 0
AUTO exposure metering PEAK/AVE, MEDIAN PEAK/AVE
AUTO peak/average 00 : 10 – 10 : 00 00 : 10
AUTO response speed 1 – 10 – 20 10
AUTO area
PRESET A, PRESET B, PRESET C, PRESET D, PRESET E,
USER (USER area is possible to set in 64 zones)
PRESET A
Maximum AUTO shutter
speed
1/200s, 1/250s, 1/300s, 1/350s, 1/400s, 1/450s, 1/500s,
1/550s, 1/600s, 1/700s, 1/800s, 1/900s, 1/1000s,
1/1200s, 1/1500s, 1/2000s, 1/4000s, OFF OFF
MANUAL shutter speed OFF, 1/100s, 1/125s, 1/250s, 1/500s, 1/1000s, 1/2000s,
1/3000s, 1/4000s, 1/5000s, 1/10000s OFF
Syncro. scan 1/1125H – 1124/1125H, OFF OFF
Gain
MODE AUTO, MANUAL, OFF OFF
AUTO maximum gain 0dB to 24dB 24dB
AUTO minimum gain -6dB to 0dB -6dB
MANUAL gain -6dB to 24dB 0dB
White balance
MODE AWB, MANUAL AWB
Color temperature 3200K, 5600K 3200K
AWB R PAINT -10 – 0 – 10 0
AWB B PAINT -10 – 0 – 10 0
AWB area
PRESET A, PRESET B, PRESET C, PRESET D, PRESET E,
USER (USER area is possible to set in 64 zones)
PRESET A
MANUAL R GAIN -100 – 0 – 100 0
MANUAL B GAIN -100 – 0 – 100 0
Gamma correction ON, OFF ON
Gamma correction level -10 – 0 – 10 0
Black gamma correction level LOW, NORMAL, HIGH NORMAL
Knee correction point 70%, 75%, 80%, 85%, 90%, 95%, 100% 85%
Knee correction slope 1 – 8 – 16 8
Master pedestal -200 – 0 – 200 0
Red pedestal -100 – 0 – 100 0
Blue pedestal -100 – 0 – 100 0
White clip 100% − 109% 109%
Detail gain 0 − 10 − 31 10
Detail boost frequency 1 − 10 − 16 16 (4K mode)
10 (1080p mode)
(1080i mode)
HV balance 8/16 − 16/16 − 24/16 (ratio of V/H) 16/16
Matrix
Correction ON/OFF ON, OFF ON
Selection of correction color R, R-Ye,Ye,Ye-G, G, G-Cy, Cy, Cy-B, B, B-Mg, Mg, Mg-R R
Phase -15 – 0 – 15 0
Gain -15 – 0 – 15 0
Chroma gain -31 − 0 − 31 0
Ext. Sync H phase adjustment -650 – 0 – 650 0
Shading correction mode SET, MANUAL, OFF OFF
Manual shading correction -128 – 0 – 127 0
Detail signal output ON, OFF OFF
Vertical inversion ON, OFF OFF
Horizontal inversion ON, OFF OFF
Inversion mode display switch ON, OFF OFF

8
Item Available selections Preset value
(Factory setting)
Changing the FREEZE display ON, OFF ON
4K OSD output A, B, C, D A
Output mode 4K, 1080p, 1080i 4K
RS-232C baud rate 9600bps, 19200bps 9600bps

9
4. NAMES AND FUNCTIONS
DC IN 12V
REMOTE
3G/HD-SDI
A B C D
SYNC IN/OUT
3
4
2
1
ON
OFF
50
59.94
IN
OUT
FORMAT SYNCKEY LOCK
1 2 3 4 5
87 96
[Front]
[Rear]
Camera cable
for “IK-4KH”
terminal
POWER switch
POWER LED
FILE button
FREEZE button
DISP button
PAGE button
MENU UP
(SHD) button
MENU DOWN
button
DATA UP
(AWB) button
DATA DOWN
(ABB) button
FREEZE
SYNC switch
⑬
REMOTE terminal
KEY LOCK switch
3G/HD-SDI A, B, C, D
terminal
DC IN 12V terminal
FORMAT switch
SYNC IN/OUT terminal
1
Camera cable for “IK-4KH”
terminal Where the camera cable for “IK-4KH” is connected.
2
POWER LED Illuminates to indicate the unit is powered on.
3
POWER switch Turns power on or off.
4
FILE button To switch the scene files.
5
FREEZE button To freeze the display.
6
DISP button Changes the display mode.
7
PAGE button To switch and select menus.
8
MENU UP (SHD) button To select the function to be confirmed or changed on the menu.
(Also used when performing auto shading correction.)
9
MENU DOWN button To select the function to be confirmed or changed on the menu.
10
DATA UP (AWB) button To change the value of the function selected by the MENU (UP/DOWN) button.
(Also used when performing an AWB.)
11
DATA DOWN (ABB) button To change the value of the function selected by the MENU (UP/DOWN) button.
(Also used when performing an ABB.)

10
12
DC IN 12V terminal Accepts a DC power input (12V).
13
REMOTE terminal To connect to a RS-232C device for remote control function.
14
SYNC IN/OUT terminal Used when the camera output signal is synchronized to an external signal or
when a synchronized signal is output.(BNC connector)
15
3G/HD-SDI A, B, C, D terminal Image signal output terminal for 3G/HD-SDI formats. (BNC connector)
16
KEY LOCK switch Enables/disables buttons
4
to
11
.
17
FORMAT switch Switches between 59.94Hz and 50Hz.
18
SYNC switch Switches between input and output of synchronized signals from
SYNC IN/OUT terminals in
14
.

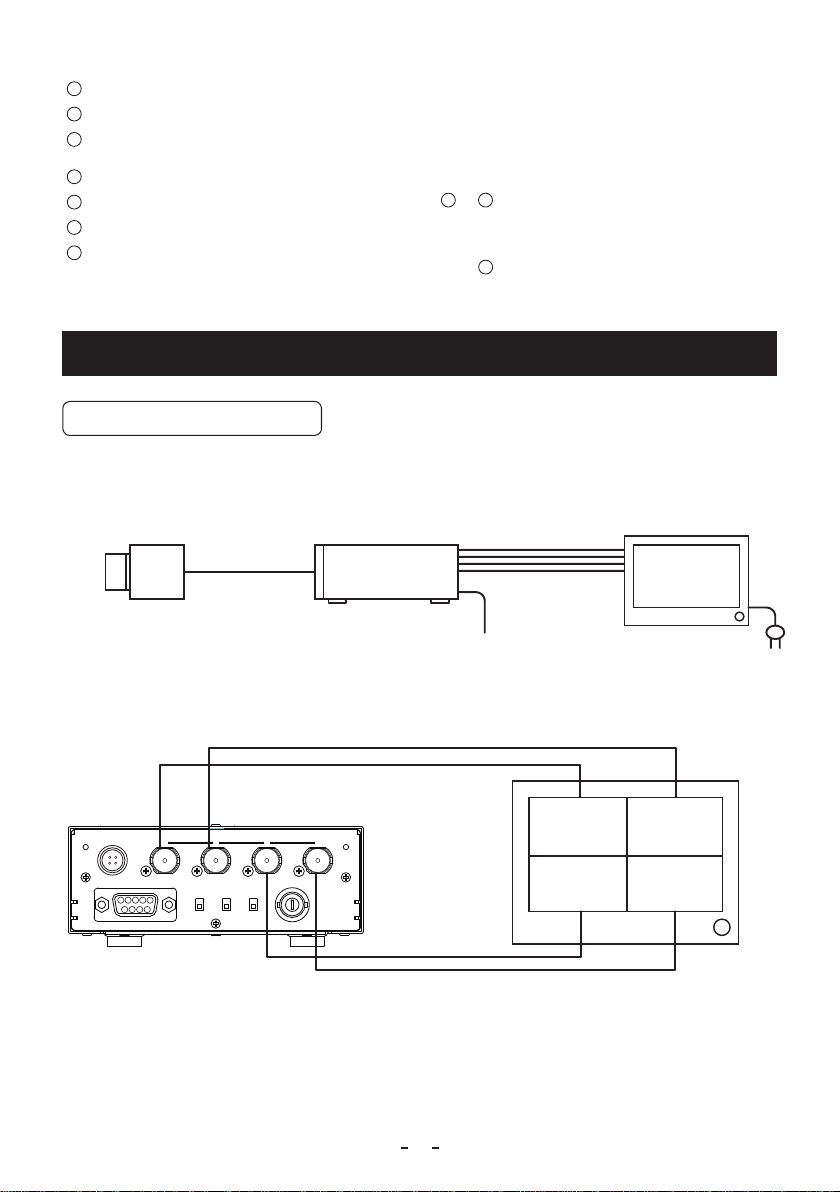

5. CONNECTION
5. 1 Standard Connection
5. 1. 1 In case output mode is 4K
DC power supply
(option)
Lens
(commercial
product)
Camera
Camera
Head
Control unit
Camera Cable
for IK-4KE
（option）
4K monitor
3G-SDI × 4 TV input
(commercial product)
DC IN 12V
3G/HD-SDI
x 4
IK-4KE
IK-4KH
(option)
Coaxial cable × 4, 75
Ω
(commercial
product)
* 3G/HD-SDI A, B, C, D terminals and screen positioning are shown below.
レンズ
（市販品）
IK-4KH
（別売品）
カメラコントロールカメラ
ヘッド ユニット
専用カメラ
ケーブル
（別売品）
4Kモニターテレビ
3G-SDI×4入力対応
（市販品）
DC電源（別売品）
DCIN12V
3G-SDI×4
Upperleft Upperright
Lowerleft Lowerright
IK-4KE
DC IN 12V
REMOTE
3G/HD-SDI
A B C D
SYNC IN/OUT
3
4
2
1
ON
OFF
50
59.94
IN
OUT
FORMAT SYNCKEY LOCK
1 2 3 4 5
87 96

11

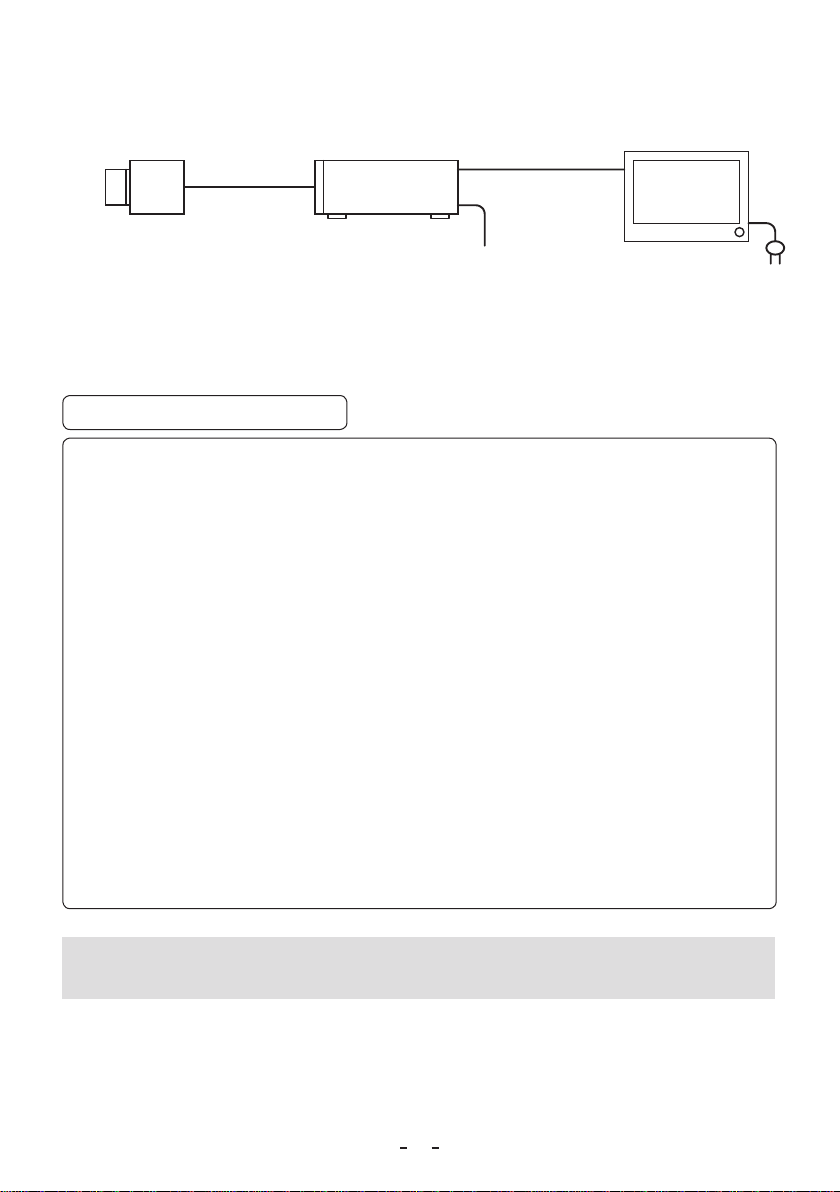

5. 1. 2 In case output mode is 1080p or 1080i
DC power supply
(option)
Lens
(commercial
product) Camera
Camera
Head
Control unit
Camera Cable
for IK-4KE
(option)
SDI monitor
3G/HD-SDI TV
(commercial product)
DC IN 12V
3G/HD-SDI
Coaxial cable, 75Ω
(commercial
product)
IK-4KE
IK-4KH
(option)
* 3G/HD-SDI A, B, C, D terminalsoutput the same signal.
5. 2 Cautions on Connection
• When connecting the camera cables, be sure to turn off the camera control unit and any other equipment
connected to it.
• For DC power supply connecting to DC IN 12V terminal, use class II DC power supply approved according
to EN60950-1 in Europe. or use UL listed and/or CSA approved ungrounded type AC adaptor with the
specifications described below in U.S.A.or Canada.
Power supply voltage : 12V DC ±10%
Current rating : More than 1.5A
Ripple voltage :Less than 50 mV (p–p)
Connector : HR10A–7P–4S by HIROSE electronics Co.Ltd
Pins 1, 2 : +12V
Pins 3, 4 : GND
• If the securing screw on the connector of the camera cable loosens, noise may appear on the screen. Be sure
to tighten the connector completely.
• Only use the specic optional camera heads with this camera controller.
The use of any other camera heads may cause damage to the control unit and camera head.
• The video signal output of this camera control unit has no function for automatically selecting output according
to the monitor TV. Therefore, be sure to switch the output mode of this camera control unit according to the
monitor as no image will be displayed on the monitor if the camera output mode and the monitor input mode
do not match. For switching, refer to the item 6.6 “Switching of Video Signal Output”.
• SDI interface
The SDI (serial digital interface) is a high-speed serial interface standard used mainly in commercial video
equipment. This unit supports both HD-SDI and 3G-SDI.
When image output is “4K” or “1080p”, 3G-SDI output is used. When image output is “1080i”, HD-SDI output
is used.
Use a 3G/HD-SDI compatible cable to connect to the 3G/HD-SDI terminal.
Note:
The image may not appear on the monitor's screen immediately, depending on the conditions and the type of
monitor.

12
5. 3 Connector Pin Assignments
The rear panel of the camera control unit has the following connectors:
DC IN 12V; REMOTE; SYNC IN/OUT and 3G/HD-SDI A, B, C, D terminals. Use the appropriate cables to connect
with these connectors.
DC IN 12V
REMOTE
3G/HD-SDI
A B C D
SYNC IN/OUT
3
4
2
1
ON
OFF
50
59.94
IN
OUT
FORMAT SYNCKEY LOCK
1 2 3 4 5
87 96
DC IN 12V terminal REMOTE terminal
1 +12V 1 -
2 +12V 2 TXD
3 GND 3RXD
4 GND 4 -
5GND
6 -
7 -
8 -
9 -

13
6. OPERATION
A camera head needs to be connected to this camera control unit from this section on.
1
Refer to the item “5. CONNECTION”, connect the equipment correctly.
2
Turn on the connected equipment and the camera.
3
When using the camera for the first time and when replacing the camera head, be sure to perform the ABB
adjustment, refer to the item “6.1 Automatic Black Balance”.
4
Aim the lens at the object, adjust the lens iris adjustment, focus adjustment, etc.
5
Refer to the item “6.2 White Balance”, make the adjustment.
6
Refer to the items “6.3 Scene File, 6.4 Gain, 7. MODE SETTING BY THE ON SCREEN DISPLAY”, select the
necessary items.
6. 1 Automatic Black Balance
Black balance adjustment is necessary to get the correct black picture level.
• Close the lens iris.
• If the color bar pattern is displayed on the screen or if the index menu/menu is displayed, press the [DISP] button to
disable the color bar pattern or the character display.
• Hold the [DATA DOWN] button for approx. 1 second.
• When the black balance adjustment operation starts, the character ABB blinks on the screen.
• When the black balance adjustment operation nishes, the character ABB stops blinking and the result appears for
approx. 1 second.
Display Meaning
ABB OK Automatic black balance adjustment finished correctly.
ABB NG
CLOSE LENS Automatic black balance adjustment cannot be performed because the lens iris is open. Close the lens iris.
ABB NG Automatic black balance adjustment cannot be performed.
Operate the automatic black balance again.
6. 2 WhiteBalance
For white balance adjustment of this unit, AWB (Automatic White Balance) and MANUAL (Manual white balance)
adjustments are provided. Refer to the items “7.2 (3) WHT BAL (White balance), 7. MODE SETTING BY ON SCREEN
DISPLAY”, select the desired mode.
AWB
(AutomaticWhiteBalance)
MANUAL
(ManualWhiteBalance)
Outline Adjust white balance by displaying a white object
inside the area set by AWB menu and hold the
[DATA UP] button for approx. 1 second.
Adjust the white balance manually using the WHT
BAL menu while shooting a white object.
Features Automatically adjusts red and blue balance based
on green for the object in the designated area. White balance can be set manually.
Note When no white object exits in the designated area
or lighting is too blight or too dark, AWB NG is
displayed and automatic white balance adjustment
can not be performed.
Adjustment is performed by confirming with a
monitor etc.

14
1AWB (Automatic white balance)
• Set the MODE to AWB on the WHT BAL menu.
Change the C.TEMP (color temperature conversion) setting, if necessary.
(Refer to the item “7.2 (3) WHT BAL (White balance)”.)
3200K : Appropriate for indoor shooting.
5600K : Appropriate for outdoor shooting.
• If the color bar pattern is displayed on the screen or if the index menu/menu is displayed, press the [DISP] button
to disable the color bar pattern or the character display on the monitor.
• Shoot a known white object entirely in the area set by the AWB menu (refer to the item “7.2 (3) (3.1) (d)
Changing the contents of the zone area selected by AWB” ) and push [DATA UP] button for approx. 1 second.
• The character AWB blinks on the screen when the AWB starts.
• The character AWB stops blinking when the AWB nishes, and the result is displayed for approx. 1 second.
Display Meaning
AWBOK Automatic white balance adjustment finished correctly.
AWBNG
LEVELLOW
Automatic white balance adjustment cannot be performed because the video level is too low.
Adjust the video level by increasing the illumination or opening the lens iris.
AWBNG
LEVEL HIGH Automatic white balance adjustment cannot be performed because the video level is too high. Adjust the video level by decreasing the illumination or closing the lens iris.
AWBNG
C.TEMPLOW
Automatic white balance adjustment cannot be performed because the color temperature is
too low.
If the C.TEMP is set to 5600K, set to 3200K.
If the message appears with the C.TEMP set to 3200K, change the illumination or use a color
temperature conversion filter.
AWBNG
C.TEMP HIGH Automatic white balance adjustment cannot be performed because the color temperature is too high.
If the C.TEMP is set to 3200K, set to 5600K.
If the message appears with the C.TEMP set to 5600K, change the illumination or use the color
temperature conversion filter.
AWBNG Automatic white balance adjustment cannot be performed for other reasons, such as no white
area is included in an object, etc.
2
MANUAL (Manual white balance)
• Set the MODE to MANUAL on the WHT BAL menu.
(Refer to the item “7.2 (3) WHT BAL (White balance)”.)
• Shoot a known white object, set the white balance by adjusting the levels of R GAIN and B GAIN on the menu,
confirming with a monitor or a vector scope.
(Refer to the item “7.2 (3) (3.2) Changing gain in MANUAL mode”.)

15
6. 3 Scene File
Five scene les (A, B, C, D, E) are available as user memories for this unit. These are chosen depending on shooting
conditions. By using the [FILE] button, the camera operation is changed immediately from the currently selected
Scene File to the next. (Refer to the item “7. MODE SETTING BY ON SCREEN DISPLAY”.)
• While any menu is displayed, pressing the [FILE] button will display the menu settings for the next Scene File:
FILE A →
→→
→FILE B →
→→
→FILE C →
→→
→FILE D →
→→
→FILE E
• If the color bar pattern is displayed on the screen, press the [DISP] button to switch to the video signal screen.
• When the [FILE] button is pressed while the video signal screen is displayed, the current scene le selection at that
time is displayed for approx. 3 seconds in the upper right corner of the screen. If the [FILE] button is pressed again
while the position is displayed, the scene file cycles as described above.
Note:
The scene le does not include the data set in “OUTPUT MODE” “BAUD RATE” within the “OPTION” menu.
Refer to the item “7.2 (8) OPTION” for the contents that can be set in OPTION.
6. 4 Gain
When the image is dark even if the lens iris is open, change the gain (video gain) to get the desired video level.
For gain adjustment of the unit, AUTO (Automatic gain control), MANUAL (Manual gain control), OFF (0 dB) modes
are provided.Select the mode on the GAIN menu. (Refer to the item “7.2 (2) GAIN (Video gain)”.)
1
AUTO (Automatic gain control)
When the output is low, gain is automatically adjusted to a suitable video level.
You can set a value for the maximum gain from 0 dB to 24 dB in 1 dB increments.You can set a value for the
minimum gain from -6 dB to 0 dB in 1 dB increments.(Refer to 7.2 (2) (2.1) "Changing the setting in AUTO (AGC:
Automatic gain control) mode.")
Video level (LEVEL), exposure metering (PHOTOMETRY), peak average value ratio (PEAK/AVE), measurement
light area (AREA), and response speed (SPEED) are linked to the setting on the automatic shutter. (Refer to the
item “7.2 (1) (1.1) Changing the setting in AUTO mode”.)
2
MANUAL (Manual gain)
Gain adjustment is performed on the GAIN menu.The adjustment range is from -6 to 24dB in 1dB steps.
(Refer to the item “7.2 (2) (2.2) Changing gain in MANUAL mode”.)
3
OFF
Gain is fixed at 0 dB.
Note:
White, red, green, or blue dots may occur when the gain is increased. This is not a malfunction, just certain
characteristics of the CMOS sensor becoming more visible.

16
6. 5 Shading Correction
Due to the lens used or the environmental condition, color shading may occur at the upper and lower edge of the
screen. If this happens, the shading correction function can be used to decrease the amount of color shading. For
shading correction of the unit, SET (Automatic shading correction), MANUAL (Manual shading correction), and OFF
(no shading correction) modes are provided.Select the mode on the OPTION menu. (Refer to the item “7.2 (8) (8.1)
Changing shading correction mode”.)
1
SET (Auto shading)
• If the color bar pattern is displayed on the screen or if the index menu/menu is displayed, press the [DISP] button
to remove them from the screen.
• Push the [MENU UP] button for approx. 1 second.
• When the automatic shading correction operation starts, the character SHD blinks on the screen.
• When the automatic shading correction operation terminates, the character SHD ends blinking and the result is
displayed for approx.1 second.
Display Meaning
SHD OK Automatic shading correction operation finished correctly.
SHD OK
LIMIT Automatic shading correction operation finished, however, the correction necessary exceeds the camera’s range so the maximum possible value is applied.
SHD NG
LEVELLOW
Automatic shading correction cannot be performed because the video level is too low. Adjust
the video level by increasing the illumination or opening the lens iris.
SHD NG
LEVEL HIGH Automatic shading correction cannot be performed because the video level is too high. Adjust the video level by decreasing the illumination or closing the lens iris.
2
MANUAL (Manual shading)
Perform the correction on the OPTION menu, confirming with a monitor or a vector scope.
(Refer to the “7.2 (8) (8.2) Changing manual shading correction mode”.)
3
OFF
No shading correction is performed.
* Shading correction is only effective when the lens iris and zoom ratio is xed. Use the unit with SHADING OFF for
variable lens conditions.
Note:
Implement shading correction after white balance adjustment by shooting a white object that fills the screen in
the proper video level.

17
6. 6 Switching ofVideo Signal Output
1Switching of OUTPUT modes
The image output can be changed between“4K”, “1080p”, or“1080i”by turning on the controller while pushing the
[MENU DOWN], [DATA UP], or [DATA DOWN] button.
• Turn on the controller while pushing the [MENU DOWN] button. The image output becomes “4K”, and “4K” is
displayed on the monitor screen.
• Turn on the controller while pushing the [DATA UP] button. The image output becomes “1080p”, and “1080p” is
displayed on the monitor screen.
• Turn on the controller while pushing the [DATA DOWN] button. The image output becomes “1080i”, and “1080i”
is displayed on the monitor screen.
Note:
The image may not appear on the monitor's screen immediately after switching the output mode.
2Switching of vertical frequency
Adjust the FORMAT switch to the “59.94” position for switching to “59.94Hz”.
Adjust the FORMAT switch to the “50” position for switching to “50Hz”.
(Refer to the item “4. NAMES AND FUNCTIONS,
17
FORMAT switch”.)
6. 7 Freeze Operation
• The display can be frozen in the case of a video signal only on a normal screen. The display cannot be frozen in the
case of the color bar pattern, or index menu/menu.
• Each press of the [FREEZE] button toggles between freeze display and normal display.
• If ON is selected for the FREEZE DISP setting on the OPTION menu, “FREEZE” is displayed while the display is
frozen.(Refer to (7.2 (8) (8.7) “Changing the FREEZE display.”)
• The following keys are disabled while the display is frozen: [FILE], [DISP], [PAGE], [MENU UP], [MENU DOWN],
[DATA UP], and [DATA DOWN].

18
7. MODE SETTING BY ON SCREEN DISPLAY
Various settings can be controlled on the unit by using the on screen menu displayed on the monitor. The contents
once set are memorized in the scene les (A, B, C, D, E) selected, so if the power turns off, it is unnecessary to set
again when using the unit next time.When the setting is performed, select the menu of the item to be set.
Note
• Displayed texts while pressing the on screen menu, auto white balance (AWB) or other menus are present
on the output video. These texts on the video are not removable after the video is recorded.Therefore, be
aware when you operate the on screen menu, AWB and other menus.
• In the 4K output mode, you can change the position of text displayed during operation of screen menus,
AWB (auto white balance), etc. Refer to (7.2 (8) (8.8) "Changing 4K OSD (On Screen Display) output." In the
1080p and 1080i modes, text is displayed over the entire screen, you cannot change the position of the text.
7. 1 Using the Menus
When the power turns on, the normal screen showing only the video signal appears. Change the output to each
screen (video signal output, color bar screen, Index menu, menus, and area menu) by using the [DISP], [PAGE],
[MENU UP], and [MENU DOWN] buttons.
* A menu is selected when pushing the [PAGE] button after moving the “ ” on the screen by the [MENU UP], [MENU
DOWN] button while the Index menu is displayed.
Area
menu Area menu
The screen is changed to the area screen by
selecting AUTO in the 1.SHUTTER menu and
AWB in the 3.WHT BALmenu in the setting
screen For more details, refer to the item "7.2
Menus".
Video signal output Color bar screen
Menus
Index menu
8.OPTION
6.PROCESS 3 7.SYNC
MATRIX
ON
MATRIX
OFF
5.PROCESS 24.PROCESS 1
MANUAL MANUAL MANUAL
SHADING
OFF
SET
MANUAL

19
7. 2 Menus
1
Select the menu to change the setting by referring to the item “7.1 Using the Menus”.
2
When the [MENU UP], [MENU DOWN] buttons are pushed, the “ ” on the screen moves up and down.
Move the “ ” to the item whose setting you wish to change.
3
Use the [DATA UP], [DATA DOWN] buttons to make changes.
( 1 ) SHUTTER (Electronic shutter)
The electronic shutter has three modes; AUTO, MANUAL, SS (Synchro. Scan).
Press the “Page” button to enter the Shutter Page. Use the “Data Up/Down” buttons to select the Shutter Mode.
MANUAL SSAUTO
AUTO : The exposure time is controlled automatically to obtain the optimum video level.
MANUAL : It is possible to select the exposure time from eleven speed settings; OFF (at 1/60s: 59.94Hz setting
and 1/50s: 50Hz setting), 1/100s, 1/125s, 1/250s, 1/500s, 1/1000s, 1/2000s, 1/3000s, 1/4000s,
1/5000s, 1/10000s.
SS : Shutter speed can be set by the horizontal scanning time (1H) unit.
Notes:
• If the shutter speed is increased, the sensitivity is decreased according to the speed. Flicker may occur under
discharge lamp lighting such as fluorescent tubes.
• If a fast-moving object is shot, its image may be distorted or blurred. Horizontal light-and-dark stripes may
appear on the screen under discharge lamp lighting such as fluorescent tubes.A light and dark difference may
appear on the screen according to the light emitting timing of flash or strobe. These phenomena are due to
rolling shutter system, not failures.
• When the shutter speed is set to high, the hue may change according to the shooting conditions and the
object.

20
(1. 1) Changing the setting in AUTO mode
Shutter mode AUTO, MANUAL, SS
Video level adjustment -100 to 100
Exposure metering PEAK/AVE, MEDIAN
Peak and average ratio adjustment 00 10 to 10 00
-- 1SHUTTER -- (FILE A)
Automatic shutter response speed adjustment 1 to 20
MODE AUTO
LEVEL 0
PHOTOMETRY PEAK/AVE Automatic shutter area selection
PEAK/AVE 00 10 PRESET A, PRESET B, PRESET C, PRESET D, PRESET E,
USER
SPEED 10
AREA PRESET A
AREA DISPLAY OFF
MAX SHUT OFF
<MODE = AUTO>
Move up and down
by pushing
MENU UP, DOWN
Select the desired
value by pushing
DATA UP, DOWN
Automatic shutter area display selection
Automatic shutter maximum speed setting
1/200s, 1/250s, 1/300s, 1/350s, 1/400s, 1/450s,
1/500s, 1/550s, 1/600s, 1/700s, 1/800s, 1/900s,
1/1000s, 1/1200s, 1/1500s, 1/2000s, 1/4000s, OFF
(a) Changing the video level in the automatic shutter mode
1
Move the “ ” to LEVEL by pushing the [MENU UP], [MENU DOWN] buttons.
2
Select the video level by pushing the [DATA UP], [DATA DOWN] buttons.
[DATA UP] The value increases by pushing
-100 0 100
The value decreases by pushing [DATA DOWN]
(b) Changing the exposure metering of the automatic shutter
1
Move the “ ” to PHOTOMETRY by pushing the [MENU UP], [MENU DOWN] buttons.
2
Select PEAK/AVE or MEDIAN by pushing the [DATA UP], [DATA DOWN] buttons.
If PEAK/AVE is selected, the exposure is a ratio of the peak and average values shown in PEAK/AVE.
If MEDIAN is selected, there is less variation in the brightness than when PEAK/AVE is selected, such as for
scenes with large changes in background brightness.
(c) Changing the automatic shutter detection (ratio between peak and average value)
1
Move the “ ” to PEAK/AVE by pushing the [MENU UP], [MENU DOWN] buttons.
2
Select the ratio between peak and average value by pushing the [DATA UP], [DATA DOWN] buttons.
(Peak: Average) The peak value increases by pushing [DATA UP]
00:10 05:05 10:00
The peak value decreases by pushing [DATA DOWN]
*If MEDIAN is selected for PHOTOMETRY, the PEAK/AVE display disappears, so it cannot be changed.
(d) Changing the automatic shutter response speed
1
Move the “ ” to SPEED by pushing the [MENU UP], [MENU DOWN] buttons.
2
Select the response speed by pushing the [DATA UP], [DATA DOWN] buttons.
[DATA UP] The response speed becomes faster by pushing
1 10 20
The response speed becomes slower by pushing [DATA DOWN]

21

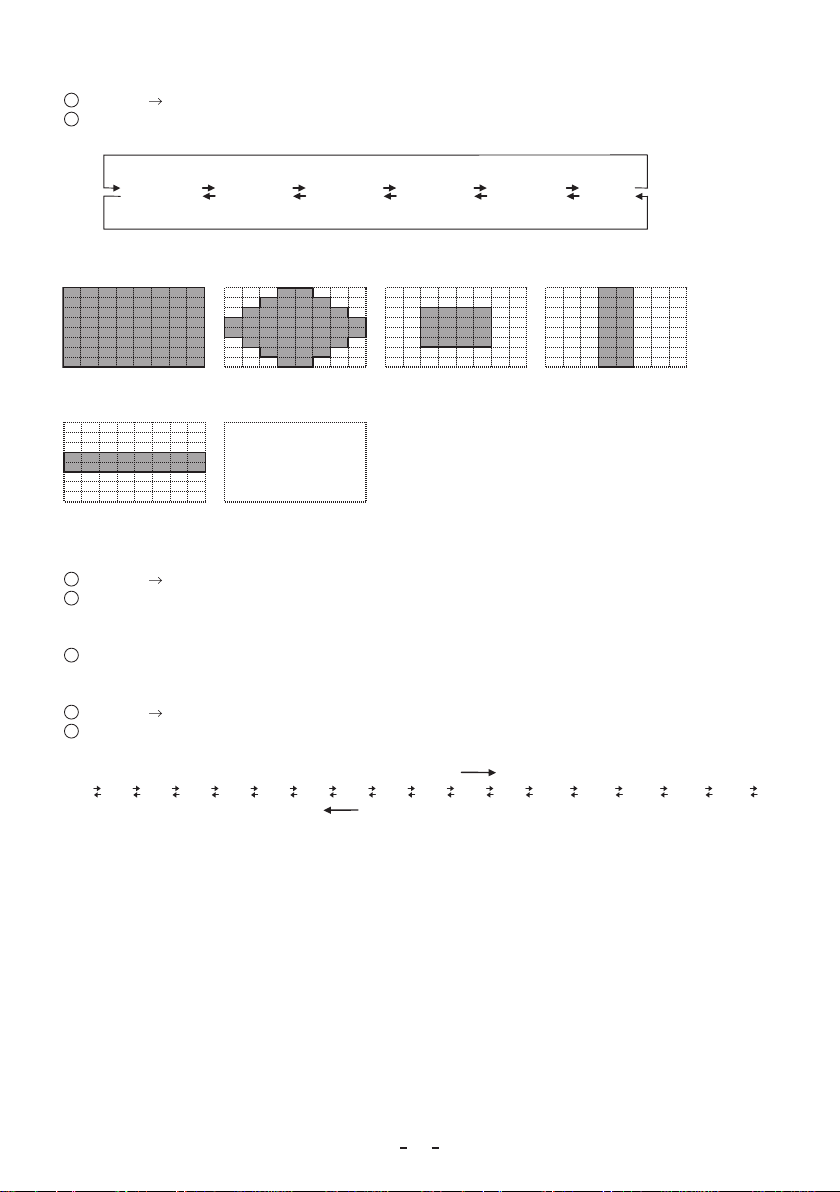

(e) Changing the automatic shutter zone area
1
Move the “ ” to AREA by pushing the [MENU UP], [MENU DOWN] buttons.
2
Select the measurement light area by pushing the [DATA UP], [DATA DOWN] buttons.
[DATA UP]
PRESET A PRESET B PRESET C PRESET D PRESET E USER
[DATA DOWN]
The dark squares indicate the effective region of the image, which is divided into an 8 x 8 grid.
PRESET A PRESET B PRESET DPRESET C
PRESET E USER
Custom
Selection
(f) Confirming the contents of the measurement light area selected by the automatic shutter
1
Move the “ ” to AREA DISPLAY by pushing the [MENU UP], [MENU DOWN] buttons.
2
Area screen appears by pushing the [DATA UP], [DATA DOWN] buttons.
When AREA is set to USER, the setting can be changed on the area menu.When changing the area, refer to
the item “7.2 (9) Setting USER area”.
3
Push the [DISP] button to return to the menu.
(g) Setting of maximum auto shutter speed
1
Move the “ ” to MAX SHUT by pushing the [MENU UP], [MENU DOWN] buttons.
2
Select the shutter speed by pushing the [DATA UP], [DATA DOWN] buttons.
1/200s 1/250s 1/300s 1/350s 1/400s 1/450s 1/500s 1/550s 1/600s 1/700s 1/800s 1/900s 1/1000s 1/1200s 1/1500s 1/2000s 1/4000s OFF
[DATA DOWN]
[DATA UP]

22
(1. 2) Changing the setting in MANUAL mode
Shutter mode AUTO, MANUAL, SS
-- 1SHUTTER -- (FILE A) Shutter speed setting
MODE MANUAL OFF, 1/100s, 1/125s, 1/250s, 1/500s, 1/1000s,
MANUAL OFF 1/2000s, 1/3000s, 1/4000s, 1/5000s, 1/10000s
<MODE = MANUAL>
Move up and down
by pushing
MENU UP, DOWN
Select the desired
value by pushing
DATA UP, DOWN
(a) Changing the shutter speed
1
Move the “ ” to MANUAL by pushing the [MENU UP], [MENU DOWN] buttons.
2
Select the shutter speed by pushing the [DATA UP], [DATA DOWN] buttons.
[DATA DOWN]
[DATA UP]
OFF 1/100s 1/125s 1/250s 1/500s 1/1000s 1/2000s 1/3000s 1/4000s 1/5000s 1/10000s
(1. 3) Changing the setting in SS (Synchro. Scan) mode
Shutter mode AUTO, MANUAL, SS
-- 1SHUTTER -- (FILE A) Synchro. scan setting
1/1125H to 1124/1125H, OFF
MODE SS
SYNCHRO SCAN OFF
<MODE = SS>
Move up and down
by pushing
MENU UP, DOWN
Select the desired
value by pushing
DATA UP, DOWN
(a) Changing the Synchro. Scan setting
1
Move the “ ” to SYNCHRO SCAN by pushing the [MENU UP], [MENU DOWN] buttons.
2
Select the Synchro. Scan by pushing the [DATA UP], [DATA DOWN] buttons.
[DATA UP]
1/1125H 1124/1125H OFF
[DATA DOWN]
