Toyota Touch 2 User manual

TOYOTA TOUCH 2
TOYOTA TOUCH 2 WITH GO
(2016)

TOYOTA MOTOR EUROPE NV/SA
A
ddress: Avenue du Bourget 60 - 1140 Brussels, Belgium.
Website: https://www.toyota-europe.com
©2016 TOYOTA MOTOR CORPORATION
A
ll rights reserved. This material may not be reproduced or copied in whole
or in part, without the written permission of Toyota Motor Corporation.
Printed in E.U.

TOUCH-SCREEN MULTIMEDIA
Touch-Screen Gestures ..............2
Controls Overview .................3
Audio System ....................6
Bluetooth® Hands-Free System (Toyota Touch 2)
(Without Navigation) ...............12
Bluetooth® Hands-Free System (Toyota Touch 2
with Go) (With Navigation) ...........15
Rear View Monitor System (If equipped) ....18
Navigation (Toyota Touch 2 with Go) ......19
Applications ....................22
INDEX .......................25
TABLE OF CONTENTS
1

Touch-Screen Gestures
Operations are performed by touching the touch-screen directly with your finger.
Operation Method Outline Main Use
Tap
Quickly touch and release
once.
Selecting an item on the
screen
Drag*
Touch the screen with your
finger, and move the screen
to the desired position.
■Scrolling the lists
■Moving the map screen
Flick
*
Quickly move the screen by
flicking with your finger.
Moving to the next/previous
screen
*
: The above operations may not be performed on all screens.
TOUCH-SCREEN MULTIMEDIA
2

Controls Overview
The actual appearance of the audio/navi Control Panel may look like any of these,
depending the vehicle.
9
8
7
2
3
4
5
6
10
1
2
4
3
5
6
10
9
7
8
1
TOUCH-SCREEN MULTIMEDIA
3

11
10
9
8
1
3
2
5
4
6
12
11
3
4
6
8
9
5
12
1
10
TOUCH-SCREEN MULTIMEDIA
4

8
10
9
73
4
5
6
2
1Touch to control the selected
functions.
2Turn to select a radio station or a
track.
*
Press to enter selections.
*
Turn to change the map scale.
*
3Press to customise the function
settings.
4Press to access the vehicle
information system.
5Press to access the Bluetooth®
hands-free system and applications.
Each time the button is pressed, the
screen will change between the phone
menu screen and the Toyota online menu
screen.
6Press to access the navigation
system.
Each time the button is pressed, the
screen will change between the map
screen and navigation menu screen.
7Press to turn mute on/off.
*
8Press to select a radio station or a
track.
9Press to access the audio system.
The audio system turns on in the last
mode used.
10 Turnorpress+/-toadjust volume
knob.
Press the volume knob / to turn the
audio system on/off.
Press the volume knob / and hold to
restart the system.
11 Press to eject a disc.
*
12 Insert a disc into this slot. The CD
player turns on immediately.
*
*
: If equipped
TOUCH-SCREEN MULTIMEDIA
5

Audio System
Selecting an Audio Source
Press the “MEDIA” / button.
Select a desired audio source.
INFORMATION
Dimmed screen buttons cannot be
operated.
Audio Operation
AM/FM/DAB (If Equipped) Radio
Select “AM”, “FM” or “DAB” on the audio source selection screen.
Toyota Touch 2
Toyota Touch 2 with Go
Toyota Touch 2 (Without Navigation)
1
2
6 5 4 3
1
7
2
6 5 4 3
TOUCH-SCREEN MULTIMEDIA
6

Presetting A Station
1. Select “Favourites”.
2. Tune in the desired station.
3. Select one of the station selector
buttons (1-6) and hold it until a beep
is heard.
• The station’s frequency (AM/FM) or
name (FM/DAB) will be displayed in
the screen button.
• To change the preset station to a
different one, follow the same
procedure.
Toyota Touch 2 with Go (With Navigation)
1
2
6 5 4 3
1
7
2
6 5 4 3
1Select to tune to preset stations.
2Select to display the radio options
screen.
3Select to display the manual tuning
screen.
4Select to display the station list.
5Select to display the preset station.
6Select to display the audio source
selection screen.
7Select to display the time shift
operation screen.
Toyota Touch 2
Toyota Touch 2 with Go
TOUCH-SCREEN MULTIMEDIA
7

Manual Tuning
AM/FM Screen
1. Select “Manual”.
2. Tune the desired station.
1Select to seek up/down a
station.
Select and hold to seek stations
non-stop.
2Select to step up/down
frequencies.
Select and hold to seek frequencies
non-stop.
3It is possible to drag and drop
the marker by sliding your finger on
the screen (in the area where the
marker is shown). Relocating the
marker by a single select on the
frequency band is also possible.
DAB Screen (If equipped)
1. Select “Manual”.
2. Tune the desired ensemble or
service.
1Select to seek up/down available
ensembles.
Select and hold the button for the
non-stop seek up/down function. When
your finger is released from the button,
the search function will stop at the next
receivable station.
2Select to set available service.
Toyota Touch 2 – Select and hold to set
the available services every one second.
2
1
3
1
2
TOUCH-SCREEN MULTIMEDIA
8

USB Memory
The USB memory operation screen can be reached by the following methods:
• Connecting a USB memory
• Select “USB” on the audio source
selection screen
910
1
2
345
6
7
8
1Shows progress.
2Select to display the USB options
screen.
3Select to create a new playlist
containing songs similar to the current
song being played (if equipped).
4Select to display the browse options
selection screen and then select the
desired item.
5Select to set random playback.
6Select to set repeat playback.
7Select to display the audio source
selection screen.
8Displays cover art.
• Select to display a track list.
9Select to switch between “USB1”
and “USB2” when two USB memory
devices are connected.
10 Select to play/pause.
TOUCH-SCREEN MULTIMEDIA
9

iPod
The iPod operation screen can be reached by the following methods:
• Connecting an iPod
• Select “iPod” on the audio source
selection screen
910
1
2
345
6
7
8
1Shows progress.
2Select to display the iPod audio
options screen.
3Select to create a new playlist
containing songs similar to the current
song being played (if equipped).
4Select to display the browse options
selection screen and then select the
desired item.
5Select to set random playback.
6Select to set repeat playback.
7Select to display the audio source
selection screen.
8Displays cover art.
• Select to display a track list.
9Select to switch between “iPod1”
and “iPod2” when two iPods are
connected.
10 Select to play/pause.
TOUCH-SCREEN MULTIMEDIA
10

Bluetooth® Audio
The Bluetooth® audio system enables
users to enjoy listening to music that is
played on a portable player on the vehicle
speakers via wireless communication.
This audio system supports Bluetooth®, a
wireless data system capable of playing
portable audio music without cables. If a
device does not support Bluetooth®, the
Bluetooth® audio system will not
function.
Depending on the type of portable player
connected, some functions may not be
available and/or the screen may look
differently than shown in this manual.
The Bluetooth® audio operation screen
can be reached by the following methods.
• Connecting a Bluetooth® audio device
• Select “Bluetooth” on the audio
source selection screen
7
1
23
4
5
6
1Shows progress.
2Select to display the Bluetooth®
audio options screen.
3Select to display the browse options
selection screen and then select the
desired item.
4Select to set random playback.
5Select to set repeat playback.
6Select to display the audio source
selection screen.
7Select to play/pause.
TOUCH-SCREEN MULTIMEDIA
11

Bluetooth® Hands-Free System (Toyota Touch 2) (Without
Navigation)
Quick Reference
Connecting a Bluetooth® Phone
In order to use the hands-free system, it
is necessary to pair the phone and
connect the phone’s profile (HFP) with
the system.
Once the profile has been connected,
hands-free calls can be made.
If Bluetooth® phones with phone profile
(HFP) have not been connected, first
connect a Bluetooth® phone with phone
profile (HFP) according to the following
procedure. Connect a Bluetooth® phone
with phone profile (HFP) after bringing
the vehicle to a complete stop.
3
2
1
4
1Select to display the dial number
screen.
A call can be made by dialing the number.
2Select to display the contacts
screen.
An entry from the list of contacts in the
“Stored” and “Phone book” screen can
be selected and called.
3Select to display the call lists screen.
An entry from the missed, received or
dialed call lists can be selected and
called.
4Select to display the messages
screen.
A list of received and sent short
messages as well as a menu to create
new short messages can be displayed.
TOUCH-SCREEN MULTIMEDIA
12

1. Press the button.
2. Select “Yes”.
This screen can be displayed by
pressing the switch on the
steering wheel.
Pairing a Bluetooth® Device
NOTE:
Up to four Bluetooth® devices can be
paired. A paired device can be
connected to any of its supported
profiles such as phone (HFP), music
(A2DP) and/or internet (DUN/PAN).
Pairing From the System
1. Display the Bluetooth® settings
screen and select “Search device”.
• If another Bluetooth® device is
connected, disconnect that
Bluetooth® device.
• If four Bluetooth® devices have
already been paired, one of the
paired devices needs to be
removed.
2. Select the desired device.
Connectable Bluetooth® devices will
be displayed in the list.
3. Confirm the PIN.
• A PIN code is not required for SSP
(Secure Simple Pairing) compatible
Bluetooth® devices. Depending on
the type of Bluetooth® device
being connected a message
confirming registration may be
displayed on the Bluetooth®
device’s screen. Respond and
operate the Bluetooth® device
according to the confirmation
message.
4. Check that the following screen is
displayed.
• The system waits for connection
requests coming from the paired
device. All requested profiles are
connected automatically.
• Internet profile is not connected
automatically.
If the automatic connection failed, the
following screen will be displayed. Select
the desired profile to be connected.
1Select to connect the phone profile.
2Select to connect the music profile.
3Select to connect the internet
profile.
4Select to connect all profiles.
1
2
3
4
TOUCH-SCREEN MULTIMEDIA
13

Once you have connected the Bluetooth®
device, it is automatically connected
whenever the system is started.

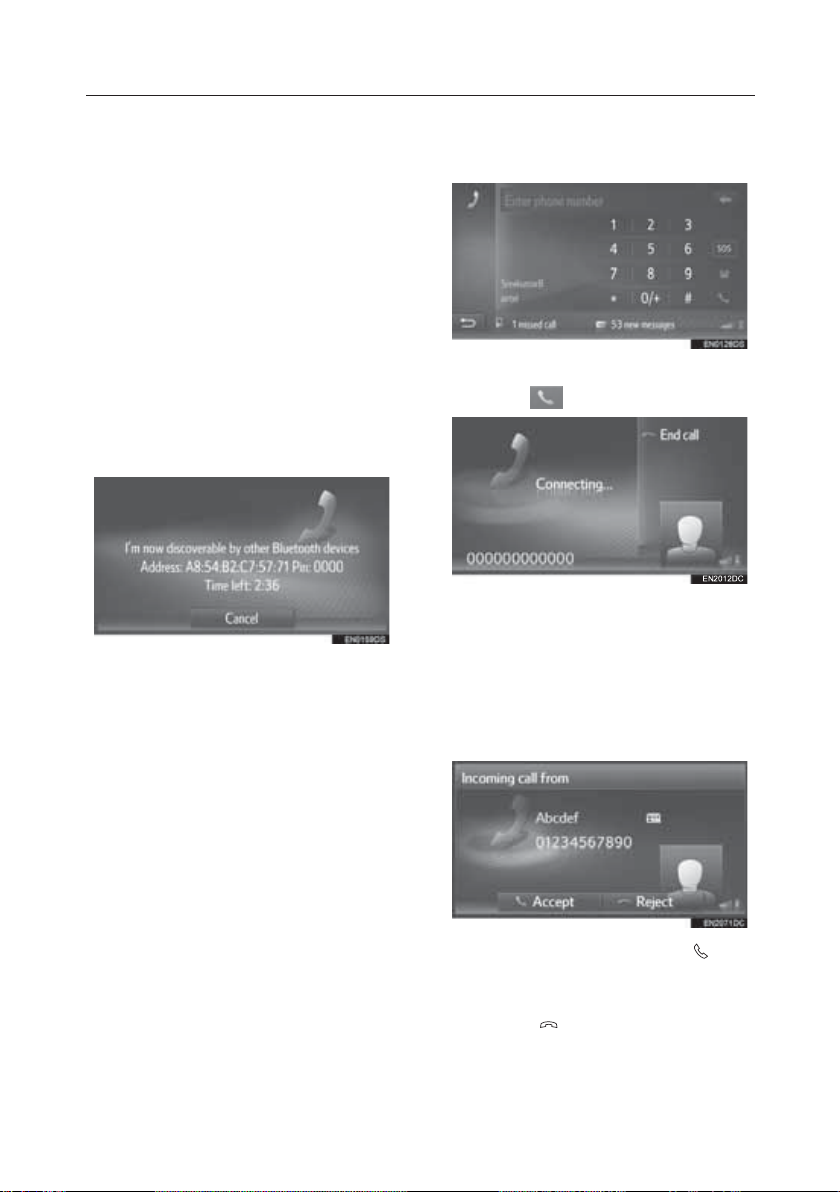

Pairing From The Device
1. Display the Bluetooth® settings
screen and select “Make system
discoverable”.
• If another Bluetooth® device is
already connected, disconnect that
Bluetooth® device.
• If four Bluetooth® devices have
already been paired, one of the
paired devices needs to be
removed.
2. Search for this system from your
Bluetooth® device.
3. Pair the Bluetooth® device using
your Bluetooth® device.
• Depending on the type of
Bluetooth® device being
connected, it may be necessary to
perform additional steps on the
system.
• A PIN code is not required for SSP
(Secure Simple Pairing) compatible
Bluetooth® devices. Depending on
the type of Bluetooth® device
being connected a message
confirming registration may be
displayed on the Bluetooth®
device’s screen. Respond and
operate the Bluetooth® device
according to the confirmation
message.
Calling on a Bluetooth® Phone
1. Display the phone menu screen and
select “Dial number”.
2. Enter a phone number.
3. Select .
4. Check that the connecting screen is
displayed.
Receiving Calls on a Bluetooth®
Phone
Incoming calls to a Bluetooth® phone will
be displayed on the screen.
1. Select “Accept” or press the
switch on the steering wheel.
To reject an incoming call: Select “Reject”
or press the switch on the steering
wheel.
To adjust the volume of a received call:
Turn the power/volume knob.
TOUCH-SCREEN MULTIMEDIA
14

Bluetooth® Hands-Free System (Toyota Touch 2 with Go)
(With Navigation)
Quick Reference
Connecting a Bluetooth® Phone
In order to use the hands-free system, it
is necessary to pair the phone and
connect the phone’s profile (HFP) with
the system.
Once the profile has been connected,
hands-free calls can be made.
If Bluetooth® phones with phone profile
(HFP) have not been connected, first
connect a Bluetooth® phone with phone
6
5
4
1
2 3
1Select to call back the number.
Select to display the entire call list.
An entry from the missed, received or
dialed call lists can be selected and
called.
2Select to display the phone book
screen.
An entry from the phone book list can be
selected and called.
3Displays the condition of the
Bluetooth® and internet connection.
When this icon is selected, the paired
device list screen will be displayed.
4Select to display the favourites
screen.
An entry from the favourites list can be
selected and called.
5Select to display the messages
screen.
A list of received and sent short
messages as well as a menu to create
new short messages can be displayed.
6Select to display the dial number
screen.
A call can be made by dialing the number.
TOUCH-SCREEN MULTIMEDIA
15

profile (HFP) according to the following
procedure. Connect a Bluetooth® phone
with phone profile (HFP) after bringing
the vehicle to a complete stop.
1. Press the button.
2. Select “Yes”.
This screen can be displayed by
pressing the switch on the
steering wheel.
Pairing a Bluetooth® Device
NOTE:
Up to four Bluetooth® devices can be
paired. A paired device can be
connected to any of its supported
profiles such as phone (HFP), music
(A2DP) and/or internet (DUN/PAN).
Pairing From the System
1. Display the Bluetooth® settings
screen and select “Search device”.
• If another Bluetooth® device is
connected, disconnect that
Bluetooth® device.
• If four Bluetooth® devices have
already been paired, one of the
paired devices needs to be
removed.
2. Select the desired device.
Connectable Bluetooth® devices will
be displayed in the list.
3. Confirm the PIN.
•
A PIN code is not required for SSP
(Secure Simple Pairing) compatible
Bluetooth® devices. Depending on
the type of Bluetooth® device being
connected a message confirming
registration may be displayed on
the Bluetooth® device’s screen.
Respond and operate the
Bluetooth® device according to the
confirmation message.
4. Check that the following screen is
displayed.
• The system waits for connection
requests coming from the paired
device. All requested profiles are
connected automatically.
• Internet profile is not connected
automatically.
If the automatic connection failed, the
following screen will be displayed. Select
the desired profile to be connected.
1Select to connect the phone profile.
2Select to connect the music profile.
3Select to connect the internet
profile.
4Select to connect all profiles.
1
2
3
4
TOUCH-SCREEN MULTIMEDIA
16

Once you have connected the Bluetooth®
device, it is automatically connected
whenever the system is started.
Pairing From The Device
1. Display the Bluetooth® settings
screen and select “Make system
discoverable”.
• If another Bluetooth® device is
already connected, disconnect that
Bluetooth® device.
• If four Bluetooth® devices have
already been paired, one of the
paired devices needs to be
removed.
2. Search for this system from your
Bluetooth® device.
3. Pair the Bluetooth® device using
your Bluetooth® device.
• Depending on the type of
Bluetooth® device being
connected, it may be necessary to
perform additional steps on the
system.
• A PIN code is not required for SSP
(Secure Simple Pairing) compatible
Bluetooth® devices. Depending on
the type of Bluetooth® device
being connected a message
confirming registration may be
displayed on the Bluetooth®
device’s screen. Respond and
operate the Bluetooth® device
according to the confirmation
message.
Calling on a Bluetooth® Phone
1. Display the phone menu screen and
select “Dial number”.
2. Enter a phone number.
3. Select .
4. Check that the connecting screen is
displayed.
Receiving Calls on a Bluetooth®
Phone
Incoming calls to a Bluetooth® phone will
be displayed on the screen.
1. Select “Accept” or press the
switch on the steering wheel.
To reject an incoming call: Select “Reject”
or press the switch on the steering
wheel.
To adjust the volume of a received call:
Turn the power/volume knob.
TOUCH-SCREEN MULTIMEDIA
17

Rear View Monitor System
(If equipped)
The rear view monitor system assists the
driver by displaying an image of the view
behind the vehicle with fixed guide lines
on the screen while backing up, for
example while parking.
Vehicles without smart entry and start
system
The rear view monitor system screen will
be displayed if the shift lever is shifted to
the “R” position while the engine switch
is in the “ON” position.
Vehicles with smart entry and start
system
The rear view monitor system screen will
be displayed if the shift lever is shifted to
the “R” position while the engine switch
is in IGNITION ON mode.
Canceling Rear View Monitor
System
The rear view monitor system is canceled
when the shift lever is shifted into any
position other than the “R” position.
When the shift lever is shifted to the “R”
position and any mode button (such as
“MEDIA”) is pressed
The rear view monitor system is canceled,
and the screen is switched to the mode of
the button that was pressed.
Area Displayed on Screen
The rear view monitor system displays an
image of the view from the bumper of the
rear area of the vehicle.
The area displayed on the screen may
vary according to vehicle orientation
conditions.
Camera
The camera for the rear view monitor
system is located as shown in the
illustration.
If dirt or foreign matter (such as water
droplets, snow, mud, etc.) is adhering to
the camera, it cannot transmit a clear
image. In this case, flush it with a large
quantity of water and wipe the camera
lens clean with a soft and wet cloth.
This is a generalized illustration,
conditions specific to your vehicle can be
found in the User Guide or full Owner's
Manual.
TOUCH-SCREEN MULTIMEDIA
18
