TP-Link Auranet EAP110 User manual

Typical Network Topology
Hardware Installation
2
Option 1: Ceiling Mounting
5
Feed the Ethernet cable through the hole
and set the ceiling tile back into place.
Connect the Ethernet cable to the
ETHERNET port.
2
Place the mounting bracket in the center
of the ceiling tile. Mark three positions for
the screw holes and a position for the
Ethernet cable hole.
Drill three 4mm holes for the screws and a
25mm hole for the Ethernet cable at the
marked positions.
1
Remove the ceiling tile.
3
Secure the mounting bracket to the
ceiling tile using three M3x30 pan-head
screws, washers and wing nuts, as shown
on the left.
EAPEAPEAP
Management Host
A DHCP server (typically a router) is required to assign IP addresses to the EAPs and clients in your local network.
The management host can be in the same or different network segment with the EAPs.
Option 1: Ceiling Mounting
Option 2: Wall Mounting
The EAP can be ceiling-mounted or wall-mounted.
Hole for Ethernet cable
X3
Switch
Router
Internet

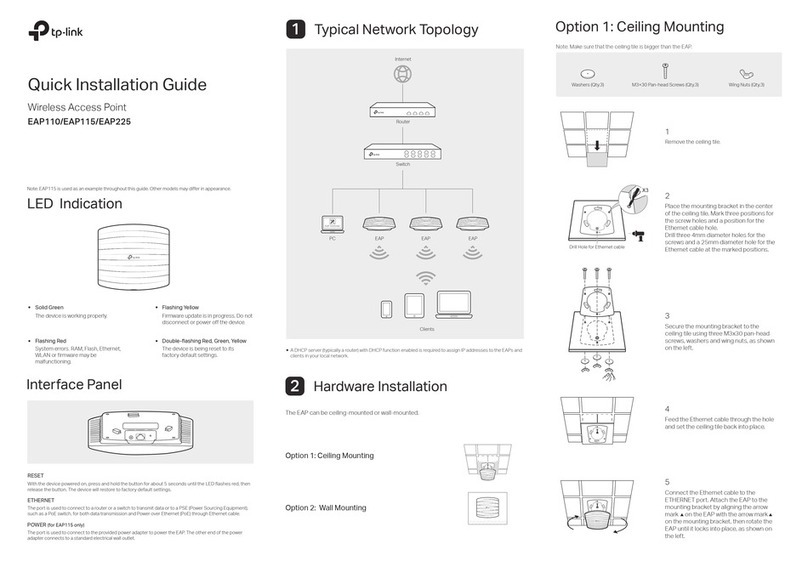

Quick Installation Guide
EAP110
Wireless N Access Point
LED Indication
Interface Panel
RESET
With the device powered on, press and hold the button for about 8 seconds until the LED
flashes red, then release the button. The device will restore to factory default settings.
The device is working properly.
Solid green
System errors. RAM, Flash,
Ethernet, WLAN or firmware may
be malfunctioning.
Flashing red
The device is being reset to its
factory default settings.
Double-flashing red, green, yellow
Firmware update is in progress. Do not
disconnect or power o the device.
Flashing yellow
RESET ETHERNET
The port is to connect to the POE port of the provided PoE adapter for both data
transmission and power supply through Ethernet cabling.
ETHERNET
Clients
Wing Nuts (Qty.3)Washers(Qty.3) M3×30 Pan-head Screws (Qty.3)
1
4
Attach the EAP to the mounting bracket by
aligning the arrow mark on the EAP with
the arrow mark on the mounting bracket,
then rotate the EAP until it locks into place,
as shown on the left.
EAP Controller

Option 2: Wall Mounting
M3×20 Self-tapping Screws (Qty.3)
M3×28 Plastic Wall Anchors(Qty.3)
5
Connect the Ethernet cable to the
ETHERNET port on the EAP.
2
Make two small pencil marks on the
wall. Make sure the two marks are level
and 98.6mm apart.
Drill a 6mm hole through the center of
each mark.
Note: Install the EAP with the Ethernet port downward.
3
Insert the plastic wall anchors into the
6mm holes and drive the self-tapping
screws into the anchors. Do not drive
the screws all the way in and leave
enough clearance to hang the EAP.
4
Hang the EAP on the screws. Make sure
the EAP is firmly seated against the
wall.
98.6mm
©2017 TP-Link 7106507185 REV2.0.2
1
Attach the EAP to the mounting bracket
by aligning the arrow mark on the EAP
with the arrow mark on the mounting
bracket, then rotate the EAP until it
locks into place, as shown on the left.
Software Configuration
The EAP can be powered via the provided PoE adapter.
Power Supply
To quickly set up a wireless network connection with mass EAPs, please follow the steps
below.
Note: The IP address of the management host must be reachable for the EAPs in the network. In this example, the
management host is in the same LAN as the EAPs.
For More Congurations
You can now manage your wireless network and view network statistics using the EAP
Controller. Please refer to the EAP Controller User Guide for more information about
conguring and using the Controller software.
Step 1: Installing the EAP Controller
On the management host, download the EAP Controller installation file from the product
support page at www.tp-link.com. Run the file and follow the wizard to install the EAP
Controller.
Step 2: Configuring the EAP Controller
Launch the EAP Controller and follow the configuration wizard to create a primary wireless
network. After the wizard is finished, a login screen will appear. Enter the admin name and
password you created and click Sign In.
Step 3: Adopting the EAP devices
Adopt the EAP devices in the Controller management interface to change their status from
Pending to Connected.
34
1
(Up to 100m)
3
PoE LAN
PoE Adapter
2
Connect the ETHERNET port to the POE port of the PoE adapter using an Ethernet cable. The
cable length can be up to 100 meters.
Connect the Ethernet cable from the switch to the LAN port of the PoE adapter.
Plug the female connector of the provided power cord into the power adapter, and the male
connector to a power outlet.
Passive PoE Adapter
Power LED
The Power LED indicates the status of the electric current: green (0-0.8A), red (0.8A-1A).
PoE Port
This port is used to connect to the ETHERNET port of EAP110.
LAN Port
This Port is used to connect to your LAN.
Power LED PoE Port LAN Port
Switch
1
2
3
For technical support and other information, please visit
http://www.tp-link.com/support, or simply scan the QR code.
