TREND T-TECH TT/R635 User manual

router accessories
-TECH
T
T
M
6.35mm (QUARTER INCH)
550W ROUTER
TT/R635
WARNING
Read the instructions
before operating the tool.
MANU-TTR635 30/10/06 2:12 pm Page 1

TT/R635
router accessories
-TECH
T
T
M
-2-
Dear Customer
Thank you for purchasing this T-TECH™
product, we hope you enjoy many years of
creative and productive use.

If you require further technical
information, please call our
Technical Hotline [phone].
TECHNICAL DATA
Voltage: UK & Eire 240V
Power input 550W
No load speed 8000-32000 min-1
Router carriage 2 columns
Router carriage stroke 35mm
Revolver depth stop 3-step turret stop
adjustment with
graduation
Collet size 6.35mm (
1
⁄
4 ”)
6mm & 8mm
Cutter diameter max. 30mm
Weight 2.4kg
Fuse: UK & Eire 240V 13A in plug
The following symbols are used throughout this
manual:
Denotes risk of personal injury, loss of
life or damage to the tool in case of non-
observance of the instructions in this
manual.
Denotes risk of electric shock.
CONTENTS
TECHNICAL DATA _____________________1
SAFETY ____________________________2-3

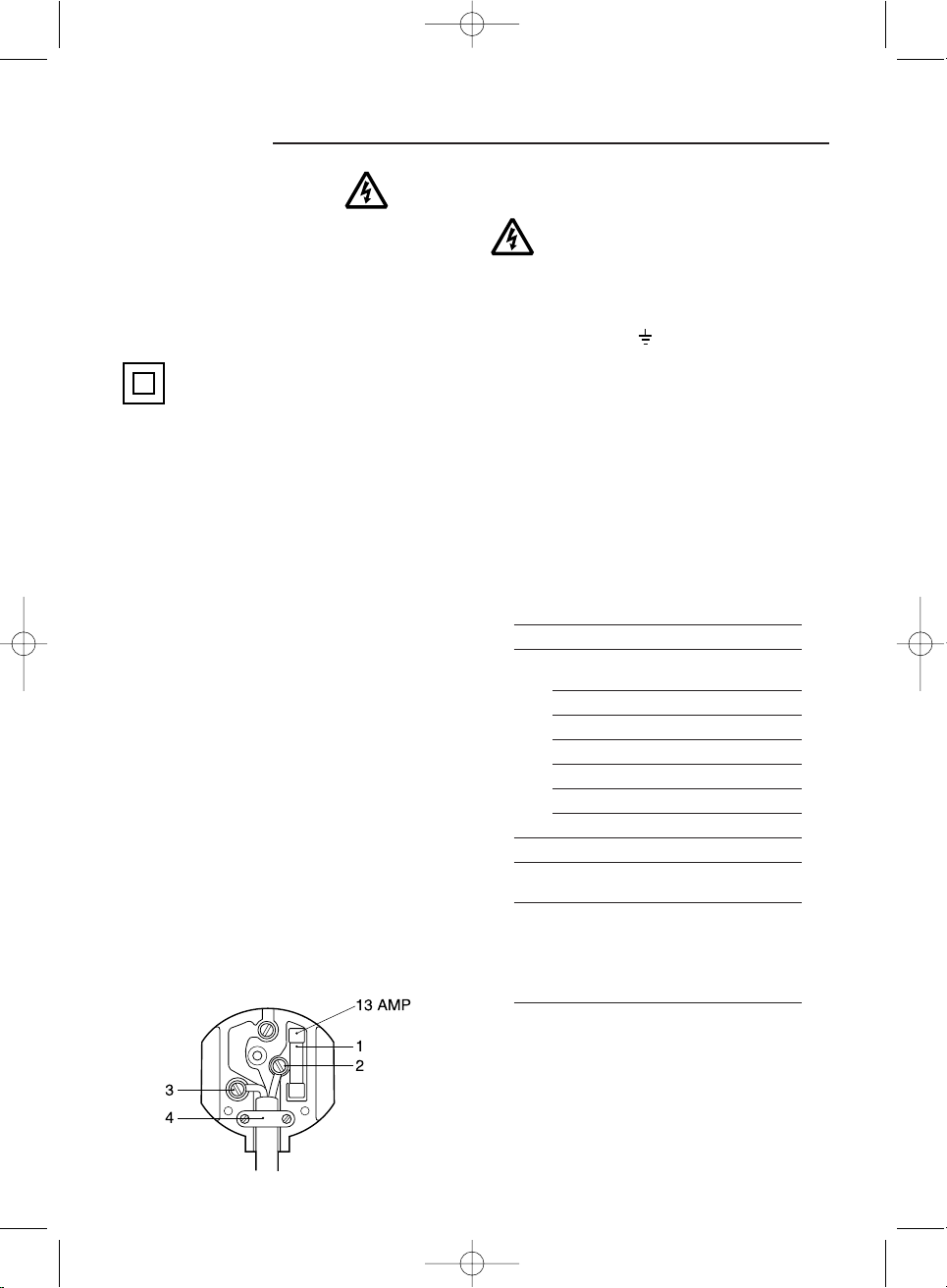

ELECTRICAL SAFETY _________________4
MANUFACTURERS DECLARATION ______5
ITEMS ENCLOSED ____________________5

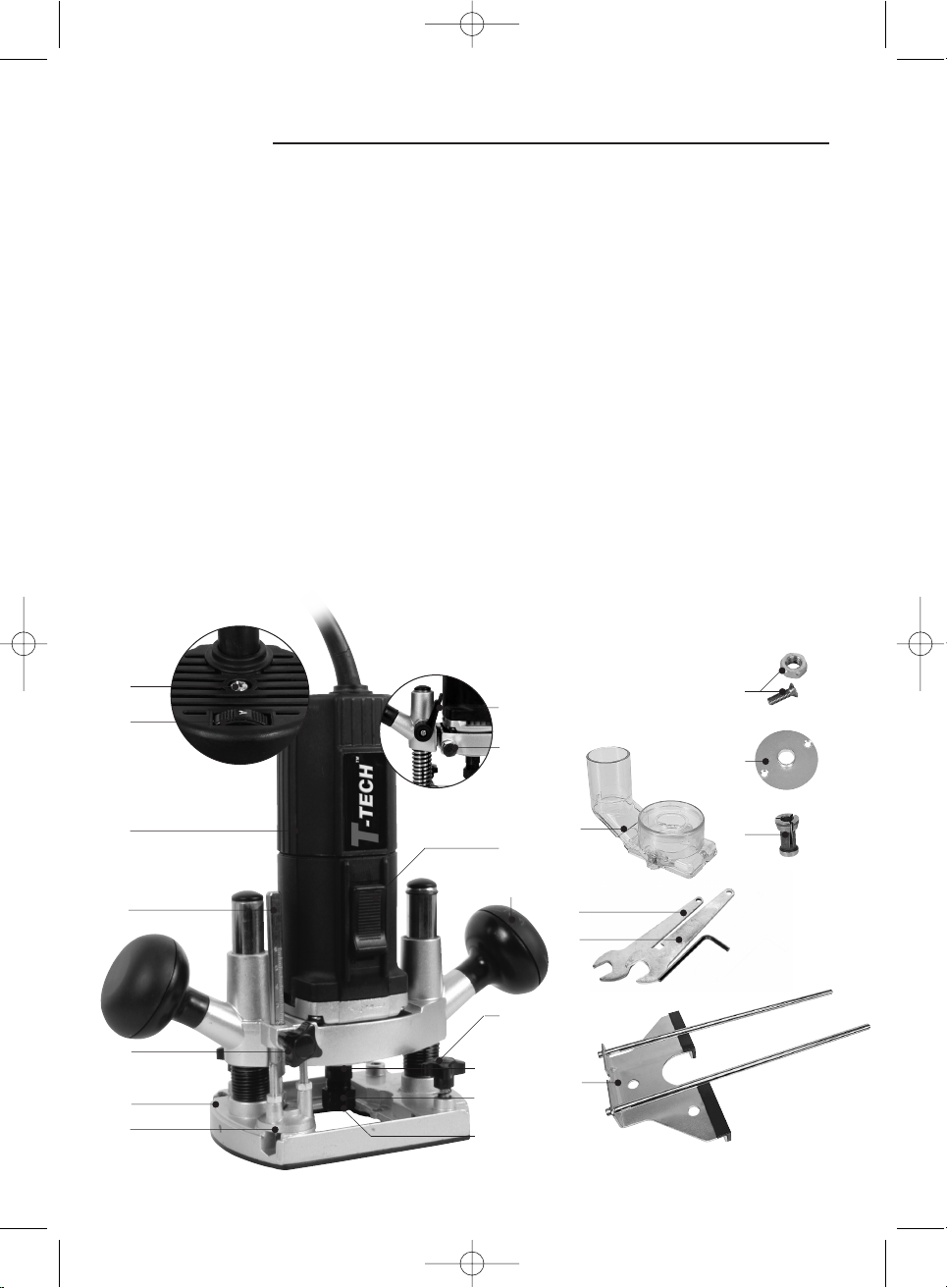

DESCRIPTION OF PARTS_______________6
OPERATION __________________________7
– Handle _____________________________7
– Speed Control _______________________7
– Depth Gauge ________________________7
– Depth Gauge Locking Knob_____________7
– Depth Limiting 3-way Turret Stop ________7
– On/Off Switch ________________________8
– Plunge Lock Lever ____________________8
– Parallel Side Fence Knob ______________8
– Parallel Side Fence ___________________8
– Router Base _________________________9
– Motor to Base Housing Nut _____________9
– Motor Housing _______________________9
– Spindle _____________________________9
– Collet ______________________________9
– Collet Nut ___________________________9
– Collet Spring_________________________9
– Spanners ___________________________9
– Brush Cover Fixing Screw _____________10
– Template Guide Bush & Fixings_________10
– Dust Extraction Spout ________________10
– Additional Collet _____________________11
– Cutting Direction_____________________11
– Feed Direction ______________________11
– Feed Speed ________________________11
– Moulding Natural Timbers _____________11
MAINTENANCE & CARE_______________12
RECYCLING _________________________12
GUARANTEE ________________________12
MANU-TTR635 30/10/06 2:12 pm Page 2

router accessories
-TECH
T
T
M
-3-

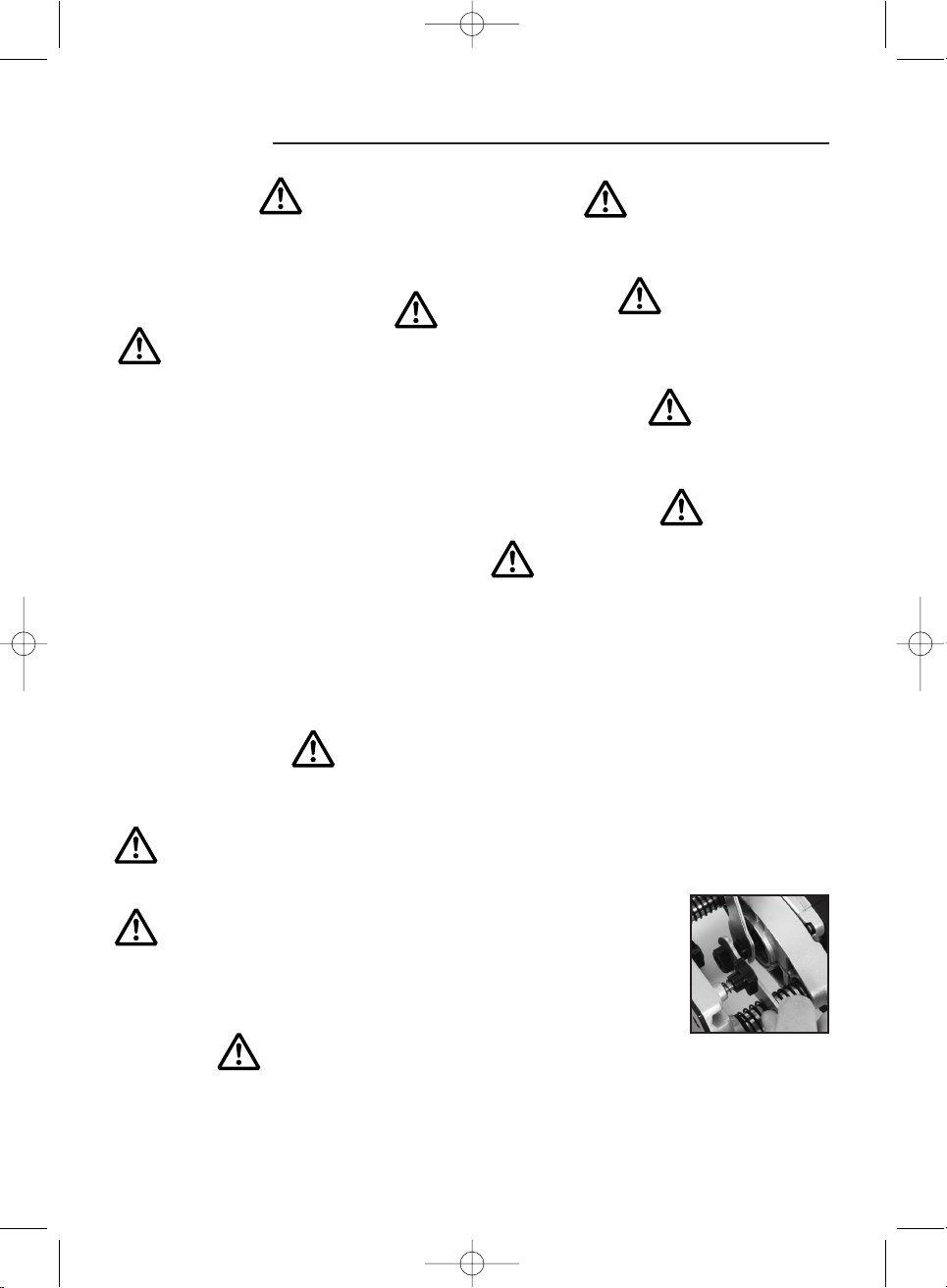

SAFETY INSTRUCTIONS
WARNING!
When using electric tools,
basic safety precautions should
always be followed to reduce
the risk of fire, electric shock,
and personal injury, including
the following.
Read all these instructions
before attempting to operate
this product and save these
instructions for future use.
For safe operation please
keep these instructions safe.
IKeep work area clean
Cluttered areas and benches invite
injuries.
IConsider work area environment
Don’t expose power tools to rain.
Don’t use power tools in damp or
wet locations. Keep work area well
lit. Do not use tool in presence of
flammable liquids or gases.
IGuard against electric shock
Prevent body contact with
grounded surfaces. For example:
pipes, radiators, ranges and
refrigerator enclosures. When
using the machine outdoors or
when moisture or dust could enter
the machine, we recommend
adding a residual current operated
device (FI, RCD, PRCD), with a
release current of max. 30mA.
IKeep children and visitors away
Do not let visitors contact tool or
extension cord. All visitors should
be kept away from work area.
IStore idle tools
When not in use, tools should be
stored in a dry and high or locked-
up place - out of reach of children.
IDo not force tool
It will do the job better and safer at
the rate for which it was intended.
IUse right tool
Do not force small tool or
attachment, to do the job of a
heavy-duty tool. Don’t use tool for
purposes not intended. For
example, don’t use circular saw for
cutting tree limbs or logs.
IDress properly
Do not wear loose clothing or
jewellery. They can be caught in
moving parts. Rubber gloves and
non-skid footwear is recommended
when working outdoors. Wear
protective hair covering to contain
long hair.
IUse safety glasses
Also use face or dust mask if
cutting operation is dusty.
IDo not abuse cable
Never carry tool by cord or yank it
to disconnect from the socket.
Keep cord from heat, oil and sharp
edges.
ISecure work
Use clamps or a vice to hold work.
It is safer than using your hand and
it frees both hands to operate tool.
IDo not over-reach
Keep proper footing and balance at
all times.
IUse both handles
If the tool is provided with two
handles, use both hands for best
control and safety.
IMaintain tools with care
Keep tools sharp and clean for
better and safer performance.
Follow instructions for lubricating
and changing accessories. Inspect
tool cords periodically and if
damaged, have repaired by an
authorised service facility. Inspect
extension cords periodically and
replace if damaged. Keep handles
dry, clean and free from oil and
grease.
IDisconnect tools
When not in use, before servicing,
and when changing accessories,
such as blades, bits and cutters
etc.
IRemove adjusting keys and
spanners
Form the habit of checking to see
that keys and adjusting spanners
are removed from tool before
turning it on.
IAvoid unintentional starting
Don’t carry plugged-in tool with
your finger on switch. Be sure
switch is off when plugging in.
IOutdoor use extension cords
When tool is used outdoors, use
only extension cords intended for
use outdoors and so marked.
IStay alert
Watch what you are doing. Use
common sense. Do not operate
tool when you are tired.
ICheck damaged parts
Before further use of the tool, a
guard or other part that is damaged
should be carefully checked to
determine that it will operate
properly and perform its intended
function. Check for alignment of
moving parts, binding or moving
parts, breakage of parts, mounting
and any other conditions that may
affect its operation. A guard or
other part that is damaged should
be properly repaired or replaced by
an Authorised Service Agent,
unless otherwise indicated
elsewhere in this instruction
manual. Have defective switches
replaced by an Authorised Service
Agent. Do not use tool if it cannot
be turned on and off by the switch.
If the tool has been dropped or
otherwise subjected to high impact,
damage may have occurred which
is not always visible. For optimum
safety, have the tool checked by an
Authorised Service Agent before
re-use.
IConnect dust extraction
equipment
If devices are provided for the
connection of dust extraction and
collection facilities ensure these are
connected and properly used.
IWarning
Use the tool accessories and tool
bits etc, in accordance with these
instructions and in the manner
intended for the particular type of
tool, taking into account the
working conditions and the work to
be performed. Use of the tool for
operations different from that
normally expected to be performed
for the particular tool, could result
in a hazardous situation.
ITool repairing by expert only
This electric tool is in accordance
with the relevant safety rules.
Repairing of electric tools may be
carried out only by experts,
otherwise it may cause
considerable danger for the user.
Routing Safety
IPersonal Protective Equipment
(PPE). All PPE must meet current
UK and EU legislation.
IDo not leave tools running
unattended. Do not leave tool until
it comes to a complete stop.
IAlways clamp workpiece being
machined securely.
IOnly use cutting tools for
woodworking that meet EN847-1/2
safety standards, and any
subsequent amendments.
IDisconnect router power tool.
When not in use, before servicing
and when changing accessories
such as cutters, disconnect router
and attachment from power supply.
IEnsure router cutter has stopped
rotating before changing it. Never
use the spindle lock as a brake.
IRemove adjusting keys and
spanners. Form the habit of
checking to see that keys and
adjusting spanners are removed
from the router tool, cutter and
attachment before turning router
on. Make sure cutter can rotate
freely.
Power tool safety instructions
recommended by EPTA
MANU-TTR635 30/10/06 2:12 pm Page 3

SAFETY INSTRUCTIONS
router accessories
-TECH
T
T
M
-4-
ICheck all ball bearing and blade
fixing screws before use to ensure
they are tight and secure.
Periodically check when machining
over long periods.
IWhen using a template guide bush
ensure it cannot come into contact
with collet and nut.
INoise. Take appropriate measures
for the protection of hearing if the
sound pressure of 85dB(A) is
exceeded. Routing sound pressure
may exceed 85dB(A), so ear
protection must be worn.
IEye protection. Wear safety
goggles, spectacles or visors to
protect the eyes from ejected
waste particles.
IRespiratory protection. Wear a face
or dust mask, or powered
respirator. Dust masks/filters should
be changed regularly.
IDo not switch router on with the
cutter touching the workpiece.
IThe direction of routing must
always be opposite to the cutter's
direction of rotation.
IAfter work, release the router
plunge and allow spindle to stop
rotating before putting machine
down.
ICheck before cutting that there are
no obstructions in the path of the
router. When cutting through the full
thickness of the workpiece, ensure
there are no obstacles beneath
workpiece, and that a sacrificial
work surface is used.
Additional Safety Rules For Router
Cutters
ICutting tools are sharp. Care
should be taken when handling
them.
IAlways use cutters with a shank
diameter corresponding to the size
of the collet installed in your tool.
IAlways run router cutters at the
spindle speed recommended and
marked accordingly. Ensure cutter
has reached correct speed before
entering workpiece. Recommended
speeds can be found on the
packaging or cutter instructions.
IAlways use router cutters in a
router. Router cutters must not be
used in a drill. Drill and boring bits
must not be used in a router.
Router cutters must only be used
for the material cutting application
for which they are designed. Do not
use on metal or masonry.
INever use cutters with a diameter
exceeding the maximum diameter
indicated in the technical data of
the powertool or attachment used.
IDo not drop cutters or knock them
against hard objects. Do not use
cutters that are damaged.
ICutters should be kept clean. Resin
build up should be removed at
regular intervals. The use of a dry
lubricant will act as a preventative.
Do not use PTFE spray on plastic
parts.
ICutter shanks should be inserted
into the collet to the mark line on
the shank. This ensures that at
least 3⁄4of the shank length is held
in the collet. Do not over-tighten the
collet nut as this will score the
shank and create a weakness and
fracture point.
IObserve the correct assembly
instructions in the router instruction
manual for fitting the collet and nut.
Observe the router power tool
manual instructions on fitting
cutters correctly.
IIt is advisable to periodically check
the collet and collet nut. A worn,
distorted or damaged collet can
cause vibration and damage the
shank, and should be replaced.
Worn collet nuts should be
replaced.
IDo not take deep cuts in one pass;
take several shallow or light passes
to reduce the side load applied to
the cutter. Too deep a cut in one
pass can stall the router.
IVery small diameter cutters must
be handled and used with care.
IAlways return cutter to its
packaging after use.
IShould you experience excessive
vibration during use stop
immediately. Have the eccentricity
of the router, router cutter and
clamping system checked.
IAll fastening screws and nuts
should be tightened using the
appropriate spanner or key in
accordance with the manufacturers
instructions.
Using Routers In A Fixed Position
IAfter work, release the router
plunge to protect the cutter.
IAlways use a push-stick or push-
block for last 300mm of the cut.
IWhenever possible use a work
holding device or jig to secure
component being machined.
IEnsure attachment is securely fitted
to the workbench, with table
surface at approximately hip height.
IEnsure a No-Volt Release Switch is
fixed to or adjacent to the
attachment and that it is used
correctly.
ICheck the direction of the
workpiece is always opposite to the
cutter's direction of rotation.
IDo not use awkward or
uncomfortable hand positions.
IDo not reach underneath table or
put your hands or fingers at any
time in the cutting path while tool is
connected to a power supply.
Useful Advice When Routing
IJudge your feed rate by the sound
of the motor. Feed the router at a
constant feed rate. Too slow a feed
rate will result in burning.
ITake many light passes rather than
one deep cut to reduce the side
load applied to both router and
router cutter.
ITrial cuts should be made on waste
material before starting any project.
IWhen using some attachments
including a router table or dovetail
jig, the use of a fine height adjuster
is highly recommended.
IWhen using a template guide bush,
ensure there is sufficient clearance
between cutter tip and inside edge
of bush. Ensure cutter and guide
bush are concentric.
Router Cutter Maintenance
IComposite cutting tools (brazed tip)
must be maintained by a competent
person i.e. a person of training and
experience, who has knowledge of
the design requirements and
understands the levels of safety to
be achieved.
IThe design of composite tools must
not be changed in the process of
maintenance.
IReplacement parts must meet
manufacturer’s specification.
ITolerances which ensure correct
clamping by the collet shall be
maintained.
IWhen re-grinding the tool, care
must be taken not to cause
weakening of the body or the
connection between the cutting
edge and the body.
Version TT 1.0 03/2004
MANU-TTR635 30/10/06 2:12 pm Page 4

TT/R635
router accessories
-TECH
T
T
M
-5-
Mains Plug Replacement
(UK & Ireland only)
Always check the condition of the cable and plug
before starting with your work.
Should your mains plug need replacing and you
are competent to do this, proceed as instructed
below. If you are in doubt, contact an authorised
service agent or a qualified electrician.
IDisconnect the plug from the supply.
ICut off the plug and dispose of it safely; a
plug with bared copper conductors is
dangerous if engaged in a live socket outlet.
IOnly fit 13 Amperes BS 1363A approved
plugs fitted with a 13 Amp BS 1362 fuse (1).
IThe cable wire colours, or a letter, will be
marked at the connection points of most good
quality plugs. Attach the wires to their
respective points in the plug (see below).
Brown is for Live (L) (2) and Blue is for
Neutral (N) (3).
IBefore replacing the top cover of the mains
plug ensure that the cable restraint (4) is
holding the outer sheath of the cable firmly
and that the two leads are correctly fixed at
the terminal screws.
Using an Extension Cable
IIf an extension cable is required, use an
approved triple core extension cable suitable
for the power input of this tool (see technical
data).
IWhen using a cable reel, always unwind the
cable completely.
IAlso refer to the table below.
Cable Rating (Amperes)
Voltage
240V
7.5 6A
15 6A
25 6A
30 6A
45 10A
60 15A
Conductor size Cable rating
(mm2) (Amperes)
0.75 6
1.00 10
1.50 15
2.50 20
4.00 25
ELECTRICAL SAFETY
Power Supply
The electric motor has been designed for one
voltage only. Always check that the power
supply corresponds to the voltage on the rating
plate. Machines marked for 230 volt can also be
operated from a 220 volt supply.
The router is double insulated in
accordance with EN 50144; therefore no
earth wire is required.
Never use a light socket.
Never connect the live (L) or
neutral (N) wires to the earth
pin marked E or .
Cable Length (M)
MANU-TTR635 30/10/06 2:12 pm Page 5

TT/R635
router accessories
-TECH
T
T
M
-6-
ITEMS ENCLOSED
1 x Parallel side-fence
2 x Side-fence rods
1 x Collet 6mm
1 x Collet 6.35mm (1/4”) fitted to machine
1 x Collet 8mm
1 x Guide bush 16mm and screws
1 x Spanner (17mm A/F) for collet nut
1 x Spanner (15mm A/F) for spindle
1 x Hex key (4mm A/F) for side-fence
1 x Dust extractor spout
1 x Instructions
MANUFACTURERS
DECLARATION
We declare under our sole responsibility that
this product is in conformity with the
following standards of standardised
documents:
EN 50144.1, EN 50144.2.17, EN 55014.1,
EN 55014.2, EN 61000.3.2, EN 61000.3.3 in
accordance with the directives 98/37/EC,
73/23/EEC, 93/68/EEC, 89/336/EEC.
Level of sound pressure according to
86/188/EEC & 98/37/EC, measured
according to EN 50144:
Lpa (sound pressure) 81.3 dB(A)1
Lwa (acoustic power) 94.3 dB(A)2
INFORMATION ON
NOISE/VIBRATION
The noise level when working
can exceed 85 dB(A).
Wear ear protection!
Weighted root mean square
acceleration value according to EN 50144:
>4.0 m/s2
Trend Machinery & Cutting Tools Ltd.
TT/R635
Managing Director
Stephen Phillips
MANU-TTR635 30/10/06 2:12 pm Page 6

TT/R635
router accessories
-TECH
T
T
M
-7-
DESCRIPTION OF PARTS
a Handle (x2)
b Speed control
c Depth stop
d Depth stop locking knob
e Depth limiting 3-way turret stop
f On/Off switch
g Plunge lock lever
h Parallel side fence knobs
i Parallel side fence
j Router base
k Motor to base housing locking nut
l Motor housing
m Spindle
n Collet
o Collet nut
p Collet spring (fitted behind collet)
q Spanner (15mm A/F) for spindle
r Spanner (17mm A/F) for collet nut
sBrush cover fixing screw
t Template guide bush
u Template guide bush fixing screw & nut
u Dust extraction spout
uAdditional collets (6mm & 8mm)
21
22
23
g
c
k
lf
a
b
op
h
j
t
u
i
q
e
r
22
u
21
u
d
s
n
m
23
MANU-TTR635 30/10/06 2:12 pm Page 7

TT/R635
router accessories
-TECH
T
T
M
-8-
OPERATION
1. Handle
Always use both handles (1) and make sure that
you have a firm grip on the router before
proceeding with any work.
2. Speed Control
Adjust the speed control
(2) to suit different working
materials. The tool cuts
quicker and smoother at
different speeds when
working in different woods
or in plastic or aluminium.
Determine the optimum
speed by making a trial cut
in a scrap piece of
material.
Using the correct speed for the job
increases the life of the cutter.
These speeds are approximate values
(within 20%) and are for reference
purpose only.
Dial Router
No. Speed
A 8,000 rpm
B 12,000 rpm
C 16,000 rpm
D 20,500 rpm
E 24,000 rpm
F 28,000 rpm
G 32,000 rpm
3. Depth Stop
The depth stop (3) is used
when setting the depth of
cut. It has a scale with
graduations in millimetres.
4. Depth Stop Locking Knob
The knob (4) secures the
depth stop (3) in position.
5. Depth Limiting 3-way
Turret Stop
There are three screws on the depth limiting
turret stop (5). By rotating the turret so that a
different screws is directly under the depth stop
(3), it is possible to quickly
and easily set the depth of
cut at three different
values.
IPlace the router on a flat
surface, release plunge
lock lever (7) and push
the router body down
until the cutter just
touches the flat surface.
IRelease the plunge lock lever.
IYou can rotate the depth limiting 3-way turret
stop (5) to set the depth of cut at a different
value. This procedure is particularly useful
when you wish to make a deep cut in a
number of stages.
6. On/Off Switch
MANU-TTR635 30/10/06 2:12 pm Page 8

TT/R635
router accessories
-TECH
T
T
M
-9-
The on/off switch (6) is located on the motor
housing (12).
ITo switch on, press
down on switch and
slide down to lock.
ITo switch off, depress
top of switch and
release.
7. Plunge Lock Lever
The plunge lock lever (7) in its normal position
allows the router to plunge.
ITo lock plunge, depress
lever.
ITo release plunge, lift up
lever.
8. Parallel Side Fence
Knob
The parallel side fence
locking knobs (8) located on the router base (10)
hold the parallel side fence (9) in position.
9. Parallel Side Fence
The parallel side fence (9) is an effective aid to
cutting in a straight line when chamfering or
grooving.
IFeed the guide rods through the holes in the
router base on the right
side of the router in the
feed direction. This will
help you to keep the
guide flush with the side
of the work piece.
IAdjust the distance
between the cutter and
the parallel side fence
(9) by moving the guide.
ITighten the knobs (8) to hold the guide in the
correct position.
If the distance between the side of the workpiece
and the cutting position is too wide, or the side
of the work piece is not straight, firmly clamp a
straight board to the work piece and use this as
a guide against the router base.
10. Router Base
The router base plate (10) has additional drilled
Step One
Plunge down and lock the
motor carriage, with the
plunge locking lever.
Step Two
Carry out the routing
operation.
Step Three
Release the plunge locking
lever and the motor carriage
returns to the normal
position.
Sequence of plunging
MANU-TTR635 30/10/06 2:12 pm Page 9

TT/R635
router accessories
-TECH
T
T
M
-10-
and tapped holes to allow the attachment of
various templates and accessories.
11. Motor to Base Housing Nut
Never separate the motor housing
from the base while a cutter is fitted
in the collet. Always disconnect the
router from the power supply before
separating the motor housing from the
base.
IUse the 15mm A/F spanner (17) to release
the base locking nut (11) on the base (10).
Slacken the nut off until the motor housing
slides out of the base (10).
IWhen re-fitting the motor housing ensure that
the switch (6) is facing the front of the router
so that it is accessible when plunge routing.
IEnsure that the base locking nut (11) is re-
tightened before using the router for normal
plunge cutting operations.
12. Motor Housing
The motor housing (12) when removed from the
router base (10) allows the router to be used for
carving and grinding.
Never use high speed router cutters
for carving operations.
Always unplug the machine from the
power supply before separating the
router from its plunge base.
13. Spindle
The spindle (13) has an external thread which
accepts the collet (14), collet spring (16) and
collet nut (15).
14. Collet
The collet (14) is fitted into the spindle (13) by
the collet nut (15).
15. Collet Nut
The collet nut (15) attaches the collet (14) to the
spindle. The router cutter is held secure by
tightening the collet nut (15).
16. Collet Spring
This spring (16) enables the router cutter to be
removed more easily.
17 & 18. Spanners
Always ensure that the tool is
switched off and the plug is removed
from the power point before making
any adjustments or maintenance
procedures. Always wear sturdy
gloves when handling or changing
cutters as they can be very sharp.
To change cutters both the spanners are used:
Ensure that the correct collet (14) is installed for
the cutter you are about to fit. Cutters with a
6.35mm shank fit into the 6.35mm collet, cutters
with a 6mm shank fit into the 6mm collet &
cutters with a 8mm shank fit into the 8mm collet.
ITo remove a collet, first release the plunge
lock lever (7) and ensure that the router body
is in its highest position.
IInsert at least
3
⁄
4 of the
shank length of the
cutter into the collet
assembly (14 & 15).
IPlace the 15mm A/F
spanner (17) onto the
flats on the spindle (13)
to lock while tightening
the collet nut (15) with the 17mm A/F
spanner (18). Do not use excessive force.
MANU-TTR635 30/10/06 2:12 pm Page 10

TT/R635
router accessories
-TECH
T
T
M
-11-
Do not fully tighten the collet nut with
the spanner unless there is a cutter in
place or you may damage the collet.
Make sure that the cutter is firmly
secured before commencing
operation.
19. Brush Cover Fixing Screw
To gain access to the carbon brush and spring
sets, unscrew the brush cover fixing screw (19).
20. Template Guide Bush
The template guide (20) can be used in various
ways:
IProducing duplicates of a particular design of
an original shape.
IIn conjunction with a template, producing
decorative features.
IRepetitive cutting shapes.
If you wish to make your own templates it is best
to use a hardwood such as plywood. Use a
piece that is just thicker than the depth of the
template guide. Allow for the thickness of the
guide in your template to ensure that the work
piece is cut to the correct size.
A cutter is chosen with a diameter which will
pass through the centre of the bush leaving
Calculations for template offset
enough clearance. The cutter can be straight or
shaped. The router can then be guided around
the template so that the shape of the template
will be replicated.
The guide bush offset needs to be allowed for
when calculating the shape of the template. The
template must be smaller by an amount equal to
the difference between the ‘outer edge of the
guide ring’ and the ‘outer edge of the cutter’.
See below for the offset calculation. The edge of
the template must be free of imperfections as
these will be replicated in the final workpiece.
21. Template Guide Bush
Fixing Screw & Nut
The template guide bush fixing screws and nuts
(21) are used to secure the template guide bush
(20) to the router base (10).
22. Dust Extraction Spout
The dust extraction spout (22) allows a dust
extraction system to be
fitted to the router
permitting the efficient
removal of dust whilst the
router is in use. The dust
extraction spout (22) is
fitted to the router base (10)
using the two screws from
the template guide bush
fixing screw and nut set
MANU-TTR635 30/10/06 2:12 pm Page 11

TT/R635
router accessories
-TECH
T
T
M
-12-
Feed Direction
When routing along an edge, the direction of the
router travel should be against that of the
rotation of the cutter. This will create the correct
cutting action and prevent the cutter ‘snatching’.
It will also pull the router towards the workpiece
and hence the side-fence or guide bearing will
be less likely to wander from the edge of the
workpiece.
Feed Speed
The speed at which the cutter is fed into the
wood must not be too fast that the motor slows
down, or too slow that the cutter leaves burn
marks on the face of the wood. Practice judging
the speed by listening to the sound of the motor
when routing.
Moulding Natural Timbers
When edge moulding natural timbers, always
mould the end grain first, followed by the long
grain. This ensures that if there is ‘breakout’, this
will be removed when the long grain is routed.
The direction of routing must always
be opposite to the cutter’s direction of
rotation, otherwise there is a risk of
kick-back.
Cutting Direction
(21).
Do not use a dust extraction system or
a vacuum cleaner when working on
metal surfaces. Sparks may ignite
residual wood dust.
23. Additional Collet
Three collets are provided
with the router: a 6.35mm
(
1
⁄
4 ”), a 6mm and an 8mm.
At purchase, the 6.35mm
collet is fitted to the router.
Do not fully tighten the collet nut with
the spanner unless there is a cutter in
place or you may damage the collet.
MANU-TTR635 30/10/06 2:12 pm Page 12

TT/R635
router accessories
-TECH
T
T
M
-13-
MAINTENANCE AND CARE
Cleaning
IKeep the machine clean at all times. Wipe
the outside clean with a dry cloth. Some
maintenance products and solvents may
damage the plastic parts, these include
products containing Benzene, Trichloroethyle
Chloride and Ammonia.
INever use water to clean your power tool.
INever use any caustic agents to clean the
plastic parts.
Changing Brushes
Ensure machine is isolated from
power supply.
Regularly check that the carbon brushes are not
over worn and replace if necessary.
Proceed as follows:
IUnscrew the brush cover fixing screw (19)
located at the end of the body of the motor
housing. Slide vent housing off.
IPull back the spring retaining clip. Take care
not to bend or distort the coil spring.
IDisconnect the wire and remove the carbon
brush.
IInsert the new brush and press the connector
firmly on to the tag. Refit the vent.
Lubrication
IThe bearings of the machine need no
lubrication, as they are sealed. The two
plunge columns on the routing base should
be slightly oiled from time to time.
IKeep the cooling vents on the motor housing
clean and unobstructed at all times. Use a
soft brush or blow out any dust and dirt at
regular intervals. Wear safety glasses to
protect eyes whilst cleaning.
IVisually check the carbon brushes. In the
event of excessive sparking, they may need
changing.
RECYCLING
Machine, accessories and packaging should be
sorted for environmentally friendly recycling.
GUARANTEE
This product has been made to demanding, high
quality standards and is guaranteed for domestic
use against manufacturing faults for a period of
12 months from the date of purchase.
This guarantee does not affect your statutory
rights. If your product fails due to a defect in
material or workmanship during this period,
please return it to your nearest B&Q store.
Normal wear and tear, including accessory wear,
is not covered under guarantee. The product is
guaranteed for 12 months if used for normal
trade purposes. Any guarantee is invalid if the
product has been overloaded or subject to
neglect, improper use or an attempted repair
other than by an authorised agent. Heavy duty,
daily professional or hire usage are not
guaranteed. Due to continuous product
improvement, we reserve the right to change the
product specification without prior notice.
MANU-TTR635 30/10/06 2:12 pm Page 13

© Copyright 2004. No part of this publication may be reproduced, stored or transmitted in any form without prior permission. Our policy
of continuous improvement means that specifications may change without notice. Trend Machinery and Cutting Tools and B&Q Plc
cannot be held liable for any material rendered unusable or any form of consequential loss. E&OE
Trend Machinery & Cutting Tools Ltd.
Technical Hotline: ______________01923 224681
Email: [email protected]
Web: ________________www.trendmachinery.co.uk
RECYCLABLE
MANU/TT/R635 v1.0
MANU-TTR635 30/10/06 2:12 pm Page 14
