TRENDnet TK-1603R User manual

Quick Installation Guide
TK-1603R
TK-803R

English 1
7
1. Before You Start 1
2. How to Install 2
3. Operation 4
8
Technical Specifications
Troubleshooting
Table of Contents
Version 08.14.2009

ENGLISHFRANÇAISDEUTSCHESPAÑOL
ÐÓÑÑÊÈÉ
1. Before You Start
1
?PS/2 or USB Keyboard
?PS/2 or USB Mouse
?VGA Compatible Monitor
?USB/ VGA KVM cables (e.g. TK-CU06, TK-CU10, TK-CU15)
?Windows 98SE/ME/2000/XP/2003 Server/Vista, Linux and Mac
Package Contents
?TK-803R/TK-1603R
?Multi-Language Quick Installation Guide
?Rack mount kit
?AC Power Adapter (9V DC, 1A)
System Requirements

ENGLISHFRANÇAISDEUTSCHESPAÑOL
ÐÓÑÑÊÈÉ

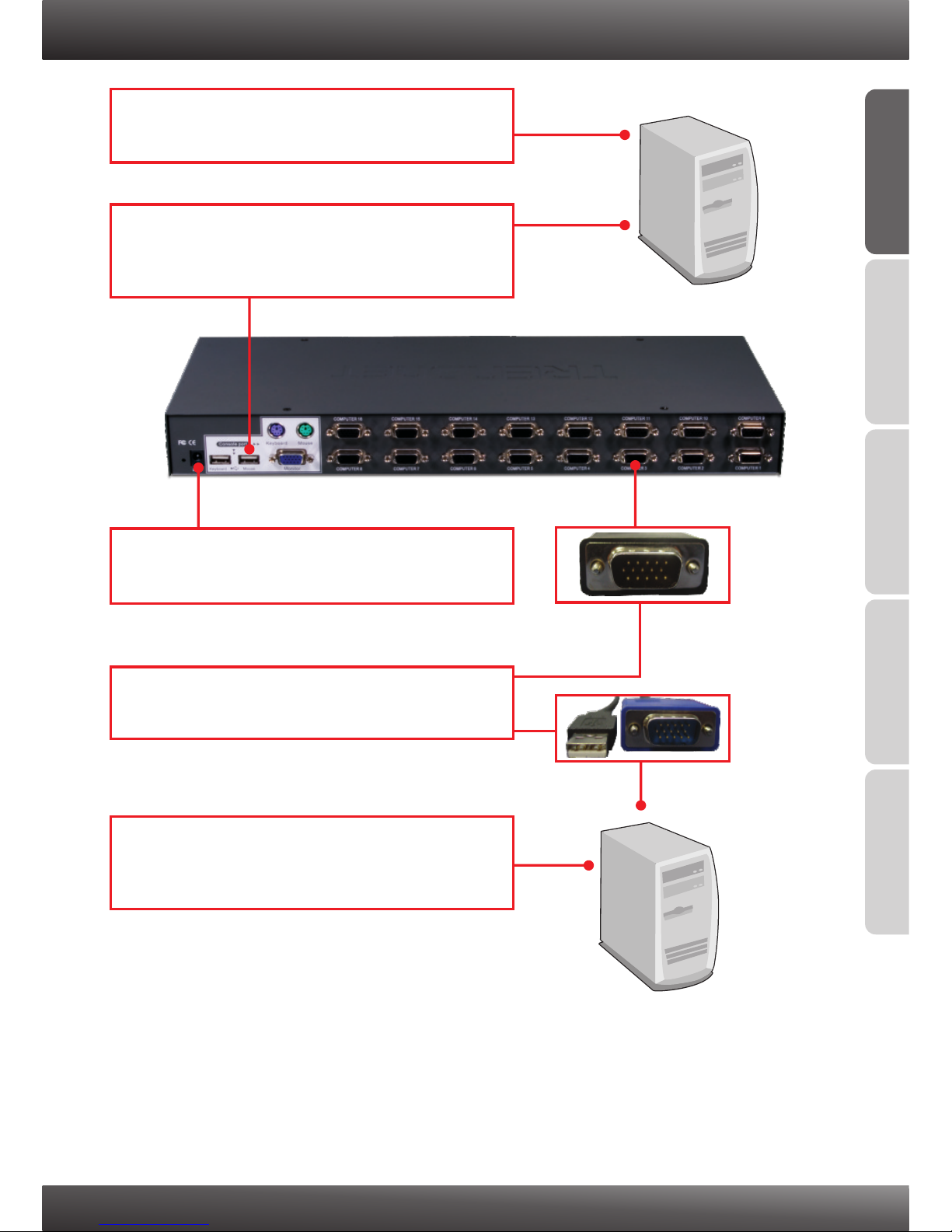

2. How to Install
PC 1, 2, 3, 4, 5, 6, 7, 8 (TK-803R)
PC 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12,
13, 14, 15, 16 (TK-1603R)
1. Turn OFF all computers and their peripherals,
and then disconnect all power cords.
5. Turn ON the connected computers one-by-one
and wait until each computer's desktop
appears.
2
3. Connect the included AC Power Adapter to the
KVM switch and then to a power outlet.
4. Use the KVM cables to connect each computer
to the KVM switch.
2. Connect the shared PS/2 or USB keyboard,
monitor, and PS/2 or USB mouse to the KVM
switch's Console Port. (TK-1603R shown)

ENGLISHFRANÇAISDEUTSCHESPAÑOL
ÐÓÑÑÊÈÉ
3

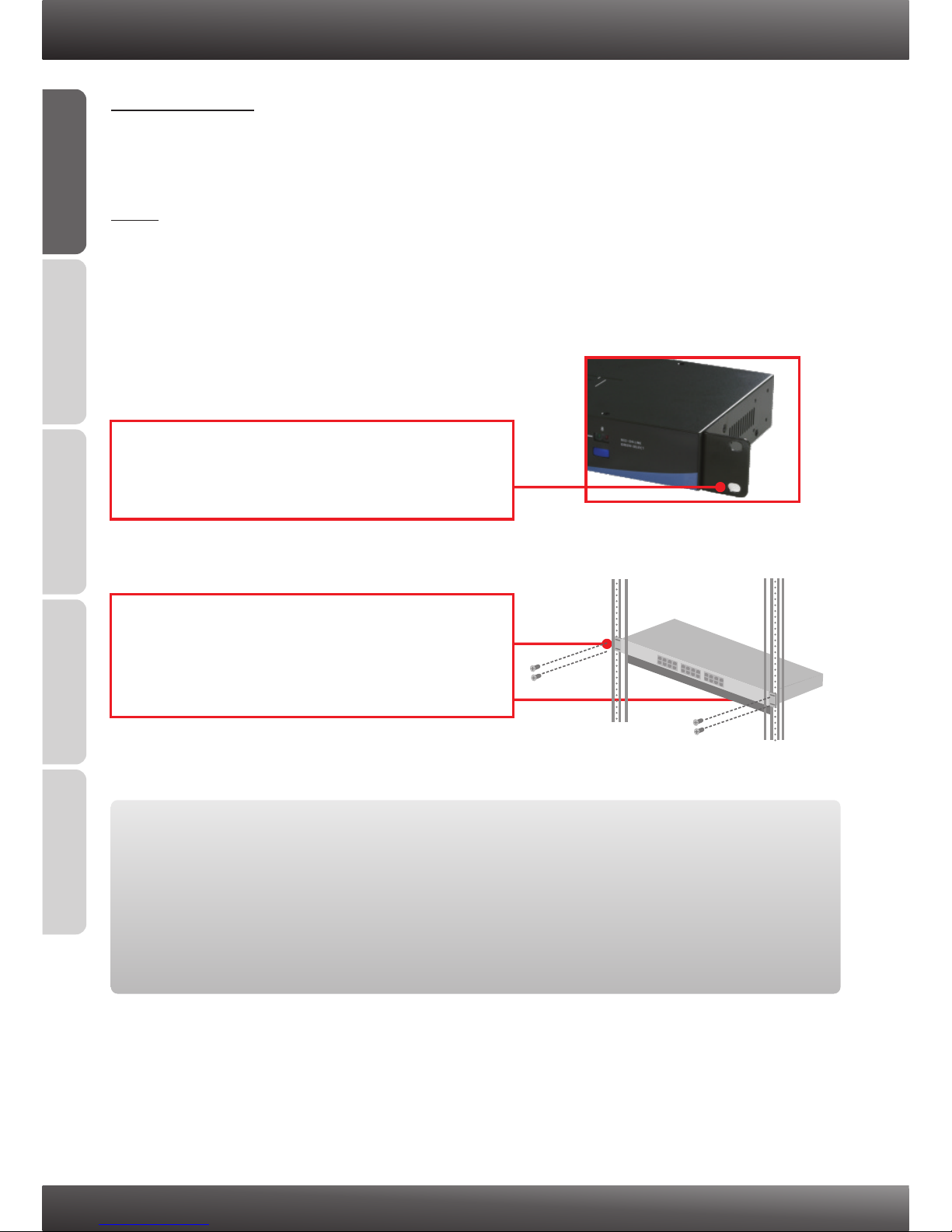

The KVM Switch can be mounted in an EIA standard-size, 19-inch rack, which can be
placed in a wiring closet with other equipment.
Note: If you would like to mount the KVM switch to a EIA 19” equipment rack, install the
included mounting brackets to the sides of the KVM switch, secure them with the
screws provided, and then mount the KVM switch to the equipment rack with the
hardware provided by the equipment rack manufacturer.
Rack Mount
Your installation is now complete.
Register Your Product
To ensure the highest level of customer service and support, please take a moment to
register your product Online at: www.trendnet.com/register
Thank you for choosing TRENDnet.
2. Carefully position the KVM switch onto the rack.
Align the bracket to the screw holes on the
rack, then use the screws provided with the
equipment rack to mount the KVM switch.
1. Attach the mounting brackets to both sides of
the KVM switch and secure them with the
provided screws.

ENGLISHFRANÇAISDEUTSCHESPAÑOL
ÐÓÑÑÊÈÉ
4
3. Operation
Note: To switch between computers, you can use the front-panel push buttons or the
Hot Key commands.
LED Indicators
Red LED light: KVM cable is connected and
PC is powering the KVM switch.
Green LED light: Indicates the selected PC
port is active, whether the computer is turned
on or off.
Push Buttons
Press the push buttons to switch between
computers.

ENGLISHFRANÇAISDEUTSCHESPAÑOL
ÐÓÑÑÊÈÉ
Hot Key Commands
A keyboard hot key command consists of three keystrokes:
Hot Key command = Scroll Lock + Scroll Lock + Command key(s)
After pressing the Scroll Lock key, you have 2 seconds to press the Scroll Lock key
again. You then have another 2 seconds to press a command key. A beep confirms that
the KVM switch is in "Hot Key" mode. If you do not press a key within 2 seconds, the
switch will exit hot key mode.
To select a specific PC port:
For TK-803R
Select PC=
For example, to Select Port 1 on the TK-803R you hit the following key sequence:
Select PC=
For TK1603R
Select PC=
For example, to select Port 1 on the TK-1603R you hit the following key sequence:
Select PC =
To select port 10 on the TK-1603, hit the following key sequence:
Select PC =
5
Scroll Lock Scroll Lock +
+Y
Scroll Lock Scroll Lock +
+1
For a list of all the Hot Key commands, please see the Quick Reference Sheet.
MAC USERS
Standard PC Keyboard to MAC Keyboard mapping information:
CD/DVD drive
eject key
F13
F15
F14
Scroll Lock Scroll Lock C
++
Scroll Lock Scroll Lock F10
++
Scroll Lock Scroll Lock F11
++
Scroll Lock Scroll Lock F12
++
=
=
=
=
Scroll Lock Scroll Lock +
+Y+Z
Scroll Lock Scroll Lock +
+0+1
Scroll Lock Scroll Lock +
+1+0

(Arrow down)
ENGLISHFRANÇAISDEUTSCHESPAÑOL
ÐÓÑÑÊÈÉ
Scroll Lock Scroll Lock +
+Y
Scroll Lock Scroll Lock +
++
YZ
Scroll Lock Scroll Lock ++
Scroll Lock Scroll Lock END
++
6
Command Hot Keys Description
Front-Panel
Buttons
Quick Reference Sheet for TK-803R/TK-1603R
Select PC
Autoscan
Next higher channel
Next lower channel
Autoscan with
Programmable
Delay Time
Autoscan Beep
Sound On/Off
Mouse/Keyboard
Reset KVM
Restore to Factory
Defaults
Define Hotkey
Sequence
(default = Scroll Lock +
Scroll Lock)
Stop Autoscan Press any key on keyboard
Select the active PC
channel
Press the Push Button
for a specific port to
switch to that port
Select the next lower PC
channel
Autoscan through every
connected channel for quick
screen browsing of each
channel
Select the next higher PC
channel
Autoscan through every
connected channel for quick
screen browsing of each
channel in intervals of X
seconds
Toggle On/Off beep sound
during Autoscan mode.
Resets Mouse/Keyboard
Restore to Factory Defaults
Select the hotkey preceding
sequence among 5 options
Terminate Autoscan activityPress any button
- - -
- - -
- - -
- - -
- - -
- - -
- - -
- - -
(YZ)= 2-digit channel number
TK-803R
TK-1603R
Y = Scroll Lock, Caps Lock, Esc, F12 or Num Lock
(X) = 0~9
1 = 10 seconds
2 = 20 seconds
3 = 30 seconds
4 = 40 seconds
5 = 50 seconds
6 = 60 seconds
7 = 70 seconds
8 = 80 seconds
9 = 90 seconds
0 = 100 seconds
Note: If you have defined a different hot key preceding sequence key (e.g. Caps Lock,
Esc, F12), press that button instead of scroll lock. For example, if you want to turn off
beep and have defined the hotkey preceding sequence key as F12, press F12 + F12 +
B.
Scroll Lock Scroll Lock ++
Scroll Lock Scroll Lock B
++
Scroll Lock Scroll Lock S
++
Scroll Lock Scroll Lock R
++
Scroll Lock Scroll Lock +
++
HY
Scroll Lock Scroll Lock +
++
SX
(Arrow up)

Technical Specifications
7
Port Selection: Push Button and Hot Key Commands
Keyboard Status:
Power:
Save and restore
LED: Per Port : PC Link (Green) ; PC Active (Red)
Management: TK-803R: 8 computers
TK-1603R: 16 computers
Console Port Connectors:
1 x USB keyboard Type A
1 x USB mouse Type A
1 x PS/2 keyboard 6-pin mini din female
1 x PS/2 mouse 6-pin mini din female
1 x VGA HDB 15-pin female
PC Port Connectors: TK-803R: 8 x VGA HDB 15-pin
TK-1603R: 16 x VGA HDB 15-pin
female
female
Video Resolution: 2048 x 1536
Weight: TK-803R : 1.84 kg (4.05 lbs)
TK-1603R : 2.04 kg (4.5 lbs)
0ºC ~ 40ºC (32ºF ~104ºF)Operating Temperature:
-20ºC ~ 60ºC (-4ºF ~ 140ºF)Storage Temperature:
0%~90%, Non-Condensing
Humidity:
FCC and CECertifications:
Auto-Scan Intervals: 10 ~ 100 seconds
PS/2 Interface Power
USB Interface Power
External AC Power Adapter : 9V DC, 1A
Size (19" Rack mount):
Dimensions:
1U
405 x 163 x 44 mm (15.94 x 6.42 x 1.74 in.)

8
Troubleshooting
Do I need to use the included external AC adapter?
It is recommended that you use the included external AC adapter with the
TK-803R/TK-1603R KVM switch.
I have the KVM switch connected properly, but my USB keyboard and mouse don't work.
1. Make sure your USB port is working properly by testing it with your other USB devices.
2. Once you confirm that the USB port is functional, please reboot your computers, and try to
use the KVM switch again.
3. If your computer is running Windows 98SE, you may need to download and install the
USB hot fix.
Please go to this link for download and installation instructions:
http://support.microsoft.com/kb/q240075. Once the hot fix is installed, follow the installation
instructions in Section 2.
Can I connect or disconnect the KVM cables while the computers are turned on?
Yes, you can connect or disconnect the KVM cables while the computers are turned on,
because the interface is Hot-Pluggable.
Yes, the KVM switch will restore the keyboard settings when switching between computers.
(i.e.: Caps Lock, Num Lock, etc.)
Go to Section 3 Operation for more information.
If you still encounter problems or have any questions regarding the TK-803R/TK-1603R please
contact TRENDnet's Technical Support Department.
Will the KVM switch restore the keyboard settings when switching between computers?
How do I switch from one computer to another with the KVM switch?
You can switch PCs by pressing the push button on the KVM switch or by using the Hot Key
commands.
How to upgrade new firmware to my KVM switch?
Please go to the TRENDnet website (www.trendnet.com) to check if there is a new firmware
available for your KVM switch and follow the installation procedure to perform the update.

9
Limited Warranty
- 2 Years Limited Warranty
AC/DC Power Adapter, Cooling Fan and Power Supply carry a 1 year limited warranty
TRENDnet warrants its products against defects in material and workmanship, under normal
use and service, for the following lengths of time from the date of purchase.
TK-803R/TK-1603R
If a product does not operate as warranted during the applicable warranty period, TRENDnet
shall reserve the right, at its expense, to repair or replace the defective product or part and
deliver an equivalent product or part to the customer. The repair/replacement unit's warranty
continues from the original date of purchase. All products that are replaced become the
property of TRENDnet. Replacement products may be new or reconditioned. TRENDnet
does not issue refunds or credit. Please contact the point-of-purchase for their return policies.
TRENDnet shall not be responsible for any software, firmware, information, or memory data of
customer contained in, stored on, or integrated with any products returned to TRENDnet
pursuant to any warranty.
There are no user serviceable parts inside the product. Do not remove or attempt to service the
product by any unauthorized service center. This warranty is voided if (i) the product has been
modified or repaired by any unauthorized service center, (ii) the product was subject to accident,
abuse, or improper use (iii) the product was subject to conditions more severe than those
specified in the manual.
Warranty service may be obtained by contacting TRENDnet within the applicable warranty
period and providing a copy of the dated proof of the purchase. Upon proper submission of
required documentation a Return Material Authorization (RMA) number will be issued. An RMA
number is required in order to initiate warranty service support for all TRENDnet products.
Products that are sent to TRENDnet for RMAservice must have the RMAnumber marked on the
outside of return packages and sent to TRENDnet prepaid, insured and packaged appropriately
for safe shipment. Customers shipping from outside of the USA and Canada are responsible for
return shipping fees. Customers shipping from outside of the USA are responsible for custom
charges, including but not limited to, duty, tax, and other fees.

10
WARRANTIES EXCLUSIVE: IF THE TRENDNET PRODUCT DOES NOT OPERATE AS
WARRANTED ABOVE, THE CUSTOMER'S SOLE REMEDY SHALL BE, AT TRENDNET'S
OPTION, REPAIR OR REPLACE. THE FOREGOING WARRANTIES AND REMEDIES ARE
EXCLUSIVE AND ARE IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED,
EITHER IN FACT OR BY OPERATION OF LAW, STATUTORY OR OTHERWISE, INCLUDING
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
TRENDNET NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME
FOR IT ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION
MAINTENANCE OR USE OF TRENDNET'S PRODUCTS.
TRENDNET SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND
EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES NOT
EXIST OR WAS CAUSED BY CUSTOMER'S OR ANY THIRD PERSON'S MISUSE, NEGLECT,
IMPROPER INSTALLATION OR TESTING, UNAUTHORIZED ATTEMPTS TO REPAIR OR
MODIFY, OR ANY OTHER CAUSE BEYOND THE RANGE OF THE INTENDED USE, OR BY
ACCIDENT, FIRE, LIGHTNING, OR OTHER HAZARD.
LIMITATION OF LIABILITY: TO THE FULL EXTENT ALLOWED BY LAW TRENDNET ALSO
EXCLUDES FOR ITSELF AND ITS SUPPLIERS ANY LIABILITY, WHETHER BASED IN
CONTRACT OR TORT (INCLUDING NEGLIGENCE), FOR INCIDENTAL, CONSEQUENTIAL,
INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OFANY KIND, OR FOR LOSS OF REVENUE
OR PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR DATE, OR OTHER
FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE SALE, INSTALLATION,
MAINTENANCE, USE, PERFORMANCE, FAILURE, OR INTERRUPTION OF THE
POSSIBILITY OF SUCH DAMAGES, AND LIMITS ITS LIABILITY TO REPAIR,
REPLACEMENT, OR REFUND OF THE PURCHASE PRICE PAID,AT TRENDNET'S OPTION.
THIS DISCLAIMER OF LIABILITY FOR DAMAGES WILL NOT BE AFFECTED IF ANY
REMEDY PROVIDED HEREIN SHALL FAIL OF ITS ESSENTIAL PURPOSE.
Governing Law: This Limited Warranty shall be governed by the laws of the state of California.
Some TRENDnet products include software code written by third party developers. These codes
are subject to the GNU General Public License ("GPL") or GNU Lesser General Public License
("LGPL").
Go to or Download section and look for
the desired TRENDnet product to access to the GPL Code or LGPL Code. These codes are
distributed WITHOUT WARRANTY and are subject to the copyrights of the developers.
TRENDnet does not provide technical support for these codes. Please go to
or for specific terms of
each license.
http://www.trendnet.com/gpl http://www.trendnet.com
http://www.gnu.org/licenses/gpl.txt http://www.gnu.org/licenses/lgpl.txt
PWP05202009v2

Certifications
This equipment has been tested and found to comply with FCC and CE Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received. Including interference that may
cause undesired operation.
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV
INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS
EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO
OPERATE THE EQUIPMENT.
Waste electrical and electronic products must not
be disposed of with household waste. Please
recycle where facilities exist. Check with you Local
Authority or Retailer for recycling advice.
ADVERTENCIA
En todos nuestros equipos se mencionan claramente las caracteristicas del adaptador de alimentacón
necesario para su funcionamiento. El uso de un adaptador distinto al mencionado puede producir
daños fisicos y/o daños al equipo conectado. El adaptador de alimentación debe operar con voltaje y
frecuencia de la energia electrica domiciliaria existente en el pais o zona de instalación.

Copyright ©2009. All Rights Reserved. TRENDnet.
Product Warranty Registration
Please take a moment to register your product online.
Go to TRENDnet’s website at http://www.trendnet.com/register
