The 108Mbps 802.11g MIMO Wireless access point gives your wireless devices the freedom
to operate at any location with reduced system interference or dropouts. Add this device to
your Ethernet network, and you'll have reliable, high-speed wireless access, which provides
wider coverage than standard 802.11b or 802.11g wireless networks. The MIMO Wireless
Access Point navigates through possible signal interference, turning your former “dead
zones” into hot spots! Fully compatible with your existing 802.11g and 802.11b systems and
devices, the MIMO Wireless Access Point is the ideal upgrade for your wireless network.

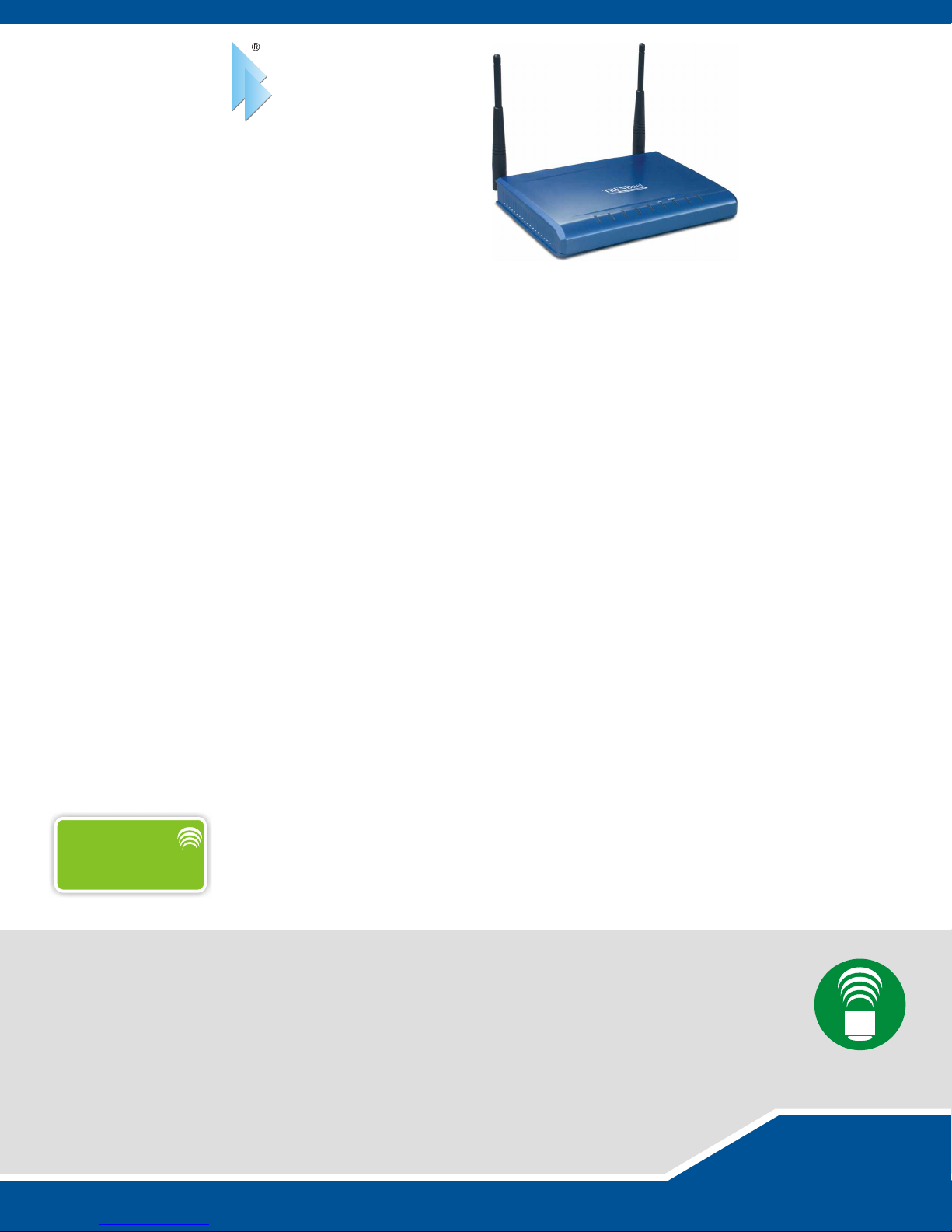

TEW-610APB
108Mbps 802.11g MIMO Wireless Access Point
• Wi-Fi Compliant with IEEE 802.11g and IEEE 802.11b Standards
Supports Super G Technology with Data Rate up to 108Mbps (8X Faster) (AP Mode Only)
Enhance Wireless Coverage up to 800% More Coverage with MIMO Technology
Supports Access Point and WDS Bridge (up to 6 units) Modes
Supports 64/128-bit WEP(Hex) Encryption
Supports WPA/WPA2 and WPA-PSK/WPA2-PSK Encryptions
Supports MAC Address Filter (up to 16 entries)
Wireless Signal On/Off and SSID On/Off Control
Flash Memory for Firmware Upgrade and Easy Management via Web Browser (HTTP)
Compliant with Windows 95/98/NT/2000/XP/2003 Server, Linux and Mac OS
Coverage up to 150 meters (500ft.) Indoor(depends on the environment)
Coverage up to 400 meters (1300ft.) Outdoor(depends on the environment)
• 3-Year Warranty
•
•
•
•
•
•
•
•
•
•
•
FEATURES
TEW-610APB (09-02-2005)
WIRELESS
MIMO
TECHNOLOGY g g
108
Mbps
EXTENDED RANGE

SPECIFICATIONS
TRENDnet is a registered trademark of TRENDware International, Inc. Other Brands and product names are trademarks of their respective holders. Information provided in this
document pertain to TRENDware products and is subject to change at any time, without notice. For the most recent product information please visit ____________________
http://www.TRENDNET.com.
©
Copyright TRENDware International, Inc. 2005. All Rights Reserved.
RELATED PRODUCTS
PACKAGE CONTENTS
TEW-603PI
TEW-611BRP
TEW-601PC • 108Mbps 802.11g MIMO Wireless PC Card
• CD-ROM (User's Guide)
• Power Adapter (5V, 2A)
• 108Mbps 802.11g MIMO Wireless PCI Adapter
• TEW-610APB
• RJ-45 Cable (1.5m)
• 108Mbps 802.11g MIMO Wireless Router
• Multi-Language QIG
NETWORKING SOLUTIONS
To Order Please Call:
1-888-326-6061
ORDERING INFORMATION
TRENDware International, Inc.
3135 Kashiwa Street,Torrance, CA. 90505. USA
Tel: [phone]
Fax: [phone]
Web:
Email: [email protected]
www.TRENDNET.com
TEW-610APB
108Mbps 802.11g MIMO Wireless Access Point
Standards
Humidity
LED Indicator
Interface
Reset Button
Power Adapter
Dimension (L x W x H)
Weight
Temperature
Certification
Module Technique
Modes
Media Access Protocol
Security
Data Rate
Receiving Sensitivity
Output Power
Channels
Frequency
Antenna
• Wired: IEEE 802.3 (10Base-T), IEEE 802.3u (100Base-TX) • Wireless: IEEE 802.11b (11Mbps), IEEE 802.11g (54Mbps)
• Operating: 0°~ 40°C (32°F~ 104°F) • Storage: -20°~ 60°C (4°F~ 120°F)
• Max. 90% (non-condensing)
• Power, LAN, WLAN
• 2 x 4dBi (max) Fixed External Dipole Antenna 2 x Internal PCB Antenna•
• 1 x 10/100Mbps Auto-MDIX Port
• Reset to Factory Default Settings
• 5V DC, 2A External Power Adapter
• FCC, CE
• 180 x 122 x 30 mm (6.8 x 4.6 x 1.1 inches)
• 320g (0.7 lbs)
• 2.412 ~ 2.472 GHz
• 802.11b: CCK (11 and 5.5Mbps), DQPSK(2Mbps), DBPSK (1Mbps) • 802.11g: OFDM (6, 9, 12, 18, 24, 36, 48, 54Mbps)
• Access Point, WDS Bridge
• CSMA/CA with ACK
• 802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps • Super G: 108Mbps
• 802.11b: 11Mbps, 5.5Mbps, 2Mbps, and 1Mbps
• 802.11b: 18dBm (typical) 802.11g: 16dBm (typical) •
• 1~ 11 (US), 1~13 (EU)
• 64/128-bit WEP (Hex) 802.1X (EAP): WPA/WPA2/802.1x Authenticator WPA: WPA/WPA2, WPA-PSK/WPA2-PSK MAC Address Filter (up to 16 entries)• • •
• 802.11b: 10 5 BER @ -85 dBm 802.11g: 10 5 BER @ -73 dBm •

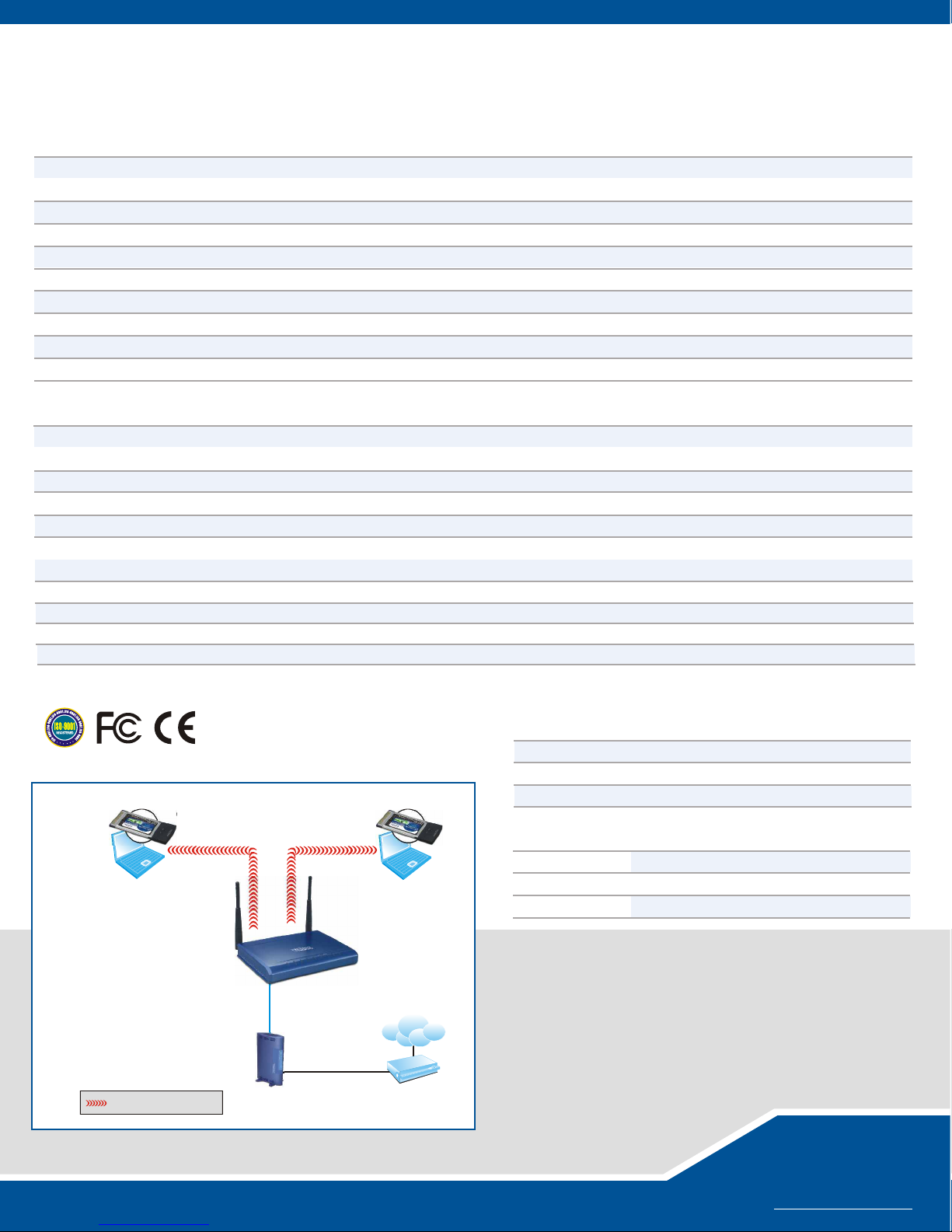

Hardware
