Triton Blue Laser TR2-64 User manual

Triton Blue
USER MANUAL
MANUAL DE USUARIO
Read kindly this user manual before using the machine
Lea atentamente este manual antes de utilizar el aparato
Laser TR2-64

English
Triton Blue
USER MANUAL
Laser TR2-64

Following is a guide to installing your new LASER CHROMA 100mW LDRGY
projector. Please remember that due care and attention should always be
taken when working with electricity. We recommend that your projector be
installed by a professional installer and a licensed Electrician.

INTRODUCTION 1
Thank you for purchasing this laser product. You can be
assured that you have made an investment into the highest
quality laser products available today.
You can be confident that our quality and after sales
service is equal to our status of being the global leader in
entertainment lighting and laser products.
SAFETY INFORMATION
Warning! This product is for professional use only. It
is not for household Use.
This product presents risks of lethal or severe injury
due to fire and heat, electric Shock, and or laser related
injuries. Read this manual before powering or installing the
projector, follow the safety precautions listed below and
observe all warnings in this manual and on the projector.
If you have questions about how to operate the projector
safely, please contact your Triton Blue reseller.
To protect yourself and others from
electric shock
• Disconnect the fixture from AC power before
removing or installing the projector, fuses, or any
part service.
• Always ground (earth) the projector electrically.
Failure to do so may damage your projector.
• Use only a source of AC power that complies with
local building and electrical codes and has both
overload and ground-fault protection.
• Do not expose the projector to rain or moisture.
• No user serviceable parts inside.
To protect yourself and others from
potential laser radiation hazards
.Never operate the projector with missing or damaged
covers.
• Do not stare directly into the aperture whilst it is
projecting a beam.
• Do not open the projector housing to adjust any
components.
• This projector contains housing safety interlocks.
Opening the housing will defeat the interlocks and
cause the laser output to stop.
To protect yourself and others from burns and

fire
• Do not place any part of your body in the beam
path whilst projecting a stagnant beam.
• Never attempt to bypass the fuses. Always
replace defective fuses with ones of the
specified type and rating.
• Keep all combustible materials (for example
fabric, wood, paper) at least 0.3 meters
(12 inches) away from the projector. Keep
flammable materials well away from the
projector.
• Provide a minimum clearance of 0.1 meters (4
inches) around fans and air vents.
• Never place filters or other materials over the
aperture.
• Do not modify the projector in any way.
To protect yourself and others from
injury due to falls
• When suspending the projector above ground
level, verify that the structure can hold at least
10 times the weight of all installed devices.
• Verify that all external covers and rigging
hardware are securely fastened and use an
approved means of secondary attachment such
as a safety cable.
• Block access below the work area whenever
installing or removing the projector.
UNPACKING
The packing material is carefully designed to
protect the projector during shipment - always use
it to transport the projector. The Projector comes
with:
• One 3m, 3-pin IEC mains cable.
• One 1m DMX Cable
• One Installation Manual
Carefully open the top of the shipping carton.
Firmly grasp the yoke and lift the unity out of the
carton. Taking care to avoid reaching into the front
of the unit, where the optics are, remover the foam
blocks from both ends of the projector and carefully
place it on a flat, stable surface for inspection.
Visually inspect the projector to ensure it did not
receive any damage during shipping. Verify that
the yoke is attached firmly with two bolts and two
knobs. Always use a safety cable when hanging
ay lighting fixture or effect from truss or overhead
fixing point. At this time affix your safety cable and
stage clamps.

AC POWER 2
Warning! For protection from electric shock, the
projector must be grounded (earthed). The power
supply shall have overload and ground-fault
protection. Important! Install fuse and verify that
power supply settings match local AC supply before
use.
To install the main fuse
Use only the fuse specified for the operating voltage.
1. Turn of power mains to the projector.
2. Remove the fuse holder and insert the fuse in
the fuse holder.
3. Insert the fuse holder in the empty slot in the
mains input socket.
To install a plug on the power cable
If you need to replace the power plug, it must be fitted with
a grounding-type cord cap that fits your power distribution
system. Consult an electrician if you have any doubts about
proper installation.
Following the cord cap manufacturer’s instructions, connect
the yellow and green wire to ground (earth), the brown
wire to live, and the blue wire to neutral. The table below
shows some pin identification schemes.
Table 1: Cord cap connections
Wire Pin Marking Screw color
brown Live “L” yellow or brass
blue Neutral “N” silver
yellow/green Ground green
How to Earth the power supply
Warning! The power supply used to power the projector and the
computer requires earthed power mains. All power cables used in
the installation of the projector and the computer are to be earthed.
Important! Powering projector and the computer unearthed will damage
the projector and or computer.
Before installing your projector or computer, you must do the following to ensure

it is safe to connect the power supply.
• Test power supply to both the projector and the
computer. Do this using a Multi-Meter capable
of testing up to 750VAC
• Test continuity between both ends of the power
supply cables. Ensure that all three wires have
continuity.
If you find that you have an unearthed power supply,
you will need to connect an earth before installing the
projector. We recommend that you contact either a
Triton Blue Technician or a Licensed Electrician to do
this. Alternatively, at your own risk, you can follow the
instructions below to install an Earth connection.
1. Find a copper water mains pipe or a 2 to 3
meter copper rod. If using a copper rod, drill
the rod into the ground outside of the building
so that you have no more than 10 to 15 cm
exposed.
2. Inside the main Distribution Box connect a
copper plate on the inside of the chassis.
3. Run and connect a 1 gauge cable from the
copper plate on the inside of the Distribution
Box to the Copper Water Mains Pipe or the
Copper rod.
4. Test the earth by using a Multi-Meter in 750VAC
mode from the hot (Brown) to the earth and
then the Neutral (Blue) to the earth. The total
between the two should equal the total shown
when you connect the prods between hot and
Neutral. If not, cease further use and contact a
licensed electrician. Once you have completed
this correctly you can apply power to your
Projector and computer using the Earthed
power source.
To apply power
Warning! The power cables must be undamaged and rated for the
electrical requirements of all connected devices. Important! Powering
through a dimmer system will damage the projector and computer.
1. Connect the prepared cable to the mains input
socket and the AC mains distribution system. Do
not connect the projector.
2. Using the on / off switch located at the rear of the
projector, turn the projector on.
3. You now can continue with the installation of your
new laser projector.

INSTALLATION 3
LOCATION AND ORIENTATION
For safe operation, install the Projector in a location where: -
• It is at least 0.3 meters (12 inches) away from
illuminated surfaces and combustible materials.
• It is not easily touched or bumped.
• It is protected from rain and moisture.
• There is at least 0.1 meters (4 inches) clearance
around the fans and air vents.
• There are no flammable materials nearby. The
projector may be installed in any orientation as
described below or placed directly on a stage or
floor. The intense light can burn or melt parts
within a distance of 0.3 meters (12 inches).
When installing the projector next to a fixture, avoid illuminating the
projector.
Truss or other overhead mounting
WARNING! Ensure the safety Cables are secured to
the safety anchor points at the side of the
projector.
1. Block access below the work area.
2. Working from a stable platform.
3. Attached the safety cable that can bare at least
10 times its weight, through the safety cable
anchor point on the of the projector. Ensure
to place the projector on a raised platform, if
working above 1.5m.
4. A clamp can be used to hang the projector
from a truss or similar. Triton Blue offers a
range of optional Clamps and truss mounting
components.

Operating Instructions4
CAUTION: Use of controls, adjustments, or performance of procedures other
than what is specified herein may result in hazardous radiation exposure
which can result in server eye damage and or physical injury
This projector is designed to Operate using DMX-512. DMX-512 allows
you to control the Projector using any DMX-512 Protocol controller,
however a profile will need to be created for some controllers. By
following these simple instructions below, you will be able ensure a safe
enjoyable show using your new projector.
Compliance Statement
Compliance Statement Your new TR2-64 Projector has been designed
to comply with FDA and IEC Standards for it classification. The TR2-64
Projector, is a Class IIIB laser product.
Laser Safety and Compliance Information
This product is manufactured to comply with the IEC 60925-1 and in
accordance with U.S. Food and Drug Administrations (FDA) Standards
Listed under FDA Document 21 CFR 1040 and subsequent laser notices.
Product Classification and Manufacturing Label Identification
Laser Classification: Class IIIB
Laser Medium:
Red >60mW LD 650nm
Green >40Mw DPSS 532nm
Output: 100Mw TRI-COLOR
Cooling: TE Cooling
CAUTION: AVOID EXPOSURE TO BEAM: Avoid direct eye contact with
laser light. Never intentionally expose your eyes or others to direct laser
radiation.

As you can see, from dipswitch 3, the numbers increase by multiplying the
previous value by 2.

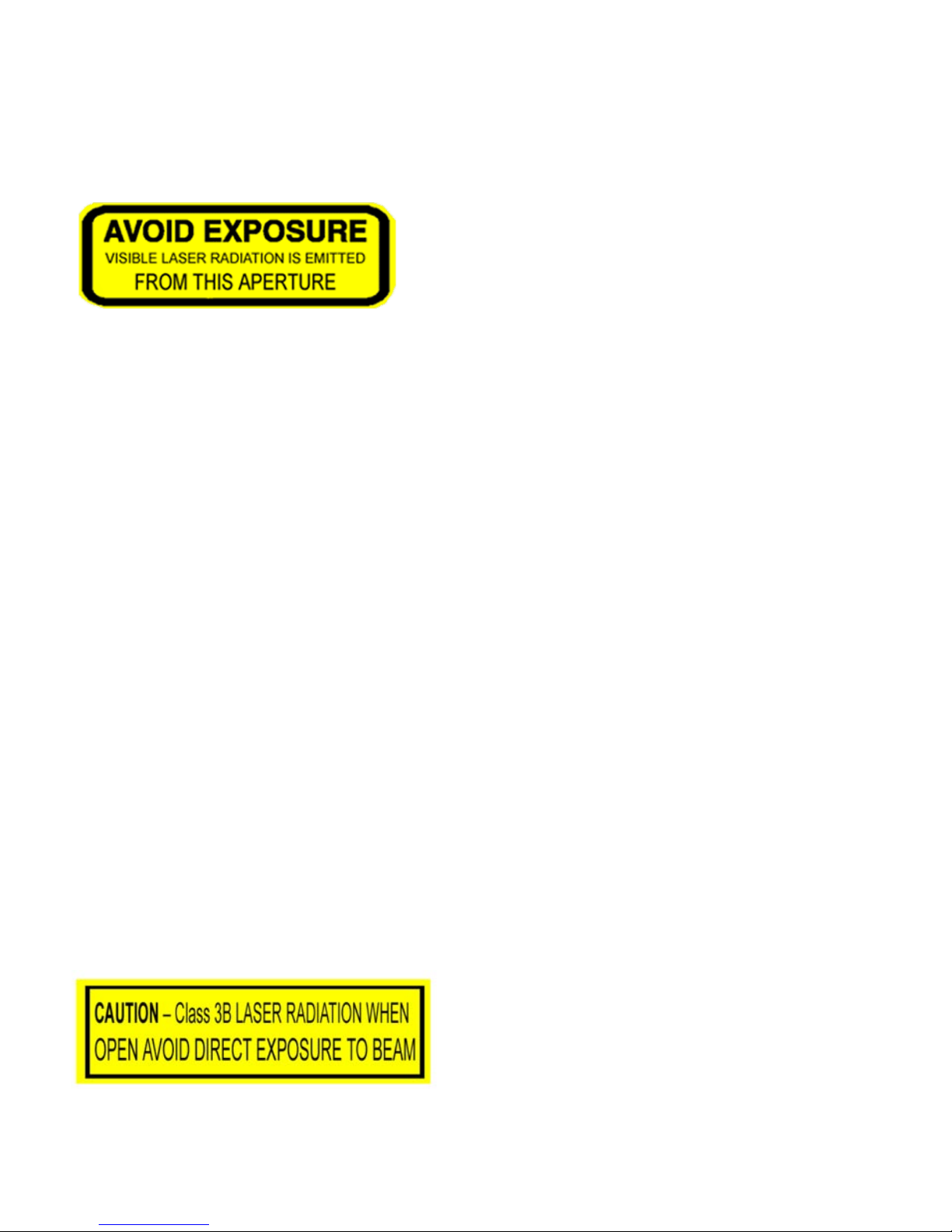

A Combo label with the Product Model Number, Serial Number, Date of Manufacture,
Laser Light Warning Label, Warranty Void Label and Interlocked Housing Label
This laser product is a ClassIIIB laser and has an
Interlocked housing.
This projector has been designed to be hung from a truss, ceiling or on a wall. It is
recommended that, for safety purposes, your projector be mounted using either a
suitable hanging clamp or bolted to the surface as instructed in this manual. Triton
Blue offers a range of items, which are ideal for safe mounting. It is the responsibility
of the manufacture to provide useful instruction on the proper use of this product.

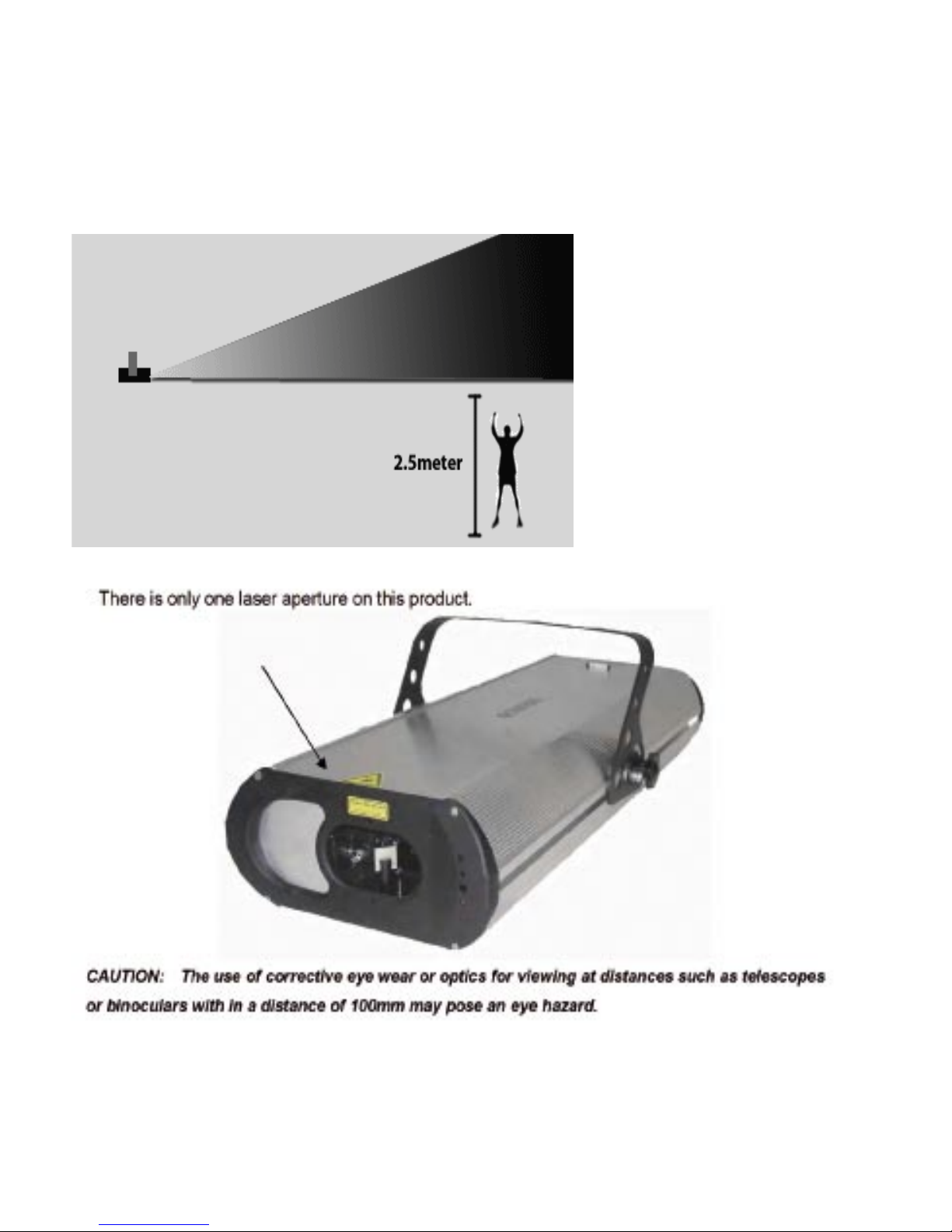

According to FDA Regulations you should operate this product in the fashion
illustrated to the left.
There are no user serviceable parts inside. tampering or removing warranty
seals will void your products limited warranty.
CAUTION: AVOID EXPOSURE TO BEAM: Avoid direct eye contact with
laser light. Never intentionally expose your eyes or others to direct laser
radiation.
As you can see, from dipswitch 3, the numbers increase by multiplying the
previous value by 2.
A Combo label with the Product Model Number, Serial Number, Date of Manufacture,
Laser Light Warning Label, Warranty Void Label and Interlocked Housing Label
There are no user serviceable parts inside. tampering or removing warranty
seals will void your products limited warranty.
CAUTION: AVOID EXPOSURE TO BEAM: Avoid direct eye contact with

laser light. Never intentionally expose your eyes or others to direct laser
radiation.
As you can see, from dipswitch 3, the numbers increase by multiplying the
previous value by 2.
A Combo label with the Product Model Number, Serial Number, Date of Manufacture,
Laser Light Warning Label, Warranty Void Label and Interlocked Housing Label
A Combo label with the Product Model Number, Serial Number, Date of Manufacture,
Laser Light Warning Label, Warranty Void Label and Interlocked Housing Label
Proper Usage Safety and Compliance
Information
This projector has been designed to be hung from a truss, ceiling or on a wall. It is
recommended that, for safety purposes, your projector be mounted using either a
suitable hanging clamp or bolted to the surface as instructed in this manual. Triton
Blue offers a range of items, which are ideal for safe mounting. It is the responsibility
of the manufacture to provide useful instruction on the proper use of this product.
According to FDA Regulations you should operate this product in the fashion
illustrated to the left.
There are no user serviceable parts inside. tampering or removing warranty
seals will void your products limited warranty.
CAUTION: AVOID EXPOSURE TO BEAM: Avoid direct eye contact with
laser light. Never intentionally expose your eyes or others to direct laser

radiation.
As you can see, from dipswitch 3, the numbers increase by multiplying the
previous value by 2.
A Combo label with the Product Model Number, Serial Number, Date of Manufacture,
Laser Light Warning Label, Warranty Void Label and Interlocked Housing Label

radiation.
As you can see, from dipswitch 3, the numbers increase by multiplying the
previous value by 2.
A Combo label with the Product Model Number, Serial Number, Date of Manufacture,
Laser Light Warning Label, Warranty Void Label and Interlocked Housing Label
DMX Control 5
Control features
Your projector is capable of being controlled in three modes, DMX-
512, Sound Active (Master/Slave), and Stand Alone. Additionally the
projector is capable of Remote Sound Activation and Remote Laser
On/Off, which can be done from the DMX-512 controller. The projector
has over 300 areial effects which can be triggered by all of the above
control modes.
Creating a Projector Profile
Your new LC series projector utilizes DMX-512 signal to communicate
with the controller. DMX-512 is Industry standard and can be found
in some lighting control consoles as well as some software based
lighting controllers. Each LC series projector is capable of being
individually addressed, so that you can control more than one projector
independently. Below are is the DMX profile settings used by the
TR2-64 projector. NOTE: Some Software based DMX controllers
already have the TR2-64 profile. Usually fixtures are listed
under the manufactures name. This projector is listed under
Triton Blue.
CHANNEL FUNCTION VALUE
1~10
CH 1 MODE 11~120
121~250
251~255
CH 2 PATTERN 0~255
SELECTION
CH 3 POSITION-X 0~255
CH 4 POSITION-Y 0~255
CH 5 SCANNING 0~255
SPEED
CH 6
DYNAMIC PATTERN
0~255
PLAY SPEED
CH 7 STATIC PATTERN 0~255
SIZE
COLOR 0~13
CH 8 SELECTION
14~243
244~255
CH 9 COLOR SEGMENT 0~255
MULTICOLOR
LASER TO BE SELECTED.
121 COLORS COMBINATION
DMDE INTO 1 TO 51 SEGMENT
0 IS FAST, 255 IS SL0W
RED, GREEN, BLUE, YELLOW, PURPLE
CYAN AND WHITE MONOCHROMATIC
0 IS FAST, 255 IS SLOW
0 IS FAST, 255 IS SL0W
LASER OFF, LASER AND SCANNER
STOP WORKING
DESCRIPTION
ADJUST POSITION-Y
ADJUST POSITION-X
DYNAMIC PATTERNS
STATIC PATTERNS
STATIC PATTERNS
NUM N STATIC / DYNAMIC

Connecting your projector to a DMX-512
Controller
DMX-512 uses a three pin cable similar to XLR or Mic leads.
We recommend that you use DMX designated cables only
as the use of XLR or Mic Leads can affect the operation of
your projector.
1. Determine the length required to run between the
projector and the controller.
2. Using DMX Cable, connect the male end to the
controller and the female to the projector.
3. Address your projector accordingly so that it
corresponds with projector’s profile address on your
controller.
4. Apply power to both the controller and projector.
You are now able to control the projector via your
controller.
Dip Switch Settings
This projector uses dipswitches to assign the desired DMX
address. DMX-512 is a simple to use control protocol
that allows you to control up to 512 channels at any one
time. The LASER CHROMA 100Mw LDRGY Projector uses 7
Channels to control its functions. In order to communicate
with the projector you will need to assign a start address
for the first channel of the projectors profile. To do this
we use the dipswitch located at the rear of the projector
to. Dipswitches 1 to 9 represent numbers between 1 and
512. E.G. dipswitch one equals 1, dipswitch two equals 2,
Dipswitch three equals 4 and so on up to dipswitch nine
which equals 256. To assign an address you can simply
follow this DMX binary Chart on the next page.
An easy way to remember the value of each switch, simply
follow the following logical mathematical riddle.
Dipswitch No.
As you can see, from dipswitch 3, the numbers increase by multiplying the
previous value by 2.
A Combo label with the Product Model Number, Serial Number, Date of Manufacture,
Laser Light Warning Label, Warranty Void Label and Interlocked Housing Label
1 1x1=1
2 2x1=2
3 2x2=4
4 4x2=8
5 8x2=16
6 16x2=32
7 32x2=64
8 64x2=128
9 128x2=256

You will also notice dipswitch numbers 10, 11, and 12.
These are used to select between the following modes: -
• SOUND ACTIVE MODE
• AUTO MODE
• MASTER-SOUND
• MASTER-AUTO
• SLAVE
• DMX MODE
• TEST MODE
Depending on how you wish to control your projector, you
will need to assign the correct dipswitch address according
to the chart below.
0 = OFF 1 = ON X = OFF OR ON
1 2 3 4 5 6 7 8 9 10 11 12
X X X X X X X X X 0 0 0
X X X X X X X X X 0 0 1
X X X X X X X X X 0 1 0
X X X X X X X X X 0 1 1
X X X X X X X X X 1 0 0
1 0 1
X X X X X X X X X 1 1 0
DIPSWITCH CHART
FUNCTION
SOUND ACTIVE
AUTO MODE
TEST MODE
SET DMX ADDRESS
MASTER-SOUND
MASTER-AUTO
SLAVE
DMX MODE

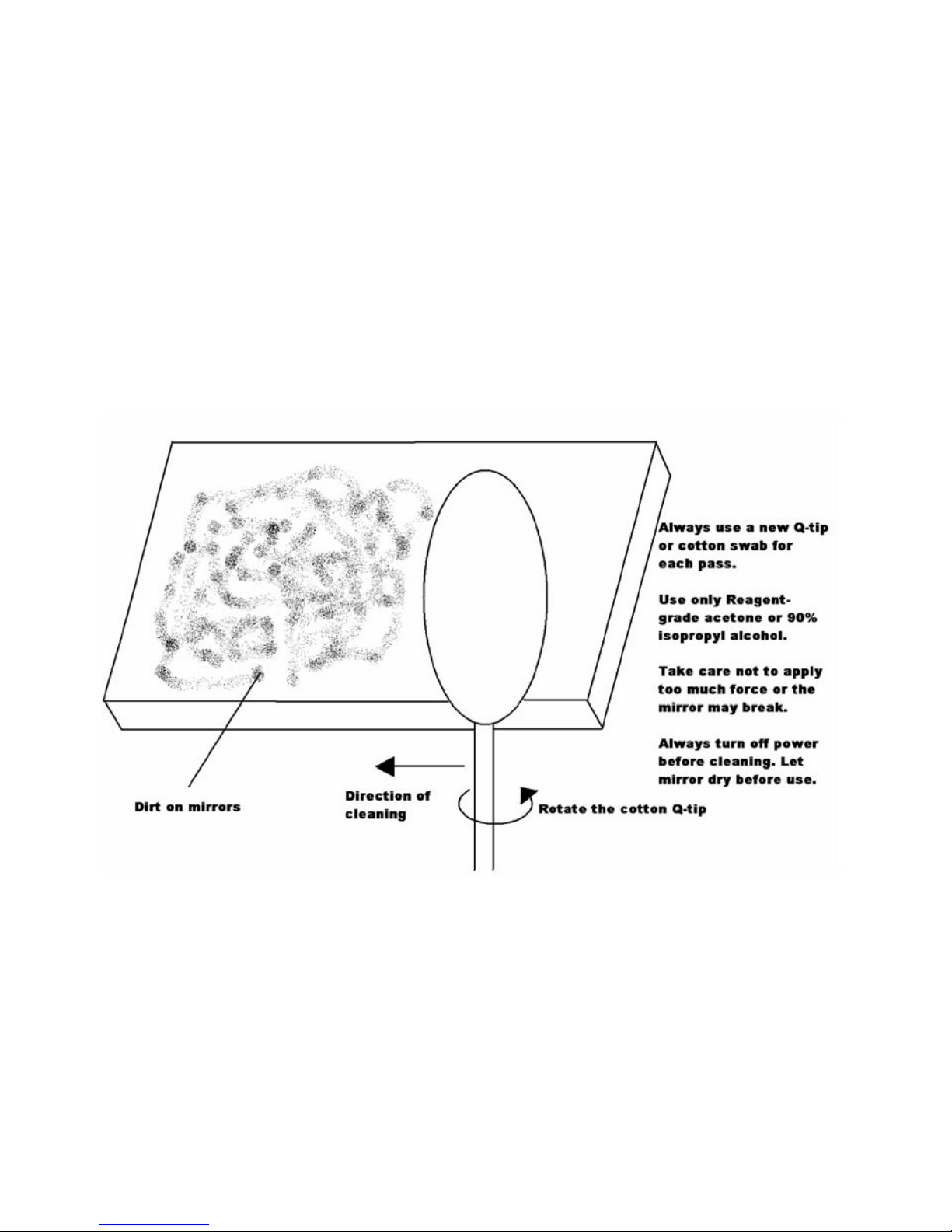

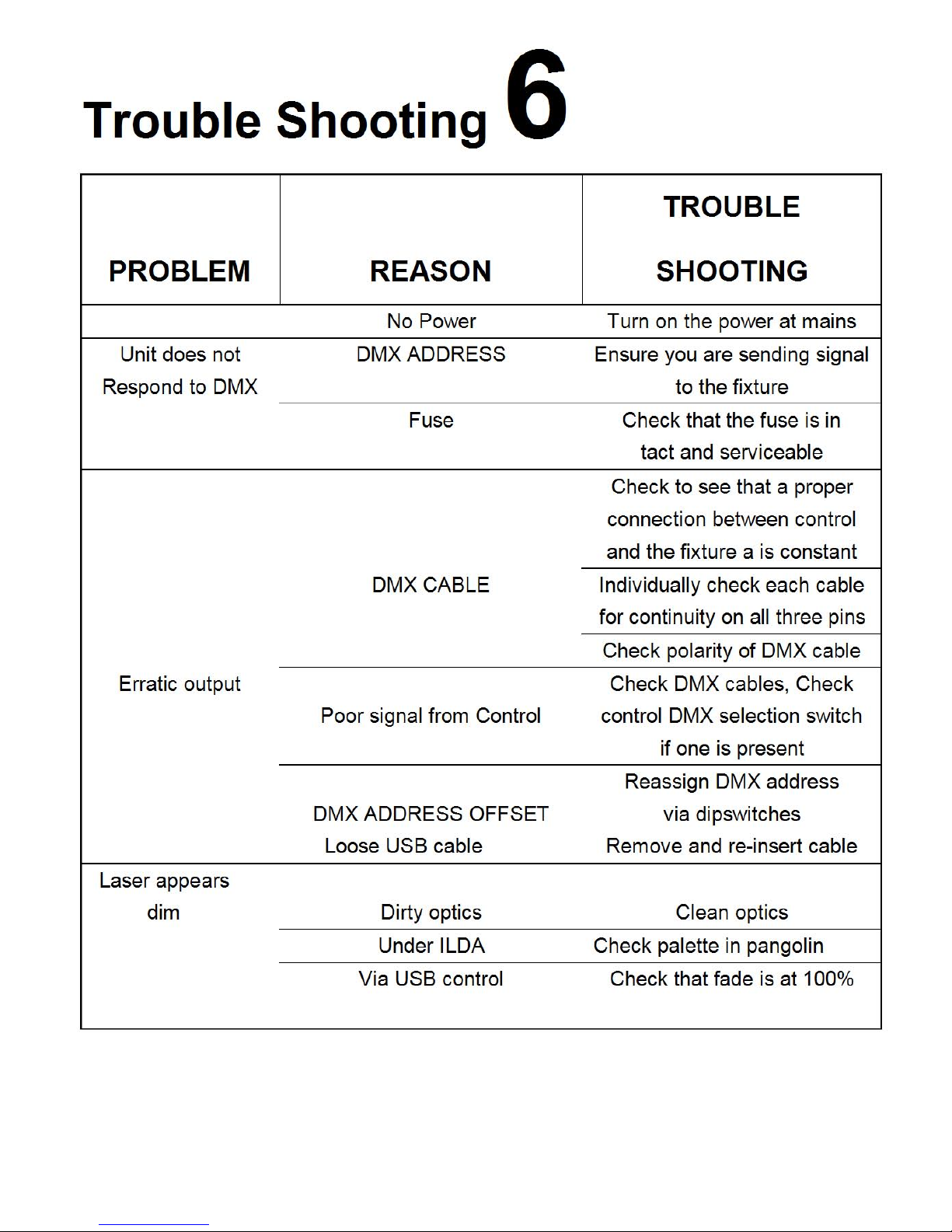

Cleaning the optics 7
One of the most critical components in a Laser projector is the optics.
If the optics are dirty, you will experience a loss in power output. To
ensure that your projector outputs at its maximum power follow these
simple instructions illustrated below. It is advised that you do this on a
regular basis, especially if the projector is installed in a location which
is subject to large mounts of dust.
NOTE: Do not use any coarse materials such as newspaper to
clean the optics. This will scratch the surface and ultimately will
lead to loss in power output.

Technical Specifications 8
Model: LASER TR2-64 projector
Laser Type: LASER DIODE Laser Life: 6,000 to >10,000 Hours
Output Type:CW
Cooling: TEC Thermal Electronically Cooled
Color: 650nm Red, 532nm Green
Output: As Designated by Model
Modulation: Analog
AC Power: 220VAC 60Hz / 110VAC 50Hz Optional
Consumption: 2.5A to 5A

Triton Blue Product lighting
www.triton-blue.com
[email protected]
