Fire damper Type FKRS-EU2

General information
About this manual
This operating and installation manual enables oper-
ating or service personnel to correctly install the TROX
product described below and to use it safely and effi-
ciently.
This operating and installation manual is intended for
use by fitting and installation companies, in-house tech-
nicians, technical staff, instructed persons, and qualified
electricians or air conditioning technicians.
It is essential that these individuals read and fully under-
stand this manual before starting any work. The basic
prerequisite for safe working is to comply with the safety
notes and all instructions in this manual.
The local regulations for health and safety at work and
general safety regulations also apply.
This manual must be given to the system owner when
handing over the system. The system owner must
include the manual with the system documentation. The
manual must be kept in a place that is accessible at all
times.
Illustrations in this manual are mainly for information
and may differ from the actual design.
Copyright
This document, including all illustrations, is protected
by copyright and pertains only to the corresponding
product.
Any use without our consent may be an infringement
of copyright, and the violator will be held liable for any
damage.
This applies in particular to:
Publishing content
Copying content
Translating content
Microcopying content
Saving content to electronic systems and editing it
TROX Technical Support
To ensure that your request is processed as quickly as
possible, please keep the following information ready:
Product name
TROX order number
Delivery date
Brief description of defect or issue
Online www.trox.de
Phone [phone]
Limitation of liability
The information in this manual has been compiled with
reference to the applicable standards and guidelines,
the state of the art, and our expertise and experience of
many years.
The manufacturer does not accept any liability for dam-
ages resulting from:
Non-compliance with this manual
Incorrect use
Operation or handling by untrained individuals
Unauthorised modifications
Technical changes
Use of non-approved replacement parts
The actual scope of delivery may differ from the infor-
mation in this manual for bespoke constructions, addi-
tional order options or as a result of recent technical
changes.
The obligations agreed in the order, the general terms
and conditions, the manufacturer's terms of delivery,
and the legal regulations in effect at the time the con-
tract is signed shall apply.
We reserve the right to make technical changes.
Warranty claims
The provisions of the respective general delivery terms
apply to warranty claims. For purchase orders placed
with TROX GmbH, these are the regulations in section
"Vl. Warranty claims" of the Delivery Terms of TROX
GmbH, see www.trox.de/en/ .
General information
Fire damper Type FKRS-EU 3

Safety notes
Symbols are used in this manual to alert readers to
areas of potential hazard. Signal words express the
degree of the hazard.
Comply with all safety instructions and proceed carefully
to avoid accidents, injuries and damage to property.
DANGER!
Imminently hazardous situation which, if not avoided,
will result in death or serious injury.
WARNING!
Potentially hazardous situation which, if not avoided,
may result in death or serious injury.
CAUTION!
Potentially hazardous situation which, if not avoided,
may result in minor or moderate injury.
NOTICE!
Potentially hazardous situation which, if not avoided,
may result in property damage.
ENVIRONMENT!
Environmental pollution hazard.
Tips and recommendations
Useful tips and recommendations as well as informa-
tion for efficient and fault-free operation.
Safety notes as part of instructions
Safety notes may refer to individual instructions. In
this case, safety notes will be included in the instruc-
tions and hence facilitate following the instructions. The
above listed signal words will be used.
Example:
1. Loosen the screw.
2.
CAUTION!
Danger of finger entrapment when closing
the lid.
Be careful when closing the lid.
3. Tighten the screw.
Specific safety notes
The following symbols are used in safety notes to alert
you to specific hazards:
Warning signs Type of danger
Warning – danger zone.
General information
Fire damper Type FKRS-EU4

1 Safety ................................................................ 6
1.1 General safety notes ................................. 6
1.2 Correct use ................................................ 6
1.3 Qualified staff ............................................. 7
2 Technical data .................................................. 8
2.1 General data .............................................. 8
2.2 FKRS-EU with fusible link ....................... 10
2.3 FKRS-EU with spring return actuator ...... 11
2.4 FKRS-EU with spring return actuator and
duct smoke detector ................................ 14
2.5 FKRS-EU with fusible link and cover grille
on both sides as an upstream shutter for
the air transfer unit .................................. 15
2.6 FKRS-EU with spring return actuator and
duct smoke detector used as an air
transfer damper ....................................... 16
3 Supply package, transport and storage ...... 17
4 Installation ...................................................... 18
4.1 Overview of installation situations ........... 18
4.2 Safety notes regarding installation .......... 22
4.3 General installation information ............... 22
4.4 Installation kits ......................................... 37
4.4.1 Overview of installation block and instal-
lation kits .............................................. 37
4.4.2 Installation block ER ............................. 38
4.4.3 Installation kit TQ2 ................................ 39
4.4.4 Installation kit WA2 ............................... 40
4.4.5 Installation kit WE 2 .............................. 41
4.4.6 Installation kit GL2 ................................ 42
4.5 Solid walls ............................................... 45
4.5.1 General information .............................. 45
4.5.2 Mortar-based installation ...................... 47
4.6 Lightweight partition walls ....................... 50
4.6.1 General information .............................. 50
4.6.2 Dry mortarless installation into a light-
weight partition wall, with installation kit
TQ2 ....................................................... 56
4.6.3 Dry mortarless installation with fire batt
............................................................... 61
4.7 Fixing the fire damper .............................. 67
4.7.1 General information .............................. 67
4.7.2 Fixing in conjunction with fire batt/fire
protection block bulkhead ..................... 67
4.7.3 Fire damper remote from walls and ceil-
ings ....................................................... 71
5 Electrical connection .................................... 72
5.1 General safety notes ............................... 72
5.2 Limit switches (fire dampers with fusible
link) .......................................................... 72
5.3 Spring return actuator .............................. 72
5.4 Spring return actuator and duct smoke
detector RM-O-3-D .................................. 72
6 Functional test ............................................... 73
6.1 General Information ................................. 73
6.2 Functional test with automatic control unit
.................................................................. 73
6.3 Fire damper with fusible link .................... 74
6.4 Fire damper with spring return actuator .. 75
7 Commissioning .............................................. 77
8 Index................................................................ 78
Table of contents
Fire damper Type FKRS-EU 5

1 Safety
1.1 General safety notes
Sharp edges, sharp corners and thin sheet metal
parts
CAUTION!
Danger of injury from sharp edges, sharp cor-
ners and thin sheet metal parts!
Sharp edges, sharp corners and thin sheet metal
parts may cause cuts or grazes.
– Be careful when carrying out any work.
– Wear protective gloves, safety shoes and a hard
hat.
Electrical voltage
DANGER!
Danger of electric shock! Do not touch any live com-
ponents! Electrical equipment carries a dangerous
electrical voltage.
– Only skilled qualified electricians are allowed to
work on the electrical system.
– Switch off the power supply before working on
any electrical equipment.
1.2 Correct use
The fire damper is used as an automatic shut-off
device to prevent fire and smoke from spreading
through ducting.
The fire damper is suitable for supply and extract air
in HVAC systems.
The use of the fire damper in potentially explosive
atmospheres is permitted with the corresponding
special accessories and a CE conformity state-
ment according to ATEX directive 2014/34/EU. Fire
dampers for use in areas with potentially explosive
atmospheres are marked for the zones for which
they have been approved.
The fire dampers may only be operated in com-
pliance with these installation instructions and the
technical data in these installation and operating
instructions.
Modifying the fire damper or using spare parts that
have not been approved by TROX is not permitted.
Additional provision for use in Germany:
Do not use it in extract air systems in commercial
kitchens.
For use as an air transfer damper see general type
approval Z-6.50-2516.
Use with a combined penetration seal requires indi-
vidual type-approval.
Use with firestop blocks requires individual type-
approval.
Crossflow fasteners may require a building inspec-
torate licence. This must be checked and applied for
by the client.
Flame-resistant, non dripping building materials
(elastomer foams) must at least comply with fire
rating class C - s2, d0 according to the German
MVV TB (2019/1) guideline. The applicable local
building regulations have to be observed.
Incorrect use
WARNING!
Danger due to incorrect use!
Incorrect use of the fire damper can lead to dan-
gerous situations.
Never use the fire damper:
– without specially approved attachments in areas
with potentially explosive atmospheres
– as a smoke control damper
– outdoors without adequate protection against the
effects of weather
– in atmospheres where chemical reactions,
whether planned or unplanned, may cause
damage to the fire damper or lead to corrosion
Safety
Correct use
Fire damper Type FKRS-EU6

1.3 Qualified staff
WARNING!
Danger of injury due to insufficiently qualified
individuals!
Incorrect use may cause considerable injury or
damage to property.
– Only specialist personnel must carry out work.
Personnel:
Skilled qualified electrician
Trained personnel
Skilled qualified electrician
Skilled qualified electricians are individuals who have
sufficient professional or technical training, knowledge
and actual experience to enable them to work on elec-
trical systems, understand any potential hazards related
to the work under consideration, and recognise and
avoid any risks involved.
Trained personnel
Trained personnel are individuals who have sufficient
professional or technical training, knowledge and actual
experience to enable them to carry out their assigned
duties, understand any potential hazards related to the
work under consideration, and recognise and avoid any
risks involved.
Safety
Qualified staff
Fire damper Type FKRS-EU 7

2 Technical data
2.1 General data
Nominal sizes 100 – 315 mm
Casing length L 400 mm
Volume flow rate range Up to 770 l/s or 2770 m³/h
Differential pressure range Up to 1500 Pa
Temperature range 1, 3, 4 -20 °C – 50 °C
Release temperature 472 °C or 95 °C (for warm air ventilation systems)
Upstream velocity 2, 4 ≤ 8 m/s with fusible link,
≤ 10 m/s with spring return actuator
Closed damper blade air leakage EN 1751, Class 3
Casing air leakage EN 1751, Class C
EC conformity EU Construction Products Regulation no. 305/2011
EN 15650 – Ventilation for buildings - Fire dampers
EN 13501-3 – Classification – Part 3: Fire resisting
ducts and fire dampers
EN 1366-2 – Fire resistance tests for installations: Fire
dampers 5
EN 1751 Ventilation for buildings – Air terminal devices
Declaration of Performance DoP/FKRS-EU/DE/005
1) Temperatures may differ for units with attachments. Details for other applications are available on request.
2) Data applies to uniform upstream and downstream conditions for the fire dampers.
3) Non-condensing operation or without moisture entry via the fresh air intake.
4) For explosion-proof constructions of the FK-EU see the corresponding operating manual.
5) Leakage rate of the fire damper system tested at 300 Pa and 500 Pa negative pressure.
Technical data
General data
Fire damper Type FKRS-EU8

Product sticker
Fig. 1: Product sticker (example)
1 CE mark
2 Manufacturer's address
3 Number of the European standard and year of its
publication
4 Notified body
5 The last two digits of the year in which the CE
marking was affixed
6 Year of manufacture
7 No. of the declaration of performance
8 Website from which the DoP can be downloaded
9 Regulated characteristics; the fire resistance
class depends on the application and may vary
Ä Chapter 4.1 ‘Overview of installation situations’
on page 18
10 Type
11 Order number
Technical data
General data
Fire damper Type FKRS-EU 9

2.2 FKRS-EU with fusible link
Dimensions and weight
Fig. 2: FKRS-EU with fusible link
Y Keep clear to provide access for operation
A Installation side
B Operating side
Limit switch
Connecting cable length / cross section 1 m / 3 × 0.34 mm²
Protection level IP 66
Type of contact 1 changeover contact, gold-plated
Maximum switching current 0.5 A
Maximum switching voltage 30 V DC, 250 V AC
Contact resistance approx. 30 mΩ
Weight [kg]
Nominal size [mm]
ÆDN [mm]
100
99
125
124
150
149
160
159
180
179
200
199
224
223
250
249
280
279
315
314
FKRS-EU with fusible link 1.3 1.6 1.8 2.0 2.3 2.5 2.7 3.3 3.8 4.4
... and installation block ER 5.7 8.6 7.6 7.3 11.0 9.8 13.5 12.1 16.0 15.0
... and installation kit TQ2 5.4 6.1 7.0 7.9 8.8 9.7 10.6 12.0 13.7 15.8
... and installation kit WA2 4.4 5.2 6.1 6.6 7.4 8.2 9.0 10.2 11.7 13.6
... and installation kit WE2 4.4 5.2 6.1 6.6 7.4 8.2 9.0 10.2 11.7 13.6
... and installation kit GL2 4.4 5.2 6.1 6.6 7.4 8.2 9.0 10.2 11.7 13.6
Technical data
FKRS-EU with fusible link
Fire damper Type FKRS-EU10

2.3 FKRS-EU with spring return actuator
Dimensions and weight
Fig. 3: FKRS-EU with Belimo spring return actuator
Y Keep clear to provide access for operation
A Installation side
B Operating side
Weight of FKRS-EU with fusible link + approx. 1 kg, see table Ä 10 .
Spring return actuator BFL...
Construction 230-T TR 24-T-ST TR
Supply voltage 230 V AC, 50/60 Hz 24 V AC/DC, 50/60 Hz
Functional range 198 – 264 V AC 19.2 – 28.8 V AC
21.6 – 28.8 V DC
Power rating Spring winding mecha-
nism / hold position
3.5 W / 1.1 W 2.5 W / 0.8 W
Rating 6.5 VA 4 VA
Run time Actuator / spring return < 60 s / < 20 s
Limit switch Type of contact 2 changeover contacts
Switching voltage 5 – 120 V DC / 5 – 250 V AC
Switching current 1 mA – 3 (0.5 inductive) A
Contact resistance < 1 Ω (when new)
IEC protection class / IP protection II / IP 54
Storage temperature / ambient temperature -40 to 55 °C / -30 to 55 °C ¹
Ambient humidity ≤ 95% rh, no condensation
Connecting cable Actuator / limit switch 1 m, 2 × 0.75 mm² / 1 m, 6 × 0.75 mm² (free of halo-
gens)
¹ Up to 75 °C the safe position will definitely be reached.
Technical data
FKRS-EU with spring return actuator
Fire damper Type FKRS-EU 11

Dimensions and weight
Fig. 4: FKRS-EU with Siemens spring return actuator
Y Keep clear to provide access for operation
A Installation side
B Operating side
Weight of FKRS-EU with fusible link + approx. 1 kg, see table Ä 10 .
Spring return actuator GRA...
Construction 326.1E 126.1E
Supply voltage 230 V AC, 50/60 Hz 24 V AC, 50/60 Hz /
24 – 48 V DC
Functional range 198 – 264 V AC 19.2 – 28.8 V AC
19.2 – 57.6 V DC
Power rating Spring-winding mechanism 7 VA / 4.5 W 5 VA / 3.5 W
Hold position 3.5 W 2 W
Run time Actuator / spring return 90 s / 15 s
Limit switch Type of contact 2 changeover contact
Switching voltage 24 – 230 V AC / 12 – 30 V DC
Switching current AC: 6 A (inductive 2 A) / DC: 2 A
IEC protection class / IP protection II / IP 42 or IP 54* III / IP 42 or IP 54*
Storage temperature / ambient temperature -20 to 50 °C / -20 to 50 °C
Ambient humidity < 95% rh, no condensation
Connecting cable Actuator / limit switch 0.9 m, 2 × 0.75 mm² / 0.9 m, 6 × 0.75 mm² (free of
halogens)
*Connecting cable at the bottom
Technical data
FKRS-EU with spring return actuator
Fire damper Type FKRS-EU12

FKRS-EU with Schischek explosion-proof spring
return actuator
The FKRS-EU can also be supplied with Schischek
explosion-proof spring return actuator on request:
ExMax-15-BF-TR
RedMax-15-BF-TR
For further information, see "Supplementary oper-
ating manual for explosion-proof fire dampers Type
FKRS-EU".
Technical data
FKRS-EU with spring return actuator
Fire damper Type FKRS-EU 13

2.4 FKRS-EU with spring return actuator and duct smoke detector
Dimensions and weight

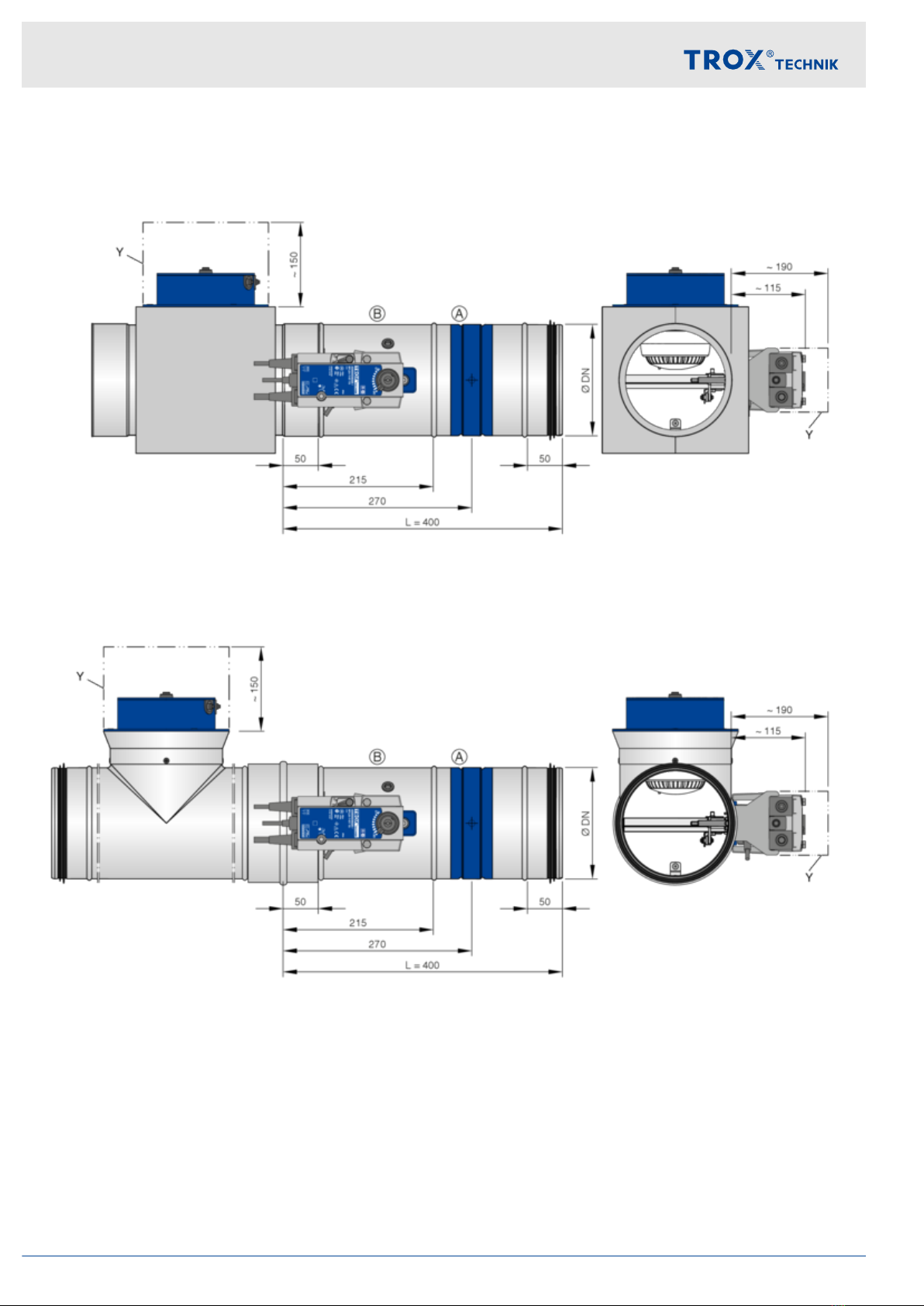

Fig. 5: FKRS-EU with Belimo spring return actuator and duct smoke detector, drawn in a square air duct (on-site)
Y Keep clear to provide access for operation
A Installation side
B Operating side
Fig. 6: FKRS-EU with Belimo spring return actuator and duct smoke detector, drawn in a round air duct (on-site)
Y Keep clear to provide access for operation
A Installation side
B Operating side
Technical data for spring return actuator, see table Ä on page 11
The duct smoke detector type RM-O-3-D is to be arranged in a square air duct on the top or alternatively in
a round air duct in a T-piece on the top. For technical details of the duct smoke detector see the RM-O-3-D
operating and installation manual.
Technical data
FKRS-EU with spring return actuator and duct smo...
Fire damper Type FKRS-EU14

2.5 FKRS-EU with fusible link and cover grille on both sides as an upstream
shutter for the air transfer unit
Dimensions and weight
Fig. 7: FKRS-EU with fusible link and cover grille on both sides as an upstream shutter for the air transfer unit
Y Keep clear to provide access for operation
A Installation side
B Operating side
Note: Air transfer units may require a building inspectorate licence. This must be checked and applied for by the
client.
For installation in Germany please note:
If a fire damper with only a mechanical shut-off element is to be used as an air transfer unit, the local building
regulations apply. Such air transfer units are usually only used for pressure differential systems.
Technical data
FKRS-EU with fusible link and cover grille on bo...
Fire damper Type FKRS-EU 15

2.6 FKRS-EU with spring return actuator and duct smoke detector used as an air
transfer damper
Dimensions and weight
Fig. 8: FKRS-EU with spring return actuator and duct smoke detector used as an air transfer damper
Y Keep clear to provide access for operation
A Installation side
B Operating side
Weight of FKRS-EU with fusible link + approx. 2.5 kg, see table Ä 10 .
Technical data for spring return actuator, see table
Ä on page 11
The duct smoke detector type RM-O-3-D is to be placed on top of a console (scope of supply). For technical
details of the duct smoke detector see the RM-O-3-D operating and installation manual.
Note: For more information on the installation and use of the fire damper as an air transfer damper in Germany see
general type approval Z-6.50-2516.
Technical data
FKRS-EU with spring return actuator and duct smo...
Fire damper Type FKRS-EU16

3 Supply package, transport
and storage
Scope of delivery
If attachments and accessories are supplied from the
factory with the fire dampers, they are already taken into
account in the order code.
Depending on the installation situation, supplementary
materials for assembly and fixing may be needed to
ensure proper installation, e.g. mortar, screws, mineral
wool, etc.
Such materials are not usually included in the supply
package (unless stated otherwise).
The selection of additional attachments or accessories
as well as the identification and provision of materials
for assembly and fixing is the responsibility of those
involved in the building project and must be done taking
into account the required classification.
Delivery check
Check delivered items immediately after arrival for
transport damage and completeness. In case of any
damage or an incomplete shipment, contact the ship-
ping company and your supplier immediately.
Fire damper
– Attachments/accessories, if any
Operating manual (one per delivery)
Colour hues on the damper blade
The blades of fire dampers are treated with a
greenish impregnating agent. Resulting colour hues
on the damper blade are due to technical reasons
and do not constitute a defect of any kind.
Transport on site
If possible, take the product in its transport packaging
up to the installation location.
Storage
For temporary storage please note:
Remove any plastic wrapping.
Protect the product from dust and contamination.
Store the product in a dry place and remote from
direct sunlight.
Do not expose the unit to the effects of weather (not
even in its packaging).
Do not store the product below -40 °C or above 50
°C.
Packaging
Properly dispose of packaging material.
Supply package, transport and storage
Fire damper Type FKRS-EU 17

4 Installation
4.1 Overview of installation situations
Note
The performance classes of the fire damper and the wall or ceiling slab may differ. The lower performance class
determines the performance class of the overall system.
Overview of installation situations
Supporting con-
struction
Installation location Minimum
thickness
[mm]
Class of per-
formance EI TT
(ve–ho, i ↔ o) S
up to
Installation
type
Chapter
Solid walls in 100 EI 120 S N
Ä 47
100 EI 90 S N
Ä 47
in, combined installation 100 EI 90 S N Ø
in, multiple installation 100 EI 90 S N Ø
in, partly with mineral wool 100 EI 120 S N Ø
in, underneath flexible ceiling
joint
100 EI 90 S N Ø
in, installation block ER 100 EI 90 S E Ø
in, installation kit TQ2 100 EI 120 S E Ø
on the face of, installation kit
WA2
100 EI 90 S E Ø
remote from, wall attachment,
installation kit WE2
100 EI 120 S E Ø
remote from, wall penetration,
installation kit WE2
100 EI 120 S E Ø
remote from, mineral wool insu-
lation
100 EI 60 S T Ø
remote from, mineral wool insu-
lation, fire batt
100 EI 60 S T Ø
in, fire batt 100 EI 120 S W 1
100 EI 90 S W 1Ø
in, fire batt, multiple installation 100 EI 90 S W 1Ø
in, combined penetration seal 100 EI 90 S W 1Ø
in, fire protection block bulk-
head
100 EI 90 S T Ø
Metal stud walls in 94 EI 120 S N 1Ø
94 EI 90 S N 1Ø
1) The class of performance depends on the installation details
2) Thickness increased near the installation opening
3) Depending on local conditions
Ø see the complete operating
and installation manual at
www.trox-docs.com
N = Mortar-based installation
E = Installation kit
W = Fire batt
E = Dry mortarless installation
Installation
Overview of installation situations
Fire damper Type FKRS-EU18

Overview of installation situations
Supporting con-
struction
Installation location Minimum
thickness
[mm]
Class of per-
formance EI TT
(ve–ho, i ↔ o) S
up to
Installation
type
Chapter
80 EI 60 S N 1Ø
75 EI 30 S N 1Ø
in, combined installation 94 EI 90 S N 1Ø
in, multiple installation 94 EI 90 S N 1Ø
in, without installation kit 94 EI 60 S T Ø
in, installation kit TQ2 94 EI 120 S E 1
Ä 56
94 EI 90 S E 1
Ä 56
80 EI 60 S E 1
Ä 56
75 EI 30 S E
Ä 56
remote from, wall penetration,
installation kit WE2
94 EI 90 S E Ø
remote from, wall penetration,
mineral wool insulation
94 EI 60 S T Ø
remote from, mineral wool insu-
lation, fire batt
94 EI 60 S T Ø
in, direct installation, installation
kit GL2
94 EI 90 S T Ø
in, flexible ceiling joint, installa-
tion kit GL2
100 EI 90 S E Ø
in, fire batt 94 EI 120 S W 1
Ä 61
94 EI 90 S W 1
Ä 61
80 EI 60 S W 1
Ä 61
75 EI 30 S W 1
Ä 61
in, fire batt, multiple installation 100 EI 90 S W 1Ø
in, combined penetration seal 100 EI 90 S W 1Ø
in, fire protection block bulk-
head
100 – 200 EI 90 S T Ø
Timber stud walls in 130 EI 120 S N Ø
130 EI 90 S N Ø
110 EI 60 S N Ø
105 EI 30 S N Ø
in, combined installation 130 EI 90 S N Ø
in, installation kit TQ2 130 EI 120 S E Ø
110 EI 60 S E Ø
1) The class of performance depends on the installation details
2) Thickness increased near the installation opening
3) Depending on local conditions
Ø see the complete operating
and installation manual at
www.trox-docs.com
N = Mortar-based installation
E = Installation kit
W = Fire batt
E = Dry mortarless installation
Installation
Overview of installation situations
Fire damper Type FKRS-EU 19

Overview of installation situations
Supporting con-
struction
Installation location Minimum
thickness
[mm]
Class of per-
formance EI TT
(ve–ho, i ↔ o) S
up to
Installation
type
Chapter
105 EI 30 S E Ø
remote from, mineral wool insu-
lation
130 EI 60 S T Ø
remote from, mineral wool insu-
lation, fire batt
130 EI 60 S T Ø
in, fire batt 130 EI 120 S W Ø
130 EI 90 S W Ø
110 EI 60 S W Ø
105 EI 30 S W Ø
in, fire batt, multiple installation 130 EI 90 S W 1Ø
in, combined penetration seal 130 EI 90 S W 1Ø
Half-timbered con-
structions
in 140 EI 120 S N Ø
140 EI 90 S N Ø
110 EI 30 S N Ø
in, combined installation 140 EI 90 S N Ø
in, installation kit TQ2 140 EI 120 S E Ø
140 EI 90 S E Ø
110 EI 30 S E Ø
remote from, mineral wool insu-
lation
140 EI 60 S T Ø
remote from, mineral wool insu-
lation, fire batt
140 EI 60 S T Ø
in, fire batt 140 EI 120 S W Ø
140 EI 90 S W Ø
110 EI 30 S W Ø
in, fire batt, multiple installation 140 EI 90 S W 1Ø
Solid wood/CLT
walls
in 95 EI 90 S N Ø
in, installation kit TQ2 95 EI 90 S E Ø
remote from, mineral wool insu-
lation
100 EI 60 S T Ø
remote from, mineral wool insu-
lation, fire batt
100 EI 60 S T Ø
in, fire batt 95 EI 90 S W Ø
1) The class of performance depends on the installation details
2) Thickness increased near the installation opening
3) Depending on local conditions
Ø see the complete operating
and installation manual at
www.trox-docs.com
N = Mortar-based installation
E = Installation kit
W = Fire batt
E = Dry mortarless installation
Installation
Overview of installation situations
Fire damper Type FKRS-EU20
