True SMITH MACHINE FS-30 User manual

FS-30
S
MITH
M
ACHINE
A
SSEMBLY
M
ANUAL
Model: FS-30
REV: 030620

2
Frank Trulaske began TRUE Fitness® over thirty-five year ago with the simple philosophy of
delivering superior fitness products, service, and support. Today, TRUE is the global leader in
premium fitness equipment for the commercial and residential markets. Our goal is to be the
leader in technology, innovation, performance, safety and style. TRUE has received many
awards for its product over the years and remains the benchmark for the industry. Fitness
facilities and consumers invest in TRUE products for their durable commercial platforms used
in all its products, both commercial and residential alike.
The proud manufacturing tradition of quality and the culture of innovation at TRUE have
given rise to a full line of extraordinary cardio and strength equipment. As a result, people all
over the world are benefiting from the TRUE experience. Innovation across the full product
line has made TRUE successful and is a trademark of the TRUE heritage. TRUE’s patented
Heart Rate Control technology is just one of the remarkable ways we deliver simple and
superior performance every user can enjoy, and most importantly, use to achieve personal
health and fitness goals.
At the heart of our success is the relentless and systematic life testing of both our products and
their components. We have dedicated employees who understand our philosophy is to deliver
the best products in the world.
Our goal is to deliver the world’s best premium equipment for our customers’ health and
fitness solutions.
A MESSAGE TO OUR CUSTOMERS

3
S
AFETY
..............................................................................................................
4
G
ENERAL
C
ARE
AND
M
AINTENANCE
......................................................................
7
M
ACHINE
D
IMENSIONS
& W
EIGHTS
.......................................................................
8
C
ARTON
C
ONTENTS
.............................................................................................
9
A
SSEMBLY
.........................................................................................................
10
W
ARNING
L
ABELS
...............................................................................................
13
P
ARTS
D
IAGRAMS
...............................................................................................
14
W
ARRANTY........................................
......................................................................... 19
TABLE OFCONTENTS

4
F
ACILITY
AND
U
SER
S
AFETY
P
RECAUTIONS
1. Review and understand all of the warning labels affixed to this machine and on the facility
safety sign.
2. Be certain that the machine operation is understood before it is used. Refer tothe
instructional Procedure Label affixed to the machine.
3. Make sure all usersare properly trained on how to use this equipment. If this machine is
being used in a commercial setting, end users may not have access tothis Owners Manual. It
is the responsibility ofthe facility toinstruct users as tothe proper usage of the equipment as
well as making them aware of potential hazards. Maximum user weight is300 lbs (136 kg).
4. Use each machine onlyfor the intended exercise. Do not allow anyone to invent exercises not
included on the Instructional Procedure Label or the Intended Use Label.
5. Do not modify the machine.
6. This equipment meets industry safety standards for stability when used for the intended
exercise. Do not allow straps, resistance bands or other means tobeattached tothe
framework of this machine toperform stretching or body weight exercises. This canresult in
machine instability and lead to serious crushing injuries.
7. Keep children away from this equipment. Adults should closely supervise use by teenagers.
8. It is recommended that users receive a thorough medical exam before commencing an
exercise program. All medical issues should bereviewed toensure that weight training will
not aggravate pre-existing medical conditions.
9. If the machine appears damaged or inoperable, contact a facility staff member to place an
“OUT OF ORDER, DO NOT USE” sign onthe machine until itisrepaired. Only use TRUE
supplied replacement components toservice this machine.
10. Instruct users not to wearloose or dangling clothes or have headphone wires hanging
when using this equipment.
11. Do notattempt to free anyjammed assemblies byyourself as this maycause injury.
12. On Plate Loaded and Free Weight machines:
12a. Use of spotter(s). Instruct users toseek the advice ofthe facility staff asto the
appropriate use of spotters when lifting. More then one spotter may be required
depending upon the amount of weight being lifted.
12b. Instruct users to load weight plates evenly and carefully (one side and then the other)
to avoid tipping equipment and crushing injuries.
12c. If the machine is equipped with safety stops or catches, inspect them and verify their
proper operation before use and make sure they are securely in place before using or
exiting the machine. Be certain members are instructed on how to operate and adjust
all safety mechanisms.
SAFETY

5
12d. This equipment is designed for standard olympic size weight plates with a 50mm bore
(1.9”).
12e. Do not exceed the maximum weight capacity of the machine. Maximum plate size is
45 lbs. (25 kg.).
13. On Selectorized and Cable equipped machines:
13a. Do not allow users to perform any exercise by holding the end of the cable and/or the
cable end fitting. Use only appropriate handles or attachments properly connected to
the cable end.
13b. Do not high-pin or double-pin the weight stack. Do not allow the machine to be used if
the top plate or weight stack is pinned in a raised position. Use an assistant and
carefully return the machine to the proper position with the cap plate resting on the top
weight. Inspect the entire length of the cable to ensure that it is properly seated in all
of the pulley grooves.
13c. Do not allow the use of weight plates or dumbbells to be used as a means to add
additional weight totheweight stacks. Use only the TRUE adder weight system
specifically designed for themachine.
I
NSTALLATION
S
AFETY
P
RECAUTIONS
1. Read this Installation Manual entirely before assembling this equipment.
2. Verify that there is adequate space surrounding this piece of equipment for safe access and
operation. Installation must meet ADA requirements for accessibility.
3. Install this piece of equipment on a solid level surface that does not deviate more then 1/8”
over a 10’ distance (or as defined and required by local building and architectural codes.
4. TRUE strongly recommends that all equipment be anchored to the floor to prevent movement
and increase stability.
• Due to the wide variation of flooring on which the unit can be installed, contact a
qualified contractor todetermine an appropriate fastening system for your floor.
•Use 3/8” diameter hardware (10 mm) to anchor the machine. Anchors should have a
minimum pull outforce of 220 lbs (110 kgs) for each position.
•When attaching the machine tothe floor, if there is a gap between the machine foot
and the floor, donot use the anchor toremove the gap as this can cause the
machine frame to deform. Instead, place ashim between the bottom of the foot and
the floor, then tighten theanchor.
•Anchoring holes are provided on the feet ofthe frame. All anchoring locations must
be used when anchoring the equipment to the floor.
5. DO NOT install any fitness equipment near a pool, hot tub or other damp locations. Corrosion
caused by installation in these locations can lead topremature failure of components.
6. Be sure all hardware is tight before using this machine.
SAFETY

6
M
AINTENANCE
S
AFETY
P
RECAUTIONS
1. Refer to Maintenance Schedule label on the machine as well as this manual for when to
perform maintenance.
2. Check thefunction of your machine DAILYby verifying the following:
• Inspect cables and end fittings for any signs of wear. Replace ifworn, frayed or
damaged with original TRUE replacement components.
•Verify that all adjustments are possible and carried out with ease. Make sure that
each adjustment pin inserts completely into each position without binding.
•Verify that safety catches and stops are in proper working order and engaged.
•Verify that the exercise is performed smoothly, free of noise and/or binding.
•If equipped with a weight stack, verify that the proper weight selector pinisinplace.
3. Check the function of your machine WEEKLYbyverifying the following:
• Nuts, Bolts, and Fasteners: Check tightness weekly. If any hardware has become
loose, retighten and/or use Loctite
™
Threadlocker 242.
•Frames andLifting Arms: Inspect weekly for integrity and function. Replace any
component at first signs of wear. Use only TRUE supplied components.
4. Replace anywarning label at first sign of wear. Labels and the Facility Safety Signmay be
obtained from TRUE free of charge.
B
OLT
L
ENGTH
M
EASURING
G
UIDE
SAFETY
FLAT HEAD SCREW
BUTTON HEAD SCREW
HEX HEAD SCREW
SOCKET HEAD SCREW
12345

7
IMPORTANT
Preventative maintenance is crucial to maintaining the function and safety of this equipment. Your
facility must establish written guidelines for preventative maintenance and keep written or online
records of the maintenance performed on these products. As a minimum, the items presented in
the SAFETY section of this document and the items that follow here, should be included in your
maintenance program.
1. Cables: Inspect end fittings daily for wear. Inspect the entire length of the cable weekly.
Replace cables at the first sign of wear and on an annual basis. If the cable tension has
been adjusted, be certain that the cable nut is tight.
2. Nuts, Bolts, and Fasteners: Check tightness weekly. If anyhardware has become loose,
retighten and/or use Loctite
TM
brand Threadlocker 242. Besure all hardware is tight
before using the machine.
3. Safety Catches: Inspect catches, stop rods and their associated fasteners weekly.
Tighten any loose hardware and replace anycomponents atfirst signs of wear.
4. Frames: Wipe all machines down with a damp cloth and dry completely each day. This
includes painted parts, chrome parts and upholstered pads.
5. Painted and chrome plated parts: Use Simple Green or similar cleaner for light dirt and
grime. Use Turtle Wax Polishing Compound or a good car polish toremove heavier dirt
and grease aswell asfor polishing. DO NOT usesolvents, lacquer thinner, acetone or
finger nail polish remover. For scuffs and marks that are notremoved bythe above
methods use a soft scrub cleanser. Make sure all parts are dry uponcompletion.
6. Weight stack enclosures (shrouds): Wipe down with a damp cloth as needed.
7. Exercise instruction labels: Clean with soapand water as needed.
8. Guide rods: Wipe all dirt and dust from the guide rods before applying a light application
of Tri-Flow
TM
orother teflon spray lubricant. Spray the Tri-Flow
TM
on a rag and then wipe
the guide rods with the rag. DONOT use oil lubricants such asWD-40. Caution: Tri-Flow
TM
will
stain carpet and clothing.
9. Bronze bushings: Check monthly for signs of wear and replace as needed.
10. Linear Bearing Shafts: Wipe any accumulation of dust orother contaminants fromthe
shafts ona weekly basis. Apply a thin layer ofa Teflon®(PTFE) grease on a weekly basis.
TRUE recommends Magnalube®brand.
11. When replacing any component, use only TRUE supplied parts.
12. Please refer tothe General Maintenance Manual (part number: AM-GMM) for other
important safety and maintenance information.
13. Be sure all hardware is tight before using the machine.
Retain these instructions for future reference.
If you have anyquestions, do not hesitate tocontact your TRUE dealer or TRUE Fitness Corp. at
(800) 883-8783 orservice@truefitness.com.
GENERAL CARE AND MAINTENANCE

8

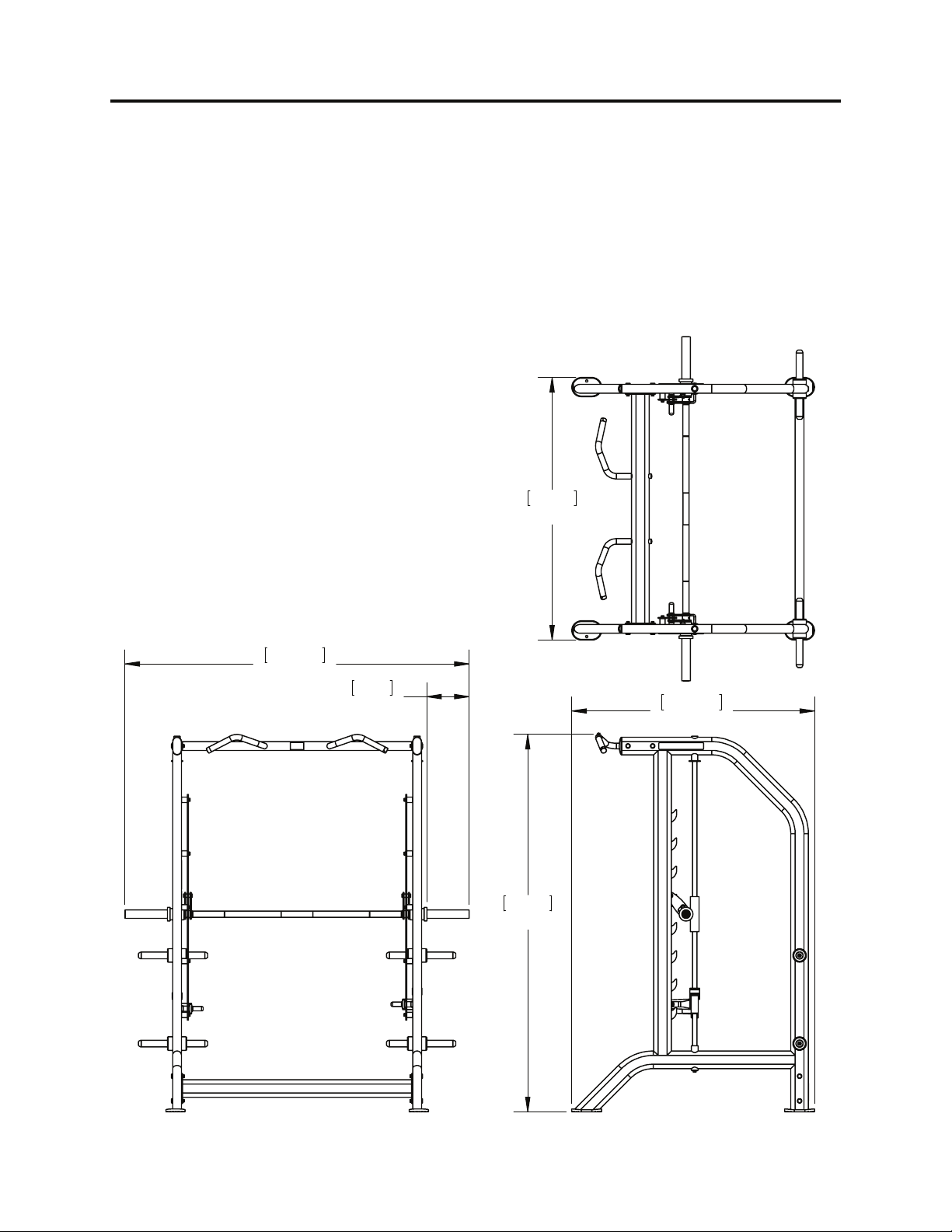

MACHINE DIMENSIONS & WEIGHTS
LQ
FP
LQ
FP
LQ
FP
LQ
FP
LQ
FP
This unit is shipped in two cartons.
Carton 1 and carton 2 have identical dimensions:
87” X 58” X 8”
220 cm x 147 cm x 19 cm
Carton weight (as shipped) = 170 lbs (79 kg.) per carton.
Total shipping weight for both cartons = 340 lbs (158 kg.)
Assembled Weight (as shown) = 300 lbs (136 kg.)
Maximum User Weight for pull up bars = 300 lbs. (136 kg.)
The lifting bar on this machine weighs 35 lbs (16 kg).
A maximum of (5) 45 lb. plates can be loaded per side.
Maximum total lifting load is 485 lbs. (220 kg.)
DO NOT use plates heavier than 45 lbs (20 kg.)

9

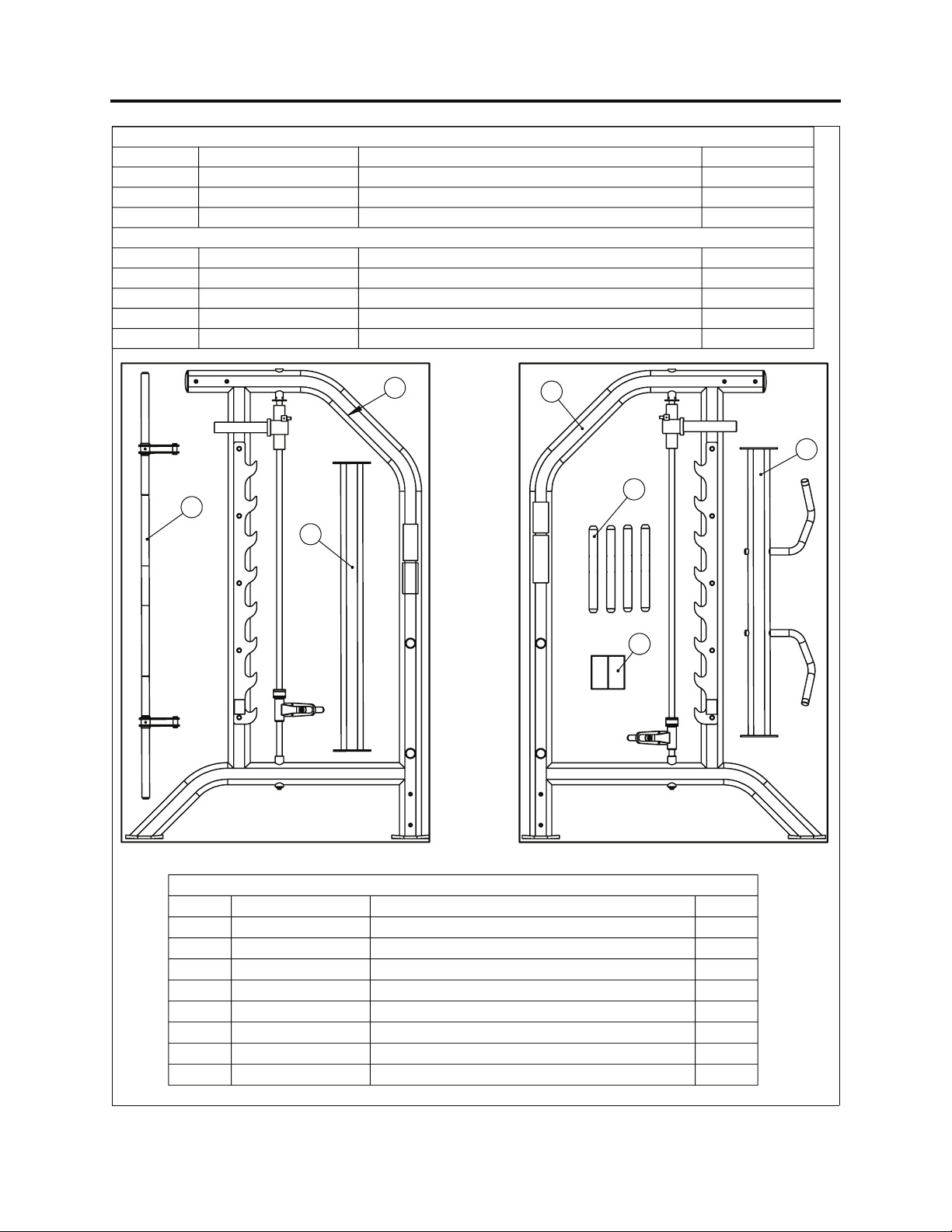

CARTON CONTENTS
&DUWRQ
&DUWRQ
&DUWRQ&RQWHQWV
,7(0
3$57180%(5
'(6&5,37,21
47<
)6&%5;
&+,183%$5$66(0%/<
)6+':%2; +$5':$5(%2;
)60)5;
$66<6,'()5$0(5,*+7
)63/+;
$66<:(,*+7+251
&DUWRQ&RQWHQWV
,7(0
3$57180%(5
'(6&5,37,21
47<
)6%$5;
$66</,)7,1*%$5
)6&%5
:(/'0(17/2:(5&5266%5$&(
)60)5;
$66<6,'()5$0(/()7
)6+':%2;+DUGZDUH%R[&RQWHQWV
,7(0
3$57180%(5
'(6&5,37,21
47<
&/3
++6&5(:/2&.,1*3$7&+
&=3
)+6&5(:=3/2&.3$7&+
&
:$6+(5/2&.=3
&&
:$6+(5)/$76$(=3
&3/
%803(500,';007+.
'$
3,1;52//3,16/277('
,1'
%$5(1'3/$7(
'
63,5$:$9(635,1*,'

10
TOOLS REQUIRED
• 14 mm (9/16”) wrench or ratchet handle and 14mm (9/16”) socket.
•3/32”allenhexwrench
• 5.5 mm (7/32”) allen hex wrench
• steel hammer
• step ladder
A MINIMUM OF TWO PEOPLE ARE REQUIRED TO ASSEMBLE THIS MACHINE.
STEP 1. Assemble the LOWER CROSS BRACE to the LEFT SIDE FRAME. Do not fully tighten the
hardware at this time.
STEP 2. Slide a wave washer on the each end of the LIFTING BAR. Insert the end of the LIFTING
BAR into the trolley on the LEFT SIDE FRAME and loosely secure it with the BAR END PLATE and
FLAT HEAD SCREW. Do not fully tighten the screw at this time.
STEP 3. Insert the right side of the LIFTING BAR into the trolley on the RIGHT SIDE FRAME.
Loosely assemble the hardware for the right side of the LOWER CROSS BRACE along with the
BAR END PLATE and FLAT HEAD SCREW for the right side of the LIFTING BAR. Do not fully tighten
any hardware at this time.
STEP 4. Loosely assemble the CHIN UP BAR to the machine.
STEP 5. Tighten the hardware on the CHIN UP BAR and LOWER CROSS BRACE incrementally.
Tighten each screw a little at a time, then move onto the next screw. Repeat this process until all
screws are fully tightened. This will help keep the machine in proper alignment.
STEP 6. Before tightening the FLAT HEAD SCREWS on the LIFTING BAR, run the bar up and down
the vertical linear rods a few times and verify that it moves up and down smoothly. Tighten the
flat head screws.
IMPORTANT! After tightening the flat head screws, ensure that the lifting bar rotates freely to
engage and disengage the bar from the catch hooks.
ASSEMBLY

11
ASSEMBLY
$
6/,'(:$9(:$6+(5621
%$5%()25($66(0%/,1*
726,'()5$0(63(56,'(
'(7$,/$
,7(0
3$57180%(5
'(6&5,37,21
47<
&/3
++6&5(:/2&.,1*3$7&+
&=3
)+6&5(:=3/2&.3$7&+
&
:$6+(5/2&.=3
&&
:$6+(5)/$76$(=3
'
63,5$:$9(635,1*,'
)6%$5;
$66</,)7,1*%$5
)6&%5
:(/'0(17/2:(5&5266%5$&(
)6&%5;
&+,183%$5$66(0%/<
)60)5;
$66<6,'()5$0(/()7
)60)5;
$66<6,'()5$0(5,*+7
,1'
%$5(1'3/$7(

12
ASSEMBLY
,7(0
3$57180%(5
'(6&5,37,21
47<
&3/
%803(500,';007+.
'$
3,1;52//3,16/277('
)63/+;
$66<:(,*+7+251

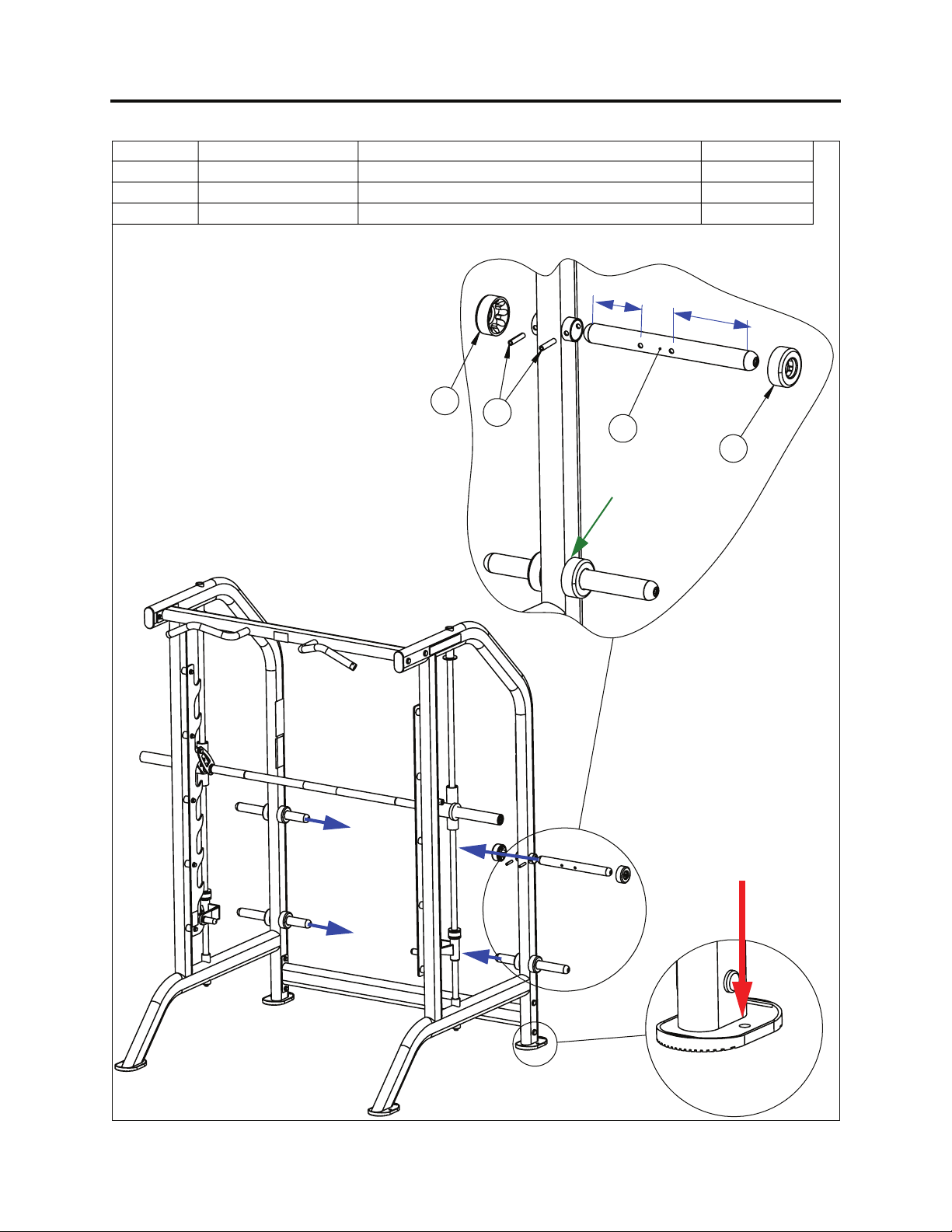

STEP 7. Insert the WEIGHT HORNS into
the frame tube as shown. NOTE that the
holes in the WEIGHT HORNS are not
symmetric. Make sure that the “short
side” is facing into the center of the
machine.
Secure the WEIGHT HORNS to the frame
by tapping the ROLL PINS into the frame
with a steel hammer.
Assemble the Rubber Bumpers on each
side of the WEIGHT HORN so that they
are flush against the vertical oval tube.
N
OTE
D
IMENSION
FLUSH WITH FRAME
Short Side
Faces In
FLOOR ANCHOR
HOLES, TYPICAL
ON ALL FEET.

13
The following arethe warning labels required for this product. If anyof these labels aremissing or
become damaged contact TRUE.Note: these labels are not to scale.
WARNING LABELS
LBL-WRN-0012 LBL-WRN-0018
B547
B2082A
B2315
B2060A
LBL-PR-FS30

14

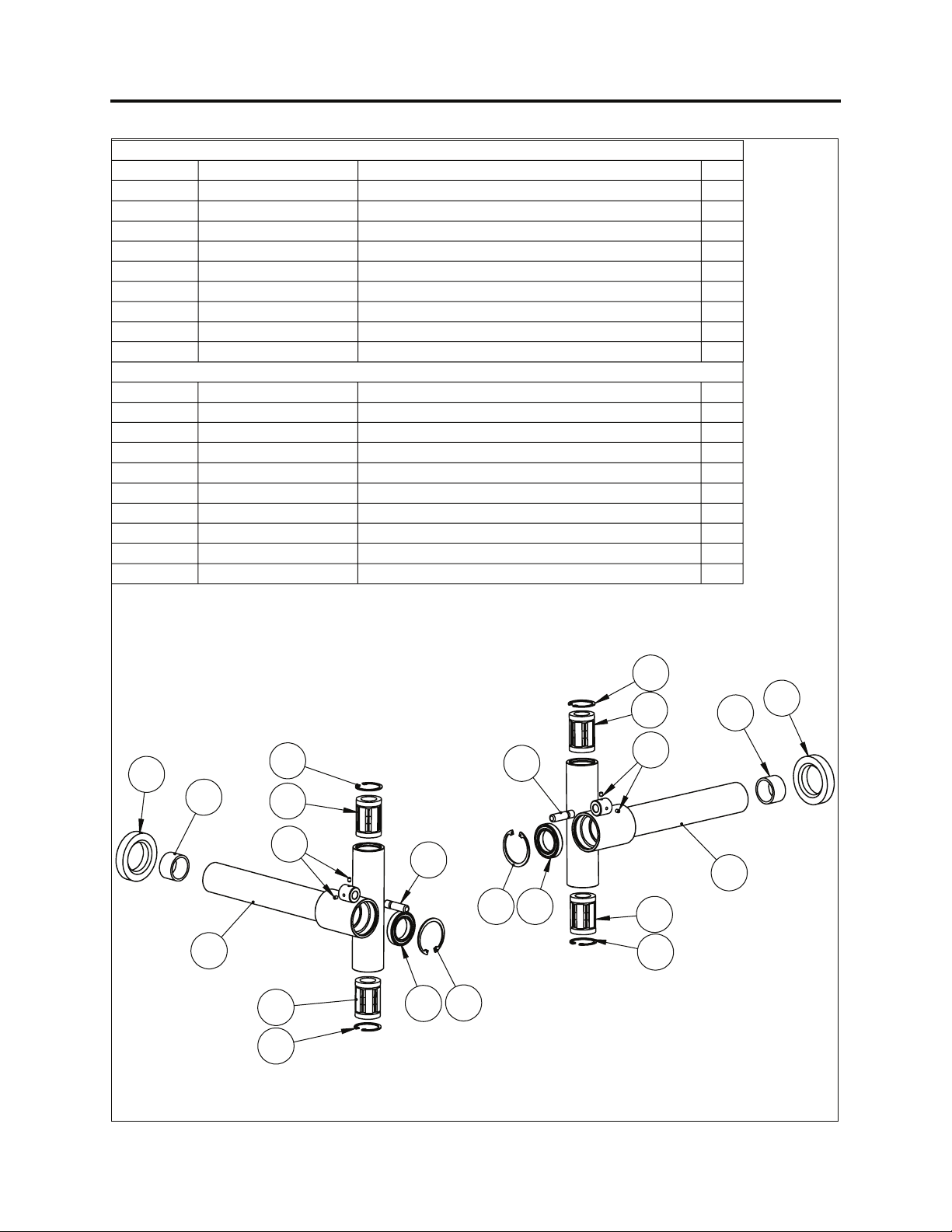

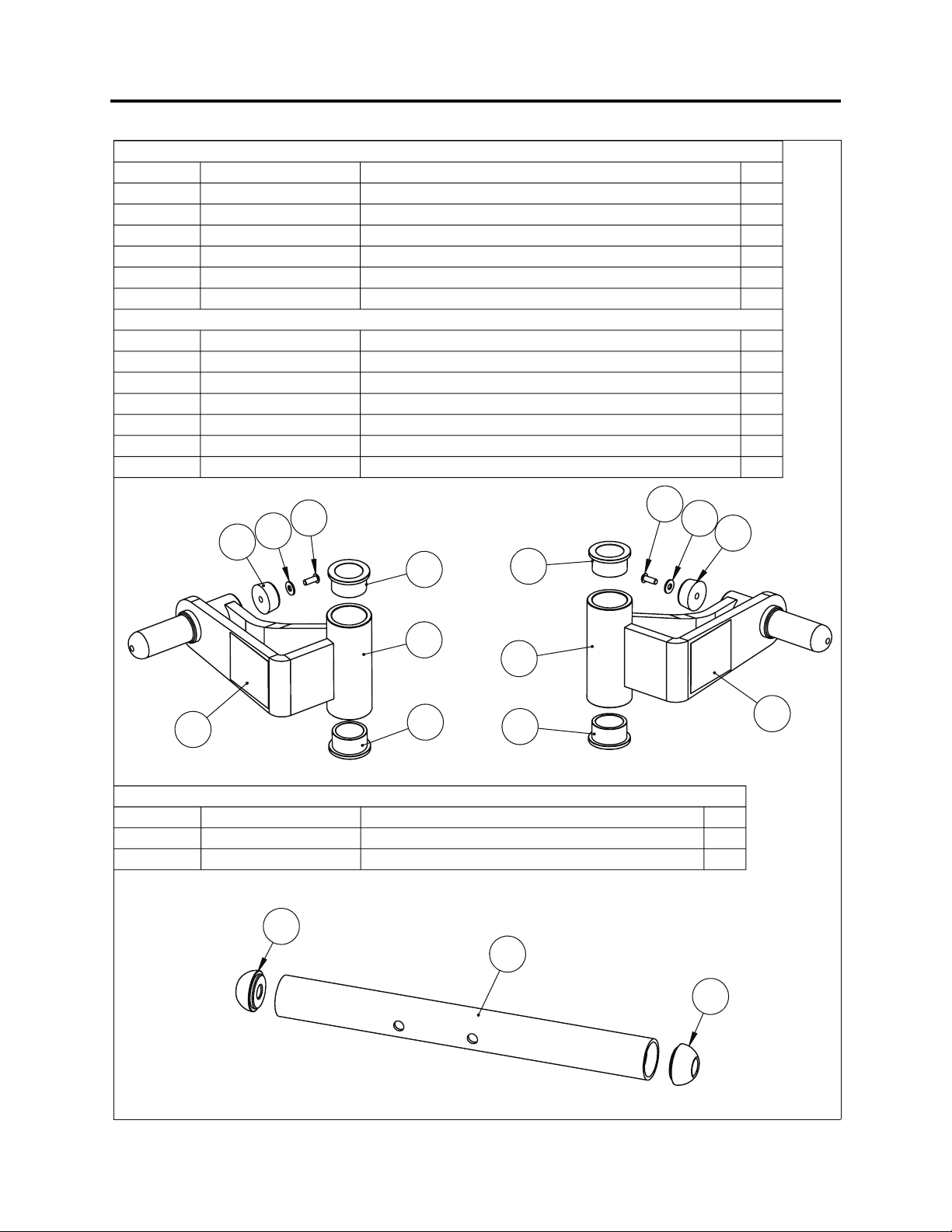

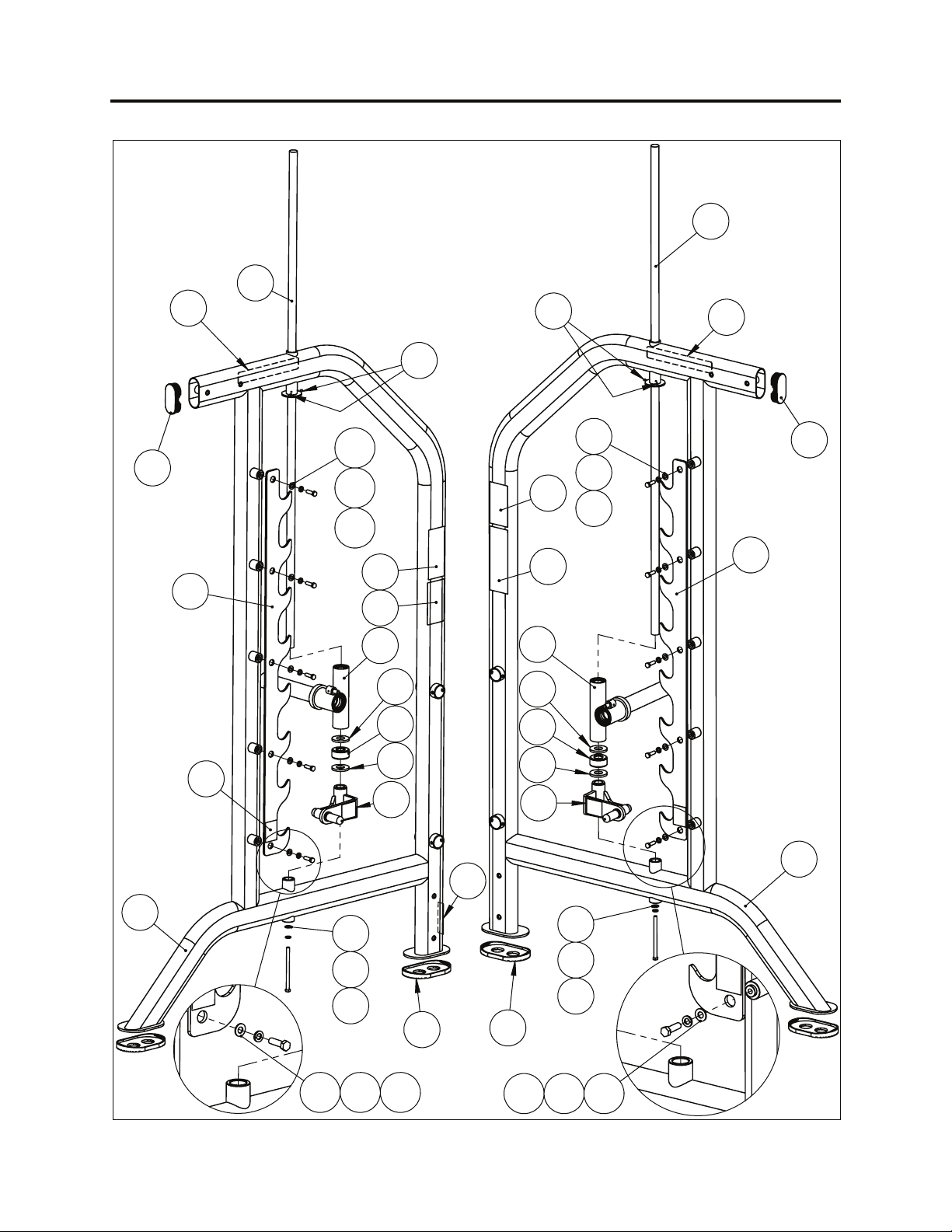

PARTS DIAGRAMS
)60)5;/()76,'()5$0($66(0%/<
,7(0
3$57180%(5
'(6&5,37,21
47<
%
/$%(/0$,17(1$1&(6&+('8/(
&%
;&8332,176(76&5(:
&/3
++6&5(:/2&.,1*3$7&+
&
++6&5(:
&
:$6+(5/2&.=3
&&
:$6+(5)/$76$(=3
&;7
%803(500,';002';007+.
)6&3/
&$7&++22.3/$7(6,1*/(6,'('
)6/5'
/,1($56+$)7+$5'(1('&+520(3/$7('
)60)5
:(/'0(176,'()5$0(/()7
)6673;
$66<6$)(7<6723/()76,'(
)67/<;
$66<752//(</()76,'(
,79
)227'28%/(29$/;
,7
(1'3/8*;5$&(75$&.29$/
/%//2*
/2*23$5$02817
/%/35)6
/$%(/,17(1'('86(
/%/:51
/$%(/:$51,1*)660,7+6$)(7<&$7&++(,*+7
3
:$6+(500,';002';007+.
6(5,$/7$*
/$%(/6(5,$/180%(5
)60)5;5,*+76,'()5$0($66(0%/<
,7(0
3$57180%(5
'(6&5,37,21
47<
%$
/$%(/*(1(5$/:$51,1*
%$
/$%(/60,7+0$&+,1(*(1(5$/:$51,1*6
&%
;&8332,176(76&5(:
&/3
++6&5(:/2&.,1*3$7&+
&
++6&5(:
&
:$6+(5/2&.=3
&&
:$6+(5)/$76$(=3
&;7
%803(500,';002';007+.
)6&3/
&$7&++22.3/$7(6,1*/(6,'('
)6/5'
/,1($56+$)7+$5'(1('&+520(3/$7('
)60)5
:(/'0(176,'()5$0(5,*+7
)6673;
$66<6$)(7<67235,*+76,'(
)67/<;
$66<752//(<5,*+76,'(
,79
)227'28%/(29$/;
,7
(1'3/8*;5$&(75$&.29$/
/%//2*
/2*23$5$02817
/%/:51
/$%(/:$51,1*)660,7+6$)(7<&$7&++(,*+7
3
:$6+(500,';002';007+.

15
PARTS DIAGRAMS

16
/()76,'()$&,1*0$&+,1(
5,*+76,'()$&,1*0$&+,1(
)67/<;752//(<$66(0%/</()76,'(
,7(0
3$57180%(5
'(6&5,37,21
47<
&%
;&8332,176(76&5(:
'$
/,1($5%$//%86+,1*006+$)7
'
%$//%($5,1*,'[2'[:
)6%5*
6/((9(%86+,1*%$5
)67/<
:(/'0(17752//(</()7
)67/<
&$7&++22.75$9(/6723
*%)+
5(7$,1,1*5,1*00%25(
*%)+
5(7$,1,1*5,1*00%25(
.36+&6
%803(52';,';7+,&.
)67/<;752//(<$66(0%/<5,*+76,'(
,7(0
3$57180%(5
'(6&5,37,21
47<
&%
;&8332,176(76&5(:
'$
/,1($5%$//%86+,1*006+$)7
'
%$//%($5,1*,'[2'[:
)6%5*
6/((9(%86+,1*%$5
)67/<
:(/'0(17752//(<5,*+7
)67/<
&$7&++22.75$9(/6723
*%)+
5(7$,1,1*5,1*00%25(
*%)+
5(7$,1,1*5,1*00%25(
.36+&6
%803(52';,';7+,&.
PARTS DIAGRAMS

17
PARTS DIAGRAMS
)6673;6$)(7<6723$66(0%/</()76,'(
,7(0
3$57180%(5
'(6&5,37,21
47<
%
/$%(/:$51,1*86(6$)(7<&$7&+(6
&(
%+6&5(:
&$
:$6+(5)/$7866
'
%86+,1*)/,';/*
)6673
:(/'0(176$)(7<6723
3%*
%803(5002';00+,*+6&5(:
)6673;6$)(7<6723$66(0%/<5,*+76,'(
,7(0
3$57180%(5
'(6&5,37,21
47<
%
/$%(/:$51,1*86(6$)(7<&$7&+(6
&(
%+6&5(:
&$
:$6+(5)/$7866
'
%86+,1*)/,';/*
)6673
:(/'0(176$)(7<6723
3%*
%803(5002';00+,*+6&5(:
)63/+;:(,*+7+251$66(0%/<
,7(0
3$57180%(5
'(6&5,37,21
47<
)63/+
:(/'0(17:(,*+7+251
,7
(1'&$3',$0(7(5+251

18
PARTS DIAGRAMS
)6%$5;/,)7,1*%$5$66(0%/<
,7(0
3$57180%(5
'(6&5,37,21
47<
'$
;635,1*3,1&2,/('
)6%$5
:(/'0(17/,)7,1*%$5
)6&+.
:(/'0(17&$7&++22.
)6&%5;&+,183%$5$66(0%/<
,7(0
3$57180%(5
'(6&5,37,21
47<
%
$/80,180(1'&$3,'
)6&%5
:(/'0(17&+,183%$5
)6*53
*5,3&+,183%$5
)6*53B
*5,3&+,183%$5
+)$
3/8*2';,'78%(
/%/:51
/$%(/'2127$77$&+675$36

True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truetness.com
Page # 19 of 21
Strength (FS Line)
FS-30
All TRUE® Fitness products are distributed by TRUE and are
warranted to the original registered product purchaser and the
parts of the TRUE product (the “Product”) listed below, under
normal use and service, shall be free of manufacturing defects
in workmanship and materials only for the period of time
beginning from the original date of purchase set forth below:
Frame* 10 Years
Parts
Bearings, Bushings, and Weight Plates
Guide Rods and Pulleys
Cables and Belts
Cosmetics, Coatings, Grips, and Upholstery
5 Years
5 Years
1 Year
3 Months
Labor
Frame
Bearings, Bushings, Weight Plates
Guide Rods and Pulleys
Cables and Belts
Cosmetics, Coatings, Grips, and Upholstery
1 Year
1 Year
1 Year
1 Year
3 Months
NOTE: Warranty valid for USA and Canada only.
NOTE: Failure to register this product will result in no
servicing or authorization of parts to be shipped.
NOTE: Buying after-market products from a 3rd party will
result in voided warranty.
NOTE: This product is intended for Commercial use. If this
product will not be used in this particular setting, please
contact TRUE as is warranty is void.
Frame: The frame is warranted for defects in material and
workmanship for a 10 years. The frame is warranted for labor
and freight (for parts shipped from TRUE) for one year from
date of purchase. * This limited warranty on structural frame
does not include paint or coatings.
Parts: The FS Strength Line’s mechanical parts are warranted
for defects in material and workmanship for five years with
one year labor warranty. Cables and belts are warranted for
defects in material and workmanship for one year with one
year labor warranty. This limited warranty does not cover
damage or equipment failure resulting from or caused by
improper assembly/installation, failure to follow instructions
and warnings in owner’s manual, accident, misuse, abuse,
unauthorized modification, or failure to provide reasonable
and necessary maintenance.
Cosmetics: The FS Strength Line cosmetic parts, coatings,
grips and upholstery are warranted for defects
in material and workmanship for three months with labor
warranty to match the parts warranty period. This limited
warranty does not cover damage or equipment failure
resulting from or caused by improper assembly/installation,
failure to follow instructions and warnings in owner’s manual,
accident, misuse, abuse, unauthorized modication, or failure
to provide reasonable and necessary maintenance. This limited
warranty will apply to, but may not be limited to, plastic covers,
shrouds, caps, badges, overlays, paint, coatings, soft step
inserts, and grips.
Labor: Labor is covered for a period of one year from the
date of purchase unless otherwise expressed within this
limited warranty as long as a TRUE authorized service provider
performs the service. Service that requires over 50 miles of
travel may be subject to additional charges. Reasonable and
necessary maintenance guidelines can be found in the owner’s
manual.
Claims Procedure: TRUE Limited Warranty service may be
obtained by contacting the authorized TRUE dealer from
whom the Product was purchased. If the dealer from whom
the Product was purchased is no longer an authorized TRUE
dealer, then TRUE Limited Warranty service may be obtained
by contacting TRUE directly using the following contact
information:
TRUE Fitness, Service Department
865 Ho Road, St. Louis, MO 63366
1.800.883.8783
Hours of operation 8:30am - 5:00 pm CST
Save Time and Register Online!
Activate Multiple Warranties at truetness.com

True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truetness.com
Page # 20 of 21
Strength (FS Line)
FS-30
The above Limited Warranty is subject to and will be in
accordance with the conditions set forth below:
1. THIS LIMITED WARRANTY GIVES YOU SPECIAL LEGAL
RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH
VARY FROM STATE TO STATE.
2. This Limited Warranty can be processed only if the Warranty
Registration Form is completed online, or if the attached form
is lled in, signed by the original purchaser, and mailed to
TRUE within 30 days of purchaser’s receipt of this Product. The
serial number must be intact on the Product for this Limited
Warranty to be valid.
3. This Limited Warranty applies to the product only while the
Product remains in the possession of the original purchaser
and is not transferable
4. This Limited Warranty becomes VALID ONLY if the Product
is initially assembled/installed by a TRUE authorized dealer/
technician (if anyone other than a TRUE authorized dealer/
technician initially assembles and installs the Product, this
Limited Warranty will be void unless the written authorization
of TRUE is rst obtained).
5. This Limited Warranty does not cover damage or equipment
failure resulting from or caused by improper assembly/
installation, failure to follow instructions and warnings in
owner’s manual, accident, misuse, abuse, unauthorized
modication, or failure to provide reasonable and necessary
maintenance (as referenced in thw owner’s manual.)
6. This Limited Warranty applies only to the cost of repair or
replacement of parts and does not include labor (beyond
the above warranty period), transportation, service, return
and freight charges associated therewith except as expressly
specied herein.
7. This Limited Warranty shall not apply to: Service calls to
correct installation of the equipment or instruction to owners
on how to use the equipment; or any labor costs incurred
beyond the applicable labor warranty period.
8. This Limited Warranty, which is given expressely and in lieu
of all other express warranties, constitutes the only warranty
made by TRUE.
9. ANY IMPLIED WARRANTY, INCLUDING WITHOUT
LIMITATION THE WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE, IS LIMITED IN
DURATION AND REMEDY TO THE TIME PERIOD COVERED
BY THE LIMITED WARRANTY. SOME STATES DO NOT ALLOW
LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY
LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
10. THE REMEDIES DESCRIBED ABOVE ARE YOUR SOLE
AND EXCLUSIVE REMEDIES AND TRUE’S ENTIRE LIABILITY
FOR ANY BREACH OF THIS LIMITED WARRANTY. TRUE’S
LIABILITY SHALL UNDER NO CIRCUMSTANCES EXCEED
THE ACTUAL AMOUNT PAID BY YOU FOR THE PRODUCT,
NOR SHALL TRUE UNDER ANY CIRC UMSTANCES BE LIABLE
FOR ANY CONSEQUENTIAL, INCIDENTIAL, SPECIAL, OR
PUNITIVE DAMAGES OR LOSSES, WHETHER DIRECT OR
INDIRECT. SOME STATES DO NOT ALLOW THE EXCLUSION
OR LIMITATION OF INCIDNETIAL OR CONSEQUENTIAL
DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY
NOT APPLY TO YOU.
NOTE TO AUTHORIZED WARRANTY LABOR PROVIDERS:
Warranty labor reimbursement or warranty parts rights may
not be transferred to, reassigned to, a third party without the
express written consent of TRUE. Even jobbing out warranty
labor requires TRUE’s written approval.
FS STRENGTH LINE SERIAL NUMBER:
The FS-30 comes with one serial number on the base of the
machine. Please write down your serial number below and keep
for your records.
SERIAL NUMBER:
SAMPLE SERIAL NUMBER STICKER:
Save Time and Register Online!
Activate Multiple Warranties at truetness.com
Keep this page for your records
Other manuals for SMITH MACHINE FS-30
1
Table of contents
Other True Fitness Equipment manuals

True
True Fuse XL-1200 User manual

True
True SPL-1700 User manual

True
True FT-900 User manual

True
True Fuse XL-0900 User manual

True
True SM1050 User manual

True
True SC1010 User manual

True
True PLS0500 User manual

True
True Fuse XL-0400 User manual

True
True FORCE SD1001 User manual

True
True Palladium TMS2000 User manual
Popular Fitness Equipment manuals by other brands

BH FITNESS
BH FITNESS R307 Instructions for assembly and use

Skandika
Skandika Styrke II instruction manual

Keys Fitness
Keys Fitness Power System KPS-LCS owner's manual

Slendertone
Slendertone EVERVIVE instruction manual

PRx Performance
PRx Performance Profile PRO installation instructions

VIRTUFIT
VIRTUFIT Ultimate Pro 2 manual
