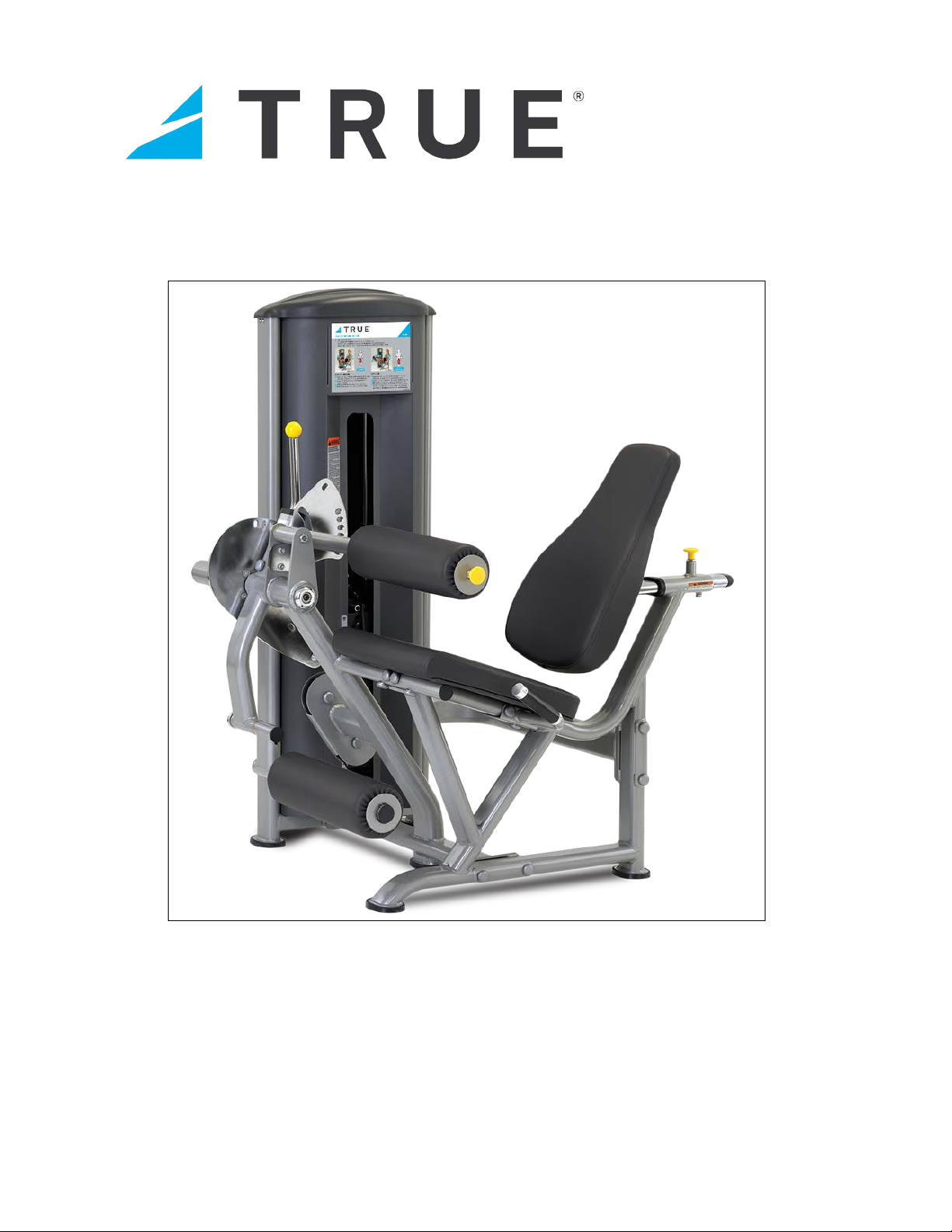

True FS-50 User manual

FS-50
L
EG E XTENSION /C URL
A SSEMBLY M ANUAL
Model: FS50
Rev: 030620

2
Frank Trulaske began TRUE Fitness® over thirty-five year ago with the simple philosophy of
delivering superior fitness products, service, and support. Today, TRUE is the global leader in
premium fitness equipment for the commercial and residential markets. Our goal is to be the
leader in technology, innovation, performance, safety and style. TRUE has received many
awards for its product over the years and remains the benchmark for the industry. Fitness
facilities and consumers invest in TRUE products for their durable commercial platforms used
in all its products, both commercial and residential alike.
The proud manufacturing tradition of quality and the culture of innovation at TRUE have
given rise to a full line of extraordinary cardio and strength equipment. As a result, people all
over the world are benefiting from the TRUE experience. Innovation across the full product
line has made TRUE successful and is a trademark of the TRUE heritage. TRUE’s patented
Heart Rate Control technology is just one of the remarkable ways we deliver simple and
superior performance every user can enjoy, and most importantly, use to achieve personal
health and fitness goals.
At the heart of our success is the relentless and systematic life testing of both our products and
their components. We have dedicated employees who understand our philosophy is to deliver
the best products in the world.
Our goal is to deliver the world’s best premium equipment for our customers’ health and
fitness solutions.
A MESSAGE TO OUR CUSTOMERS

3
S AFETY ...................................................................................................................... 4
G
ENERAL C ARE AND M AINTENANCE ........................................................................... 7
D

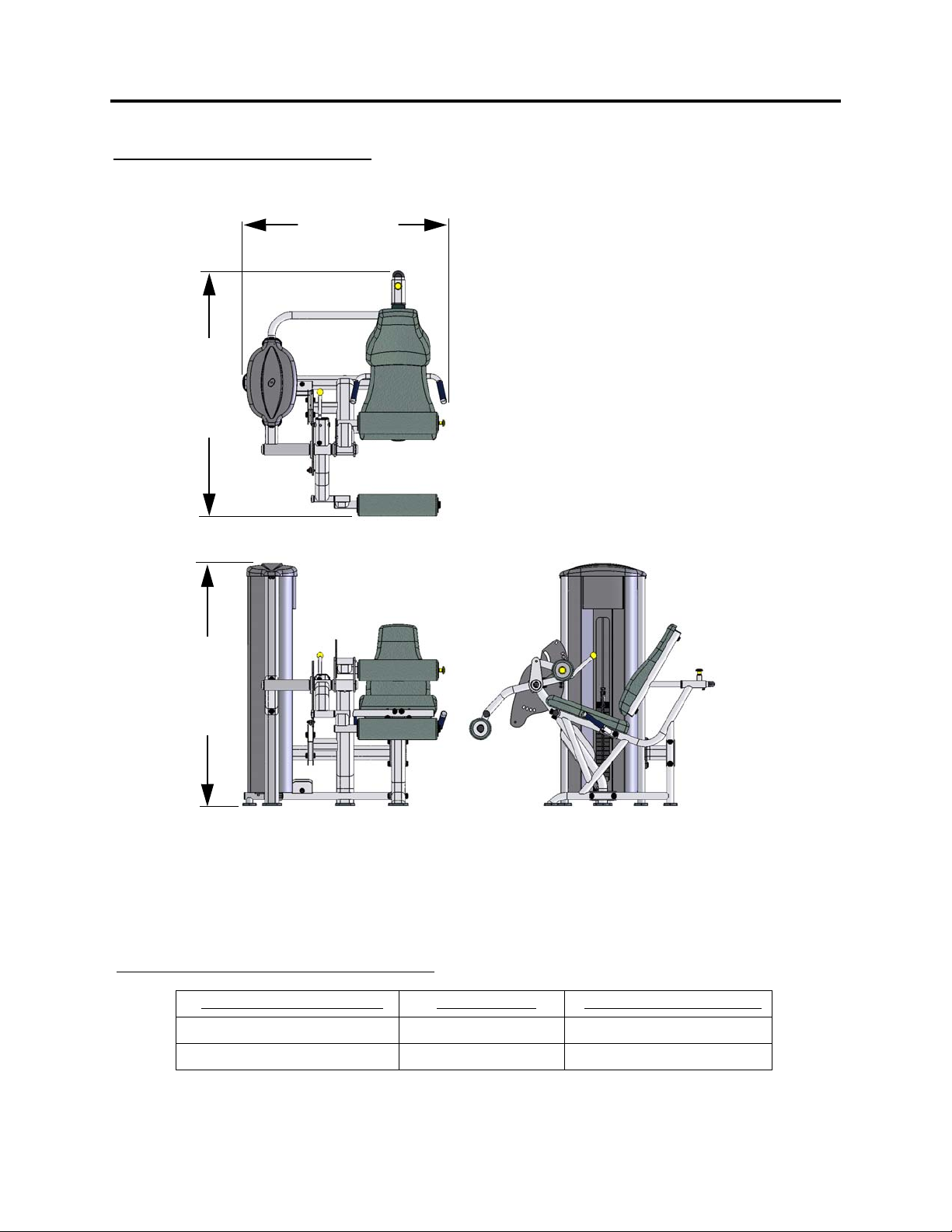

IMENSIONS AND W EIGHT ........................................................................................... 8
P

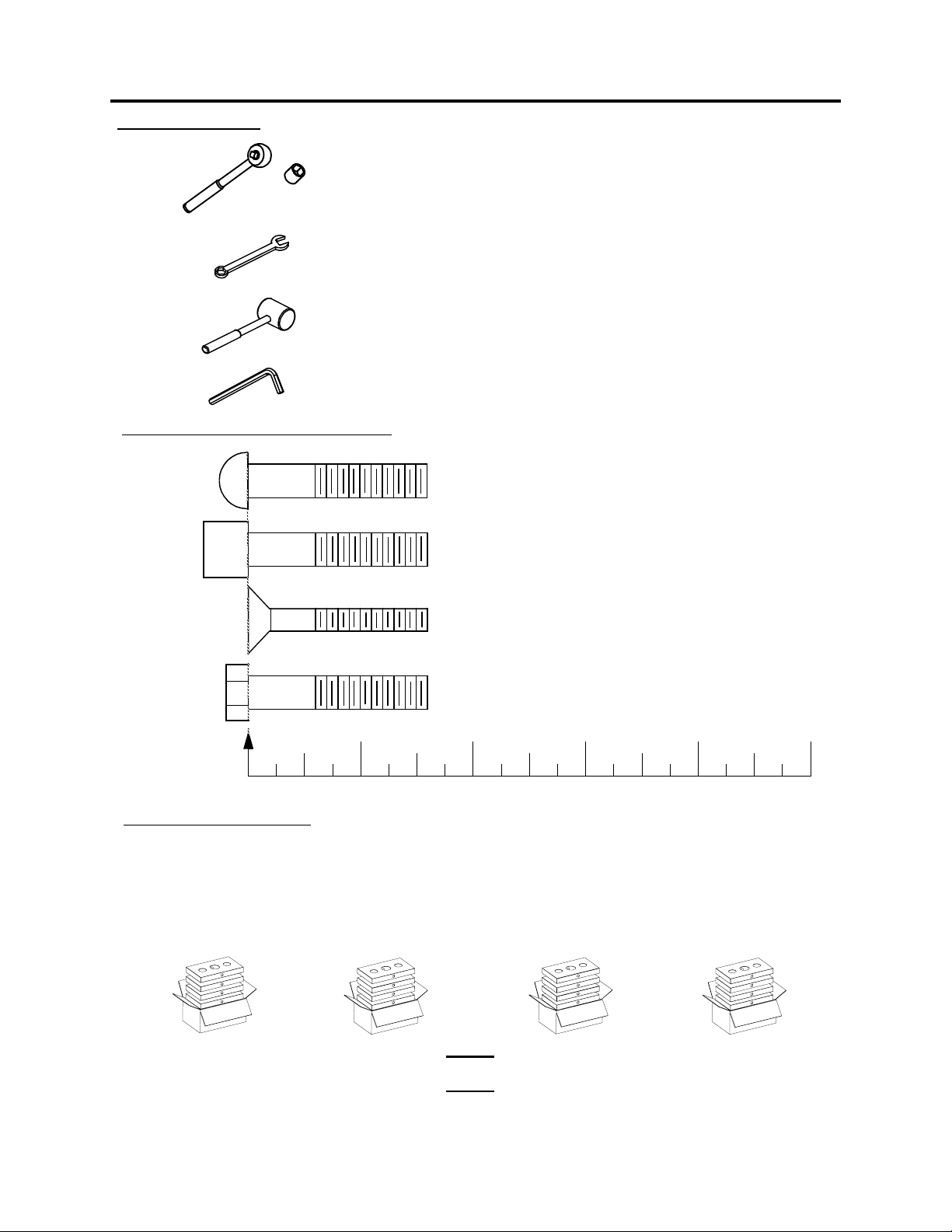

REPARATION ............................................................................................................. 9
B

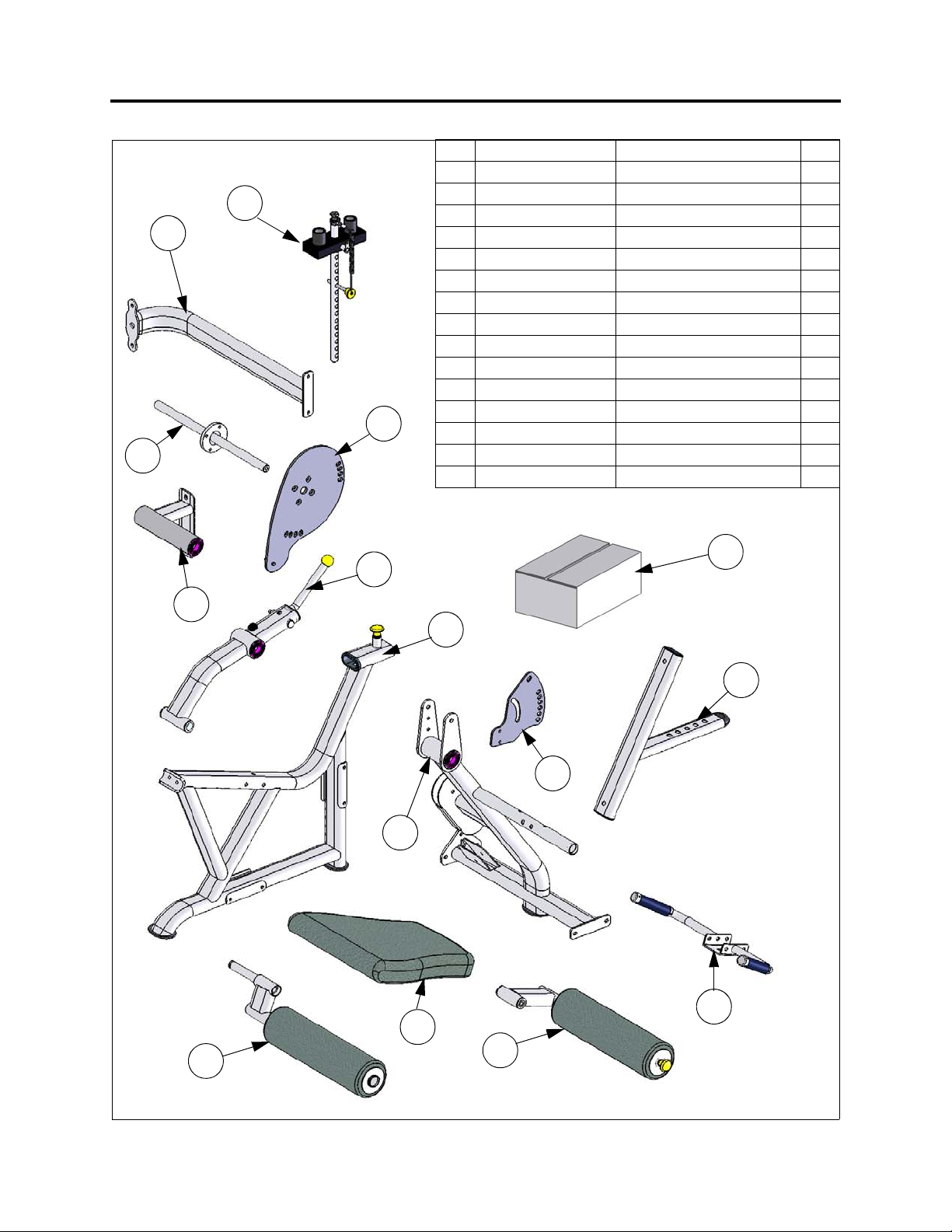

OX 1 C ARTON C ONTENTS ............................................................................................ 10
B
OX 2 C ARTON C ONTENTS ............................................................................................ 11
I
NSTALLATION & A SSEMBLY
S TEP 1: A SSEMBLE THE F RAME C OMPONENTS ................................................. 12
S
TEP 2: A SSEMBLE THE P ADS AND H ANDLES ................................................... 14
S

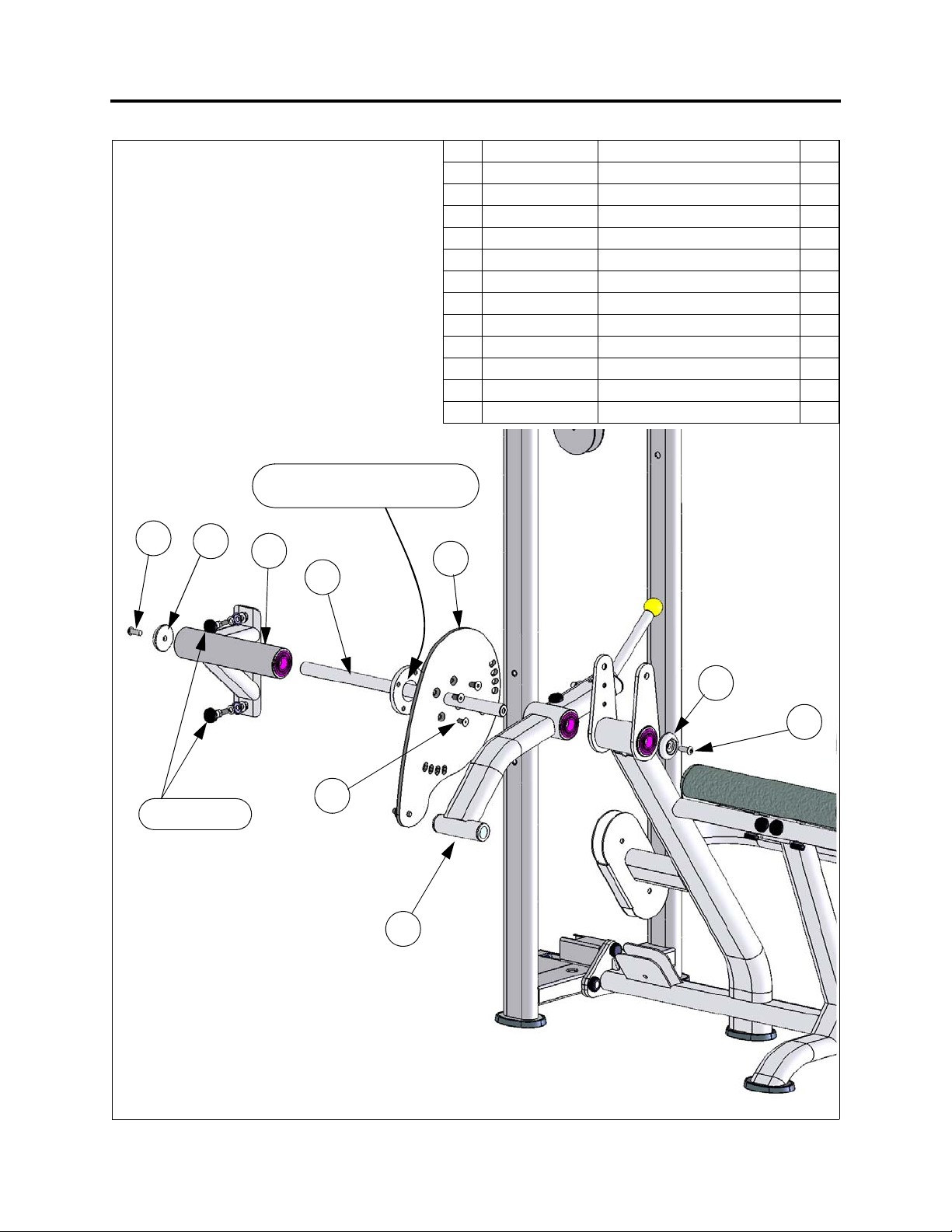

TEP 3: A SSEMBLE THE A RM AND A XLE .......................................................... 15
S

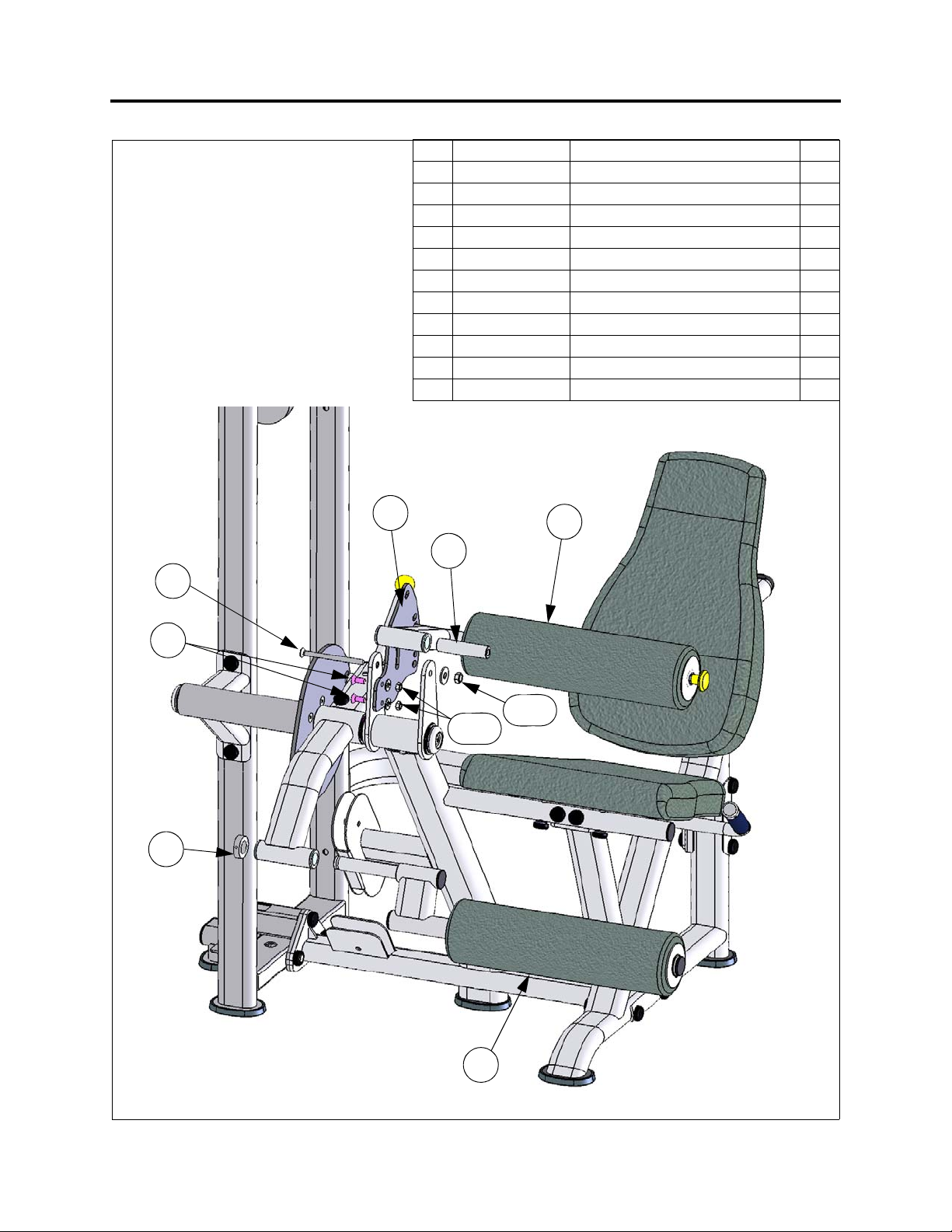

TEP 4: A SSEMBLE THE R OLLERS ..................................................................... 16
S

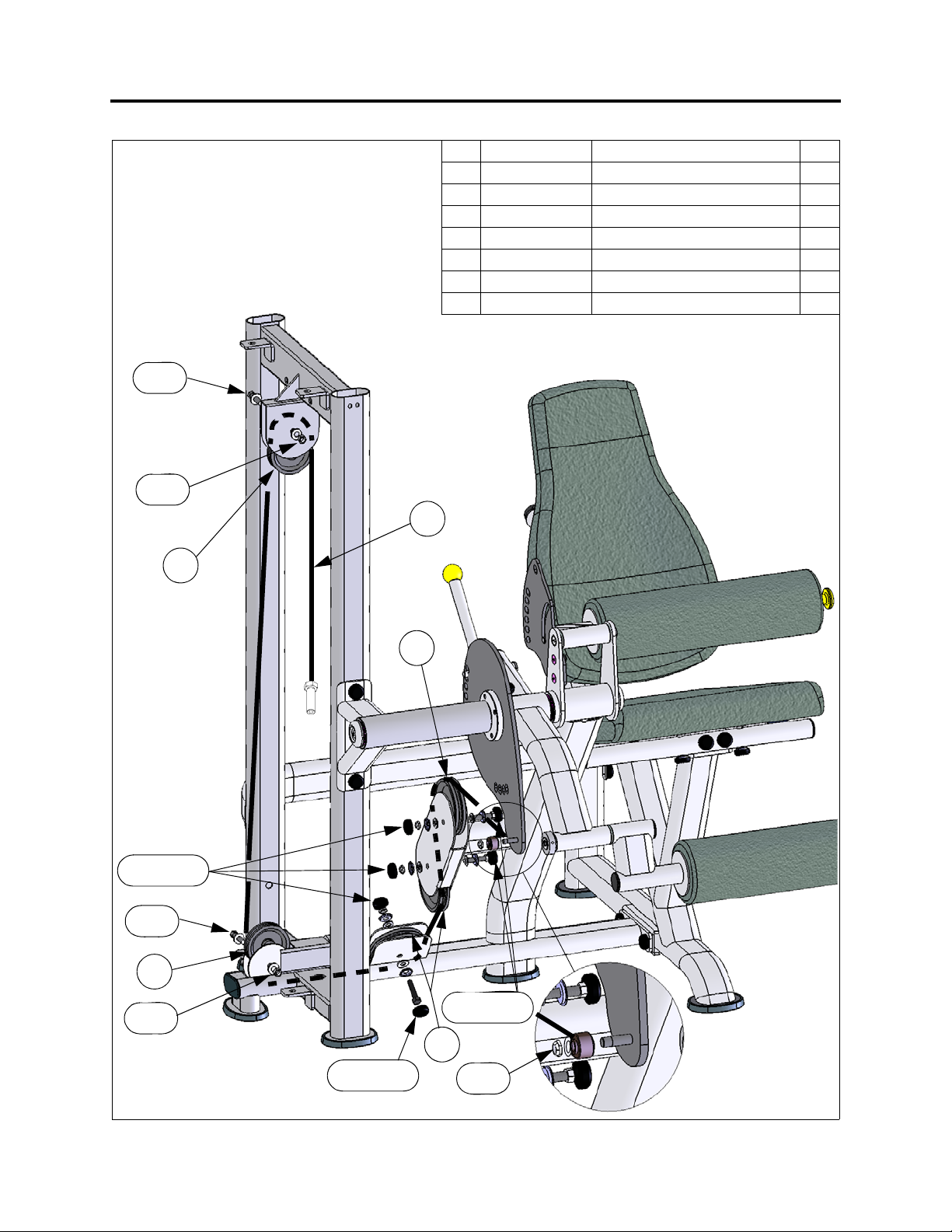

TEP 5: A SSEMBLE THE C ABLE AND P ULLEYS ................................................. 17
S
TEP 6: A SSEMBLE THE W EIGHT S TACK ........................................................... 18
S
TEP 7: I NSTALL THE F RONT S HROUD .............................................................. 19
S
TEP 8: I NSTALL THE R EAR S HROUD AND T OP C AP ......................................... 20
S
TEP 9: I NSTALL THE W EIGHT S TACK L ABEL ................................................... 21
M
ACHINE L ABELS ........................................................................................................ 22
S
ERVICE ..................................................................................................................... 23
B
OLTING THE M ACHINE TO THE F LOOR ............................................................................ 24
W
ARRANTY ................................................................................................................. 25
TABLE OFCONTENTS

4
F ACILITY AND U SER S AFETY P RECAUTIONS
1. Review and understand all of the warning labels affixed to this machine and on the facility
safety sign.
2. Be certain that the machine operation is understood before it is used. Refer tothe
instructional Procedure Label affixed to the machine.
3. Make sure all usersare properly trained on how to use this equipment. If this machine is
being used in a commercial setting, end users may not have access tothis Owners Manual. It
is the responsibility ofthe facility toinstruct users as tothe proper usage of the equipment as
well as making them aware of potential hazards.
4. Use each machine only for the intended exercise. Do not allow anyone to invent exercises not
included on the Instructional Procedure Label or the Intended Use Label.
5. Do not modify the machine.
6. This equipment meets industry safety standards for stability when used for the intended
exercise. Do not allow straps, resistance bands or other means tobeattached tothe
framework of this machine toperform stretching or body weight exercises. This canresult in
machine instability and lead to serious crushing injuries.
7. Keep children away from this equipment. Adults should closely supervise use by teenagers.
8. It is recommended that users receive a thorough medical exam before commencing an
exercise program. All medical issues should bereviewed toensure that weight training will
not aggravate pre-existing medical conditions.
9. If the machine appears damaged or inoperable, contact a facility staff member to place an
“OUT OF ORDER, DO NOT USE” sign onthe machine until itisrepaired. Only use TRUE
supplied replacement components toservice this machine.
10. Instruct users not to wearloose or dangling clothes or have headphone wires hanging
when using this equipment.
11. Do notattempt to free anyjammed assemblies byyourself as this maycause injury.
12. On Plate Loaded and Free Weight machines:
12a. Use of spotter(s). Instruct users toseek the advice ofthe facility staff as to the
appropriate use of spotters when lifting. More then one spotter may be required
depending upon the amount of weight being lifted.
12b. Instruct users to load weight plates evenly and carefully (one side and then the other)
to avoid tipping equipment and crushing injuries.
12c. If the machine is equipped with safety stops or catches, inspect them and verify their
proper operation before use and make sure they are securely in place before using or
exiting the machine. Be certain members are instructed on how to operate and adjust
all safety mechanisms.
SAFETY

5
12d. This equipment is designed for standard olympic size weight plates with a 50mm bore
(1.9”).
12e. Do not exceed the maximum weight capacity of the machine. Maximum plate size is
45 lbs. (25 kg.).
13. On Selectorized and Cable equipped machines:
13a. Do not allow users to perform any exercise by holding the end of the cable and/or the
cable end fitting. Use only appropriate handles or attachments properly connected to
the cable end.
13b. Do not high-pin or double-pin the weight stack. Do not allow the machine to be used if
the top plate or weight stack is pinned in a raised position. Use an assistant and
carefully return the machine to the proper position with the cap plate resting on the top
weight. Inspect the entire length of the cable to ensure that it is properly seated in all
of the pulley grooves.
13c. Do not allow the use of weight plates or dumbbells to be used as a means to add
additional weight totheweight stacks. Use only the TRUE adder weight system
specifically designed for themachine.
I NSTALLATION S AFETY P RECAUTIONS
1. Read this Installation Manual entirely before assembling this equipment.
2. Verify that there is adequate space surrounding this piece of equipment for safe access and
operation. Installation must meet ADA requirements for accessibility.
3. Install this piece of equipment on a solid level surface that does not deviate more then 1/8”
over a 10’ distance (or as defined and required by local building and architectural codes.
4. TRUE strongly recommends that all equipment be anchored to the floor to prevent movement
and increase stability.
• Due to the wide variation of flooring on which the unit can be installed, contact a
qualified contractor todetermine an appropriate fastening system for your floor.
•Use 3/8” diameter hardware (10 mm) to anchor the machine. Anchors should have a
minimum pull outforce of 220 lbs (110 kgs) for each position.
•When attaching the machine to the floor, if there is a gap between the machine foot
and the floor, donot use the anchor toremove the gap as this can cause the
machine frame to deform. Instead, place ashim between the bottom of the foot and
the floor, then tighten theanchor.
•Anchoring holes are provided on the feet ofthe frame. All anchoring locations must
be used when anchoring the equipment to the floor.
5. DO NOT install any fitness equipment near a pool, hot tub or other damp locations. Corrosion
caused by installation in these locations can lead topremature failure of components.
6. Be sure all hardware is tight before using this machine.
SAFETY
