True TPP-67D-2 User manual

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).
ROUGH-IN DATA
St. Charles Industrial Center • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • FAX [phone] • [phone] • www.truemfg.com
Parts Dept. (800)424-TRUE • Parts Dept. FAX# [phone]
Model:
TRUE FOOD SERVICE
EQUIPMENT, INC.
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
Printed in U.S.A.
APPROVALS:
T RUE R EFRIGERATION
MADE IN
SINCE 1945
U.S.A.
TM
TPP-67D-2
TPP-67D-2
Model
Doors/
Drawers
Capacity
(Cu. Ft.)
(liters) Shelves
Pans
(top)
Cabinet Dimensions
(inches)
(mm)
L** D†H* HP Voltage Amps
NEMA
Config.
Cord
Length
(total ft.)
(total m)
Crated
Weight
(lbs.)
(kg)
TPP-67D-2 1/2 20.6
524
2967
1/4
1709
321/4
820
353/4
909
1/3
1/3
115/60/1
230-240/50/1
8.6
4.1
5-15P
▲
7
2.13
435
198
** Length does not include 1/4 " (7 mm) each side for lid pins and 1/4 " (7 mm) each side for cutting board brackets and thumb screws.
†Depth does not include 1
" (26 mm) for rear bumpers and 3 " (77 mm) for cutting board.
* Height does not include 61/4
" (159 mm) for castors or 6 " (153 mm) for optional legs. ▲Plug type varies by country.
7/05
R

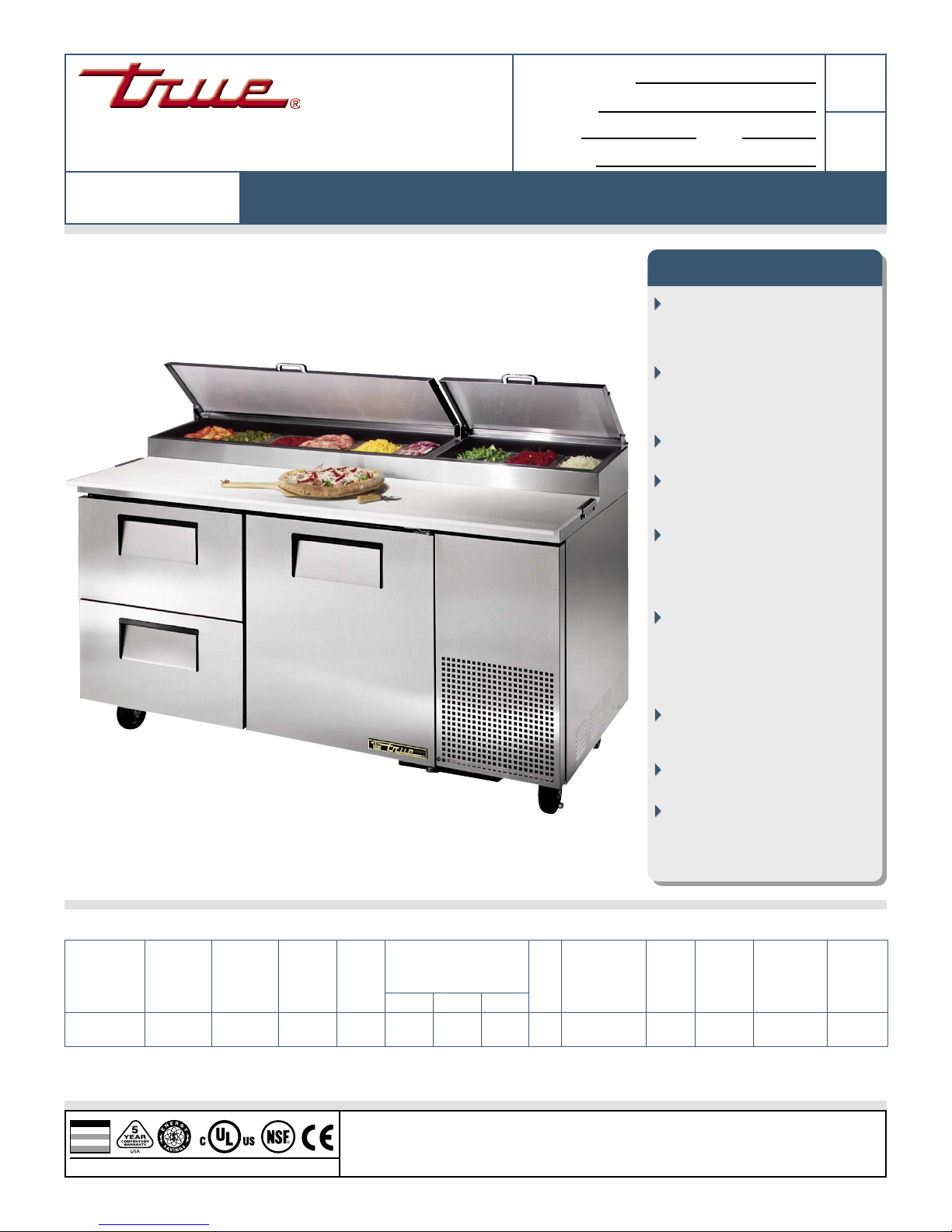

True’s pizza prep tables are
designed with enduring quality
that protects your long term
investment.
Oversized, environmentally
friendly (R134A) forced-air
refrigeration system holds 33°F to
41°F (.5°C to 5°C).
Complies with and listed under
ANSI/NSF-7-1997-6.3.
All stainless steel front, top
and cabinet ends. Matching
aluminum finished back.
Stainless steel, patented,
foam insulated flat lids keep
pans’ temperature colder, lock
in freshness, and minimize
condensation.
Extra-deep 191/2" (496 mm) full
length removable cutting board
included. Sanitary, high-density,
NSF approved white polyethylene
provides tough preparation
surface.
Foamed-in-place, high density
polyurethane insulation (CFC
free).
Heavy duty PVC coated wire
shelves.
Each drawer accommodates (2)
12"L x 20"W x 8"D (305 mm x
508 mm x 204 mm) pans (sold
separately).
Pizza Prep Table:
Solid Door and Drawered Refrigerator
®

STANDARD FEATURES
Model:
TRUE FOOD SERVICE EQUIPMENT
St. Charles Industrial Center • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • FAX [phone] • [phone] • www.truemfg.com
WARRANTY
One year warranty on all parts
& labor and an additional 4 year
warranty on compressor.
(U.S.A. only)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE

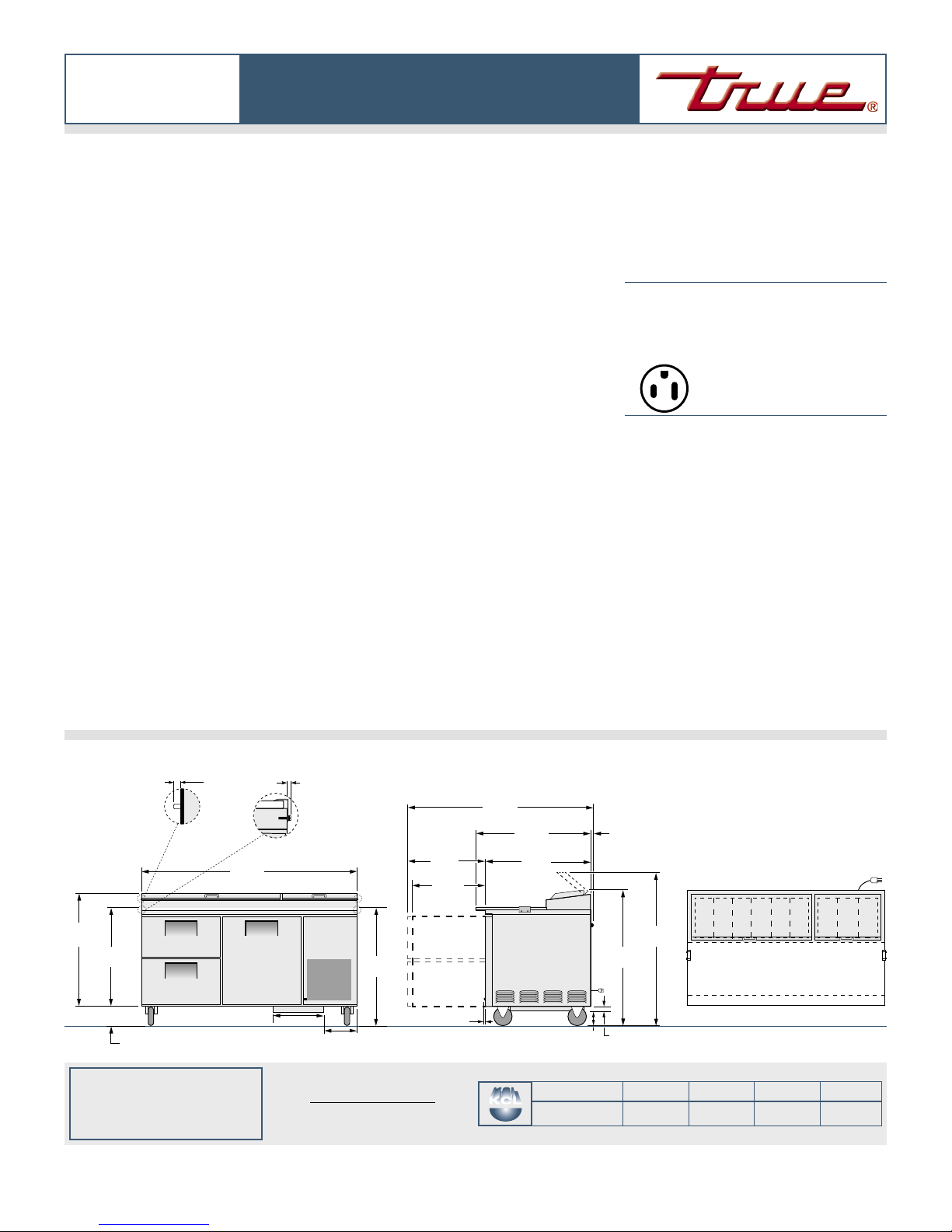

Model Elevation Right Plan 3D
PLAN VIEW
KCL
255/8"
(651 mm)
ELEVATION
123/4"
(324 mm) 81/4"
(210 mm)
1/4"
(7 mm)
TPP-67D-2 TFQY41E TFQY43S TFQY41P TFQY413
TPP-67D-2
DESIGN
• True’s commitment to using the
highest quality materials and oversized
refrigeration systems provides the user
with colder product temperatures, lower
utility costs, exceptional food safety and
the best value in today’s food service
marketplace.
REFRIGERATION SYSTEM
• Factory engineered, self-contained
capillary tube system using
environmentally friendly (CFC free) R134A
refrigerant.
• Oversized, factory balanced refrigeration
system with guided airflow to provide
uniform temperature in food pan rail and
cabinet interior.
• Forced-air design holds 33°F to 41°F
(.5°C to 5°C) product temperature in food
pans and cabinet interior. Complies with
and listed under ANSI/NSF-7-1997-6.3.
• Condensing unit accessed from front
behind removable panel on right hand
side of cabinet, slides out for easy
maintenance.
CABINET CONSTRUCTION
• Exterior - stainless steel front, top and
cabinet ends. Matching aluminum
finished back.
• Interior - attractive, NSF approved, white
aluminum liner. 300 series stainless floor
with coved corners.
• Insulation - entire cabinet structure and
solid doors are foamed-in-place using
high density, CFC free, polyurethane
insulation.
• 5" (127 mm) diameter stem castors. 36"
(915 mm) work surface height.
DOOR/DRAWERS
• Door and drawers have stainless steel
exterior with white aluminum liner to
match cabinet interior.
• Door swings within cabinet dimensions.
• Heavy duty all stainless steel drawer sides.
• Each door and drawer fitted with
12" (305 mm) long recessed handle
that is foamed-in-place with a sheet
metal interlock to insure permanent
attachment.
• Magnetic door/drawer gaskets of one
piece construction, removable without
tools for ease of cleaning.
SHELVING
• Four (4) adjustable, heavy duty PVC
coated wire shelves 235/8"L x 28"D
(601 mm x 712 mm). Four (4) chrome
plated shelf clips included per shelf.
• Shelf support pilasters made of same
material as cabinet interior; shelves are
adjustable on 1/2" (13 mm) increments.
DRAWER PAN CAPACITY
• Each drawer accommodates (2) 12"L x
20"W x 8"D (305 mm x 508 mm x 204
mm) food pans (sold separately). Drawers
will support varying pan configurations
with pan dividers bars (drawer pans and
divider bars optional).
MODEL FEATURES
• Evaporator is epoxy coated to eliminate
the potential of corrosion.
• Extra-deep 19
1/2" (496 mm) full length
removable cutting board included.
Sanitary, high-density, NSF approved
white polyethylene provides tough
preparation surface.
• Stainless steel, patented, foam insulated
flat lids keep pans’ temperature colder, lock
in freshness and minimize condensation.
• Refrigerated pan rail comes standard with
nine (1/3size) 123/4"L x 61/4"W x 6"D
(324 mm x 159 mm x 153 mm) NSF
approved clear polycarbonate insert pans.
• NFS-7 compliant for open food product.
ELECTRICAL
• Unit completely pre-wired at factory and
ready for final connection to a 115/60/1
phase - 15 amp dedicated outlet. Cord
and plug set included.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may apply.
❒ 230 - 240V / 50 Hz.
❒6" (153 mm) standard legs.
❒6" (153 mm) seismic/flanged legs.
❒ Garnish racks.
❒ Single utility shelf.
❒ Pizza prep service shelf.
❒ 191/2" (496 mm) deep, 1/2" (13 mm) thick,
white polyethylene cutting board.
❒ 191/2" (496 mm) deep, 1/2" (13 mm) thick,
composite cutting board.
❒ Half bun tray rack (door section only).
Holds up to eleven 18"L x 26"D (458 mm x
661 mm) sheet pans (sold separately).
❒ Remote cabinets (condensing unit
supplied by others), consult factory
technical service department for BTU
information.
115/60/1
NEMA-5-15R
RIGHT VIEW
Pizza Prep Table:
Solid Door and Drawered Refrigerator
PAN LAYOUT
671/4"
(1709 mm)
417/8"
(1064 mm)
3511/16"
(907 mm)
321/4"
(820 mm)
355/32"
(893 mm)
587/8"
(1496 mm)
1"
(26 mm)
293/4"
(756 mm)
63/16"
(158 mm)
3515/16"
(913 mm)
259/32"
(643 mm)
4911/16"
(1263 mm)
25/8"
(67 mm)
39/16"
(91 mm)
1/16"
(2 mm)
each side
for lid pins
1/4"
(7 mm)
each side for
Cutting Board
Brackets and
Thumb Screws
