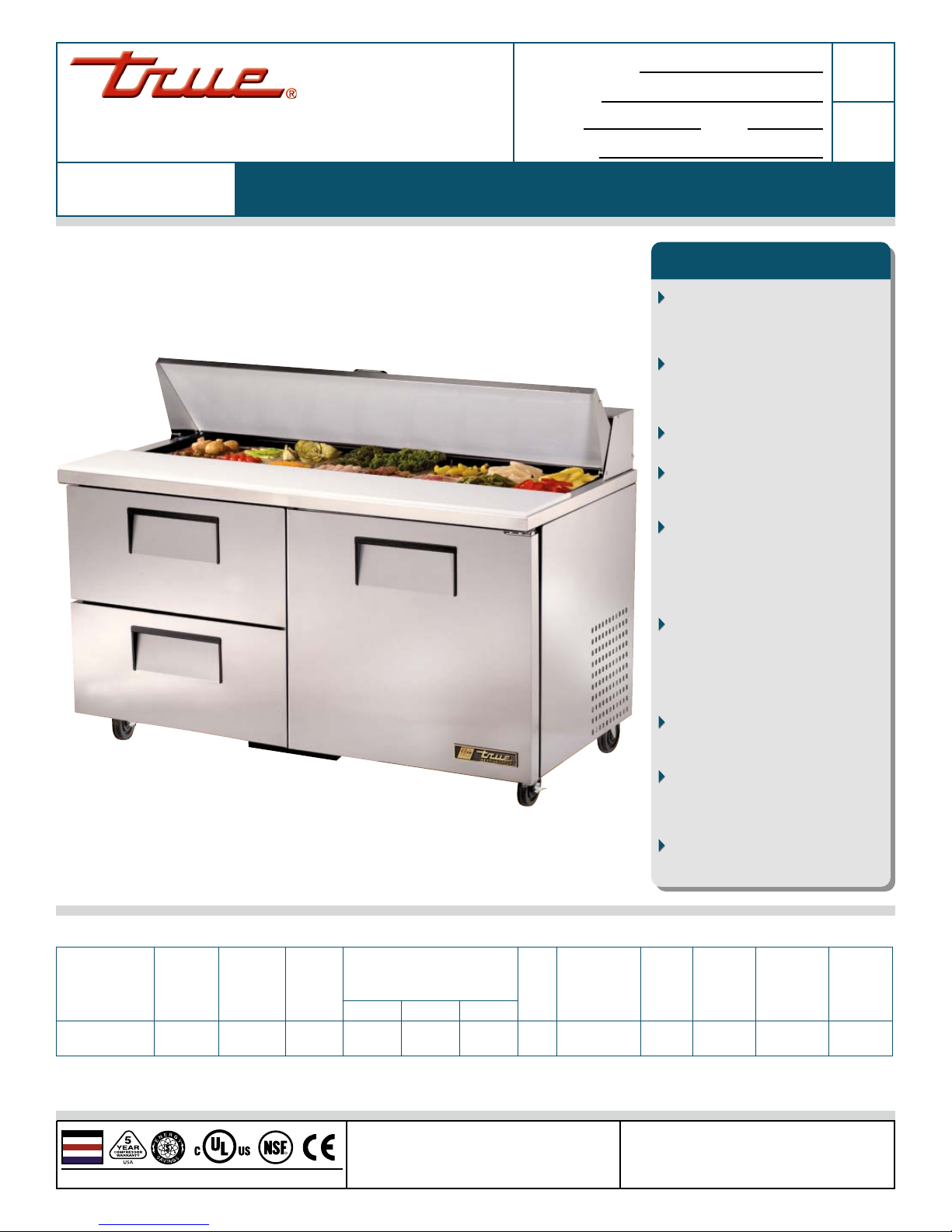

True TSSU-60-16D-2 User manual

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).
ROUGH-IN DATA
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • FAX [phone] • [phone] • www.truemfg.com
Parts Dept. (800)424-TRUE • Parts Dept. FAX# [phone]
Model:
TRUE FOOD SERVICE
EQUIPMENT, INC.
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
Printed in U.S.A.
APPROVALS: AVAILABLE AT:
T RUE R EFRIGERATION
MADE IN
SINCE 1945
U.S.A.
.S.A.
TM
U.S.A.
TSSU-60-16D-2
TSSU-60-16D-2
Model
Doors/
Drawers
Capacity
(Cu. Ft.)
(liters)
Pans
(top)
Cabinet Dimensions
(inches)
(mm)
LD
†H*HP Voltage Amps
NEMA
Config.
Cord
Length
(total ft.)
(total m)
Crated
Weight
(lbs.)
(kg)
TSSU-60-16D-2
1/2 15.5
439
16 603/8
1534
301/8
766
363/4
934
1/3
1/3
115/60/1
230-240/50/1
7.8
4.2
5-15P
▲
7
2.13
400
182
†Depth does not include 1" (25 mm) for rear bumpers. ▲Plug type varies by country.
* Height does not include 61/4" (159 mm) for castors or 6" (153 mm) for optional legs.
6/06
R
True’s salad/sandwich units are
designed with enduring quality
that protects your long term
investment.
Oversized, environmentally
friendly (134A), patented forced-
air refrigeration system holds 33°F
to 41°F (.5°C to 5°C).
Complies with and listed under
ANSI/NSF-7-1997-6.3.
All stainless steel front, top and
cabinet ends. Matching aluminum
finished back.
Stainless steel, patented, foam
insulated lid and hood keep
pans’ temperature colder, lock
in freshness and minimize
condensation. Removable for easy
cleaning.
113/4" (299 mm) deep, full
length removable cutting board
included. Sanitary, high-density,
NSF approved white polyethylene
provides tough preparation
surface.
Foamed-in-place, high density
polyurethane insulation (CFC
free).
Each drawer accommodates (1)
12"L x 20"W x 6"D (305 mm x 508
mm x 153 mm) food pan (sold
separately).
Heavy-duty stainless steel drawer
slides and rollers.
Food Prep Table:
Drawered Sandwich/Salad Unit
®
Location of door/drawers must be indicated at time of ordering

STANDARD FEATURES
Model:
TRUE FOOD SERVICE EQUIPMENT
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • FAX [phone] • [phone] • www.truemfg.com
WARRANTY
One year warranty on all parts
and labor and an additional 4
year warranty on compressor.
(U.S.A. only)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE
Model Elevation Right Plan 3D
PLAN VIEW
KCL
TSSU-60-16D-2 TFNY56E TFNY05S TFNY56P TFNY563
TSSU-60-16D-2
DESIGN
• True’s commitment to using the highest
quality materials and oversized refrigeration
systems provides the user with colder product
temperatures, lower utility costs, exceptional food
safety and the best value in today’s food service
marketplace.
REFRIGERATION SYSTEM
• Factory engineered, self-contained, capillary tube
system using environmentally friendly (CFC free)
134A refrigerant.
• Oversized, factory balanced refrigeration
system with guided airflow to provide uniform
temperature in food pans and cabinet interior.
• Patented forced-air design holds 33°F to 41°F (.5°C
to 5°C) product temperature in food pans and
cabinet interior. Complies with and listed under
ANSI/NSF-7-1997-6.3.
• Sealed, cast iron, self-lubricating evaporator fan
motor(s) and larger fan blades give True sandwich/
salad units a more efficient low velocity, high
volume airflow design.
• Condensing unit access in back of cabinet, slides
out for easy maintenance.
CABINET CONSTRUCTION
• Exterior - stainless steel front, top and cabinet
ends. Matching aluminum finished back.
• Interior - attractive, NSF approved, white aluminum
liner. 300 series stainless floor with coved corners.
• Insulation - entire cabinet structure, solid door,
and drawer facings are foamed-in-place using high
density, CFC free, polyurethane insulation.
• 5" (127 mm) diameter stem castors - locks provided
on front set. 36" (915 mm) work surface height.
DOOR / DRAWERS
• Stainless steel exterior with white aluminum liner
to match cabinet interior.
• Each door and drawer fitted with 12" (305 mm)
long recessed handle that is foamed-in-place
with a sheet metal interlock to insure permanent
attachment.
• Positive seal self-closing door with 90° stay open
feature. Door swings within cabinet dimensions.
• Magnetic door/drawer gasket of one piece
construction, removable without tools for ease of
cleaning.
• Drawer assemblies can be located in any section
of the cabinet. Location of drawers/door must be
indicated at time of ordering.
SHELVING/DRAWER PAN CAPACITY
• Two (2) adjustable, heavy duty PVC coated wire
shelves 271/2"L x 16"D (699 mm x 407 mm). Four
(4) chrome plated shelf clips included per shelf.
• Each drawer accommodates one (1) 12"L x 20"W
x 6"D (305 mm x 508 mm x 153 mm) food pan
(sold separately). Drawer will support varying size
pan configurations with availablepan divider bars
(drawer pans and divider bars optional).
• Heavy-duty stainless steel drawer slides and rollers.
Removable without tools for easy cleaning.
MODEL FEATURES
• Evaporator is epoxy coated to eliminate the
potential of corrosion.
• 113/4" (299 mm) deep, full length removable
cutting board. Sanitary, high-density, NSF
approved white polyethylene provides tough
preparation surface.
• Stainless steel, patented, foam insulated lid and
hood keep pans’ temperature colder, lock in
freshness and minimize condensation. Removable
for easy cleaning.
• NSF-7 compliant for open food product.
PAN CAPACITY
• Comes standard with 16 (1/6size) 67/8"L x 61/4"W
x 4"D (175 mm x 159 mm x 102 mm) clear
polycarbonate, NSF approved, food pans in
countertop prep area. Also accommodates 6"
(153 mm) and 8" (204 mm) deep food pans
(supplied by others).
• Countertop pan opening designed to fit varying
size pan configurations with available pan divider
bars. Varying size pans supplied by others.
ELECTRICAL
• Unit completely pre-wired at factory and ready
for final connection to a 115/60/1 phase - 15 amp
dedicated outlet. Cord and plug set included.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may apply.
❒230 - 240V / 50 Hz.
❒ 6" (153 mm) standard legs.
❒ 6" (153 mm) seismic/flanged legs.
❒ 21/2" (64 mm) diameter castors.
❒ Additional shelves.
❒ Basic overshelf.
❒ Double utility shelf.
❒ Sneezeguard.
❒ 113/4" (299 mm) deep, 1/2" (13 mm) thick,
composite cutting board. Requires “L” brackets.
❒ Crumb catcher. Requires crumb catcher cutting
board for proper installation.
❒ Pan dividers.
❒ Exterior rectanglular digital thermometer (factory
installed).
❒ ADA compliant model with 34" (864 mm) work
surface height.
❒ Remote cabinets (condensing unit supplied
by others; system comes standard with 404A
expansion valve and requires R404A refrigerant),
consult factory technical service department for
BTU information.
115/60/1
NEMA-5-15R
RIGHT VIEW PLAN VIEW
Food Prep Table:
Drawered Sandwich/Salad Unit
ELEVATION
605/16"
(1532 mm)
583/8"
(1483 mm)
31/32"
(25 mm)
3515/16"
(913 mm)
293/4"
(756 mm)
363/4"
(934 mm)
4215/16"
(1091 mm)
7"
(178 mm)
5817/32"
(1487 mm)
157/8"
(404 mm)
301/16"
(764 mm)
185/16"
(466 mm)
83/4"
(223 mm)
61/8"
(156 mm)
4611/16"
(1186 mm)
103/4"
(274 mm) 1"
(26 mm)
125/8"
(321 mm) 63/16"
(158 mm)
243/4"
(629 mm)
2715/32"
(698 mm)
25/16"
(59 mm)
37/8"
(99 mm)
