True TSSU-27-12M-C User manual

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).
ROUGH-IN DATA
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • FAX [phone] • [phone] • www.truemfg.com
Parts Dept. (800)424-TRUE • Parts Dept. FAX# [phone]
Model:
TRUE FOOD SERVICE
EQUIPMENT, INC.
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
Printed in U.S.A.
APPROVALS: AVAILABLE AT:
T RUE R EFRIGERATION
MADE IN
SINCE 1945
U.S.A.
.S.A.
TM
U.S.A.
TSSU-27-12M-C
TSSU-27-12M-C
Model Doors
Capacity
(Cu. Ft.)
(liters) Shelves
Pans
(top)
Cabinet Dimensions
(inches)
(mm)
L** D†H*HP Voltage Amps
NEMA
Config.
Cord
Length
(total ft.)
(total m)
Crated
Weight
(lbs.)
(kg)
TSSU-27-12M-C 1 6.5
185
21227
5/8
702
341/8
867
403/8
1026
1/5
1/4
115/60/1
230-240/50/1
4.9
2.9
5-15P
▲
7
2.13
210
96
** Length does not include 1/8" (4 mm) each side for lid pins. ▲Plug type varies by country.
†Depth does not include 1" (26 mm) for rear bumpers.
*Height does not include 61/4"(159 mm) for castors or 6"(153 mm) for optional legs.
6/06
R
True’s salad/sandwich units are
designed with enduring quality
that protects your long term
investment.
Oversized, environmentally
friendly (134A) patented
forced-air refrigeration system
holds 33°F to 41°F (.5°C to 5°C).
Complies with and listed under
ANSI/NSF-7-1997-6.3.
All stainless steel front, top
and cabinet ends. Matching
aluminum finished back.
Stainless steel, patented, foam
insulated lid and hood keep
pans’ temperature colder, lock
in freshness and minimize
condensation. Removable for
easy cleaning.
87/8" (226 mm) deep, 1/2”
(13 mm) thick, full length
removable cutting board
included. Sanitary, high-
density, NSF approved white
polyethylene provides tough
preparation surface.
Foamed-in-place, high density
polyurethane insulation (CFC
free).
Heavy duty PVC coated wire
shelves.
Food Prep Table:

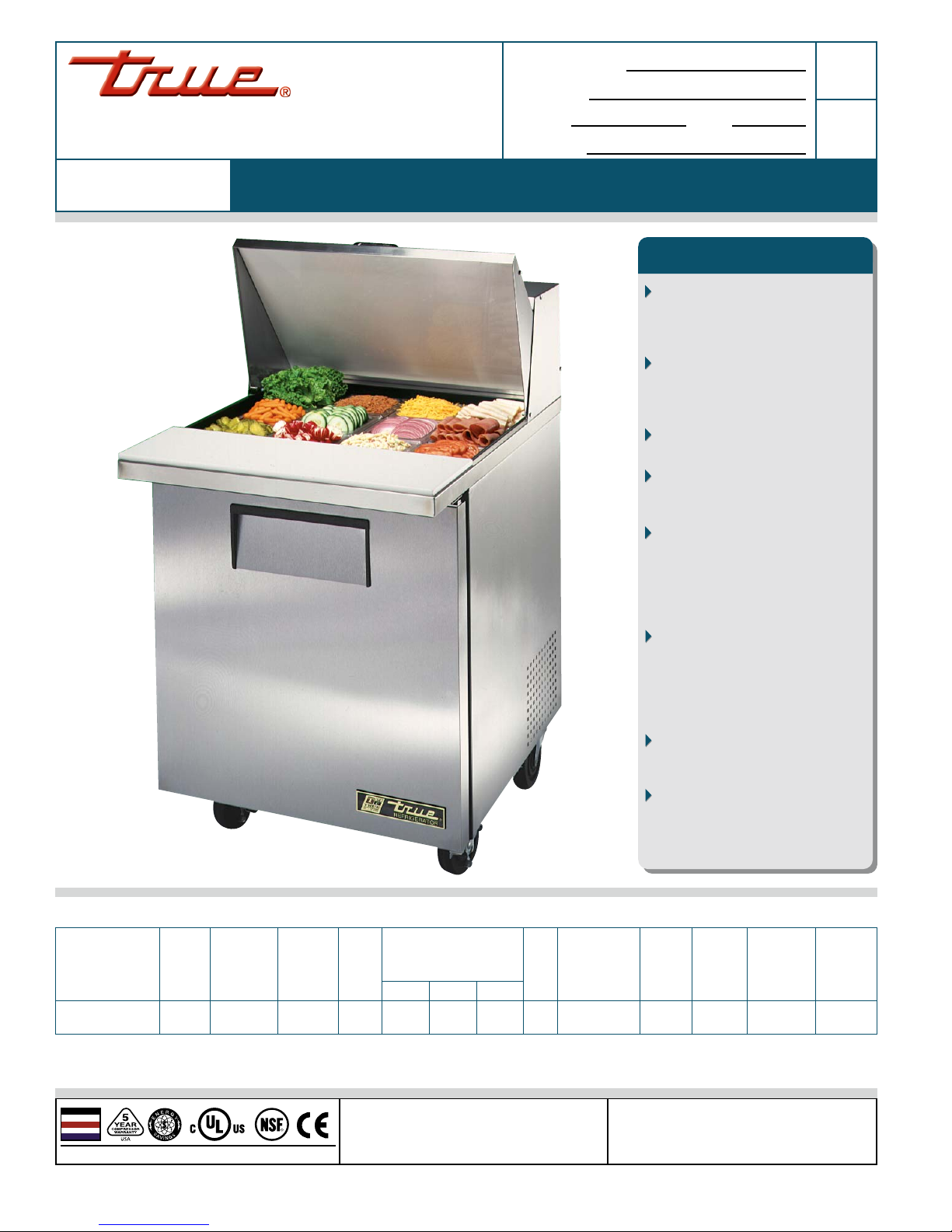

Mega Top Solid Door Sandwich/Salad Unit
®

STANDARD FEATURES
Model:
TRUE FOOD SERVICE EQUIPMENT
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • FAX [phone] • [phone] • www.truemfg.com
WARRANTY
One year warranty on all parts
& labor and an additional 4 year
warranty on compressor.
(U.S.A. only)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE
Model Elevation Right Plan 3D
PLAN VIEW
KCL
DESIGN
• True’s commitment to using the
highest quality materials and oversized
refrigeration systems provides the user
with colder product temperatures, lower
utility costs, exceptional food safety and
the best value in today’s food service
marketplace.
REFRIGERATION SYSTEM
• Factory engineered, self-contained,
capillary tube system using environmentally
friendly (CFC free) 134A refrigerant.
• Oversized, factory balanced refrigeration
system with guided airflow to provide
uniform temperature in food pans and
cabinet interior.
• Patented forced-air design holds 33°F to
41°F (.5°C to 5°C) product temperature in
food pans and cabinet interior. Complies
with and listed under ANSI/NSF-7-1997-6.3.
• Sealed, cast iron, self-lubricating
evaporator fan motor(s) and larger fan
blades give True sandwich/salad units a
more efficient, low velocity, high volume
airflow design.
• Condensing unit access in back of cabinet,
slides out for easy maintenance.
CABINET CONSTRUCTION
• Exterior - stainless steel front, top and
cabinet ends. Matching aluminum
finished back.
• Interior - attractive, NSF approved, white
aluminum liner. 300 series stainless floor
with coved corners.
• Insulation - entire cabinet structure and
solid door is foamed-in-place using high
density, CFC free, polyurethane insulation.
• 5" (127 mm) diameter stem castors - locks
provided on front set. 36" (915 mm) work
surface height.
DOOR
• Stainless steel exterior with white
aluminum liner to match cabinet interior.
• Door fitted with 12" (305 mm) long
recessed handle that is foamed-in-place
with a sheet metal interlock to insure
permanent attachment.
• Positive seal self-closing door with 90° stay
open features. Door swings within cabinet
dimensions.
• Magnetic door gasket of one piece
construction, removable without tools
for ease of cleaning.
SHELVING
• Two (2) adjustable, heavy duty PVC
coated wire shelves 231/4"L x 16"D
(591 mm x 407 mm). Four (4) chrome
plated shelf clips included per shelf.
• Shelf support pilasters made of same
material as cabinet interior; shelves are
adjustable on 1/2" (13 mm) increments.
MODEL FEATURES
• Evaporator is epoxy coated to eliminate
the potential of corrosion.
• 87/8" (226 mm) deep, full length removable
cutting board. Sanitary, high-density, NSF
approved white polyethylene provides
tough preparation surface.
• Stainless steel, patented, foam insulated
lid and hood keep pans’ temperature
colder, lock in freshness and minimize
condensation. Removable for easy
cleaning.
• NSF-7 compliant for open food product.
PAN CAPACITY
• Comes standard with 12 (1/6size)
67/8"L x 61/4"W x 4"D (175 mm x
159 mm x 102 mm) clear polycarbonate,
NSF approved, food pans in countertop
prep area.
• Countertop pan opening designed to
fit varying size pan configurations with
available pan divider bars. Varying size
pans supplied by others.
ELECTRICAL
• Unit completely pre-wired at factory and
ready for final connection to a 115/60/1
phase - 15 amp dedicated outlet. Cord and
plug set included.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may vary.
❒ 230 - 240V / 50 Hz.
❒ 6" (153 mm) standard legs.
❒ 6" (153 mm) seismic/flanged legs.
❒21/2" (64 mm ) diameter castors.
❒ Additional shelves.
❒Single utility shelf.
❒Double utility shelf.
❒Sneezeguard.
❒87/8" (226 mm) deep, 1/2" (13 mm) thick,
composite cutting board.
❒Crumb catcher. Requires crumb catcher
cutting board for proper installation.
❒Pan dividers.
❒Exterior rectangular digital thermometer
(factory installed).
❒ADA compliant model with 34" (864 mm)
work surface height.
❒Remote cabinets (condensing unit supplied
by others; system comes standard with
404A expansion valve and requires R404A
refrigerant). Consult factory technical
service department for BTU information.
TSSU-27-12M-C TFNY40E TFNY40S TFNY40P TFNY403
TSSU-27-12M-C
115/60/1
NEMA-5-15R
Food Prep Table:
Mega Top Solid Door Sandwich/Salad Unit
pan layout
25/16"
(59 mm)
37/8"
(99 mm)
ELEVATION
279/16"
(701 mm)
RIGHT VIEW
341/16"
(866 mm)
159/32"
(389 mm)
2027/32"
(530 mm)
293/4"
(756 mm)
4615/32"
(1181 mm)
1017/32"
(268 mm)
257/32"
(641 mm) 77/8"
(201 mm)
409/32"
(1024 mm)
125/8"
(321 mm) 75/16"
(186 mm)
1/8"
(4 mm) 1"
(26 mm)
63/16"
(158 mm)
517/32"
(1301 mm)
5529/32"
(1584 mm)
