TSSU-27-8
TSSU-27-8
Model Doors
Capacity
(Cu. Ft.)
(liters) Shelves
Pans
(top)
Cabinet Dimensions
(inches)
(mm)
L** D†H*HP Voltage Amps
NEMA
Config.
Cord
Length
(total ft.)
(total m)
Crated
Weight
(lbs.)
(kg)
TSSU-27-8 1 6.5
185
2827
5/8
702
301/8
766
363/4
934
1/5
1/4
115/60/1
230-240/50/1
4.9
2.9
5-15P
▲
7
2.13
200
91
** Length does not include 1/8" (4 mm) each side for lid pins. ▲Plug type varies by country.
†Depth does not include 1" (26 mm) for rear bumpers.
*Height does not include 61/4"(159 mm) for castors or 6"(153 mm) for optional legs.
12/05
R
True’s salad/sandwich units are
designed with enduring quality
that protects your long term
investment.
Oversized, environmentally
friendly (134A) forced-air
refrigeration system holds
33°F to 41°F (.5°C to 5°C).
Complies with and listed under
ANSI/NSF-7-1997-6.3.
All stainless steel front, top
and cabinet ends. Matching
aluminum finished back.
Stainless steel, patented, foam
insulated lid and hood keeps
pans temperature colder, locks
in freshness and minimizes
condensation. Removable for
easy cleaning.
113/4" (299 mm) full length
removable cutting board
included. Sanitary, high-
density, NSF approved white
polyethylene provides tough
preparation surface.
Foamed-in-place, high density
polyurethane insulation
(CFC free).
Heavy duty PVC coated wire
shelves.

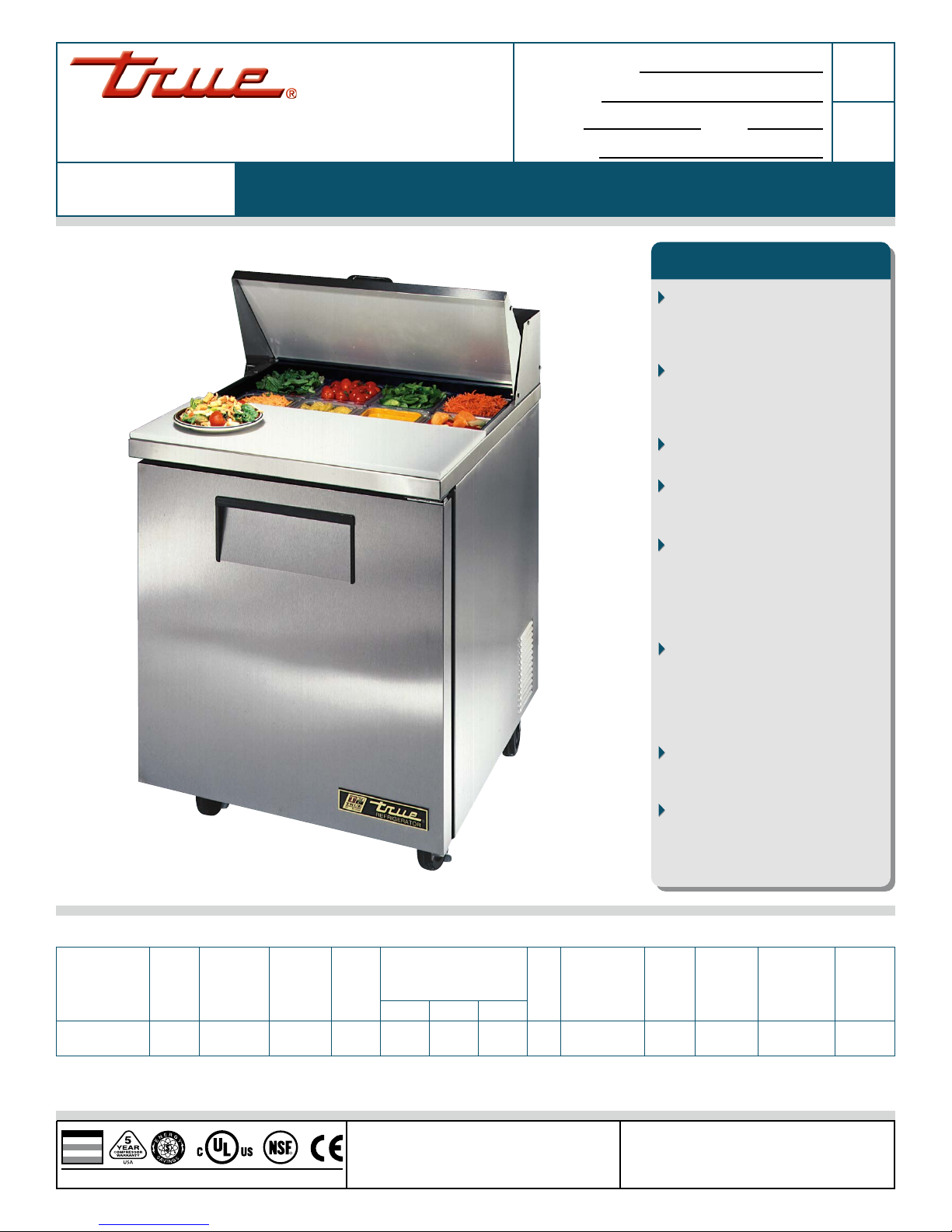

Food Prep Table:
Solid Door Sandwich/Salad Unit
®

STANDARD FEATURES
Model:
TRUE FOOD SERVICE EQUIPMENT
St. Charles Industrial Center • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • FAX [phone] • [phone] • www.truemfg.com
WARRANTY
One year warranty on all parts
& labor and an additional 4 year
warranty on compressor.
(U.S.A. only)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE

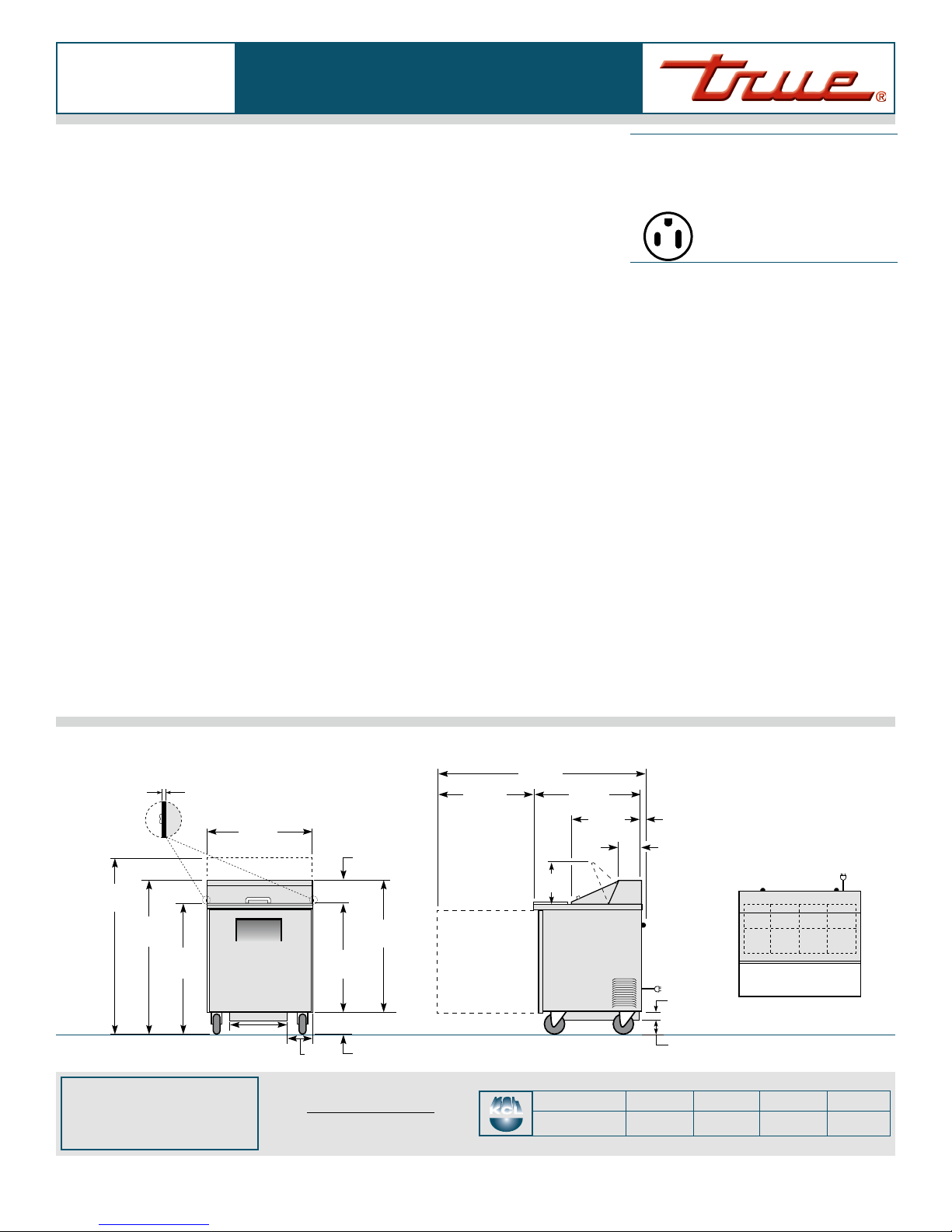

Model Elevation Right Plan 3D
PLAN VIEW
KCL
TSSU-27-8 TFNY01E TFNY01S TFNY01P TFNY013
TSSU-27-8
DESIGN
• True’s commitment to using the highest
quality materials and oversized refrigeration
systems provides the user with colder product
temperatures, lower utility costs, exceptional
food safety and the best value in today’s food
service marketplace.
REFRIGERATION SYSTEM
• Factory engineered, self-contained, capillary
tube system using environmentally friendly
(CFC free) 134A refrigerant.
• Oversized, factory balanced refrigeration
system with guided airflow to provide
uniform temperature in food pans and
cabinet interior.
• Forced-air design holds 33°F to 41°F (.5°C to
5°C) product temperature in food pans and
cabinet interior. Complies with and listed
under ANSI/NSF-7-1997-6.3.
• Sealed, cast iron, self-lubricating evaporator
fan motor and larger fan blades give True
sandwich/salad units a more efficient low
velocity, high volume airflow design.
• Evaporator is epoxy coated to eliminate the
potential of corrosion.
• Condensing unit access in back of cabinet,
slides out for easy maintenance.
CABINET CONSTRUCTION
• Exterior - stainless steel front, top and cabinet
ends. Matching aluminum finished back.
• Interior - attractive, NSF approved, white
aluminum liner. 300 series stainless floor with
coved corners.
• Insulation - entire cabinet structure and solid
door are foamed-in-place using high density,
CFC free, polyurethane insulation.
• 5" (127 mm) diameter stem castors - locks
provided on front set. 36" (915 mm) work
surface height.
DOOR
• Stainless steel exterior with white aluminum
liner to match cabinet interior.
• Door fitted with 12" (305 mm) long recessed
handle that is foamed-in-place with a
sheet metal interlock to insure permanent
attachment.
• Positive seal self-closing door wih 90° stay
open feature. Door swings within cabinet
dimensions.
• Magnetic door gasket of one piece
construction, removable without tools for
ease of cleaning.
SHELVING
• Two (2) adjustable, heavy duty PVC coated
wire shelves 231/4"L x 16"D (591 mm x
407 mm). Four (4) chrome plated shelf clips
included per shelf.
• Shelf support pilasters made of same material
as cabinet interior; shelves are adjustable on
1/2" (13 mm) increments.
MODEL FEATURES
• Evaporator is epoxy coated to elminate the
potential of errosion.
• 113/4" (299 mm) deep, full length removable
cutting board. Sanitary, high-density, NSF
approved white polyethylene provides tough
preparation surface.
• Stainless steel, patented, foam insulated
lid and hoods keep pans’ temperature
colder, locks in freshness and minimizes
condensation. Removable for easy cleaning.
• NSF-7 compliant for open food product.
PAN CAPACITY
• Comes standard with 8 (1/6size) 67/8"L x
61/4"W x 4"D (175 mm x 159 mm x
102 mm) clear polycarbonate, NSF approved,
food pans in countertop prep area. Also
accommodates 6" (153 mm) and 8" (204 mm)
deep food pans.
• Countertop pan opening designed to fit
varying size pan configurations with available
pan divider bars. Varying size pans supplied
by others.
ELECTRICAL
• Unit completely pre-wired at factory and
ready for final connection to a 115/60/1 phase
- 15 amp dedicated outlet. Cord and plug set
included.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may apply.
❒ 230 - 240V / 50 Hz.
❒ 6" (153 mm) standard legs.
❒ 6" (153 mm) seismic/flanged legs.
❒ 21/2" (64 mm) diameter castors.
❒ Additional shelves.
❒ Basic overshelf.
❒ Single utility shelf.
❒ Double utility shelf.
❒ Sneezeguard.
❒ 19" (483 mm) deep, 1/2" (13 mm) thick, white
polyethylene cutting board. Requires “L”
brackets.
❒ 19" (483 mm) deep, 3/4" (20 mm) thick, white
polyethylene cutting board. Requires “L”
brackets.
❒ 113/4" (299 mm) deep, 1/2" (13 mm) thick,
composite cutting board. Requires “L”
brackets.
❒ 19" (483 mm) deep, 1/2" (13 mm) thick,
composite cutting board. Requires “L”
brackets.
❒ Crumb catcher. Requires crumb catcher
cutting board for proper installation.
❒ Pan dividers.
❒ ADA compliant models with 34" (864 mm)
work surface height.
❒ Remote cabinets (condensing units supplied
by others; system comes standard with
404A expansion valve and requires R404A
refrigerant). Consult factory technical service
department for BTU information.
115/60/1
NEMA-5-15R
RIGHT VIEW
ELEVATION PAN LAYOUT
Food Prep Table:
Solid Door Sandwich/Salad Unit
125/8"
(321 mm)
75/16"
(186 mm)
25/16"
(59 mm)
279/16"
(701 mm)
7"
(178 mm)
63/16"
(158 mm)
293/4"
(756 mm)
4215/16"
(1091 mm)
2427/32"
(632 mm)
301/16"
(764 mm)
185/16"
(466 mm)
61/8"
(156 mm)
103/4"
(274 mm)
5529/32"
(1421 mm)
1"
(26 mm)
3515/16"
(913 mm)
363/4"
(934 mm)
1/8"
(4 mm)
4611/16"
(1186 mm)
37/8"
(99 mm)
