User’s manual
SK
Version 1.0
DS-3700R Wireless Optical MediaPlayer Deskset

USER’S MANUAL
A B
D
C
C
J
G
F
H
I
E

USER’S MANUAL
Installation
1 2
3

USER’S MANUAL
1
UK
Product information
Keyboard functions
A: System and Application Keys
Browser stop
Browser backward
Browser forward
Refresh
Calculator
My computer
Sleep / Standby
Shutdown
Wake-up
Favorites
Search
Start Internet Browser
Start E-mail program
B: Media Keys and Volume control wheel
Windows default Media player
Mute
Play / Pause
Stop
C: Battery empty LED
D: USB Receiver
Media Center Functions
Previous Screen
Channel Up
Channel Down
OK
Mouse functions
Normal mode
E
Vertical scroll
Horizontal scroll
F Browser Backward
G Browser Forward
H +Zoom in
I -Zoom out
J DPI setting/Mode
select
Media Control mode
E
Push
Down
Volume control
Horizontal scroll
Volume mute
F Next
G Previous
H Launch Media Player
I Play/pause
J DPI setting/Mode
select

USER’S MANUAL
2

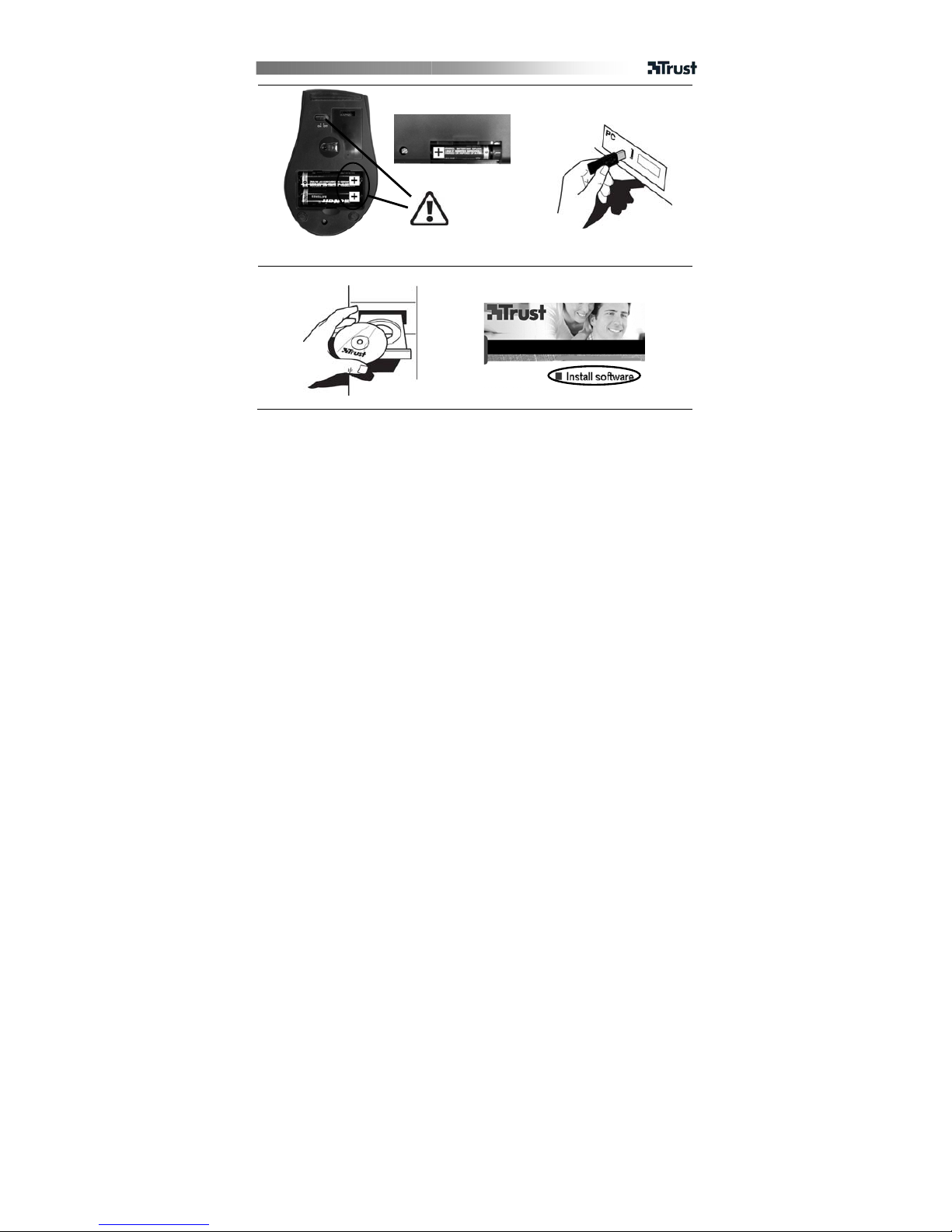

Installation
1 Open battery compartments on bottom side of keyboard and mouse to insert batteries.
T
urn on mouse
2 Connect USB Transmitter to PC; wait until automatic installation has completed ÆReady to use.
3 Insert CD-ROM and install software
Mouse
•Hold down DPI switch (J) for 1 sec will change DPI setting between 800 DPI and 1600 DPI.
•Hold down DPI switch (J) for 5 sec to change mouse modes (Normal/Media Control). Low Battery LED will
flash for 3 sec.
•Could also work on just 1 battery. Use 2 for extra long life-time.
•Tilt scroll is supported in MS Office, Internet Explorer, and Windows Explorer, but may also work in other
applications.
•Zoom function is supported in MS Office and Internet Explorer 7 and up, but may also work in other
applications.
Note
Multimedia and Office keys
•Launch keys will start the default internet browser, E-mail program and Mediaplayer installed on your PC.
Configure default programs:
XP: Start ÆControl PanelÆAdd/Remove Programs ÆSet Program Access and Defaults.
Vista: Start ÆControl PanelÆDefault ProgramsÆSet programs access and computer defaultsÆCustom
•The multimedia keys also work with other media player software like Itunes.
•4th and 5th Mouse button only work in games that support standard 5 button mice
(normal mode).
Special characters
•The keyboard country layout settings in Windows should correspond with the keyboard layout of your
Trust keyboard. Layout of the Trust keyboard is specified by a sticker on the Box.
To set the keyboard Layout in Windows: Go to: Start ÆControl Panel (classic view) ÆRegional and
Language Options ÆLanguages ÆDetails (Vista: “Change Keyboards”)
•The Alt Gr key gives access to special characters like the € sign. An overview of the special characters per
country is available at www.trust.com/keyboardlayout.
Performance
•Maximum Wireless working distance is around 8 meter.
•Reduced wireless performance can be caused by:
- (Metal) objects close to or between transmitter and keyboard ÆRemove objects.
- Other wireless devices close by ÆRemove devices or reconnect USB transmitter to
get different communication ID.
- Empty batteries ÆReplace batteries.
