1 About these instructions
These instructions for use describe the structure, functions and the use of the product and will
help you to operate the product as intended. Read these instructions carefully before using the
product. This is to avoid possible damage to persons, property or the device. Retain the instruc-
tions for future use during the service life of the product. If the product is passed on, pass on
these instructions as well.
1.1 Target groups
These instructions are aimed at qualified personal and must be carefully read by anyone
mounting, commissioning, operating, maintaining, dismantling or disposing of the device.
1.2 Explanation of symbols used
The following symbols are used in these instructions:
DANGER
DANGER indicates a dangerous situation with high risk of death or severe injury if
not avoided.
WARNING
WARNING indicates a dangerous situation with medium risk of death or severe
injury if not avoided.
CAUTION
CAUTION indicates a dangerous situation of medium risk which may result in minor
or moderate injury if not avoided.
NOTICE
NOTICE indicates a situation which may lead to property damage if not avoided.
NOTE
NOTE indicates tips, recommendations and useful information on specific actions
and facts. The notes simplify your work and help you to avoid additional work.
uCALL TO ACTION
This symbol denotes actions that the user must carry out.
aRESULTS OF ACTION
This symbol denotes relevant results of actions.
1.3 Other documents
Besides this document, the following material can be found on the Internet at www.turck.com:
nData sheet
1.4 Feedback about these instructions
We make every effort to ensure that these instructions are as informative and as clear as pos-
sible. If you have any suggestions for improving the design or if some information is missing in
the document, please send your suggestions to [email protected].

Notes on the product
Turck service
6Hans Turck GmbH & Co. KG | T [phone] | F [phone] | [email protected] | www.turck.com
2 Notes on the product
2.1 Product identification
RI 360 P1 Functional Principle –
Positioning Element
P1 P1-RI-QR20
Measuring Range
20 20°
40 40°
60 60°
90 90°
120 120°
240 240°
360 360°
Functional Principle
RI Rotary inductive
QR20 Design –
Design
QR20 Translucent housing,
material Ultem
LU4 X2 Electrical Version –
Number of LEDs
X2 Number of LEDs
Output Function
LU4 Voltage output
0.5…4.5 V
LI2 Current output,
4…20 mA
RI 360 P1 –QR20 –LU4 X2 –H1141
H1141 Electrical Connection
Electrical Connection
Blank Cable, open end
0.15-DT04-
3P
Deutsch DT con-
nector, cable length
0.15 m
0.24-AMP01-
3P
AMP connector, cable
length 0.24 m
H1141 M12 × 1 connector,
straight, 4-pin, stan-
dard assignment
NOTE
The RI20…, RI40…, RI90… variants with a current output are only available on
request.
The devices with a current output are only available with Deutsch or AMP connect-
ors on request.
2.2 Scope of delivery
The scope of delivery includes:
nEncoder – sensor
nPositioning element
nQuick Start Guide
2.3 Turck service
Turck supports you with your projects, from initial analysis to the commissioning of your applic-
ation. The Turck product database under www.turck.com contains software tools for program-
ming, configuration or commissioning, data sheets and CAD files in numerous export formats.
The contact details of Turck subsidiaries worldwide can be found on p. [}25].

V01.01 | 2022/03 7
3 For your safety
The product is designed according to state-of-the-art technology. However, residual risks still
exist. Observe the following warnings and safety notices to prevent damage to persons and
property. Turck accepts no liability for damage caused by failure to observe these warning and
safety notices.
3.1 Intended use
The miniature encoders of the RI…-QR20… series with an analog output are used for angle
position measurement.
The devices may only be used as described in these instructions. Any other use is not in accord-
ance with the intended use. Turck accepts no liability for any resulting damage.
3.2 Obvious misuse
nThe devices are not safety components and must not be used for personal or property
protection.
3.3 General safety notes
nThe device meets the EMC requirements for industrial areas. When used in residential areas,
take measures to avoid radio interference.
nThe device may only be assembled, installed, operated, parameterized and maintained by
professionally-trained personnel.
nThe device may only be used in accordance with applicable national and international
regulations, standards and laws.
nIf safe operation is no longer guaranteed: Take the device out of operation and ensure that it
cannot be switched on again accidentally.

Product description
Device overview
8Hans Turck GmbH & Co. KG | T [phone] | F [phone] | [email protected] | www.turck.com
4 Product description
The inductive miniature encoders of the RI…-QR20 series are available with measuring ranges
from 20° to 360°. The sensor and the positioning element of the encoders are fully encapsu-
lated and designed as two independent and sealed units with protection to IP68/IP69K and
contactless operation.
The QR20 rotary encoders are provided with an analog output (0.5…4.5 V or 4…20mA). The
range in which angle movements can be measured is factory set.
Devices with a fixed default setting are available for the following angle ranges:
n20°
n40°
n60°
n90°
n120°
n240°
n360°
4.1 Device overview
71.6
10.5
21.5
20
Ø 5.5
52
42.5
62.5
M12 x 1
52
42.5
64
71.6
21.5
20
ø 34
ø 7
Fig.1: QR20 miniature rotary encoder with
M12 male connector
Fig.2: QR20 miniature rotary encoder with
Deutsch connector
71.6
21.5
20
52
42.5
62.5
Ø 34
Ø 5.5
ø 4.3
(2x)
14
18
30
M5
4.5
ø 6 H11
8 deep
Fig.3: QR20 miniature rotary encoder with
AMP connector
Fig.4: P1-RI-QR20 positioning element

V01.01 | 2022/03 9
ø 4.3
(2x)
14
18
30
M5
4.5
ø 6.35 H11
8 deep
Fig.5: P2-RI-QR20 positioning element
4.1.1 Indication elements
The devices are provided with two green LEDs for displaying operating voltage and device
status.
4.2 Properties and features
nRectangular, plastic
nCompact and robust housing
nVersatile mounting possibilities
nMeasuring range indication via LED
nImmune to electromagnetic interference
nDegree of protection IP68/IP69K
nProtection from salt spray
nResolution: 0.09°
n3-wire
nAnalog output 0.5…4.5 V or 4…20 mA
The RI…-LU4… miniature rotary encoders are also provided with the following features:
nFor vehicle electrical systems,12 V and 24 V
nIncreased noise immunity 100 V/m based on e1 type approval
nProtection from line-conducted interference in accordance with DIN ISO 7637-2 (SAE J
113-11)
nExtended temperature range
4.3 Operating principle
The QR20 miniature encoders have contactless operation based on the inductive resonant
circuit measuring principle. Measurement is immune to magnetic fields as the positioning
element is not based on a magnet but on an inductive coil system, through which the sensor
and the positioning element (resonator) can form an oscillation circuit. Sensor and positioning
element form an inductive measuring system. An induced voltage generates appropriate sig-
nals in the receiver coils of the sensor, depending on the location of the positioning element.
The signals are evaluated in the internal 16-bit processor of the sensor and output as analog
signals. The QR20 is an absolute encoder and outputs a unique analog value for every shaft
position.

Product description
Functions and operating modes
10 Hans Turck GmbH & Co. KG | T [phone] | F [phone] | [email protected] | www.turck.com
4.4 Functions and operating modes
The devices are provided with an analog output (current or voltage). The device output
supplies an analog signal corresponding to the location of the positioning element.
4.4.1 Current output
The RI…-QR20…-LI… devices are provided with a current output that supplies a current signal
in the range of 4…20 mA, which corresponds to the location of the positioning element. If the
positioning element is not detected, for example due to damage to the shaft, the output signal

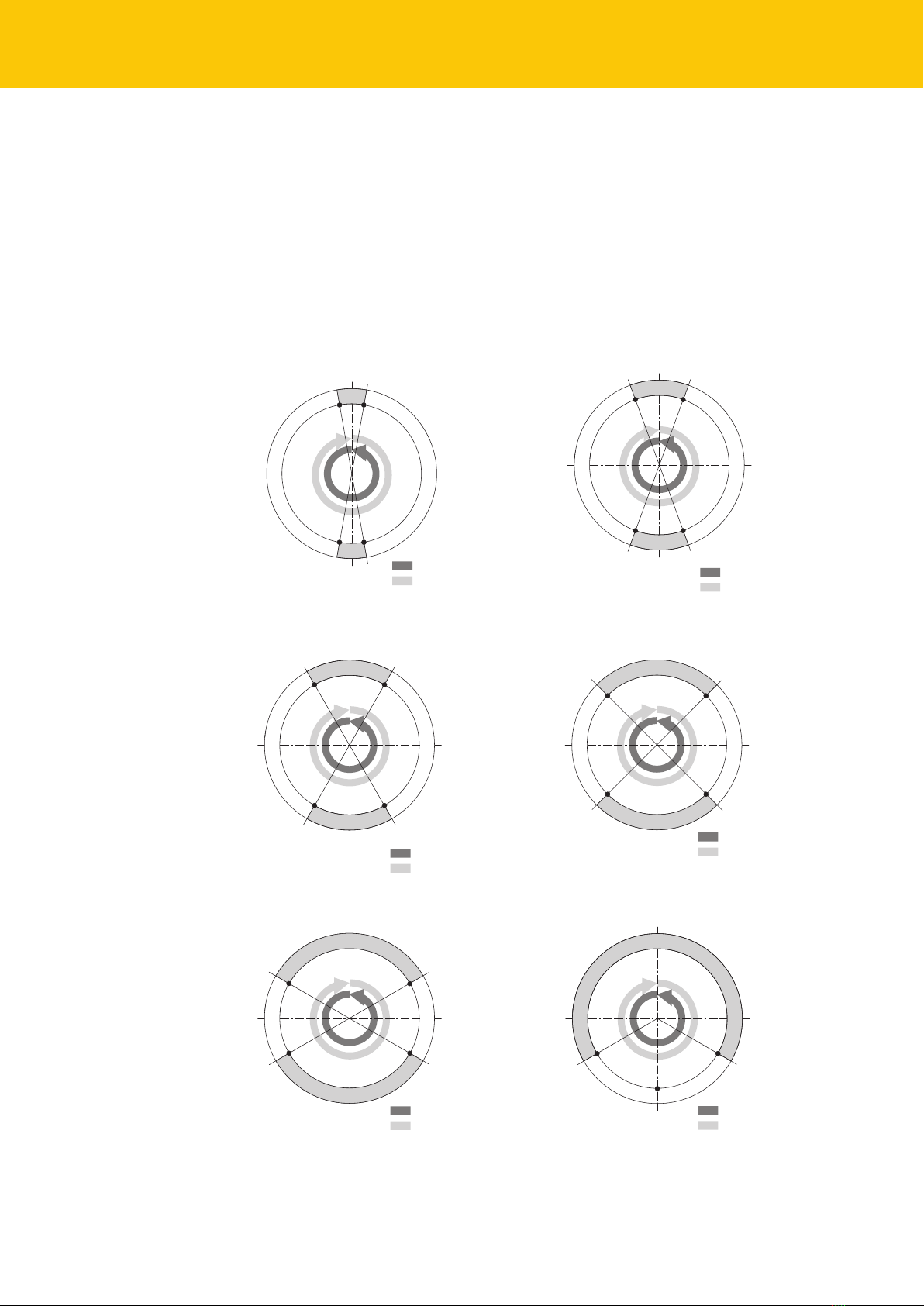

increases to a fault signal of 22mA. The following figures show the current signal of the devices
in relation to the particular angle ranges:
270°
360/0° 10°
90°
180° 170°
20°
20°
4 mA 20 mA
4 mA 20 mA
Mounting 1
Mounting 2
270°
360/0° 20°
90°
180° 160°
340°
200°
40°
40°
4 mA 20 mA
4 mA 20 mA
Mounting 1
Mounting 2
Fig.6: RI20… Fig.7: RI40…

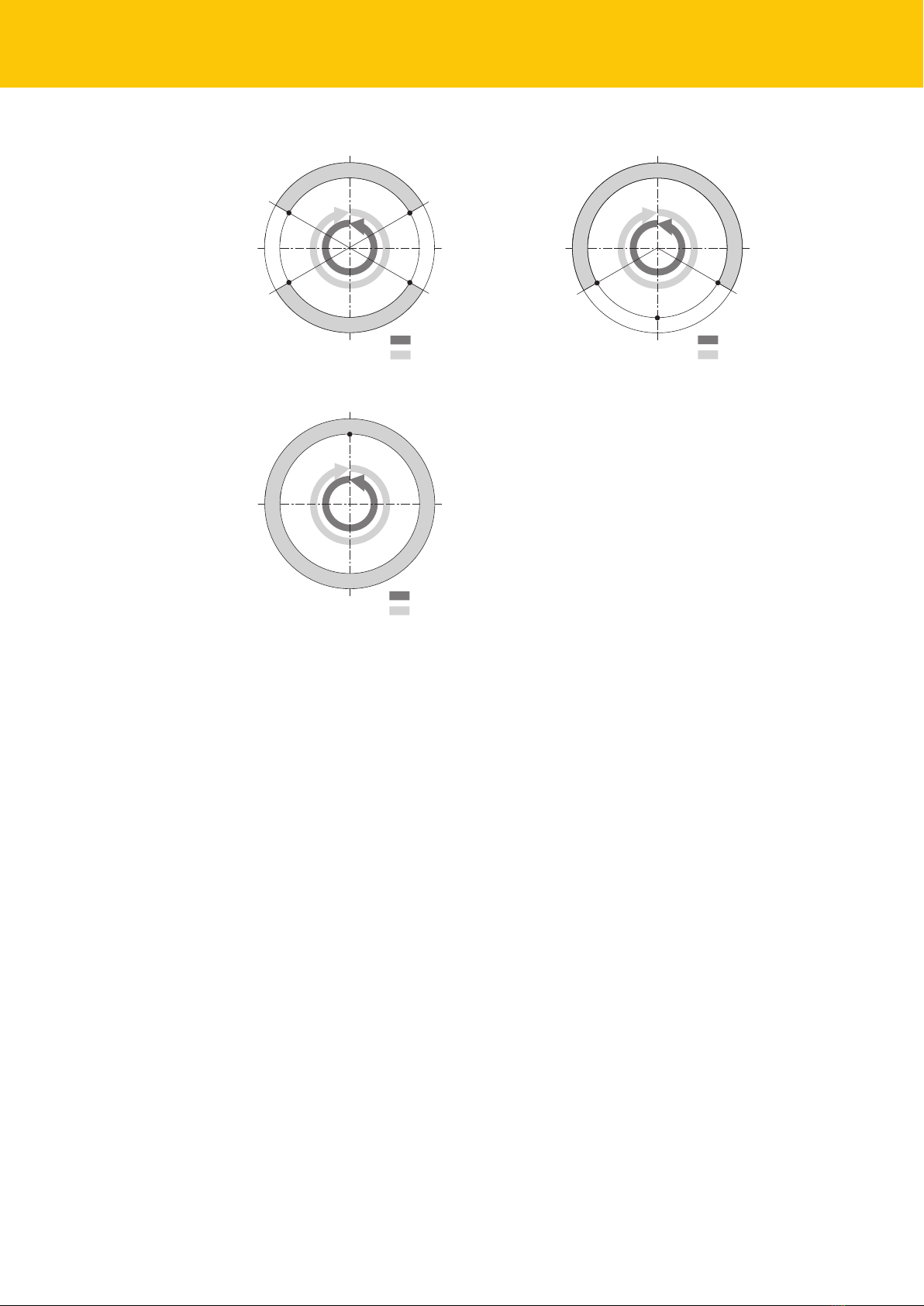

270°
360/0°
30°330°
150°210°
90°
180°
60°
60°
4 mA 20 mA
4 mA 20 mA
Mounting 1
Mounting 2
270°
360/0°
45°
135°
315°
225°
90°
180°
90°
90°
4 mA 20 mA
4 mA 20 mA
Mounting 1
Mounting 2
Fig.8: RI60… Fig.9: RI90…
270°
360/0°
90°
120°240°
60°300°
180°
120°
120°
4 mA 20 mA
4 mA 20 mA
Mounting 1
Mounting 2
270°
360/0°
90°
120°240°
180°
240°
20 mA
20 mA
4 mA
4 mA
Mounting 1
Mounting 2
Fig.10: RI120… Fig.11: RI240…

V01.01 | 2022/03 11
270°
360/0°
90°
180°
360°
4 mA20 mA
Mounting 1
Mounting 2
Fig.12: RI360…
4.4.2 Voltage output
The RI…-QR20…-LU… devices are provided with a voltage output that outputs a voltage sig-
nal in the range from 0.5…4.5 V, which corresponds to the location of the positioning element.
If the positioning element is not detected, for example due to damage to the shaft, the output
signal increases to a fault level of 5V. The following figures show the voltage signal of the
devices in relation to the particular angle ranges:
270°
360/0° 10°
90°
180° 170°
20°
20°
0.5 V 4.5 V
0.5 V 4.5 V
Mounting 1
Mounting 2
270°
360/0° 20°
90°
180° 160°
340°
200°
40°
40°
0.5 V 4.5 V
0.5 V 4.5 V
Mounting 1
Mounting 2
Fig.13: RI20… Fig.14: RI40…
270°
360/0°
30°330°
150°210°
90°
180°
60°
60°
0.5 V 4.5 V
0.5 V 4.5 V
Mounting 1
Mounting 2
270°
360/0°
45°
135°
315°
225°
90°
180°
90°
90°
0.5 V 4.5 V
0.5 V 4.5 V
Mounting 1
Mounting 2
Fig.15: RI60… Fig.16: RI90…

Product description
Functions and operating modes
12 Hans Turck GmbH & Co. KG | T [phone] | F [phone] | [email protected] | www.turck.com
270°
360/0°
90°
120°240°
60°300°
180°
120°
120°
0.5 V 4.5 V
0.5 V 4.5 V
Mounting 1
Mounting 2
270°
360/0°
90°
120°240°
180°
240°
4.5 V
4.5 V
0.5 V
0.5 V
Mounting 1
Mounting 2
Fig.17: RI120… Fig.18: RI240…
270°
360/0°
90°
180°
360°
0.5 V4.5 V
Mounting 1
Mounting 2
Fig.19: RI360…

V01.01 | 2022/03 13
4.5 Technical accessories
Dimension drawing Type ID Description
14
42
11.5
ø 15
M12 x 1
L
50
5
RKC4.4T-2/
TEL
6625013 Connection cable, M12 female
connector, straight, 4-pin, cable
length: 2 m, jacket material: PVC,
black; cULus approval; other
cable lengths and types avail-
able, see www.turck.com
45.4
ø 15
M12 x 1 14
L
50
5
RKS4.4T-2/
TEL
6626321 Connection cable, M12 female
connector, straight, 4-pin, shield
connected to coupling nut/
screw, cable length: 2 m, jacket
material: PVC, black; cULus
approval; other cable lengths
and types available,
see www.turck.com
ø 4.3
(2x)
14
18
30
M5
4.5
ø 6 H11
8 deep
P1-RI-QR20 1593041 Positioning element for RI-QR20
encoder, for Ø6mm shafts
ø 4.3
(2x)
14
18
30
M5
4.5
ø 6.35 H11
8 deep
P2-RI-QR20 1593042 Positioning element for RI-QR20
encoder, for Ø6.35mm shafts

Installing
Mounting the positioning element in the housing (mounting option 1)
14 Hans Turck GmbH & Co. KG | T [phone] | F [phone] | [email protected] | www.turck.com

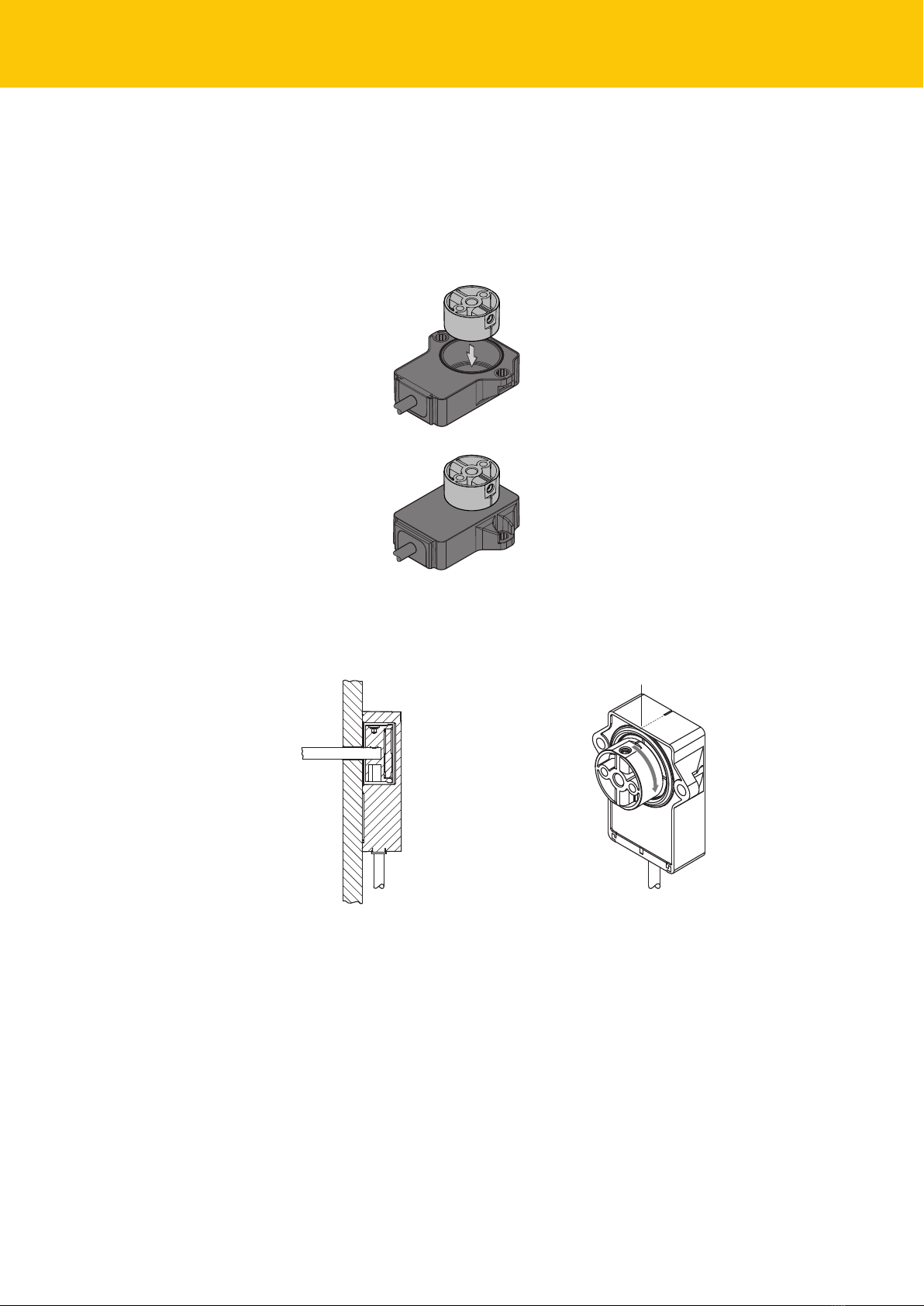

5 Installing
There are two mounting options for the rotary encoder:
nMount the positioning element in the housing so that it is fully surrounded by the housing
(mounting option 1).
nMount the positioning element above the sensor housing (mounting option 2).
1
2
Fig.20: Mounting options
5.1 Mounting the positioning element in the housing (mounting option 1)
360°/0°
Fig.21: Mounting the positioning element
in the housing
Fig.22: Aligning the positioning element
Push the positioning element onto the shaft.
Fasten the positioning element on the shaft.
Place the encoder sensor with the front facing the shaft over the positioning element and
align to the required position of the zero point. The positioning element has the correct
clearance if the opening of the sensor is flush with the shaft.
Fasten the encoder with two screws in order to produce a closed and protected unit.

V01.01 | 2022/03 15
5.2 Mounting the positioning element above the sensor housing
(mounting option 2)
360°/0°
Fig.23: Mounting the positioning element
above the sensor housing
Fig.24: Aligning the positioning element
Fasten the encoder sensor with two screws in the surrounding area and with the rear
facing the shaft.
Push the positioning element onto the shaft and align to the required position of the
zero point.
Fasten the positioning element on the shaft.

Connection
Wiring diagrams — devices with a current output
16 Hans Turck GmbH & Co. KG | T [phone] | F [phone] | [email protected] | www.turck.com
6 Connection
The miniature encoder is provided with an analog output and is available in the following
connection variants:
nM12 connector
nCable outlet
nCable with 3-pin AMP connector (only RI…LU4…)
nCable with 3-pin Deutsch connector (only RI…LU4…)
NOTICE
Wrong coupling
Damage to the connector possible
Ensure correct connection.
NOTE
Turck recommends the use of shielded connection cables.
Ensure that the entire plant is in a de-energized state during the electrical installation.
Connect the female connector of the connection cable to the male connector of the
device.
6.1 Wiring diagrams — devices with a current output
I
+
–
BN
BK
BU
Fig.25: Cable connection — wiring diagram
4 BK
1 BN3 BU
2 WH
1
2
3
+
–
I
Fig.26: M12 connector — pin layout Fig.27: M12 connector — wiring diagram

V01.01 | 2022/03 17
6.2 Wiring diagrams — devices with a voltage output
+
–
U
BN
BK
BU
Fig.28: Cable connection — wiring diagram
3
2
4
1
5
1
4
3
+
–
U
Fig.29: M12 connector — pin layout Fig.30: M12 plug connector — wiring diagram
123
3
2
1
+
–
U
Fig.31: AMP connector — pin layout Fig.32: AMP connector — wiring diagram
B BK A BU
C BN
A
C
B
+
–
U
Fig.33: Deutsch connector — pin layout Fig.34: Deutsch connector — wiring diagram

Commissioning
18 Hans Turck GmbH & Co. KG | T [phone] | F [phone] | [email protected] | www.turck.com
7 Commissioning
After connecting and switching on the power supply, the device is automatically ready for
operation.

V01.01 | 2022/03 19
8 Operation
8.1 LED indications
LED indication Meaning
Green Sensor power supply correct.
Green flashing Positioning element is within the measuring range with reduced
signal quality (e.g. gap too large).
Off Positioning element is not within the measuring range or no power
supply available.

Troubleshooting
20 Hans Turck GmbH & Co. KG | T [phone] | F [phone] | [email protected] | www.turck.com
9 Troubleshooting
The strength of the resonance coupling is indicated by an LED. Any faults are indicated via the
LEDs.
If the device does not function as expected, first check whether ambient interference is present.
If there is no ambient interference present, check the connections of the device for faults.
If there are no faults, there is a device malfunction. In this case, decommission the device and
replace it with a new device of the same type.
