TURFCO WIDESPIN 1530TM User manual

Truck Mounted Top Dresser
OPERATOR’S MANUAL
MAINTENANCE MANUAL
PARTS LIST
TURFCO®
WIDESPIN 1530TM
Truck Mounted
Broadcast
Top Dresser
Product Number 85812
Starting Serial Number N00801
US Patent 6,149,079, 6,508,419 and 6,817,552
Manual Number 668469
DANGER - IF INCORRECTLY USED THIS MACHINE CAN CAUSE SEVERE INJURY.
THOSE WHO USE AND MAINTAIN THIS MACHINE SHOULD BE TRAINED IN ITS PROPER
USE, WARNED OF ITS DANGERS, AND SHOULD READ THE ENTIRE MANUAL BEFORE
ATTEMPTING TO SET-UP, OPERATE OR SERVICE THE MACHINE.
TURFCO MFG. INC.
1655 101st. Avenue NE ● Minneapolis, MN 55449-4420 USA
Phone [phone] ● FAX [phone]
Internet - www.turfco.com ● E-Mail - [email protected]
2010 Turfco Mfg., Inc.

285812
All specifications, information, illustrations or photos in this manual are
based on the latest information at the time of printing. The right is reserved to make changes without notice.
Table of Contents
Specifications .................................................................................................................................3
Registered Trademarks and Patents ..............................................................................................3
Product Records .............................................................................................................................4
How To Obtain Parts and Service ...................................................................................................4
Truck and Mounting Kit Requirements
Truck Requirements ...............................................................................................................5
WideSpin 1530 TM Mounting Kit Requirements .....................................................................5
Top Dresser and the Truck .....................................................................................................5
Removing the WideSpin 1530 TM from the Truck ..................................................................5
Recognizing Safety Warnings and General Safety Practices .........................................................6
Description -
WideSpin 1530 TM Broadcast Top Dresser ........................................................................... 8
Intended Use and Function ....................................................................................................8
Description of the WideSpin 1530 TM Lightspread and Heavyspread Settings ..................... 8
Location and Description of the WideSpin 1530 TM Major Components ............................... 8
Location and Description of the Operator Position ............................................................... 11
Location and Description of the Operator Controls .............................................................. 11
Operation -
WideSpin 1530 TM Operator Position ..................................................................................12
WideSpin 1530 TM Top Dresser Operating Speeds ............................................................. 12
WideSpin 1530 TM Maximum Angle of Operation ................................................................ 12
Loading of Hopper ................................................................................................................12
Pre-Operation Check List .....................................................................................................13
Hand Held Spinner and Conveyor Belt ON/OFF Switch ......................................................13
Setting Controls For Lightspread or Heavyspread Operations ............................................. 14
Setting of WideSpin 1530 TM Metering Gate ................................................................... 14
Setting of WideSpin 1530 TM Spinner Hydraulic Speed Control .....................................14
Setting of Heavyspread Diverter ......................................................................................14
Adjusting Spinner Wheel Vanes .......................................................................................16
Setting of WideSpin 1530 TM Conveyor Speed Control ..................................................16
Top Dressing Operation ........................................................................................................16
WideSpin 1530 TM Top Dresser Shutdown .......................................................................... 17
Operator Daily Inspection .............................................................................................................18
Troubleshooting Table ..................................................................................................................18
Storage .........................................................................................................................................19
Operator Level Service and Adjustment -
Hydraulic Fluid ......................................................................................................................19
Cleaning ...............................................................................................................................19
Inspection .............................................................................................................................19
European Lubricant, Fuel, and Parts Disposal Numbers .....................................................19
Decals .........................................................................................................................................20
Service Level Maintenance
Lubrication ............................................................................................................................22
Inspection Panel ...................................................................................................................22
Conveyor Belt Care, Conveyor Belt Scraper ........................................................................ 22
Conveyor Belt Tension Adjustment .......................................................................................22
Conveyor Belt Tracking and Centering Adjustments ............................................................23
Hydraulic System ..................................................................................................................24
Electrical System ..................................................................................................................28
Adjustment of Spinner Vanes ............................................................................................... 31
Removing Spinner Assembly ................................................................................................32
Conveyor Belt Replacement .................................................................................................33
Parts Lists .....................................................................................................................................34
Optional Trench Filling Attachment - Product Number 86150 Parts List ......................................54
TABLE OF CONTENTS

3
85812
Specifications
Intended Use: The WideSpin 1530 TM is intended to be used for the application of properly prepared
organic top dressing material. The WideSpin 1530 TM is NOT intended to be used for any purpose other than
the application of properly prepared organic top dressing material. Properly prepared top dressing is organic
material with a controlled moisture content that has been screened to remove debris, rocks, and excessive
sized top dressing material. Operation is intended to be at properly prepared worksites only. The WideSpin
1530 TM is intended only to be mounted to trucks having adequate weight, brakes, and horsepower to safely
control the top dresser. The proper Mounting Kit must be used to attach the WideSpin 1530 TM to the truck.
The WideSpin 1530 TM is intended to be used only when the operator is present at the drivers position on the
truck. The WideSpin 1530 TM is intended to be operated only when the truck and top dresser are moving. The
WideSpin 1530 TM is not intended to be operated unless it is properly attached to the truck. The WideSpin
1530 TM is NOT designed for or intended to accept riders.
Dimensions: (Spinner Assembly Attached, Without Mounting Kit Installed)
Width ............................................................................ 1.29 Meter (50.75” Inches)
Height (Bottom of Spinner to Top of Hopper) ............... 1.07 Meter (42.25” Inches)
Length ..........................................................................1.96 Meter (77.25” Inches)
Hopper Capacity .................................... 0.54 Cubic Meter - 816.5 Kg. (19 Cubic Feet - 1,800 Pounds)
Minimum/Maximum Spread Width ....... 3.04 Meter to 9.14 Meter (10’ to 30’ Feet)
Operator Controls ..................................Hand Held Spinner and Conveyor Belt ON/OFF Control,
Spinner Speed Control, Conveyor Belt Speed Control,
Adjustable Metering Gate, Spinner Assembly Tilt Control,
and Heavy Spread Diverter
Operating Ground Speed ...................... 8 Km/h (5 MPH)
Transport Speed .................................... 8 Km/h (5 MPH)
Maximum Angle of Operation .............. 15° Degrees
Electrical Requirements ....................... 12 Volt DC, Negative Ground, 15 AMP Fuse Protected
Electricity Supplied By Truck
Minimum Hydraulic Requirements ...... 26.5 Liters Per Minute at 10,342 kPa (7 GPM at 1,500 PSI)
Hydraulic Power and Fluid Supplied By Truck
Weight Empty .........................................299 Kg (660 Pounds) without mounting kit installed
Weight Loaded ....................................... 1,115.5 Kg (2,460 Pounds) without mounting kit installed
Mounting Components Weight ............ 41 Kg (90 Pounds) - 85812 to a Cushman Textron
Turf-Truckster Brackets, Support, Hoses, Mounts and Dirt Shield
Noise Emission Level:
Operator Position
Sound Pressure (LpA) = 84.7 dBA
Sound Pressure Level (LwA) = 100.9 dBA
Registered Trademark and Patents
TURFCO® WIDESPIN™ 1530 TM is covered by US Patent 6,149,079, 6,508,419 and 6,817,552.
TURFCO®, WIDESPIN™ and Mete-R-Matic® are registered trademarks of Turfco Manufacturing, Inc.
HEAVYSPREAD™ and LIGHTSPREAD™ are trademarks of Turfco Manufacturing, Inc.
LpA 84.7 dBA
LwA 100.9 dBA
SPECIFICATIONS
Operating Conditions:
Truck Engine Full Throttle, Spinner
and Conveyor Belt Operating,
Hopper Empty, Unit Stationary

485812
PRODUCT
NUMBER
85812
1655 101st Avenue NE
Minneapolis, Minnesota
USA 55449-4420 www.turfco.com
[phone] FAX [phone]
PRODUCT SERIAL
TURFCO MFG., INC.
FIGURE 1
AS85812-03
Locate the Turfco serial tag on
the front of the machine. Check
the first 5 numbers. Product
numbers will be 85812.
How To Obtain Parts and Service
To order parts, or to arrange repair service, contact
the nearest authorized TURFCO dealer. For a list
of authorized TURFCO dealers in your area, or for
additional information regarding the WideSpin 1530
TM Broadcast Top Dresser, direct inquiries to:
TURFCO Mfg. Inc.
1655 101st. Avenue North East
Minneapolis, MN. 55449-4420 USA
Telephone [phone]
FAX [phone]
E-Mail - [email protected]
Internet - www.turfco.com
To ensure safety and proper operation, always purchase
genuine TURFCO replacement parts from an authorized
TURFCO dealer. Replacement parts from other
sources may damage the WideSpin 1530 TM Broadcast
Top Dresser and/or create a safety hazard. Always
refer repairs to properly trained service personnel.
DO NOT ALTER the WideSpin 1530 TM Broadcast
Top Dresser in any manner. Unauthorized alterations
may affect its operation, performance, and may result
in injury or death to the operator as well as other
individuals in the work area.
PRODUCT RECORDS
Product Records
IMPORTANT: Record the information from the serial number plate of your Turfco WideSpin 1530 TM
Broadcast Top Dresser. It will be necessary to furnish your Product Number and Serial Number when
ordering parts.
Model Designation WideSpin 1530 TM Broadcast Top Dresser
Product Number 85812 Date Purchased _______________
Serial Number __________________________________________________________________
Purchased From ________________________________________________________________

5
85812
TRUCK REQUIREMENTS
Before operating the top dresser, assure that the truck
is properly equipped and designed to carry, operate,
and control the weight of a fully loaded 1530 TM top
dresser. The truck must have enough payload capacity
to handle 1,115.5 Kg (2,460 pounds) plus the weight
of the driver/operator. Truck must also have adequate
and functional brakes. Hydraulic and electrical
power supplied by the truck must meet the minimum
requirements. Refer to Specifications table on page 3
of this manual.
TO AVOID SERIOUS INJURY,
and Damage to the Truck and the WideSpin 1530
TM Top Dresser,
The Truck Must Be Rated for Proper Payload
Capacity, and Have Adequate Functional Brakes
and Provide Proper Hydraulic and Electrical
Power.
WIDESPIN 1530 TM MOUNTING KIT
REQUIREMENTS
Never attempt to mount or install the WideSpin 1530
TM to any truck it was not designed to fit. The proper
mounting kit must be used to install the WideSpin 1530
TM to the truck. Never modify or alter any mounting
kit. Serious Injury and damage to the truck can result
form improper installation. Refer to the manual for the
mounting kit for more information.
Before operating the top dresser, assure that the
WideSpin 1530 TM is securely mounted to the truck.
Check the mounting brackets, the mounting bracket
hardware, and the mounting pins. Ensure that all
mounts and mounting hardware are tight and secure.
Refer to the manual for the mounting kit for more
information.
TO AVOID SERIOUS INJURY,
and Damage to the Truck and the WideSpin 1530
TM Top Dresser,
Do Not Attempt to Mount the WideSpin 1530 TM to
any Truck that it was Not Designed To Fit.
Never Modify or Alter Any Components of the
Mounting Kits.
THE TOP DRESSER AND THE TRUCK
The operator must read and understand the entire
manual for the truck used to carry the WideSpin 1530
TM top dresser. The operator must be trained in the
operation of the truck and knowledgeable in its safe
operation. The operator must be aware of the extra
weight placed on the truck when combined with the
top dresser. The extra weight will effect the handling,
balance, and braking performance of the truck.
TO AVOID SERIOUS INJURY,
Do Not Drive or Operate the Truck and Top
Dresser On Slopes Steeper Than 15º Degrees.
The operator must operate the truck in a safe
manner and know the operating limits of the truck
in relation to the weight, performance, center-of-
gravity, and operating characteristics of the top
dresser.
TO AVOID SERIOUS INJURY,
Read and Understand the Entire
Operator’s Manual Before Operating
The WideSpin 1530 TM and the Truck.
REMOVING WIDESPIN 1530 TM FROM TRUCK
Always refer to the Installation Manual for the Mounting
Kit that was used to install the WideSpin 1530 TM top
dresser to the truck. Review the steps that were used
to install and connect the top dresser to the truck.
To Avoid Serious Injury,
Never Attempt To Lift the Top Dresser Manually.
Serious Bodily Injury Could Result From Lifting
The Top Dresser By Hand.
The Weight And Balance Of The Machine
Requires Approved Hoists And Lifting Devices.
The Top Dresser weighs 299 Kg (660 lbs) when
empty. Ensure that the hoist or lifting device, and
its rigging are rated to safely lift and suspend
the weight of the top dresser. The hopper of the
top dresser must be empty when the machine is
lifted.
Always use the lifting brace to pick up the top dresser.
The lifting brace was designed to protect the hopper
and is located to provide for even balance of the top
dresser when the spinner assembly is installed on the
rear of the top dresser.
Never attempt to install or remove a top dresser that
is filled with top dressing material. The hopper must
always be empty. Never attempt to pick up the top
dresser when top dressing is in the hopper.
Disconnect all electrical and hydraulic connections
to the truck before lifting the top dresser. Refer to the
Operators Manual for the truck to properly reattach
any hydraulic or electrical connections to that part of
the truck.
Truck and Mounting Kit Requirements
WARNING
WARNING
WARNING
WARNING
WARNING
MOUNTING KIT REQUIREMENTS

685812
General Safety Practices
Safety on the job should always be a top priority.
Training and experience are important factors in the safe
operation of equipment. Please consider the following
information and realize that safe operation is a matter
of using common sense as it relates to the machine, its
maintenance, the operator, the training, and the operating
conditions. These are general safety instructions that
apply to most turf maintenance equipment.
This list includes many general safety
instructions as they relate to turf equipment.
This list does not encompass all hazards.
Common sense must always be used to
determine the safest way to operate a machine
under specific conditions.
TRAINING:
● Always read the manual before operating a machine
for the first time.
● Always read the warning decals before operating a
machine for the first time.
● Always check the location and use of each control
before operating a machine for the first time.
● Practice operating the machine in a safe area with no
obstructions until becoming familiar with the controls.
● If you have questions, ask your supervisor or call the
factory.
CLOTHING:
● Clothes should be snug fit. Loose fitting clothing is
hazardous because it may get caught in the mechanism
during service or operation.
● Remove jewelry before operation. Jewelry may get
caught in the mechanism.
● Wear shoes that will protect your feet. Sneakers do not
protect and do not provide the protection of leather shoes
or boots. Steel toed safety shoes should be considered
for many situations.
● Hard Hat: The use of a hard hat should be considered
when using equipment on a golf course. The danger of
being hit by a golf ball should be a major concern as well
as protection while operating under trees.
● Eye Protection: Safety glasses and/or face shields
should be considered when operating, as well as working
in close proximity to high speed rotary equipment. Watch
for rotary mowers, edgers, brush and string trimmers.
Rotary mowers can throw debris at speeds up to 200 mph
(320 Km/h).
● Hearing: If the noise level of the equipment is too loud,
consider the use of ear protection.
● Do not use stereo headsets during operation. This is a
distraction that may lead to an accident. Headsets also
make it difficult to hear other people and equipment while
operating the machine.
● Respirators: When operating in dusty, windy conditions,
wear a respirator. This is also an important consideration
if operating equipment while spraying chemicals and
fertilizers.
● Gloves: Use gloves when handling sharp or hazardous
objects.
THE OPERATOR:
● The operator should never use a machine while under
the influence of alcohol or drugs.
● The operator should be aware of the hazards of working
in the sun and should take proper precautions to avoid
heat stress and dehydration. Use sun screen products
when necessary.
● The operator should never attempt to ride a machine
that is not designed for that propose. Do not allow others
to ride a machine that is not designed for passengers.
If designed to carry passengers, do not allow more
passengers to ride a machine than the machine was
designed to carry.
● Care should always be taken when mounting and
dismounting a riding machine. Prevent injuries and falls
by making sure the operator does not slip. Unless it is
an emergency, do not jump off a machine. Injury may
result when an operator’s foot slips trying to jump from
a machine.
● Do not operate any equipment at unsafe speeds.
Recognizing Safety Warnings Used In Manual
LOOK FOR THE SAFETY HAZARD WARNING SYMBOL
The symbol is used to alert the operator of safety hazards.
It is used in conjunction with the words DANGER, WARNING, and CAUTION.
“DANGER” identifies immediate hazards which will result in serious injury or death.
“WARNING” identifies potential hazards which could result in serious injury or death.
“CAUTION” identifies hazardous situations which may result in minor injury and/or could result in
damage or destruction of equipment.
WARNING CAUTION
DANGER
SAFETY

7
85812
Speeds should be reduced when turning or operating
on slopes. The operator must use common sense to
determine a safe speed based on the equipment, the
load, the slope, the surface, and other conditions that
may affect safe operation.
● The operator must be aware of the conditions around
the area. Be aware of other people and machines.
● Beware of slippery conditions. Wet turf can be
encountered on slopes, when turning or stopping, or at
higher speeds.
● Keep hands and feet away from cutting devices and
drive components. Shut off the engine and remove the
key or ignition wire when servicing cutting devices or
drive components.
● If required to lift, an operator should ask for help if the
object is too heavy. The operator should lift with his or her
legs instead of the back. Care should be taken to avoid
twisting the back while lifting a heavy load.
● Never allow children to operate the machine.
THE MACHINE:
● Tow vehicles must have adequate tow hitches and
brakes to control any towed machine. Check the weight
and capacity of the machine that will be towed by that
vehicle. Trucks used to carry equipment must have
adequate load capacity and brakes. Check the weight
and capacity of the machine that will be towed by
that vehicle.
● Do not overload machinery. The components
are designed for certain weights and capacities.
Overloading the machine will cause unsafe
conditions.
● Make sure the brakes are operating properly.
● Check to assure that all controls are in good operating
condition.
● Inspect to insure that all guards are in place. Do not
operate a machine without all guards in place.
● Always check the machine to make sure it is in good
working order. Do not place hands or feet near moving or
rotating parts.
● Check the tire pressure.
● Check the condition of the hydraulic hoses. Leaks
and worn hoses should be fixed or replaced before the
machine is put into service. Do not use your fingers or
hands to check for hydraulic leaks. High pressure leaks
can puncture the skin and force oil into the body. This can
cause severe injury or death.
● Shut off the engine before servicing the machine. It is
best to check machines on a level area. Machines on a
slope may roll when the engine is off.
● Do not modify the machine in any manner. Refer
unfamiliar repairs and adjustments to mechanics that
have been trained to do them properly.
● Replace decals that are damaged or unreadable.
THE ENGINE:
● Prevent accidental starting by removing the spark
plug wire when servicing the engine or the equipment.
Disconnect the negative wire from the battery terminal if
the engine is equipped with an electric starting system.
● Do not strike the flywheel with a hammer or any
hard object. This may cause the flywheel to shatter in
operation.
● Pull the starter cord slowly until resistance is felt. Then
pull the cord rapidly to avoid kickback and to prevent hand
or arm injury.
● Do not run the engine in an enclosed area. The
exhaust gases contain carbon monoxide, an odorless
and deadly poison. The engine exhaust from this
product contains chemicals known to the State of
California to cause cancer, birth defects or other
reproductive harm.
● Do not store, spill, or use gasoline near an open flame,
nor near an appliance like a stove, furnace, or water
heater that uses a pilot light or can create a spark.
● Do not refuel indoors or in an unventilated area. Check
the fuel level. Do not over fill. Do not add fuel while the
machine is hot because spilled fuel may cause a fire.
Allow the engine to cool before refueling.
● Do not transport the machine with fuel in the tank.
● Do not remove the fuel tank cap or fill the fuel tank while
the engine is hot or running.
● Do not operate the engine if gasoline is spilled, when
the smell of gasoline is present, or when other explosive
conditions exist. Move the equipment away from the spill
and avoid any ignition until the gasoline has evaporated.
● Do not choke the carburetor to stop the engine.
Whenever possible, gradually reduce the engine speed
before stopping.
● Do not tamper with the governor springs, links or other
parts to increase the engine speed. Run the engine at the
speed set by the equipment manufacturer.
● Do not check for a spark with the spark plug removed.
Use an approved tester. Use the correct tools to service
the machine.
● Do not crank the engine with the spark plug removed. If
the engine is flooded, place the throttle in fast and crank
until the engine starts. Avoid damage to electric starter by
cranking intermittently until engine starts.
● Do not operate the machine without a muffler. Inspect
the muffler periodically and replace it if it is leaking or
worn. Replace it with correct muffler. Do not touch a hot
muffler, cylinder, or cooling fin.
● Do not operate the engine with an accumulation of
grass, leaves, or other combustible material in the muffler
area.
● Keep the cylinder cooing fins and the governor parts
free of dirt, grass, and other debris.
● Do not use the engine on any forest covered, brush
covered, or grass covered unimproved land unless
a spark arrester is installed in the muffler. In the State
of California, a spark arrester is required by law. Other
states may have similar laws. Federal laws apply on
federal lands.
● Do not start the engine with the air cleaner or the air
cleaner cover removed.
● Use fresh gasoline. Stale fuel can gum the carburetor
and can cause leakage. Check the fuel lines and fittings
frequently for cracks and leaks.
SAFETY

885812
WIDESPIN 1530 TM BROADCAST TOP DRESSER
The Turfco WideSpin 1530 TM Broadcast Top Dresser
is a truck mounted broadcast top dresser. The
WideSpin 1530 TM is designed to distribute a uniform
application of properly prepared top dressing material
to the turf. Top dressing is the introduction of new soils
to existing turf.
A conveyor belt carries the top dressing from the
hopper, through an adjustable metering gate, and
into rotating spinner wheels. Top dressing material is
spread at an adjustable width of 3.04 to 9.14 meters
(10’ to 30’ feet) at an operating ground speed up to 8
Km/h (5 mph).
INTENDED USE AND FUNCTION
The WideSpin 1530 TM is intended to be used for the
application of properly prepared organic top dressing
material. The WideSpin 1530 TM is NOT intended to
be used for any purpose other than the application
of properly prepared organic top dressing material.
Properly prepared top dressing is organic material with
a controlled moisture content that has been screened
to remove debris, rocks, and excessive sized top
dressing material.
Operation is intended to be at properly prepared
worksites only. The WideSpin 1530 TM is intended
only to be mounted to trucks having adequate weight,
payload capacity, brakes, and horsepower, and
hydraulic power to safely control the top dresser. The
proper mounting kit must be used to mount the top
dresser to the truck.
The WideSpin 1530 TM is intended to be used only
when the operator is present at the drivers position
on the truck. The WideSpin 1530 TM is intended to
be operated only when the truck and top dresser are
moving. The WideSpin 1530 TM is not intended to be
used when the truck and top dresser are stationary.
The WideSpin 1530 TM is not intended to be operated
unless it is properly attached to the truck. The 1530 TM
is NOT designed for or intended to accept riders.
● Do Not Use With Unscreened Top Dressing
Material.
● Do Not Use With Non-Organic Top Dressing
Material.
● Do Not Use With Rocks.
● Do Not Allow Anyone To Stand Behind the 1530
TM When the Spinners Are Operating.
Description
● Do Not Allow Riders On or In the 1530 TM.
● Do Not Operate On Slopes Over 15º Degrees.
● Do Not Transport or Operate At Ground Speeds
Higher Than 8 Km/h (5 mph).
DESCRIPTION OF THE WIDESPIN 1530
LIGHTSPREAD AND HEAVYSPREAD SETTINGS
The WIDESPIN 1530 has two settings to control
top dressing material volume rates and the spread
patterns. The LIGHTSPREAD setting is used for
frequent top dressing applications and provides the
widest broadcast pattern with a “light” volume of top
dressing material. The HEAVYSPREAD setting is
used for narrower broadcast pattern with a “heavy”
volume of top dressing material. Changing between
Lightspread and Heavyspread requires repositioning
the spread diverter, changing spinner speed control
setting, changing the metering gate setting, and
repositioning the spinner wheel vane angles.
LOCATION AND DESCRIPTION OF THE WIDESPIN
1530 TM BROADCAST TOP DRESSERS MAJOR
COMPONENTS
See Figure 2 and 3 for the location of the major
components of the top dresser. Do not modify the
WideSpin 1530 TM or its spinner assembly in any
manner. Do not operate the WideSpin 1530 TM with
damaged or inoperable components.
Manual Tube: The manual tube [C] is located on the
side panel of the hopper. The tube is used to store the
operators manual.
Front and Rear Mounting Points: The mounting
points [D] on the WideSpin 1530 TM frame are
designed to accept the proper mounting kit for the
specific truck being used to carry the top dresser.
The mounting kit must be installed to these points for
proper installation.
Lifting Brace: The detachable lifting brace [E] is used
to pick up the WideSpin 1530 TM during mounting or
removal of the top dresser from the truck. The brace
should be removed during operation. The WideSpin
1530 TM hopper should always be empty before
lifting the top dresser. The spinner assembly should
be attached to the WideSpin 1530 TM during lifting to
provide proper balance of the machine.
DESCRIPTION

9
85812
Hopper: The hopper [F] holds 0.54 cubic meters (19
cubic feet) of top dressing material. The maximum
allowable weight of the top dressing material is 816.5
Kg (1800 Pounds). Do not over fill the hopper. The
excess weight can create a safety hazard, damage the
components of the WideSpin 1530 TM, cause damage
to the truck, and cause the truck tires to leave tracks
and depressions in the turf.
Conveyor Belt: The rough surfaced conveyor belt
[G] carries the top dressing material from the hopper,
through the metering gate, and in to the spinner
assembly. Power to the belt is provided by the hydraulic
conveyor belt drive motor. The speed of the conveyor
belt is adjustable. Conveyor belt tension adjusters [H]
are provided to change the tension to correct tracking
or slipping problems.
Spinner Assembly: The spinner assembly [I]
broadcasts the flow of top dressing material being
discharged from the conveyor belt. The spinner
assembly is equipped with a spread diverter to control
the spread pattern during Heavyspread operations and
is also equipped with a tilt control to further enhance
or vary the spreading pattern. The spinner assembly
can also be removed to allow the 1530 to be used as a
material handler for top dressing material.
Left and Right Hand Spinner Wheels: The
hydraulically powered spinner wheels [J] are rotating
wheels equipped with vanes. The rotating motion of
the wheels broadcasts the top dressing material. The
mounting angle of the vanes on the wheels is adjustable
and provides adjustment/correction to spread patterns.
Vane adjustment is required when changing between
Lightspread and Heavyspread. The left and right hand
spinner wheels rotate in opposite directions.
[C]
[F]
[G]
FIGURE 2
[D]
[D]
[E]
[H]
[ I ]
[J]
DS85811-01
DESCRIPTION

10 85812
Electrical Power Supply Connection: The power
supply connection [L] is designed to be plugged into
the Electrical Power Supply Harness. The harness
is part of the mounting kit and is sized to fit the type
of truck being used to carry the WideSpin 1530 TM.
Electrical connection to the truck is at trucks battery. A
12 volt DC, negative ground power source is needed
to operate the hydraulic solenoids in the WideSpin
1530 TM hydraulic system. A 15 AMP fuse is located
in a holder on the positive (+) power connection of the
harness.
LOCATION AND DESCRIPTION OF THE WIDESPIN
1530 TM OPERATOR POSITION
Operator Position: The proper location for the operator
of the WideSpin 1530 TM Top Dresser is seated in the
trucks seat. Always stop the trucks engine, lock the
brakes, and disengage the hydraulic power before
leaving the operator’s seat. Do not stand behind or
allow anyone to stand behind the WideSpin 1530 TM
top dresser when the spinner attachment is operating.
FIGURE 3
[ I ]
[J]
[L]
[M]
[M]
[N]
[O]
[R]
[Q]
[P]
DS85812-02
DESCRIPTION

11
85812
TO AVOID SERIOUS INJURY,
Move To the Operator’s Position At The Truck
Before Engaging the Spinner Assembly.
LOCATION AND DESCRIPTION OF THE WIDESPIN
1530 TM OPERATOR CONTROLS
Hand Held Spinner and Conveyor Belt ON/OFF
Switch: The hand held ON/OFF switch [M] controls
the ON/OFF operation of the conveyor belt and the
spinner assembly. The switch has 3
positions:
1. Spinners ON, Conveyor Belt ON
2. Spinners ON, Conveyor Belt OFF
3. Spinners OFF, Conveyor Belt OFF
Always be at the operator’s position
before engaging the ON/OFF switch.
Always keep the hand held switch in a secure place.
When not in use, hang the control box on the front of
the hopper. If the control box drops to the ground, the
wiring harness can become tangled in the trucks axles
and wheels. DO NOT put the hand held switch in the
hopper. Severe damage to the switch, switch cable,
conveyor belt, and spinner wheels will result if the
control box becomes tangled in the conveyor belt and
spinner assembly.
Spinner Speed Hydraulic Flow Control: The
hydraulic speed control [N] varies
the speed of the spinner wheels by
regulating the amount of hydraulic
flow sent to the hydraulic motors.
Increasing or decreasing the
speed of the spinners does not
change the volume of material
being spread, it only effects the width of the spreading
pattern. The control has settings from 0 to 4 (settings
above 4 are locked out). Heavyspread control setting
should be at 3 or less, Lightspread should be at 4.
Spinner Assembly Tilt Control Handle and Locking
Handle: [O] The tilt of the spinner assembly can be
changed by moving the tilt control handle. Total
movement is approximately 15º degrees. The
tilt angle can changed up or down to vary or
correct the width of spread without changing the
speed of the spinner wheels. The tilt angle of
the assembly can be also be changed to correct
for the difference in hitch heights of different
tow vehicles. The letters on the decal are for
visual reference only, they do not represent any
measured tilt angle.
The locking handle will keep the spinner assembly
locked into position. During Heavyspread operations,
the spinner assembly should be adjusted to be level
with the ground.
Heavyspread Diverter and Diverter Locking Knob:
The Heavyspread Diverter [P] trims (changes) the
spread pattern during Heavyspread operation.
The diverter should be in the lowered position and
securely locked with the diverter locking knob.
During light application, the diverter should be
locked in the raised position.
The marks on the decal are for visual reference
only, they do not represent any measured amounts of
top dressing trim.
Conveyor Belt Speed Control: The speed control [Q]
regulates the amount of hydraulic flow to the conveyor
belt motor and regulates the
speed of the conveyor belt.
The speed of conveyor belt
controls the amount of top
dressing material that is moved
and discharged thru the metering gate. Changing
the conveyor belt speed control does not affect the
operating speed of the spinner assembly spinner
wheels.
The normal conveyor belt speed control setting
during Heavyspread operation is 1-1/4 to 2-1/2 turns
(counterclockwise) of the knob from a fully closed
(clockwise) position. For Lightspread operation, set at
1-1/4 to 1-1/2 turns.
Metering Gate and Metering Gate Adjusting
Handle: The Metering gate regulates the amount of
top dressing material released
from the hopper. The metering
gate is manually controlled
by moving the metering gate
handle [R]. The marks on
the decal are for reference
only, they do not represent
any measured amounts of
top dressing material. The metering gate opening
size is controlled in two calibrations, Lightspread and
Heavyspread. The metering gate stop pull pin on the
side of the metering gate mount must be pulled out to
allow the metering gate to be moved into the larger
opening size for Heavyspread. If the amount of material
being deposited on the spinner assembly needs to be
corrected, adjust the metering gate opening.
WARNING
HEAVYSPREAD™
LIGHTSPREAD™
B
C
D
E
A
F
G
H
DESCRIPTION
C
B
A
D
E

12 85812
TO AVOID SERIOUS INJURY,
Read and Understand the Entire
Operator’s Manual Before Operating
The WideSpin 1530 TM and the Truck.
Read and Follow all Safety Decals and Warnings.
TO AVOID SERIOUS INJURY,
Always operate the WideSpin 1530 TM Top
Dresser Safely and Wear the Appropriate
Personal Safety Equipment.
TO AVOID SERIOUS INJURY,
Keep Hands, Feet, and Clothing Away From
Rotating Spinner Wheels
TO AVOID SERIOUS INJURY,
Do Not Allow Riders In or On The Top Dresser
WIDESPIN 1530 TM OPERATOR POSITION
The proper location for the WideSpin 1530 TM operator
is seated on the truck seat. Always stop the trucks
engine, set the trucks brakes, and disengage hydraulic
power to the conveyor belt and the spinner assembly
before leaving the trucks seat. Do not stand behind the
WideSpin 1530 TM when it is operating.
TO AVOID SERIOUS INJURY,
Always Operate the WideSpin 1530 TM From the
Operators Position at the Trucks Seat.
Always Stop the Trucks Engine, Set the Trucks
Brakes, and Disengage Hydraulic Power to the
WideSpin 1530 TM Spinners and Conveyor Belt
Before Leaving the Trucks Seat.
DO NOT Allow Anyone To Stand Behind the 1530
TM Spinner Assembly When It Is Operating.
WIDESPIN 1530 TM OPERATING SPEEDS
When the 1530 TM top dresser is mounted to the truck,
the maximum ground speed of the truck should
not exceed 8 Km/h (5 MPH). Safety concerns and
excessive stress on the truck and the top dresser will
occur if speeds are in excess of 8 Km/h (5 MPH).
Operation
TO AVOID SERIOUS INJURY
and To Avoid Damage to the truck and 1530 TM
top dresser, DO NOT Drive or Operate the 1530
TM Top Dresser At Speeds Over 8 Km/h (5 MPH).
The ground speed of the truck must be constant to
ensure an even and equal distribution of top dressing
material. The trucks engine speed must be maintained
to ensure a constant and even supply of hydraulic
power. Choose a gear and throttle/governor setting
that will give a maximum ground speed of 8 Km/h (5
MPH). If top dressing speed exceeds 8 Km/h (5 MPH),
poor and uneven top dressing application will result as
well as unsafe operating conditions. For best results,
the 1530 TM should be moving before the spinner
assembly is engaged.
WIDESPIN 1530 TM MAXIMUM ANGLES OF
OPERATION
Do not drive or operate the truck and WideSpin 1530
TM on side slopes over 15º degrees. Do not drive or
operate the truck and WideSpin 1530 TM up or down
slopes over 15º degrees. Do not drive or operate
the truck and WideSpin 1530 TM with an overfilled
or overloaded hopper. Tipping or rolling over of the
machine can occur.
TO AVOID SERIOUS INJURY
and To Avoid Damage to the WideSpin 1530 TM
Top Dresser and the Truck,
Do Not Operate on Slopes Over 15º Degrees.
LOADING OF HOPPER
The maximum hopper capacity is 0.54 cubic meters
(19 cubic feet). Maximum weight of the load in the
hopper is 816.5 Kg (1800 pounds). Never overfill or
overload the hopper. Overloading will create a safety
hazard and cause undue stress to the truck and top
dresser components. Overloading may also cause the
trucks tires to sink into the turf and leave tracks. Never
modify the hopper to hold extra top dressing. Do not
add side boards to the hopper. An overloaded hopper
will cause the top dresser to be top heavy or out-of-
balance, and will increase the possibility of the truck
and top dresser tipping or rolling over if operated on
too steep of a slope.
The hopper can be loaded with a small front end
loader, however do not drop the load into the hopper
from too high of a height. Slowly load the hopper to
avoid damage to the hopper and conveyor belt.
WARNING
WARNING
STAY CLEAR
WHILE
SPINNERS ARE
OPERATING
DANGER
WARNING
WARNING
OPERATION

13
85812
PRE-OPERATION CHECK LIST
● Check Temperature - Refer to the Operators
Manual for the truck to determine if the temperature
is too cold or too hot to operate the trucks hydraulic
system. Determine if the trucks hydraulic system
requires a warm-up period before operating the
WideSpin 1530 TM.
● Check - Level of hydraulic fluid in trucks reservoir
tank. Correct level to full if needed.
● Check - Level of oil in trucks engine crankcase.
Correct level to full if needed.
● Check - Check the hydraulic connections from the
top dresser to the truck. Connections must be
proper and secure. Refer to the manual for the
mounting kit for more information.
● Check - Inspect for damage, wear, and missing
parts. Do not operate the 1530 TM top dresser with
a damaged or defective parts. Refer any needed
repairs to the proper service personnel.
● Check - Visual check for hydraulic leaks.
TO AVOID SERIOUS INJURY,
Do Not Use Your Fingers Or Hands
To Check For Hydraulic Leaks. High
Pressure Leaks Can Puncture The
Skin And Force Oil Into The Body. This
Can Cause Severe Injury Or Death.
WEAR EYE PROTECTION.
● Check - The hand held ON/OFF switch is secure at
the operator position. DO NOT put hand held switch
inside of the hopper.
● Check - The hand held ON/OFF switch is in the OFF
( O ) position for both the conveyor belt and the
spinner assembly.
● Check - Power supply harness is plugged into the
1530 TM and is properly attached to the trucks
battery.
● Check - All guards and deflectors are in place.
● Check - All hardware on the mounting brackets.
Hardware must be tight, pins must be securely
inserted.
● Check - Visually inspect the inside of the 1530 TM
hopper for tools, shovels, rocks or debris remaining
from earlier use. Hopper must be empty.
HAND HELD SPINNER AND CONVEYOR BELT
ON/OFF SWITCH (See Figure 4)
The switch controls the activation of
both the conveyor belt and the spinner
assembly. Refer to Figure 4 for switch
positions. Before starting the engine,
place the switch in the OFF ( O ) position
for both the conveyor belt and the spinners.
If the switches are in the ON ( I ) position,
the belt and the spinners will start to operate as soon
as the engine is started and the hydraulic system is
activated.
Start and stop operation will happen as soon as the
switch is placed on the ON ( I ) position, there is no
time delay in operation. The switch operates the same
in Lightspread or Heavyspread.
During operation, keep the switch box at the operator’s
position on the tow vehicle. When not is use, hang the
switch box on the top of the hopper. DO NOT place
the switch box in the hopper!! Damage will occur if the
switch box becomes tangled in the spinner wheels.
DANGER
Spinners ON
Conveyor ON
Spinners ON
Conveyor OFF
Spinners OFF
Conveyor OFF
LEFT
POSITION
CENTER POSITION
RIGHT
POSITION
FIGURE 4
HAND HELD SPINNER AND CONVEYOR BELT ON/OFF SWITCH
OP85811-02
OPERATION

14 85812
SETTING CONTROLS FOR LIGHTSPREAD OR
HEAVYSPREAD OPERATIONS
(See Figures 5, 6 and 7)
Changes to the settings of the spinner speed control,
the metering gate, spinner diverter, spinner wheel vane
mounting angles, and the conveyor belt speed control
are required when changing between Lightspread and
Heavyspread top dressing operations.
TO AVOID SERIOUS INJURY,
Always Disengage the Hydraulic Power and Stop
the Truck Engine Before Making Any Lightspread/
Heavyspread Adjustments.
Setting WIDESPIN 1530 TM Metering Gate
The metering gate opening
size is controlled in two
calibrations, Lightspread and
Heavyspread. The metering
gate stop pull pin on the side
of the metering gate mount
must be pulled out to allow the
metering gate to be moved into the larger opening size
for Heavyspread.
Use the following settings for Lightspread and
Heavyspread operations -
LIGHTSPREAD - Set metering gate in zones “A”
thru “D”.
HEAVYSPREAD - Pull metering gate pull pin and
set gate in zones “E” thru “H”.
The marks on the decal are for reference only, they do
not represent any measured amounts of top dressing
material.
Because moisture content and varying weights of
top dressing can effect the flow of material thru the
metering gate, adjustments may be needed to maintain
an equal distribution and an even spread pattern.
If the amount of material being deposited on the spinner
assembly needs to be corrected, adjust the metering
gate opening. To increase the volume of top dressing
material, increasing the metering gate opening will
have better spreading results than increasing the
conveyor belt speed. For less volume of top dressing
material, decreasing the metering gate opening will
have better results than decreasing the speed of the
conveyor belt.
Setting WIDESPIN 1530 TM Spinner Hydraulic
Speed Control
The speed control varies the
speed of the spinner wheels.
Increasing the speed increases
the spread width, decreasing
narrows the width. Changing the
speed does not effect the volume
of material being spread, however, the thickness
of application will change as the spread changes.
Use the following speed settings for Lightspread or
Heavyspread operations -
LIGHTSPREAD - Set and lock the spinner speed
control at “4”.
HEAVYSPREAD - Set and lock the spinner speed
control at “3 or less”.
In the Heavyspread setting, the speed control should
be at 3 or less. Do Not exceed 3 during Heavyspread
operation, limit any changes to setting the control to
under 3 along with changes to the conveyor speed
control or the metering gate setting.
Moisture content and the type of top dressing material
are variables that will affect the setting of the speed
control. Use a slower setting for dry top dressing
material that flows easily. Increase setting to handle
heavier types of top dressing or to increase the spread
range. Increasing the speed will broadcast the top
dressing over a larger area. Experimentation by the
operator will help to determine the proper setting. The
spinner speed control does not effect or change the
speed of the conveyor belt.

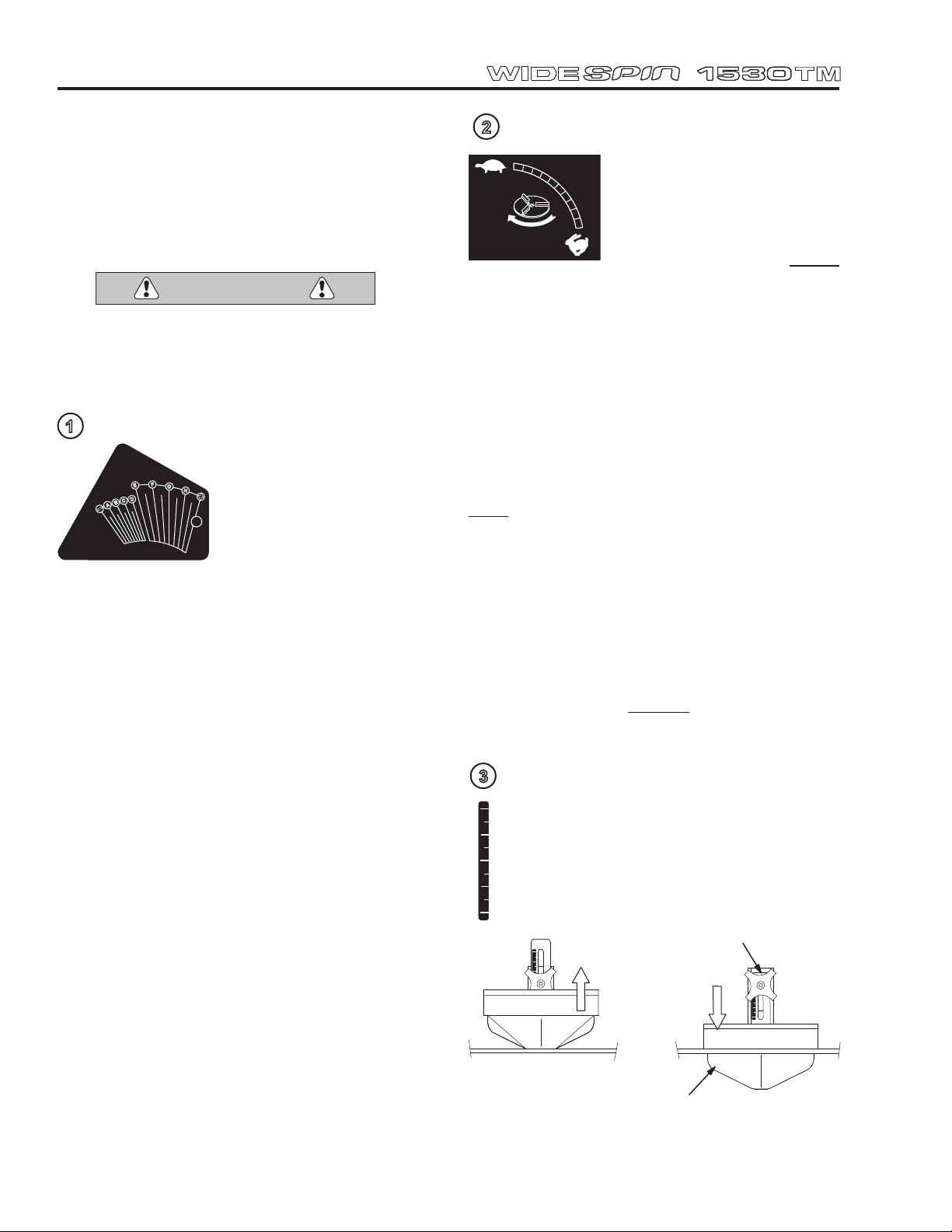

Setting HEAVYSPREAD Diverter
(See Figure 5 & 6)
The Heavyspread Diverter changes the spread
pattern during Heavyspread operation. For
Heavyspread, the diverter should be in the
lowered position and securely locked with the
diverter locking knob. During light application, the
diverter should be locked in the raised position.
WARNING
1
2
3
4
5
HEAVYSPREAD™
LIGHTSPREAD™
B
C
D
E
A
F
G
H
1
2
3
4
5
1
2
3
4
5
FIGURE 5
LIGHT
HEAVY
DIVERTER
LOCKING KNOB
DOWN FOR
HEAVYSPREAD
UP FOR
LIGHTSPREAD OP85811-06
OPERATION

15
85812
READJUST ALL SPINNER
VANES. SET AT MAXIMUM
VANE MOUNTING ANGLE
(TO THE INSIDE OF THE
SLOT).
LOWER AND LOCK
DIVERTER GATE.
ADJUST METERING GATE
IN THE “LIGHTSPREAD"
RANGE.
SET SPINNER SPEED
CONTROL TO 4.
RAISE DIVERTER GATE.
LIGHTSPREAD™ HEAVYSPREAD™
4<3
READJUST ALL SPINNER
VANES. SET AT MINIMUM
VANE MOUNTING ANGLE
(TO THE OUTSIDE OF THE
SLOT).
PULL METERING GATE
STOP PIN OUT. ADJUST
METERING GATE WITHIN
“HEAVYSPREAD” RANGE.
SET SPINNER SPEED
CONTROL TO 3 OR LESS.
LIGHTSPREAD™ HEAVYSPREAD™
SPINNER WHEELS - AS VIEWED FROM TOP
LIGHT HEAVY
LEFT RIGHT LEFT RIGHT
LIGHTSPREAD™ HEAVYSPREAD™
FIGURE 6
TO AVOID SERIOUS INJURY,
Always Stop the Engine Before Making Any Lightspread or
Heavyspread Adjustments.
SET CONVEYOR BELT
SPEED AT 1.25 TO 2.5
TURNS OPEN.
SET CONVEYOR BELT
SPEED AT 1.25 to 1.5
TURNS OR MORE OPEN. 1.25 TO 2.5X1.25 TO 1.5X
WARNING
WARNING
OP85811-07
1
2
3
4
5
1
2
3
4
5
1
2
3
4
5
1
2
3
4
5
1
1
2
3
4
5
OPERATION

16 85812
Adjusting Spinner Wheel Vanes
(See Figures 6 and 7)
Changing the vane mounting angle is necessary
during the changeover between Lightspread and
Heavyspread operations.
TO AVOID SERIOUS INJURY,
Always Stop the Engine Before Making
Adjustments to the Spinner Vanes.
LIGHTSPREAD - Readjust spinner to maximum
mounting angle (to inside of slot).
HEAVYSPREAD - Readjust spinner to minimum
mounting angle (to outside of slot).
The mounting angle is adjusted by loosening the
inside locking screw on the vane (it is not necessary
to loosen the screw on the outside), sliding the vane to
the other end of the slot on the vane, and retightening
the screw. NOTE: Because the right and left spinner
wheels rotate in opposite direction, the right and left
vanes are a mirror image of each other. See Figure 6
for the location and direction of adjustment for each
individual vane.
Setting WIDESPIN 1530 Conveyor Belt Speed
Control
Turning the control knob
counterclockwise increases
the belt speed - clockwise
slows the belt speed.
Use the following speed settings for Lightspread or
Heavyspread operations. The settings are from a fully
closed (clockwise) position.
LIGHTSPREAD - Set the belt speed control at
“1-1/4 to 1-1/2” turns open.
HEAVYSPREAD - Set the belt speed control at
“1-1/4 to 2-1/2” turns open.
Moisture content and the type of top dressing material
are variables that may require additional adjustments
to the setting of the speed control.
Changing the conveyor belt speed control does not
affect the operating speed of the spinner assembly
spinner wheels.
VANE
(SHOWN IN
LIGHTSPREAD
POSITION)
SLOT
MOUNTING
ANGLE
FIGURE 7
INSIDE LOCKING SCREW
OP85811-08
WARNING
1
2
3
4
5
1
2
3
4
5
OPERATION

17
85812
TOP DRESSING OPERATION
Forward speed is an important part of top dressing.
Moderate and constant speed will provide the best top
dressing results. A varying ground speed will create an
unwanted varied thickness and pattern. Ground speed
during top dressing should not exceed 8 Km/h (5 MPH).
Undesired top dressing patterns and excessive stress
on the machine will occur if speeds are in excess of 8
Km/h (5 MPH). Maximum driving speed when empty
is 8 Km/h (5 MPH).
TO AVOID SERIOUS INJURY,
and To Avoid Damage to the
Truck and the 1530 TM Top Dresser,
Do Not Drive or Operate At Speeds Over
8 Km/h (5 MPH).
Start and stop the top dressing operation using the
hand-held ON/OFF switch. The top dresser should be
moving before putting the switch in the ON ( I ) position.
Put the switch in the OFF ( O ) position before stopping
movement of the top dresser.
For best results, top dress in straight lines. A gradual
turn can be made without difficulty or undesired top
dressing results. On too sharp of a turn, uneven
distribution of top dressing material will occur. A sharp
turn will result in more top dressing being applied to the
inside ground surface of the turn than on the outside
surface.
To make a sharp turn without top dressing, the turn
should be taken very slowly. Too fast of a turn will
increase the possibility of damage to the turf caused
by the trucks wheels skidding or cutting into the turf.
Also, if a turf is too soft, the tires may sink into the turf
and leave tracks.
TO AVOID SERIOUS INJURY,
To Avoid Damage to the WideSpin 1530 TM Top
Dresser and the Truck, Do Not Operate the Top
Dresser On Side Slopes Over 15° Degrees, or Up
and Down Slopes Over 15° Degrees.
Do not operate the top dresser on side slopes over 15°
degrees. Do not operate the top dresser up and down
side slopes over 15° degrees. Do not operate the
top dresser with an over filled or overloaded hopper.
Tipping or rolling over of the machine can occur.
To Avoid Damage To The 1530 TM Top Dresser
Do Not Place the Hand Held ON/OFF Switch
Inside of the Hopper.
Do not place the hand-held ON/OFF switch in the
hopper. Severe damage to the hand held ON/OFF
switch, the conveyor belt, and the spinner assembly
can result if the switch box becomes tangled in the
conveyor belt or spinner wheels.
DO NOT Allow Anyone To Stand Behind the 1530
Spinner Assembly When It Is Operating.
WIDESPIN 1530 TM TOP DRESSER SHUTDOWN
After operation, stop the hydraulic power to the
conveyor belt and the spinner assembly. To avoid
draining the trucks battery, the hand held switch must
be in the “OFF” ( O ) position. After shutdown, check
the following:
● Hopper is empty.
● Trucks hydraulic power supply control has been
placed in the OFF positions.
● Hand Held switch is in the OFF ( O ) position for both
the conveyor belt and the spinner assembly. Hand held
switch should be hung on side hopper panel.
● Set trucks brakes. Block tires to prevent uncontrolled
rolling.
● Disconnect the power supply harness to the truck.
If the WideSpin 1530 TM is going to be removed from
the truck, refer to the manual for the Mounting Kit
Manual.
WARNING
WARNING
WARNING
CAUTION
STAY CLEAR
WHILE
SPINNERS ARE
OPERATING
DANGER
OPERATION

18 85812
Operator Daily Inspection
TO AVOID SERIOUS INJURY,
Do Not Attempt To Perform Any
Inspection, Adjustment, or Service
Procedure With Any Part of the Top
Dresser or Spinner Assembly Operating.
Work Safely and Wear the Appropriate
Safety Gear When Inspecting, Making
Adjustments,
or Servicing The WideSpin 1530 TM Top Dresser.
Follow All Safety Hazard Warnings and Decals.
Before and after each use, check the following items:
● Inspect for damaged or missing guards on the
WideSpin 1530 TM and the spinner assembly. Do
not operate any machine with missing or damaged
guards.
● Inspect entire WideSpin 1530 TM and the spinner
assembly for damaged or inoperable components.
Do not operate any machine with damaged or
inoperable components. Inspect the entire machine
for loose fasteners. Retighten as required.
● Inspect all WideSpin 1530 TM operator controls for
proper operation.
● Inspect the spinner assembly spinner wheels.
Check for proper alignment, damage, wear, and
missing hardware.
● Check for a buildup of top dressing material on
spinner assembly components. Check for a buildup
on and under the spinner wheels. Check for debris
caught in spinner wheels.
● Check for a buildup of top dressing material on
components under the WideSpin 1530 TM rear
deflector, bottom dirt shield pan, hopper and
conveyor belt.
● Inspect the conveyor belt for adjustment and tracking.
If adjustment is required, refer to Service Level
Personnel. Check the conveyor belt adjustment
and tracking frequently during operation.
● Check the level of hydraulic fluid in the trucks
reservoir. Refill as needed.
● Visually check for hydraulic leaks. NEVER USE
HANDS TO CHECK FOR LEAKS!!
● Maintain proper daily lubrication intervals on the
WideSpin 1530 TM top dresser.
● Visually inspect the inside of the hopper for tools,
shovels, rakes, rocks or debris remaining from
earlier use.
Troubleshooting Table
PROBLEM POSSIBLE CAUSE
Poor
Spreading
Results
Trucks Engine RPM Speed Too Slow To
Provide Hydraulic Power To Top Dresser.
Trucks Governor Setting Too Low To Allow
Engine To Provide Hydraulic Power To Top
Dresser.
Spinner Speed Control Setting Wrong.
Refer To Operation Section in This Manual.
Conveyor Belt Speed Control Setting
Wrong. Refer To Operation Section In This
Manual.
Metering Gate Setting Wrong. Refer To
Operation Section In This Manual.
Moisture Level In Top Dressing Too High.
Vane Angle Adjustment Wrong For Top
Dressing Type Or Moisture Level. Refer To
Service Level Personnel.
Diverter in Wrong Position. Refer To
Operation Section In This Manual.
Unscreened Material In Hopper.
Debris or Rocks Blocking Metering Gate.
Unscreened Material In Spinner Attachment
Deflector. Debris or Rocks Blocking
Spinner Wheels.
Build-Up Of Top Dressing Material On
Spinner Wheels or 1530 Components.
Damaged Spinner Wheels or Damaged
Spinner Assembly Components. Refer
Repair to Service Personnel.
Spinner
Assembly
or Conveyor
Belt Not
Operating
No Electrical Power From Tow Vehicle To
Operate ON/OFF Switch or Hydraulic Valve
Block Solenoids. Check All Connections
and Grounds.
Check Fuse In Power Supply Cable.
Spinner Speed Control Set Too Low.
Trucks Engine RPM Speed Too Slow To
Provide Hydraulic Power To Top Dresser.
Trucks Governor Setting Too Low To Allow
Engine To Provide Hydraulic Power To Top
Dresser.
Trucks Hydraulic Flow Selector On Wrong
Setting
Spinner Assembly Hydraulic Hoses and
Quick Release Fittings Not Properly
Connected To the Spinner Assembly or the
WideSpin 1530 Valve Block.
Conveyor Belt Speed Control Set Too Slow
For Weight Of Top Dressing.
Defective Hydraulic Valve Block
Components. Refer To Service Level
Personnel.
Defective Spinner Assembly Hydraulic
Motors. Refer To Service Level Personnel.
WARNING
OPERATION

19
85812
TO STORE THE WIDESPIN 1530 TM OVER AN
EXTENDED PERIOD, perform a complete inspection.
Refer any needed service or repair to service level
personnel. Clean the hopper, both sides of the conveyor
belt and completely clean the spinner assembly. Use
low pressure wash on the top dresser, DO NOT use
high pressure wash. Apply a film of light machine oil to
the spinner wheels to control rust. Release the tension
of the conveyor belt. To protect the conveyor belt,
rubber and plastic parts, store the WideSpin 1530 TM
out of direct sunlight.
Storage
Operator Level Adjustment and Service
TO RETURN TO SERVICE AFTER EXTENDED
STORAGE, inspect the entire machine for any damage
that may have occurred during storage. Refer any
needed correction to service level personnel.
Reset the tension of the conveyor belt. Refer adjustment
to service level personnel.
Perform a complete lubrication procedure. Refer any
needed service or repair to service level personnel.
TO AVOID SERIOUS INJURY,
Do Not Attempt To Adjust, Inspect, or
Service any Part of the WideSpin 1530
TM When It Is Operating.
Be Aware of High Hydraulic Oil
Temperatures. Serious Burns and Injuries Are
Possible.
Properly Secure The WideSpin 1530 TM Before Starting
Any Inspection, Service or Adjustment Procedures.
Operator Level Adjustment and Service
is limited to:
● Cleaning
● Inspection
● Storage
Refer all other service, adjustments or
repairs to qualified service personnel.
HYDRAULIC FLUID
The hydraulic fluid in the WideSpin 1530 TM top dresser
is supplied by the truck. When refilling the truck, check
the type of fluid used (vegetable or petroleum based).
CLEANING
Wash the excess top dressing material from the
conveyor belt, hopper and spinner assembly. Wash
excess top dressing material from all components on
the bottom of the top dresser, especially the inside
surface of the conveyor belt and the conveyor belt
rollers. Use only low pressure wash to clean the top
dresser.
After extended periods of use, the spinner wheels may
collect a buildup of top dressing material. This buildup
may cause excessive vibration or poor spreading
results. During operation, periodically inspect and
remove any buildup of top dressing material from the
spinner wheels, the spinner assembly deflectors, the
guards, and the shields.
INSPECTION
After the WideSpin 1530 TM has been cleaned, inspect
for damage. Look for loose or missing hardware.
Inspect the spinner wheels for loose or missing vanes.
Visually inspect for hydraulic leaks on the motors,
hoses and the hydraulic fittings. Refer any needed
repair work to qualified service personnel.
TO AVOID SERIOUS INJURY,
Do Not Use Your Fingers Or Hands
To Check For Hydraulic Leaks. High
Pressure Leaks Can Puncture The
Skin And Force Oil Into The Body.
This Can Cause Severe Injury Or
Death.
WEAR SAFETY GLASSES!!
EUROPEAN LUBRICANTS, FUEL, AND PARTS
DISPOSAL NUMBERS
Motor Oil ........... 54112
Gear Oil ............ 54112
Grease .............. 54202
Plastic Parts ...... 57127
WARNING
DANGER
OPERATION

20 85812
Decals
STAY CLEAR
WHILE
SPINNERS ARE
OPERATING
HIGH PRESSURE FLUID HAZARD
TO AVOID SERIOUS INJURY,
DO NOT USE HANDS TO CHECK
FOR HYDRAULIC LEAKS.
WEAR EYE PROTECTION.
WARNING
15° MAX.
A.
B.
C.
D.
E.
CE
CE
CE
DOMESTIC
DOMESTIC
DOMESTIC
DOMESTIC
AND CE
DOMESTIC
AND CE
F.
DOMESTIC
AND CE
G.
415 mm
(16.3")
DOMESTIC
AND CE
0.54 Cubic Meter - 816.5 Kg
(19 Cubic Feet - 1,800 lbs)
DANGER
DANGER
KEEP HANDS and FEET AWAY
OP85811-10 H.
DOMESTIC
AND CE
DECALS
