General
Description
The Series TY300-FRB, 5.6 K-factor
Sprinklers described in this data sheet
are quick responding, decorative 3 mm
glass bulb type spray sprinklers. Their
maximum rated service pressure of
300 psi (20,7 bar) makes them an ex-
cellent choice for systems that other-
wise would require the use of a pres-
sure control valve to reduce the static
pressure to 165 psi (11,4 bar), when
conventional 175 psi (12,1 bar) maxi-
mum rated pressure sprinklers are util-
ized. One of the most common uses for
theTY300-FRBSprinklersisinfire
protection systems for high rise build-
ings.
The recessed version of the Series
TY300-FRB Sprinklers are intended
for use in areas with a finished mount-
ing surface (i.e., ceiling or wall, as ap-
plicable). They use either a two-piece
Style 10 Recessed Escutcheon with
1/2 inch (12,7 mm) of recessed adjust-
ment or up to 3/4 inch (19,1 mm) of
total adjustment from the flush pen-
dent/sidewall position, or a two-piece
Style 20 Recessed Escutcheon with
1/4 inch (6,4 mm) of recessed adjust-
ment or up to 1/2 inch (12,7 mm) of
total adjustment from the flush pen-
dent/sidewall position. The adjustment
provided by the Recessed Escutcheon
reduces the accuracy to which the
fixed pipe to the sprinklers must be cut.
Corrosion resistant coatings, where
applicable, are utilized to extend the
life of copper alloy sprinklers beyond
that which would otherwise be ob-
tained when exposed to corrosive at-
mospheres. Although corrosion resis-
tant coated sprinklers have passed the
standard corrosion tests of the appli-
cable approval agencies, the testing is
not representative of all possible cor-
rosive atmospheres. Consequently, it
is recommended that the end user be
consulted with respect to the suitability
of these coatings for any given corro-
sive environment. The effects of ambi-
ent temperature, concentration of
chemicals, and gas/chemical velocity,
should be considered, as a minimum,
along with the corrosive nature of the
chemical to which the sprinklers will be
exposed.
WARNINGS
The Series TY300-FRB Sprinklers de-
scribed herein must be installed and
maintained in compliance with this
document, as well as with the applica-
ble standards of the National Fire Pro-
tection Association, in addition to the
standards of any other authorities hav-
ing jurisdiction. Failuretodosomay
impair the performance of these de-
vices.
The owner is responsible for maintain-
ing their fire protection system and de-
vices in proper operating condition.
The installing contractor or sprinkler
manufacturer should be contacted
with any questions.
Model/Sprinkler
Identification
Numbers
TY3105 - Upright 5.6K, 1/2"NPT
TY3205 - Pendent 5.6K, 1/2"NPT
TY3305 - HSW 5.6K, 1/2"NPT
TY3307 - EC HSW 5.6K, 1/2"NPT
† DuPont Registered Trademark
Series TY300-FRB — 5.6 K-factor
High Pressure Sprinklers, 300 psi (20,7 bar)
Quick Response, Standard & Extended Coverage
Page 1 of 8 TFP642
JULY, 2004
Technical Services: Tel: [phone] / Fax: [phone]
IMPORTANT
Always refer to Technical Data
Sheet TFP700 for the “INSTALLER
WARNING” that provides cautions
with respect to handling and instal-
lation of sprinkler systems and com-
ponents. Improper handling and in-
stallation can permanently damage
a sprinkler system or its compo-
nents and cause the sprinkler to fail
to operate in a fire situation or cause
it to operate prematurely.
OBSOLETE

Technical
Data
Approvals and
Maximum Working Pressure
UL & C-UL Listed and NYC Approved:
300 psi (20,7 bar).
FM Approved: 175 psi (12,1 bar).
(Refer to Table A for complete approval
information including corrosion resis-
tant status, as well as the Design Cri-
teria section for applicable system de-
sign criteria.)
Discharge Coefficient
K=5.6GPM/psi
1/2 (80,6 LPM/bar1/2)
Temperature Ratings
RefertoTableA
Finishes
Sprinkler: Refer to Table A
Recessed Escutcheon: White Coated,
Chrome Plated, or Brass Plated
Physical Characteristics
Frame............. Bronze
Button......... Brass/Copper
SealingAssembly ..........
. . . . . Beryllium Nickel w/Teflon†
Bulb...............Glass
Compression Screw . . . . . Bronze
Deflector ...........Copper
Operation
The glass Bulb contains a fluid which
expands when exposed to heat. When
the rated temperature is reached, the
fluid expands sufficiently to shatter the
glass Bulb, allowing the sprinkler to
activate and water to flow.
Design
Criteria
The Series TY300-FRB Upright
(TY3105), Pendent (TY3205), and
Horizontal Sidewall (TY3305) Sprin-
klers are intended for fire protection
systems designed in accordance with
the standard coverage installation
rules recognized by the applicable
Listing or Approval agency (e.g., UL
Listing is based on the requirements of
NFPA 13, and FM Approval is based
on the requirements of FM’s Loss Pre-
vention Data Sheets).
The Series TY-FRB Extended Cover-
age Horizontal Sidewall (TY3307)
Sprinklers are intended for light hazard
occupancy, smooth ceiling construc-
tion, fire protection systems designed
in accordance with the extended cov-
erage installation rules recognized by
the applicable Listing or Approval
agency (e.g., UL Listing is based on
the requirements of NFPA 13, and FM
Approval is based on the requirements
of FM’s Loss Prevention Data Sheets).
Refer to Table B or C for the applicable
coverage area and flow rate criteria.
Only the Style 10 or 20 Recessed Es-
cutcheon, as applicable, is to be used
for recessed installations.
Installation
The Series TY300-FRB Sprinklers
must be installed in accordance with
the following instructions:
NOTES
Do not install any bulb type sprinkler if
the bulb is cracked or there is a loss of
liquid from the bulb. With the sprinkler
held horizontally, a small air bubble
should be present. The diameter of the
air bubble is approximately 1/16 inch
(1,6 mm) for the 135°F/57°C to 3/32
inch (2,4 mm) for the 286°F/141°C
temperature ratings.
A leak tight 1/2 inch NPT sprinkler joint
should be obtained with a torque of 7
to 14 ft.lbs. (9,5 to 19,0 Nm). A maxi-
mum of 21 ft. lbs. (28,5 Nm) of torque
may be used to install sprinklers with
1/2 NPT connections. Higher levels of
torque may distort the sprinkler inlet
and cause leakage or impairment of
the sprinkler.
Do not attempt to make-up for insuffi-
cient adjustment in the escutcheon
plate by under- or over-tightening the
sprinkler. Readjust the position of the
sprinkler fitting to suit.
The Series TY300-FRB Pendent and
Upright Sprinklers must be installed
in accordance with the following in-
structions.
Step 1. Pendent sprinklers are to be
installed in the pendent position, and
upright sprinklers are to be installed in
the upright position.
Page2of8 TFP642
2
4
5
6
PENDENT CROSS SECTION
(55,6 mm)
2-3/16"
(38,1 mm)
1-1/2"
PLATE SEATING
ESCUTCHEON 7/16" (11,1 mm)
NOMINAL
MAKE-IN
FLATS
WRENCH
SURFACE
1
3
NPT
1/2"
RECESSED PENDENT UPRIGHT
2-7/8" (73,0 mm) DIA.
(11,1 mm)
NOMINAL
MAKE-IN
7/16"
RECESSED
STYLE 10 or 20
ESCUTCHEON
(55,6 mm)
2-3/16"
1/2" NPT
DEFLECTOR
SSU
SSP DEFLECTOR
**
**
*
*
*
FIGURE 1
QUICK RESPONSE SERIES TY300-FRB UPRIGHT (TY3105) AND PENDENT (TY3205) SPRINKLERS
5.6 K-FACTOR, 1/2 INCH NPT
1 - Frame
2-Button
3 - Sealing
Assembly
4 - Bulb
5 - Compression
Screw
6 - Deflector *Temperature rating is indicated on deflector or adjacent to
orifice seat on frame.
**Pipe thread connections per ISO 7/1 can be provided on
special request.
OBSOLETE

Step 2. With pipe thread sealant ap-
plied to the pipe threads, hand tighten
the sprinkler into the sprinkler fitting.
Step 3. Tighten the sprinkler into the
sprinkler fitting using only the W-Type
6 Sprinkler Wrench (Ref. Figure 10).
With reference to Figure 1, the W-Type
6 Sprinkler Wrench is to be applied to
the sprinkler wrench flats.
The Series TY300-FRB Recessed
Pendent Sprinklers must be installed
in accordance with the following in-
structions.
Step A. After installing the Style 10 or
20 Mounting Plate, as applicable, over
the sprinkler threads and with pipe
thread sealant applied to the pipe
threads, hand tighten the sprinkler into
the sprinkler fitting.
Step B. Tighten the sprinkler into the
sprinkler fitting using only the W-Type
7 Recessed Sprinkler Wrench (Ref.
Figure 11). With reference to Figure 1,
the W-Type 7 Recessed Sprinkler
Wrench is to be applied to the sprinkler
wrench flats.
Step C. After the ceiling has been in-
stalled or the finish coat has been ap-
plied, slide on the Style 10 or 20 Clo-
sure over the Series TY300-FRB
Sprinkler and push the Closure over
the Mounting Plate until its flange
comes in contact with the ceiling.
The Series TY300-FRB Horizontal
and EC Horizontal Sidewall Sprin-
klers must be installed in accordance
with the following instructions.
Step 1. Horizontal sidewall sprinklers
are to be installed in the horizontal
position with their centerline of water-
way perpendicular to the back wall and
parallel to the ceiling. The word “TOP”
on the Deflector is to face towards the
ceiling.
Step 2. With pipe thread sealant ap-
plied to the pipe threads, hand tighten
the sprinkler into the sprinkler fitting.
Step 3. Tighten the sprinkler into the
sprinkler fitting using only the W-Type
6 Sprinkler Wrench (Ref. Figure 10),
WithreferencetoFigure2or3,the
W-Type 6 Sprinkler Wrench is to be
applied to the wrench flats.

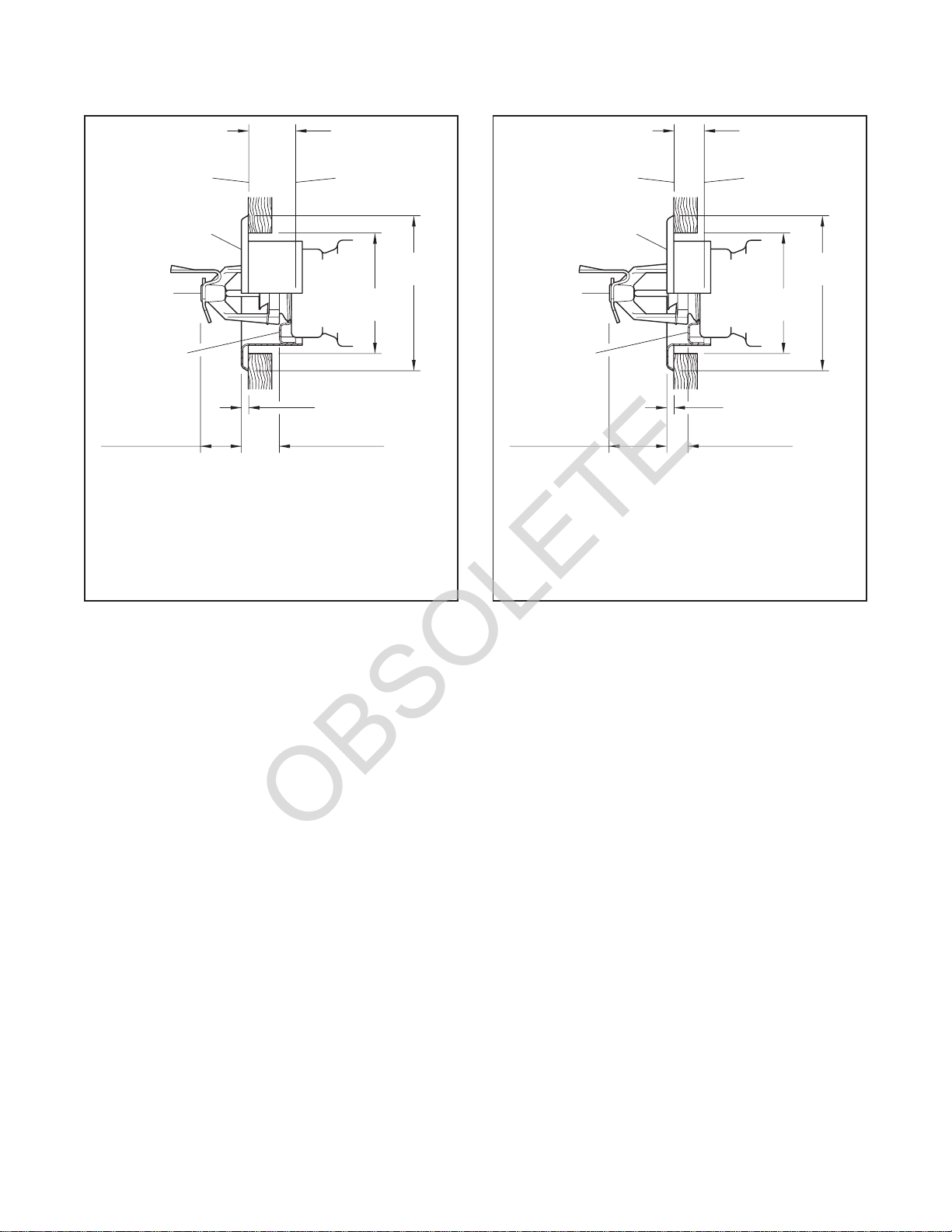

The Series TY300-FRB Recessed
Horizontal and EC Horizontal Side-
wall Sprinklers must be installed in
accordance with the following instruc-
tions.
Step A. Recessed horizontal sidewall
sprinklers are to be installed in the
horizontal position with their centerline
of waterway perpendicular to the back
wall and parallel to the ceiling. The
TFP642 Page 3 of 8
FIGURE 2
QUICK RESPONSE SERIES TY300-FRB
HORIZONTAL SIDEWALL (TY3305) SPRINKLERS
5.6 K-FACTOR, 1/2 INCH NPT
1 - Frame
2-Button
3 - Sealing
Assembly
4 - Bulb
5 - Compression
Screw
6 - Deflector
*Temperature rating is indicated on deflector or adjacent to orifice seat on frame.
**Pipe thread connections per ISO 7/1 can be provided on special request.
24
5
PLATE
ESCUTCHEON
(11,1 mm)
NOMINAL
MAKE-IN
SEATING
13
WRENCH
FLATS
1-1/2"
(38,1 mm)
2-3/16"
(55,6 mm)
7/16"
1-13/16"
(46,0 mm)
HAT
DEFLECTOR
1/2"
NPT
6
CENTERLINE
WATERWAY
OF SPRINKLER
9/16"
(14,3 mm)
*
**
SURFACE
FIGURE 3
QUIK RESPONSE - EXTENDED COVERAGE / EXTENDED COVERAGE
SERIES TY300-FRB HORIZONTAL SIDEWALL (TY3307) SPRINKLERS
5.6 K-FACTOR, 1/2 INCH NPT
1 - Frame
2-Button
3 - Sealing
Assembly
4 - Bulb
5 - Compression
Screw
6 - Deflector
7 - Ejection
Spring
*Temperature rating is indicated on deflector or adjacent to orifice seat on frame.
**Pipe thread connections per ISO 7/1 can be provided on special request.
25
4
6
(11,1 mm)
NOMINAL
MAKE-IN
13
WRENCH
FLATS
1-1/2"
(38,1 mm)
2-3/16"
(55,6 mm)
7/16"
1-9/16"
(39,7 mm)
HAT
DEFLECTOR
1/2"
NPT
*
7
(11,1 mm)
7/16"
(11,1 mm)
7/16"
OF SPRINKLER
WATERWAY
CENTERLINE
**
OBSOLETE

Page4of8 TFP642
TYPE TEMP. BULB
LIQUID
NATURAL
BRASS
CHROME
PLATED
WHITE***
POLYESTER
155°F/68°C
175°F/79°C
200°F/93°C
SPRINKLER FINISH (See Note 6)
RECESSED
PENDENT
(TY3205)*
Figure 4
135°F/57°C Orange
Red
Yellow
Green
1, 5
NOTES:
1. Listed by Underwriters Laboratories, Inc. (UL) and for use in Canada (C-UL) as Quick Response Sprinklers (300 psi).
2. Approved by Factory Mutual Research Corporation (FM) as Quick Response Sprinklers (175 psi).
3. Listed by Underwriters Laboratories, Inc. (UL) and for use in Canada (C-UL) per Table B (300 psi).
4. Approved by Factory Mutual Research Corporation (FM) per Table C (175 psi).
5. Approved by the City of New York under MEA 354-01-E (300 psi)
6. Where Polyester Coated Sprinklers are noted to be UL and C-UL Listed, the sprinklers are UL and C-UL Listed as Corrosion Resistant
Sprinklers.
* Installed with Style 10 (1/2" NPT) 3/4" Total Adjustment Recessed Escutcheon.
** Installed with Style 20 (1/2" NPT) 1/2" Total Adjustment Recessed Escutcheon.
*** Frame and deflector only. Listings and approvals apply to color (Special Order).
TABLE A, LABORATORY LISTINGS AND APPROVALS
K
5.6
1/2"
NPT
PENDENT
(TY3205)
and
UPRIGHT
(TY3105)
135°F/57°C Orange
155°F/68°C Red
175°F/79°C Yellow
200°F/93°C Green
286°F/141°C Blue
1, 2, 5
RECESSED
HSW
(TY3305)*
Figure 6
135°F/57°C
Orange155°F/68°C
Red175°F/79°C
Yellow200°F/93°C
5.6
1/2"
NPT
HSW
(TY3305)
135°F/57°C
155°F/68°C
175°F/79°C
200°F/93°C
286°F/141°C Blue
Green
Yellow
Red
Orange
1, 2, 5
135°F/57°C
155°F/68°C
175°F/79°C
200°F/93°C
Green
RECESSED
PENDENT
(TY3205)**
Figure 5
Orange
Red
Yellow
Green
1, 2, 5
Orange
Red
Yellow
Green
1, 2, 5
RECESSED
HSW
(TY3305)**
Figure 7
135°F/57°C
155°F/68°C
175°F/79°C
200°F/93°C
1, 5
EC HSW
(TY3307)
135°F/57°C
155°F/68°C
175°F/79°C
Orange
Red
Yellow
5.6
1/2"
NPT
RECESSED
EC HSW
(TY3307)*
Figure 8
135°F/57°C
155°F/68°C
175°F/79°C
Orange
Red
Yellow
RECESSED
EC HSW
(TY3307)**
Figure 9
135°F/57°C
155°F/68°C
175°F/79°C
Orange
Red
Yellow
3, 4, 5
3, 5
3, 4, 5
1, 5
OBSOLETE

TFP642 Page 5 of 8
FIGURE 4
SERIES TY300-FRB RECESSED PENDENT
SPRINKLER ASSEMBLY WITH TWO-PIECE
3/4 INCH TOTAL ADJUSTMENT
STYLE 10 RECESSED ESCUTCHEON
5.6 K-FACTOR, 1/2 INCH NPT
(57,2 mm)
2-1/4" DIA.
(73,0 mm)
2-7
/
8" DIA.
SPRINKLER
MOUNTING
CLOSURE SERIES
SURFACE
FACE OF
FITTING
(15,9±6,4 mm)
5/8±1/4"
(3,2 mm)
3/4" (19,1 mm)
1-1/4" (31,8 mm)
PLATE
MOUNTING
1/8"
1/4" (6,4 mm)
3/4" (19,1 mm)
TY-FRB
FIGURE 6
SERIES TY300-FRB RECESSED HORIZONTAL
SIDEWALL SPRINKLER WITH TWO-PIECE
3/4 INCH TOTAL ADJUSTMENT
STYLE 10 RECESSED ESCUTCHEON
5.6 K-FACTOR, 1/2 INCH NPT
MOUNTING
3/4"
(
19,1 mm
)
1-1/4" (31,8 mm)
PLATE
CLOSURE
SURFACE
MOUNTING
(73,0 mm)
2-1/4" DIA.
(57,2 mm)
1/4"
(
6,4 mm
)
3/4" (19,1 mm)
(3,2 mm)
1/8"
5
/
8±1
/
4"
FACE OF
FITTING
SPRINKLER
(15,9±6,4 mm)
2-7/8" DIA.
SERIES
TY-FRB
FIGURE 5
SERIES TY300-FRB RECESSED PENDENT
SPRINKLER ASSEMBLY WITH TWO-PIECE
1/2 INCH TOTAL ADJUSTMENT
STYLE 20 RECESSED ESCUTCHEON
5.6 K-FACTOR, 1/2 INCH NPT
FIGURE 7
SERIES TY300-FRB RECESSED HORIZONTAL
SIDEWALL SPRINKLER WITH TWO-PIECE
1/2 INCH TOTAL ADJUSTMENT
STYLE 20 RECESSED ESCUTCHEON
5.6 K-FACTOR, 1/2 INCH NPT
(12,7±3,2 mm)
1/2±1/8"
2-1/4" DIA.
(57,2 mm)
(73,0 mm)
2-7
/
8" DIA.
SPRINKLER
MOUNTING
CLOSURE
SURFACE
FACE OF
FITTING
(3,2 mm)
1" (25,4 mm)
1-1/4" (31,8 mm)
PLATE
MOUNTING
1/8"
1/4" (6,4 mm)
1/2" (12,7 mm)
TY-FRB
SERIES
MOUNTING
1"
(
25,4 mm
)
1-1/4" (31,8 mm)
PLATE
CLOSURE
SURFACE
MOUNTING
(73,0 mm)
2-1/4" DIA.
(57,2 mm)
1/4"
(
6,4 mm
)
1/2" (12,7 mm)
(3,2 mm)
1/8"
1
/
2±1
/
8"
FACE OF
FITTING
SPRINKLER
(12,7±3,2 mm)
2-7/8" DIA.
SERIES
TY-FRB
OBSOLETE

word “TOP” on the Deflector is to face
towards the ceiling.
Step B. After installing the Style 10 or
20 Mounting Plate over the sprinkler
threads, hand tighten the sprinkler into
the sprinkler fitting.
Step C. Tighten the sprinkler into the
sprinkler fitting using only the W-Type
7 Recessed Sprinkler Wrench (Ref.
Figure 11). With reference to Figure 2
or 3, the W-Type 7 Recessed Sprinkler
Wrench is to be applied to the sprinkler
wrench flats.
Step D. After the wall has been in-
stalled or the finish coat has been ap-
plied, slide on the Style 10 or 20 Clo-
sure over the Series TY300-FRB
Sprinkler and push the Closure over
the Mounting Plate until its flange
comes in contact with the wall.
Care and
Maintenance
The Series TY300-FRB Sprinklers
must be maintained and serviced in
accordance with the following instruc-
tions:
NOTES
Before closing a fire protection system
main control valve for maintenance
work on the fire protection system that
it controls, permission to shut down the
affected fire protection system must be
obtained from the proper authorities
and all personnel who may be affected
by this action must be notified.
Absence of an escutcheon, which is
used to cover a clearance hole, may
delay the time to sprinkler operation in
a fire situation.
Sprinklers that are found to be leaking
or exhibiting visible signs of corrosion
must be replaced.
Automatic sprinklers must never be
painted, plated, coated or otherwise
altered after leaving the factory. Modi-
fied sprinklers must be replaced.
Sprinklers that have been exposed to
corrosive products of combustion, but
have not operated, should be replaced
if they cannot be completely cleaned
by wiping the sprinkler with a cloth or
by brushing it with a soft bristle brush.
Care must be exercised to avoid dam-
age to the sprinklers - before, during,
and after installation. Sprinklers dam-
aged by dropping, striking, wrench
twist/slippage, or the like, must be re-
placed. Also, replace any sprinkler that
has a cracked bulb or that has lost
liquid from its bulb. (Ref. Installation
Section).
Frequent visual inspections are rec-
ommended to be initially performed for
corrosion resistant coated sprinklers,
after the installation has been com-
pleted, to verify the integrity of the cor-
rosion resistant coating. Thereafter,
annual inspections per NFPA 25
should suffice; however, instead of in-
specting from the floor level, a random
sampling of close-up visual inspec-
tions should be made, so as to better
determine the exact sprinkler condi-
tion and the long term integrity of the
corrosion resistant coating, as it may
be affected by the corrosive conditions
present.
The owner is responsible for the in-
spection, testing, and maintenance of
their fire protection system and de-
vices in compliance with this docu-
ment, as well as with the applicable
standards of the National Fire Protec-
tion Association (e.g., NFPA 25), in
addition to the standards of any other
authorities having jurisdiction. The in-
stalling contractor or sprinkler manu-
facturer should be contacted relative
to any questions.
It is recommended that automatic
sprinkler systems be inspected,
tested, and maintained by a qualified
Inspection Service in accordance with
local requirements and/or national
codes.
Page6of8 TFP642
FIGURE 8
SERIES TY300-FRB RECESSED EXTENDED
COVERAGE HORIZONTAL SIDEWALL
SPRINKLER ASSEMBLY WITH TWO-PIECE
3/4 INCH TOTAL ADJUSTMENT
STYLE 10 RECESSED ESCUTCHEON
5.6 K-FACTOR, 1/2 INCH NPT
FIGURE 9
SERIES TY300-FRB RECESSED EXTENDED
COVERAGE HORIZONTAL SIDEWALL
SPRINKLER ASSEMBLY WITH TWO-PIECE
1/2 INCH TOTAL ADJUSTMENT
STYLE 20 RECESSED ESCUTCHEON
5.6 K-FACTOR, 1/2 INCH NPT
MOUNTING
1" (25,4 mm)
1-1/4" (31,8 mm)
PLATE
CLOSURE
SURFACE
MOUNTING
(73,0 mm)
2-1/4" DIA.
(57,2 mm)
1/4" (6,4 mm)
1/2" (12,7 mm)
(3,2 mm)
1/8"
FACE OF
FITTING
SPRINKLER
2-7/8" DIA.
TY-FRB
SERIES
1
/
2±1
/
8"
(12,7±3,2 mm)
MOUNTING
3/4"
(
19,1 mm
)
1-1/4" (31,8 mm)
PLATE
CLOSURE
SURFACE
MOUNTING
(73,0 mm)
2-1/4" DIA.
(57,2 mm)
1/4"
(
6,4 mm
)
3/4" (19,1 mm)
(3,2 mm)
1/8"
FACE OF
FITTING
SPRINKLER
2-7/8" DIA.
(15,9±6,4 mm)
5
/
8±1
/
4"
TY-FRB
SERIES
OBSOLETE

TFP642 Page 7 of 8
5.6 K EXTENDED COVERAGE HORIZONTAL SIDEWALL SPRINKLER (TY3307)
Response Coverage Minimum Minimum Deflector- Sprinkler Minimum
Rating Area(1),Flow
(2), Pressure(2), To-Ceiling Temperature Spacing(4),
Ft. x Ft. (m x m) GPM (LPM) PSI (BAR) Distance(3), In. (mm) Rating, °F Ft. (m)
Quick 16 x 16 (4,9 x 4,9) 26 (98) 21.6 (1,48) 4 to 12 (100 to 300) 135, 155, 175 10 (3,1)
Quick 16 x 18 (4,9 x 5,5) 29 (110) 26.8 (1,85) 4 to 12 (100 to 300) 135, 155, 175 10 (3,1)
Quick 16 x 20 (4,9 x 6,1) 32 (121) 32.7 (2,25) 4 to 6 (100 to 150) 135 10 (3,1)
Quick 16 x 22 (4,9 x 6,7) 35 (133) 39.1 (2,70) 4 to 6 (100 to 150) 135 10 (3,1)
Standard 16 x 20 (4,9 x 6,1) 32 (121) 32.7 (2.25) 4 to 6 (100 to 150) 155 10 (3,1)
Standard 16 x 22 (4,9 x 6,7) 35 (133) 39.1 (2,70) 4 to 6 (100 to 150) 155,175 10 (3,1)
TABLE B
UL AND C-UL LISTING COVERAGE AND FLOW RATE CRITERIA
FOR TY300-FRB (TY3307) EXTENDED COVERAGE HORIZONTAL SIDEWALL SPRINKLERS
NOTES
1. Backwall (where sprinkler is located) by sidewall (length of throw).
2. Requirement is based on minimum flow in GPM from each sprinkler. The indicted residual pressures are based on the nominal
K-factor.
3. The centerline of the sprinkler waterway is located 7/16 inch (11,1 mm) below the deflector (Ref. Figure 3).
4. Miinimum spacing is for lateral distance between sprinklers located along a single wall. Otherwise adjacent sprinklers (i.e., side-
wall sprinklers on an adjacent wall, on an opposite wall, or pendent sprinklers) must be located outside of the maximum listed pro-
tection area of the extended coverage sidewall sprinkler being utilized.
5.6 K EXTENDED COVERAGE HORIZONTAL SIDEWALL SPRINKLER (TY3307)
Response Coverage Minimum Minimum Deflector- Sprinkler Minimum
Rating Area(1),Flow
(2), Pressure(2), To-Ceiling Temperature Spacing(4),
Ft. x Ft. (m xm) GPM (LPM) PSI (BAR) Distance(3), In. (mm) Rating, °F Ft. (m)
Quick 16 x 16 (4,9 x 4,9) 26 (98) 22 (1,51) 4 to 12 (100 to 300) 135, 155 10 (3,1)
Quick 16 x 18 (4,9 x 5,5) 30 (114) 29 (2,00) 4 to 12 (100 to 300) 135, 155 10 (3,1)
Quick 16 x 20 (4,9 x 6,1) 33 (125) 35 (2,41) 4 to 12 (100 to 300) 135, 155 10 (3,1)
Standard 16 x 16 (4,9 x 4,9) 26 (98) 22 (1,51) 4 to 12 (100 to 300) 175 10 (3,1)
Standard 16 x 18 (4,9 x 5,5) 30 (114) 29 (2,00) 4 to 12 (100 to 300) 175 10 (3,1)
Standard 16 x 20 (4,9 x 6,1) 33 (125) 35 (2,41) 4 to 12 (100 to 300) 175 10 (3,1)
TABLE C
FM COVERAGE AND FLOW RATE CRITERIA
FOR TY300-FRB (TY3307) EXTENDED COVERAGE HORIZONTAL SIDEWALL SPRINKLERS
NOTES
1. Backwall (where sprinkler is located) by sidewall (length of throw).
2. Requirement is based on maintaining both minimum flow and minimum residual pressure.
3. The centerline of the sprinkler waterway is located 7/16 inch (11,1 mm) below the deflector (Ref. Figure 3).
4. Miinimum spacing is for lateral distance between sprinklers located along a single wall. Otherwise adjacent sprinklers (i.e.,
sidewall sprinklers on an adjacent wall, on an opposite wall, or pendent sprinklers) must be located outside of the maximum
listed protection area of the extended coverage sidewall sprinkler being utilized.
OBSOLETE

Limited
Warranty
Products manufactured by Tyco Fire
Products are warranted solely to the
original Buyer for ten (10) years
against defects in material and work-
manship when paid for and properly
installed and maintained under normal
use and service. This warranty will ex-
pire ten (10) years from date of ship-
ment by Tyco Fire Products. No war-
ranty is given for products or
components manufactured by compa-
nies not affiliated by ownership with
Tyco Fire Products or for products and
components which have been subject
to misuse, improper installation, corro-
sion, or which have not been installed,
maintained, modified or repaired in ac-
cordance with applicable Standards of
the National Fire Protection Associa-
tion, and/or the standards of any other
Authorities Having Jurisdiction. Mate-
rials found by Tyco Fire Products to be
defective shall be either repaired or
replaced, at Tyco Fire Products’ sole
option. Tyco Fire Products neither as-
sumes, nor authorizes any person to
assume for it, any other obligation in
connection with the sale of products or
parts of products. Tyco Fire Products
shall not be responsible for sprinkler
system design errors or inaccurate or
incomplete information supplied by
Buyer or Buyer’s representatives.
IN NO EVENT SHALL TYCO FIRE
PRODUCTS BE LIABLE, IN CON-
TRACT, TORT, STRICT LIABILITY OR
UNDER ANY OTHER LEGAL THE-
ORY, FOR INCIDENTAL, INDIRECT,
SPECIAL OR CONSEQUENTIAL
DAMAGES, INCLUDING BUT NOT
LIMITED TO LABOR CHARGES, RE-
GARDLESS OF WHETHER TYCO
FIRE PRODUCTS WAS INFORMED
ABOUT THE POSSIBILITY OF SUCH
DAMAGES,ANDINNOEVENT
SHALL TYCO FIRE PRODUCTS’ LI-
ABILITY EXCEED AN AMOUNT
EQUAL TO THE SALES PRICE.
THE FOREGOING WARRANTY IS
MADE IN LIEU OF ANY AND ALL
OTHER WARRANTIES EXPRESS OR
IMPLIED, INCLUDING WARRANTIES
OF MERCHANTABILITY AND FIT-
NESS FOR A PARTICULAR PUR-
POSE.
Ordering
Procedure
When placing an order, indicate the full
product name. Refer to the Price List
for complete listing of Part Numbers.
Contact your local distributor for avail-
ability.
Sprinkler Assemblies with NPT
Thread Connections:
Specify: (Specify Model/SIN), 3 mm
Bulb Type, 5.6 K-factor, (specify tem-
perature rating), Series TY300-FRB
(specify Pendent, Upright, Horizontal
Sidewall, or EC Horizontal Sidewall)
Sprinkler with (specify type of finish or
coating), P/N (specify from Table D).
Recessed Escutcheon:
Specify: Style (specify) Recessed Es-
cutcheon with (specify finish), P/N
(specify).
1/2" (15 mm)
Style 10
Chrome Plated . . . . . . . . . . . . P/N 56-701-9-010
White Color Coated . . . . . . . . P/N 56-701-4-010
White RAL9010* . . . . . . . . . . . P/N 56-701-3-010
Brass Plated . . . . . . . . . . . . . . P/N 56-701-2-010
1/2" (15 mm)
Style 20
Chrome Plated . . . . . . . . . . . . P/N 56-705-9-010
White Color Coated . . . . . . . . P/N 56-705-4-010
White RAL9010* . . . . . . . . . . . P/N 56-705-3-010
Brass Plated . . . . . . . . . . . . . . P/N 56-705-2-010
* Eastern Hemisphere sales only.
Sprinkler Wrench:
Specify: W-Type 6 Sprinkler Wrench,
P/N 56-000-6-387.
Specify: W-Type 7 Sprinkler Wrench,
P/N 56-850-4-001.
Page8of8 TFP642
TYCO FIRE PRODUCTS, 451 North Cannon Avenue, Lansdale, Pennsylvania 19446
P/N 53 — XXX — X — XXX
155°F/68°C155
TEMPERATURE
RATING
135°F/57°C135
1
SPRINKLER
TABLE D
PART NUMBER SELECTION
SERIES TY300-FRB SPRINKLERS
175°F/79°C
286
200°F/93°C200
286°F/141°C
175
WHITE POLYESTER
NATURAL BRASS
9
4
MODEL/SIN
CHROME PLATED
370 5.6K UPRIGHT (1/2"NPT)
371 5.6K PENDENT (1/2"NPT)
378 5.6K HSW (1/2"NPT)
376 5.6K EC HSW (1/2"NPT)
(135, 155, or 175°F ONLY)
TY3105
TY3205
TY3305
TY3307
3 WHITE (RAL9010)*
* Eastern Hemisphere sales only
FIGURE 10
W-TYPE 6 SPRINKLER
WRENCH
WRENCH RECESS
(END "A" USED FOR
1/2" NPT MODELS)
WRENCH RECESS
(END "B" USED FOR
3/4" NPT MODELS
)
FIGURE 11
W-TYPE 7 RECESSED
SPRINKLER WRENCH
RECESS
WREN
C
H
WITH SPRINKLER
ENGAGEMENT
IN TO ENSURE
WREN
C
HIN
G
AREA
PUSH WRENCH
OBSOLETE
