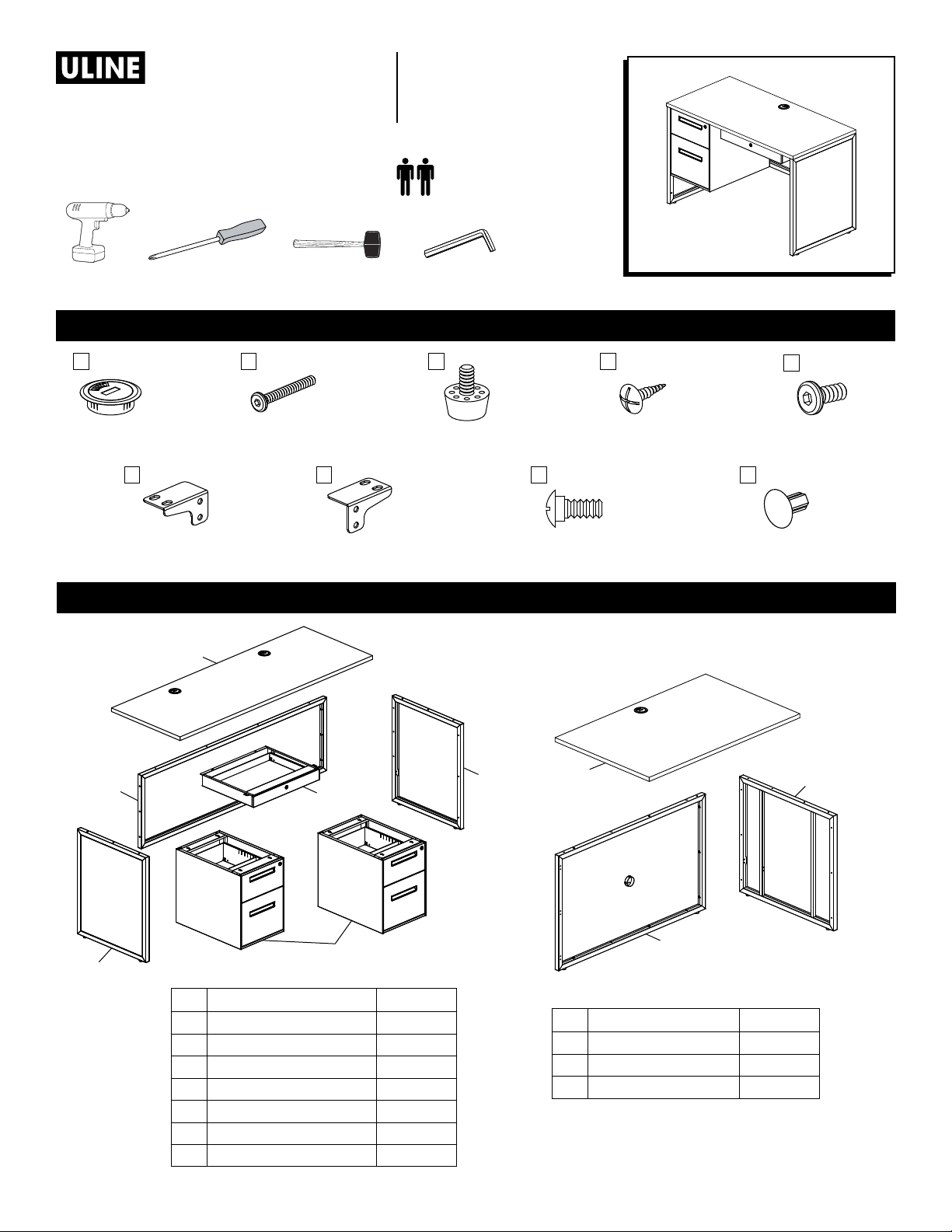

U-Line INDUSTRIAL H-10808 User manual

PAGE 1 OF 44 1223 IH-10808
H-10808, H-11146 1-800-295-5510
uline.com
INDUSTRIAL COLLECTION
OFFICE DESK
TOOLS NEEDED
Phillips
Screwdriver

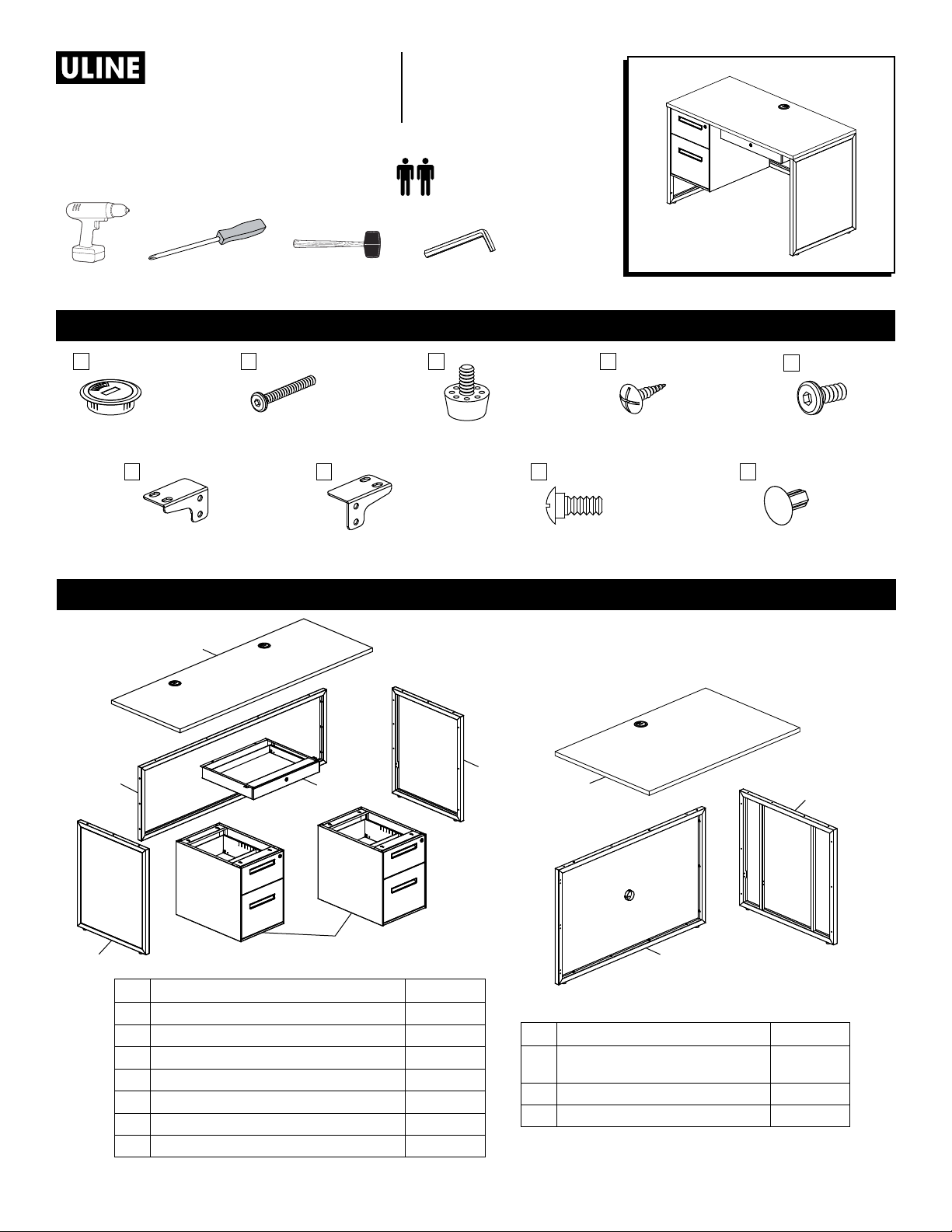

DESK ASSEMBLY PARTS
DESK ASSEMBLY COMPONENTS
Rubber Mallet Allen Wrench
(Included)
Drill
(Optional)
Two Person Assembly
Recommended
Grommet Cap x 2
(x 1 for H-11146)
A
M6 x 45 mm Bolt x 16
B
Adjustable Glide x 4
C
ST 5 x 16 mm Wood Screw x 4
D
M6 x 15 mm Bolt x 16
(x 8 for H-11146)
F
DESK PARTS
#DESCRIPTION QTY.
1Desktop Panel 1
2Left Side Panel 1
3Right Side Panel 1
4Modesty Panel 1
5Center Drawer 1
9 Pedestal File (for H-10808) 2
9 Pedestal File (for H-11146) 1
OPTIONAL RETURN PARTS
#DESCRIPTION QTY.
6 Return Desktop Panel 1
7 Return Side Panel 1
8 Return Modesty Panel 1
DESK OPTIONAL L-DESK RETURN
8
67
2
4
1
3
9
5
Para Español, vea páginas 15-29.
Pour le français, consulter les pages 30-44.
Left L-Bracket x 2
(x 1 for H-11146)
I
Right L-Bracket x 2
(x 1 for H-11146)
Hole Cap x 8
J
M6 x 14 mm Shoulder Screw x 8
(x 4 for H-11146)
K V

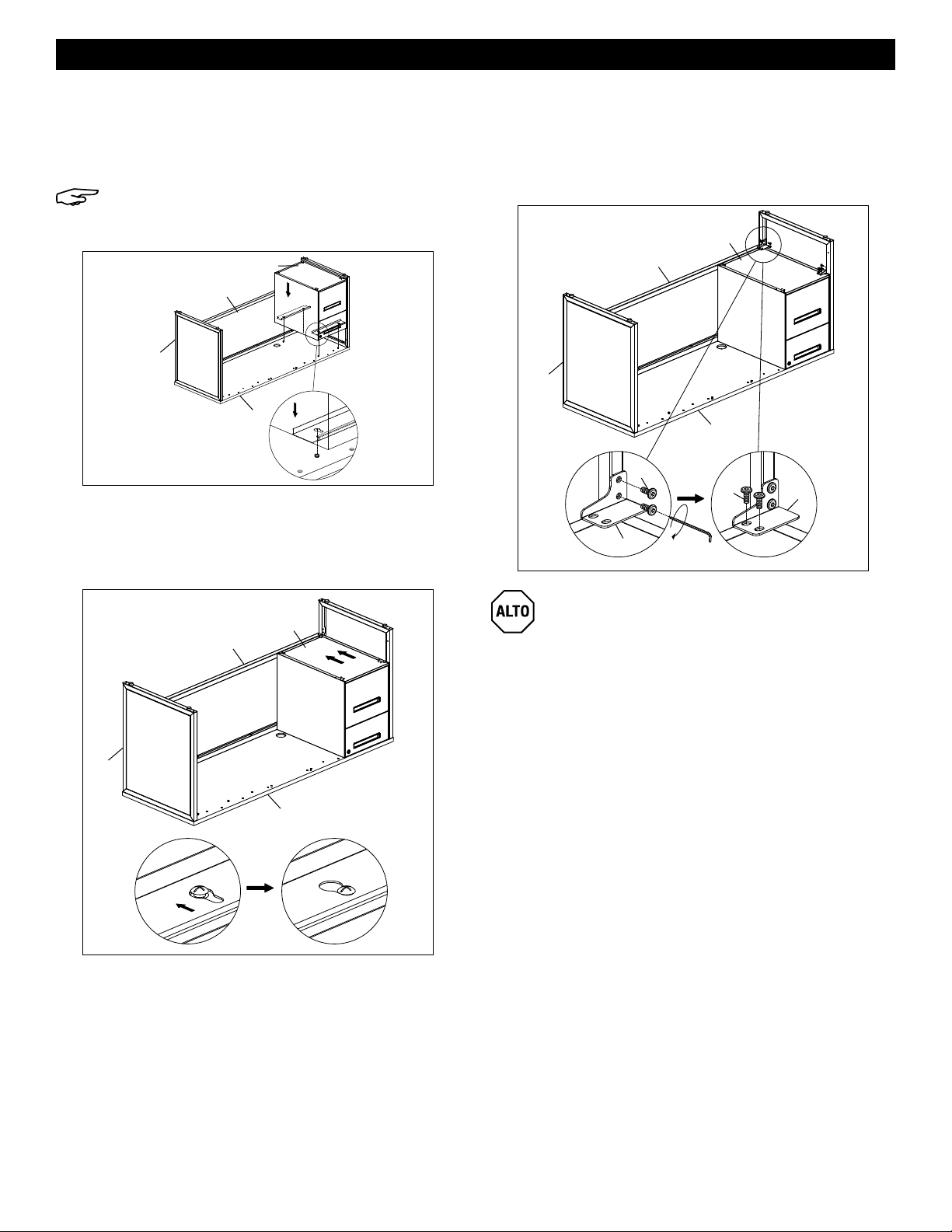

PAGE 2 OF 44 1223 IH-10808
DESK ASSEMBLY
NOTE: Assemble on a smooth, non-marring
surface to avoid scratching.
NOTE: Use Allen wrench to tighten bolts.
NOTE: Use Phillips screwdriver to tighten screws.
NOTE: Check that all parts are included.

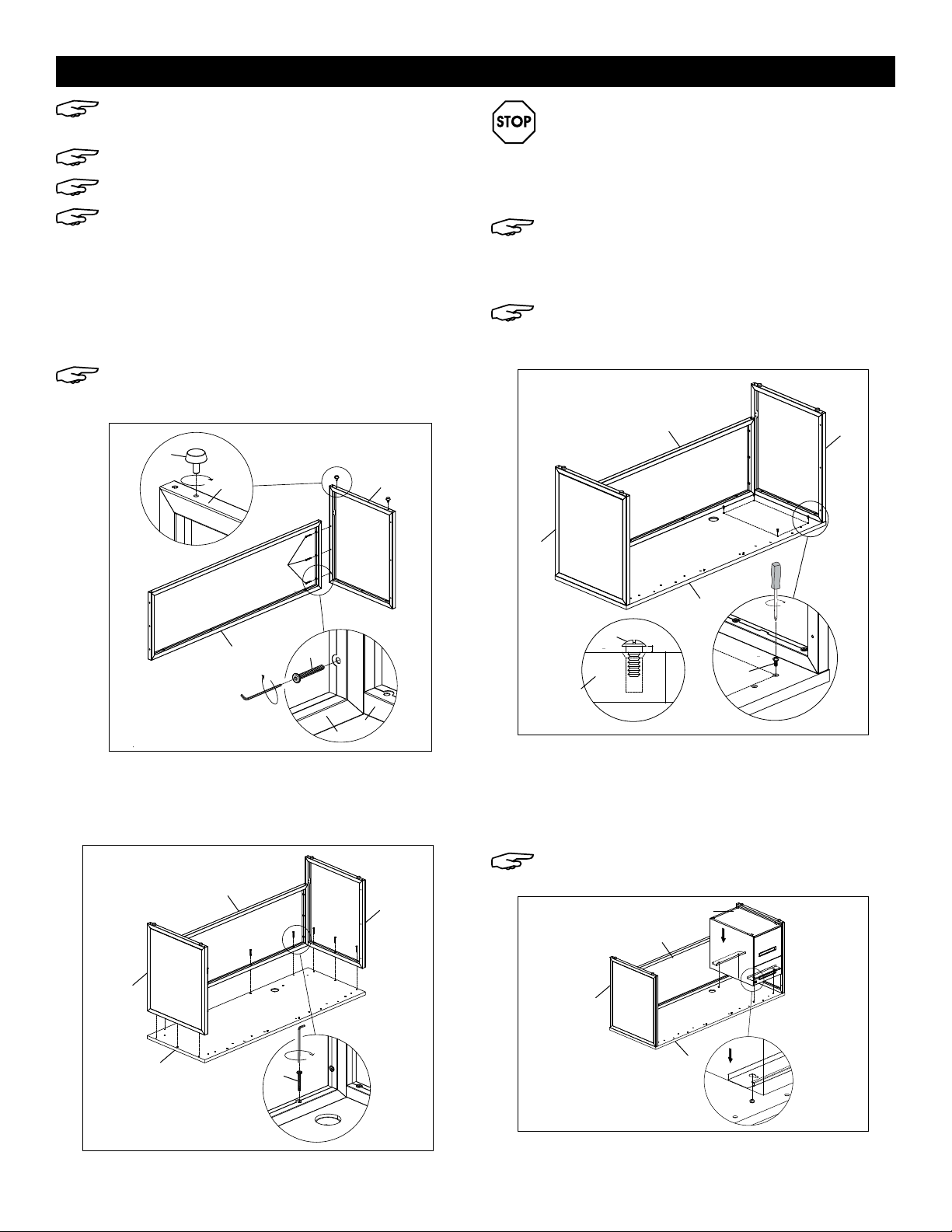

1. Attach adjustable glides (C) to bottom corners
of each side panel (2,3). (See Figure 1)
2. Align modesty panel (4) with holes in left side panel
(2). Use three M6 x 45 mm bolts (B) to secure. Repeat
with right side panel (3). (See Figure 1)
NOTE: 66 x 24" desk is shown in the following
figures. 48 x 24" assembly follows the same
steps.
3. Place desktop panel (1) upside down with holes
facing up. With second person, turn assembled desk
frame upside down. Use 10 M6 x 45 mm bolts (B) to
secure desk frame to desktop. (See Figure 2)
Figure 2
42
3
1B
To continue desk assembly, proceed to step 4.
To continue L-Desk assembly, proceed to page
4.
4. Insert four M6 x 14 mm shoulder screws (K) in
desktop (1). (See Figure 3)
NOTE: For 48 x 24" desk assembly, only one
pedestal file (9) will be attached. Determine
which side of the desk the pedestal will go on
before inserting the shoulder screws (K).
NOTE: Shoulder screws (K) will not be flush
with desktop (1). Screws stick out slightly from
desktop for connection to pedestal file.
3
25
Figure 3
42
3
1
K
K
1
5. With second person, turn pedestal file (9) upside
down. Carefully lower pedestal file and align
keyhole tabs in pedestal file with shoulder screws (K)
in desktop panel (1). (See Figure 4)
NOTE: Pedestal file should rest on the desktop
panel and slightly hang over front edge.
Figure 4
4
3
1
9
2
4
2
Figure 1
22
4
42
B
B
C

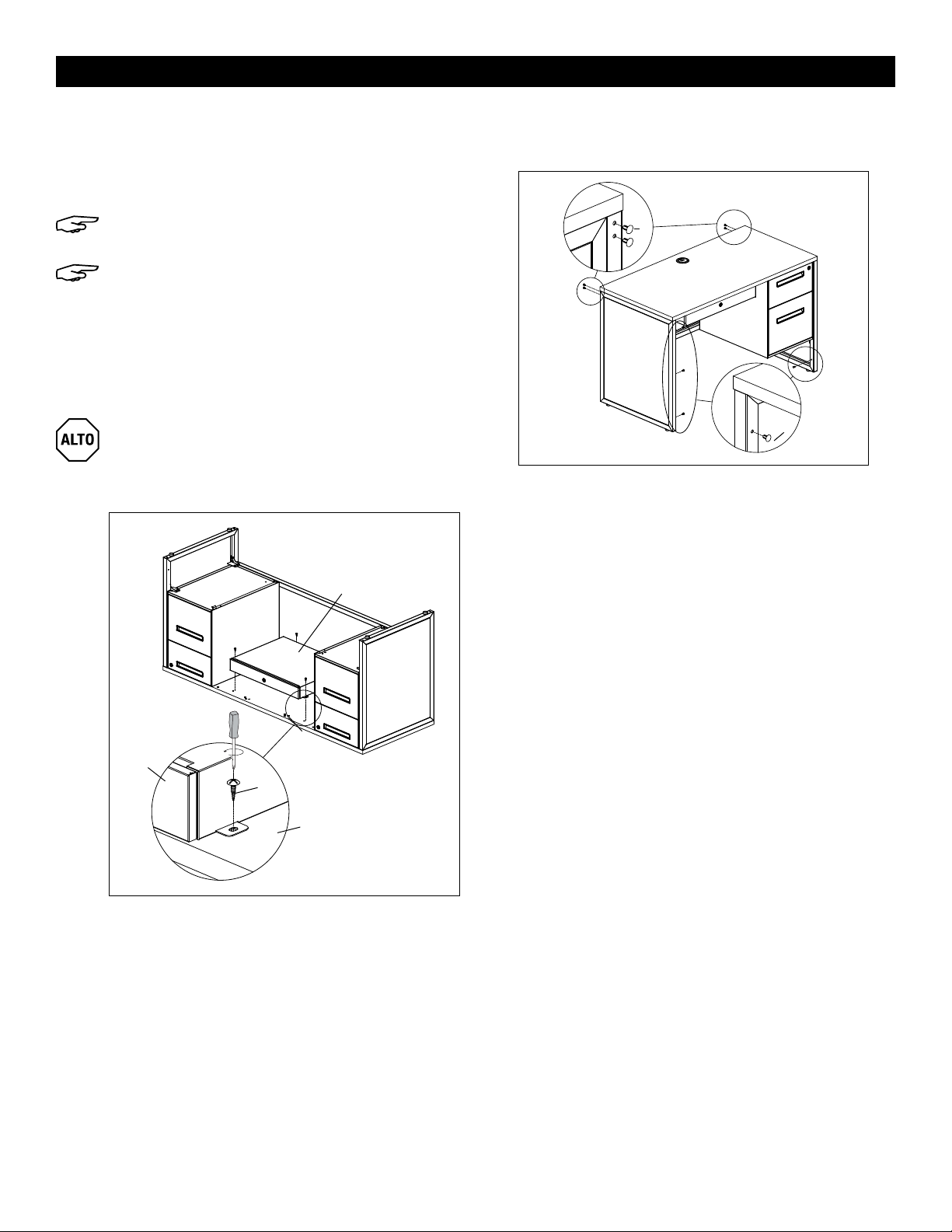

PAGE 3 OF 44 1223 IH-10808

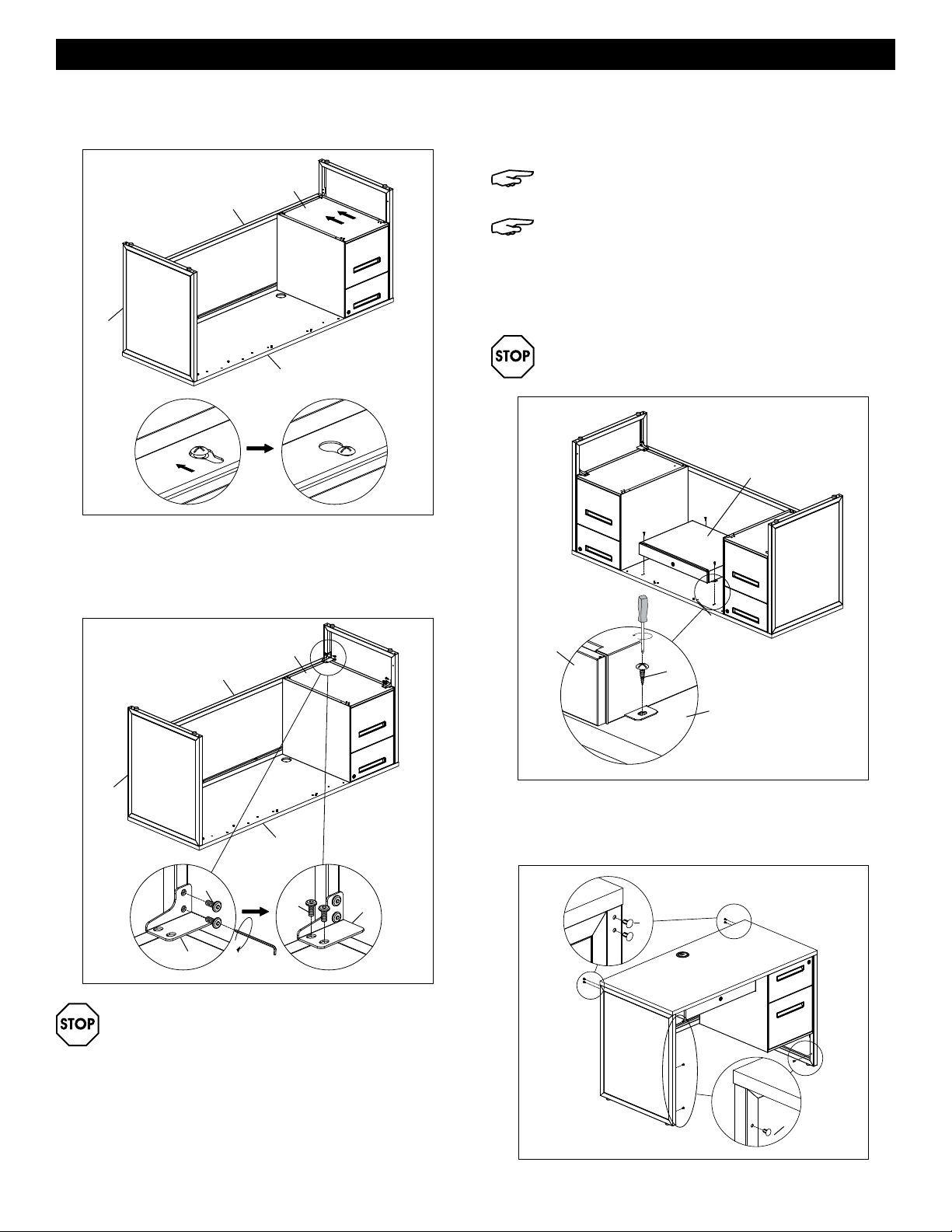

DESK ASSEMBLY CONTINUED
6. Push pedestal file (9) toward modesty panel (4) to
hook keyhole tabs on shoulder screws (K).
(See Figure 5)
Figure 5
4
3
1
9
7. Attach back of pedestal file (9) to side panel with left
L-Bracket (I) and four M6 x 15 mm bolts (F). Repeat
at front of pedestal file with right L-Bracket (J)
and four M6 x 15 mm bolts. (See Figure 6)
Figure 6
4
3
1
I
I
F
F
9
If assembling 48 x 24" desk, proceed to step 8.
Otherwise, repeat steps 4-7 to install remaining
pedestal file on opposite side before
proceeding to step 8.
8. Place center drawer (5) upside down in desired
location on the desktop. Use four ST 5 x 16 mm
self-tapping wood screws (D) to secure.
(See Figure 7)
NOTE: Drawer holes can be started with drill
(optional).
NOTE: It is recommended to have drawer flush
with front edge of desktop panel.
9. With second person, set desk upright. Adjust glides
to compensate for uneven floors. Insert grommet
caps (A) into desktop.
For 48 x 24" desk assembly, proceed to step
10. For hutch assembly, proceed to Hutch
Assembly on page 9.
Figure 7
5
1
5
1
D
10. Cover holes on the inside and back of desk side
panels by inserting eight hole caps (V).
(See Figure 8)
Figure 8
V
V

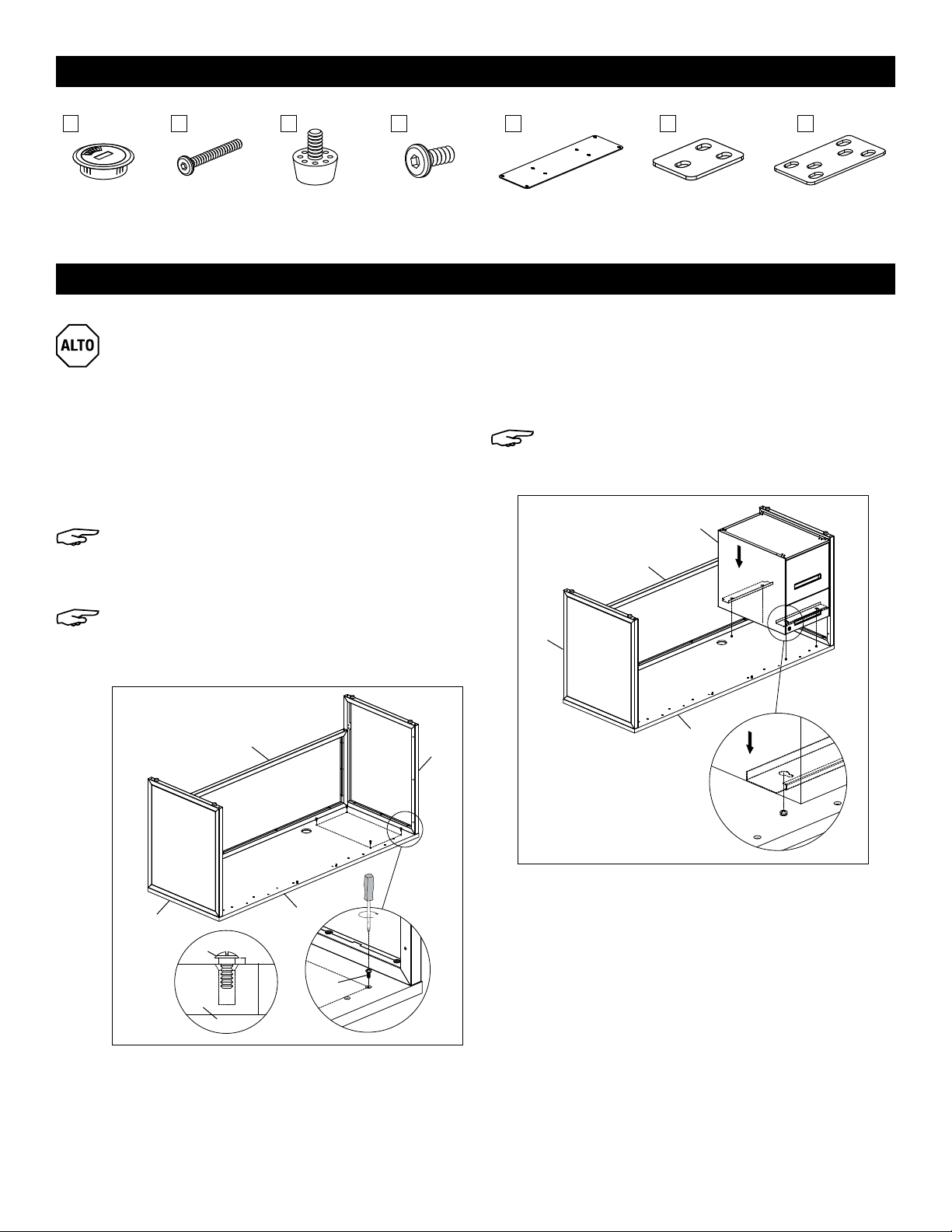

PAGE 4 OF 44 1223 IH-10808

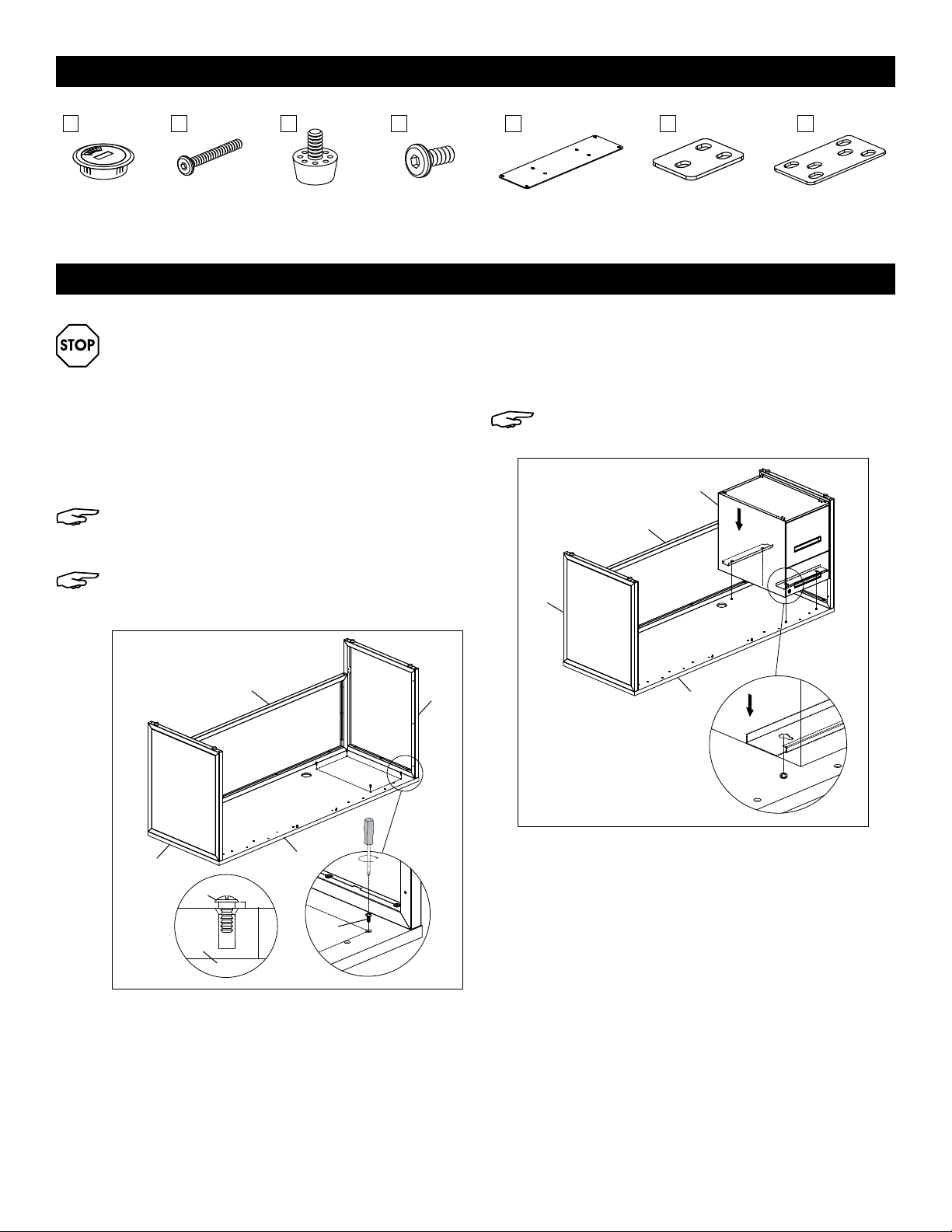

L-DESK RETURN ASSEMBLY PARTS
Grommet
Cap x 2
A
M6 x 45 mm
Bolt x 11
B
Adjustable
Glide x 4
C
M6 x 15 mm
Bolt x 23
F
Connector
Plate x 1
G
Short I-Bracket
x 3
Long I-Bracket
x 1
H L
L-DESK ASSEMBLY
Determine whether the L-Desk will be set up for
right-hand or left-hand configuration. This will
impact how the return is assembled. Assembly
of a right-hand L-Desk is shown in the following
figures.
1. Attach the pedestal file to the right side of the
desktop when it is upside down. Insert four
M6 x 14 mm shoulder screws (K) into the desktop
and tighten using a Phillips screwdriver. (See Figure 9)
NOTE: For left-hand L-Desk configuration, the
pedestal should be attached to the left side of
the desktop when it is upside down.
NOTE: Shoulder screws (K) will not be flush
with desktop (1). Screws stick out slightly from
desktop for connection to pedestal file.
3
25
Figure 9
4
1
K
K
1
2
3
2. With second person, turn pedestal file (9) upside
down. Carefully lower pedestal file and align keyhole
tabs in pedestal file with shoulder screws (K) in
desktop panel (1). (See Figure 10)
NOTE: Pedestal file should rest on the desktop
panel and slightly hang over front edge.
3
Figure 10
3
1
9
4

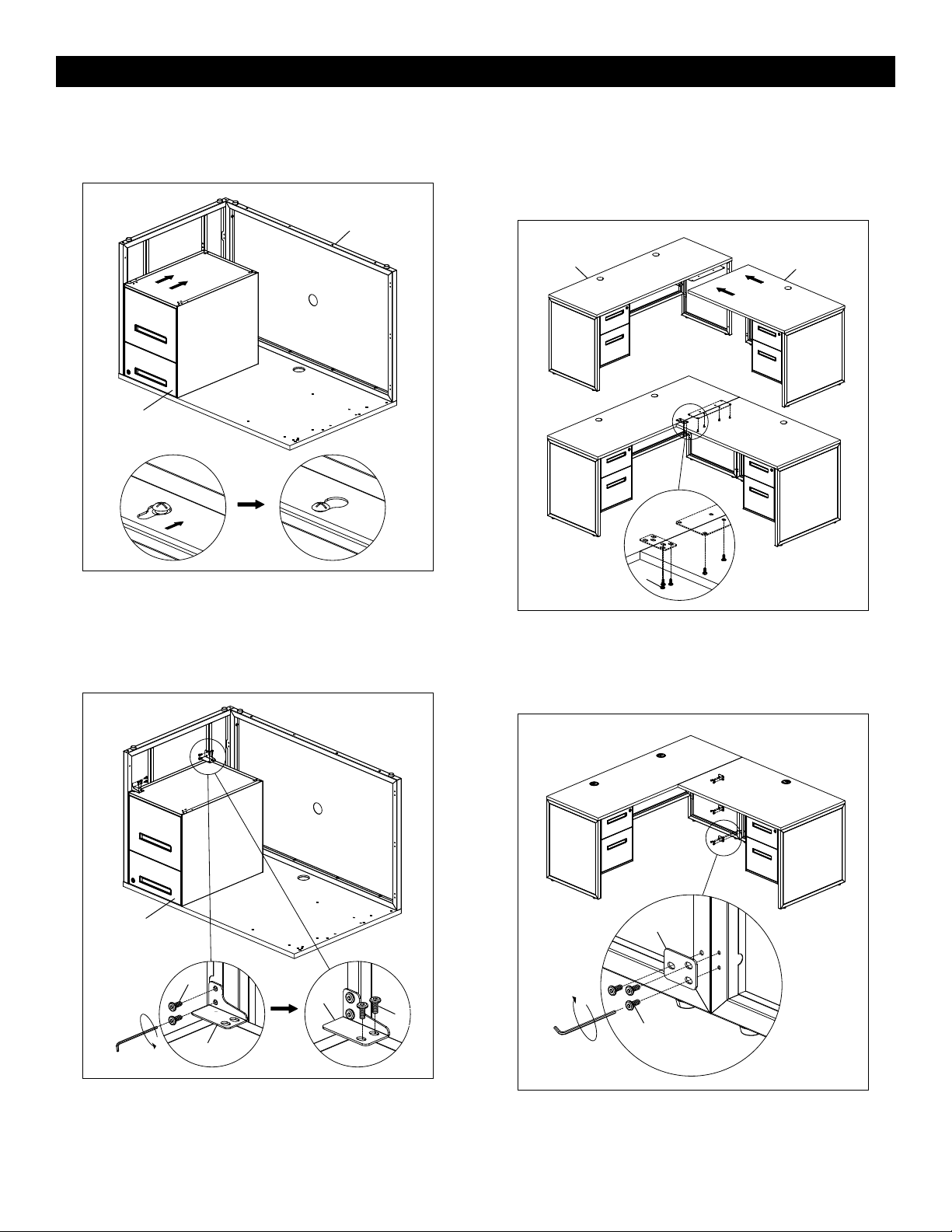

PAGE 5 OF 44 1223 IH-10808
L-DESK ASSEMBLY CONTINUED
3. Push pedestal file (9) toward modesty panel (4) to
hook keyhole tabs on shoulder screws (K).
(See Figure 11)
Figure 11
3
1
4
4. Attach back of pedestal file (9) to side panel with left
L-Bracket (I) and four M6 x 15 mm bolts (F). Repeat at
front of pedestal file with right L-Bracket (J) and four
M6 x 15 mm bolts. (See Figure 12)
Figure 12
3
1
I
I
F
F
4
9
5. Attach connector plate (G) and long I-Bracket (L) to
desktop panel (1) with seven M6 x 15 mm bolts (F).
(See Figure 13)
Figure 13
3
2
1
G
F
L
F
4
6. With second person, set desk upright.
NOTE: Before proceeding, ensure desk is in its
intended location. It is difficult to move when
fully assembled.
9

PAGE 6 OF 44 1223 IH-10808

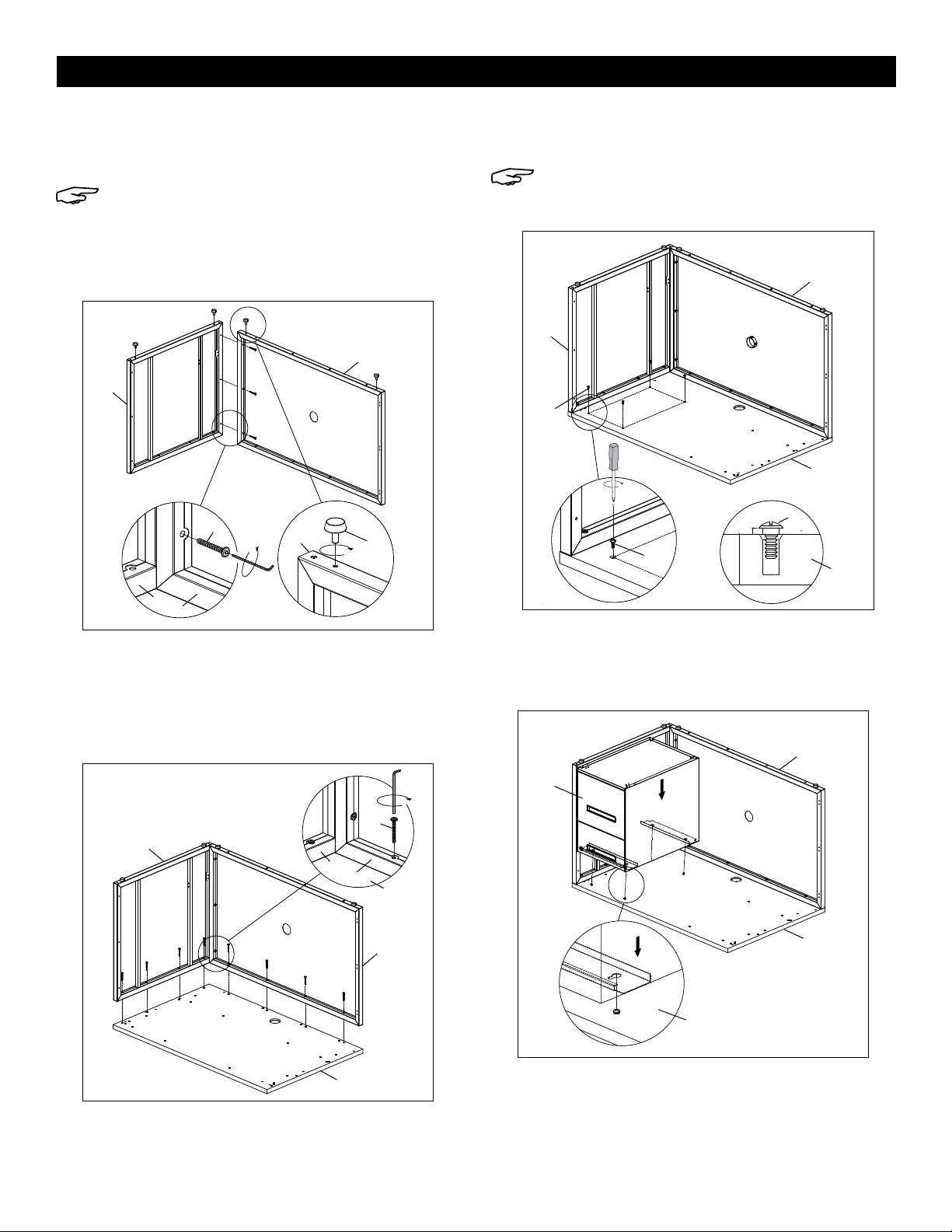

L-DESK ASSEMBLY CONTINUED
7. Align return modesty panel (8) with holes in return
side panel (7). Use three M6 x 45 mm bolts (B) to
secure. (See Figure 14)
NOTE: For left-hand L-Desk configuration, return
side panel should be attached to opposite
side of the return modesty panel.
8. Attach adjustable glides (C) to bottom corners of
each panel frame. (See Figure 14)
C
Figure 14
8
7
78
B
C
8
9. Place return desktop panel (6) upside down
with holes facing up. With second person, turn
assembled L-Desk frame upside down. Use eight
M6 x 45 mm bolts (B) to secure desk frame to
desktop. (See Figure 15)
Figure 15
7
B
8
6
8
6
7
10. Install four M6 x 14 mm pedestal file shoulder
screws (K) in return desktop panel (6). (See Figure 16)
NOTE: Shoulder screws will not be flush with
desktop. Screws stick out slightly from desktop
for connection to pedestal file.
K
7
3
25
Figure 16
K
K
K
8
7
6
6
11. With second person, turn pedestal file (9) upside
down. Carefully lower pedestal file and align
keyhole tabs in pedestal file with shoulder screws (K)
in return desktop panel (6). (See Figure 17)
9
Figure 17
6
8
9
6

PAGE 7 OF 44 1223 IH-10808
L-DESK ASSEMBLY CONTINUED
12. Push pedestal file (9) toward return modesty panel
(8) to hook keyhole tabs on shoulder screws (K).
(See Figure 18)
Figure 18
9
8
13. Attach back of pedestal file (9) to return side
panel (7) with right L-Bracket (J) and four M6 x 15
mm bolts (F). Repeat at front of pedestal file with left
L-Bracket (I) and four M6 x 15 mm bolts.
(See Figure 19)
Figure 19
9
F
F
J
J
14. With second person, set L-Desk return upright and
position next to assembled desk. Attach connector
plate (G) and long I-Bracket (L) to return desktop
panel (6) with seven M6 x 15 mm bolts (F).
(See Figure 20)
Figure 20
6
1
F
15. Attach one short I-Bracket (H) with three
M6 x 15 mm bolts (F) to secure L-Desk return modesty
panel to adjacent side panel. Repeat for two
remaining short I-Brackets. (See Figure 21)
Figure 21
F
H

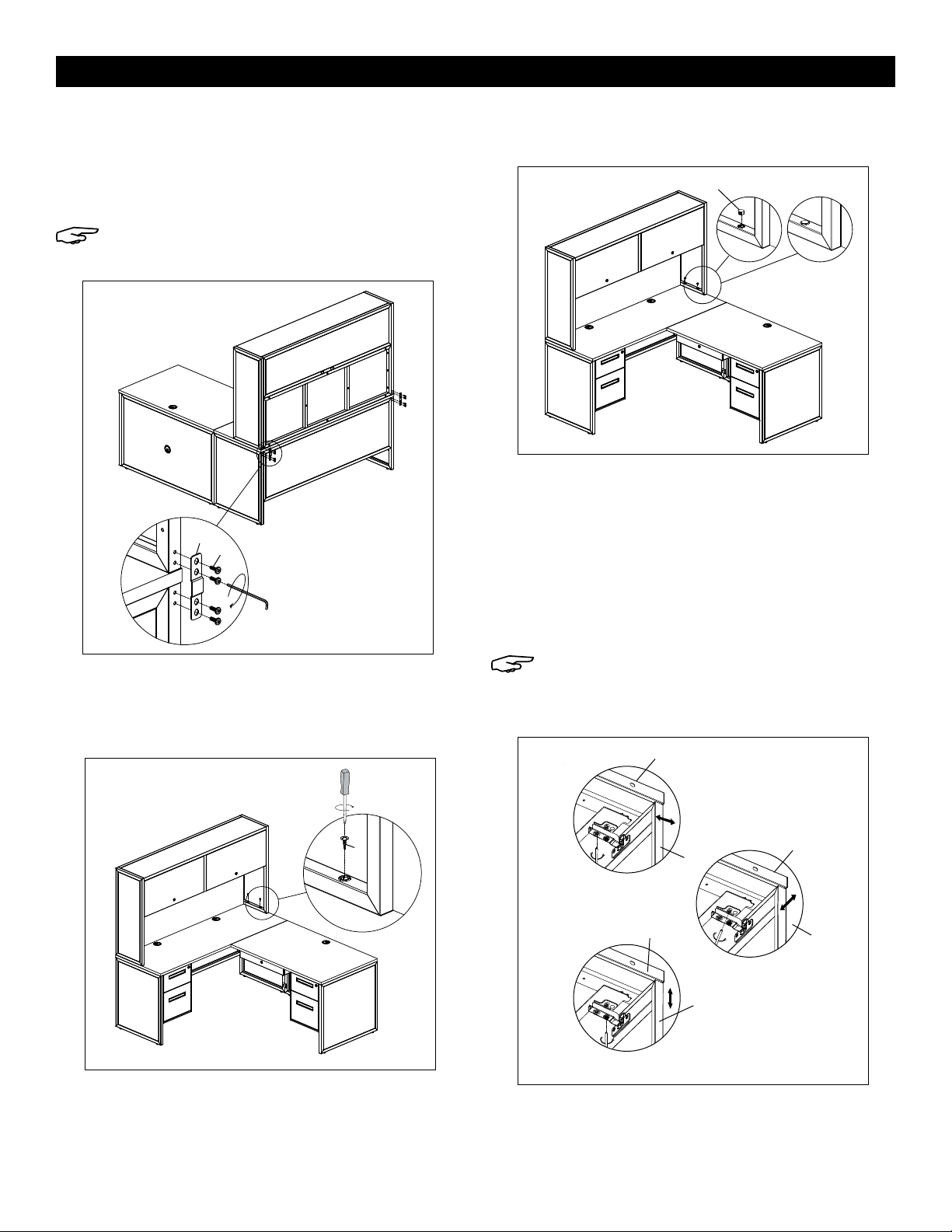

PAGE 8 OF 44 1223 IH-10808

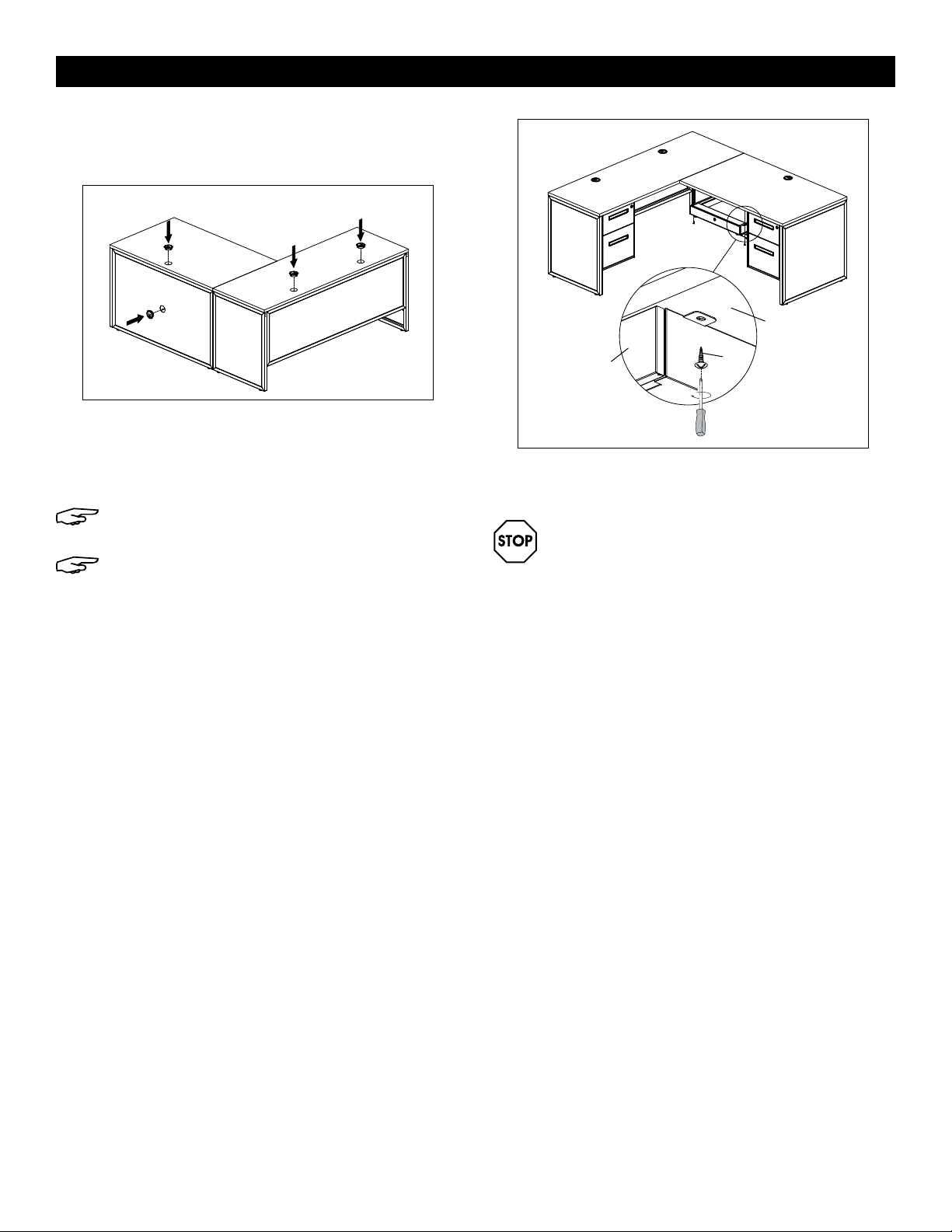

16. Insert four grommet caps (A) into the desktop (I),
return top (6) and return modesty panel (8).
(See Figure 22)
Figure 22
17. With second person, hold center drawer (5) in
the desired location under the return desktop (6).
Use four ST 5 x 16 mm self-tapping wood screws (D)
to secure. (See Figure 23)
NOTE: Drawer holes can be started with drill
(optional).
NOTE: It is recommended to have drawer flush
with front edge of desktop panel.
Figure 23
5D
6
18. Adjust glides to compensate for uneven floors.
L-Desk is now fully assembled.
For hutch assembly, see page 9.
L-DESK ASSEMBLY CONTINUED

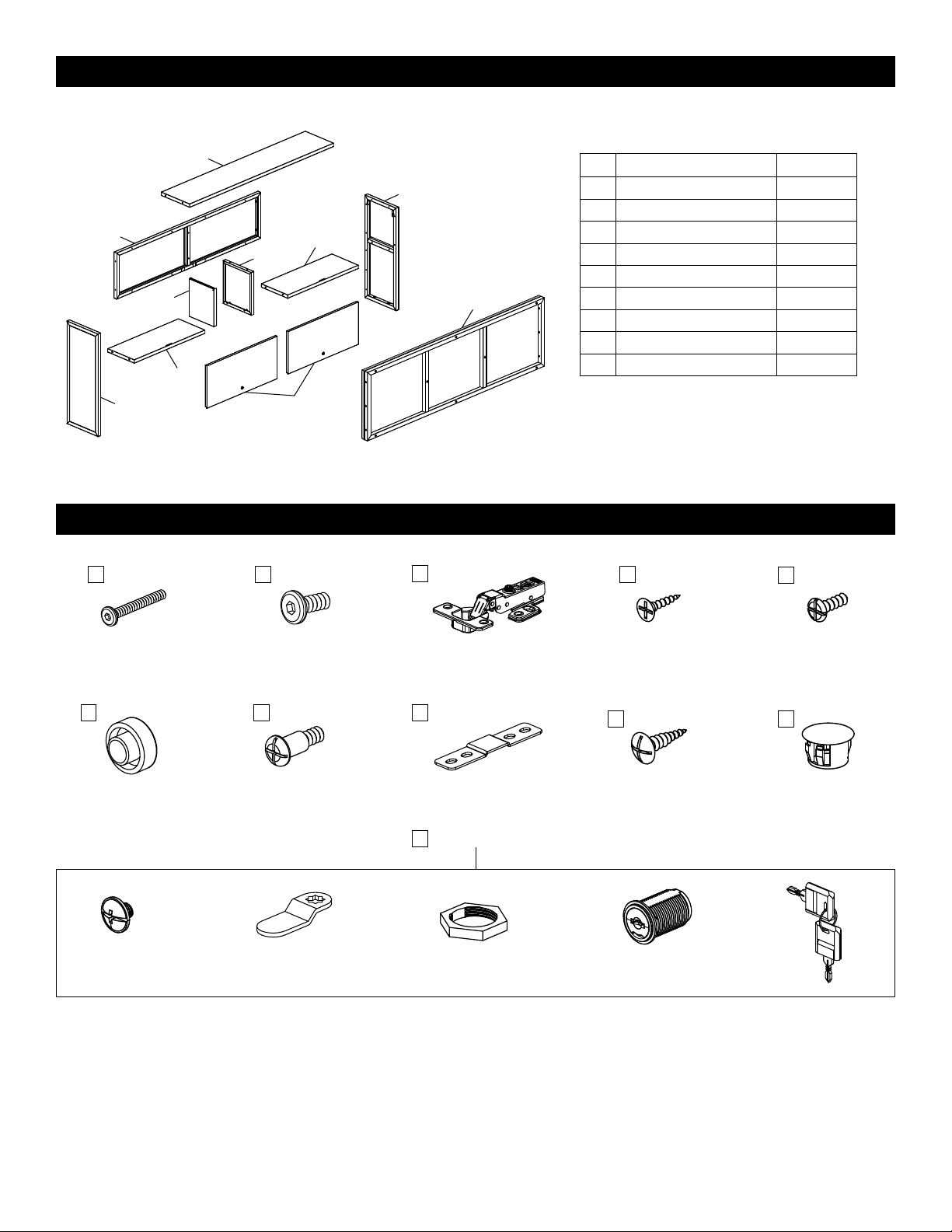

PAGE 9 OF 44 1223 IH-10808
HUTCH ASSEMBLY COMPONENTS
OPTIONAL HUTCH AND TACKBOARD PARTS
#DESCRIPTION QTY.
10 Top Panel 1
11 Left Side Panel 1
12 Right Side Panel 1
13 Back Panel 1
14 Outer Divider Panel 1
15 Inner Divider Panel 1
16 Bottom Panel 2
17 Door 2
18 Tackboard 1
OPTIONAL HUTCH AND TACKBOARD
11
10
13
14
15
12
16
16
18
17
HUTCH ASSEMBLY PARTS
M6 x 45 mm Bolt x 4
(x 10 for H-10813)
Screw x 1 Cylinder x 1Lock Plate x 1 Hex Nut x 1 Key x 2
BM
M6 x 15 mm Bolt x 32 Hinge x 4 M4 x 10 mm
Hinge Bolt x 8
ST 4 x 18 mm
Wood Screw x 4
Plastic Cap x 4Door Sliding
Wheel x 4
M6 x 14 mm
Door Bolt x 4
Hutch Bracket x 2
FO
S T
PQ R
ULock and Keys Set x 2
ST 3.5 x 14 mm
Hinge Screw x 8
N

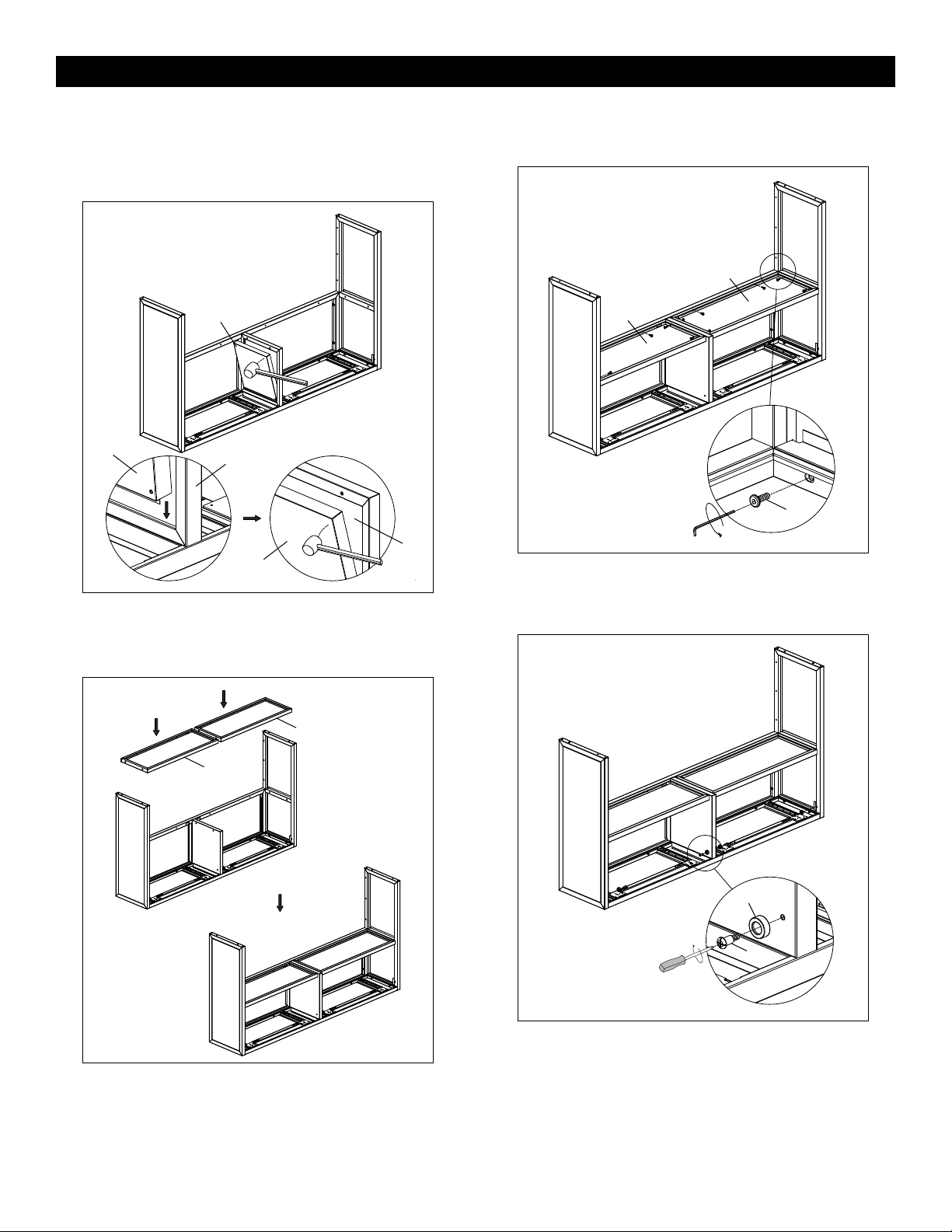

PAGE 10 OF 44 1223 IH-10808

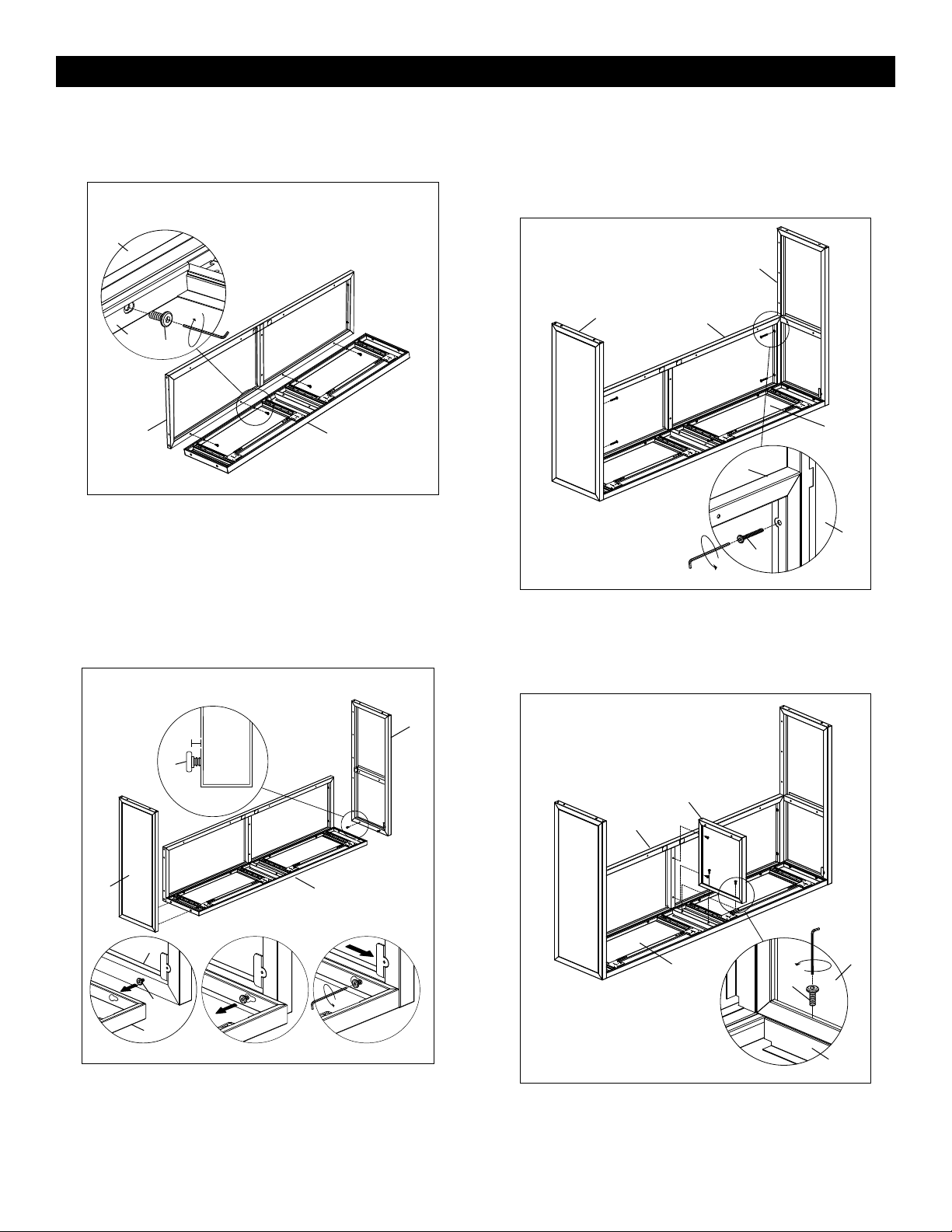

1. Place top panel (10) upside down. Align back
panel (13) with holes in top panel. Loosely tighten
four M6 x 15 mm bolts (F). (See Figure 24)
2. Partially insert two M6 x 15 mm bolts (F) into left
side panel (11). Approximately 1/8" of space should
remain between bolt heads and panel. Align bolts
in left side panel with keyhole tabs in top panel (10).
Insert both bolts through keyhole tabs. Pull left side
panel towards front of top panel to lock bolt into
keyhole tabs. Fully tighten bolts. Repeat for right
side panel. (See Figure 25)
Figure 25
3. Insert two M6 x 45 mm bolts (B) to attach left side
panel (11) to back panel (13). Tighten to secure.
Repeat for right side panel (12). Fully tighten four
M6 x 15 mm bolts from Step 1 in top panel (10).
(See Figure 26)
Figure 26
13
10
11
12
13
11
B
4. Place outer divider panel (14) in center of hutch
and align with holes in top panel (10) and back
panel (13). Use four M6 x 15 mm bolts (F) to secure.
(See Figure 27)
Figure 27
F
14
13
14
10
10
HUTCH ASSEMBLY
Figure 24
10
10
13
13
F
910
10
11
F
F
11

PAGE 11 OF 44 1223 IH-10808
5. Place inner divider panel (15) inside outer divider
panel (14). Gently tap with a rubber mallet to secure
and ensure the edges of the divider panels are flush
with each other. (See Figure 28)
Figure 28
15
14
15
15
14
6. Align bottom panel (16) with holes in the left
side panel (11), back panel (13) and outer divider
panel (14). (See Figure 29)
Figure 29
16
16
7. Use six M6 x 15 mm bolts (F) to secure. Repeat for
other bottom panel (16). (See Figure 30)
Figure 30
F
16
16
8. Attach four door sliding wheels (P) to the inside of
the hutch using four M6 x 14 mm door bolts (Q).
(See Figure 31)
Figure 31
P
Q
HUTCH ASSEMBLY CONTINUED

PAGE 12 OF 44 1223 IH-10808

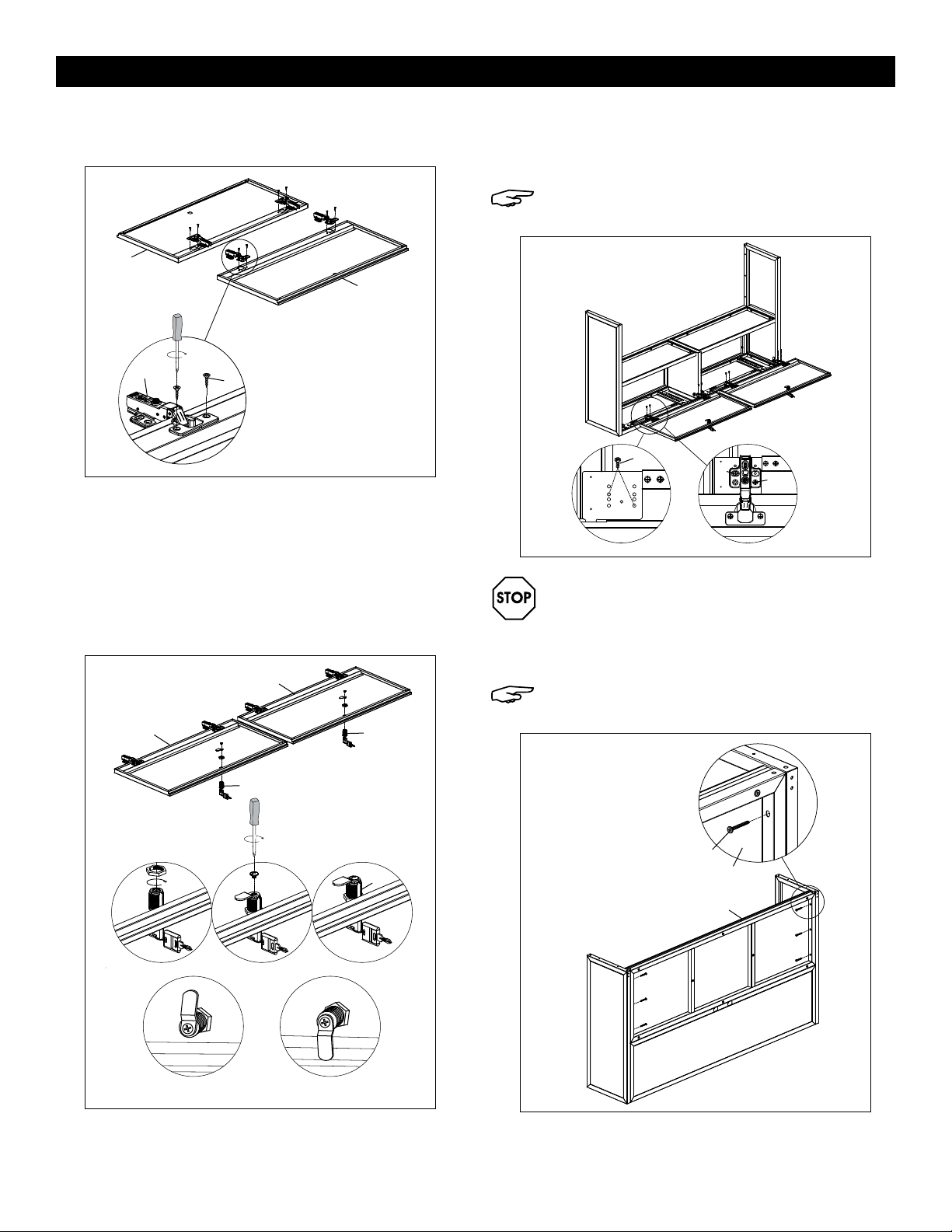

9. Attach hinges (M) to the doors (17) using eight
ST 3.5 x 14 mm hinge screws (N). (See Figure 32)
Figure 32
17
M N
17
10. To attach the lock (U) to the door (17), start by
removing lock plate and hex nut from cylinder. Insert
the cylinder through the hole in the door and tighten
hex nut around the cylinder. Align the lock plate
on the end of the cylinder and secure using screw.
Ensure lock plate is facing down in the "locked"
position and facing up in the "unlocked" position.
Repeat for lock on opposite door. (See Figure 33)
Figure 33
17
U
U
Unlocked Locked
U
17
11. Align hinge with holes in top panel (10). Use two
M4 x 10 mm hinge bolts (O) to secure. Repeat for
other three hinges. (See Figure 34)
NOTE: Use exact holes shown in inset image to
attach hinges.
Figure 34
O
O
O
If attaching H-10813 Tackboard, proceed to
step 12. Otherwise, proceed to step 13.
12. Align tackboard (18) with holes in side panels. Use six
M6 x 45 mm bolts (B) to secure. (See Figure 35)
NOTE: If necessary, tap tackboard with rubber
mallet to position it between the side panels.
Figure 35
18
B
18
HUTCH ASSEMBLY CONTINUED

PAGE 13 OF 44 1223 IH-10808
HUTCH ASSEMBLY CONTINUED
13. With two people, set hutch upright. Carefully place
hutch onto the desktop (1) and move it flush with the
rear part of the desk. Attach hutch brackets (R) to
desk side panels and hutch side panels using eight
M6 x 15 mm bolts (F). (See Figure 36)
NOTE: The following figures show an L-desk, but
hutch attachment is the same for a desk.
Figure 36
R
1
F
14. Locate the four holes on the inside of the hutch
side panels. Insert four ST 4 x 18 mm screws (S) and
secure to desktop using a Phillips screwdriver.
(See Figure 37)
Figure 37
S
15. Cover holes on the inside of the hutch side panels
by inserting four plastic caps (T). (See Figure 38)
Figure 38 T
16. Each hinge may need to be adjusted to align the
doors correctly. To adjust depth of the doors, loosen
rear screw in hinge, slide door, then tighten rear
screw to secure in place. To adjust angle of the
doors, loosen side screws in the hinge, slide the
hinge bracket left or right to position the door, then
tighten side screws to secure in place. To adjust
height of the doors, tighten center screw to lower, or
loosen the center screw to raise. (See Figure 39)
NOTE: Multiple adjustments may be needed to
achieve correct alignment. Recommend trying
small adjustments, checking door operation,
and repeating as necessary.
Figure 39
Top Panel
Top Panel
Door Angle
Door
Door
Door
Door Height
Door Depth
Top Panel
17. Adjust glides to compensate for uneven floors.

PAGE 14 OF 44 1223 IH-10808

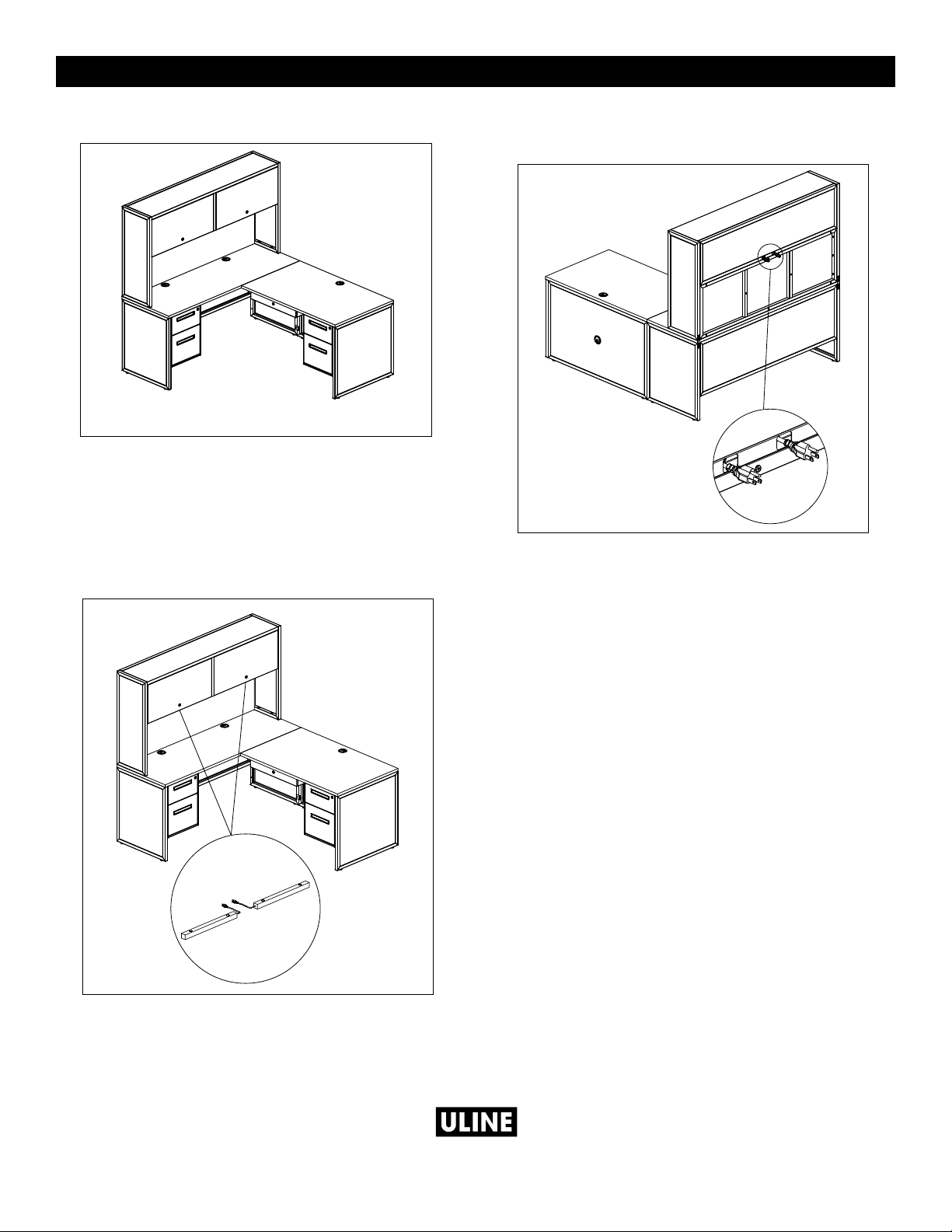

HUTCH ASSEMBLY CONTINUED
L-Desk with Hutch is now fully assembled.
Completed Assembly
ATTACHING LED LIGHT TO HUTCH
1. H-7162 Magnetic LED Light is compatible with the
Hutch. One light can be attached underneath each
overhead cabinet using the integrated mounting
magnets. Move light under the overhead cabinet
and magnets will secure it in place. (See Figure 40)
Figure 40
2. Run the power cord through the openings behind
the hutch. (See Figure 41)
Figure 41
1
-800-295-551
0
uline.com

PAGE 15 OF 44 1223 IH-10808
800-295-5510
uline.mx
H-10808, H-11146
COLECCIÓN INDUSTRIAL
ESCRITORIO DE ACERO
HERRAMIENTAS NECESARIAS
Desarmador
de Cruz
PARTES PARA EL ENSAMBLE DEL ESCRITORIO
COMPONENTES DE ENSAMBLE DEL ESCRITORIO
Mazo de
Caucho
Llave Allen
(Incluida)
Taladro
(Opcional)
Se Recomienda Armar
Entre Dos Personas
2 Tapas de Ojal
(1 para el H-11146)
A
16 Pernos M6 x 45 mm
B
4 Tapas Niveladoras
C
4 Tornillos para Madera ST
5 x 16 mm
D
16 Pernos M6 x 15 mm
(8 para el H-11146)
F
PARTES DEL ESCRITORIO
#DESCRIPCIÓN CANT.
1Cubierta 1
2Panel Lateral Izquierdo 1
3Panel Lateral Derecho 1
4 Recato 1
5Cajón Central 1
9 Archivero de Pedestal (para H-10808) 2
9 Archivero de Pedestal (para H-11146) 1
PARTES DEL RETORNO OPCIONALES
#DESCRIPCIÓN CANT.
6Cubierta para Retorno de
Escritorio 1
7 Panel Lateral del Retorno 1
8 Recato del Retorno 1
ESCRITORIO RETORNO OPCIONAL PARA
ESCRITORIO EN L
8
67
2
4
1
3
9
5
2 Soportes Izquierdos en L
(1 para el H-11146)
I
2 Soportes Derechos en L
(1 para el H-11146)
8 Tapas para Orificio
J
8 Tornillos de Hombro M6 x 14 mm
(4 para el H-11146)
K V

PAGE 16 OF 44 1223 IH-10808

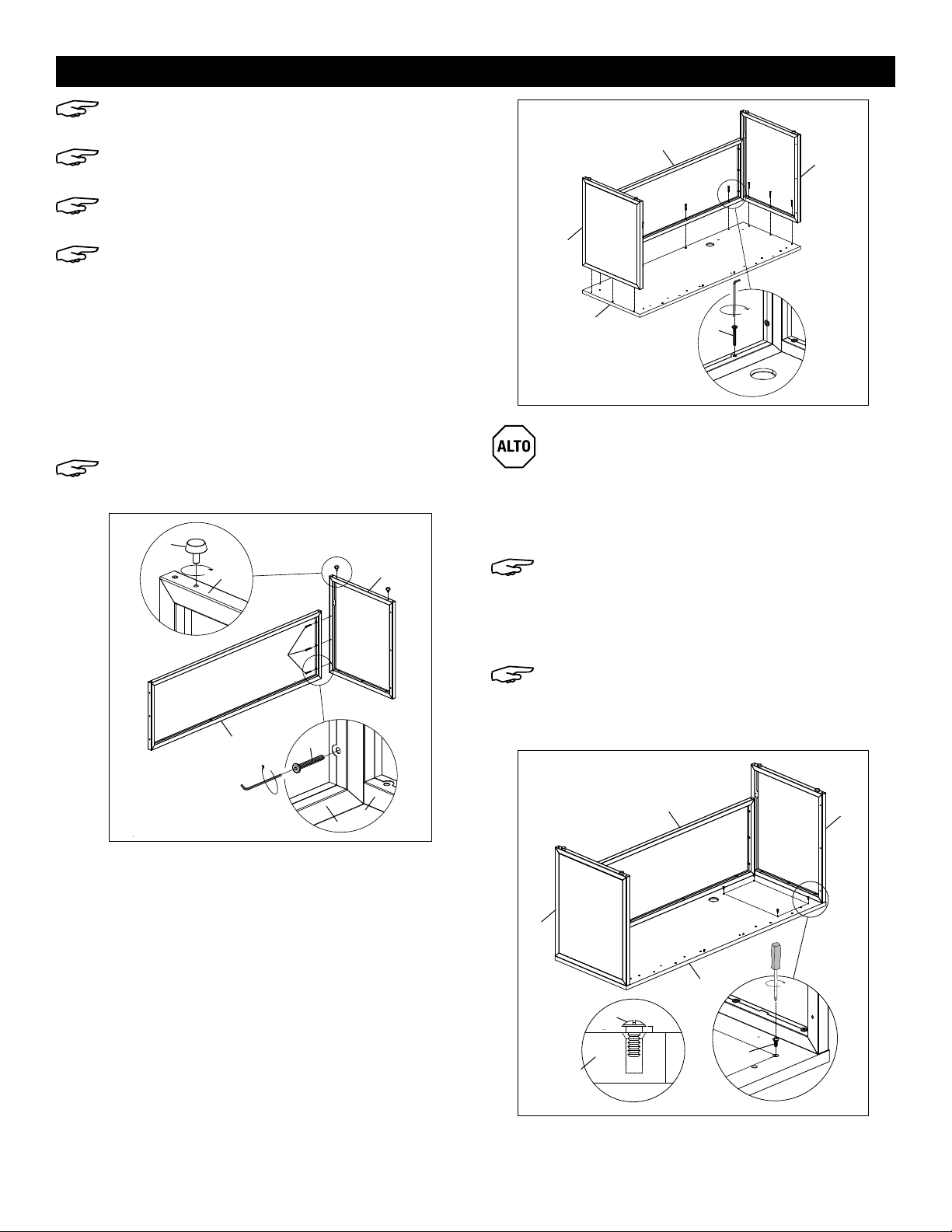

ENSAMBLE DEL ESCRITORIO
NOTA: Ensamble sobre una superficie lisa que
no deje marcas para evitar rayones.
NOTA: Utilice la llave Allen para apretar todos
los pernos.
NOTA: Utilice un desarmador de cruz para
apretar los tornillos.
NOTA: Verifique que todas las partes estén
incluidas.
1. Fije las tapas niveladoras (C) a las esquinas
inferiores de cada panel lateral (2,3). (Vea
Diagrama 1)
2. Alinee el recato (4) con los orificios del panel lateral
izquierdo (2). Utilice tres pernos M6 x 45 mm (B) para
fijarlos. Repita la operación con el panel lateral
derecho (3). (Vea Diagrama 1)
NOTA: El escritorio de 66 x 24" se muestra en
los siguientes diagramas. El ensamble de 48 x
24" sigue los mismos pasos.
3. Coloque la cubierta (1) boca abajo con los orificios
hacia arriba. Con ayuda de otra persona, voltee el
armazón ensamblado del escritorio. Use 10 pernos
M6 x 45 mm (B) para fijar el armazón del escritorio a
la cubierta. (Vea Diagrama 2)
Diagrama 2
42
3
1B
Para continuar el ensamble del escritorio
proceda a la página 19.. Para continuar el
ensamble del Escritorio en L proceda a la
página 19.
4. Inserte cuatro tornillos de hombro M6 x 14 mm (K)
en la cubierta del escritorio. (Vea Diagrama 3)
NOTA: Para el ensamble del escritorio de
48 x 24", solo se fijará un archivero de pedestal
(9). Determine en cuál lado del escritorio irá
el pedestal antes de insertar los tornillos de
hombro (K).
NOTA: Los tornillos de hombro (K) no quedarán
a ras con la cubierta del escritorio (1). Los
tornillos sobresalen un poco de la cubierta
para conectarlos con el archivero de pedestal.
3
25
Diagrama 3
42
3
1
K
K
1
2
4
2
Diagrama 1
22
4
42
B
B
C

PAGE 17 OF 44 1223 IH-10808
CONTINUACIÓN DEL ENSAMBLE DEL ESCRITORIO
5. Con ayuda de otra persona, voltee el archivero
de pedestal (9). Baje el archivero de pedestal con
cuidado y alinee las pestañas con ranura tipo llave
del archivero con los tornillos de hombro (K) en la
cubierta (1). (Vea Diagrama 4)
NOTA: El archivero de pedestal debe
descansar sobre la cubierta del escritorio y
colgar un poco sobre el borde frontal.
Diagrama 4
4
3
1
9
6. Empuje el archivero de pedestal (9) hacia el recato
(4) para enganchar las pestañas con ranura tipo
llave en los tornillos de hombro (K).
(Vea Diagrama 5)
Diagrama 5
4
3
1
9
7. Fije la parte posterior del archivero de pedestal (9)
al panel lateral con el Soporte en L izquierdo (1) y
cuatro pernos M6 x 15 mm (F). Repita la operación
en la parte frontal del archivero de pedestal con
el Soporte en L derecho (J) y cuatro pernos M6 x 15
mm. (Vea Diagrama 6)
Diagrama 6
4
3
1
I
I
F
F
9
Si ensambla el escritorio de 48 x 24", proceda
al paso 8. De lo contrario, repita los pasos 4-7
para instalar el archivero de pedestal faltante
en el otro lado antes de proceder al paso 8.

PAGE 18 OF 44 1223 IH-10808
CONTINUACIÓN DEL ENSAMBLE DEL ESCRITORIO
8. Coloque el cajón central (5) al revés en la
ubicación deseada de la cubierta del escritorio.
Use cuatro tornillos autoperforantes para madera ST
5 x 16 mm (D) para fijarlo.
(Vea Diagrama 7)
NOTA: Los orificios del cajón se pueden hacer
con taladro (opcional).
NOTA: Se recomienda que el cajón esté a
ras con el borde frontal de la cubierta del
escritorio.
9. Con ayuda de otra persona, enderece el escritorio.
Ajuste las patas niveladoras para compensar los
pisos desnivelados. Inserte tapas de ojal (A) en la
cubierta del escritorio.
Para el ensamble del escritorio de 48 x 24",
proceda al Paso 10. Para el ensamble del
librero, proceda al Ensamble del Librero en la
página 24.
9.
Diagrama 7
5
1
5
1
D
10. Cubra los orificios en el interior y detrás de los
paneles laterales del escritorio insertando cuatro
tapas para orificio (V). (Vea Diagrama 8)
Diagrama 8
V
V

PAGE 19 OF 44 1223 IH-10808
PARTES PARA EL ENSAMBLE DEL RETORNO DEL ESCRITORIO EN L
2 Tapas de
Ojal
A
11 Pernos
M6 x 45 mm
B
4 Tapas
Niveladoras
C
23 Pernos
M6 x 15 mm
F
1 Placa
Conectora
G
3 Soportes en I
Cortos
1 Soporte en I Largo
H L
ENSAMBLE DEL ESCRITORIO EN L
Determine si el Escritorio en L estará
configurado para zurdos o diestros. Esto
impactará el ensamble del retorno. En los
siguientes diagramas se muestra el ensamble
del Escritorio en L para diestros.
1. Fije el archivero de pedestal al lado derecho de
la cubierta del escritorio cuando esté al revés.
Inserte cuatro tornillos de hombro M6 x 14 mm en
la cubierta del escritorio y apriételos utilizando un
desarmador de cruz. (Vea Diagrama 9)
NOTA: Para la configuración del Escritorio en
L para zurdos, debe fijar el pedestal al lado
izquierdo de la cubierta del escritorio cuando
esté al revés.
NOTA: Los tornillos de hombro (K) no quedarán
a ras con la cubierta del escritorio (1). Los
tornillos sobresalen un poco de la cubierta
para conectarlos con el archivero de pedestal.
3
25
Diagrama 9
4
1
K
K
1
2
3
2. Con ayuda de otra persona, voltee el archivero de
pedestal (9) al revés. Baje el archivero de pedestal
con cuidado y alinee las pestañas con ranura tipo
llave del archivero con los tornillos de hombro (K) en
la cubierta (1). (Vea Diagrama 10)
NOTA: El archivero de pedestal debe
descansar sobre la cubierta del escritorio y
colgar un poco sobre el borde frontal.
3
Diagrama 10
3
1
9
4

PAGE 20 OF 44 1223 IH-10808

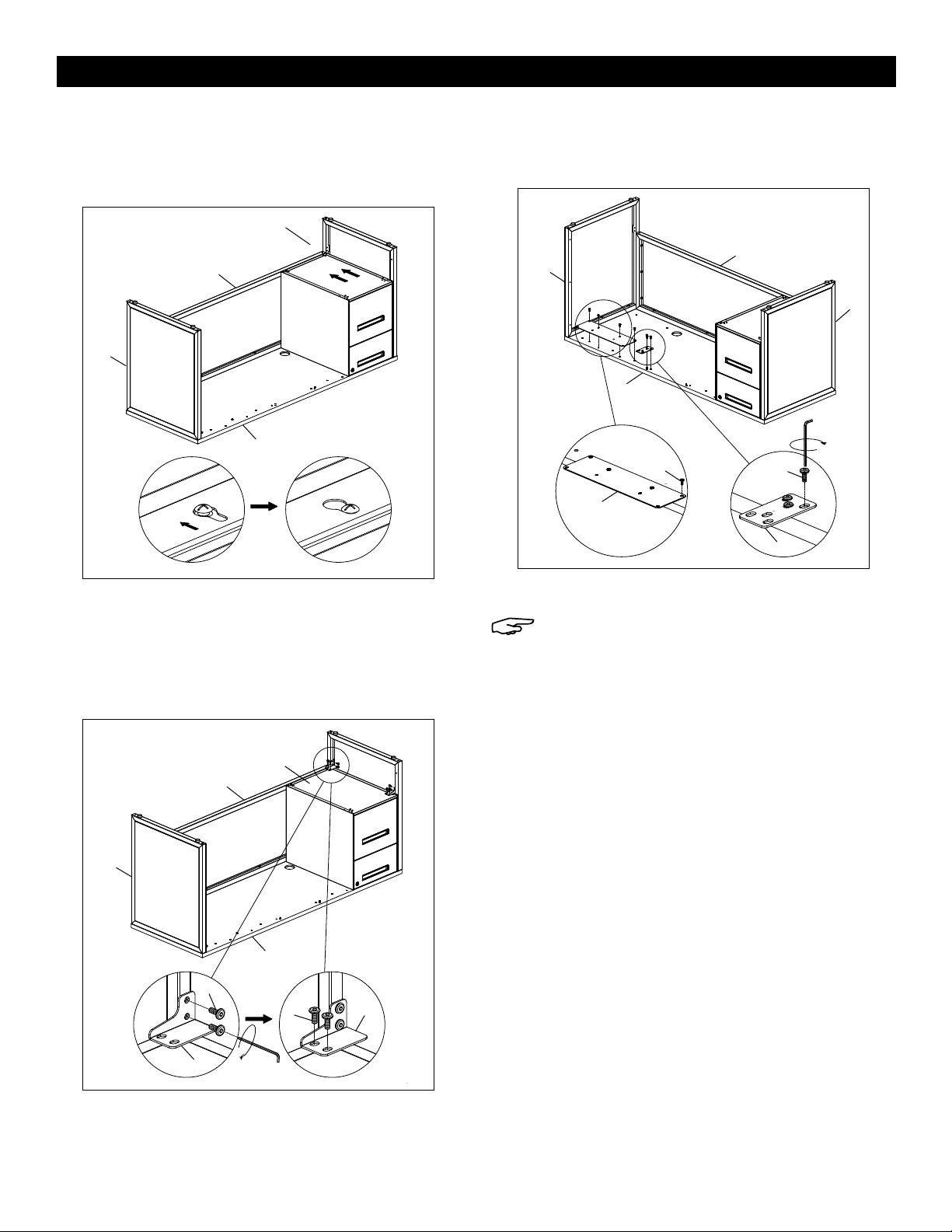

CONTINUACIÓN DEL ENSAMBLE DEL ESCRITORIO EN L
3. Empuje el archivero de pedestal (9) hacia el recato
(4) para enganchar las pestañas con ranura tipo
llave en los tornillos de hombro (K).
(Vea Diagrama 11)
Diagrama 11
3
1
4
4. Fije la parte posterior del archivero de pedestal (9)
al panel lateral con el Soporte en L izquierdo (1) y
cuatro pernos M6 x 15 mm (F). Repita la operación
en la parte frontal del archivero de pedestal con
el Soporte en L derecho (J) y cuatro pernos M6 x 15
mm. (Vea Diagrama 12)
Diagrama 12
3
1
I
I
F
F
4
9
5. Fije la placa de unión (G) y el Soporte en I largo (L)
a la cubierta del escritorio (1) con siete pernos
M6 x 15 mm (F). (Vea Diagrama 13)
Diagrama 13
3
2
1
G
F
L
F
4
6. Con ayuda de otra persona, enderece el escritorio.
NOTA: Antes de proceder, asegúrese de que
el escritorio esté en la ubicación deseada. Es
difícil de mover cuando está completamente
ensamblado.
9
