Ubiquiti AiAF-5 User manual

5 GHz Point to Point
1.0+ Gbps Radio
Model: AF-5, AF-5U

1
Introduction
Introduction
Thank you for purchasing the Ubiquiti Networks® airFiber® 5GHz
Point-to-Point 1.0+ Gbps Radio. This Quick Start Guide is designed
to guide you through the installation, show you how to access
the airFiber Configuration Interface, and explain how to set up
an airFiber link. This Quick Start Guide also includes the warranty
terms and is for use with the following models:
Model Description Operating Frequency*
AF-5 Supports mid-band frequencies 5470 - 5950 MHz
AF-5U Supports high-band frequencies 5725 - 6200 MHz
* Refer to the Specifications section for more information.
Package Contents
airFiber
AF-5/AF-5U
I-Bracket Upper Mount Bracket
with Elevation Rod
Lower Mount
Bracket
Pole Clamps
(Qty. 2)
M10x150 Carriage Bolts
(Qty. 4)
M10x100 Carriage Bolts
(Qty. 2)
M8x14 Serrated Flange Bolts
(Qty. 4)
Azimuth Support Brackets
(Qty. 2)
M10 Serrated Flange Nuts
(Qty. 6)
Cable Ties
(Qty. 2)
GigE PoE Adapter
(50V, 1.2A)
Power Cord Quick Start Guide
TERMS OF USE: Ubiquiti radio devices must be professionally installed. Shielded Ethernet cable and
earth grounding must be used as conditions of product warranty. TOUGHCable™is designed for
outdoor installations. It is the customer’s responsibility to follow local country regulations, including
operation within legal frequency channels, output power, and Dynamic Frequency Selection (DFS)
requirements.

2
airFiber® AF-5/AF-5U Quick Start Guide
Hardware Overview
Side
Grounding Point
Elevation Rod
Hex Nut
to adjust
Elevation Rod
Pre-Installed
M10 x25
Flanged Bolts
Lanyard Attachment
Loop
Lanyard Attachment
Loop
Assembled View

3
Hardware Overview
Interfaces
GPS
MASTER
LINK
RESET
OVERLOAD
8X
6X
4X TO 0.25X
REMOTE
LOCAL
MANAGEMENT DATA
AUX
ACT SPEEDACT SPEED
Interface Description
Reset Button
To reset to factory defaults, press and hold the
Reset button for more than five seconds while
the unit is already powered on.
Remote Display Displays the received signal strength in dBm of
the remote airFiber radio.
Local Display Displays the received signal strength in dBm of
the local airFiber radio.
Management Port
10/100 Mbps, secured port for configuration. By
default, this is the only port that can monitor,
configure, and/or update firmware.
Aux Port Port for audio tone aiming.
Data Port 10/100/1000 Mbps port handles all user traffic.

4
airFiber® AF-5/AF-5U Quick Start Guide
LEDs
GPS
MASTER
LINK
RESET
OVERLOAD
8X
6X
4X to 0.25X
REMOTE
LOCAL
AUXMANAGEMENT DATA
ACT SPEEDACT SPEED
LED State Status
GPS
Off No GPS Synchronization
On Operational (Strong Signal)
Normal Flash* Non-Operational (Weak Signal)
Master
Off Slave mode
On Master mode
Link
Off RF Off
Short Flash* Syncing
Normal Flash* Beaconing
Long Flash* Registering
On Operational
Remote On
Displays the received signal
strength in dBm of the remote
airFiber radio.

5
Hardware Overview
LED State Status
Local On
Displays the received signal
strength in dBm of the local
airFiberradio.
Overload Fast Flash Overload Condition
(reserved) – –
8x On 256QAM MIMO
6x On 64QAM MIMO
4x to 0.25x
On 16QAM MIMO
Long Flash* QPSK MIMO
Normal Flash* 1x QPSK xRT™**
Short Flash* ¼x QPSK xRT**
* Short Flash (1:3 on/off cycle)
Normal Flash (1:1 on/off cycle)
Long Flash (3:1 on/off cycle)
** xtreme Range Technology
Port LEDs
LED State Status
Management
Act
Off No Ethernet Link
On Ethernet Link Established
Random Flashing Ethernet Activity
Speed
Off 10 Mbps
On 100 Mbps
Data
Act
Off No Ethernet Link
On Ethernet Link Established
Random Flashing Ethernet Activity
Speed
Off 10/100 Mbps
On 1000 Mbps

6
airFiber® AF-5/AF-5U Quick Start Guide
Installation Requirements
Pre-Assembly Tool
• 13 mm wrench
Pole-Mounting Tool
• 17 mm wrench
Other Requirements
• Clear line of sight between airFiber radios
• Clear view of the sky for proper GPS operation
• Vertical mounting orientation
• Mounting location with < 0.5°displacement due to twist and
sway under wind loading
• Mounting point:
• At least 1 m below the highest point on the structure
• For tower installations, at least 3 m below the top of thetower
• Ground wires – min. 10 AWG (5 mm2) and max. length: 1m.
Asa safety precaution, ground the airFiber radios to grounded
masts, poles, towers, or grounding bars.
WARNING: Failure to properly ground your airFiber
units will void your warranty.
• (Recommended) 2 Outdoor GigE PoE surge protectors
Note: For guidelines about grounding and lightning
protection, follow your local electrical regulatory codes.
• Outdoor, shielded Category 6 (or above) cabling and
shielded RJ-45 connectors are required for all wired Ethernet
connections.

7
Installation Overview
Installation Overview
We recommend that you configure your paired airFiber radios
before mounting. Below is an overview of the installation with
specific details in the following instructions:
• Connect Power over Ethernet to the Data port, and
connect an Ethernet cable between your computer and the
Managementport.
• Configure the device settings in the airFiber Configuration
Interface.
• Once configuration is complete, disconnect the cables to move
the airFiber radios.
• Pre-assemble the mounting hardware.
• Install the airFiber radios at the site.
• Establish and optimize the RF link.
Note: The AF-5 and AF-5U models share the same
installation and configuration instructions.
Connecting Power over Ethernet
1. Push the button and slide the port cover down to access
cableports. (The port cover cannot be completely removed.)

8
airFiber® AF-5/AF-5U Quick Start Guide
2. Connect an Ethernet cable to the Data port.
GPS
MASTER
LINK
RESET
OVERLOAD
8X
6X
4X to 0.25X
REMOTE
LOCAL
AUXMANAGEMENT DATA
ACT SPEEDACT SPEED
3. Connect the other end of the Ethernet cable from the Data
port to the Ethernet port labeled POE on the GigE PoE Adapter.
4. Connect the Power Cord to the power port on the GigE
PoE Adapter. Connect the other end of the Power Cord to a
powersource.

9
airFiber Configuration
airFiber Configuration
The instructions in this section explain how to access the airFiber
Configuration Interface and configure the following settings:
• Wireless Mode Configure one airFiber radio as the Master and
the other as the Slave.
• Duplex The airFiber radio supports both half-duplex and
full-duplex operation. Half-duplex operation provides more
frequency planning options at the cost of higher latency
and throughput. Full-duplex operation provides the highest
throughput and lowest latency; however, you have fewer
frequency management options.
- Half Duplex (default) The TX and RX Frequencies can be the
same or different to suit local interference.
TX
RX
TX
RX
SlaveMaster
Frequency A
Frequency A
Half-Duplex Diagram
- Full Duplex The TX and RX Frequencies should be different.
TX
RX
TX
RX
SlaveMaster
Frequency A
Frequency B
Full-Duplex Diagram
• TX and RX Frequencies The TX Frequency on the Master must
match the RX Frequency on the Slave, and vice versa.

10
airFiber® AF-5/AF-5U Quick Start Guide
1. Connect an Ethernet cable from your computer to the
Management port on the airFiber radio.
GPS
MASTER
LINK
RESET
OVERLOAD
8X
6X
4X to 0.25X
REMOTE
LOCAL
AUXMANAGEMENT DATA
ACT SPEEDACT SPEED
2. Configure the Ethernet adapter on your computer with a static
IP address on the 192.168.1.x subnet.
3. Launch your web browser. Type http://192.168.1.20 in the
address field and press enter (PC) or return (Mac).
4. The login screen will appear. Enter ubnt in the Username and
Password fields. Select your Country and Language. You must
agree to the Terms of Use to use the product. Click Login.
Note: U.S. product versions are locked to the U.S. Country
Code to ensure compliance with FCC regulations.

11
airFiber Configuration
5. The Main tab will appear. Click the Tools drop-down and
select Link Calculator. This tool will guide you on how to best
minimize bandwidth and power/interference issues.
Note: If you do not see the Link Calculator, then upgrade
the firmware on your airFiber radios. Download the
firmware at: downloads.ubnt.com/airfiber
6. Enter the requirements of your link, and then click Calculate.
Adjust the values as needed to get the optimal result, and then
write down the settings needed for your configuration.
7. Click the Wireless tab.
8. Enter the Basic Wireless Settings:
a. For one airFiber radio, select Master as the Wireless Mode.
For the other airFiber radio, keep the default,Slave.
b. Enter a name in the Link Name field. This should be the
same on both the Master and the Slave.
c. For the Duplex drop-down:
- Half Duplex The default mode. The TX and RX Frequencies
can be the same or different to suit local interference.
- Full Duplex The TX and RX Frequencies should be different.
d. Select a TX Frequency. This must match the RX Frequency on
your other airFiber radio.
e. Select a RX Frequency. This must match the TX Frequency of
your other airFiber radio.
f. If needed, change the Output Power and/or Maximum
Modulation Rate settings.

12
airFiber® AF-5/AF-5U Quick Start Guide
9. Configure the Wireless Security:
a. Select the AES Key Type, HEX or ASCII.
b. For the Key field:
- HEX Enter 16 bytes (eight, 16-bit HEX values: 0-9, A-F, or
a-f). You can omit zeroes and use colons, similar to the
IPv6 format.
Note: The airFiber Configuration Interface supports
IPv6 formats excluding dotted quad and "::"
(double-colon) notation.
- ASCII Enter a combination of alphanumeric characters (0-9,
A-Z, or a-z).
10. Click Change and then click Apply.

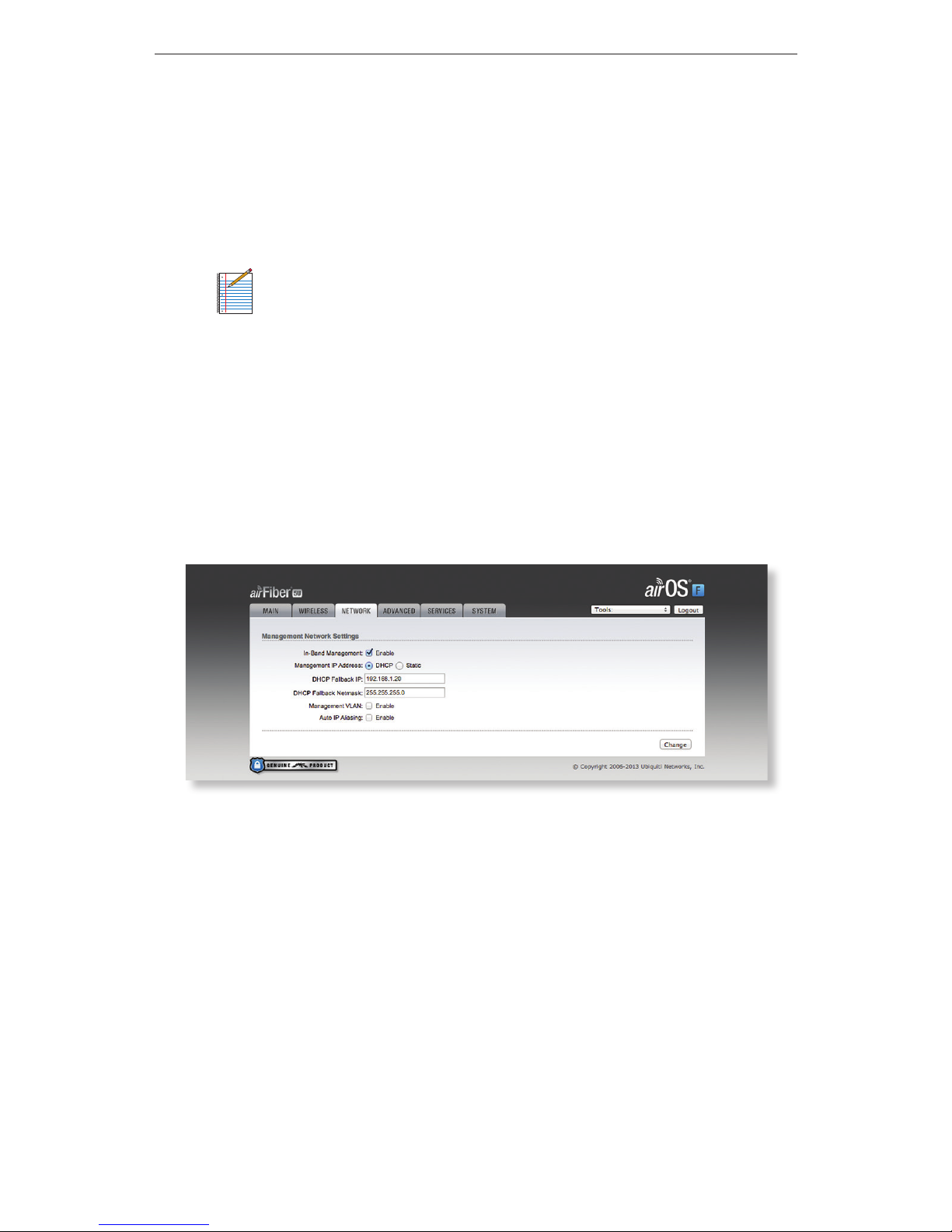

11. In-Band Management is enabled by default, so each airFiber
radio must have a unique IP Address. (If the airFiber radios use
the same IP Address, then you may lose access to the airFiber
radios via the Data ports.) Click the Network tab.
a. For the Management IP Address option:
- DHCP Keep the default, DHCP, to use DHCP reservation on
your router to assign a unique IP Address.
- Static Change the IP Address, Netmask, and other settings
to make them compatible with your network.
b. Click Change and then click Apply.
Repeat the instructions in the airFiber Configuration section on
your other airFiber radio. After you have configured the airFiber
radios, disconnect them and move them to your installation site.

13
Hardware Installation
Hardware Installation
The mounting hardware of the airFiber radio can be pre-assembled
before pole-mounting.
Mounting Hardware Pre-Assembly
1. Insert two M10x150 Carriage Bolts into the Lower Mount Bracket.
2. Insert two M10x150 Carriage Bolts into the Upper Mount Bracket
with Elevation Rod.

14
airFiber® AF-5/AF-5U Quick Start Guide
3. Attach the Lower Mount Bracket to the I-Bracket using two
M8x14 Serrated Flange Bolts. Ensure that the slots face up and
securely tighten the bolts.
Proper slot orientation

15
Hardware Installation
4. Attach the Upper Mount Bracket with Elevation Rod to the
I-Bracket using two M8x14 Serrated Flange Bolts.
Note: Ensure that the orientation of the Upper Mount
Bracket matches the illustration below, with the
Elevation Rod on the correct side.

16
airFiber® AF-5/AF-5U Quick Start Guide
5. Attach the Pole Clamps to the Mount Brackets.
a. Slide the slotted hole of each Pole Clamp over one upper
and one lower M10x150 CarriageBolt.
b. Place one M10 Serrated Flange Nut on each M10x150
Carriage Bolt.

17
Hardware Installation
6. Attach the Azimuth Support Brackets together.
a. Insert the two M10x100 Carriage Bolts into the Azimuth
Support Bracket that has two slotted holes.
b. Slide the slotted hole of the other Azimuth Support Bracket
over one M10x100Carriage Bolt.
c. Place one M10 Serrated Flange Nut on each M10x100
Carriage Bolt.
7. Check the four Pre-Installed M10x25 Flanged Bolts to ensure that
there is a 13 mm gap between each bolt head and its trunnion.
13 mm13 mm

18
airFiber® AF-5/AF-5U Quick Start Guide
Pole-Mounting
1. Attach the Azimuth Support Brackets to the pole just beneath
the area where the airFiber radio will be attached.
Note: The mounting assembly can accommodate a
Ø 38.1 - 101.6 mm (1.5" - 4.0") pole.
a. Orient the Azimuth Support Brackets around the pole so it is
aimed in the direction of the other airFiber radio.
b. Slide the open slot of the Azimuth Support Bracket over the
corresponding M10x100Carriage Bolt.
c. Tighten the M10 Serrated Flange Nuts to approximately
50N-m.
