Ubiquiti UniFi AP-AC PRO User manual

UNIFIAP-AC PRO | MAY 15, 2019
SETUP GUIDE

UniFi AP-AC PRO Setup Guide | May 15, 2019 | i
Confidential. © 2019 Squirrel Systems. All rights reserved.
UniFi AP-AC PRO Setup Guide
Date Reference: Page, Paragraph Revision
#Comments
Oct 18, 2018 Initial
Release
May 15, 2019
Page 12: UniFi Controller Software Configuration (Using
a Squirrel Network or No DHCPServer): Noted
recommendation to provision all access points on a live,
internet-enabled network before connecting to a local-
network-only Squirrel NIC / IP range. Added NIC-specific
steps.
Appendix: Third-Party Installation Guide: New version of
guide attached.
1
For further information about this manual or other Squirrel Systems products, contact us at 1.800.388.6824.
Outside the U.S. and Canada, call 604.412.3300.
Copyright © 2019 Squirrel Systems. All rights reserved.
Squirrel Professional is a trademark of Squirrel Systems.
All other products are trademarks or registered trademarks of their respective holders, all rights reserved.
Reference to these products is not intended to imply affiliation with or sponsorship of Squirrel Systems.
PROPRIETARY NOTICE
This document contains confidential and trade secret information proprietary to Squirrel Systems, and is
protected by laws pertaining to such materials. At no point should this information be copied, used, or
disclosed to anyone, in whole or in part, without the express written permission of Squirrel Systems.
For authorization to copy this information, please contact Squirrel Systems at 1.800.388.6824 or
604.412.3300 outside the U.S. and Canada.
DISCLAIMER
Squirrel Systems provides this documentation as is without warranty of any kind, either express or implied.
This document could include technical inaccuracies or typographical errors. Squirrel Systems may make
improvements and/or changes at any time to the product(s) and/or program(s) described in this document.
Changes are made periodically to the information herein; these changes will be incorporated in new editions of
the document.

UniFi AP-AC PRO Setup Guide | May 15, 2019 | ii
Confidential. © 2019 Squirrel Systems. All rights reserved.
TABLE OF CONTENTS
1 Overview 1
2 Requirements 1
2.1 Hardware / Network 1
2.2 Software 1
3 Hardware Overview 1
3.1 LED Legend 1
3.2 Ports 2
4 Connecting Device(s) 3
4.1 Connecting Device to PoE+ Compliant Router 3
4.2 Connecting Device to Router with a PoE Adapter 4
5 UniFi Controller Software Installation 5
6 Network Setup (Using an Existing Network / DHCPServer) 6
6.1 UniFi Controller Software Configuration 6
6.2 Configuring the Site and Network 9
7 Network Setup (Using a Squirrel Network or No DHCPServer) 12
7.1 UniFi Controller Software Configuration 12
7.2 Configuring the Site and Network 15
8 Adding Additional APs to the Network (Device Adoption) 18
Appendix: Third-Party Installation Guide 22

UniFi AP-AC PRO Setup Guide | May 15, 2019 | 1
Confidential. © 2019 Squirrel Systems. All rights reserved.
1 OVERVIEW
The UniFi AC Pro AP (model UAP-AC-PRO) is a gigabit, 802.3af-powered access point (AP) with unlimited
scalability under one central controller. This APis suitable for high-density network traffic requiring high
uptime and low latency, and allows for remote access to monitor and upgrade deployed devices.
This document covers setting up the software and network on the AP and wireless client devices for use as a
SquirrelMobility network. It does not cover configuring the APfor use with a UniFi Cloud Key or UniFi
Controller management station as these devices are not yet certified by Squirrel. These devices may be
integrated with the AP into a full-scale network solution at a later date, at which point this document will be
updated to include them.
For mounting setup instructions, refer to the UniFi AC Pro AP's Quick Start Guide, included in the AP's
packaging.
2 REQUIREMENTS
2.1 Hardware / Network
lA separately-installed router or switch.
lA DHCP-enabled network (for the APto obtain anIPaddress to broadcast to wireless clients).
lIf the router or switch is not 802.3af/802.3at PoE+ compliant, a power-over-ethernet (PoE) converter is
required to power the device.
2.2 Software
lLinux, Mac OS X 10.11 (or above), or Microsoft Windows 7/8/10
lJava Runtime 1.8+
lGoogle Chrome
3 HARDWARE OVERVIEW
3.1 LED Legend
LEDColour Status
White Factory default, waiting to be configured or integrated.
Flashing White Booting up or initializing.
Alternating White/Blue Device is busy, typically updating. Do not unplug.
Blue Device has been integrated successfully and is working normally.
Flashing Blue When you click "Locate" in the UniFi Controller software, the AP will quickly
flash blue.
Blue with Occasional
Flashing Device is isolated with no uplink.

UniFi AP-AC PRO Setup Guide | May 15, 2019 | 2
Confidential. © 2019 Squirrel Systems. All rights reserved.
3.2 Ports
lSecurity Slot: Used to remove the UniFi AP from the mounting bracket by inserting a paper clip to
release the lock tab.
lSecondary Port: A Gigabit Ethernet port used for bridging.
lReset Button: The reset button has two functions:
oRestart: Press and quickly release the restart button to restart the device.
oRestore to Factory Default Settings: Press and hold the restart button for more than five
seconds.
lUSBPort
lMain Port: A Gigabit Ethernet port used to connect to power and LAN.

UniFi AP-AC PRO Setup Guide | May 15, 2019 | 3
Confidential. © 2019 Squirrel Systems. All rights reserved.
4 CONNECTING DEVICE(S)
To access the ports on the device, turn the mounting cover counter-clockwise to unlock it from the device.
Afterwards, remove the rubber port cover. Replace these parts after connecting the Ethernet cord to the
primary port.
4.1 Connecting Device to PoE+ Compliant Router
If the router or switch being used is 802.3af/802.3at PoE+ compliant, connect the UnFi APdirectly to the
router/switch's PoE+ port. A regular PoE port provides insufficient wattage to power the device. Ensure that
the port is PoE+ compliant.

UniFi AP-AC PRO Setup Guide | May 15, 2019 | 4
Confidential. © 2019 Squirrel Systems. All rights reserved.
4.2 Connecting Device to Router with a PoE Adapter
Plug the PoE adapter into the wall power socket (or mount it using the instructions provided in the packaging),
then connect the LANport to the router/switch and the POEport to the UnFi AP's main port.

UniFi AP-AC PRO Setup Guide | May 15, 2019 | 5
Confidential. © 2019 Squirrel Systems. All rights reserved.
5 UNIFICONTROLLER SOFTWARE INSTALLATION
The UniFi Controller software allows you to manage the UniFi network using a web browser. These steps
assume a Windows operating system. For Mac instructions, refer to the UniFi Controller User Guide available
at http://downloads.ubnt.com/unifi. For Linux instructions, refer to the UnFi blog at http://ubnt.link/UniFi-Blog.
1. Download the latest version of the UnFi Controller software.
a. Navigate to http://downloads.ubnt.com/unifi
b. Select UniFi from the top tab.
c. Scroll down to the Software section.
d. Locate and download the latest UniFi SDN Controller for Windows (e.g. "UniFi SDN
Controller 5.8.24 for Windows").
2. Launch UniFi-installer.exe.
3. Click Install.
4. If Java 1.6 or higher is not installed on the machine, you will be prompted to download and install it. If
you do not see this prompt, proceed to step 5.
a. ClickOK.
b. Your default web browser opens on the Java download page. Click Free Java Download.
c. Review the end user license agreement and click Agree and Start Free Download.
d. Run the JavaSetup executable (e.g. JavaSetup8u181.exe).
e. The Java Setup - Welcome screen appears. Click Install >.
f. The Java Setup - Progress screen appears. Wait the installation to complete.
g. The Java Setup - Complete screen appears. Click Close.
h. Re-launch UniFi-installer.exe and clickInstall.
5. Wait for the installation to complete.
6. Ensure that the Start UniFi Controller after installation option is selected and click Finish.
7. Proceed to UniFi Controller Software Configuration on page 6.

UniFi AP-AC PRO Setup Guide | May 15, 2019 | 6
Confidential. © 2019 Squirrel Systems. All rights reserved.
6 NETWORK SETUP (USING AN EXISTING NETWORK /
DHCPSERVER)
The instructions in this section of the document outline how to set up the network on the AP for use with
SquirrelCloud POS.
6.1 UniFi Controller Software Configuration
1. If the UnFi Controller software is not open after the installation or has been closed, run it from the start
menu.
2. Click Launch a Browser to Manager theNetwork.
NOTE: If Chrome is not set up as your default browser, open Chrome and navigate to
https://localhost:8443/ in the Chrome browser instead.
3. The UnFi Setup Wizard page appears. Select your country and timezone and click Next.
4. Select the device you wish to configure and click Next.

UniFi AP-AC PRO Setup Guide | May 15, 2019 | 7
Confidential. © 2019 Squirrel Systems. All rights reserved.
5. Create a secure primary wireless network for the UniFi AP.
a. Enter the wireless network name (SSID) in the Secure SSID field.
b. Enter a password for the network in the Security Key field.
c. Leave "Enable Guest Access" unchecked.
d. Click Next.
6. Skip configuring the primary wireless network for now. This will be done later.

UniFi AP-AC PRO Setup Guide | May 15, 2019 | 8
Confidential. © 2019 Squirrel Systems. All rights reserved.

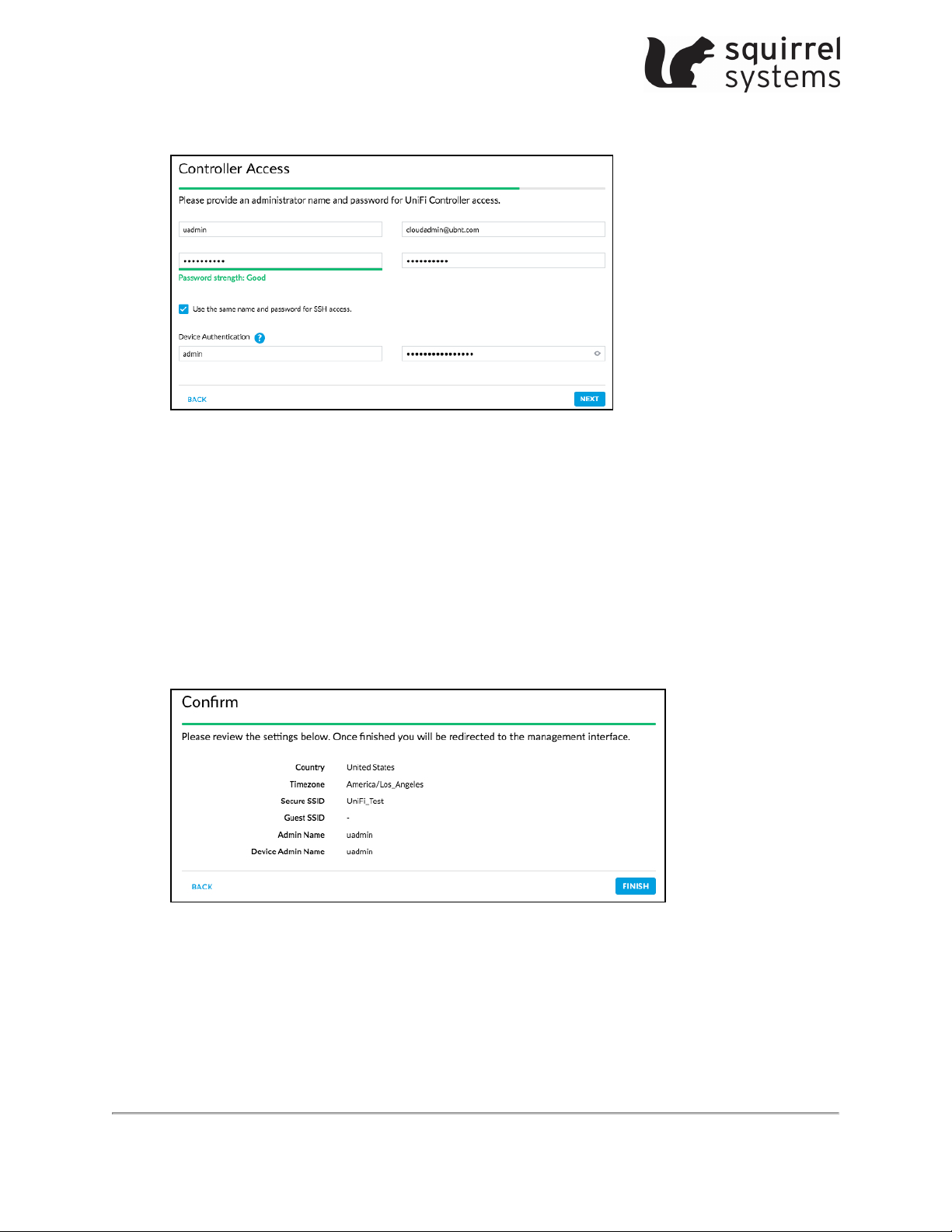

7. Set up the superadmin for the UniFi Controller.
a. Enter an admin name in the Admin Name field.
b. Enter an email address in the Admin Email field.
c. Enter a password in the Password field.
d. Enter the password again in the Confirm Password field.
e. To use the same login for SSH access, select Use the same name and password for SSH
access.
f. To set up a separate login for SSH access, enter an admin name and password for the Device
Authentication fields.
g. Click Next.

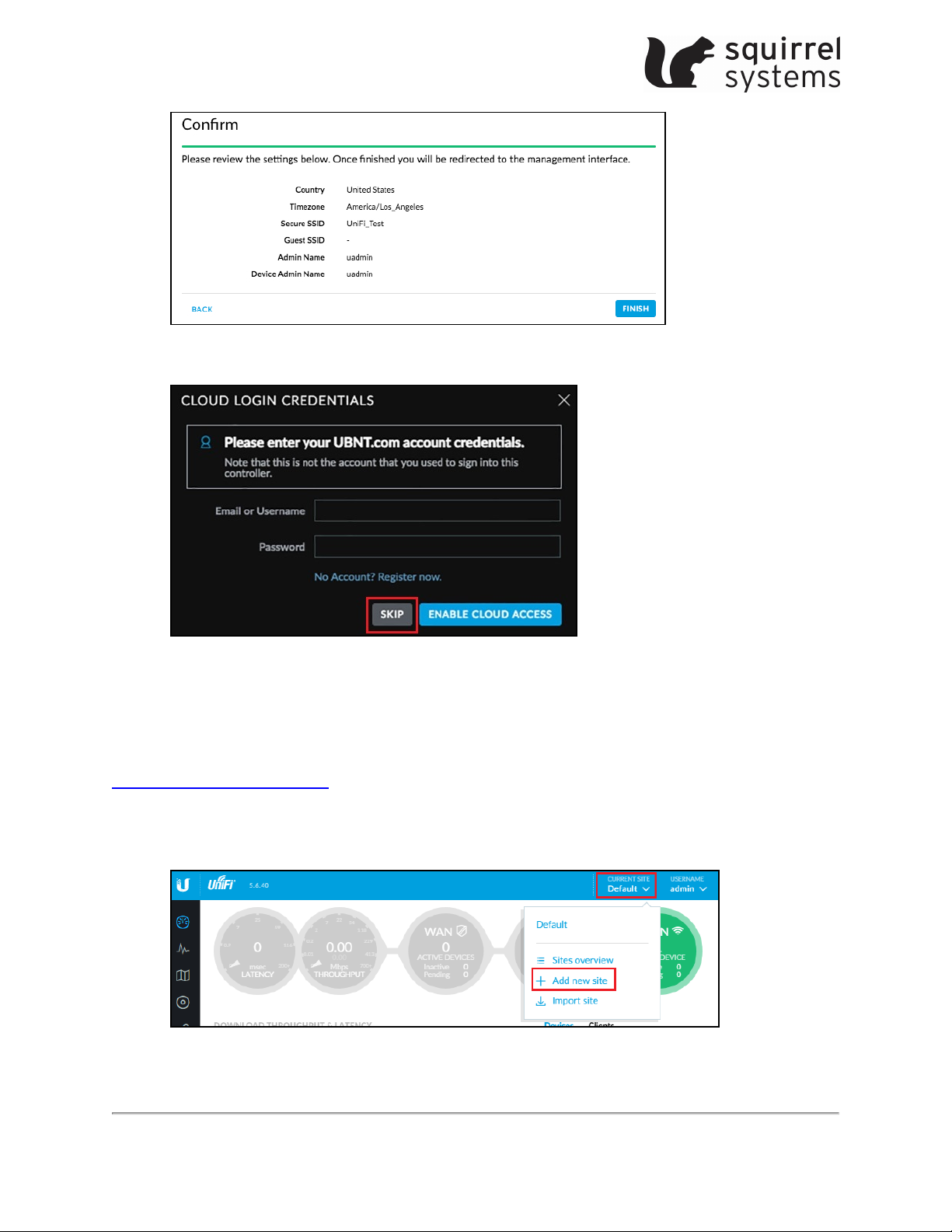

8. Review your settings and click Finish.
9. The browser re-directs to the Cloud Login Credentials screen. Click Skip.

UniFi AP-AC PRO Setup Guide | May 15, 2019 | 9
Confidential. © 2019 Squirrel Systems. All rights reserved.
10. The UniFi Controller management interface login screen appears. Enter the admin name and password
from step 6.
You are now signed in to UniFi Controller Software.
For a detailed overview of the UniFi Controller Software, refer to the UniFi Controller User Guide available at
http://downloads.ubnt.com/unifi.
6.2 Configuring the Site and Network
1. In the top-left corner, click Current Site and select Add new site.
2. You are prompted to input the site name. Enter your site's Squirrel name and Squirrel ID and click
Submit.
3. Navigate to Settings by clicking the cogwheel icon ( ) on the left side of the screen.
4. Under Site > Site Configuration, select the correct country and timezone.

UniFi AP-AC PRO Setup Guide | May 15, 2019 | 10
Confidential. © 2019 Squirrel Systems. All rights reserved.
5. Under Site >Device Authentication, click the View ( ) icon in the password field. Record the
SSH username and password.
NOTE:This SSH login information is different from the information entered earlier in the setup
process.
6. Leave all other values default and click Apply Changes.
7. Staying in the setting screen, select Wireless Networks on the left-handed menu.

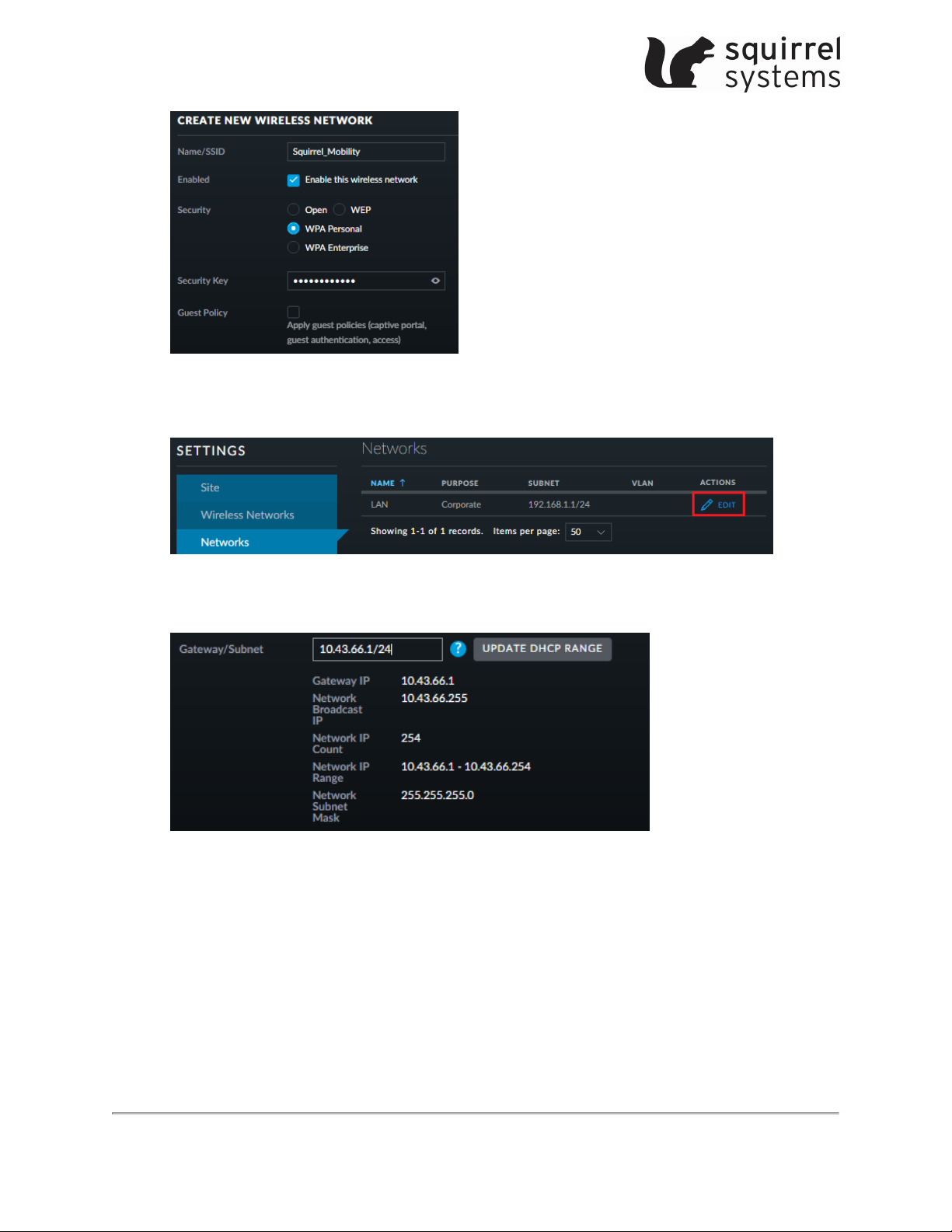

8. Click Create New Wireless Network.
9. Enter a name in the Name/SSID field. Under Security, select WPAPersonal and enter a password in
the Security Key field. Click Save.

UniFi AP-AC PRO Setup Guide | May 15, 2019 | 11
Confidential. © 2019 Squirrel Systems. All rights reserved.
10. Staying in the settings screen, navigate to Networks.
11. Under Actions, click Edit.
12. Change the Gateway/Subnet to match the existing network. Keep the /24 CIDR notation intact (for
example, 10.43.66.1/24). Click Update Range.
13. Under DHCPMode, select None.
14. Click Save.
If applicable, proceed to set up any additional APs in Adding Additional APs to the Network (Device
Adoption) on page 18.

UniFi AP-AC PRO Setup Guide | May 15, 2019 | 12
Confidential. © 2019 Squirrel Systems. All rights reserved.
7 NETWORK SETUP (USING A SQUIRREL NETWORK OR NO
DHCPSERVER)
7.1 UniFi Controller Software Configuration
It is recommended to provision all access points on a live, internet-enabled network before connecting to a
local-network-only Squirrel NIC / IP range. When connected to the internet, the APapplies updates that
permit the adoption of devices to the new version of the UniFi Controller.
1. Modify the PC or Squirrel server's IPaddress.
lOn a dual-NIC Squirrel Server, plug into the NIC 2/Office Port. If a live, internet-enabled
network is available, allow the DHCP server to assign the server an IP address.
lIf no internet enabled network is available, assign one NIC on the PC (NIC2 on the Squirrel
server) a temporary IP address in the 192.168.1.0/24 subnet. e.g. 192.168.1.234).
a. Navigate to Control Panel> Network And Internet > Network and Sharing Center.
b. On the left pane, click Change adapter settings.
c. Right-click the network adapter and select Properties.
d. Select the Internet Protocol Version 4 (TCP/IPv4) option and click the Properties
button.
e. Record all information in this screen. You will need to revert back to these settings later.
f. Set the IP address to an address in the 192.168.1.0/24 subnet. (e.g. 192.168.1.234)
g. Set the Subnet mask to 255.255.255.0.
h. Click OK.
i. Click Close.
2. If the UnFi Controller software is not open after the installation or has been closed, run it from the start
menu.
3. Click Launch a Browser to Manager theNetwork.
NOTE: If Chrome is not set up as your default browser, open Chrome and navigate to
https://localhost:8443/ in the Chrome browser instead.
4. The UnFi Setup Wizard page appears. Select your country and timezone and click Next.

UniFi AP-AC PRO Setup Guide | May 15, 2019 | 13
Confidential. © 2019 Squirrel Systems. All rights reserved.
5. Select the device you wish to configure and click Next.
6. Create a secure primary wireless network for the UniFi AP.
a. Enter the wireless network name (SSID) in the Secure SSID field.
b. Enter a password for the network in the Security Key field.

UniFi AP-AC PRO Setup Guide | May 15, 2019 | 14
Confidential. © 2019 Squirrel Systems. All rights reserved.
c. Leave "Enable Guest Access" unchecked.
d. Click Next.
7. Skip configuring the primary wireless network for now. This will be done later.
8. Set up the superadmin for the UniFi Controller.
a. Enter an admin name in the Admin Name field.
b. Enter an email address in the Admin Email field.
c. Enter a password in the Password field.
d. Enter the password again in the Confirm Password field.
e. To use the same login for SSH access, select Use the same name and password for SSH
access.
f. To set up a separate login for SSH access, enter an admin name and password for the Device
Authentication fields.
g. Click Next.
9. Review your settings and click Finish.

UniFi AP-AC PRO Setup Guide | May 15, 2019 | 15
Confidential. © 2019 Squirrel Systems. All rights reserved.
10. The browser re-directs to the Cloud Login Credentials screen. Click Skip.
11. The UniFi Controller management interface login screen appears. Enter the admin name and password
from step 6.
You are now signed in to UniFi Controller Software.
For a detailed overview of the UniFi Controller Software, refer to the UniFi Controller User Guide available at
http://downloads.ubnt.com/unifi.
7.2 Configuring the Site and Network
1. In the top-left corner, click Current Site and select Add new site.

UniFi AP-AC PRO Setup Guide | May 15, 2019 | 16
Confidential. © 2019 Squirrel Systems. All rights reserved.
2. You are prompted to input the site name. Enter your site's Squirrel name and Squirrel ID and click
Submit.
3. Navigate to Settings by clicking the cogwheel icon ( ) on the left side of the screen.
4. Under Site > Site Configuration, select the correct country and timezone.
5. Under Site >Device Authentication, click the View ( ) icon in the password field. Record the
SSH username and password.
NOTE:This SSH login information is different from the information entered earlier in the setup
process.
6. Leave all other values default and click Apply Changes.
7. Staying in the setting screen, select Wireless Networks on the left-handed menu.
8. Click Create New Wireless Network.

UniFi AP-AC PRO Setup Guide | May 15, 2019 | 17
Confidential. © 2019 Squirrel Systems. All rights reserved.
9. Enter a name in the Name/SSID field. Under Security, select WPAPersonal and enter a password in
the Security Key field. Click Save.
10. Staying in the settings screen, navigate to Networks.
11. Under Actions, click Edit.
12. Change the Gateway/Subnet to match the Squirrel network. Keep the /24 CIDR notation intact (for
example, 10.43.66.1/24). Click Update Range.
13. Under DHCPMode, select DHCPServer. In the DHCP UniFi Controller field, enter the IPaddress
of the SquirrelPC.
14. Click Save.
15. Revert the NIC back to the settings recorded in step 1e of UniFi Controller Software Configuration
on page 12.
