Uniden Pro71600N3 User manual

Pro71600N3
NVR User Manual

Admin User Name:
Admin Password:
IP Address:
System Name:
User Information
1. Menu Operation ............................................................................................................4
1.1 Main Menu.................................................................................................................4
2. Start & Shutdown System ........................................................................................5
2.1 Start Sub Menu ......................................................................................................5
3. Preview............................................................................................................................8
4. IP Channel Setting ......................................................................................................9
4.1 Add IPC Automatically.......................................................................................9
4.2 Add IPC Manually................................................................................................11
4.3 Channel Parameters Modification.................................................................12
4.4 Modify IPC Parameters .....................................................................................14
4.5 Delete IPC...............................................................................................................15
5. System Configuration Setting ................................................................................16
5.1 Device Setting........................................................................................................16
5.2 Channel Parameters Setting............................................................................17
5.2.1 Display Setting............................................................................................18
5.2.2 Video Parameters.....................................................................................19
5.2.3 Schedule Record.......................................................................................21
5.2.3.1 Precise Video Backup. ..................................................................22
5.2.3.2 Record Time ....................................................................................23

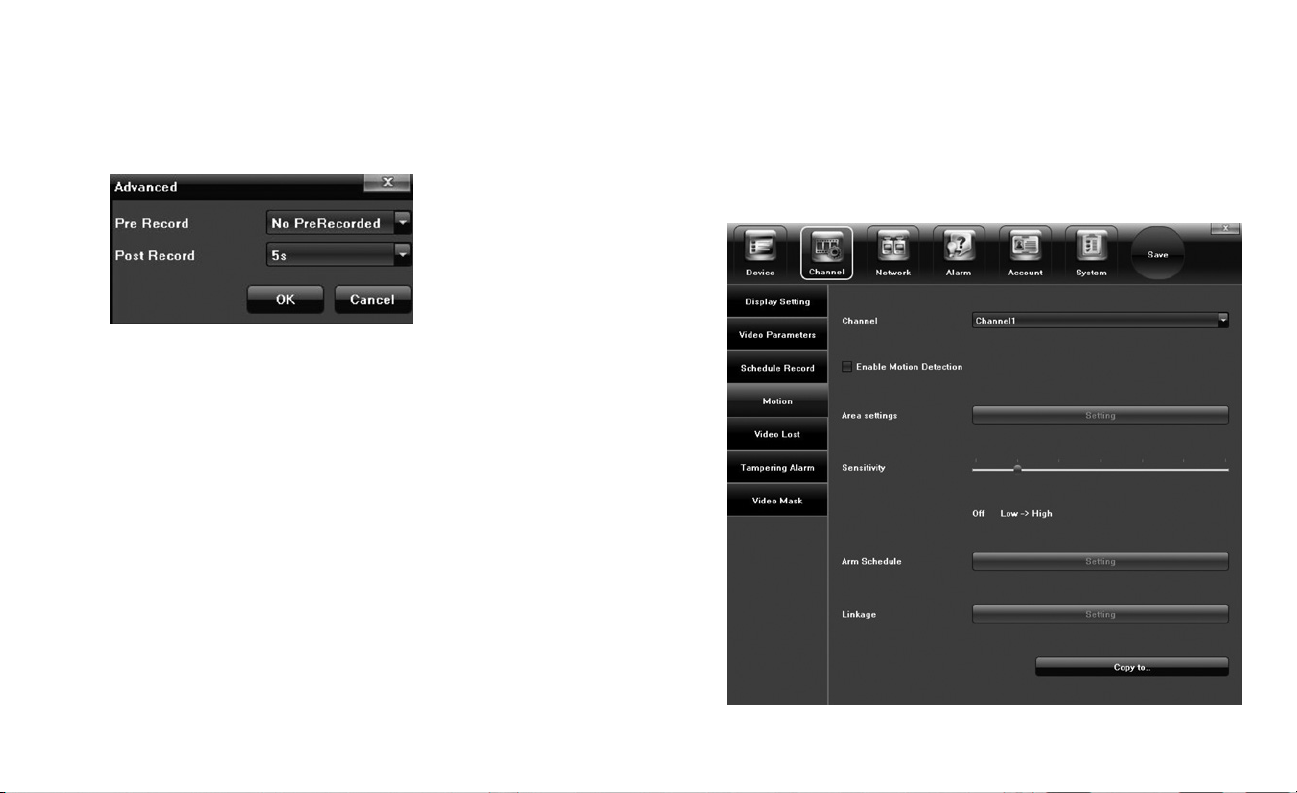

5.2.3.3 Advanced Record..........................................................................24
5.2.4 Motion Detection......................................................................................25

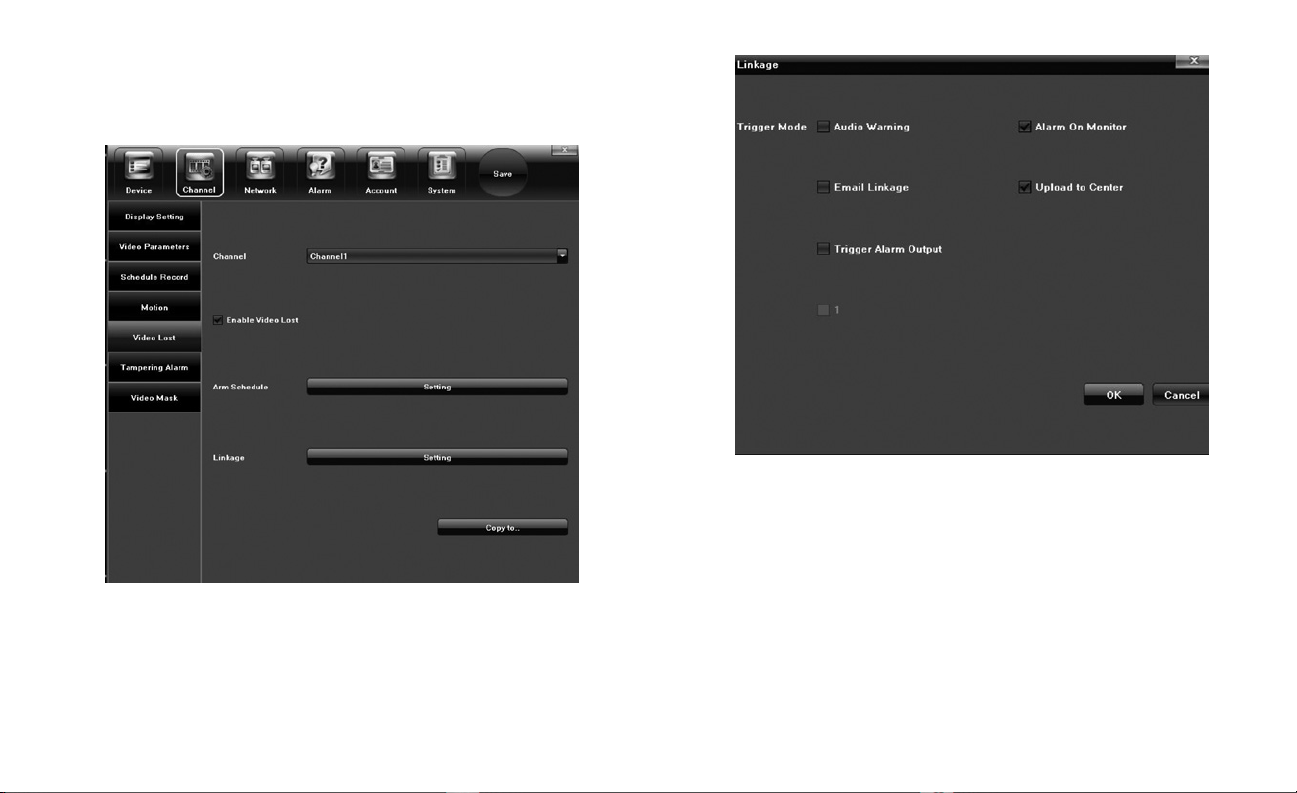

5.2.5 Video Lost ...................................................................................................28

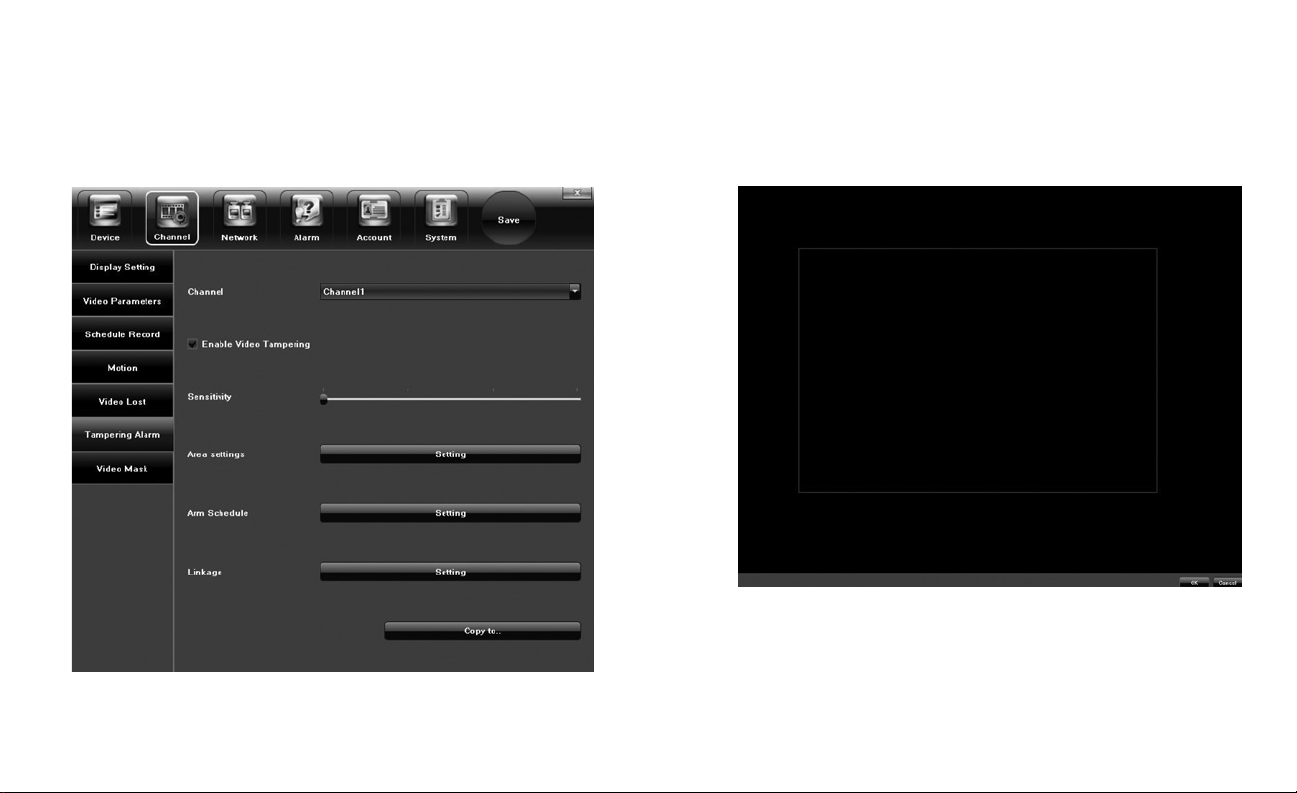

5.2.6 Tampering Alarm......................................................................................30

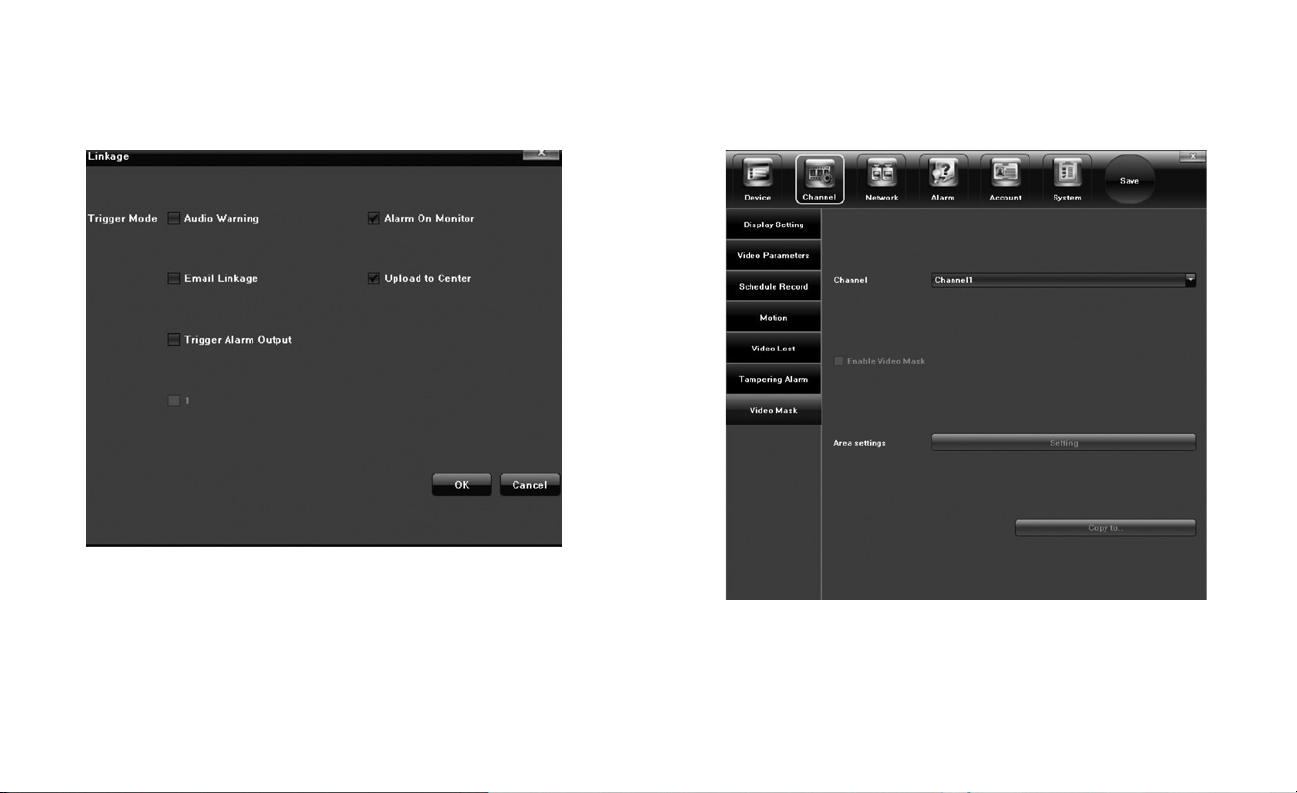

5.2.7 Video Mask Setting ..................................................................................33
5.3 Network...................................................................................................................35

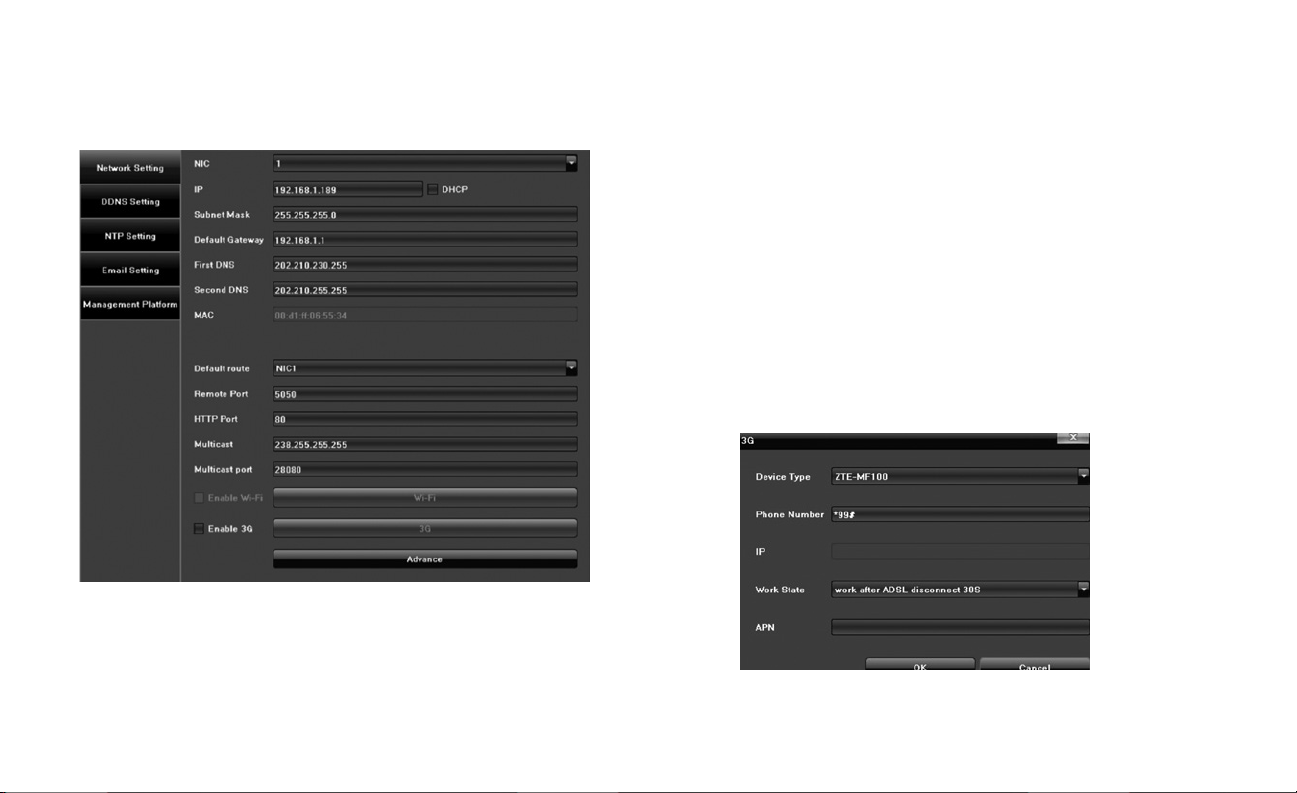

5.3.1 Network Setting.........................................................................................36

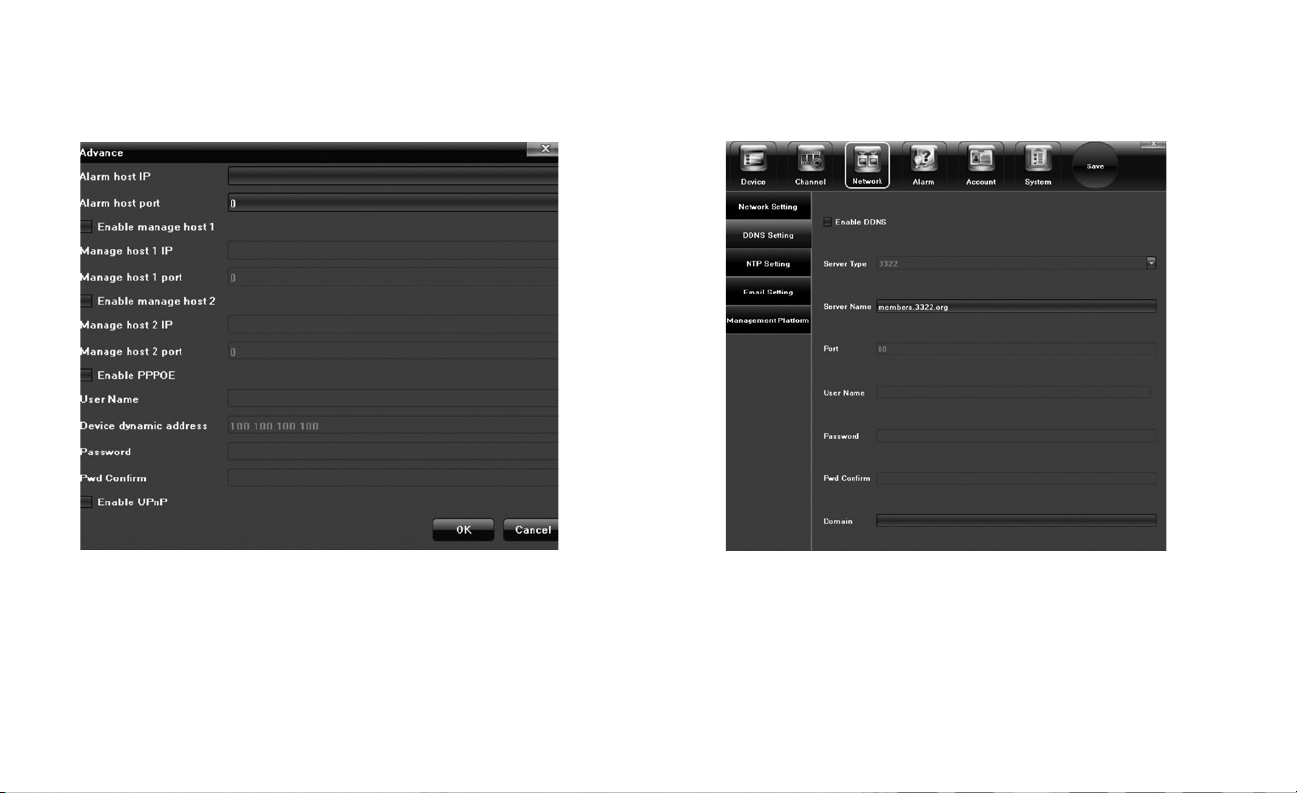

5.3.1.1 Advanced Setting............................................................................38
5.3.2 DDNS Setting.............................................................................................39
5.3.3 NTP Setting.................................................................................................40
5.3.4 Email Setting..............................................................................................41
5.3.5 Management Platform............................................................................42
5.4 Alarm & Exception ..............................................................................................43
5.4.1 Alarm Input..................................................................................................44
5.4.2 Alarm Output.............................................................................................46
5.4.3 Exception.....................................................................................................47
5.5 Account Setting ...................................................................................................48
5.5.1 User Information Setting ........................................................................49
5.5.2 User Online Checking .............................................................................50
5.6 System Administration ......................................................................................51
5.6.1 Device Log ...................................................................................................52
5.6.2 Stream Info .................................................................................................53
5.6.3 HDD Setting................................................................................................54
5.6.4 System Update..........................................................................................55
5.6.5 Auto Reboot...............................................................................................56
5.6.6 Recovery Configuration.........................................................................57
6. PTZ Control ...................................................................................................................58
7. Record..............................................................................................................................60
8. Manual Snapshot .........................................................................................................60
9. Video Playback ............................................................................................................61
10. Display Setting ...........................................................................................................63
11. Video Backup ...............................................................................................................64
12. Alarm Setting ..............................................................................................................65
13. File Manager ................................................................................................................66
14. Image Setting..............................................................................................................67
15. Screen Aspect Ratio/Segmentation...................................................................67
Table Of Contents

4 5
1. Menu Operation
1.1 Main Menu
The Main Menu gives you access to all of the NVR’s key functions.
With your mouse, right click on the preview screen during a live
view to pull up the Main Menu.
2. Start/Shutdown System
2.1 Start Sub Menu
The Start Sub Menu displays when you hover over the Start
button and allows you to Power O, Reboot, Login, Logout,
access the User Guide, set the Device Time and adjust Volume.
Main Menu
Start Sub Menu Screen
Login Screen
• Power O: To begin, switch on the power source and press the
button to start up the device. Press Power O to shut down
device.
• Login: Click Login to open the login screen. You can input your
own username and password or login with the default user. The
default user is admin, the default password is left blank.

6 7
• User Guide: After logging into the NVR System, the User
Guide screen will appear and ask you to set it up as it takes
you through the following steps:
• Language: Choose a language from the drop-down
menu. The default language is English. Click Next to
save changes and continue.
• Network Setting:
• IP: Input the Network’s IP address.
• Subnet Mask: Input the corresponding IP Subnet Mask.
• Default Gateway: Input the corresponding gateway address.
• Click Next to save and continue logging in to the NVR
interface.
• Display Setting: Select the appropriate Video Format and
Resolution to match your display. The default Video Format is
NTSC and the default Resolution is 1280×1024 (60HZ). Click
Next to save and continue.

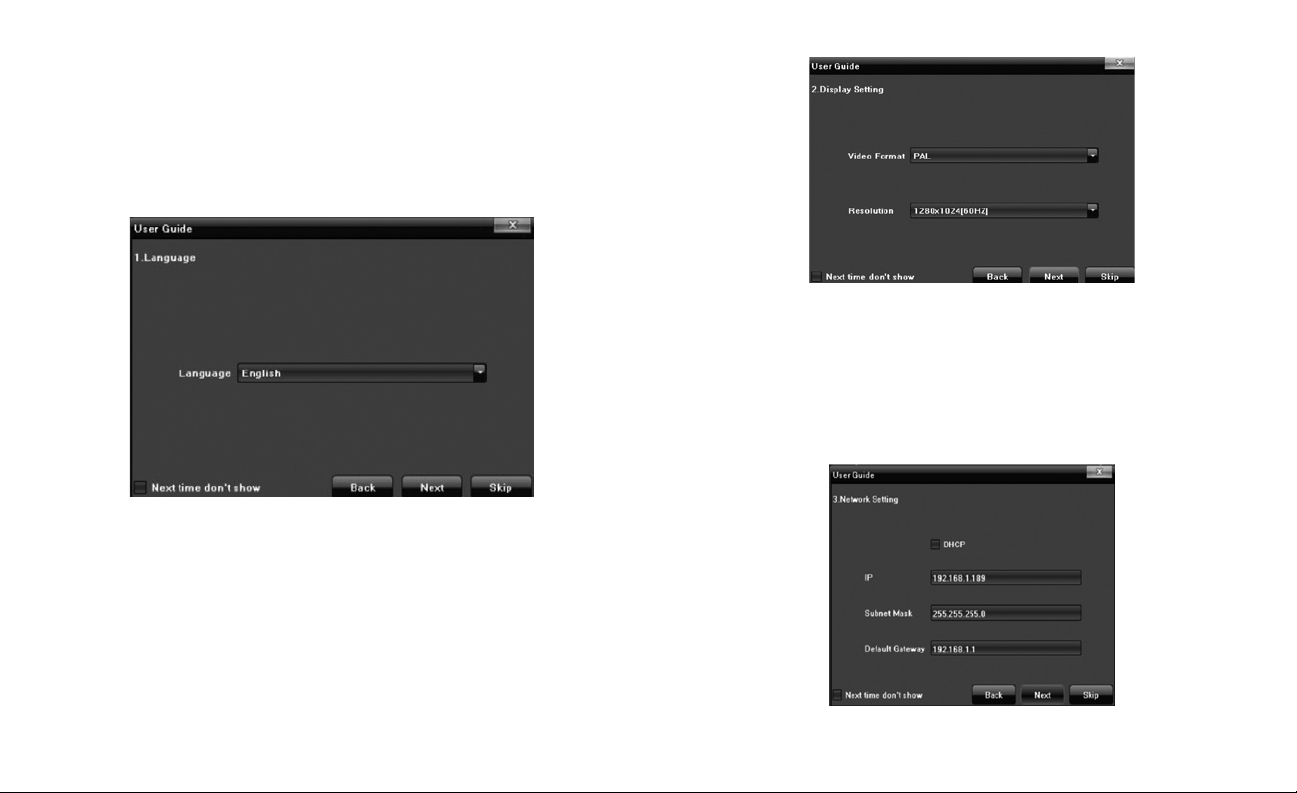

Language Screen
Display Setting Screen
Network Setting Screen

8 9
3. Preview
The Preview screen will display after logging in, showing the
current video feeds for each individual channel.
4. IP Channel Setting
4.1 Add IPC Automatically
Select IP Channel Setting from the Main Menu and click the
Search button. All the IPCs that are connected to the NVR
will appear and you can modify the settings for each.

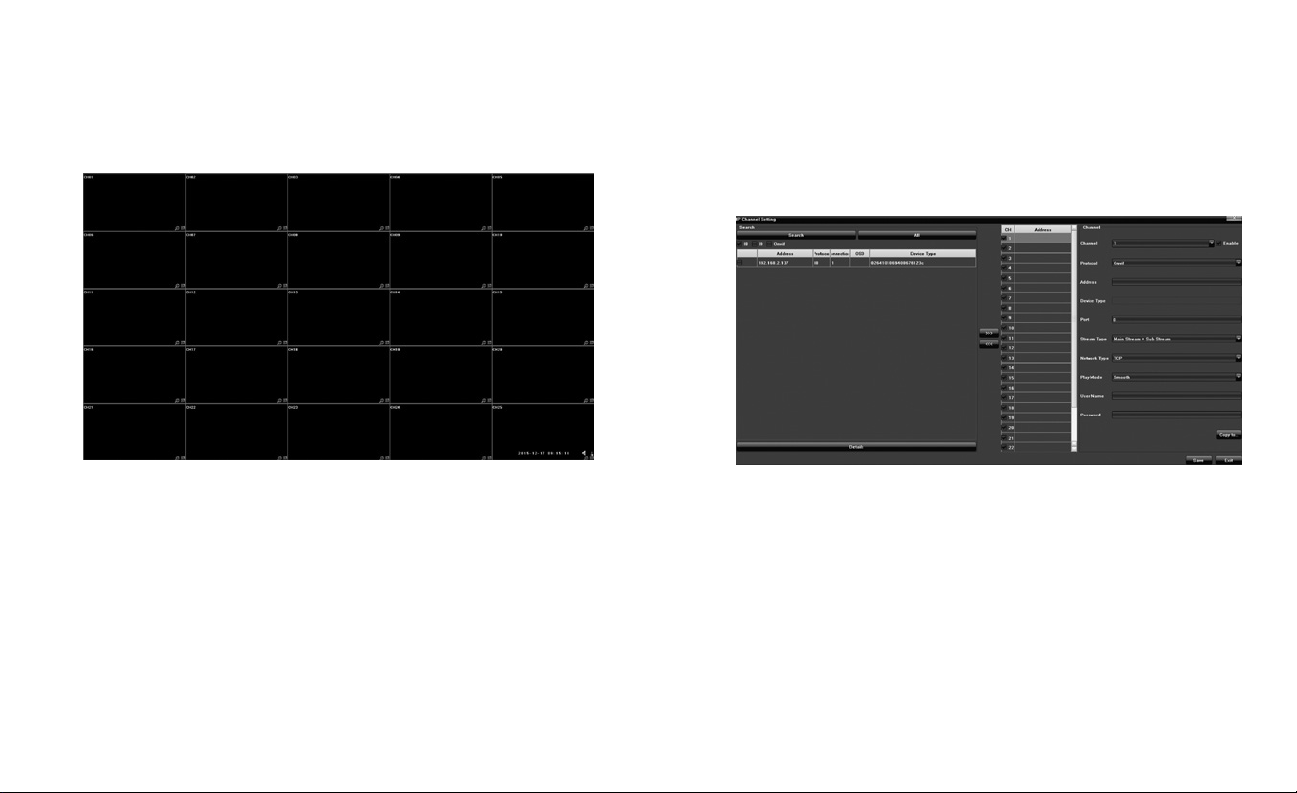

Preview Screen IP Channel Setting Screen

10 11
IP Channel Setting Screen
Manual IPC Entry Screen
When you click the check box in front of any of the listed IP
cameras, the IP camera will be added to the channel window
on the right. Clicking All will add all of the listed IP cameras
to the channel window on the right. Click Save to continue.
4.2 Add IPC Manually
You can also manually add the IP Cameras if you already
know the address by typing it into the box.
• Select the channel and click the check box in front of
Enable.
• Select relevant Protocol.
• Input the Address of the IP Camera.
• Input the Port Number.
• Select the proper Stream Type.
• Select Network Type.

12 13
• Select the Play Mode.
• Input the User Name associated with the IP Camera.
• Input the Password of the IP Camera.
• Click Save.

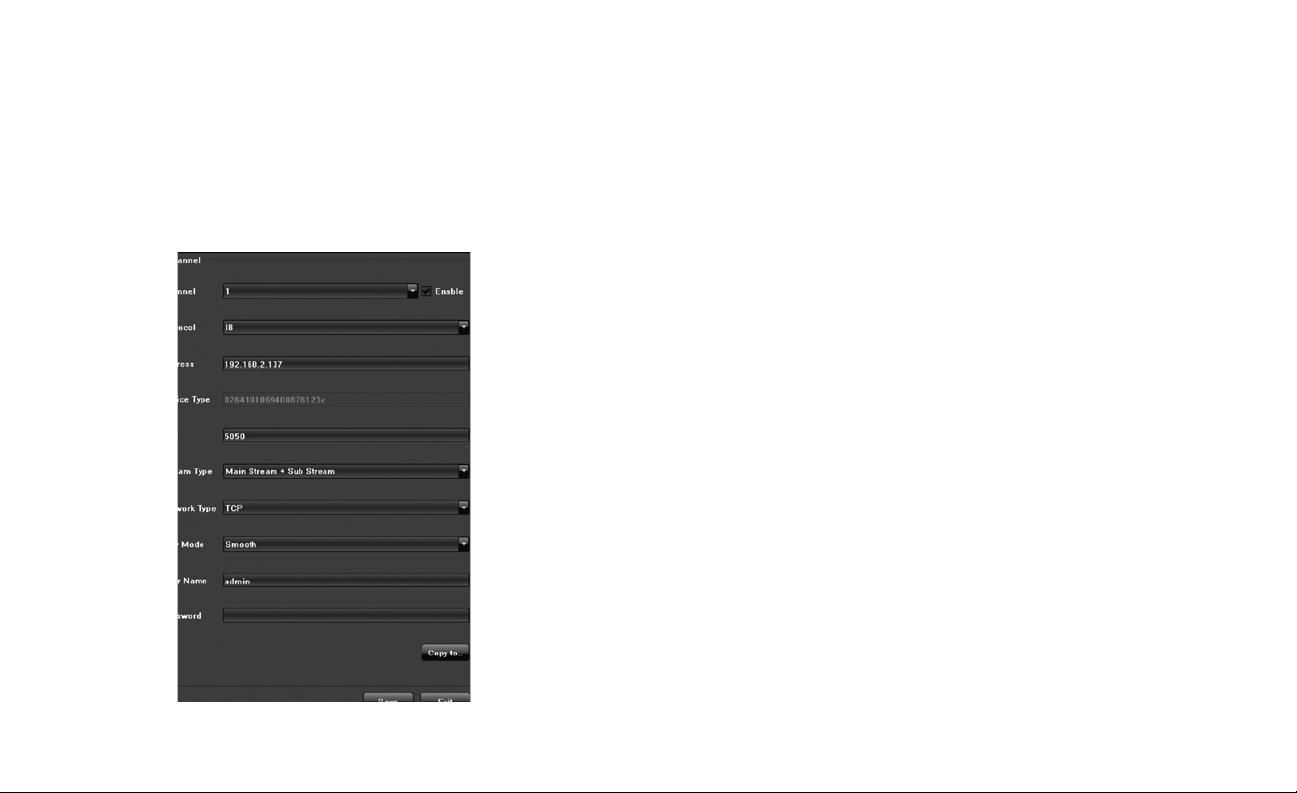

4.3 Channel Parameters Modification
Open the Channel menu to modify channel parameters.
Channel Screen
• Enable: Select the relevant channel and check Enable to
enable a channel.
• Protocol: Select a protocol type from: Onvif Standard
protocol, I8 Private protocol, I9 Private protocol and RTSP
protocol.
• Address: Edit and modify the IP address manually.
• Port: Edit and set the port number.
• Stream Type: Select either Main Stream+Sub Stream or
Sub Stream.
• Network Type: Select either TCP or UDP.
• User: Input the username.
• Password: Fill in the password.

14 15
4.4 Modify IPC Parameters
Double-click the channel settings that need to be modified
under Channel and fill in the relevant parameters, click
Modify to save.
4.5 Delete IPC
Mark the IPC parameters that needed to be removed and
click the button.
IPC Screen
Delete IPC Screen

16 17
5. System Configuration Setting
5.1 Device Setting
The NVR’s main configuration settings are located under
Device in Setting on the Main Menu.
• Device Info: Check and modify the basic device information.
• System Version: View the system version number.
• PTZ Setting: Set the parameters for the Pan-Tilt-Zoom (PTZ)
dome cameras.
• DST Setting: Set the Daylight Savings Time (DTS) settings for
the system.
5.2 Channel Parameter Setting
Select Channel to modify the settings and features for each
of the monitoring cameras in your system.
Setting Screen

18 19
5.2.1 Display Setting
Select Display Setting to adjust how each camera is displayed
on the screen.
5.2.2 Video Parameters
Modify the Video Parameters for each camera.
Display Setting Screen
Video Parameters Screen
• Channel: Choose the channel you would like to modify.
• Local Camera Name: Enter the camera’s name you would
like displayed on the channel.
• Time Format: Choose from a 24-hour or 12-hour time display.
• Date Format: Choose how you would like the date to display.
• OSD Position: Select the place on the screen where the
camera’s name and time will display.
• Image Setting: Adjust the access devices brightness and
contrast.
Note: Except for the Channel setting, other options only
available for privacy protocol equipment.
