INSTALLATION & SAFETY
• This symbol
indicates important
operating and
servicing instructions.
• The earcap of this
telephone may attract
and retain small
metallic objects.
3
AVOID -
connecting
more than
phones as ringing
may be impaired
AVOID -
multi power boards.
CHARGE -
the new phone
for 15 - 20 hrs.
AVOID -
Moisture
Don’t -
overload the
power outlet.
AVOID -
moisture
AVOID -
Television sets and
other electronic
appliances AVOID -
Microwave ovens
AVOID -
Computers
AVOID -
other cordless
telephones
CHOOSE -
a central location
Note: Ringing will not be impaired by
adding extra cordless handsets.

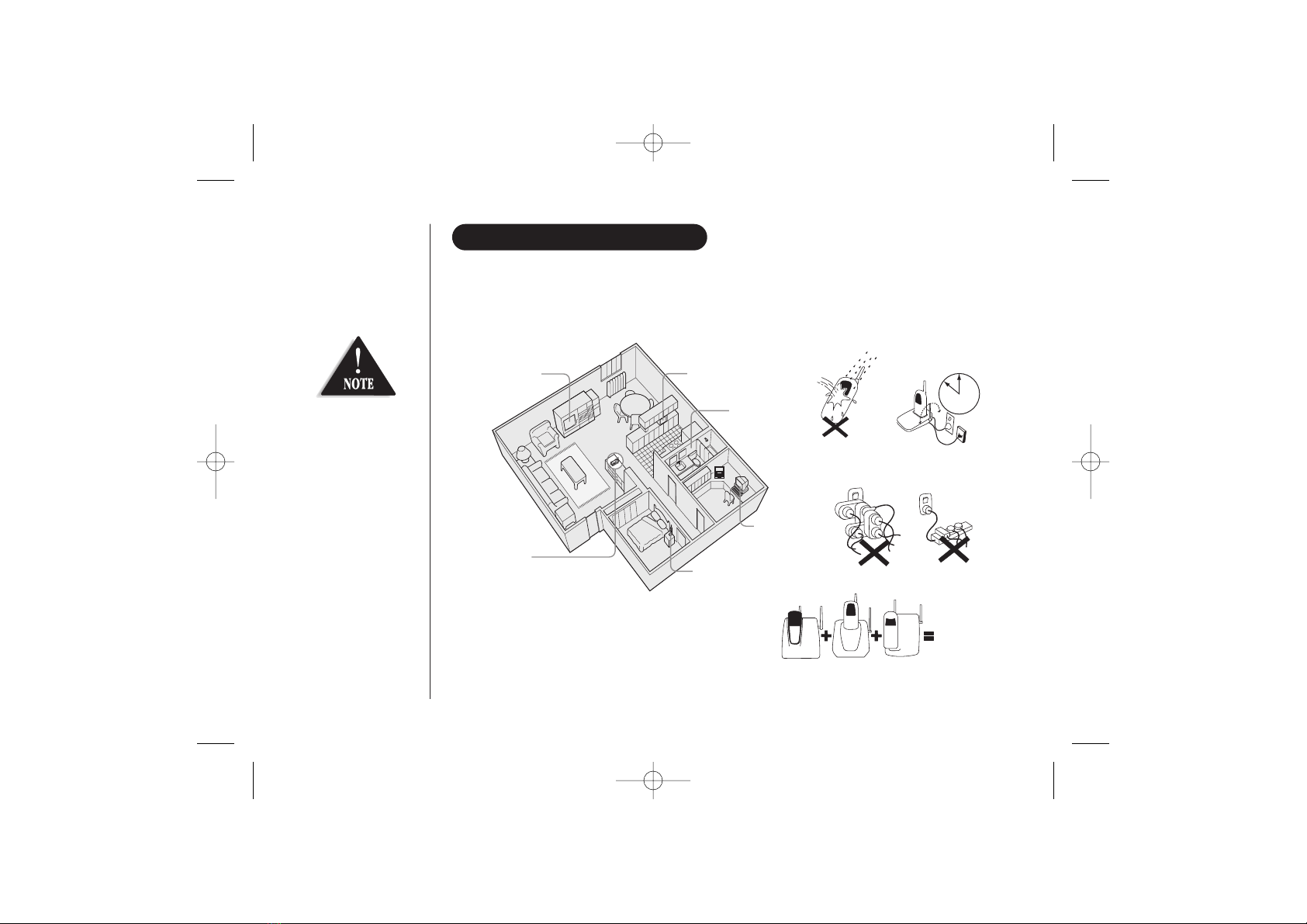

Choosing the best location for your phone.
When choosing a location for your phone there are a number of appliances the phone
should not be near, and areas you should avoid.
UP336BH (WDECT2355) ENG OM 12/28/04 9:17 AM Page i

[ ii ]
QUICK START GUIDE
This page is a very condensed version of the Owner’s
Manual. It is designed to allow you to get your phone
installed and operating as quickly as possible -
however it does not attempt to explain any of the
advanced features of the WDECT2355 series.

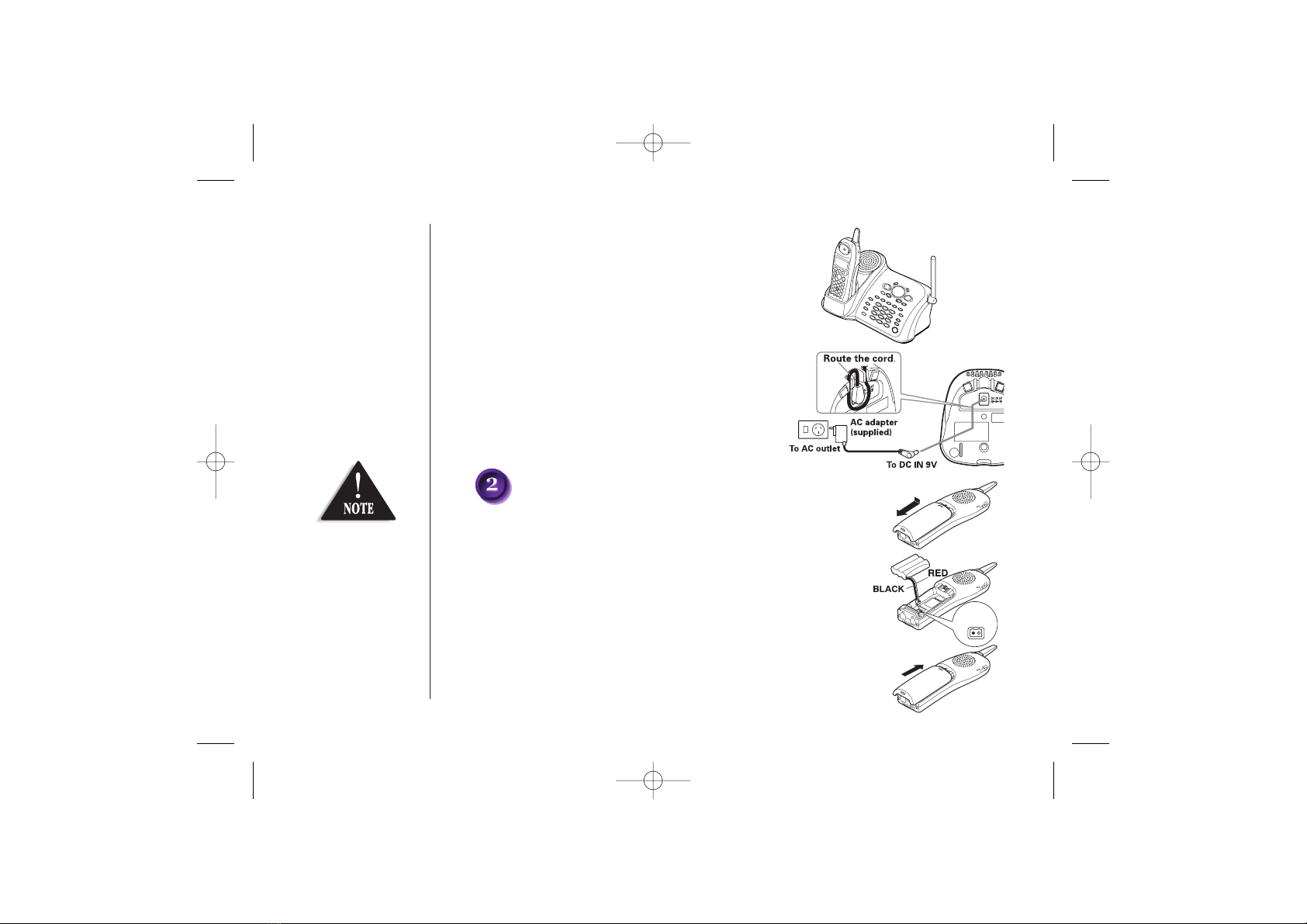

1) Connect the AC adapter to the DC IN 9V jack
and to a standard AC wall outlet.
Make sure the AC
Adapter/s remains
switched ON at all
times. Use only the
Uniden AC Adapter/s
supplied with this unit.
Start
Here!
Installing the Base Unit
2) Connect the telephone line cord to the
TEL LINE jack and to a telephone socket
on the wall.
For wall mounting, see “Mounting the
Base Unit on a Wall” on page 6.
UP336BH (WDECT2355) ENG OM 12/28/04 9:17 AM Page ii

[ iii ]
Installing the battery pack
1) Press down on the battery cover release and slide the
cover down until it comes off.
2) Connect the battery plug to the socket at the rear of the
battery compartment. The RED and BLACK battery wires
must match the RED and BLACK dots on the phone case for
the plug to fit properly. Press firmly until it clicks
into place.
3) Securely close the battery compartment cover by sliding it
up until it snaps into place.
Red
Wire
Black
Wire

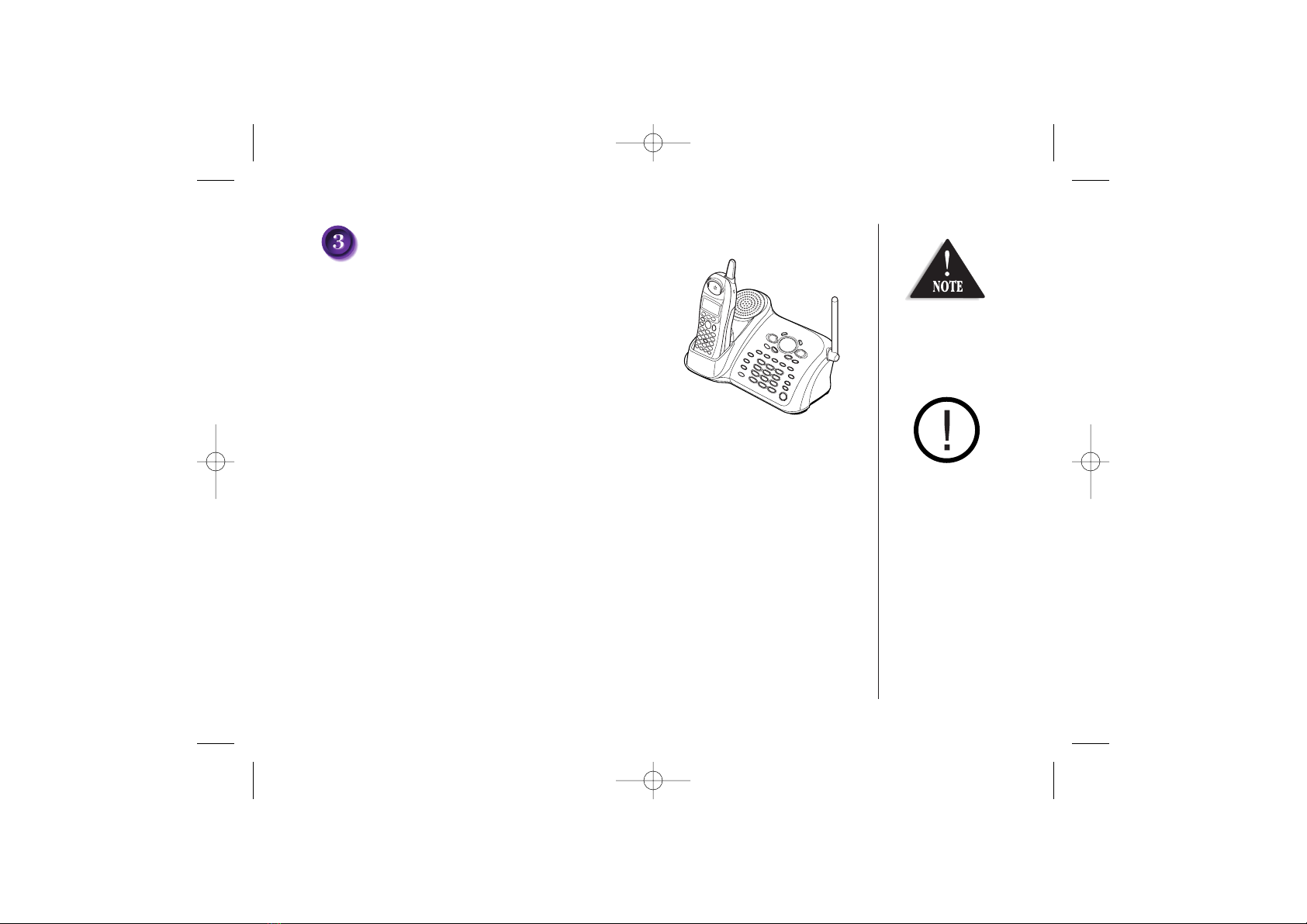

3) Set the base on a desk or tabletop.
4) Raise the antenna to a vertical position.
Connecting the charger - WDECT2355+1 only
1) Connect the AC adapter into the charging cradle
and to a AC wall outlet.
2) Set the charger on a desk or tabletop.
• Charge the handset
battery pack for at
least 15-20 hours
before using your
new cordless
telephone for the
first time.
• Use only the Uniden
rechargeable battery
pack (BT-446)
supplied with your
cordless telephone.
UP336BH (WDECT2355) ENG OM 12/28/04 9:17 AM Page iii

[ iv ]
Charging the handset(s)
1) Place the handset(s) in the main base unit or charging
cradle with the keypad facing forward.
2) Make sure the charge LED illuminates. If the LED does not illuminate, check to see
that the AC adapter is plugged in and that the handset makes good contact with the
base charging contacts.
• After installing the batteries in the handset, charge your handset at least 15-20 hours.
During a power cut
or if the AC adapter
is switched off,
this telephone
will not operate.
Recharge your phone
on a regular basis by
returning the handset
to the base after
each phone call.
UP336BH (WDECT2355) ENG OM 12/28/04 9:17 AM Page iv

[ v ]
CONTENTS
INSTALLATION & SAFETY i
QUICK START GUIDE ii
CONTENTS v
GETTING STARTED 1
Controls and Functions 1
Uniden Company Philosophy 3
Welcome 3
Features 4
Checking the Package Contents 5
Terminology 5
Mounting the Base Unit on a Wall 6
Battery Maintenance 7
Installing the Beltclip 8
Headset Installation 9
Display and Icons 9
About the Menu Options 10
Setting up the Menu 14
BASICS 22
Making and Receiving Calls 22
Keypad Lock 23
Placing a Call on Hold 23
Redialing a Call 24
Adjusting the Handset Ringer,
Earpiece and Speaker Volume 25
Do Not Disturb (DND) 26
Mute Microphone 26
Tone Dialing Switch-Over (Australia Only) 27
Traveling Out-of-Range 27
Clarity Booster 27
Privacy Mode 28
3-way Conferencing 28
Find Handset 29
Flash and Call Waiting 29
New Message LED 29
PHONEBOOK 30
Phonebook 30
Storing Phone Numbers, Names,
Distinctive Rings, and Speed Dial 30
Steps for Entering Names and Special Characters 32
Viewing the Phonebook 34
Making Calls Using the Phonebook 35
Speed Dialing 35
Editing or Erasing a Stored Name,
Phone Number, Distinctive Ring, and Speed Dial 36
Chain Dialing 37
Memory Dialing (Base Only) 37
CALLER ID 38
Caller ID 38
Viewing the Caller ID List 39
Deleting a Caller ID Message 40
Using the Caller ID Message List 41
THE INTEGRATED ANSWERING DEVICE 42
The Integrated Answering Device 42
Turning the Answering System On/Off 43
Setting up your Answering System 44
Using your Answering System 50
Remote Operation 53
EXPANDING YOUR PHONE 56
Expanding your Phone 56
Register the Handset 57
Using Two Way Communication between the
Handsets Anywhere without the Base (DirectLink) 58
Room Monitor 58
4-Way Conferencing 59
Intercom/Call Transfer Feature 59
Replacing the Base 60
ADDITIONAL INFORMATION 61
Changing the Digital Security Code 61
Note on Power Sources 62
TROUBLESHOOTING 63
INDEX 66
WARRANTY 69
UP336BH (WDECT2355) ENG OM 12/28/04 9:17 AM Page v

GETTING STARTED
[ 1 ]
CONTROLS AND FUNCTIONS
2
1
3
5
4
6
7
8
9
10
11
12
22
15
13
18
19
16
20
21
17
14
Repeat Key
Delete Key Stop Key
Play Key
Skip Key
Select/ Key

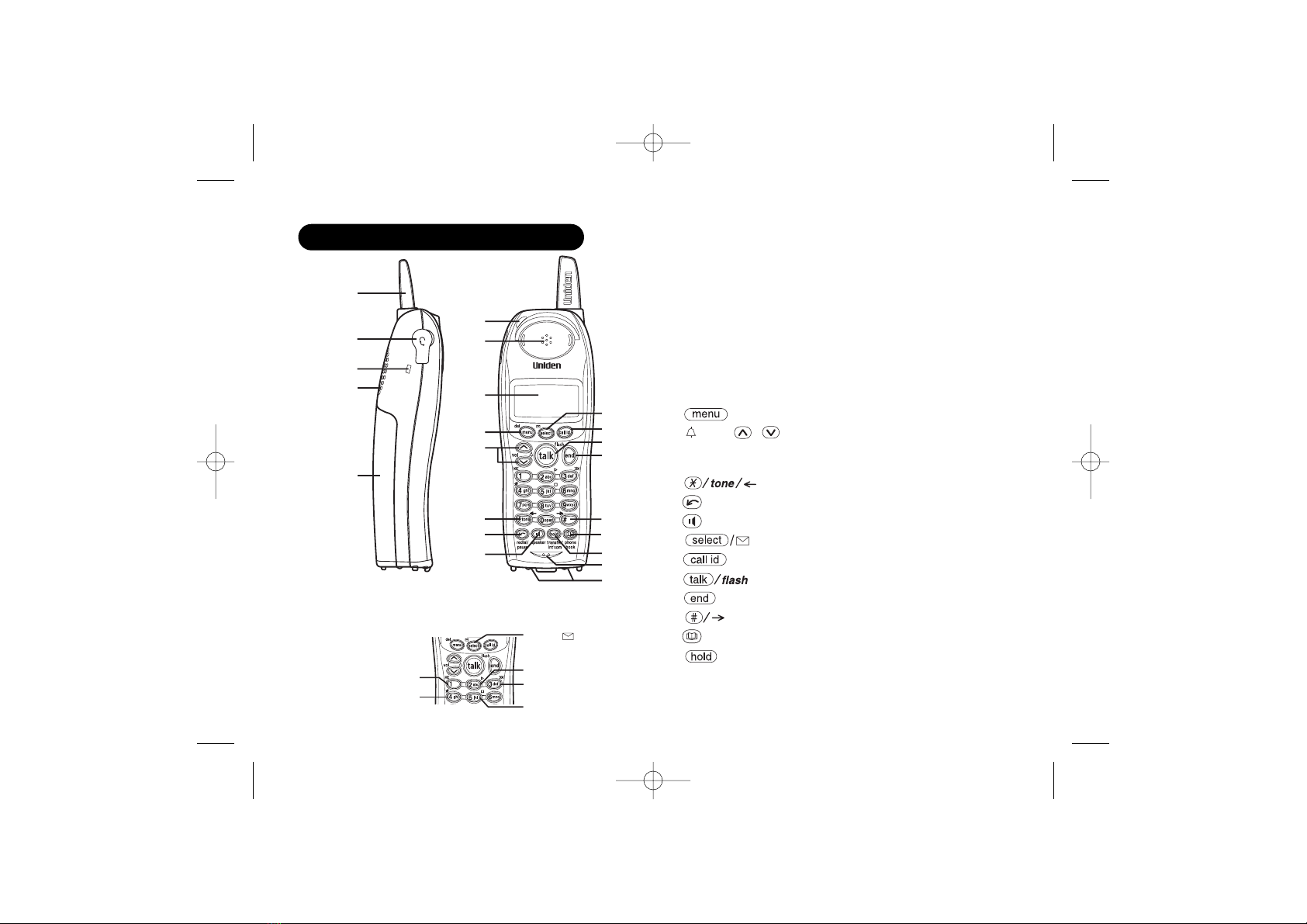

1. Handset Antenna
2. Headset Jack Cover
3. Beltclip Hole
4. Hands-Free Speaker
5. Handset Battery Compartment
6. New Message LED
7. Handset Earpiece
8. LCD Display
9. /del Key
10. /vol/ / Key
a. ringer volume control
b. scroll keys for display screen
11. Key
12. redial/pause Key
13. speaker Key
14. Key
15. Key
16. Key
17. Key
18. Key
19. phonebook Key
20. /transfer/int’com Key
21. Handset Microphone
22. Handset Charging Contacts
Handset Remote Operation (P. 54)
(Review ITAD messages from handset)
UP336BH (WDECT2355) ENG OM 12/28/04 9:17 AM Page 1

[ 2 ]
33
34
35
36
37
38
39
46 47 48
49 50
23 24 25 26 27 28 29 30 3231
40
41
42
43
44
45

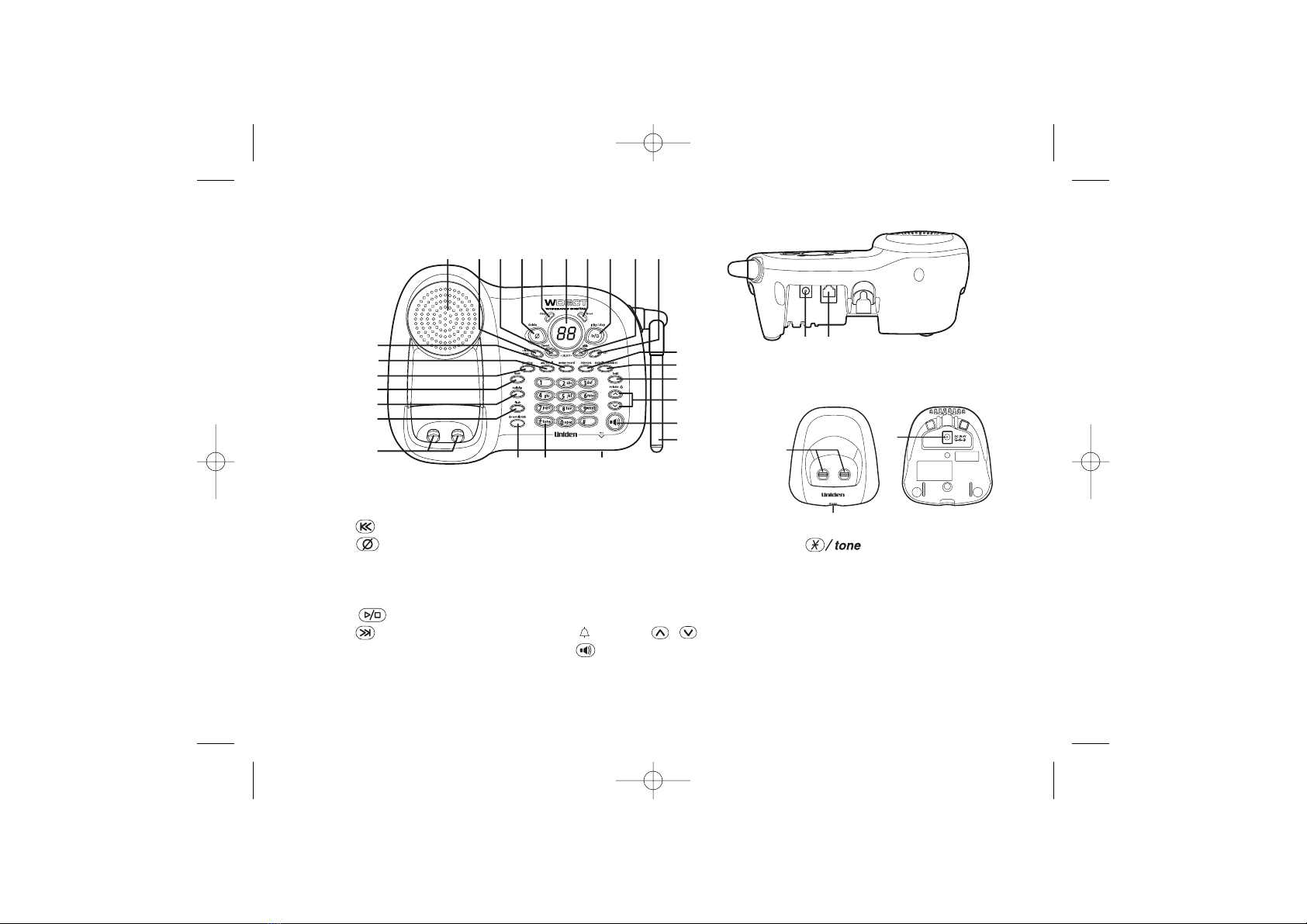

23. Base Speaker
24. Clock/MENU Key
25. repeat/SELECT Key
26. delete Key
27. Charge LED
28. Message Counter Display
29. In use LED
30. play/stop Key
31. skip/SELECT Key
32. SET Key
33. Memo record Key
34. Ans on/off Key
35. Greeting Key
36. Mem Key
37. Redial/p Key
38. Flash Key
39. Base Charging Contacts
40. Intercom Key
41. Mute/find handset Key
42. Hold Key
43. /volume / Key
44. Key/speaker LED
45. Base Antenna
46. Do not disturb Key/DND LED
47. Key
48. Microphone
49. DC IN 9V Jack
50. TEL LINE Jack
51. Charging Contacts
52. Charge LED
53. DC IN 9V Jack
51
52
53
CHARGER BASE
for WDECT2355 +1 only
Main Base
UP336BH (WDECT2355) ENG OM 12/28/04 9:17 AM Page 2

Congratulations on your purchase of the Uniden Multi-Handset Cordless System telephone. This unit is
different from conventional cordless telephones. When the base unit is connected to AC power and a
telephone line, it can support up to 4 handsets. Using extra handsets, you can establish a 3-way conference
call (2 handsets and an outside line), while two other handsets are making an intercom call. You can now
place a fully featured cordless handset anywhere in your home or office where AC power is available to
connect the handset chargers.
Note: The illustrations in this manual are intended as a guide and may differ from actual unit.
WELCOME
[ 3 ]
To bring outstanding wireless communication products to people’s lives throughout the world.
UNIDEN COMPANY PHILOSOPHY
UP336BH (WDECT2355) ENG OM 12/28/04 9:17 AM Page 3

[ 4 ]
Great features of this cordless phone include:
• Designed and Engineered in Japan
• Wide Band Digital Technology
• Multi (4) Handset Capable
• Digital Duplex Speakerphone on Handset
Advanced Alpha Display Caller ID Features:
• Alpha Memory Dialling
• POP ID - Caller Name Identification*
• 20 Individual Caller Tone Allocation*
• 100 Caller ID * Memories with Phonebook
• 3 Line Backlit Full Dot Matrix LCD Display with Clock
• Maxi-Sound - Extra Loud Handset Volume Control
• Intercom/Announce Call Transfer
• Handset Conferencing (2 Handsets + Outside Call)
• Two-Way Communication between Handsets Anywhere without the Base
• Dual Keypad at Base
• Integrated Answering Device
• DND Feature (Do Not Disturb)
• Remote Message Retrieval
• Personal or Factory Pre-recorded Greeting Message
• And More!
FEATURES
* Caller ID, POP ID and Individual Caller Tone Allocation (Distinctive Ring) features work only if you subscribe to the
service provided by your local telephone company. There is usually a fee for this service.
#Range may vary depending on environmental and/or topographical conditions.
UP336BH (WDECT2355) ENG OM 12/28/04 9:17 AM Page 4

[ 5 ]
CHECKING THE PACKAGE CONTENTS
Make sure you have received the following items in the package. If any of these items are missing or damaged,
contact your retailer.
• Base unit (1)
• Handset [WDECT2355 (1) / WDECT2355+1 (2)]
• AC adapter [WDECT2355 (1) / WDECT2355+1 (2)]
• Rechargeable battery pack [WDECT2355 (1) / WDECT2355+1 (2)]
• Line adapter (Australia only) (1)
• Linecord (1)
• Beltclip [WDECT2355 (1) / WDECT2355+1 (2)]
• Charger (1) [WDECT2355+1 only]
• Wall Mount Adapter (1)
Also included:
• This Owner’s Manual
• Other Printed Material
Throughout this manual, terms such as Standby and Talk Mode are used. Below is the terminology explanation.
Standby Mode - The handset is not in use, is off the cradle, and or speaker, or has not been
pressed. A dial tone is not present.
Talk Mode - The handset is not in the cradle and or speaker, or has been pressed enabling a
dial tone. “Talk” appears on the handset display.
DirectLink - Two way communication between the handsets anywhere without the base.
TERMINOLOGY
UP336BH (WDECT2355) ENG OM 12/28/04 9:18 AM Page 5

[ 6 ]
MOUNTING THE BASE UNIT ON A WALL
You can mount your base directly to the wall. Before doing this, consider the following:
• Avoid electrical cables, pipes, or other items behind the mounting location that could cause a hazard when
inserting screws into the wall.
• Mount your phone within distance of a working phone jack.
• Make sure the wall material is capable of supporting the weight of the base and handset.
• Use screws with anchoring devices suitable for the wall material where the base unit will be placed.
1) Insert two mounting screws into the wall (with their appropriate anchoring device),
100mm apart. Allow about 3mm between the wall and screwheads for mounting
the phone.
2) Plug the AC adapter into the DC IN 9V jack on the telephone
and then into a Standard AC wall outlet.
3) Plug the telephone line cord into the TEL LINE jack on the
telephone and then into the telephone socket on the wall.
4) Raise the antenna to a vertical position.
5) Align the mounting slots on the base with the mounting posts
on the wall.
6) Then push in and down until the phone is firmly seated.
This phone also can be mounted on any standard telephone wall plate (for
Australia).
3mm
100mm
35mm
UP336BH (WDECT2355) ENG OM 12/28/04 9:18 AM Page 6

[ 7 ]
BATTERY MAINTENANCE
Cleaning the battery charging contacts
To maintain a good charge, it is important to clean the charging
contacts on the handset once a month. Use a dry cloth or pencil
eraser to clean.
Battery use time (per charge)
Fully charged
• Up to 7 hours continuous use
• Up to 10 days when the handset is in the standby mode (up to 15 hours when in DirectLink mode)
Recharge your phone on a regular basis by returning the handset to the charger after each phone call.
Low battery alert
When the batteries are very low and need to be charged, the phone is
programmed to eliminate functions in order to save power.
The batteries need to be charged when:
- The empty battery icon appears.
- “Low Battery” appears in the display.
If the phone is in the standby mode, none of keys will operate. If you are on a
call, complete your conversation as quickly as possible, and return the handset
to the cradle.
Low Battery
UP336BH (WDECT2355) ENG OM 12/28/04 9:18 AM Page 7

[ 8 ]
INSTALLING THE BELTCLIP
To attach the beltclip
Insert the beltclip into the holes on each side of the handset. Press down until it
clicks into place.
To remove the beltclip
Pull either side of the beltclip to release the tabs from the holes.
Battery replacement and handling
When the operating time becomes short, even after a battery is recharged, please replace the battery.
With normal usage, your battery should last about one year. Please contact your place of purchase or the
Uniden Parts Department for a replacement battery.
Caution
•Use only the specified Uniden battery pack (BT-446).
•Do not remove the batteries from the handset to charge them.
•Never throw the battery into a fire, disassemble them, or heat them.
•Do not remove or damage the battery casing.
To avoid the risk of personal injury or property damage from fire or electrical shock, only use the
Uniden battery model and Uniden adapter model specifically designated for this product.
UP336BH (WDECT2355) ENG OM 12/28/04 9:18 AM Page 8

[ 9 ]
Your phone may be used with an optional headset, the Uniden HS910. To use this feature,
insert the headset plug into the headset jack. Your phone is ready for hands-free conversations.
Headset is available through Uniden authorized retailers.
HEADSET INSTALLATION
DISPLAY AND ICONS
SUN 12:00A
Handset #1
New: 5 :OFF
Day of the week and time / battery icon
Handset ID and Banner
Number of new Caller ID calls received / Ringer off icon (when the ringer is Off)
Example of the standby mode display
ICON STATUS DESCRIPTION
Standby/Talk Battery icons indicate the handset battery status. This icon cycles
depending on the battery status (full, medium, low, and empty).
Standby Ringer off icon indicates that ringer is turned off.
Talk Mute icon appears when you mute the handset.
Talk Speaker icon appears when the handset speaker phone is used.
Talk Booster icon appears when the Clarity Booster feature is in use.
Talk Privacy icon appears when the Privacy Mode is turned on.
Talk Recording icon appears while recording a conversation.
R
B
:OFF
UP336BH (WDECT2355) ENG OM 12/28/04 9:18 AM Page 9

[ 10 ]
There are 6 main menu options, (DirectLink Mode, Room Monitor, Handset Setup,
Answ. Setup, Global Setup and System Reset) and submenu options.
Summary of the Main Menu and Submenu
Two Way Communication between the Handsets Anywhere without the
Base (DirectLink)
DirectLink Mode allows a pair of handsets to work without the base unit, for direct
handset-to-handset communication. Use them at sporting events or while shopping to
stay in contact with family members or friends. You must set the two handsets to
DirectLink Mode to utilize this feature.
Room Monitor
This feature allows you to monitor sounds in another room (see page 15 for setup). One
handset is placed in the desired room to monitor (acts as remote mic), and the other is
placed near listener (remote speaker). This is useful for monitoring child activities.
ABOUT THE MENU OPTIONS
During Global Setup
and System Reset,
make sure your
cordless phone is in
standby mode (not
in use), and all
handsets are within
range of the main
base unit.
UP336BH (WDECT2355) ENG OM 12/28/04 9:18 AM Page 10

[ 11 ]
Handset Setup
The following submenu options must be set separately for each handset.
Submenu name Description
Ringer Tones Adjusting the ringer tone (tone your phone makes when ringing)
(Default is Flicker) (see page 16).
Set the distinctive ring (see page 16). “Distinctive Ring”allows you to
preset memory locations with a designated ring tone. When an incoming call
is received and the Caller ID information matches the information in one of
Distinct. Ring the memory locations, the distinctive ring that has been stored for that
(Default is on) particular Caller will sound. If you have set multiple memory locations with
distinctive rings, switching the setting to “Distinctive Off”will result in no
distinctive ringing. All incoming calls will have a normal ring tone. Switching to
“Distinctive On”will activate all programmed distinctive ring memory locations.
AutoTalk Allows you to answer the phone without pressing or speaker.
(Default is on) When the AutoTalk is set to on, simply remove the handset from the cradle and
the phone automatically answers the call (see page 16).
Anykey Answer Allows you to answer the phone without pressing or speaker.
(Default is on) When the Anykey Answer is on, you can answer a call by pressing any number
key, , or on the handset (see page 17).
Banner (True Banner) Customize your handset(s) by giving it a banner name. The name will be
displayed on the LCD screen during standby mode, Intercom, Transfer, Room
Monitor and Copy Phonebook operation. The banner name will be displayed on
the receiving handset as well (see page 17).
Key Touch Tone Allows you to set your phone’s key touch-tone to on or off (tone your keypad
(Default is on) makes when keys are pressed) (see page 17).
UP336BH (WDECT2355) ENG OM 12/28/04 9:18 AM Page 11

[ 12 ]
Answering Setup
This main menu option allows you to set up TAD settings from your handset. You can
also set these submenu options from the base (see page 45).
Submenu name Description
Security Code Select a two-digit Personal Identification Number (PIN) code. A PIN code is
(Default is 80) required to play your messages from a remote location, you will need to enter
a two-digit PIN code (see page 17).
Ring Time Allows you to set the number of rings the caller hears before your answering
(Default is 9 time) system plays the outgoing message. You can set the ring time to answer after
four, six, or nine rings. Setting “TS”(Toll Saver), the answering system picks
up after six rings if you have new messages, and after nine rings if there are
none (see page 18).
Record Time Set the duration for recording the incoming messages. You have three record
(Default is 1 minute) time options. The options “1 minute”or “4 minutes”set the duration for
recording the incoming messages. “Announce only”answers the call with the
preset greeting or your personal greeting but prevents the caller from leaving
a message (see page 18).
Message Alert Lets you know when you have a new incoming message by sounding a short
(Default is off) alert tone (see page 18).
Call Screen Allows you to screen an incoming call before answer the call. Set the call-
(Default is on) screening feature to on or off (see page 18).
UP336BH (WDECT2355) ENG OM 12/28/04 9:18 AM Page 12

[ 13 ]
Global Setup
If you change one of the Global settings, you change the setting for all additional
handsets. Only one handset can change Global settings at a time.
Submenu name Description
Day & time Set the day and time of your display (see page 19).
Name Tag (POP ID) Display the stored name with the Caller ID telephone number, if the displayed
(Default is on) Caller ID telephone number is exactly the same as a number stored in the
phone book (see page 19).
Insert 0 Add “0”or “00”to the number, when you receive the Caller ID message
(New Zealand only) (see page 19).
Dial Mode Set the dial mode to tone or pulse (see page 20). Most phone systems use tone
(Australia only) dialing, which send DTMF tone through phone line. The default is tone dialing.
(Default is tone) Depends on your dialing system, set the dial mode.
Copy Phonebook Allow you to transfer the phonebook data stored in one handset to another
handset (see page 20).
System Reset
System Reset is used to clear the handset’s ID from the main base unit, or the
base ID from the handset.
Submenu name Description
Deregister HS Clear the handset ID from the base. Use this option, for example, when you change
the digital security code (see page 21).
Replacing Base Clear the base ID. Use this option, for example, if you wish to deregister the base
to use the handset with another base of the WDECT2315 and WDECT2355 series
(see page 21).
UP336BH (WDECT2355) ENG OM 12/28/04 9:18 AM Page 13

[ 14 ]
Entering the Menu
1) Press the /del key in standby mode.
2) Use /vol/ or /vol/ to move the pointer to
a desired main menu (DirectLink Mode, Room Monitor,
Handset Setup, Answ. Setup, Global Setup, and
System Reset).
3) Press to select the desired main menu.
4) Use /vol/ or /vol/ to select a desired submenu, and then press
to enter.
In the submenu, use /vol/ or /vol/ to select an item. Press
to confirm your selection. For detailed instructions, see the following sections for the
desired submenu.
5) To exit the menu, press or place the handset to the cradle.
DirectLink Mode
Entering the Two Way Communication between
the Handsets Anywhere without the Base
1) Enter the DirectLink Mode menu (see “Entering the
Menu”on page 14). To enter D rectL nk mode
press [SELECT] appears.
2) Press to enter the DirectLink mode. You will
hear a confirmation tone, and D rectL nk Mode Complete appears.
To adjust ringer volume, press /vol/ or /vol/ to select one of three
ringer volume (off, low, or high).
3) To return back to the normal mode, exit the DirectLink mode. To exit the DirectLink
mode, press /del, and then , or return the handset to the cradle.
D rectL nk Mode Cancel appears.
To enter
D rectL nk mode
press [SELECT]
SETTING UP THE MENU
D rectL nk Mode
Room Mon tor
Handset Setup
To back to the
previous screen,
press /del.
UP336BH (WDECT2355) ENG OM 12/28/04 9:18 AM Page 14
