UNITED UHC-893 User manual

CONVECTOR HEATER
USER INSTRUCTIONS
Model: UHC-893
This product is only suitable for well insulated spaces
or occasional use.

IMPORTANT Read these instructions
fully before using the heater. Retain
these instructions for future reference.
ASSEMBLY OF THE HEATER

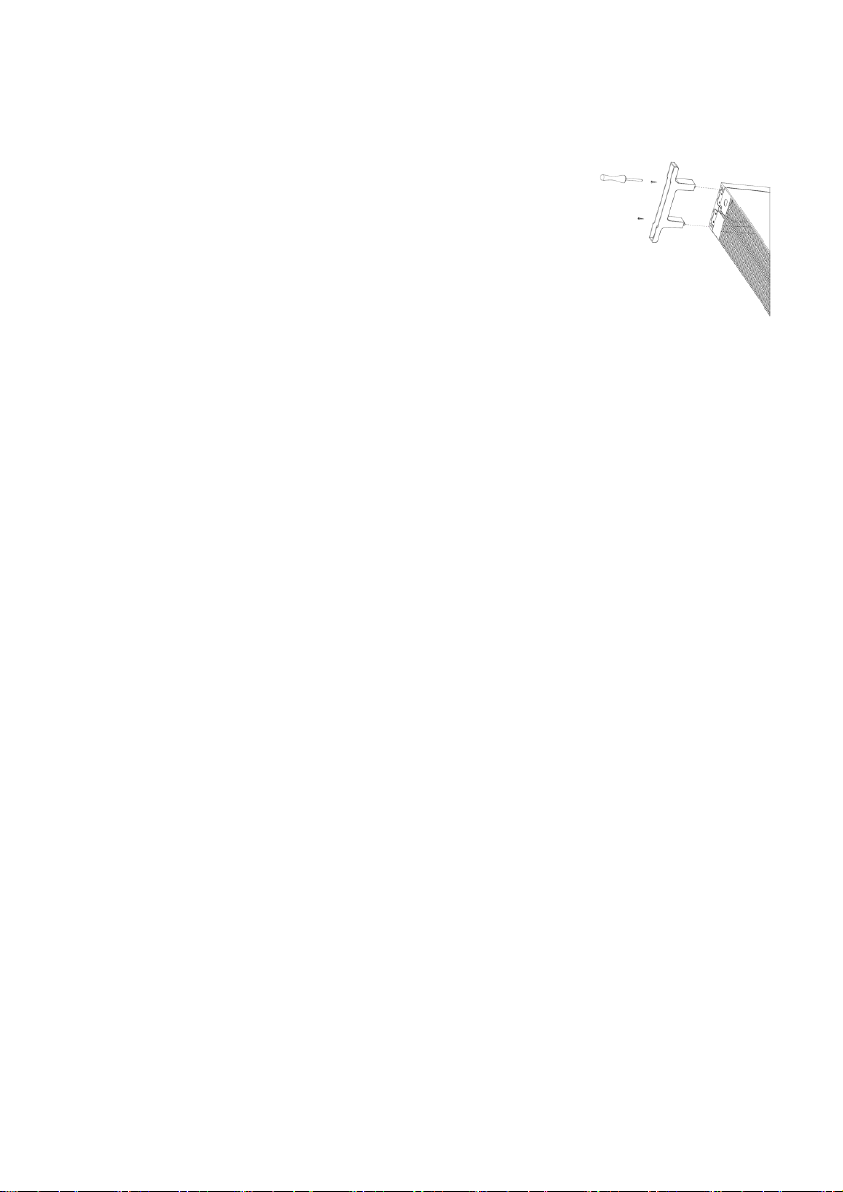

Before using the heater, the feet (supplied
separately in the carton), must be fitted to
the unit. These are to be attached to the
base of the heater using the 4 screws
provided, taking care to ensure that they
are located correctly in the bottom ends of
the heater side moldings
SAFETY INSTRUCTIONS (to be read before
operating the heater)
-Do not use the heater unless the feet are correctly
attached.
-Ensure the power supply to the socket, into which the
heater is plugged, is in accordance with the rating label
placed on the heater and that the socket is earthed.
-Keep the mains lead away from the hot body of the
heater.
-Do not use this heater in the immediate surroundings of
a bath, a shower or a swimming pool.
-Never place the heater where it may fall into a bathtub or
other water container.
-Do not use outdoors.
-Do not cover or obstruct any of the heat outlet grilles or
the air intake openings of the heater.
-Do not place the heater on carpets having a very deep
pile.
-Always ensure that the heater is placed on a firm
level surface.
-Ensure that the heater is not positioned close to
curtains or furniture as this could create a fire hazard.
-Do not position the heater in front of, or immediately
below, a wall socket.
1

- WARNING: In order to avoid overheating, do not cover
the heater.
-CAUTION: In order to avoid a hazard due to
inadvertent resetting of the thermal cutout, this
appliance must not be supplied through an external
switching device, such as a timer, or connected to a
circuit that is regularly switched on and off by the utility.
-Children of less than 3 years should be kept away
unless continuously supervised.
-Children aged from 3 years and less than 8 years shall
only switch on/off the appliance provided that it has been
placed or installed in its intended normal operating
position and they have been given supervision or
instruction concerning use of the appliance in a safe way
-Do not insert any object through the heat outlet or air
intake grilles of the heater.
-Do not use the heater in areas where flammable liquids
are stored or where flammable fumes may be present.
-The appliance is not intended for use by young children
or infirm persons without supervision.
-Young children should be supervised to ensure that they
do not play with the appliance.
-Always unplug the heater when moving it from one
location to another.
-Do not use the heater if the power cord is damaged. If
the power cord is damaged it must be replaced by a
recognized service agent or other qualified person.
-This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance
shall not be made by children without supervision.
2

and understand the hazards involved. Children aged from
3 years and less than 8 years shall not plug in, regulate
and clean the appliance or perform user maintenance.
CAUTION
- Some parts of this product can become very hot
and cause burns. Particular attention has to be given
where children and vulnerable people are present.
- The heater must not be located immediately below
a socket outlet.
- Do not use this heater in the immediate surroundings of
a bath, a shower or a swimming pool.
WARNING:
-Do not use this heater in small rooms when they
are occupied by persons not capable of leaving the
room on their own, unless constant supervision is
provided.
WARNING:
-To reduce the risk of fire, keep textiles, curtains, or
any other flammable material a minimum distance of 1 m
from the air outlet.
–do not use this heater in the immediate surroundings of a
bath, a shower or a swimming pool;
–do not use this heater if it has been dropped;
–do not use if there are visible signs of damage to the
heater;
–use this heater on a horizontal and stable surface.
OPERATION OF THE HEATER
NOTE: It is normal when the heaters are turned on for the
first time or when they are turned on after having not been
used for a long period of time the heaters may emit some
smell and fumes. This will disappear when the heater has
been on a short while.
3

Choose a suitable location for the heater, taking into
account the safety instructions above.
Insert the plug of the heater into a suitable socket.

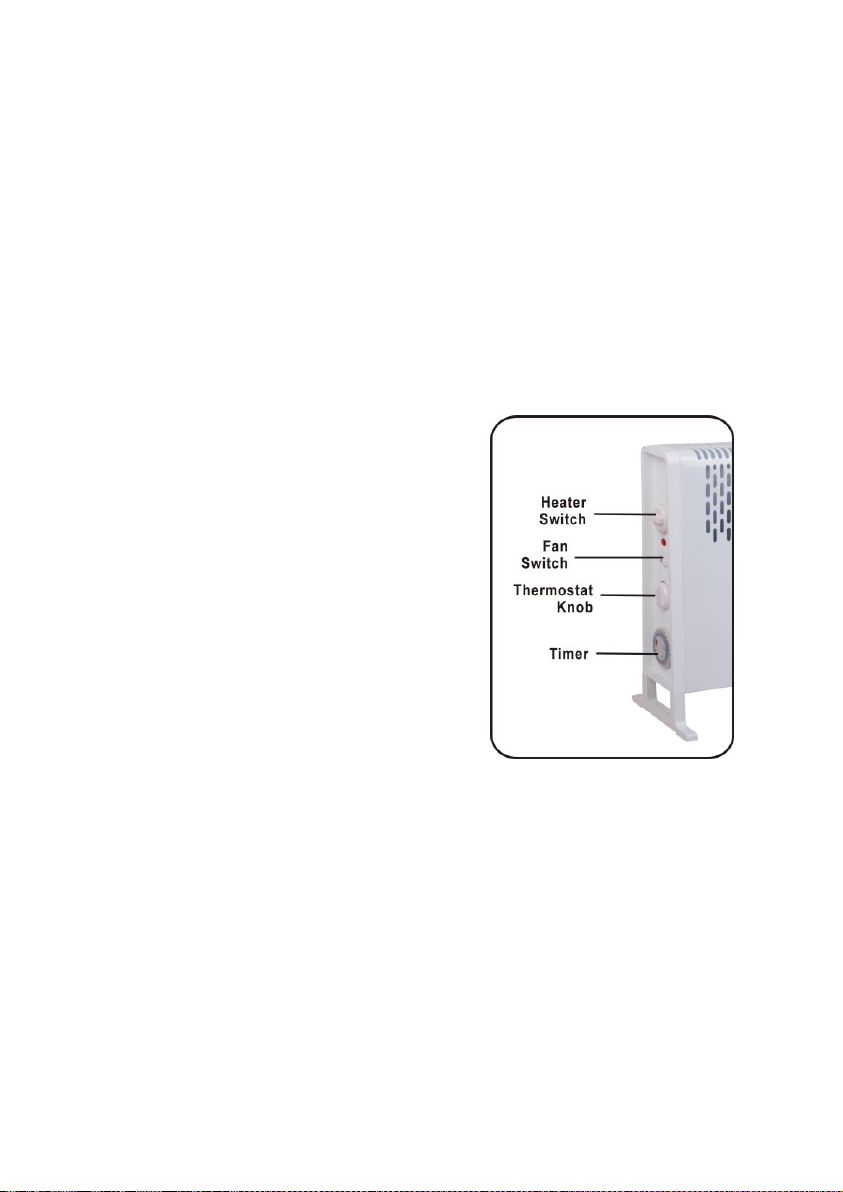

Turn THERMOSTAT KNOB fully in a clockwise direction
to the maximum setting. Turn on the heating elements
by means of HEATER SWITCHES on the side panel.
Turn on the heating elements by means of HEATER
SWITCH on the side panel. You may obtain three
heating settings (750/1250/2000W) by turning the
heater switch knob in a clockwise direction.
When the desired room
temperature has been reached,
the thermostat knob should be
turned slowly anti-clockwise until
the thermostat is heard to click
off and the lights on the element
switches are seen to go out. After
this the heater will keep the air
temperature in the room at the
selected level by switching on
and off automatically.
Fan Operation: You can enable the fan by using the fan
switch placed on the side of the appliance. The fan will only
operate with the thermostat turned on and can be used
when the heating is “on” in order to blow warm air into the
room. In warm conditions the fan can be used with the
heating function turned off, in order to blow cool air into the
room.
Timer Operation:
-This model is also fitted with a 24hr timer which has 96
segments around its circumference, each segment being
equivalent to 15 minutes of time.
4

Setting the Timer
Ensure the slide switch on the timer is at the mid position
next to the clock symbol.
Rotate the outer ring of the timer in a clockwise direction
until the current time is lined up with the arrow pointer, i.e.
if the time that the timer is being set is 8 p.m., rotate the
outer ring until the number 20 is in line with the arrow
pointer.
Set the time that the heater is required to run, by pulling
the segments around the outer ring forward appropriate
to the running period(s) required.
When set, the heater will operate each day during the
times programmed.
Note that the heater must always be plugged into a power
socket, the element switches must be in the 'on' position
and the thermostat must be suitably set to ensure the
heater will switch on.
With the aid of this timer it is possible to preset the time
and duration of the period(s) that it is desired the heater
will operate, in any 24hr period.
The centre of the timer has a 3 position slide switch.
In the central position (denoted by the clock symbol) the
timer will switch the heater on and off at times set by the
segments, (see setting the timer, below).
The position denoted by the “I”, is a timer override
position. The timer will continue to run but power will be
provided continuously to the heater. This enables the
heater to be on all the time if required. In the position
denoted by the “O”, the timer continues to run but no
power is provided to the heater.
If the heater is required to run continuously the slide switch
on the timer should be set to the “I” position.
If it is subsequently required to revert back to timer
operation, the slide switch on the timer should be set to the
central (clock) position.
5

PROTECTION AGAINST OVERHEATING
−
−
−
An additional fitted safety thermostat protects the
heater against overheating and switches it off
automatically. The service lamp then goes out.
If the device switches itself off, disconnect the mains
plug from the socket. The heater is ready for service
again after a short cooling-off phase (approx.15
minutes). Plug the mains plug back into the socket.
If this repeats itself, first check whether the
thermostat switch is set correctly or if objects hinder
the heating operation.
CLEANING THE HEATER
Always un-plug the heater from the wall socket and allow
it to cool down before cleaning.
Clean the outside of the heater by wiping with a damp
cloth and buff with a dry cloth. Do not use any
detergents or abrasives and do not allow any water to
enter the heater.
STORING THE HEATER
When the heater is not used for long periods of time, it
should be protected from dust and stored in a clean dry
place.
Note: this appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person
responsible for their safety. Children should be
supervised to ensure that they do not play with the
appliance.
Note: When using in timer mode, due consideration
should be given to the fact that the heater may switch
on while unattended.
6

Information requirements for electric local space heaters
Model identifier(s): UHC-893
Item
Symbol
Value
Unit
Item
Unit
Heat output
Type of heat input, for electric storage local
space heaters only (select one)
Nominal heat
output
Pnom
1.9
KW
manual heat charge control,
with integrated thermostat
[no]
Minimum heat
output
(indicative)
Pmin
0
KW
manual heat charge control
with room and/or outdoor
temperature feedback
[no]
Maximum
continuous
heat output
Pmax,c
1.9
KW
electronic heat charge
control with room and/or
outdoor temperature
feedback
[no]
Auxiliary electricity consumption
fan assisted heat output
[no]
At nominal
heat output
elmax
0
KW
Type of heat output/room temperature
control (select one)
At minimum
heat output
elmin
0
KW
single stage heat output and
no room temperature control
[no]
In standby
mode
elSB
0
KW
Two or more manual stages,
no room temperature control
[no]
with mechanic thermostat
room temperature control
[yes]
with electronic room
temperature control
[no]
electronic room temperature
control plus day timer
[no]
electronic room temperature
control plus week timer
[no]
Other control options (multiple selections
possible)
room temperature control,
with presence detection
[no]
room temperature control,
with open window detection
[no]
with distance control option
[no]
with adaptive start control
[no]
with working time limitation
[no]
with black bulb sensor
[no]
Contact details Kalliopi Karida & CO., LP
87A, 17th November Str - P.C. 55534 Pylaia - Thessaloniki - Greece
Tel. [phone] | Fax [phone]

NOTICE ABOUT RECYCLING
Your product is designed and manufactured with high quality materials and components which
can be recycled and reused.
This symbol means that electrical and electronic equipment, at their end-of-life, should be
disposed of separately from your household waste.
Please dispose of this equipment at your local community waste collection/recycling centre.
In the European Union there are separate collection systems for used electrical and electronic
products.
Please help us to conserve the environment we live in!
DECLARATION OF CONFORMITY
Herewith, Kalliopi Karida & CO., LP. states that this product, complies with the requirements of
below directives:
The detailed declaration of conformity can be found at www.united-electronics.gr
EXCLUSIVE IMPORTER IN GREECE:
Kalliopi Karida & CO., LP
87A, 17th November Str - P.C. 55534
Pylaia - Thessaloniki - Greece
T: [phone] | F: [phone]
www.united-electronics.gr
EMC Directive: 14/30/EU
Low Voltage Directive: 14/35/EU
ErP Directive: 09/125/EC
RoHS Directive: 11/65/EU & 15/863/EU
amended by the CE-marking Directive: 93/68/EEC
