Unverferth Killbros 200 Series User manual

Box Auger
200 Series (Sump Style)
Box Auger
Models 212, 214 & 215
Beginning With Serial Number D42370100
Part No. 24394

Box Auger — Introduction
2
Foreword
Your new BOX AUGER is designed and manufactured to give you years of dependable service.
To keep it running efficiently, read the instructions in this operator’s manual.
This manual covers operations, service, assembly, and parts for your BOX AUGER. Read
and study manual completely before attempting to operate this implement. Take this manual
to the field for handy reference when operating, adjusting, or servicing your machine.
This symbol identifies important safety messages. When you see it, read the message
that follows and be alert to the possibility of personal injury.
Remember, safety instruction stated in this manual are for your protection. Read them
carefully and follow closely when working around or using this machine.

Box Auger — Introduction
3
Product Information
The information, specifications, and illustrations in the manual are on the basis of information avail-
able at the time it was written. Due to continuing improvements in the design and manufacture
of KILLBROS products, all specifications and information contained herein are subject to change
without notice.
When ordering parts or when requesting further information or assistance, always give the
following information:
• Machine name
• Serial number
All products manufactured by Unverferth Mfg. Co., Inc. are warranted to be free from
material and workmanship defects for one full year from time of consumer delivery. Your local
dealer will gladly assist you with any warranty questions.
Please fill out and retain this portion for your records. The serial number plate is located
on the frame as shown below.
Purchase Date _______________________ Model ______________Serial Number ________________
Dealer _____________________________________________ City ________________________________
Dealer Contact ___________________________________________ Phone ________________________
FIG. 1

Box Auger — Introduction
4
Foreword ........................................................................................................................................2
Product Information........................................................................................................................3
SECTION I
Safety
General Hazard Information ................................................................................................. 1-2
Safety Decals....................................................................................................................... 1-3
Follow Safety Instructions ................................................................................................... 1-4
Before Servicing .................................................................................................................. 1-4
Before Operating.................................................................................................................. 1-4
During Operation ................................................................................................................. 1-5
Pressurized Oil..................................................................................................................... 1-5
Preparing For Emergencies ................................................................................................. 1-6
Wearing Protective Equipment............................................................................................. 1-6
SECTION II
Set Up
Assembly .............................................................................................................................. 2-2

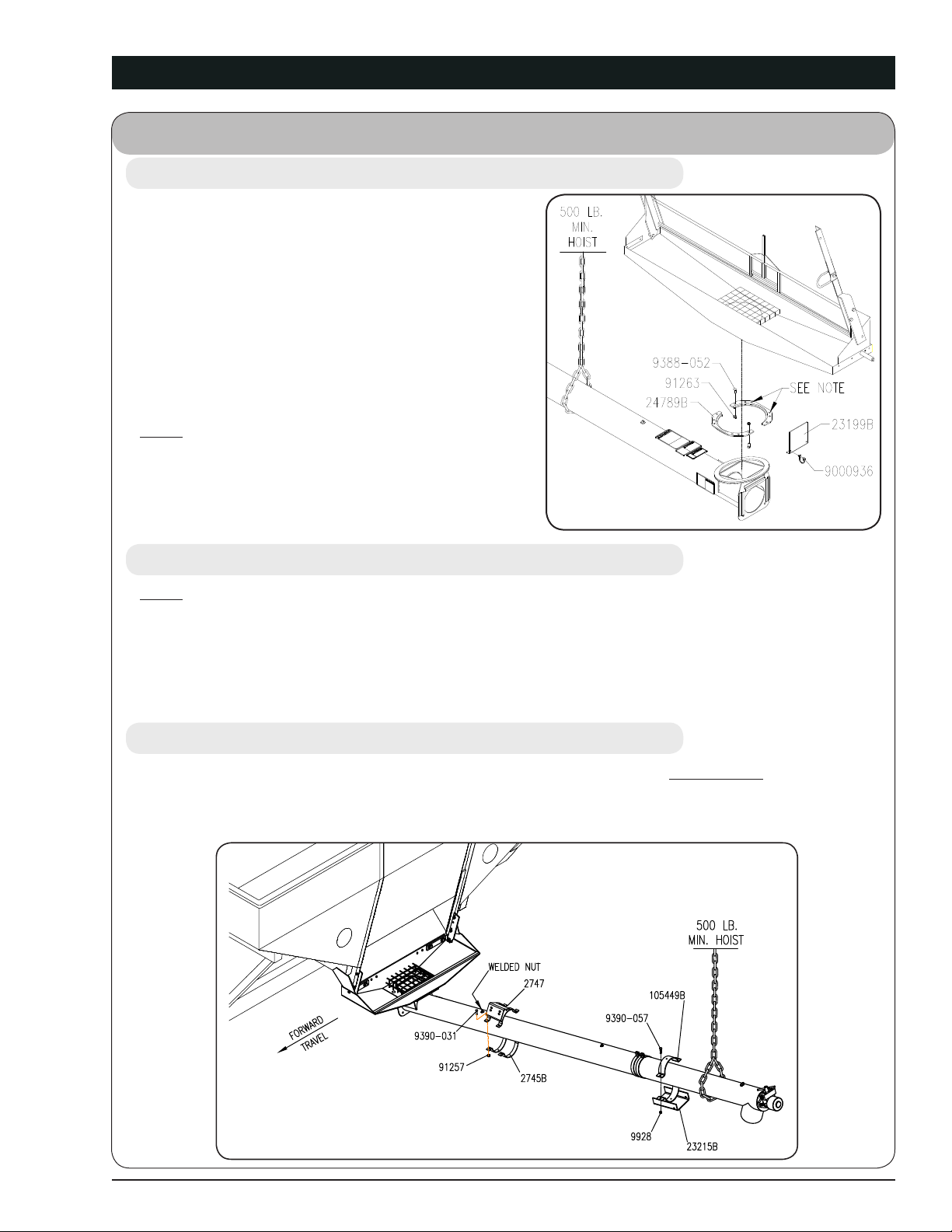

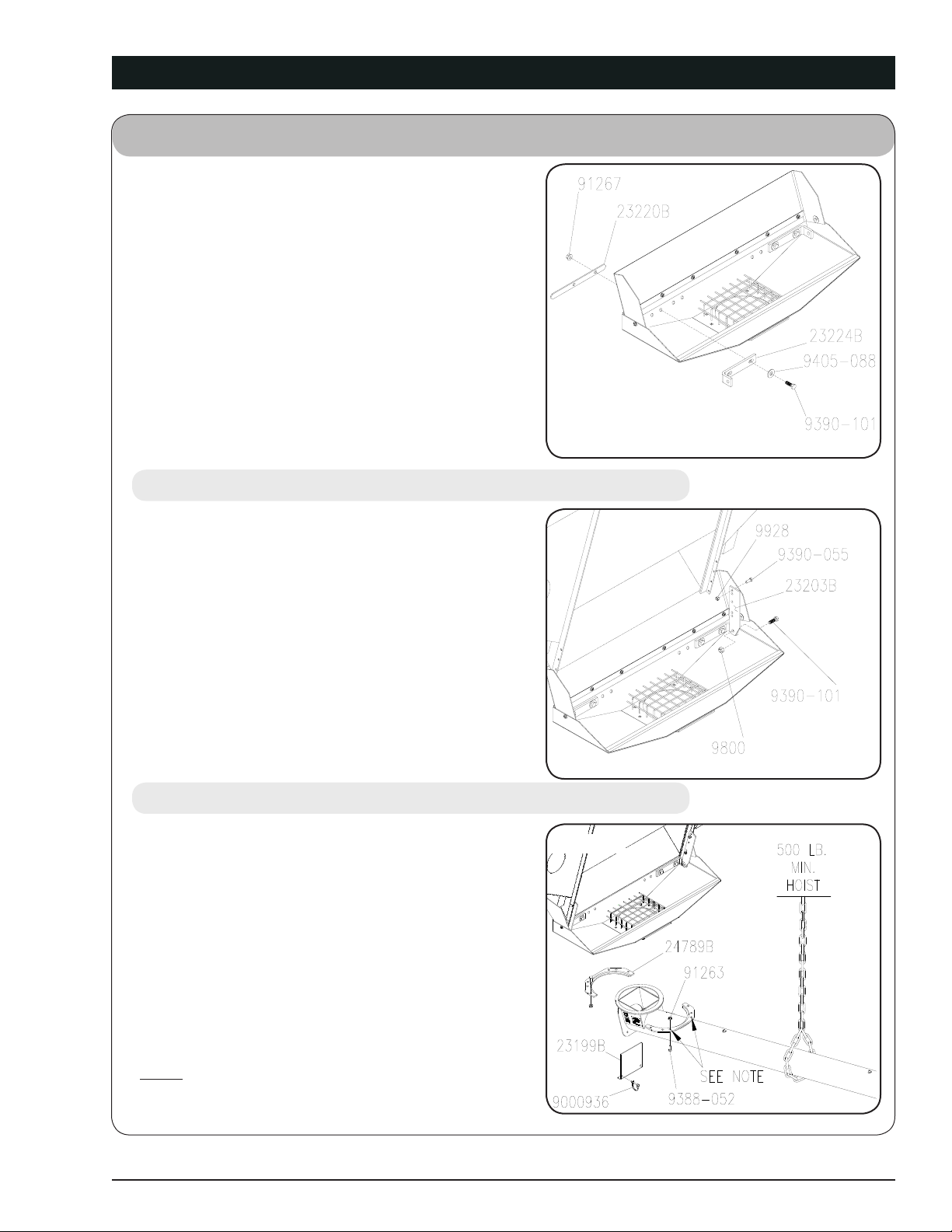

Hopper (For 30” - 39” Doors) ............................................................................................ 2-2
Mounting Hopper To Box .................................................................................................... 2-3
Auger Tube .......................................................................................................................... 2-3
Hopper (For 64” Doors) ....................................................................................................... 2-4
Auger Tube .......................................................................................................................... 2-5
Winch Bracket ..................................................................................................................... 2-5
Transport Bracket ................................................................................................................ 2-5

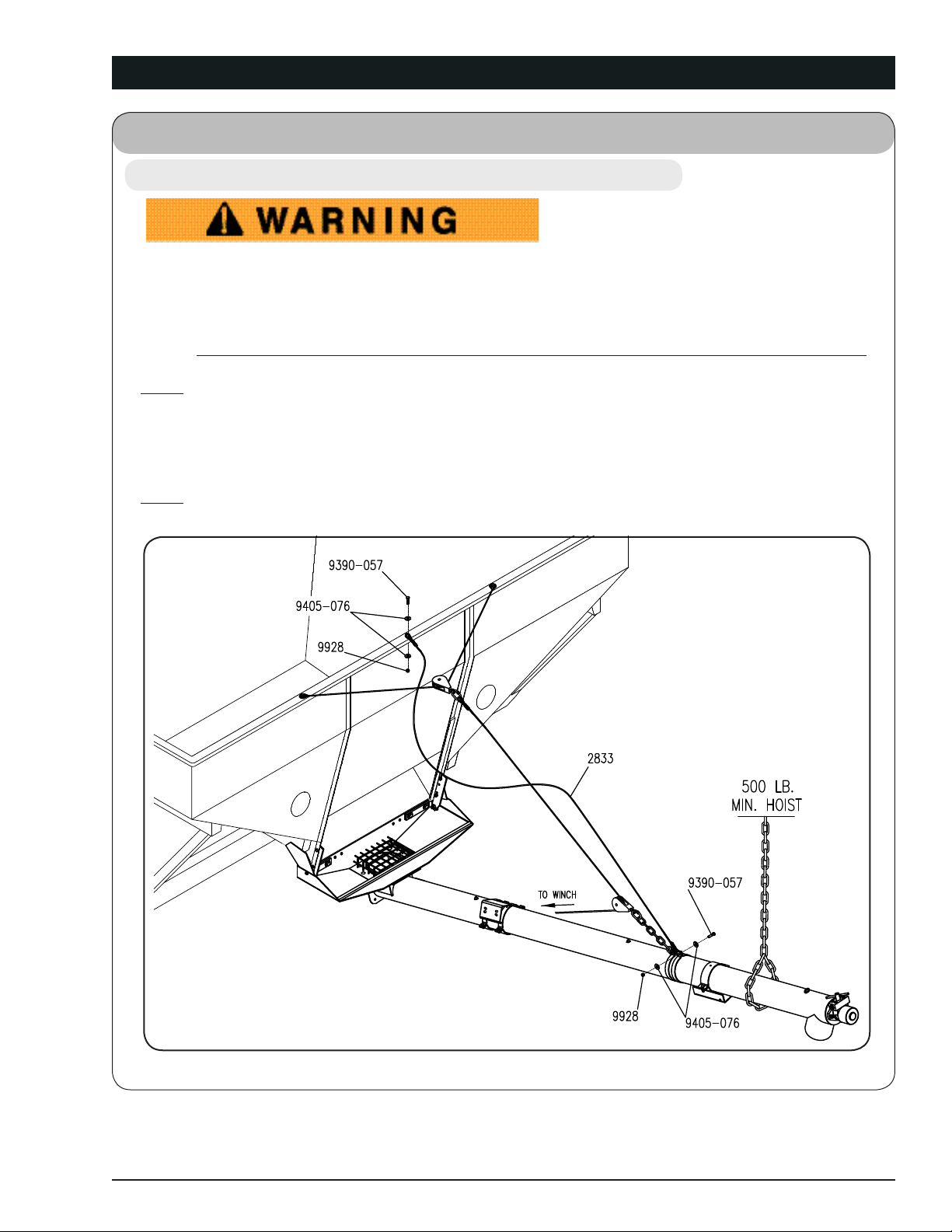

Winch Cable ........................................................................................................................ 2-6
Winch Assembly .................................................................................................................. 2-7
Secondary Cable.................................................................................................................. 2-8
Hydraulic Hoses................................................................................................................... 2-9
Spout ................................................................................................................................. 2-9
Box Transport Bracket....................................................................................................... 2-10
S-Hooks & Rope................................................................................................................ 2-10
Table of Contents

Box Auger — Introduction
5
Table of Contents
SECTION III
Operation
Preparing Hydraulic Supply........................................................................................................ 3-2
Connecting Gravity Box To Transport Vehicle............................................................................ 3-2
Transporting................................................................................................................................ 3-3
Preparing Auger ......................................................................................................................... 3-3
Performance ............................................................................................................................... 3-4
SECTION IV
Maintenance
Lubrication.................................................................................................................................. 4-2
Storage/Maintenance .................................................................................................................. 4-2
Troubleshooting........................................................................................................................... 4-2
Torque Chart .............................................................................................................................. 4-5
SECTION V
Parts
Auger Components..................................................................................................................... 5-2
Hopper Components
For 30” - 39” Doors................................................................................................................. 5-4
Hopper Components
For 64” Doors............................................................................................................................ 5-6
Hopper Components
For 50” Doors............................................................................................................................ 5-8
Winch Components .................................................................................................................... 5-9
Optional Relief Valve & Electronic On/Off Control Components.............................................. 5-10
Optional Telescopic Spout........................................................................................................ 5-12
Optional Flow Control & Electronic On/Off Control Components ............................................ 5-13

Box Auger — Introduction
6
Notes

Box Auger — Safety
1-1
SECTION I
Safety
General Hazard Information ................................................................................................. 1-2
Safety Decals....................................................................................................................... 1-3
Follow Safety Instructions ................................................................................................... 1-4
Before Servicing .................................................................................................................. 1-4
Before Operating.................................................................................................................. 1-4
During Operation ................................................................................................................. 1-5
Pressurized Oil..................................................................................................................... 1-5
Preparing For Emergencies ................................................................................................. 1-6
Wearing Protective Equipment............................................................................................. 1-6

Box Auger — Safety
1-2
General Hazard Information
No accident-prevention program can be successful without the wholehearted cooperation of
the person who is directly responsible for the operation of the equipment.
A large number of accidents can be prevented only by the operator anticipating the result
before the accident is caused and doing something about it. No power-driven equipment,
whether it be transportation or processing, whether it be on the highway, in the field, or in
the industrial plant, can be safer than the person who is at the controls. If accidents are
to be prevented--and they can be prevented--it will be done by the operators who accept
the full measure of their responsibility.
It is true that the designer, the manufacturer, and the safety engineer can help; and they will
help, but their combined efforts can be wiped out by a single careless act of the operator.
It is said that, “the best kind of a safety device is a careful operator.” We, at Unverferth
Mfg. Co., Inc. ask that you be that kind of operator.
REMEMBER:
THINK SAFETY
A CAREFUL OPERATOR IS THE
BEST INSURANCE AGAINST AN
ACCIDENT!

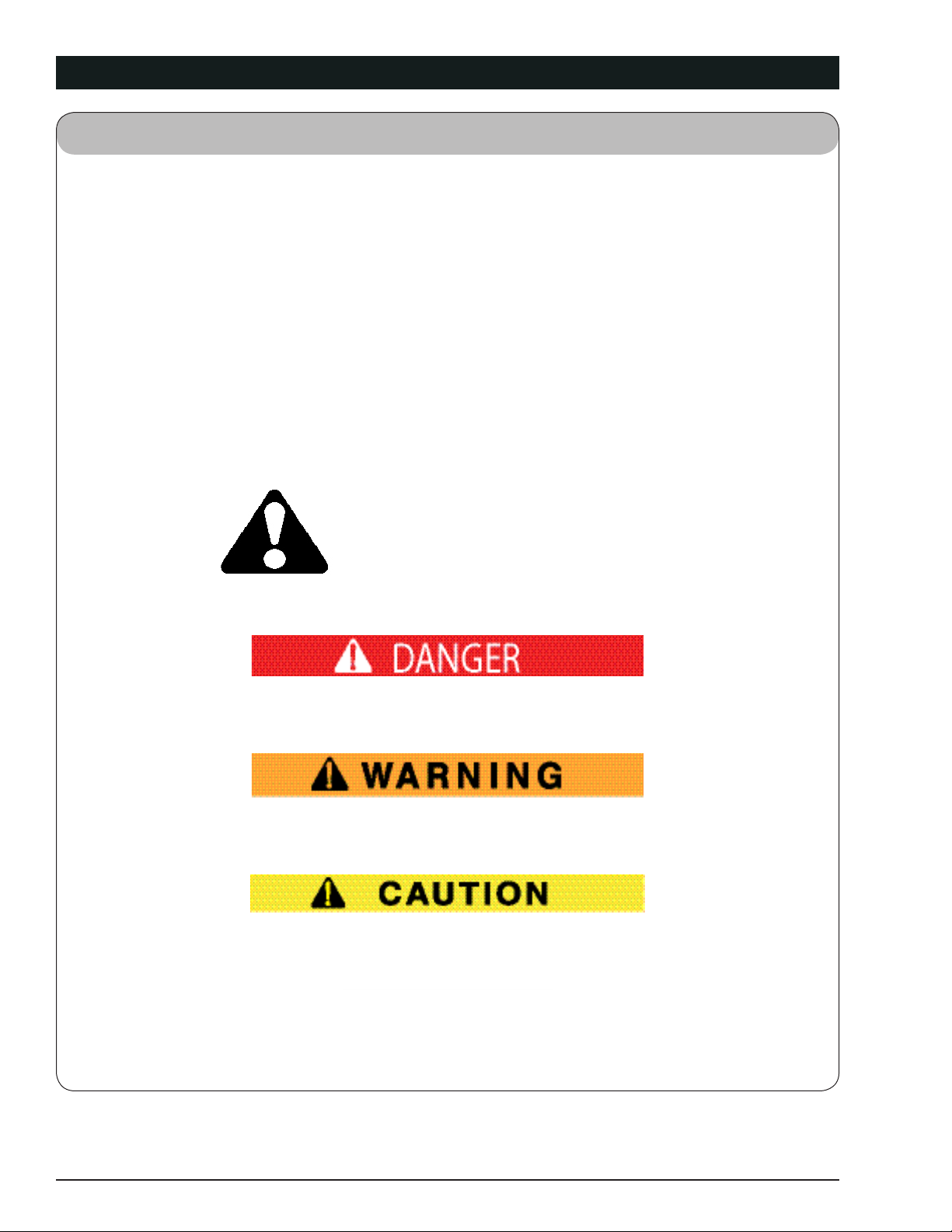

SIGNAL WORDS
INDICATES AN EXTREMELY HAZARDOUS SITUATION OR ACTION THAT WILL RESULT IN
SERIOUS INJURY OR DEATH.
INDICATES A HAZARDOUS SITUATION OR ACTION THAT COULD RESULT IN SERIOUS IN-
JURY OR DEATH.
INDICATES AN UNSAFE SITUATION OR ACTION THAT MAY RESULT IN PERSONAL INJURY.
Is used for instruction on operating, adjusting, or servicing a machine.

Box Auger — Safety
1-3
Safety Decals
PART NO. 95445 PART NO. 98766
PART NO. 97961
PART NO. 93558
PART NO. 99588
• REPLACE LOST, DAMAGED, PAINTED, OR UNREADABLE DECALS IMMEDIATELY. IF
PARTS THAT HAVE DECALS ARE REPLACED, ALSO MAKE SURE TO INSTALL NEW
DECALS. THESE DECALS INFORM AND REMIND THE OPERATOR WITH OPERATIONAL
INFORMATION AND SAFETY MESSAGES.

Box Auger — Safety
1-4
• Avoid working under an implement; however, if it becomes absolutely unavoidable, make sure
the implement is safely blocked.
• Ensure that all applicable safety decals are installed and legible.
Following Safety Instructions
Before Servicing
• Read and understand this operator’s manual before operating.
• All machinery should be operated only by trained and authorized personnel.
• To prevent machine damage, use only attachments and service parts approved by
the manufacturer.
• Always shut towing vehicle engine and hydraulic power unit engine off and remove
key before servicing the implement.
• Avoid personal attire such as loose fitting clothing, shoestrings, drawstrings, pants
cuffs, long hair, etc., that may become entangled in moving parts.
• Never attempt to operate implement unless you are in driver’s seat.
• Always make certain everyone and everything is clear of the machine before
beginning operation.
• Verify that all safety shields are in place, and properly secured.
• Ensure that all applicable safety decals are installed and legible.
Before Operating

Box Auger — Safety
1-5
• Regulate speed to field conditions. Maintain complete control at all times.
• Never lubricate equipment when in operation.
• Keep away from overhead power lines. Electrical shock can cause serious injury or
death.
• Use extreme care when operating close to ditches, fences, or on hillsides.
• Do not leave towing vehicle unattended with engine running.
• Seed being transported may contain seed treatment. Read and follow all requirements for
personal protective equipment and first aid as outlined on seed tags.
During Operation
Pressurized Oil
• Relieve pressure before disconnecting hydraulic lines or servicing hydraulic system. See
hydraulic power unit manual for procedure to relieve pressure.
• High-pressure fluids can penetrate the skin and cause serious injury or death. Use cardboard
or wood to detect leaks in the hydraulic system. Seek medical treatment immediately if injured
by high-pressure fluids.
• Hydraulic system must be purged of air before operating to prevent serious injury or death.
• Do not bend or strike high-pressure lines. Do not install bent or damaged tubes or hoses.
• Repair all oil leaks. Leaks can cause fires, personal injury, and environmental damage.
• Route hoses and lines carefully to prevent premature failure due to kinking and rubbing against
other parts. Make sure that all clamps, guards and shields are installed correctly.
• Check hydraulic hoses and tubes carefully. Replace components as necessary if
any of the following conditions are found:
o End fittings damaged, displaced, or leaking.
o Outer covering chafed/cut or wire reinforcing exposed.
o Outer covering ballooning locally.
o Evidence of kinking or crushing of the flexible part of a hose.

Box Auger — Safety
1-6
Preparing for Emergencies
Wearing Protective Equipment
• Keep a first aid kit and properly rated fire extinguisher nearby.
• Keep emergency numbers for fire, rescue, and poison control personnel near the
phone.
• Wear clothing and personal protective equipment appropriate for the job.
• Wear steel-toed shoes when operating.
• Wear hearing protection when exposed to loud noises.
• Do not wear additional hearing impairing devices such as radio headphones, etc.

Box Auger — Set Up
2-1
SECTION II
Set Up
Assembly .............................................................................................................................. 2-2
Hopper (For 30” - 39” Doors) ............................................................................................ 2-2
Mounting Hopper To Box .................................................................................................... 2-3
Auger Tube .......................................................................................................................... 2-3
Hopper (For 64” Doors) ....................................................................................................... 2-4
Auger Tube .......................................................................................................................... 2-5
Winch Bracket ..................................................................................................................... 2-5
Transport Bracket ................................................................................................................ 2-5
Winch Cable ........................................................................................................................ 2-6
Winch Assembly .................................................................................................................. 2-7
Secondary Cable.................................................................................................................. 2-8
Hydraulic Hoses................................................................................................................... 2-9
Spout ................................................................................................................................. 2-9
Box Transport Bracket ....................................................................................................... 2-10
S-Hooks & Rope................................................................................................................ 2-10

Box Auger — Set Up
2-2
Assembly
For your safety, and the safety of others, use proper tools and equipment and always use
safe working procedures. Refer to these instructions before starting any work on your machine.
• READ AND UNDERSTAND SAFETY RULES BEFORE OPERATING OR SERVICING THIS
MACHINE. REVIEW “SAFETY” SECTION IN THIS MANUAL, IF NECESSARY.
• TIPPING OR MOVEMENT OF THE MACHINE CAN CAUSE SERIOUS INJURY OR DEATH.
BE SURE THE MACHINE IS SECURELY BLOCKED.
• MOVING PARTS CAN CRUSH AND CUT. KEEP AWAY FROM MOVING PARTS.
• KEEP HANDS CLEAR OF PINCH POINT AREAS.
• FALLING OBJECTS CAN CAUSE SERIOUS INJURY OR DEATH. DO NOT WORK UNDER
THE MACHINE AT ANY TIME WHILE BEING HOISTED. BE SURE ALL LIFTING DEVICES
AND SUPPORTS ARE RATED FOR THE LOADS BEING HOISTED. THESE ASSEMBLY
INSTRUCTIONS WILL REQUIRE SAFE LIFTING DEVICES UP TO 500 LBS. SPECIFIC
LOAD RATINGS FOR INDIVIDUAL LOADS WILL BE GIVEN AT THE APPROPRIATE TIME
IN THE INSTRUCTIONS.
•EYE PROTECTION AND OTHER APPROPRIATE PERSONAL PROTECTIVE EQUIPMENT
MUST BE WORN WHILE SERVICING THE IMPLEMENT.

Box Auger — Set Up
2-3
Hopper Assembly For Door Angle Widths Up To 39” (continued)
1. Before attaching mounting brackets
determine box door dimension. As shown
in FIG. 3-1, secure brackets (23224B) to
hopper using four 1/2”-13UNC x 1 1/2”
capscrews (9390-101), four flat washers
(9405-088), two straps (23220B), and four
1/2”-13UNC flange nuts (91267).
Mounting Hopper To A Box
2. Attach both mounting plates (23203B) to
gravity box door angles using four 3/8”-
16UNC x 1” capscrews (9390-055), and
four 3/8”-16UNC locknuts (9928). Slide seal
up under box chute and secure hopper
assembly to mounting plates as shown in
FIG. 3-2 using two 1/2”-13UNC x 1 1/2”
capscrews (9390-101) and two 1/2”-13UNC
locknuts (9800).
Auger Tube
3. Slide clean out door (23199B) into back of
auger tube weldment. Secure with lynch
pins (9000936).
4. Using a minimum 500 lb. hoist, safely lift
auger tube assembly into position under
hopper weldment. Using swivel plates
(24789B), as shown in FIG. 3-3, secure
auger tube to bottom of hopper with
eight 3/8”-16UNC x 1 1/4” carriage bolts
(9388-052), and twelve 3/8”-16UNC flange
nuts (91263).
NOTE: For clearance purposes, the front two
carriage bolts must be inserted from underneath
hopper, see FIG. 3-3.
FIG. 3-1
OM-04159E
FIG. 3-2
FIG. 3-3

Box Auger — Set Up
2-4
Hopper Assembly For 64” Door Angle Width
1. Attach the mounting brackets to the inside
of the “L” bracket on the door angle
(Fig. 3-4). Use four 7/16”-14UNC x 1 1/4”
capscrews (9390-079) and 7/16”-14UNC
locknuts (94980).
• On some grain box models, the shim plate
(22244) may have to be used between the
mounting bracket and the “L” bracket to
achieve proper spacing to mount the hopper.
2. Attach auger hopper assembly to the mounting brackets. Use two 1/2” x 3 1/2” clevis pins (95890)
and hair pin cotters (9514) to attach the hopper pivot tubes to the mounting brackets (Fig. 3-4).
FIG. 3-4
FIG. 3-5
NOTE: Keep the
smooth side of the
seal to the inside
of the hopper.

Box Auger — Set Up
2-5
Hopper Assembly For 64” Door Angle Width (continued)
Auger Tube
3. Slide clean out door (23199B) into back of
auger tube weldment. Secure with lynch
pins (9000936).
4. Using a minimum 500 lbs. hoist, safely lift
auger tube assembly into position under
hopper weldment. Using plates (24789B),
as shown in FIG. 3-6, secure auger tube to
bottom of hopper with eight 3/8”-16UNC
x 1 1/4” carriage bolts (9388-052), and
twelve 3/8”-16UNC flange nuts (91263).
NOTE: For clearance purposes, the front two
carriage bolts must be inserted from underneath
hopper, see FIG. 3-6.
Winch Bracket
NOTE: Before mounting the winch bracket to the auger tube, determine whether you want
the auger pointing forward or towards the rear during transport. Position in FIG. 3-7 shows
winch installed for a rear auger transport position.
5. At location shown in FIG. 3-7, approximately 6” from bottom welded nut on auger tube, attach
winch bracket (2747) and winch clamps (2745B) with four 5/16”-18UNC x 1 1/4” capscrews (9390-
031), and four 5/16”-18UNC flange nuts (91257).
Transport Bracket
6. When assembling transport bracket (23215B) and clamp (105449B), attach loosely using two 3/8”-
16UNC x 1 1/2” capscrews (9390-057), and two 3/8”-16UNC locknuts (9928) allowing bracket to
slide freely on auger tube until location of box transport bracket (23317B) can be determined at
a later step.
FIG. 3-6
FIG. 3-7 OM-04159G

Box Auger — Set Up
2-6
Hopper Assembly For 64” Door Angle Width (continued)
Winch Cable
7. Secure winch (9501907) to bracket using
hardware provided, two 3/8”-16UNC x 1”
capscrews (9390-055), two 3/8”-16UNC
flange nuts (91263) and one 3/8” flat
washer (9405-076) for the winch’s slotted
hole.
NOTE: If installing hopper assembly for 60” doors,
proceed to step 8B.
8A. Begin assembly of winch cable by drilling
two 7/16” diameter holes on top of box in
approximate location shown in FIG. 3-8.
Secure swivel cable (103998) using two
3/8”-16UNC x 1 1/2” capscrews (9390-
057), four 3/8” flat washers (9405-076),
and two 3/8”-16UNC flange nuts (91263).
8B. Begin assembly of winch cable by attaching chain to center strap using 3/8”-16UNC x 4 1/2”
capscrew (9390-068), locknut (9928) and two flat washers (9405-076). See Fig. 3-9.
9. Attach quick link (91514) to pulley end of swivel cable.
10. Thread winch cable (2831) through pulley (101410).
FIG. 3-8
FIG. 3-9 OM-02253
OM-04159H

Box Auger — Set Up
2-7
Hopper Assembly For 64” Door Angle Width (continued)
Winch Assembly
• BEFORE OPERATING WINCH, BE SURE THAT WINCH IS SECURELY INSTALLED TO
THE AUGER AND THAT THE CABLES ARE TIED TO THE WINCH AND GRAVITY BOX.
BE SURE TO READ THE FOLLOWING INSTRUCTIONS AND OPERATING PROCEDURES
PROVIDED WITH THE WINCH. FAILURE TO DO SO COULD RESULT IN DAMAGE TO
THE AUGER OR SERIOUS BODILY HARM.
NOTE: Refer to proper assembly instructions for your gravity box before installing winch.
11. Check that all cables and winch are securely installed and not damaged in any way.
12. Tie cable to winch by the following instructions. Refer to FIG. 3-10.
NOTE: Start cable between spool plate.
OM-04159I
FIG. 3-10

Box Auger — Set Up
2-8
Hopper Assembly For 64” Door Angle Width (continued)
13. Thread cable from inside winch out through
hole “A”.
14. Continue through hole “B” and hole “C”
as shown in FIG. 3-11.
15. Finally, thread back under cable between
hole “A” and “B”. Tighten.
16. When operating the winch, take note of
the following guidelines:
- Never walk under auger while it is suspended.
- Never leave auger unattended while it is suspended.
- Test winch each time by lifting auger a few inches out of transport bracket before completely
raising.
- Never winch auger up or down while it is loaded.
- Be sure that cable is not kinked or unaligned on winch drum.
- Always take safety precautions.
17. Secure second quick link (91514) to pulley (101410) and chain (2829). Secure opposite end of
chain to first strap on auger tube using hardware provided, 3/8”-16 x 1 1/2” capscrew (9390-057),
two 3/8” flat washers (9405-076), and 3/8”-16 locknut (9928), FIG. 3-10.
Secondary Cable
18. Drill one 7/16” diameter hole on top of box in location shown in FIG. 3-11. Attach one end
of secondary cable (2833) to box and opposite end to auger strap using two 3/8”-16 x 1-1/2”
capscrews (9390-057), four 3/8” flat washers (9405-076), and two 3/8”-16 locknuts (9928).
FIG. 3-11
HOLE A
HOLE B
HOLE C
