OPERATION MANUAL
WARNING
All personnel shall carefully read, understand and follow all safety rules and operating instructions
before operating or performing maintenance on any UpRight aerial work platform.
Safety Rules
Safety RulesSafety Rules
Safety Rules
USE OF THE AERIAL WORK PLATFORM: This aerial work platform is intended to lift persons and his tools as well as the material used
for the job. It is designed for repair and assembly jobs and assignments at overhead workplaces (ceilings, cranes, roof structures, build-
ings etc.). All other uses of the aerial work platform are prohibited!
THIS AERIAL WORK PLATFORM IS NOT INSULATED! For this reason it is imperative to keep a safe distance from live parts of electri-
cal equipment!
Exceeding the specified permissible maximum load is prohibited! See “Special Limitations” on page 4 for details.
The use and operation of the aerial work platform as a lifting tool or a crane (lifting of loads from below upwards or from up high on down)
is prohibited!
NEVER exceed the manual force allowed for this machine. See “Special Limitations” on page 4 for details.
DISTRIBUTE all platform loads evenly on the platform.
NEVER operate the machine without first surveying the work area for surface hazards such as holes, drop-offs, bumps, curbs, or debris;
and avoiding them.
OPERATE machine only on surfaces capable of supporting wheel loads.
NEVER operate the machine when wind speeds exceed this machine’s wind rating. See “Beaufort Scale” on page 4 for details.
IN CASE OF EMERGENCY push EMERGENCY STOP switch to deactivate all powered functions.
IF ALARM SOUNDS while platform is elevated, STOP, carefully lower platform. Move machine to a firm, level surface.
Climbing up the railing of the platform, standing on or stepping from the platform onto buildings, steel or prefab concrete structures, etc.,
is prohibited!
Dismantling the swing gate or other railing components is prohibited! Always make certain that the swing gate is closed and securely
locked!
It is prohibited to keep the swing gate in an open position (held open with tie-straps) when the platform is raised!
To extend the height or the range by placing of ladders, scaffolds or similar devices on the platform is prohibited!
NEVER perform service on machine while platform is elevated without blocking elevating assembly.
INSPECT the machine thoroughly for cracked welds, loose or missing hardware, hydraulic leaks, loose wire connections, and damaged
cables or hoses before using.
VERIFY that all labels are in place and legible before using.
NEVER use a machine that is damaged, not functioning properly, or has damaged or missing labels.
To bypass any safety equipment is prohibited and presents a danger for the persons on the aerial work platform and in its working range.
NEVER charge batteries near sparks or open flame. Charging batteries emit explosive hydrogen gas.
Modifications to the aerial work platform are prohibited or permissible only at the approval by UpRight.
AFTER USE, secure the work platform from unauthorized use by turning both keyswitches off and removing key.
NEVER elevate the platform or drive
the machine while elevated unless
the machine is on a firm, level
surface.
NEVER climb, stand, or sit on
platform guardrails or midrail.
NEVER position the platform
without first checking for overhead
obstructions or other hazards.

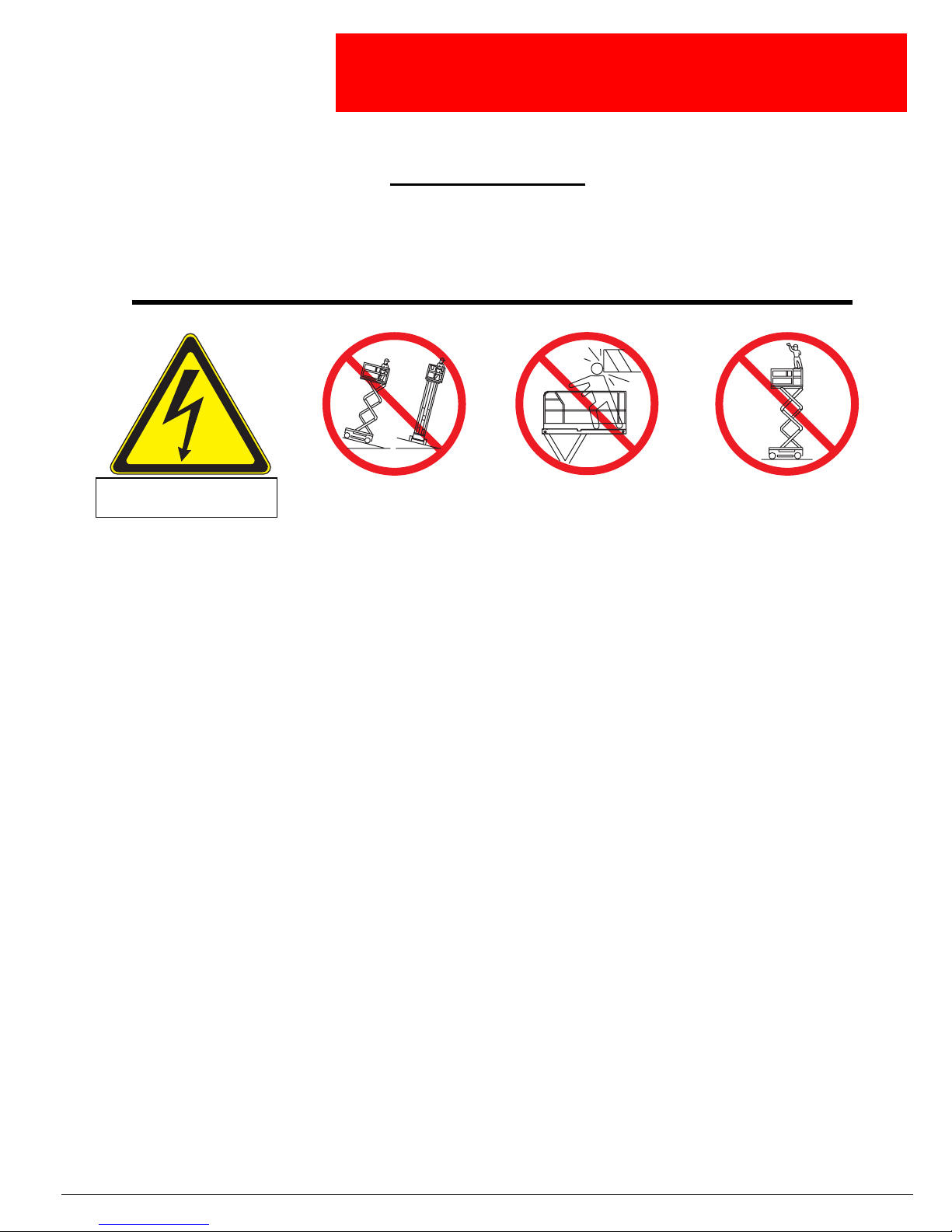

Electrocution Hazard
Electrocution HazardElectrocution Hazard
Electrocution Hazard Tip
O
ver Hazard
Tip Over HazardTip Over Hazard
Tip
O
ver Hazard
C
ollision Hazard
Collision HazardCollision Hazard
C
ollision Hazard Fall Hazard
Fall HazardFall Hazard
Fall Hazard
THIS MACHINE IS NOT
INSULATED!

Page 2 Operation Manual
060570-027 MX 15/19
C ONTENTS
Introduction .........................................................................3
General Description . .................................................................3
SpecialLimitations...................................................................4
PlatformCapacity............................................................................ 4
Manual Force ............................................................................... 4
BeaufortScale.............................................................................. 4
LiftOverloadAlarm........................................................................... 4
ControlsandIndicators ...............................................................5
Pre-OperationSafetyInspection........................................................6
SystemFunctionInspection ...........................................................7
Operation...........................................................................8
PlatformExtension........................................................................... 8
TravelWiththePlatformLowered............................................................... 8
Steering ................................................................................... 8
ElevatingthePlatform ........................................................................ 9
TravelWiththePlatformElevated............................................................... 9
LoweringthePlatform ........................................................................ 9
EmergencyLowering......................................................................... 9
ParkingBrakeRelease....................................................................... 10
AfterUseEachDay......................................................................... 10
TransportingtheWorkPlatform .......................................................11
ByCrane ................................................................................. 11
ByForklift................................................................................. 11
ByTruck.................................................................................. 11
Maintenance........................................................................12
BlockingTheElevatingAssembly .............................................................. 12
ScissorBraceInstallation................................................................. 12
ScissorBraceStowage................................................................... 12
BatteryMaintenance ........................................................................ 13
BatteryCharging........................................................................ 13
InspectionandMaintenanceSchedule..................................................14
Daily Preventative Maintenance Checklist ...............................................14
Interval ............................................................................... 14
Labels.............................................................................16
Specifications ...................................................................... 18

Introduction 060570-027 MX 15/19
Operation Manual Page 3
I NTRODUCTION
This manual covers the application of the MX Series Self-Propelled Work Platforms. This manual must be
stored on the machine at all times.
G ENERAL D ESCRIPTION

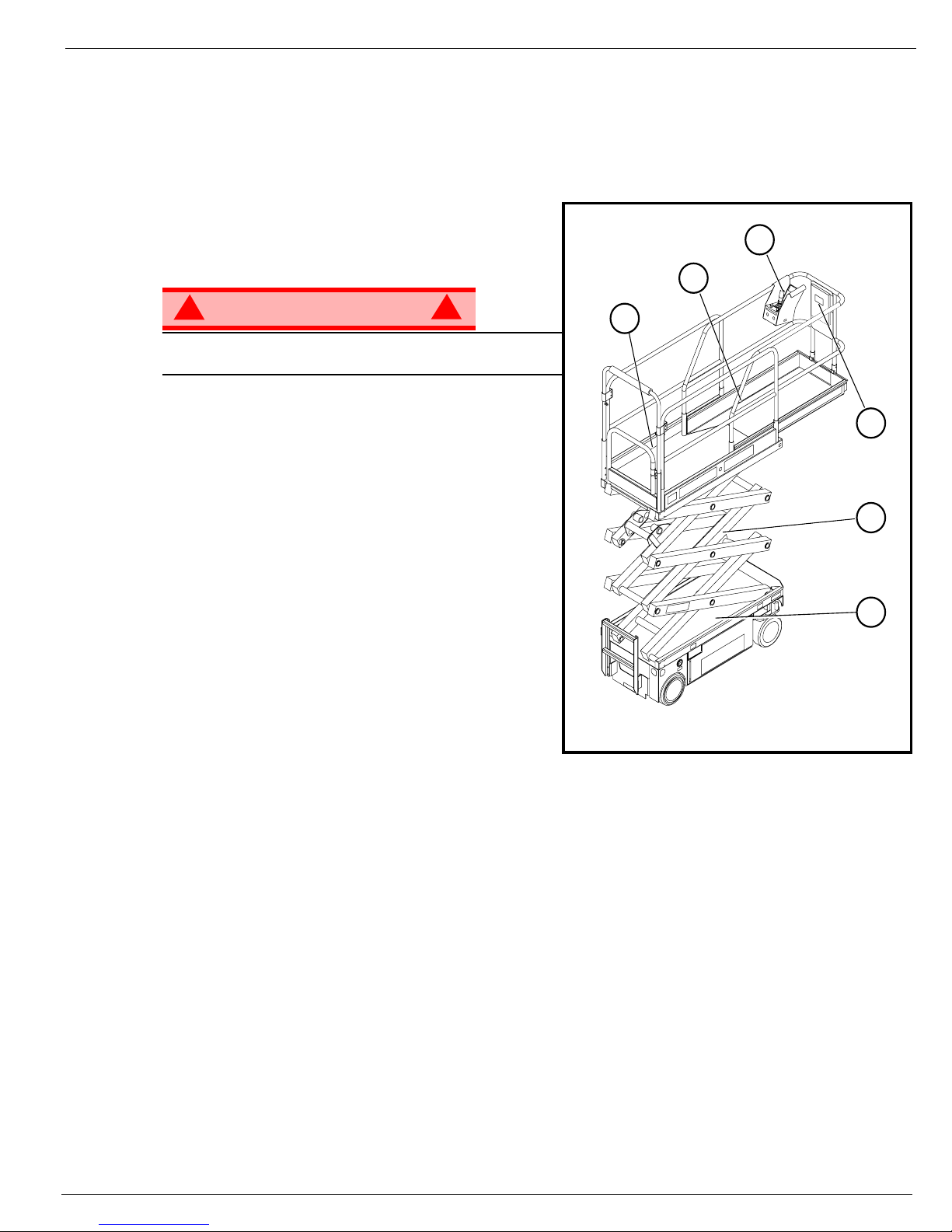

Figure 1:
MX Series
1. Platform
2. Deck Extension
WARNING
!!
DO NOT use the maintenance platform without
guardrails properly assembled and in place
3. Platform Controls
4. Manual Case
5. Elevating Assembly
6. Chassis
1
2
3
4
5
6

Page 4 Operation Manual
060570-027 MX 15/19 Special Limitations
S PECIAL L IMITATIONS
Travel with the platform raised is limited to creep speed range.
Elevating the platform is limited to firm, level surfaces only.
DANGER ! !
The elevating function shall ONLY be used when the work platform is level and on a firm surface.
The work platform is NOT intended to be driven over uneven, rough, or soft terrain.
P LATFORM C APACITY
The maximum platform capacity for the MX 15 is 250 kg (550 lbs). Two people may occupy the platform
indoors, while only one may occupy the platform outdoors.
The maximum platform capacity for the MX 19 is 227 kg (500 lbs). Two people may occupy the platform
indoors, while only one may occupy the platform outdoors.
DANGER ! !
DO NOT exceed the maximum platform capacity or the platform occupancy limits for this machine.
M ANUAL F ORCE
Manual force is the force applied by the occupants to objects such as walls or other structures outside the
work platform.
The maximum allowable manual force is limited to 200 N (45 lbs.) of force per occupant, with a maximum
of 400 N (90 lbs.) for two occupants.
DANGER ! !
DO NOT exceed the maximum amount of manual force for this machine.
B EAUFORT S CALE
Never operate the machine when wind speeds exceed 25 km/h (15 mph) [Beaufort scale 4].
L IFT O VERLOAD A LARM
All models include a feature that alerts the operator when the platform load is exceeded. If the alarm
sounds during the lift function, lower the platform and reduce the platform load.
DANGER
! !
Never operate the machine with a platform load greater than the rated capacity.
BEAUFORT
RATING WIND SPEED GROUND CONDITIONS
m/s km/h ft/s mph
3 3,4~5,4 12,25~19,4 11.5~17.75 7.5~12.0 Papers and thin branches move, flags wave.
4 5,4~8,0 19,4~28,8 17.75~26.25 12.0~18 Dust is raised, paper whirls up, and small branches sway.
5 8,0~10,8 28,8~38,9 26.25~35.5 18~24.25 Shrubs with leaves start swaying. Wave crests are apparent in ponds or swamps.
6 10,8~13,9 38,9~50,0 35.5~45.5 24.5~31 Tree branches move. Power lines whistle. It is difficult to open an umbrella.
7 13,9~17,2 50,0~61,9 45.5~56.5 31.~38.5 Whole trees sway. It is difficult to walk against the wind.

Controls and Indicators 060570-027 MX 15/19
Operation Manual Page 5
C ONTROLS AND I NDICATORS

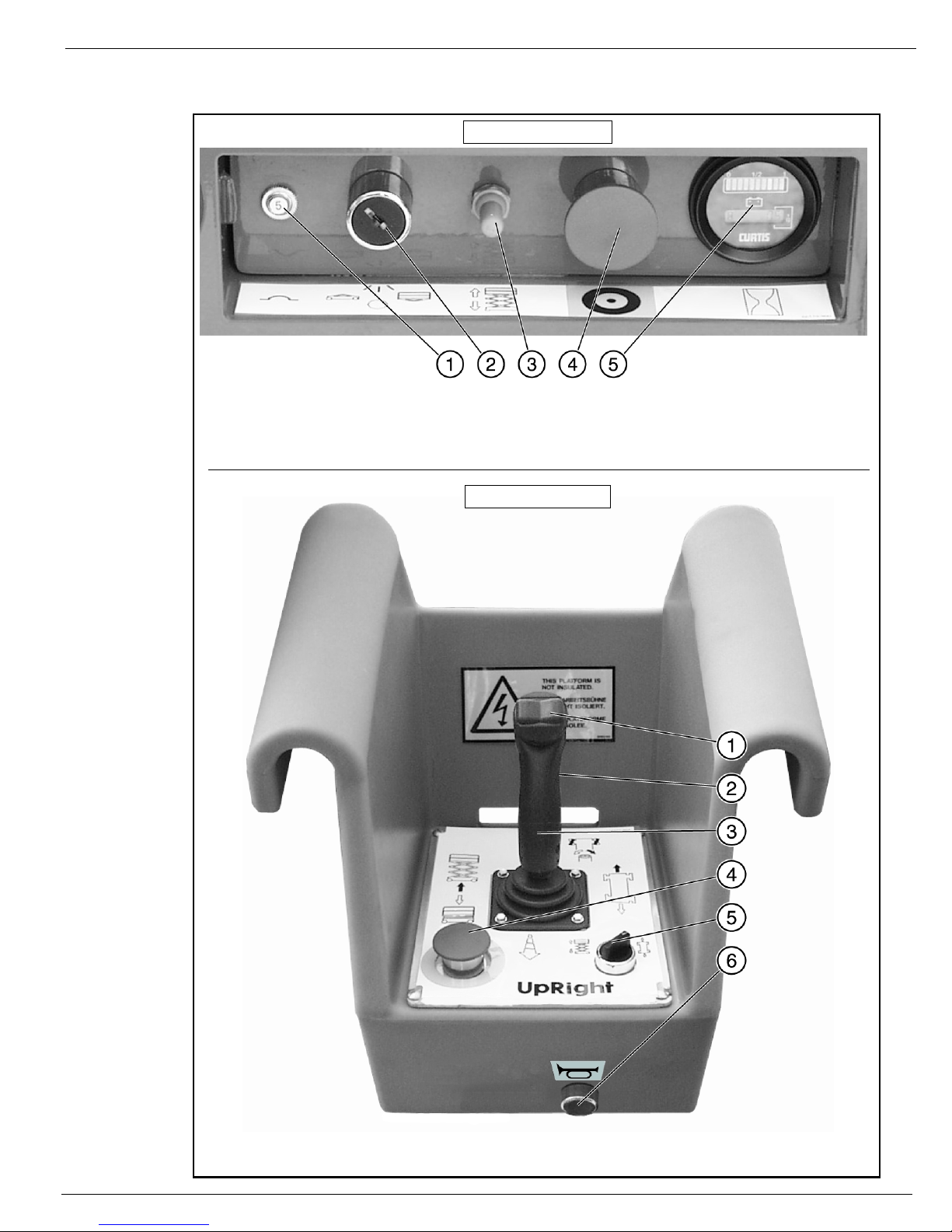

Figure 2:
Controls and Indicators
1 Circuit Breaker
2. Chassis Key Switch
3. Chassis Lift/Lower Switch
4. Chassis Emergency Stop Button
5. Hour Meter/Voltage Indicator
1. Steering Switch
2. Interlock Switch (on front
of Control Handle)
3. Control Handle
4. Platform Emergency Stop
Switch
5. Lift Drive Selector Switch
6. Horn Button
Platform Controls
Chassis Controls

Page 6 Operation Manual
060570-027 MX 15/19 Pre-Operation Safety Inspection
P RE -O PERATION S AFETY I NSPECTION
NOTE: Carefully read, understand and follow all safety rules, operating instructions, labels and National Safety
Instructions/Requirements. Perform the following steps each day before use.
1. Open modules and inspect for damage, fluid leaks or missing parts.

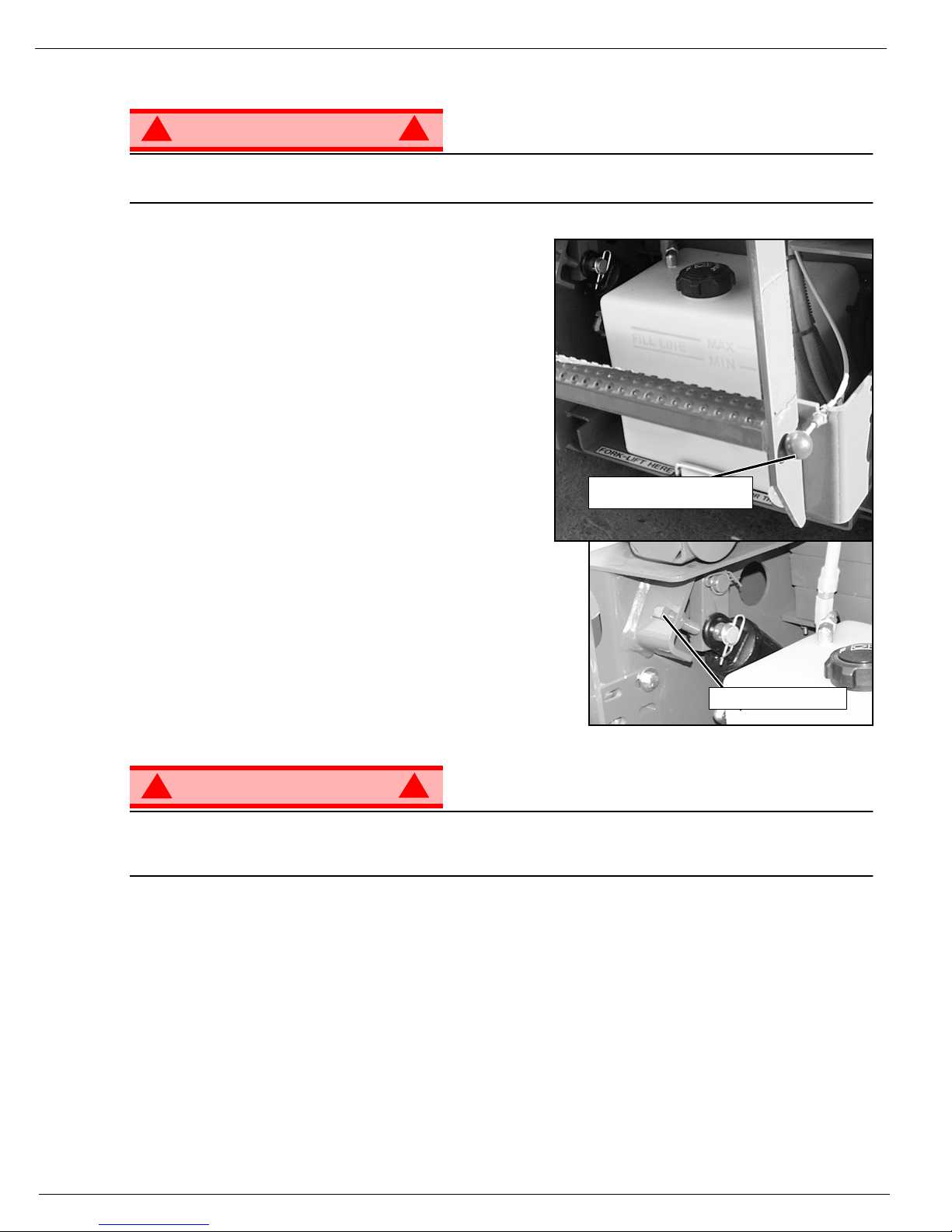

Figure 3:
Hydraulic Tank
2. Check the level of the hydraulic fluid
with the platform fully lowered. The
hydraulic reservoir is located at the
rear of the machine. The fluid level
should be visible through the side of
the tank, and must be between the
MIN and MAX lines (see Figure 3).
Add hydraulic fluid if necessary.
3. Check that fluid level in the batteries
is correct (See Battery Maintenance,
page 9).
4. Verify that batteries are charged.
5. Check that A.C. extension cord has
been disconnected from the plug in
the left Chassis
Module, and that the module doors
are closed and locked.
6. Check that all guardrails are in place and all fasteners are properly tightened.
7. Inspect the machine thoroughly for cracked welds and structural damage, loose or missing hardware,
hydraulic leaks, damaged control cable, loose wire connections and wheel bolts.
Hydraulic Fluid
Tank

System Function Inspection 060570-027 MX 15/19
Operation Manual Page 7
S YSTEM F UNCTION I NSPECTION
Refer to Figure 2 for the locations of various controls and indicators.
WARNING
!!
STAND CLEAR of the work platform while performing the following checks.
Before operating the work platform, survey the work area for surface hazards such as holes, drop-offs,
bumps and debris.
Check in ALL directions, including above the work platform, for obstructions and electrical conductors.
Protect the control console cable from possible damage while performing checks.
1. Move the machine, if necessary, to an unobstructed area to allow for full elevation.
2. Pull Chassis Emergency Stop Switch to the ON position.
3. Pull Platform Emergency Stop Switch to the ON position.
4. Turn and hold the Chassis Key Switch to CHASSIS. Push the Chassis Lift/Lower Switch to the UP posi-
tion and raise the platform approximately 2,1 m (7 feet). BLOCK THE ELEVATING ASSEMBLY AS
DESCRIBED ON page 12.
5. Visually inspect the elevating assembly, lift cylinder, cables, and hoses for cracked welds and structural
damage, loose hardware, hydraulic leaks, loose wire connections, and erratic operation. Check for miss-
ing or loose parts.
6. Verify that the Depression Mechanism Supports have rotated into position under the machine. REMOVE
THE SCISSOR BRACE AS DESCRIBED ON page 12.
7. Turn and hold the Chassis Key Switch to CHASSIS. Push the Chassis Lift/Lower Switch to the UP posi-
tion and fully elevate the platform. Partially lower the platform by pushing Chassis Lift/Lower Switch to
LOWER, and check for proper operation of the audible lowering alarm.
8. Open the Emergency Lowering Valve (see Figure 3) by pulling the knob out to check for proper opera-
tion. When the platform is lowered, release the knob.
9. Push the Chassis Emergency Stop Switch to check for proper operation. All machine functions should
be disabled. Pull out the Chassis Emergency Stop Switch to resume.
10. Turn the Chassis Key Switch to DECK.
11. Check that route is clear of obstacles (persons, obstructions, holes, and drop-offs, bumps and debris), is
level, and is capable of supporting the wheel loads.
12. Mount the platform and properly close the entrance.
13. Turn the Drive/Lift Switch to DRIVE. While engaging the Interlock Switch, move the Control Handle to
FORWARD, then REVERSE, to check for speed control.
14. Push the Steering Switch RIGHT, then LEFT, to check for steering control.
15. Turn the Drive/Lift Switch to LIFT. Grasp the Control Handle, engaging the Interlock Switch, and push it
forward to check platform lift controls. Raise the platform to full elevation.
16. Pull back on the Control Handle. The platform should descend and the audible lowering alarm should
sound.
17. Push the Platform Emergency Stop Switch to check for proper operation. All machine functions should
be disabled. Pull out the Platform Emergency Stop Switch to resume.

Page 8 Operation Manual
060570-027 MX 15/19 Operation
O PERATION
Before operating the work platform, ensure that the Pre-Operation Safety Inspection has been completed
and that any deficiencies have been corrected. Never operate a damaged or malfunctioning machine.
The operator must be thoroughly trained on this machine.
P LATFORM E XTENSION
Figure 4:
Platform Extension
1. Mount the platform and properly close
the entrance.
2. Depress the foot lever located at the rear
of the platform extension. Push the plat-
form extension forward until the pin
engages the front stop.
3. To retract the platform extension,
depress the foot lever and pull the plat-
form extension toward the rear of the
machine until the pin engages the rear
stop.
T RAVEL W ITH THE
P LATFORM L OWERED
1. Check that the route is clear of obstacles
(persons, obstructions, holes, drop-offs,
bumps, and debris), is level, and is capa-
ble of supporting the wheel loads.
2. Verify that the Chassis Key Switch is
turned to DECK and Chassis Emergency
Stop Switch is ON (pulled out).
3. Mount the platform and properly close the entrance.
4. Check clearances above, below, and to the sides of platform.
5. Pull the Platform Emergency Stop Switch out to the ON position.
6. Turn the Drive/Lift Switch to DRIVE.
7. Engage the Interlock Switch and move the Control Handle to FORWARD or REVERSE to travel in the
desired direction. The speed of the machine will vary depending on how far from center the Control
Handle is moved.
S TEERING
1. Turn the Drive/Lift Switch to DRIVE.
2. While engaging the Interlock Switch, push the Steering Switch to RIGHT or LEFT to turn the wheels in
the desired direction. Observe the tires while maneuvering the work platform to ensure proper direction.
NOTE: Steering is not self-centering. Wheels must be returned to the straight ahead position by operating the Steering
Switch.

Operation 060570-027 MX 15/19
Operation Manual Page 9
E LEVATING THE P LATFORM
1. Select a firm, level surface.
2. Turn the Drive/Lift Switch to LIFT.
3. While engaging the Interlock Switch, push the Control Handle forward.
4. If the machine is not level the tilt alarm will sound and the machine will not lift or drive. If the tilt alarm
sounds the platform must be lowered and the machine moved to a firm level surface before
attempting to re-elevate the platform.
NOTE: Depression Mechanism supports will deploy automatically as the platform elevates and will retract after the
platform has been lowered completely and has been driven.
T RAVEL W ITH THE P LATFORM E LEVATED
NOTE: The machine will travel at reduced speed when the platform is elevated.
1. Check that the route is clear of obstacles (persons, obstructions, holes, drop-offs, bumps, and debris), is
level, and is capable of supporting the wheel loads.
2. Check clearances above, below, and to the sides of platform.
3. Turn the Drive/Lift Switch to DRIVE.
4. Engage the Interlock Switch and move the Control Handle to FORWARD or REVERSE to travel in the
desired direction. The speed of the machine will vary depending on how far from center the Control Han-
dle is moved.
5. If the machine is not level the tilt alarm will sound and the machine will not lift or drive. If the tilt alarm
sounds the platform must be lowered and the machine moved to a firm, level surface before
attempting to re-elevate the platform.
L OWERING THE P LATFORM
1. Turn the Drive/Lift Switch to LIFT.
2. Check around the base of the platform to ensure that no one is in contact with the machine. Engage the
Interlock Switch and pull back on the Control Handle to lower the platform.
3. The platform will stop when it reaches the PPE cutout height. Inspect around the machine to ensure no
one is in contact with the machine. After a four-second time delay, lower the platform as in step 2.

Page 10 Operation Manual
060570-027 MX 15/19 Operation
E MERGENCY L OWERING
WARNING
!!
If the platform should fail to lower, NEVER climb down the elevating assembly.
Stand clear of the elevating assembly while operating the Emergency Lowering Valve Knob.
Figure 5:
Emergency Lowering

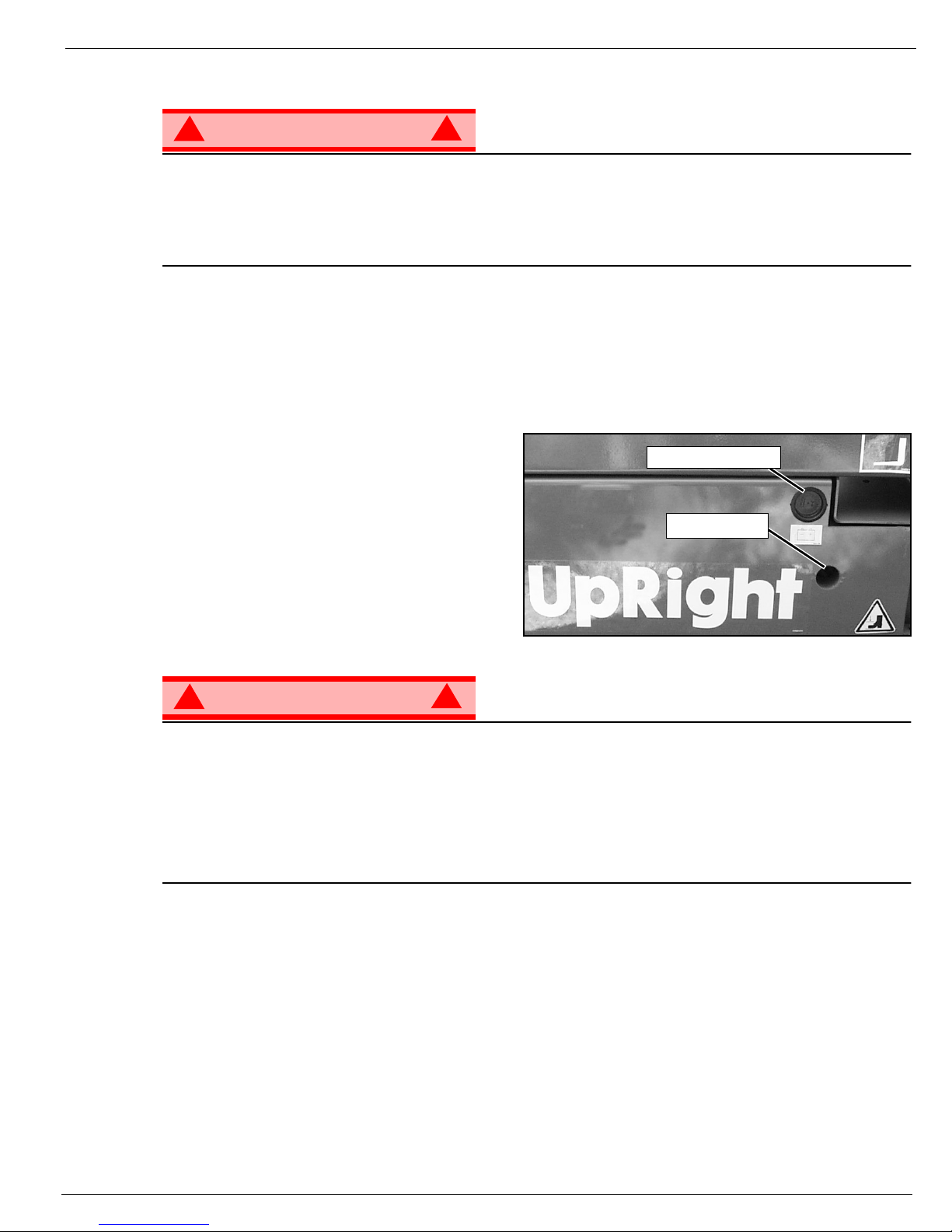

The Emergency Lowering Valve Knob is located beside
the ladder at the rear of the machine.
1. Open the Emergency Lowering Valve by pulling and
holding the knob.
2. To close, release the knob. The platform will not elevate
if the Emergency Lowering Valve is open.
P ARKING B RAKE R ELEASE
Perform the following procedure only when the machine
will not operate under its own power and it is necessary to
move the machine, or when winching onto a trailer to
transport.
Figure 6:
Parking Brake Release
1. To release the brakes, loosen the jam nut and bolt until
the brakes disengage the tires (Figure 6). The machine will
now roll when pushed or pulled.
2. To re-engage the brakes, tighten the bolt until the brakes
have fully engaged the tires. Secure the bolt with the lock-
nut. Verify that the brakes have fully engaged the rear tires
before operating the machine by testing their ability to hold
the machine on a 25%(14°) grade.
WARNING
!!
Never tow faster than 0,3 m/sec. (1 ft./sec.).
Never operate the work platform with the parking brakes released. Serious injury or damage could
result.
A FTER U SE E ACH D AY
1. Ensure that the platform is fully lowered.
2. Park the machine on a firm level surface, preferably under cover, secure against vandals, children and
unauthorized operation.
3. Turn the Chassis Key Switch to OFF and remove the key to prevent unauthorized operation.
Emergency Lowering Valve
Knob
Brake Release Bolt

Transporting the Work Platform 060570-027 MX 15/19
Operation Manual Page 11
T RANSPORTING THE W ORK P LATFORM
B Y C RANE
Secure the straps to Tie Down/Lifting D-Rings only.
B Y F ORKLIFT
DANGER
! !
Forklifting is for transport only.
See specifications for weight of work platform and be certain that forklift is of adequate capacity to lift
the work platform.
Both the MX15 and MX19 may be forklifted from the rear end of the machine between the wheels.They
may also be forklifted from the side using the forklift pockets shown in the diagram.
Figure 7:
Transporting the Work Platform
B Y T RUCK
Maneuver the work platform into transport position and chock the wheels. Secure the work platform to the
transport vehicle by attaching chains or straps of adequate load capacity to the Tie Down/Lifting D-Rings.
CAUTION
Overtightening of the chains or straps attached to the Tie Down/Lifting D-Rings may result in damage
to work platform.
Forklift
Tie Down/Lifting D-Rings
Located At Each End
Forklift
Pockets

Page 12 Operation Manual
060570-027 MX 15/19 Maintenance
M AINTENANCE
WARNING
!!
Never perform service while the platform is elevated without first blocking the elevating assembly.
DO NOT stand in the elevating assembly area while deploying or storing the brace.
Figure 8:
Scissor Brace
B LOCKING T HE E LEVATING
A SSEMBLY
S
CISSOR
B
RACE
I
NSTALLATION
1. Park the work platform on a firm, level surface.
Completely unload the platform before install-
ing the Scissor Brace.
2. Verify that the Chassis and Platform Emer-
gency Stop Switches are ON by pulling each
button out.
3. Turn and hold the Chassis Key Switch to
CHASSIS. Push the Chassis Lift/Lower Switch
to UP and elevate the platform approximately
2,1 m (7 ft.).
4. Rotate the Scissor Brace to a vertical position.
5. Carefully lower the platform until the end of the
Scissor Arm Weldment rests on the Brace.
S
CISSOR
B
RACE
S
TOWAGE
1. While holding the Brace, slowly raise the platform using the Chassis Controls until the end of the Scis-
sor Arm Weldment clears the Scissor Brace.
2. Rotate the Scissor Brace forward to rest on the Chassis.
3. Push the Chassis Lift/Lower Switch to LOWER and completely lower the platform.
Scissor Arm
Weldment
Brace Installed
Brace Stowed

Maintenance 060570-027 MX 15/19
Operation Manual Page 13
B ATTERY M AINTENANCE
WARNING
!!
Hazard of explosive gas mixture. Keep sparks, flame, and smoking material away from batteries.
Always wear safety glasses when working near batteries.
Battery fluid is highly corrosive. Thoroughly rinse away any spilled fluid with clean water.
Always replace batteries with UpRight batteries or manufacturer approved replacements weighing
26,3 kg (58 lbs.) each.
• Check the battery fluid level daily, especially if the work platform is being used in a warm, dry climate.
• If electrolyte level is lower than 10 mm (3/8in.) above the plates add distilled water only. DO NOT use
tap water with high mineral content, as it will shorten battery life.
• Keep the terminals and tops of the batteries clean.
• Refer to the Service Manual to extend battery life and for complete service instructions.
B
ATTERY
C
HARGING
Figure 9:
Battery Charger
Charge the batteries at the end of each work
shift or sooner if the batteries have been dis-
charged.
WARNING
!!
Charge the batteries in a well ventilated area.
Do not charge the batteries when the work platform is near a source of sparks or flames.
Permanent damage to the batteries will result if the batteries are not immediately recharged after
discharging.
Never leave the battery charger operating for more than two days.
Never disconnect the cables from the batteries when the charger is operating.
Keep the charger dry.
1. Check the battery fluid level. If the battery fluid level is lower than 10 mm (3/8in.) above the plates add
distilled water only.
2. Connect an appropriate extension cord to charger outlet plug in Left Module Door. Plug the extension
cord into a properly grounded outlet of proper voltage and frequency.
3. The charger turns on automatically after a short delay. The LED charge indicator will illuminate. After
completion of the charge cycle the LED will blink, indicating that the charger is in a continuing mainte-
nance mode. DO NOT leave the charger plugged in for more than 48 hours, as permanent damage to
the batteries may occur.
NOTE: The battery charger circuit must be used with a GFI (Ground Fault Interrupt) outlet.
NOTE: DO NOT operate the machine while the charger is plugged in.
Charger Outlet Plug
LED Indicator

Page 14 Operation Manual
060570-027 MX 15/19 Inspection and Maintenance Schedule
I NSPECTION AND M AINTENANCE S CHEDULE
The Complete Inspection consists of periodic visual and operational checks, along with periodic minor
adjustments that assure proper performance. Daily inspection will prevent abnormal wear and prolong the
life of all systems. The inspection and maintenance schedule should be performed at the specified inter-
vals. Inspection and maintenance shall be performed by personnel who are trained and familiar with
mechanical and electrical procedures.
WARNING
!!
Before performing preventative maintenance, familiarize yourself with the operation of the machine.
Always block the elevating assembly whenever it is necessary to perform maintenance while the
platform is elevated.
The daily preventative maintenance checklist has been designed for machine service and maintenance.
Please photocopy the Daily Preventative Maintenance Checklist and use the checklist when inspecting
the machine.
D AILY P REVENTATIVE M AINTENANCE C HECKLIST
M
AINTENANCE
T
ABLE
K
EY
I
NTERVAL
Y=Yes/Acceptable
N=No/Not Acceptable
R=Repaired/Acceptable
P
REVENTATIVE
M
AINTENANCE
R
EPORT
Date: ______________________________________
Owner: _____________________________________
Model No:___________________________________
Serial No: ___________________________________
Serviced By:_________________________________
COMPONENT INSPECTION OR SERVICES Y N R
Battery Check electrolyte level.
Check battery cable condition.
Chassis Check hoses for pinch or rubbing points.
Check welds for cracks.
Control Cable Check the exterior of the cable for pinching, bind-
ing or wear.
Controller Check switch operation.
Drive Motors Check for operation and leaks.
Elevating Assembly Inspect for structural cracks.
Emergency
Lowering System
Operate the emergency lowering valve and check
for serviceability.
Entire Unit Check for and repair collision damage.
Hydraulic Fluid Check fluid level.
Hydraulic Pump Check for hose fitting leaks.
Hydraulic System Check for leaks.
Labels Check for peeling, missing, or unreadable labels &
replace.
Platform Deck and
Rails
Check welds for cracks.
Check condition of deck.
Tires Check for damage.
COMPONENT INSPECTION OR SERVICES Y N R

Daily Preventative Maintenance Checklist 060570-027 MX 15/19
Operation Manual Page 15
N OTES :

Page 16 Operation Manual
060570-027 MX 15/19 Labels
L ABELS

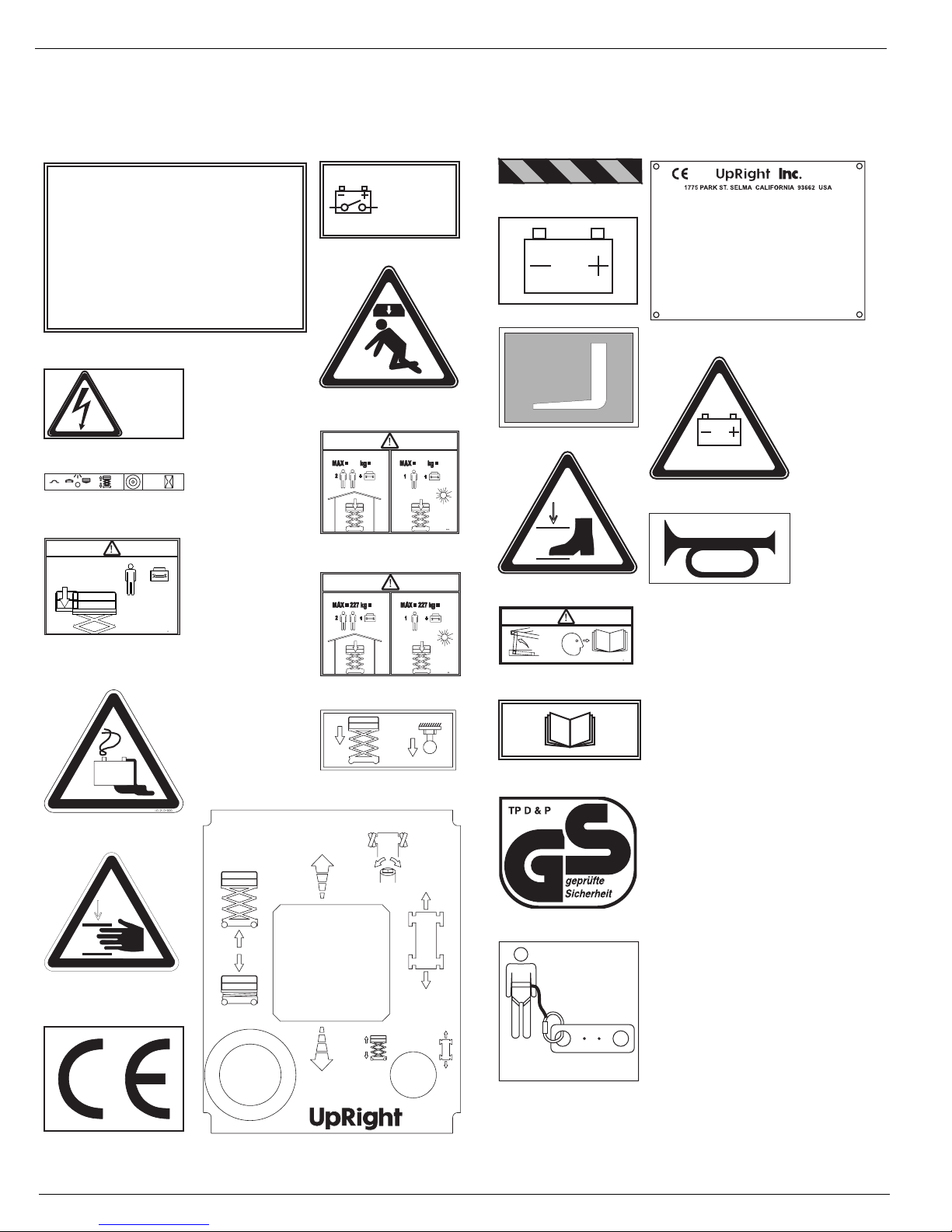

These labels shall be present and in good condition before operating the work platform. Be sure to read,
understand and follow these labels when operating the work platform.
4 067195-001
THIS PLATFORM IS
NOT INSULATED
DIESE ARBEITSBÜHNE
IST NICHT ISOLIERT
CETTE PLATEFORME
N'EST ISOLEE
100102-900
5 100102-900
11 066559-900
!
066551-950
MAX = 113 kg =
MAX = 113 kg =
+
+
1
1
12 066551-950
13 101210-000
14 101208-000
030768-001
15 030768-001
INSIDE
INNSEITIG
L'INTERIEUR
107051-900
16 107051-900
17 066556-900
!
066557-951
066557-951
18 MX19 066557-951
!
066557-951
066557-952
250
250
18 MX15 066557-952
005223-906
19 005223-906
20 101222-904
21 064936-099
066522-900
22 066522-900
014222-903
23 014222-903
24 101208-001
!
063255-901
25 063255-901
010076-901
26 010076-901
27 030768-002
28 068635-001
Model______________ Serial number:___________
Machine weight _______kg Mfg. date:_________
Maximum wheel load:________
Maximum allowable incline of machine when elevated:_____deg.
Occupants and equipment must not exceed the rated maximum
load:_____kg Maximum platform occupants: _____
Maximum allowable sIde force on platform:_____N
Maximum platform height:______m
Maximum platform reach:______m
Maximum allowable wind speed: ______m/s=Beaufort scale_____
Maximum hydraulic system pressure:_____bar
Maximum system voltage: _______Vdc
This machine is manufactured to comply with
Machinery directive 89-392/CEE
CAUTION: CONSULT OPERATOR'S MANUAL BEFORE USE.
061205-003
29 061205-003
26,3 kg +
35 062562-951
36 107053-000
IN CASE OF EMERGENCY push emergency stop switch to deactivate all powered functions.
AFTER USE, secure the work platform from unauthorized use by turning the keyswitch off and removing key.
Modifications to the aerial work platform are prohibited or permissible only at the approval by UpRight.
NEVER charge batteries near sparks or open flame. Charging batteries emit explosive hydrogen gas.
To bypass any safety equipment IS PROHIBITED and presents a danger for the persons on the aerial work platform and in its working range.
NEVER use a machine that is damaged, not functioning properly, or has damaged or missing labels.
VERIFY that all labels are in place and legible before using.
INSPECT the machine thoroughly for cracked welds, loose or missing hardware, hydraulic leaks, loose wire connections,
and damaged cables or hoses before using.
NEVER perform service on machine while platform is elevated without blocking elevating assembly.
To extend the height or the range by placing of ladders, scaffolds or similar devices on the platform IS PROHIBITED!
IT IS PROHIBITED to keep the swing gate or liftable bar in an open position when the platform is raised!
Dismantling the swing gate or other railing components IS PROHIBITED! Always make certain that the swing gate is closed
and securely locked!
Climbing up the railing of the platform, standing on or stepping from the platform onto buildings or other structures, IS PROHIBITED!
IF ALARM SOUNDS while platform is elevated, STOP, carefully lower platform. Move machine to a firm, level surface.
NEVER operate the machine when wind speeds exceed this machine's wind rating. Read operator's manual for more details.
OPERATE machine only on surfaces capable of supporting wheel loads.
NEVER operate the machine without first surveying the work area for surface hazards such as holes, drop-offs, bumps, curbs,
or debris; and avoiding them.
DISTRIBUTE all platform loads evenly on the platform.
NEVER exceed the manual force allowed for this machine. Read operator's manual for more details.
The use and operation of the aerial work platform as a lifting tool or a crane IS PROHIBITED!
Exceeding the specified permissible maximum load IS PROHIBITED! Read operator's manual for more details.
THIS AERIAL WORK PLATFORM IS NOT INSULATED! For this reason it is imperative to keep a safe distance
from live parts of electrical equipment!
USE OF THE AERIAL WORK PLATFORM: This aerial work platform is intended to lift persons and his tools as well as the material
used for the job. It is designed for repair and assembly jobs and assignments at overhead workplaces (ceilings, cranes, roof
structures, buildings etc.). All other uses of the aerial work platform are prohibited!

Labels 060570-027 MX 15/19
Operation Manual Page 17
Figure 10:
Safety Labels Locations

Page 18 Operation Manual
060570-027 MX 15/19 Specifications
S PECIFICATIONS
*Specifications are subject to change without notice. Hot weather or heavy use may affect performance.
Refer to the Service Manual for complete parts and service information.
The MX15/19 meets or exceeds all applicable CE and GS machinery directive requirements.
ITEM MX15 MX19
Platform Size (Inside minimum)
Standard w/Deck 0,57 m x 2,5 m (22.5 in. x 98.5 in.) 0,57 m x 2,5 m (22.5 in. x 98.5 in.)
Maximum Platform Capacity
Standard w/Deck Extension 250 kg (550 lbs.) 227 kg (500 lbs.)
Maximum Number of Occupants
Standard w/Deck Extension 2 People indoors/1 person outdoors 2 People indoors/1 person outdoors
on Extension 1Person 1Person
Height
Working Height 6,57 m (21 ft. 7 in.) 7,8 m (25 ft. 6 in.)
Maximum Platform Height 4,57 m (14 ft. 11 in.) 5,8 m (19 ft.)
Maximum Drivable Height 4,57 m (14 ft. 11 in.) 5,8 m (19 ft.)
Dimensions
Weight 1043 kg (2300 lbs.) 1365 kg (3010 lbs.)
Overall Width 760 mm (30 in.) 760 mm (30 in.)
Overall Height (Lowered) 1,93 m (76 in.) 2,02 m (79.5 in.)
Overall Length (Deck in) 1,60 m (63 in.) 1,60 m (63 in.)
Drive Speed
Platform Lowered 3,7km/h(2.3mph) 3,7km/h(2.3mph)
Platform Raised 1,0 km/h (0.62 mph) 1,0 km/h (0.62 mph)
Energy Source
24 V battery pack (4-220 A hour, 6 V
batteries, min. wt. 26,3 kg [58 lbs.] each),
4HPDCelectricmotor
24 V battery pack (4-220 A hour, 6 V
batteries, min. wt. 26,3 kg [58 lbs.] each),
4HPDCelectricmotor
System Voltage 24 V DC 24 V DC
Battery Charger 20 A, 240 V AC 50 Hz, Automatic 20 A, 240 V AC 50 Hz, Automatic
Hydraulic Tank Capacity 12,9 L (3.4 US gal.) 12,9 L (3.4 US gal.)
Maximum Hydraulic System Pressure 207 bar (3000 psi) 207 bar (3000 psi)
Hydraulic Fluid
Normal above 32° F [0° C] ISO #46 ISO #46
Low Temp. below 32° F [0° C] ISO #32 ISO #32
below 0° F [-17° C] ISO #15 ISO #15
Lift System One Single Stage Lift Cylinder One Single Stage Lift Cylinder
Drive Control Motor Control Motor Control
Control System
Control Handle with Interlock Switch,
Rotary Drive/Lift Switch, and Red
Mushroom Emergency Stop Switch
Control Handle with Interlock Switch,
Rotary Drive/Lift Switch, and Red
Mushroom Emergency Stop Switch
Drive System Dual Front Wheel Hydraulic Motors Dual Front Wheel Hydraulic Motors
Tires 30,5 cm (12 in.) diameter solid rubber,
Non-marking
30,5 cm (12 in.) diameter solid rubber,
Non-marking
Parking Brake Dual, Spring Applied, Hydraulic Release Dual, Spring Applied, Hydraulic Release
Turning Radius (inside) 25 mm (1 in.) Inside 25 mm (1 in.) Inside
Maximum Gradeability 25% (14°) 25% (14°)
WheelBase 1,23m(48.5in.) 1,23m(48.5in.)
Guardrails 1,10 m (43 in.) 1,10 m (43 in.)
Toeboard 152 mm (6 in.) 152 mm (6 in.)
Noise Level
