V-TAC VT-6605103 User manual

INSTRUCTION MANUAL
HYBRID SOLAR INVERTER SINGLE PHASE
IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: [e-mail]
FOR MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST
DEALERS. V-TAC EUROPE LTD. BULGARIA, PLOVDIV 4000, BUL.L.KARAVELOW 9B
Thank you for selecting and buying V-TAC Product. V-TAC will serve you
the best. Please read these instructions carefully & keep this user manual
handy for future reference. If you have any another query, please contact
our dealer or local vendor from whom you have purchased the product.
They are trained and ready to serve you at the best.
INTRODUCTION
Multi-Language Manual QR CODE
Please scan the QR code to access the manual
in multiple languages.

WARNING
1. Please make sure to turn off the power before starting the installation.
2. Installation must be performed by a qualified electrician.
• Danger to life due to high voltages in the inverter!
• All work must be carried out by qualified electrician.
• The appliance is not to be used by children or persons with reduced physical
sensory or mental capabilities, or lack of exrerience and knowledge, unless
they have been given supervision or instruction.
• Children should be supervised to ensure that they do not play with the
appliance.
• Danger of burn injuries due to hot enclosure parts!
• During operation, the upper lid of the enclosure and the enclosure body may
become hot.
• Only touch the lower enclosure lid during operation.
• Possible damage to health as a result of the effects of radiation!
• Do not stay closer than 20 cm to inverter for any length of time.
• Ensure input DC voltage ≤Max. DC voltage.
• Over voltage may cause permanent damage to inverter or other losses,
which will not be included in warranty
• Authorized service personnel must disconnect both AC and DC power from
inverter before attempting any maintenance or cleaning or working on any
circuits connected to inverter.
• Grounding the PV generator.
• Comply with the local requirements for grounding the PV modules and the
PV generator. It is recommends connecting the generator frame and other
electrically conductive surfaces in a manner which ensures continuous
conduction and ground these in order to have optimal protection of system
and persons.
Caution, risk of electric shock.
This marking indicates that this
product should not be disposed
of with other household wastes.
20
PAP

• Accesories only together with the inverter shipment are recommanded here.Other wise
may result in a risk of fire, electric shock, or injury to person.
• Make sure that existing wiring is in good condition and that wire is not undersized.
• Do not disassemble any parts of inverter which are not mentioned in installation guide.
It contains no user-serviceable parts. See Warranty for instructions on obtaining service.
• Attempting to service the inverter yourself may result in a risk of electric shock or fire
and will void your warranty.
• Keep away from flammable, explosive materials to avoid fire disaster. The installation
place should be away from humid or corrosive substance.
• Authorized service personnel must use insulated tools when installing or working with
this equipment. PV modules shall have an IEC 61730 class A rating.
• Never touch either the positive or negative pole of PV connecting device. Strictly
prohibit touching both of them at the same time.
• The unit contains capacitors that remain charged to a potentially lethal voltage after the
MAINS , battery and PV supply has been disconnected.
Hazardous voltage will present for up to 5 minutes after disconnection from power
supply.
• CAUTION-RISK of electric shock from energy stored in capacitor, Never operate on the
inverter couplers, the MAINS cables, Battery cables, PV cables or the PV generator when
power is applied. After switching o ffthe PV , battery and Mains, always wait for 5minutes
to let the intermediate circuit capacitors discharge before unpluging DC , battery inplug
and MAINS couplers.
• When accessing the internal circuit of inverter, it is very important to wait 5 minutes
before operating the power circuit or demounting the electrolyte capacitors inside the
device. Do not open the device before hand since the capacitors require time sufficiently
discharge!
INTRODUCTION
The inverter can be used to optimize self consumption, store in the battery for future use
or feedin to public grid. Work mode depends on PV energy and user’s preference. It can
provide power for emergency use during the grid lost by using the energy from battery
and inverter (generated from PV).In addition, the parallel function is available
(off grid model).

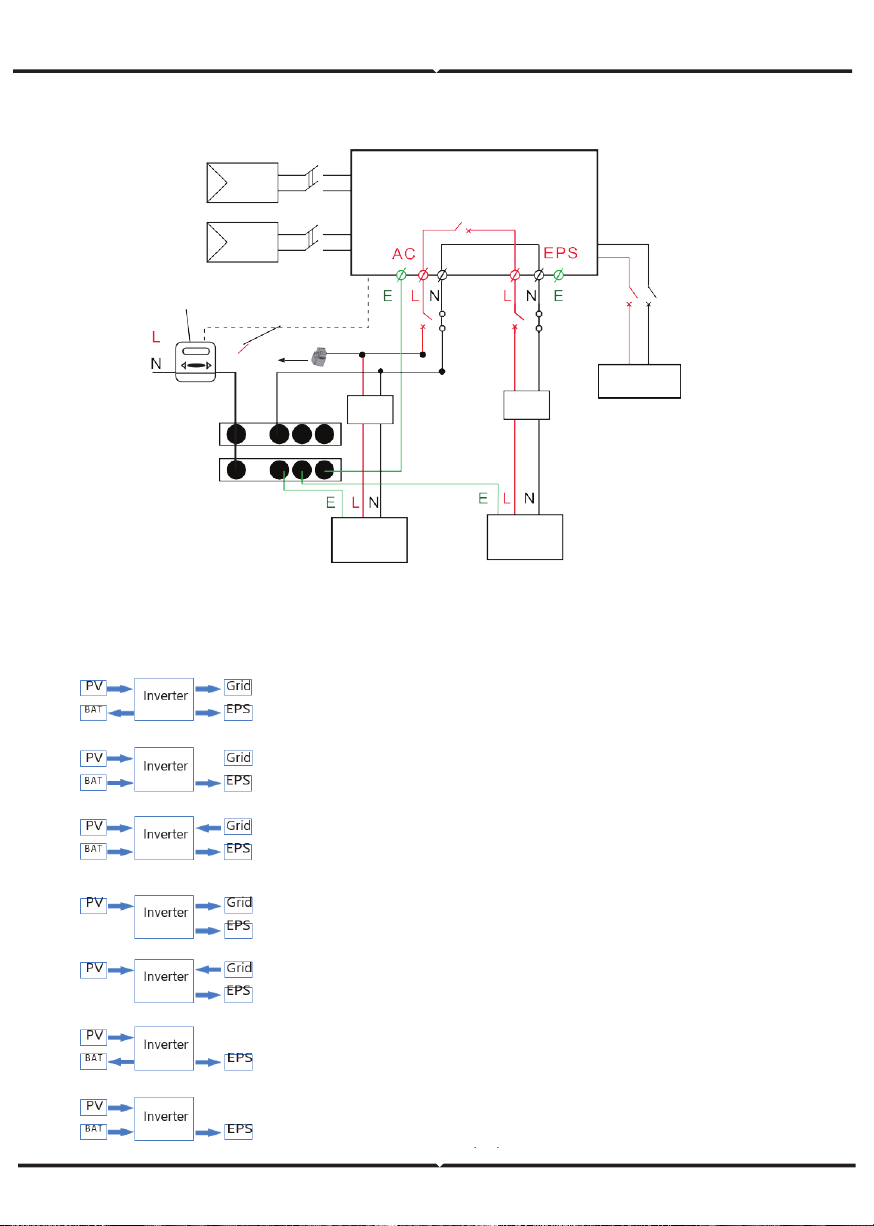

System Diagram 1 (applies to most countires )
PV1+
PV1
-
Inverter
PV2+
PV2 -
Megarevo
meter
Main switch CT
PE
+
-
Battery
RCD
RCD
DPDT
E-BAR
EPS
Load

Load
PV1+
PV1
-
Inverter
PV2+
PV2
-
meter
Main switch
CT
+
-
Battery
RCD
RCD
N
-BAR
E-BAR
Loads
EPS
Loads
System Diagram 2
(applies to wiring rules AS/NZS_3000:2012 for Australia and New Zealand )
Work Modes
Hybrid Inverter provides multiple work modes based on different requirements
Work modes: Self-use
1.When PV, Grid, Battery is available:
A. Solar energy provides power to the loads as first priority, if solar
energy is sufficient to power all connected loads, solar energy
excess power will provides to charge battery, and then reduntant
power will feed to grid.
B. Solar energy provides power to the loads as first priority ,if solar
energy is not sufficient to power all connected loads, battery energy
will supply power to the loads at the same time.
C. Solar energy provides power to the loads as first priority ,if solar
energy and battery are not sufficient to power all connected loads,
utility energy (Main Grid) will supply power to the loads with solar
energy at the same time.
2 .When PV, Grid is available（without battery):
A. Solar energy provides power to the loads as first priority ,if solar
energy is sufficient, the excess power will feed to grid.
B. Solar energy provides power to the loads as first priority, if solar
energy is not sufficient to power all connected loads, Grid energy
will supply power to the loads at the same time.
3 .When PV, Battery is available（Grid is disconnected):
A. Solar energy provides power to the loads as first priority ,if solar
energy is sufficient to power all connected loads, solar energy will
provides to charge battery.
B. Solar energy provides power to the loads as first priority ,if solar
energy is not sufficient to power all connected loads, battery energy
and solar energy will supply power to the loads at the same time.

Load
Work modes: Peak shift
1. When PV, Grid, Battery is available:
A. On charge time, solar energy will charge battery as first priority.
The excess energy will supply power to the loads.If solar energy is
sufficient to supply loads and charge battery,and If there's still some
extra energy, then the excess power will feed the power to grid
B. On charge time, solar energy will charge battery as first
priority.then the excess solar energy will supply power to loads.If
solar energy is not sufficient to charge battery and supply loads, grid
will supply all the connected loads with solar energy together.
C. On discharge time, solar energy provides power to the loads as
first priority, if solar energy is sufficient to supply loads ,and if
there's still some extra energy from solar energy ,then the excess
power and battery will deliver the power to the grid at the same
time.
D. In the period of no charge or discharge, the solar power supply
loads at first priority , excess energy to the grid.
2. When Grid, Battery is available(PV is disconnected):
A. On charge time, grid will charge battery and supply power to the
connected loads at the same time.
B. On discharge time, if load power is less than battery power,
battery will supply power to loads as first priority, the excess power
will be feed to grid.
C. On discharge time, if load power is more than battery power,
battery and grid will supply power to the loads at the same time.
Work modes: Bat priority
1. When PV, Grid, Battery is available:
A. Solar energy will charge battery as first priority, if solar energy is
excess, the excess power will supply load. If there's still some extra
energy, then the excess power will feed the power to grid .
B. Solar energy will charge battery as first priority, if solar energy is
excess, the excess power will supply load.If solar energy is not
sufficient to charge battery and supply loads, grid will supply power
to loads.
2. When Grid,Battery is available（PV is disconnected):
Grid will supply power to load and charge battery at the same time.
If set anti-Reverse function allowable, Once on the work mode of Self-
use, Peak shift, battery priority, the system will not feed power to grid.

Load
INTERFACE DEFINITION

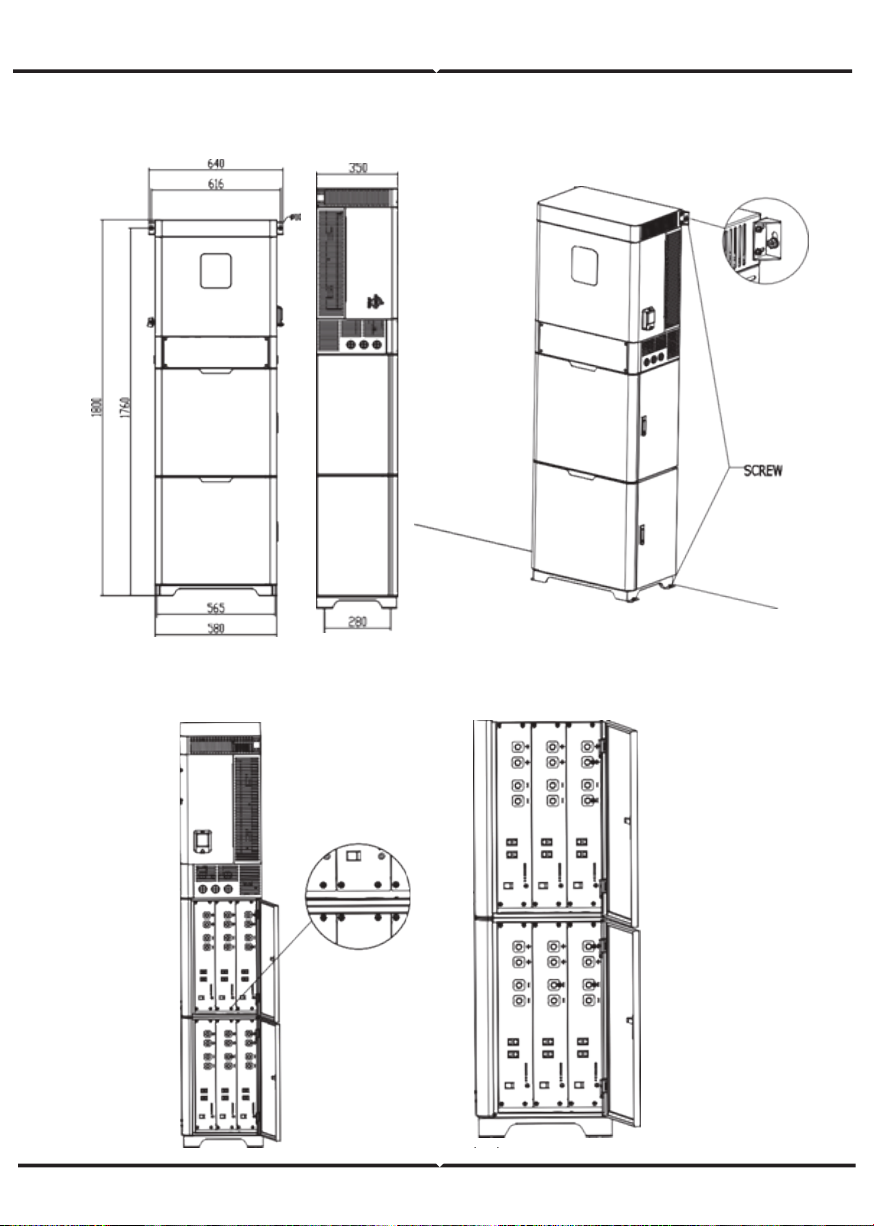

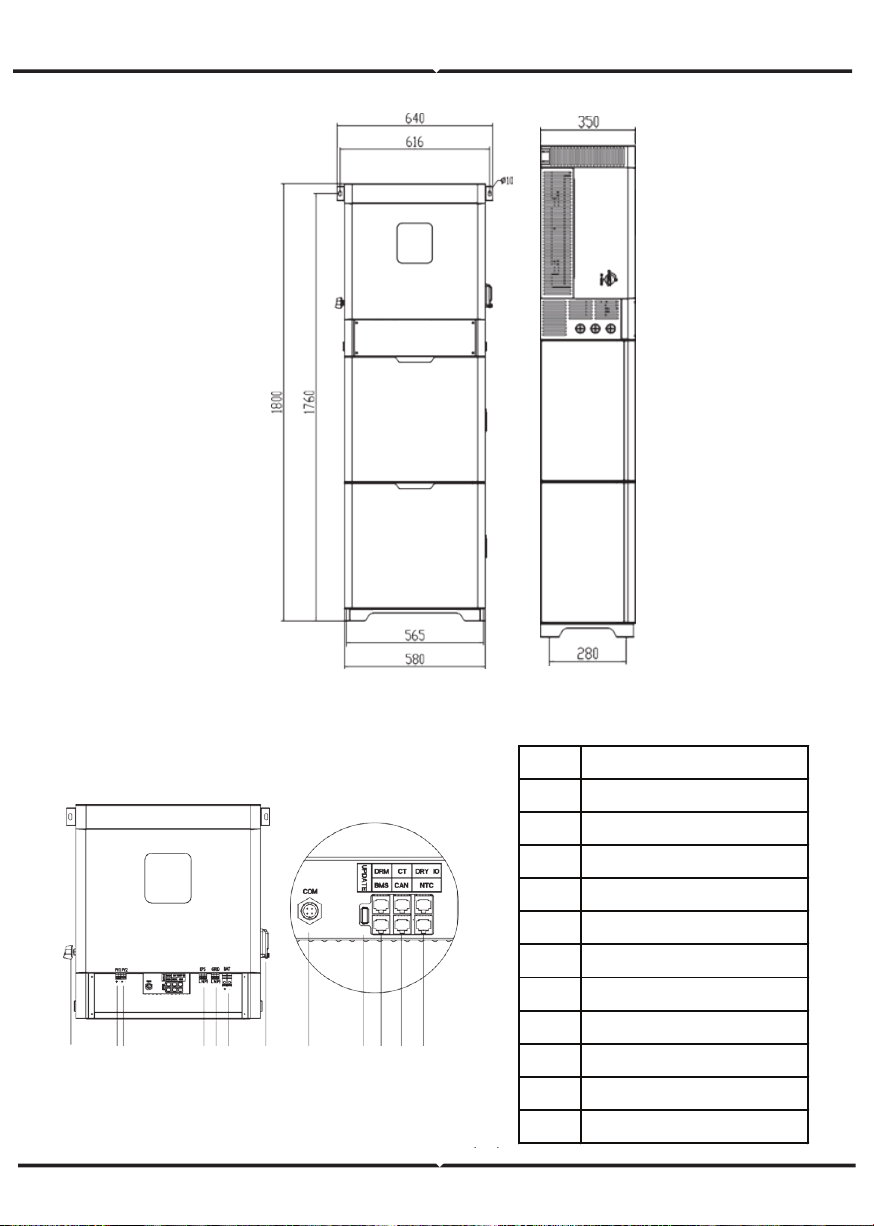

DIMENSION
Object Description
A/B PV1+/PV1-/PV2+/PV2-

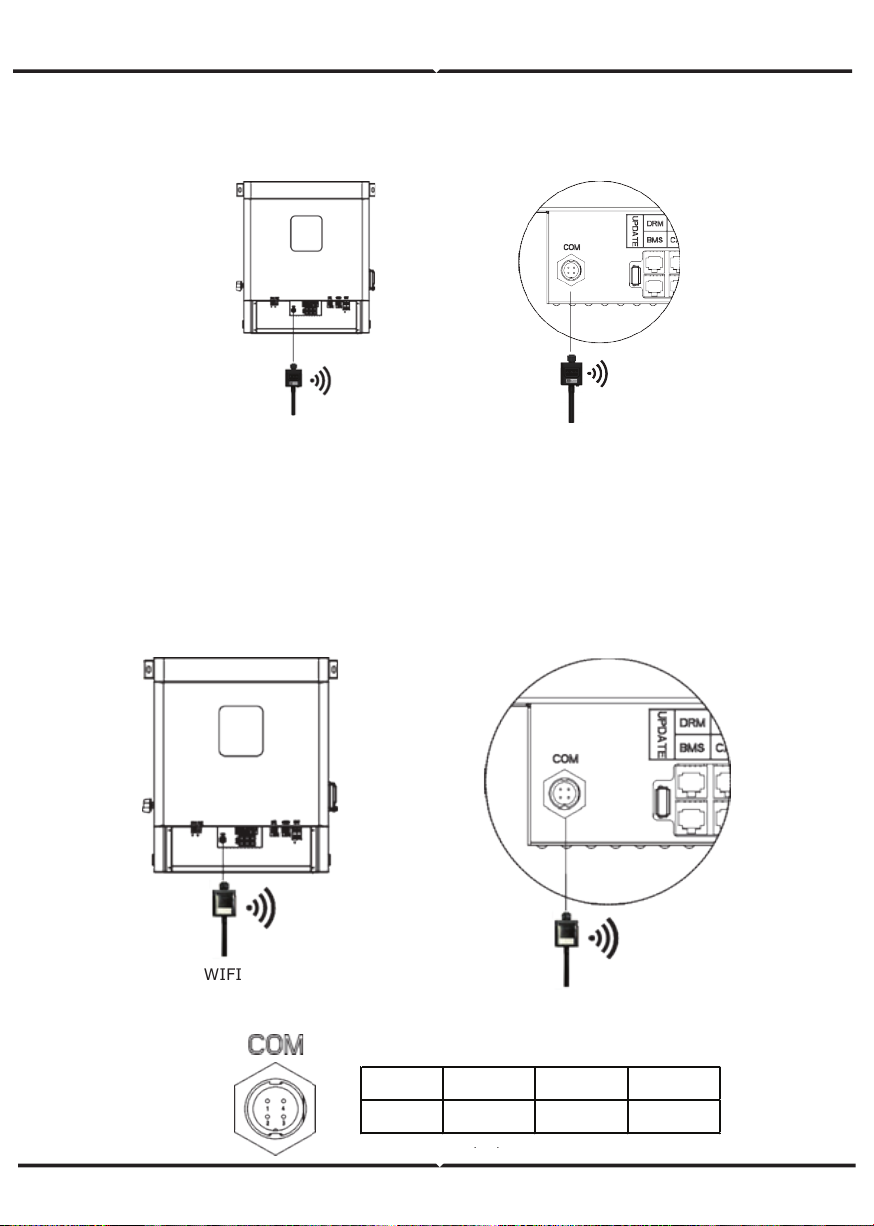

CWiFi port for external WiFi
DUSB port for upgrading
E/F DRM/BMS
G/H CT /CAN
I/J DRY IO /NTC
KEPS output
LGrid
MBattery +/Battery -
NPV swi tch
OBattery s wi tch

Load
TECHNICAL DATA
Model
VT-6605103
DC input
Max. recommended DC power [W] 7000
Max. DC voltage[V] 550
Norminal DC operating voltage[V] 360
MPPT voltage range [V] 125-500
MPPT voltage range@full load [V] 220-500
Max. input current [A] 14/14
Max. short circuit current [A] 17.5/17.5
Start input voltage [V] 125
No. of MPP trackers 2
Strings per MPP tracker 1
Max. inverter backfeed current to array 0
DC disconnection swtich /
AC output
Norminal AC power[VA] 5000
Max. apparent AC power[VA] 5000
Rated grid voltage(range)[V] 230 (176 to 270)
Rated grid frequency[Hz] 50/60
Norminal AC current[A] 21.7
Max.AC current[A] 21.7
Displacement power factor 0.99 leading. 0.99 lagging
Total harmonic distortion(THDI) < 2%
Load control optional
AC input
Norminal AC power[VA] 5000
Rated grid voltage(range)[V] 230(176 to 270)
Rated grid frequency[Hz] 50/60
Norminal AC current[A] 21.7
Max.AC current[A] 21.7
Displacement power factor 0.99 leading. 0.99 lagging
AC inrush current 35

Load
Over/under vol tage protection YES
DC isolation protection YES
Monitoring ground fault protection YES
Grid protection YES
DC injection monitoring YES
Back feed current monitoring YES
Safety & Protection
Residual current detection YES
Anti-islanding protection YES
Over load protection YES
Over heat protecti on YES
Max. output fault current 55A
Max. output over current 28.7A
Safety & Protection
EPS output
EPS rated power[VA] 5000
Max. EPS power[VA] 5000
EPS rated voltage, Frequency 230VAC, 50/60Hz
EPS rated current[A] 21.7
Max. EPS current[A] 21.7
Switch time[s] <500ms
Total harmonic distortion(THDv) <2%
Parallel operation Yes
Compatible with the generator Yes(signal provided only)
Battery parameter
Ba�ery type Lithium ba�ery/Lead-ACID
Ba�ery voltage range[V] 40-58
Recommended ba�ery voltage[V] 48
Cut Off Voltage[V] 40
Max. charging Voltag[V] 58
Max. Protective Voltage[V] 59
Max. charge/discharge current[A] 95/104.2
Peak charge/discharge current[A] 95/104.2
Communication interfaces CAN/RS485/WIfI/LAN/DRM
Reverse connect protection YES
Efficiency
MPPT efficiency 99.90%
Euro efficiency 97%
Max. efficiency 97.60%
Max. Ba�ery charge efficiency 95%
Max. Ba�ery discharge efficiency 95%

Load
C
J
D
K
F
G
H
I
.
.
E
A
B
NOTE: Check for Physical Damage
Make sure the inverter is intact during transportation. If there is any visible damage,such as
cracks, please contact your dealer immediately.
PACKAGE DIAGRAM
Model VT-6605103
Dimension [W/H/D](mm) 580*1800*350
Dimension of packing
[W/H/D](mm)
805*820*675/805*460*675
Net weight [kg] 82
Gross weight [kg] 86
Installation console mode
Operating temperature range[°C] -25~+60 (derating at 45)
Storage temperature [°C] -25~+60
Storage/Operation relative
humidity
4%~100% (Condensing)
Altitude [m] <2000
Ingress Protection IP20(for outdoor use)
Protective Class
Ⅰ
Night-time consumption <3W
Over Voltage Category lⅡ(MAINS),Ⅱ( PV,Ba�ery)
Pollution Degree II
Cooling Natural
Noise level
＜
40dB
Inverter Topology non-isolated
Active anti-islanding method Power variation
Communication interface CAN/RS485/WIfI/LAN/DRM

Load
PACKAGE DESCRIPTION
TOOLS REQUIRED FOR INSTALLATION
INSTALLATION STEP
Object Description
AInverter
BBase
CBattery box*2
DBattery*6 (optional)
EWire rod
Object Description
F/G
Expansion screws and
hexa gonal s crew
HWi fimodule (optional)
IGPRS module (optional)
JUser manual
KCT
Installation tools : crimping pliers for binding post and RJ 45, screwdriver, manual wrench etc
Step 1:Fixing the bottom with the battery box 1, using 8 M5*12 screws
Step 2: The battery box 2 fixed. Align the lower notch of battery box 2 with the upper guide
of battery box 1, lower it and push it to the right . Facilitate pushing to the right, the coil can
be removed before assembly.
The coil
Rail

Load

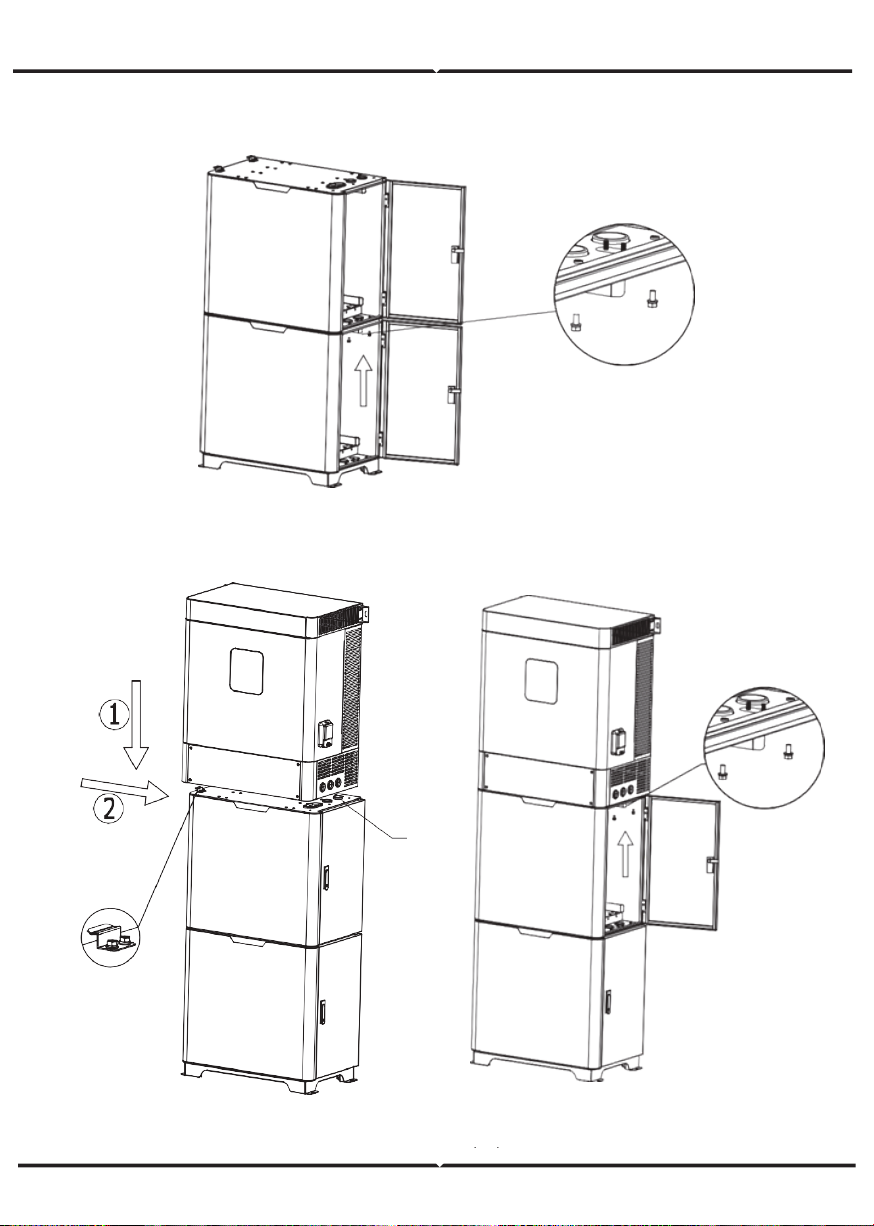

Step 3: Two sets of battery boxes are fixed, open the battery box door, and use 3 M5*12
screws to fix it upward.
Step 4: PCS is fixed, the method is the same as step 2&step 3. To facilitate pushing to the
right, the coil can be removed before assembly.
Rail
Coil

Load
Step 5: All-in-one machine fixing, the top is fixed to the wall, and the bottom is fixed to the
ground, using M6 Expansion screws.
Step 6: The battery fixing, as shown in the figure, push from the right, and a total of 24
M5*12 screws are used.Please pay attention to the direction when assembling the battery.

Load

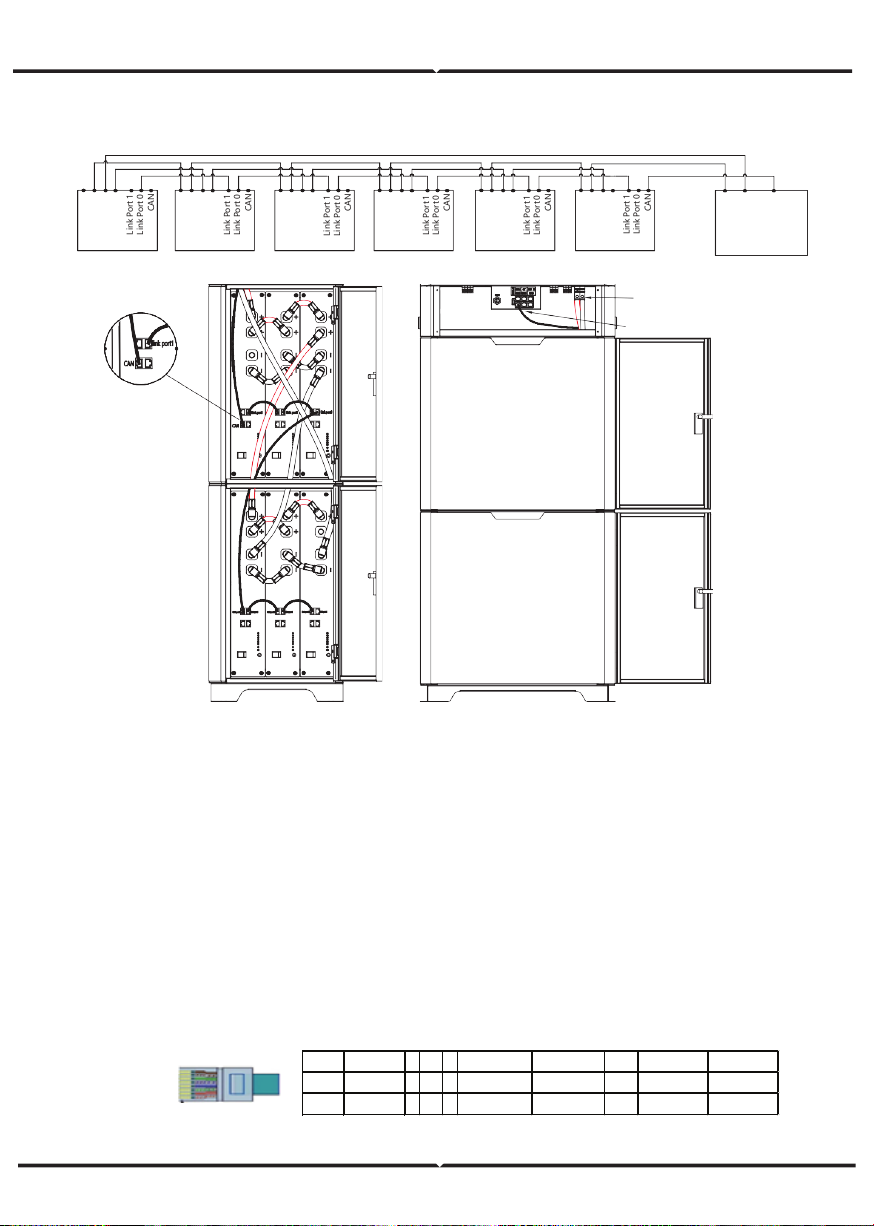

BATTERY CONNECTION
Note
BMS PIN Definition
1. Before choosing battery, please note the maximum voltage of battery can not exceed
59V and the rated voltage of battery can not exceed 48V, and the battery communication
should be compatible with Hybrid inverter.
2. The one with empty link port 0 is the master battery module, others are slaves.
3. The connecting cable between the battery and the inverter shall be at least 4AWG.
4. The battery communication can only work when the battery BMS is compatible with
the inverter.
5. To replace the battery, you need to turn off all switches and unplug the system
communication line.
6. All the above wiring and operations must be carried out after the whole machine is
powered down, and all of them need professional personnel to complete
Battery output/input
CAN
Link Port 1 Link Port 0
CAN
Link Port 1
Link Port 0
CAN
Link Port 1
Link Port 0
CAN
Link Port 1 Link Port 0
CAN
Link Port 1
Link Port 0
CAN
Link Port 1 Link
Port 0
CAN
- -
- -
- -
- -
- -
- -
BMS
Battery6
Battery5
Battery4
Battery3
Battery2
Battery1
PCS
Communication interface bewteen inverter and battery is RS485 or CAN with a RJ45
connector. The wiring sequence of the crystal head conforms to the 568B standard:
orange white, orange, green white, blue, blue white, green, brown white and brown.
PIN 1 2 3 4 5 6 7 8
CAN Definition X X X BMS_CANH BMS_CANL X X X
Rs485 Definition X X X X X GND BMS_485A BMS_485B
1
8

Load

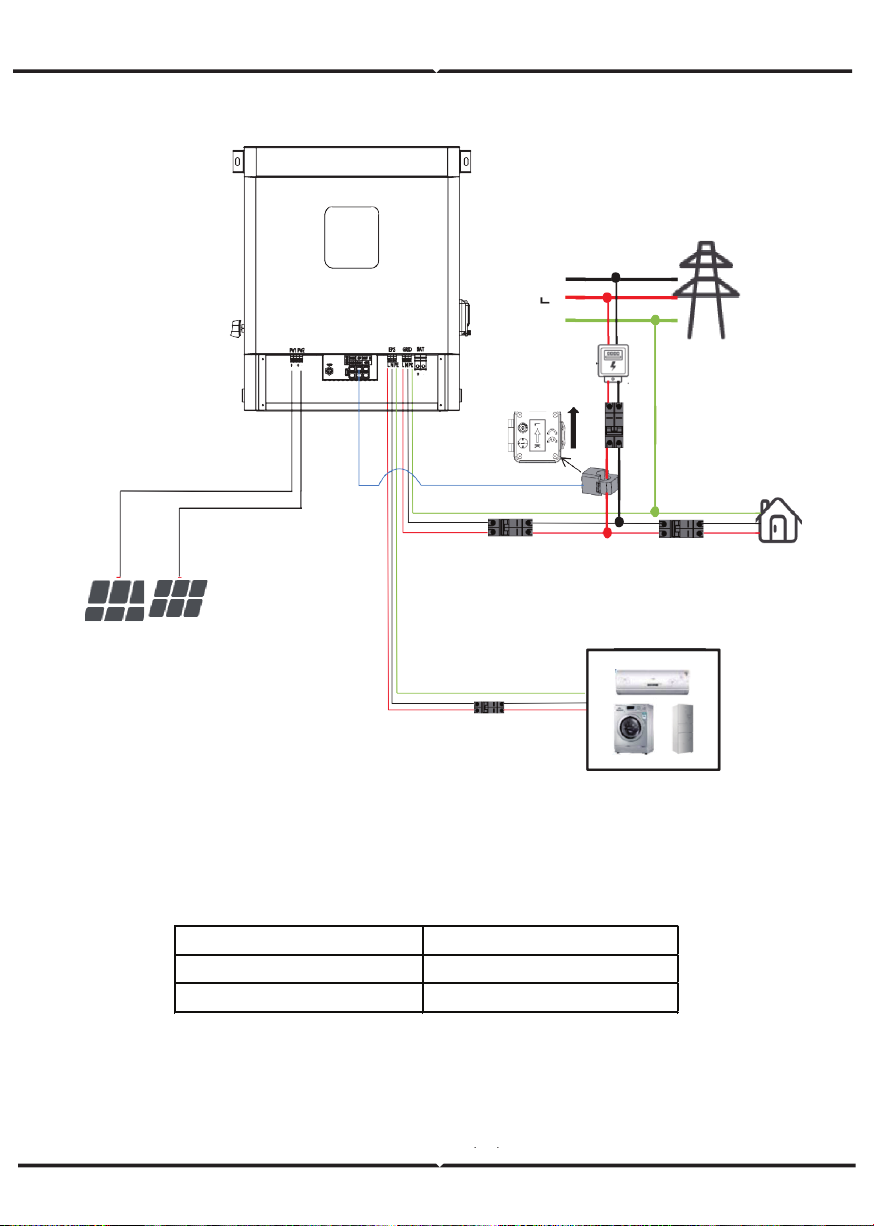

GRID AND LOAD CONNECTION
Hybrid inverter are designed for single phase grid. Voltage is 220/230/240V, frequency is
50/60Hz. Other technical requests should comply with the requirement of the local public
grid.
Micro-breaker should be installed between inverter and grid, any load should not be
connected with inverter directly
GRID
CT
N
L
PE
Meter
Grid side
Main Breaker
CT
On Grid Breaker
AC Breaker Home Load
PV1
PV2
Loads
Off Grid Breaker
Table of cable and Micro-breaker recommended
Model VT-6605103
Cable 5-6mm²
Micro-breaker 32A

Load
PV CONNECTION
Step1. Check the grid voltage.
1.1 Check the grid voltage and compare with the permissive voltage range
(Please refer to technical data).
1.2 Disconnect the circuit board from all the phases and secure against re-connection.
Step2. Select suitable cables and cold-pressed terminals, remove the insulation layer of 18
mm at the end of the wire, and then press the cables and terminals with wire crimping pliers.
Hybrid Inverter can be connected in series with 2-strings PV modules for VT-6605103
Select PV modules with excellent function and reliable quality. Open-circuit voltage of module
arrays connected in series should be <Max. DC input voltage;operating voltage should be
conformed to MPPT voltage range.
Step3. Connect the completed cable to the power grid and eps interface, and tighten the
screws.
Warning!
PV module voltage is very high, which already achieve dangerous voltage
range, please comply with electric safety rules when connecting.
Please do not make PV positive or negative ground!
Connection Steps:
Step 1. Checking PV module, ensure the PV+ and PV- ports of the PV string are correct.
Step 2. Separate PV connector to ensure PV is in open circuit state.
Step 3. Select suitable cables and cold-pressed terminals, remove the insulation layer of 18
mm at the end of the wire, and then press the cables and terminals with wire crimping pliers.
Step 4. Connect the completed cable to the PV interface, and tighten the screws.
Model VT-6605103
Max. DC Voltage (V) 550
MPPT Voltage Range(V) 125-500
Max.DC Voltage Limitation

Load
Communication interface definition
BMS PIN Definition
Communication interface between inverter and battery is RS485 or CAN with a RJ45 connector.
The wiring sequence of the crystal head conforms to the 568B standard: orange white, orange,
green white, blue, blue white, green, brown white and brown.
DRY_IO (RJ45 PIN) Definition
Communication interface between inverter and meter is RS485 with a Rj45 connector.
DRM Connection
DRM is provided to support several demand response modes by emitting control signals as
below. Note: Only PIN6(DRM0) is available now, and other PIN functions are being developed.
PIN 1 2 3 4 5 6 7 8
CAN Definition X X X BMS_CANH BMS_CANL X X X
Rs485 Definition X X X X X GND BMS_485A BMS_485B
Load
1
8
1
8
1
8
1 2 3 4 5 6 7 8
DRYO_1A DROY_1B DRYO_1C DRYI_1 DRYI_1B DRYO_2A DRYO_2B DRYO_2C
12345678
DRM1/5 DRM2/6 DRM3/7 DRM4/8 +5V DRM0 GND GND

Load
GPRS CONNECTION
WiFi And GPRS Connection(optional)
Inverter provides a WiFi port which can collect data from inverter and transmit it to
monitoring-website by WiFi.
GPRS connection interface is consistent with WIFI interface,Please refer to the GPRS user
manual for detailed connection steps
WIFI/GPRS PIN Definition
Step1. Plug Wifi into “WiFi” port at the bottom of the inverter. Step2. Build the connection
between the inverter and router.
Step3. Create a user account online.( Please check the WiFi user manual for more details).
WIFI
WIFI
WIFI
WIFI
1 2 3 4
+5V RS485_A RS485_B GND

Load
SETTING

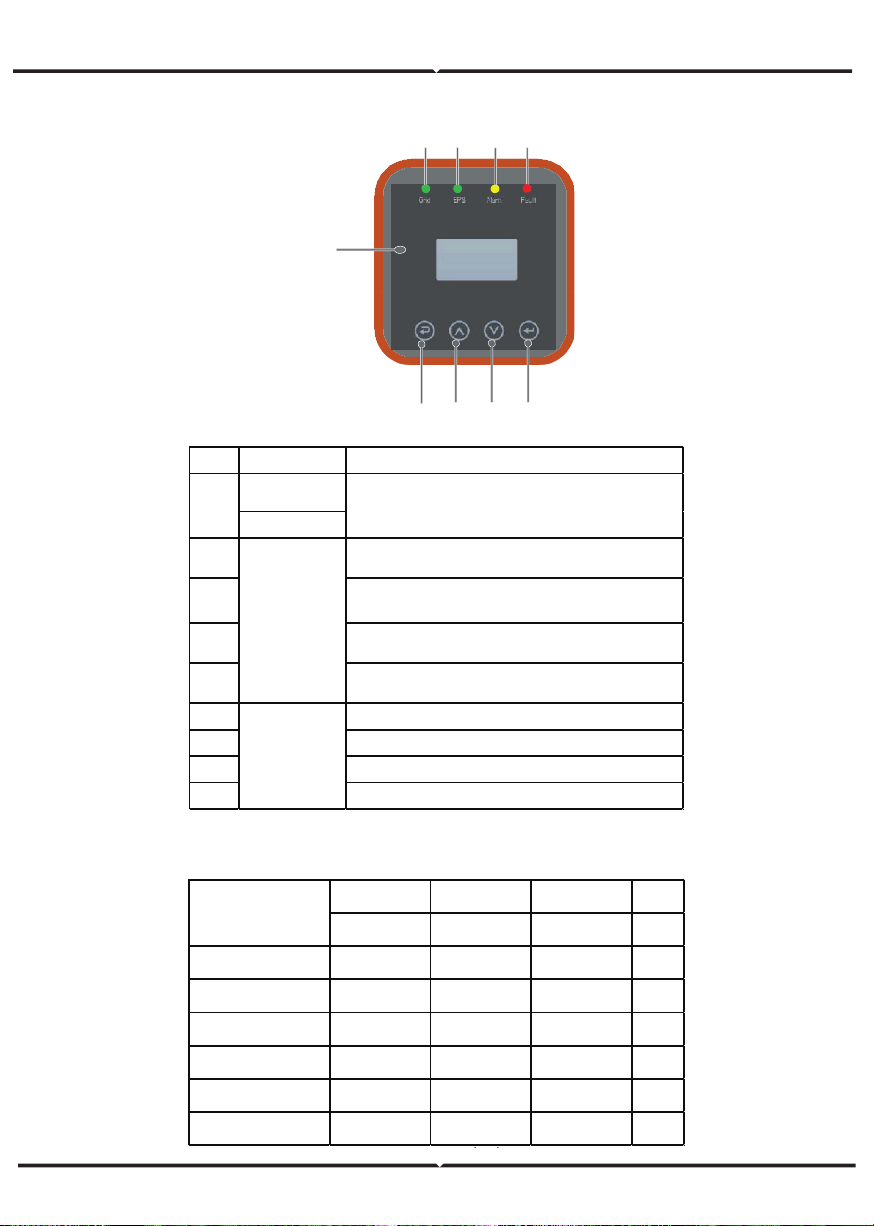

Control Panel
Instructions for LED Indicator
Obj ect Name Description
LCD
Screen
B
li t in green: The inverter i s i n gri d mode.
Off: The inverter is in not in grid mode.
Clit in green: The inverter is in off-grid mode.
Off: The inverter is in not in off-grid mode.
D
lit in Yellow:Theinverter is in Warning.
Off: The inverter has no Inverter Warning
E
lit in red: The inverter is in fault status.
Off: The i nverter has no errors .
FEsc: Return from current interface or function.
GUp: Move cursor to upside or increase value.
HDown: Move cursor to downs i de or decrease val ue.
IEnter: Confirm the sel ecti on.
ADisplay the information of the inverter.
Function Button
Indicator LED
A
BC D E
F G H I
Grid EPS Al a rm Fault
（Green） （Green）(Yellow) (Red)
Initialization off off off off
Stand-by off off off off
Grid mode on off off off
Off-Grid off on off off
Bypass of mains off on on off
Fault off off off on

Instructions for the use of three modes

For example,Before selecting the mode, you can set it up ac cording to the local power grid,
PV input mode and battery type
Power grid：
PV input mode
：
Battery parameters：
