Vaderstad Rexius Twin Series User manual

Original instructions
Instructions
902575-en
14.04.2014
ver. 2
Rexius Twin
series
RST 330-400
Manufacturing No. 110-

2 14.04.2014
ver. 2

RST 330-400
14.04.2014
ver.2 3
1 Safety precautions
1.1 Before using the implement .................................................................. 6
1.2 Warning labels .................................................................................... 6
1.3 Other safety precautions ...................................................................... 7
1.4 ocation of warning labels on the implement ........................................... 8
1.5 Machine plates .................................................................................... 9
1.6 Moving the machine when not hitched to a tractor ................................. 11
2 Assembly instructions
2.1 oading and unloading ....................................................................... 13
2.2 Assembly ......................................................................................... 14
3 Instructions and adjustments
3.1 Hitching to the tractor and unhitching .................................................. 17
3.2 Height adjustment of the towing eyelet ................................................ 18
3.3 Adjusting the preimplement ................................................................ 18
3.4 Stabilizer rod - Crossboard ................................................................. 19
4 Service and maintenance
4.1 Regular maintenance ......................................................................... 20
4.2 Roller unit service .............................................................................. 22
4.3 Replacing the bearing in the hydraulic ram of the preimplements ............. 24
Appendices
5.1 Hydraulic diagram ............................................................................. 25
5.2 Technical data ................................................................................... 26

4 14.04.2014
ver. 2

RST 330-400
14.04.2014
ver.2 5
EC DECLARATION OF CONFORMITY FOR THE MACHINE
in accordance with the EU Machinery Directive 2006/42/EC
Väderstad-Verken AB, P.O. Box 85, SE-590 21 Väderstad, SWEDEN
hereby confirms that the cultivation tools hereunder have been manufactured in
accordance with the Council Directive 2006/42/EC.
The above declaration covers the following machines:
RST 330 and RST 400, manufacturing no. 110-1300.
Väderstad 2010-06-18
Lars-Erik Axelsson
Legal requirements coordinator
Väderstad-Verken AB
Box 85, 590 21 Väderstad
The undersigned is also authorised to compile technical documentation for the above
machines.

Safety precautions
6 14.04.2014
ver. 2
1 Safety precautions

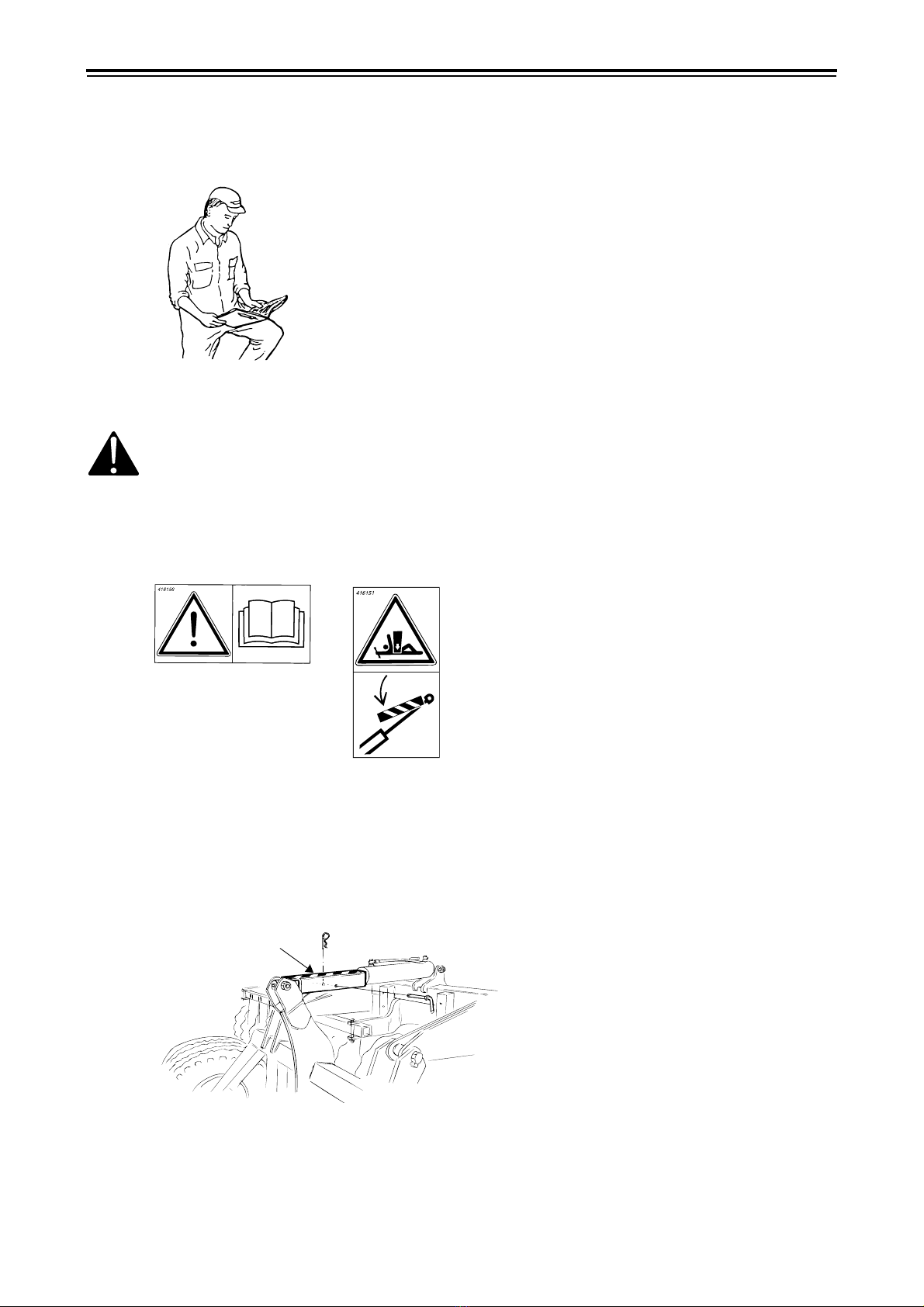

1.1 Before using the implement
Figure 1.1
!Carefully read the instructions and make sure you understand their meaning.
!Always pay attention to the text and illustrations marked with this symbol!
!This implement is designed for preparing the soil in open fields. Learn to handle the implement
carefully and correctly!Drive carefully if there are rocks firmly embedded in the ground. The
implement can be dangerous in the wrong hands and operated carelessly.
1.2 Warning labels
Figure 1.2
A Carefully read the instructions and make sure you understand their meaning.
B All maintenance and service work should only be done when the implement has been lowered
to the ground. Never work under the implement during maintenance and service work unless
it has been properly secured using trestles or similar firm supports. Also be sure to block the
lifting ram of the transport wheels using the yellow locking devices (C). Secure the locking de-
vice using a cotter and locking pin.
Figure 1.3
AB
C

RST 330-400
14.04.2014
ver.2 7
1.3 Other safety precautions
!Prior to connecting the hydraulic hoses, be sure that the male couplings of the implement and
the femail couplings of the tractor are clear and free of dirt.
!The implement and its tyres are dimensioned for a maximum travel speed of
40 km/h during transport on the road. Please refer to ”1.3.1 Drive carefully! Always be safety
conscious!” on page 8.
The hydraulic ram operating the transport wheels can be secured for transport on the road using
the yellow locking device. See “Figure 1.3”.
!Prior to transport on public roads, remove dirt that may fall off from both the vehicle and the
implements.
!The owner/driver has sole responsibility for observing local traffic regulations when driving
on a public road.
!Always park the implement on a level and strong surface, and allow it to rest on the roller rings
and the supporting leg.
!Never stay close a the pressure hose under pressure. Be sure to recover any spilt oil during
work on the hydraulic system.
!If any work needs to be performed on the pre-implements, such as replacing tines, the imple-
ment should be secured by trestles or similar supports on firm ground.
!Pay attention during assembly or disassembly of weights. Be sure to secure them properly us-
ing locking pins and the threaded rod. See ”2.2.1 Fitting the weights (optional)” on page 16.
!To maintain the high level of quality and operational safety, use only Väderstad genuine spare
parts. The warranty and any complaint commitments will become void if other than genuine
parts are used.

Safety precautions
8 14.04.2014
ver. 2

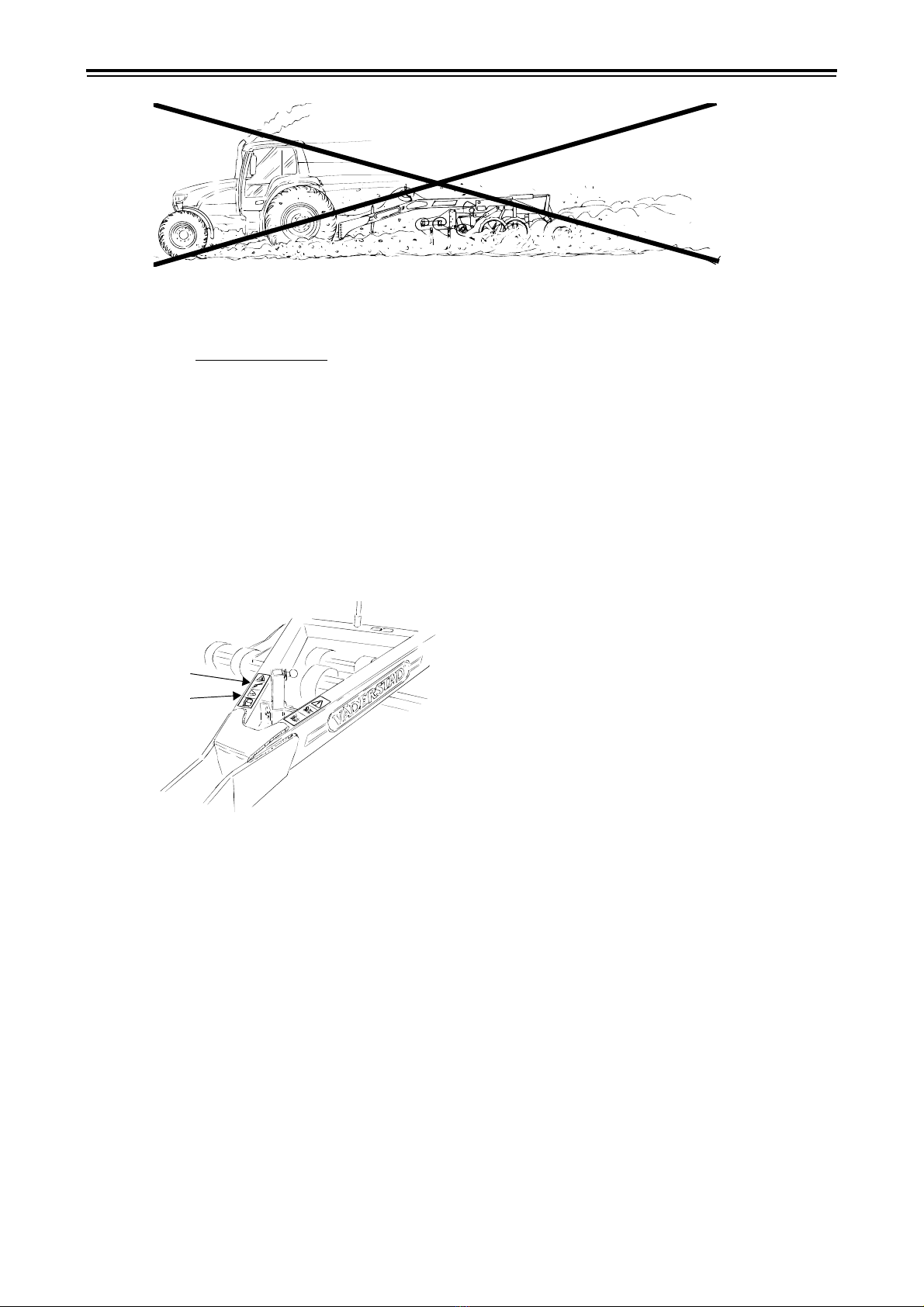

1.3.1 Drive carefully! Always be safety conscious!
Figure 1.4
The implement is dimensioned for a maximum travel speed of 40 km/h during transport on the
road. To be able to drive at a speed of 40 km/h with this type of implement, the road surface must
be in excellent condition. The implement has a considerable unsuspended weight, which may
cause it to start jumping when travel un rough roads. Driving too fast on rough roads will put con-
siderable strain on the entire machine.
Slow down and adapt the speed if the road surface i uneven or in poor condition!
Damage incurred as a result of careless driving is not covered by the warranty.
Remember that the pushing load is considerable. Handling of the tractor is affected and the brak-
ing distance increases considerably.
You can never be in so much of a hurry that safety can be disregarded.
1.4 Location of warning labels on the implement
Figure 1.5
A
B

RST 330-400
14.04.2014
ver.2 9
1. Machine plates
!The machine is equipped with either a combination of signs 1.5.1, Serial number plate, and
1.5.2, CE plate, or 1.5.3, Machine label.
1. .1 Number plate
Figure 1.6
A Type
B Manufacturing number.
1. .2 CE plate
Figure 1.7
C Work width
D Transport width
E CE number
F Implement weight (kg); please also refer to ”5.2 Technical data” on page 26.
G Year of manufacture
AB
C E F G
D

Safety precautions
10 14.04.2014
ver. 2

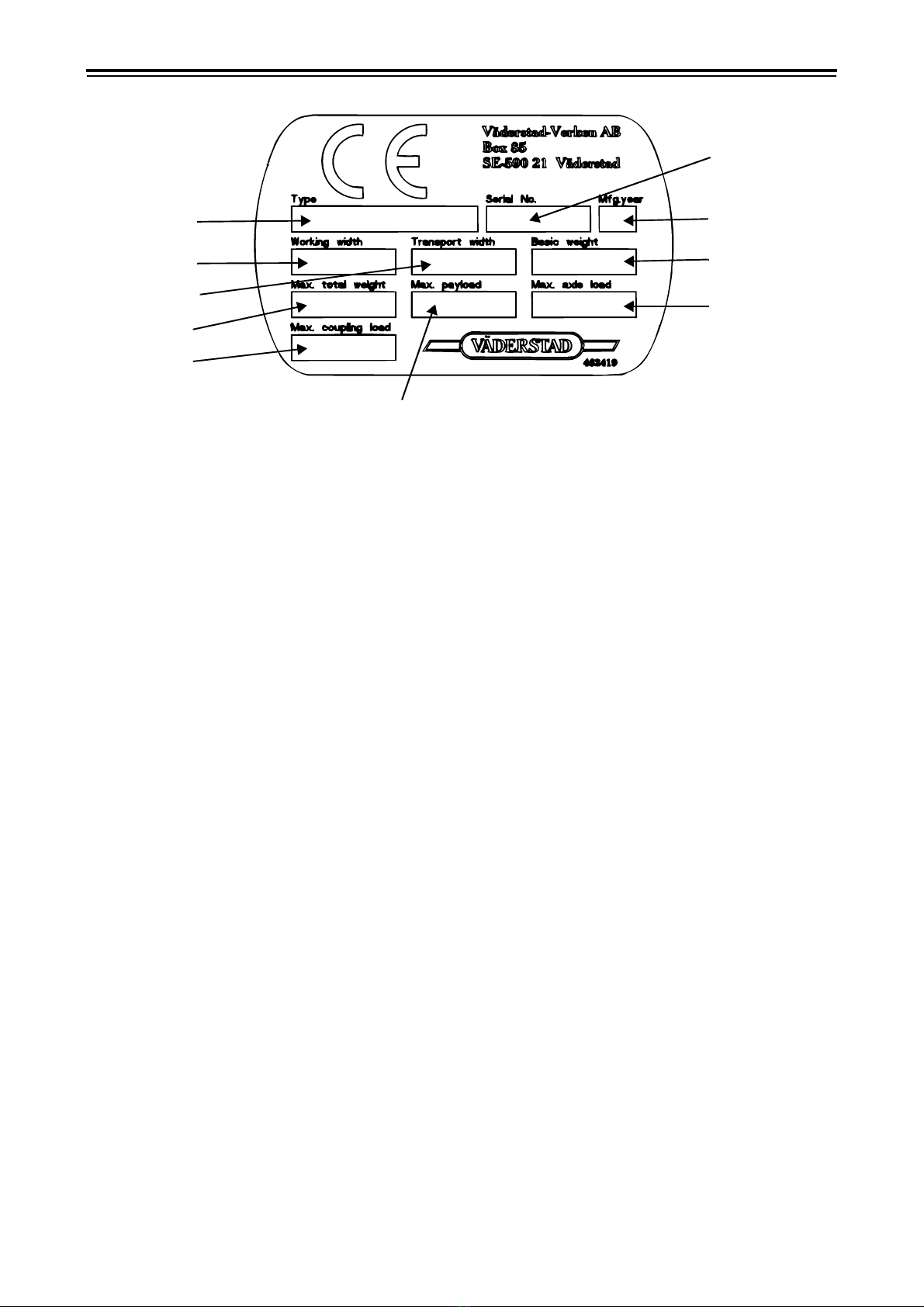

1. .3 Machine label
Figure 1.8
A Machine type
B Manufacturing serial number
(Always state the serial number of your machine when ordering spare parts and in case of serv-
icing or warranty claims.)
C Year of manufacture
D Working width
E Transport width
F Tare weight of the basic machine
G Maximum total weight
H Maximum permitted payload
I Maximum permitted axle loading
J Maximum coupling load (at the tractor hitch)
!Also refer to ”5.2 Technical data” on page 26.
A
B
D
EI
J
G
C
F
H

RST 330-400
14.04.2014
ver.2 11
1.6 Moving the machine when not hitched to a tractor
NOTE! If the machine must be moved when not hitched to a tractor,it must be transported on a ma-
chine trailer or lorry flatbed!
The machine must be rolled onto and off the transport vehicle using a tractor. Lifting with a crane
is prohibited!
1 Raise the machine to the full lifting height.
2 Reverse the machine lengthwise onto the trailer or flatbed. If using a flatbed, a ramp, loading
pier or similar will be required. Take great care. Check that no machine parts are damaged
during loading.
3 Lower the compaction roller to the ground. Adjust the wheel carrier so that the transport wheels
also rest on the ground.
4 Adjust and secure the parking stay so that the machine rests on the parking stay, compaction
roller and transport wheels.
5 Secure the machine's transport wheels and compaction roller to prevent rolling using chocks
or similar.
6 Unhitch the tractor from the machine.
7 Secure the machine using suitable lashing equipment in accordance with applicable rules. The
lashing equipment must be attached to the machine at the locations indicated by the decals; see
“Figure 1.9”.
!For information on the machine's dimensions and weight, see ”5.2 Technical data” on page
26!
!Always make sure that you comply with applicable national regulations concerning transport
dimensions, requirements for escort vehicles or similar!
Figure 1.9

Safety precautions
12 14.04.2014
ver. 2

RST 330-400
14.04.2014
ver.2 13
2 Assembly instructions
Never work under the implement during loading, unloading or installation work. Pay close atten-
tion to safety! The implement is very heavy.Only use lifting devices that have sufficient lifting
capacity. For weight indications, see ”5.2 Technical data” on page 26.
Depending on the transport method and other factors, the implement is delivered more or less as-
sembled from the factory. Use the instructions below that apply.

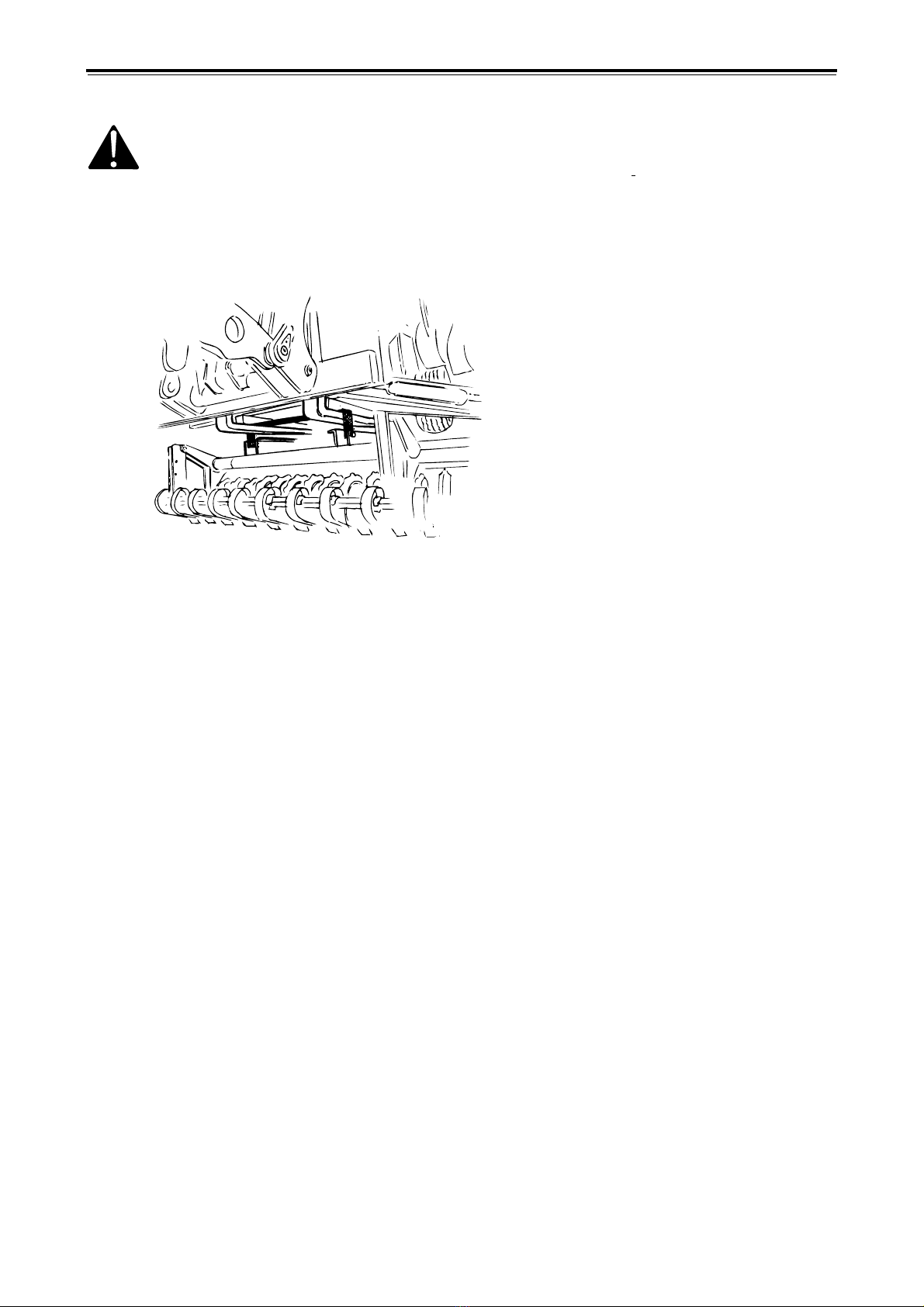

2.1 Loading and unloading
Figure 2.1
The implement is usually delivered with the tow connector and the preimplements packed on top
of the frame. The rear axle hydraulic ram has been removed and the rear axle has been moved for-
ward.
Lift the roller from the bed of the lorry using a fork lift. Use the transport support as shown in “Fig-
ure 2.1”.

Assembly instructions
14 14.04.2014
ver. 2
2.2 Assembly
1 Unload the preimplements and the two connector from the frame.
2 Disassemble the transport support. See “Figure 2.1”. (Please return the support to Väderstad-
Verken).
3 Assemble the preimplement in the quick connector supports as shown in “Figure 2.2”, A - C,
using a traversing crane or a loader. Be sure to lock the preimplements using cotters and lock-
ing pins (D).
Figure 2.2
AB
C
D

RST 330-400
14.04.2014
ver.2 15

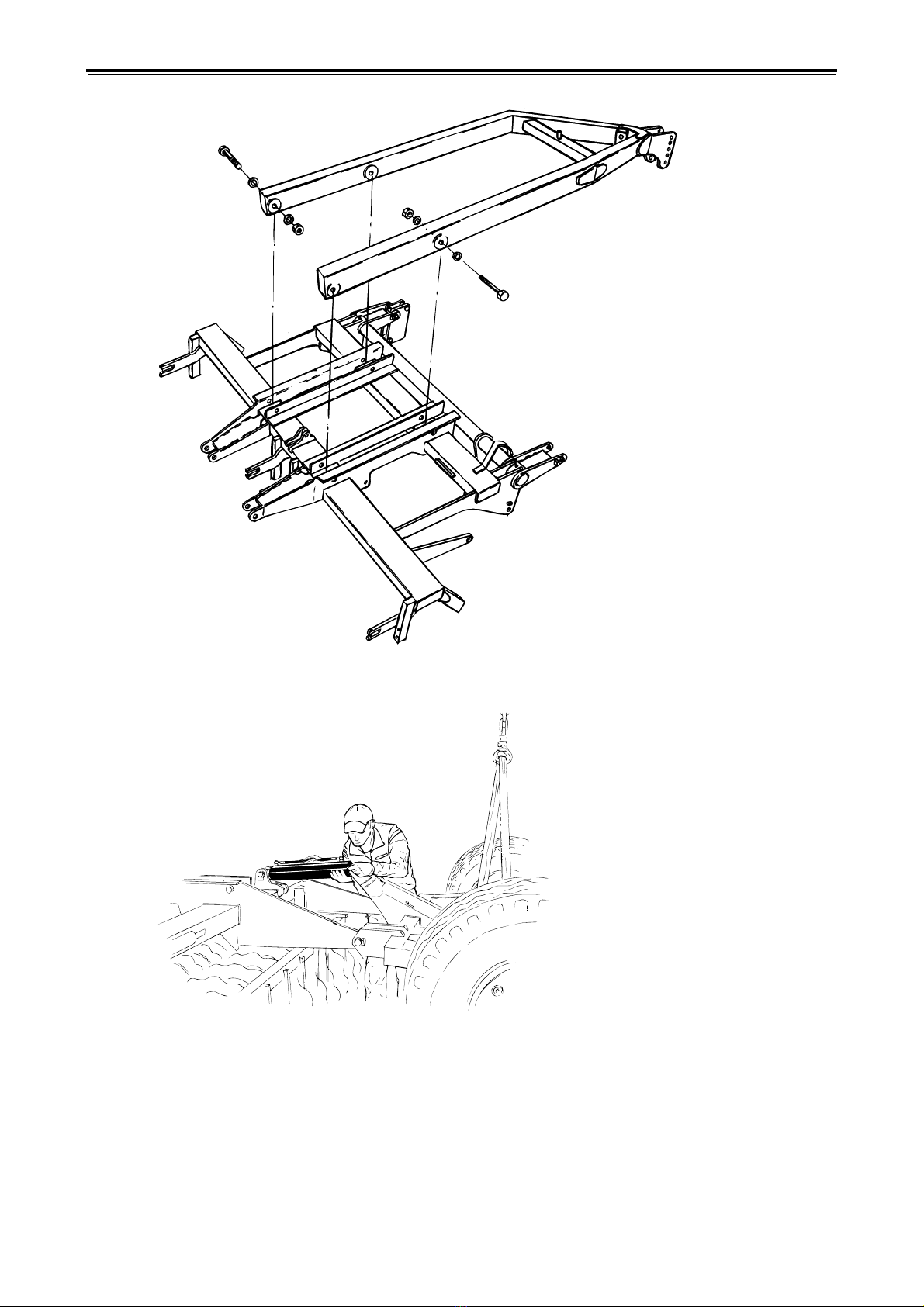

4 Fit the towing connector onto the frame using the specified bolts.
Figure 2.3
5 Fold back the rear axle and connect it to its hydraulic ram.
Figure 2.4

Assembly instructions
16 14.04.2014
ver. 2
6 Attach the hydraulic hoses on the implement. See fig. 5in the Spare Parts List.
7 Grease the implement according to the greasing chart. See ”4.1 Regular maintenance” on page
20.
NOTE! It is imperative to retighten the bolt joints (E) at the axel bearing connectors on the frame
supports. The tightening torque should be 540 Nm.
Carry out the first inspection after 10 operating hours.
Figure 2.5
Also retighten the wheel bolts after initial transport on the road (after approx. 20 km).
2.2.1 Fitting the weights (optional)
Figure 2.6
The implement can be weighed down using optional weights. Each weight weighs 45 kg. Hang
the weights on the frame, secure them with 1 stopper (F) on either side and lock the unit with
threaded rods and nuts. Because the weights are heavy, be careful during handling.
E
F

RST 330-400
14.04.2014
ver.2 17
3 Instructions and adjustments
3.1 Hitching to the tractor and unhitching
3.1.1 Hitching to the tractor
Ensure that the tractor tow bar is secured.
Connect the hydraulic hoses. Make sure that the hoses, marked with plastic rings, are connected
in pairs to each twin-operating hydraulic connector on the tractor. Raise the supporting leg.
Figure 3.3
Make sure the hydraulic arms of the tractor do not contact the implement when turning. In some
cases, it may be necessary to disassemble the hydraulic arms.
3.1.2 Unhitching
Lower the roller to the ground. Lower the supporting leg. Always park the implement on a level
and strong surface, and allow it to rest on the roller rings and the supporting leg.
Figure 3.1 Figure 3.2

Instructions and adjustments
18 14.04.2014
ver. 2
3.2 Height adjustment of the towing eyelet
Figure 3.4
The towing eyelet of the implement can be set at different heights to suit the different towing
heights of the tractor. When the implement is in the work position on a hard surface, and the lifting
ram of the transport wheels is at the end stop, the frame should be parallel with the ground. When
properly adjusted, the distance from ground to the lower edge of the hitching connector should be
approx. 325 mm. If necessary, adjust it by moving the towing eyelet in the hole series (A).
3.3 Adjusting the preimplement
Figure 3.5
The work depth/angle fo the preimplement can be adjusted as shown in “Figure 3.5”.
32 mm
A

RST 330-400
14.04.2014
ver.2 19
3.4 Stabilizer rod - Crossboard
Figure 3.6
Upon delivery of the implement, the stabilizer rods are fitted on the Crossboard.
Proceeed as follows if the rods need to be removed:
3.4.1 Dismantling
The implement should have been lowered to the ground.
Undo the locking device (B) and pull out the stabilizer rod.
Assemble in reverse.
B

Service and maintenance
20 14.04.2014
ver. 2
4 Service and maintenance
Figure 4.1
!All maintenance and service work should only be done when the implement has been lowered
to the ground. Never work under the implement unless it has been properly secured using tres-
tles or similar firm supports. Also be sure to block the lifting ram of the transport wheels using
the yellow locking device (C). Secure the locking device using a cotter and locking pin.
4.1 Regular maintenance
!Grease the implement according to the grease table intervals, and always prior to and after win-
ter storage and high-pressure water cleaning.
!Regularly check the tyre pressure. See ”5.2 Technical data” on page 26
!Prior to winter storage, grease the ram rods.
!Prior to driving, check that all bolts and nuts are tightened (this does not apply to bolts of flex-
ible joints). During the season, make it a habit to regularly check that all bolts and nuts are
tightened.
Figure 4.2 Figure 4.3
Table 4.1 Lubrication chart
Lubrication points Interval (ha)
Roller bearings 500
Wheel hub 500
Parallellogramme of pre-implements 500
A
