VAS 3-N-1 Gaming Theater User manual

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
VAS® Page 1 Factory # 33-10944
3-N-1TM Gaming TheaterTM TV Console
Model # XLGTD52-7K
U.S. Patents 8,079,311 & 8,191,485 and other Patent Pending
ADULT ASSEMBLY REQUIRED
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to
the store where it was purchased. Please call our toll-free customer service number and have your
instructions and parts list ready to provide the model name, part name or factory number:
1-866-942-5362 8:30 a.m. - 4:30 p.m. PST, Monday - Friday
ONLINE: www.whalenfurniture.com EMAIL: [e-mail]
Video Instruction Guides
Go to http://whalen.showuhow.com to view step-by-step instructional
videos for assembling and installing your product. Enter the following
product number on the ShowUhow homepage.
LOT NUMBER:
DATE PURCHASED: / /
X
LGTD52-7K

Model # XLGTD52-7K
VAS® Page 2 Factory # 33-10944
MANUFACTURER: VAS®
CATALOG: 3-N-1TM Gaming TheaterTM TV Console (XLGTD52-7K)
DATE OF MANUFACTURE: July 2012
MADE IN CHINA
1. Please read the Assembly Instructions prior to assembling this product.
2. Remove all hardware from box and sort by size.
3. Check to see that all hardware and parts are present BEFORE assembling.
4. Ask a friend to assist you with the assembly of this furniture.
5. To avoid damage, assemble the product on a sturdy, level and protective surface.
6. Please wait until all steps are completed before fully tightening bolts.
7. Make sure all bolts are tightly fastened before the unit is used.
FITS UP TO MOST 60” FLAT PANEL TVs
MAXIMUM LOAD 135 lb. (61.2 kg)
MAXIMUM LOAD 15 lb. (6.8 kg)
MAXIMUM LOAD 50 lb. (22.7 kg)
MAXIMUM LOAD 10 lb. (4.5 kg)
MAXIMUM RECOMMENDED WEIGHT LOADS
GENERAL INFORMATION
,
TIPS and TRICKS

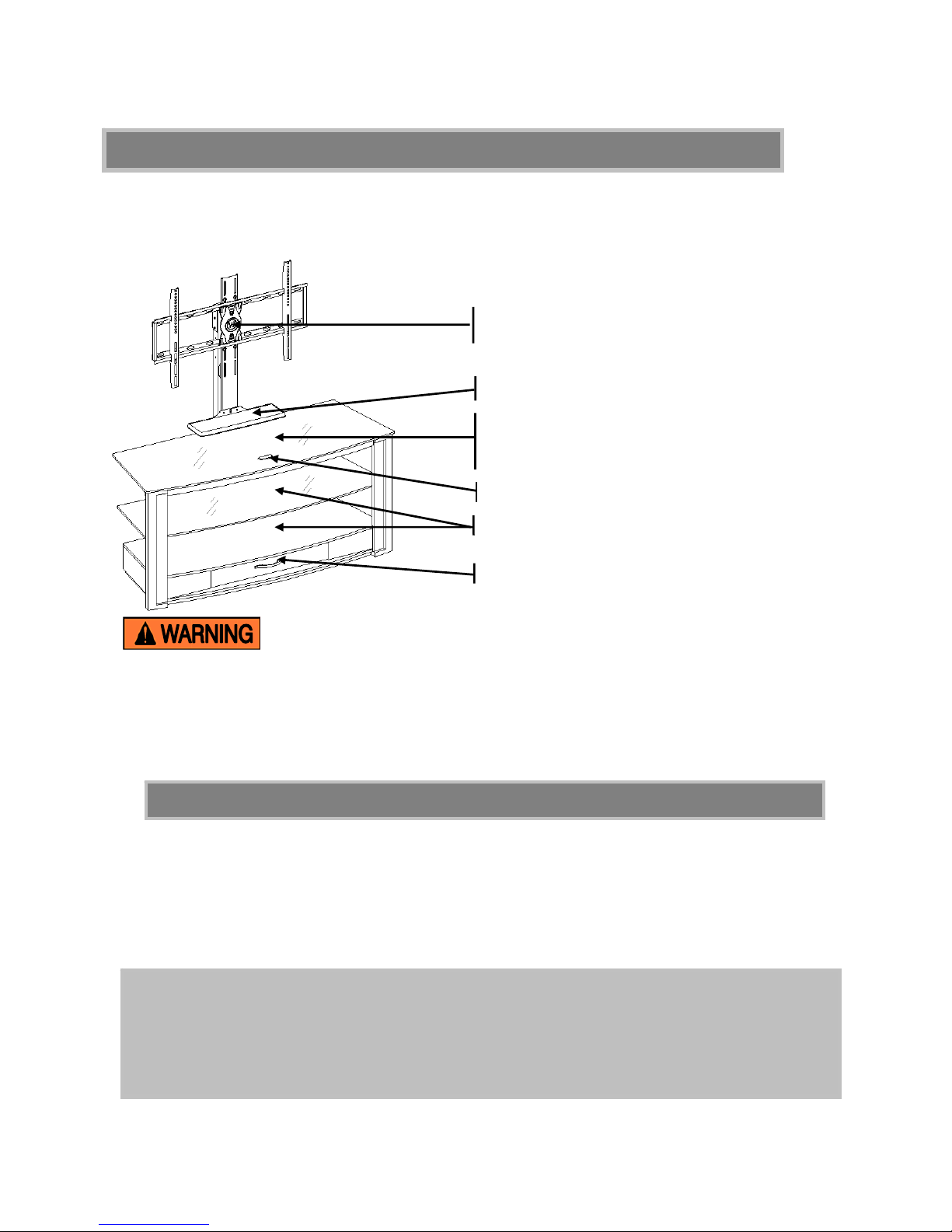

This product is sold with a Tipping Restraint Hardware kit. You must install the Tipping
Restraint Hardware between the wall and the TV stand to prevent any accidents or
damages. When properly installed, this restraint can provide protection against the
unexpected tipping of the unit due to small tremors, bumps or climbing. The restraint is only
a deterrent and is not a substitute for proper adult supervision. Use of tip-over restraints may
only reduce, but not eliminate, the risk of tip-over.
THIS UNIT IS NOT INTENDED FOR USE WITH CRT TVS. USE ONLY
WITH FLAT PANEL TVS AND AUDIO/VIDEO EQUIPMENT MEETING RECOMMENDED SIZE
AND WEIGHT LIMITS. NEVER USE WITH LARGER/HEAVIER THAN RECOMMENDED FLAT
PANEL TVS OR EQUIPMENT. TO AVOID INSTABILITY, PLACE FLAT PANEL TV IN CENTRE
OF UNIT; CRT TVS, IMPROPERLY POSITIONED FLAT PANEL TVS, OR FLAT PANEL TVS
OR OTHER EQUIPMENT THAT EXCEED RECOMMENDED SIZE AND WEIGHT LIMITS
COULD FALL OFF OR BREAK THE UNIT, CAUSING POSSIBLE SERIOUS INJURY.
FITS UP TO MOST 60” FLAT PANEL TVs
WITHOUT SWIVELING FLOATER
MAXIMUM LOAD 135 lb. (61.2 kg)
PLACE TV BEHIND STOPPER

Model # XLGTD52-7K
VAS® Page 3 Factory # 33-10944

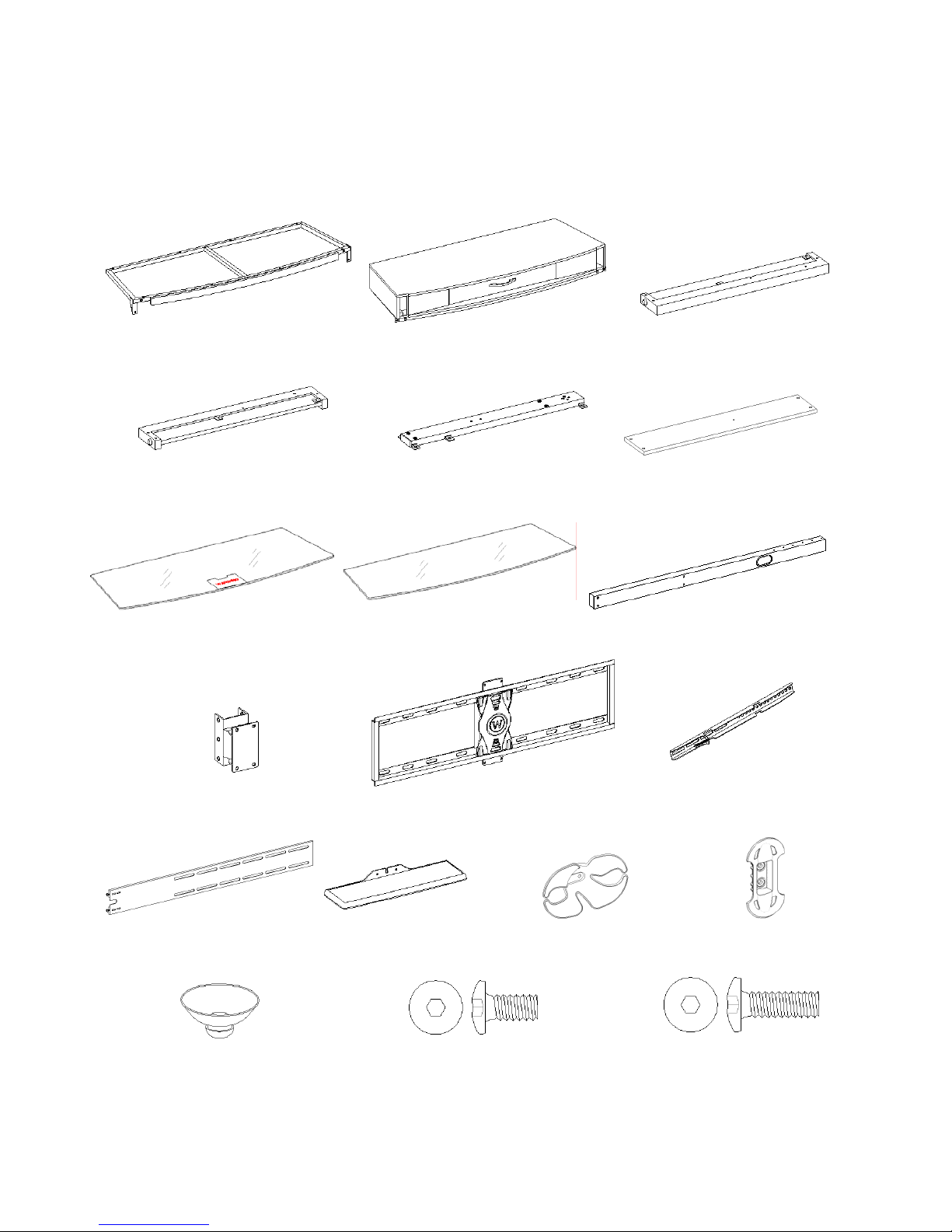

Parts and Hardware List
Please read completely through the instructions and verify that all parts listed are present
before beginning assembly.
A- Top Shelf Frame (1) B- Base Assembly (1) C- Left Front Post (1)
D- Right Front Post (1) E- Short Spine (1) F- Wood Back Support (2)
G- Glass Top (1) H- Glass Shelf (1) I- Swiveling Floater Post (1)
J- Swiveling Bracket (1) K- Mounting Frame (1) L- Monitor Bracket (2)
(Pre-attached)
M- SSS Spine (1) N- Sensor/Sound shelf (1) O- Gaming Guitar Clip (1) P- Cable Wheel (1)
(1) Suction Cup (8+1 extra) (2) 1/2” Bolt (8+1 extra) (3) 3/4” Bolt (17+1 extra)

Model # XLGTD52-7K
VAS® Page 4 Factory # 33-10944

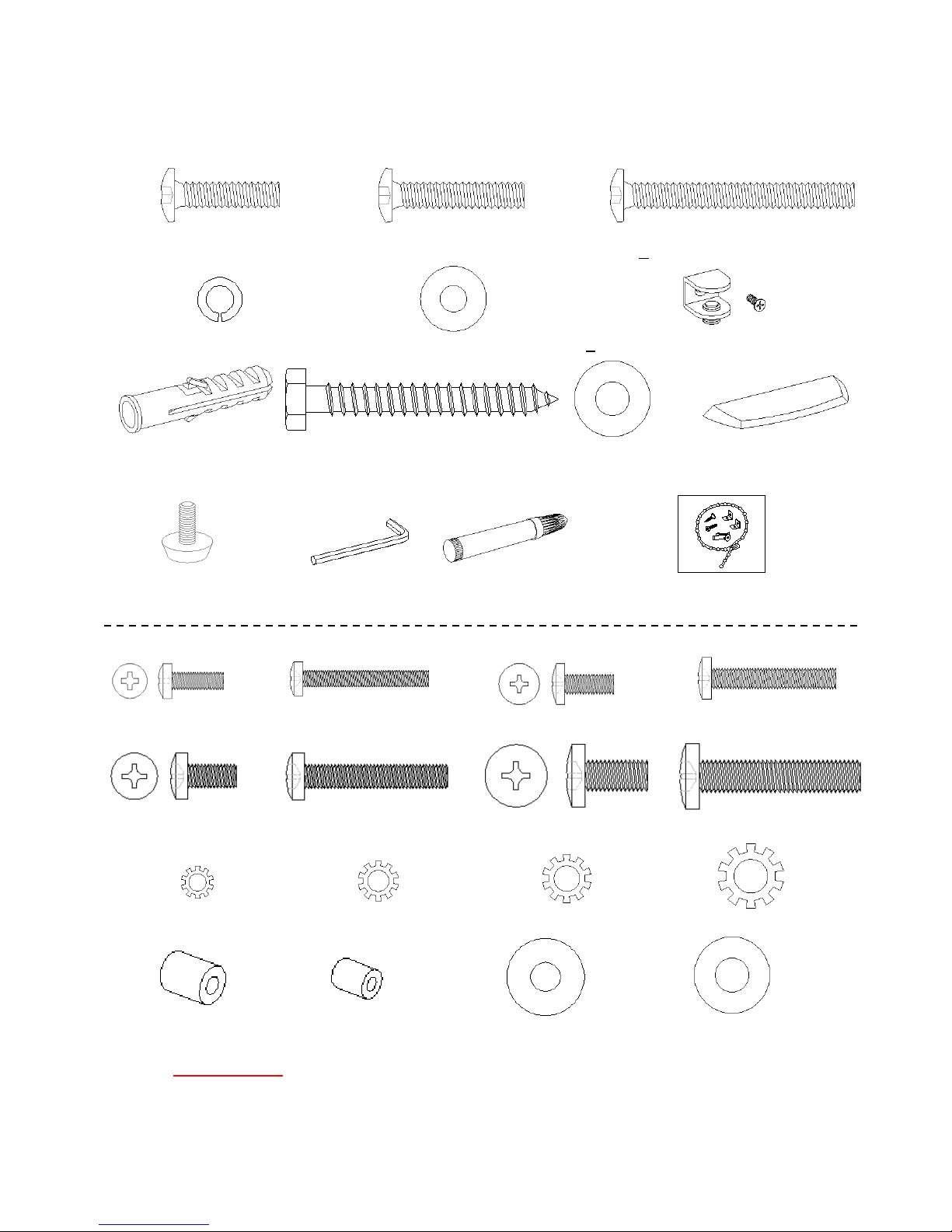

Parts and Hardware List
(4) 1” Bolt (8+1 extra) (5) 1-1/4” Bolt (4+1 extra) (6) 2-1/4” Bolt (4+1 extra)
(7) Lock Washer (34+2 extra) (8) Flat Washer (34+2 extra) (9) Glass Clamp w/Bolt (4+1 extra)
(10) Concrete Anchor (11) 2-1/2” Lag Bolt (12) Lag Bolt Washer (13) Acrylic Stopper
(4) (4) (4+1 extra) (1)
(14) Floor Leveler M4 Allen Wrench Touch-up Pen Tipping Restraint Hardware Kit (1)
(1) (2) (1) (Inside Plastic Bag)
TV Mounting Kit
M4 x 12 Bolt (4) M4 x 30 Bolt (4) M5 x 12 Bolt (4) M5 x 30 Bolt (4)
M6 x 12 Bolt (4) M6 x 35 Bolt (4) M8 x 16 Bolt (4) M8 x 40 Bolt (4)
M4 Lock Washer (4) M5 Lock Washer (4) M6 Lock Washer (4) M8 Lock Washer (4)
Large Spacer (4) Small Spacer (4) M4/M5 Flat Washer (8) M6/M8 Flat Washer (4)
Tools required: Allen Wrench (provided) and Phillips screwdriver (not provided).

Model # XLGTD52-7K
VAS® Page 5 Factory # 33-10944
Assembly Instructions
Note: Please do not fully tighten all bolts until you finish assembling all parts. Once assembled,
go back and fully tighten all bolts. This will make it easier during assembly of unit.
1. Unpack the unit and confirm that you have all the hardware and required parts listed.

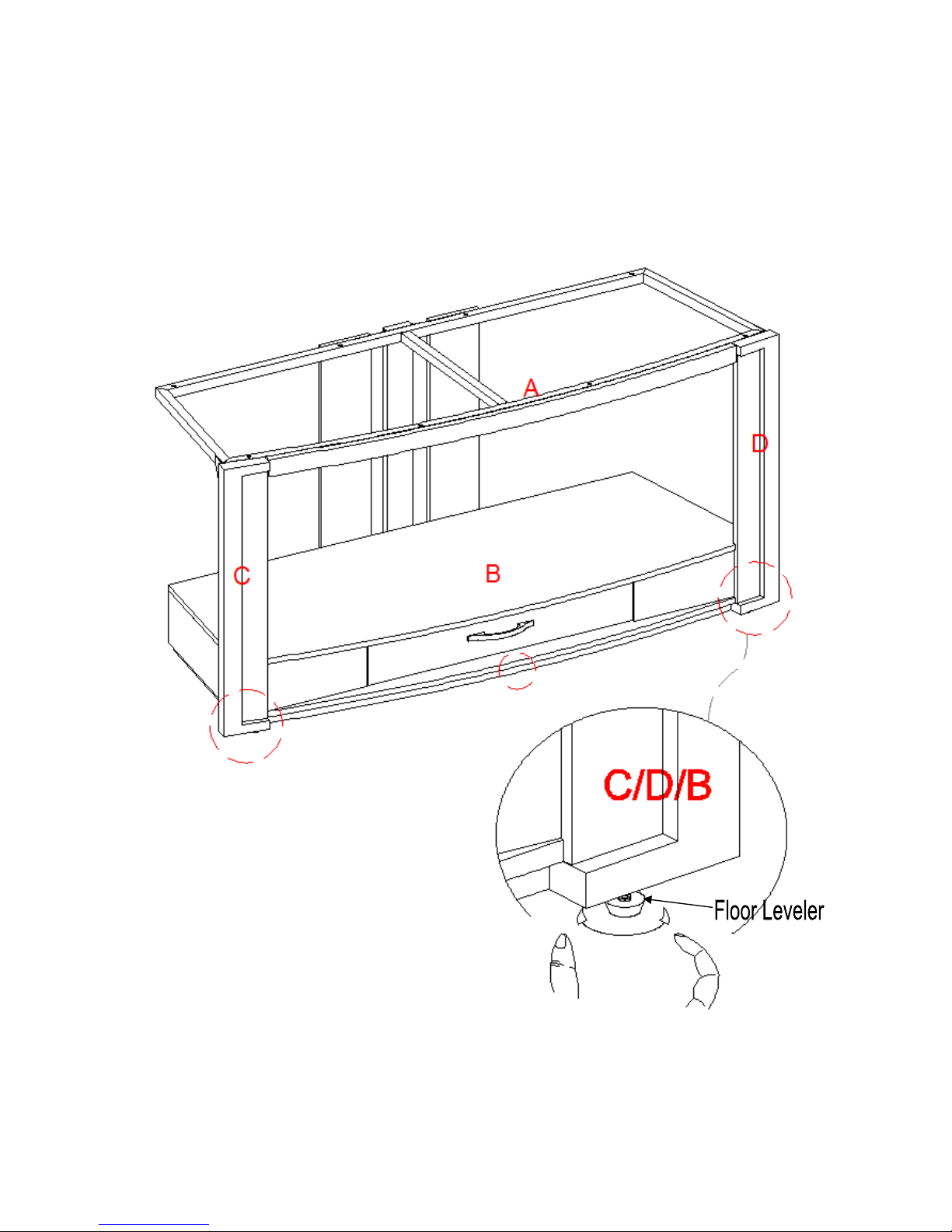

2. Align and attach Left and Right Front Posts (C and D) to the front corners of Base Assembly
(B). Screw the Floor Leveler (14) into the center socket on the front rail of metal base.
Lock Washer
(4 used in this step)
⑦
Flat Washer
(4 used in this step)
⑧
1-1/4” Bolt
(2 used in this step)
⑤
Floor Leveler
(1 used in this step)
⑭
3/4” Bolt
(2 used in this step)
③

Model # XLGTD52-7K
VAS® Page 6 Factory # 33-10944
Assembly Instructions

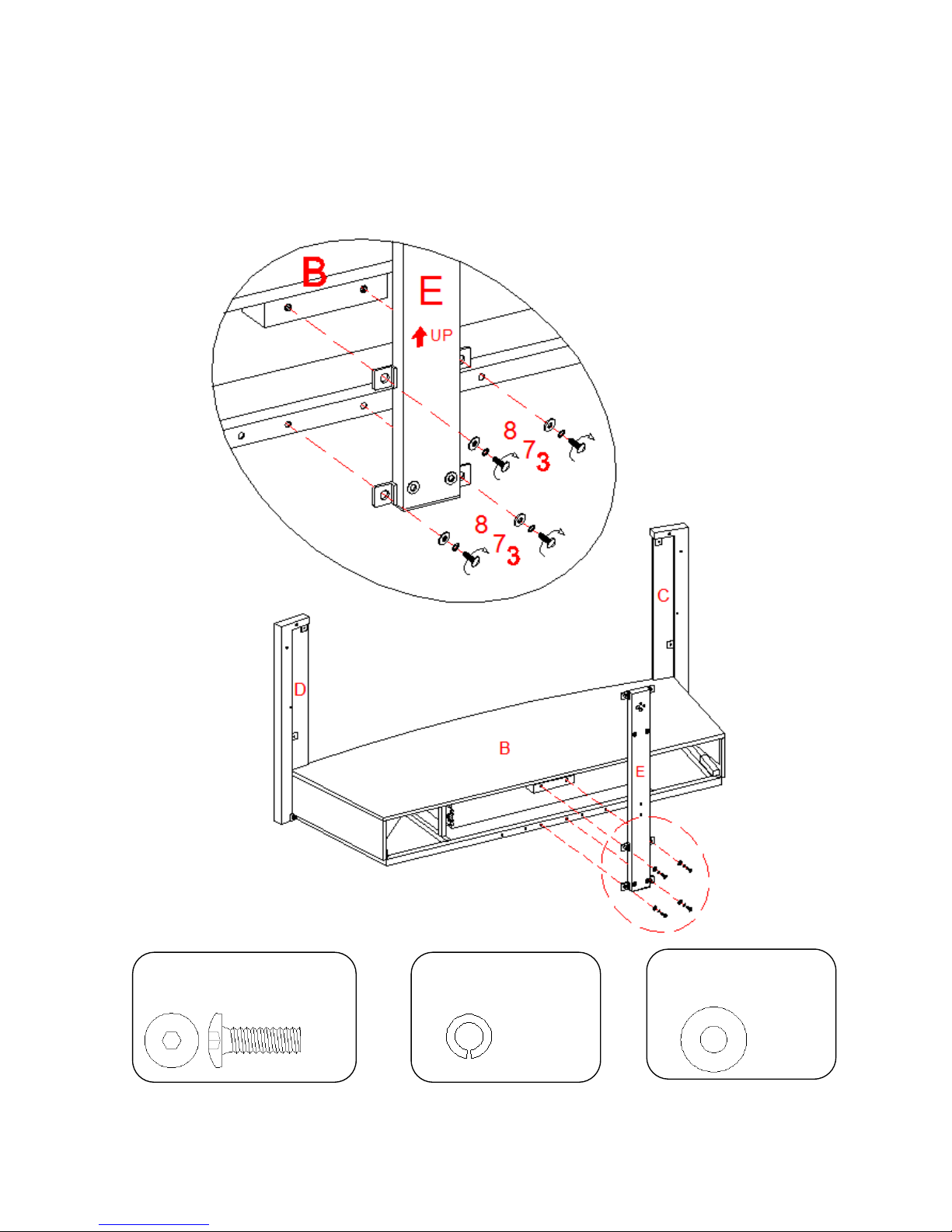

3. Stand the last assembly upright. Attach the Short Spine (E) to the back of the Base
Assembly (B) using four 3/4” Bolts (3) with Lock Washers (7) and Flat Washers (8). Tighten
the Bolts with the provided M4 Allen Wrench.
Lock Washer
(4 used in this step)
⑦
Flat Washer
(4 used in this step)
⑧
3/4” Bolt
(4 used in this step)
③

Model # XLGTD52-7K
VAS® Page 7 Factory # 33-10944
Assembly Instructions

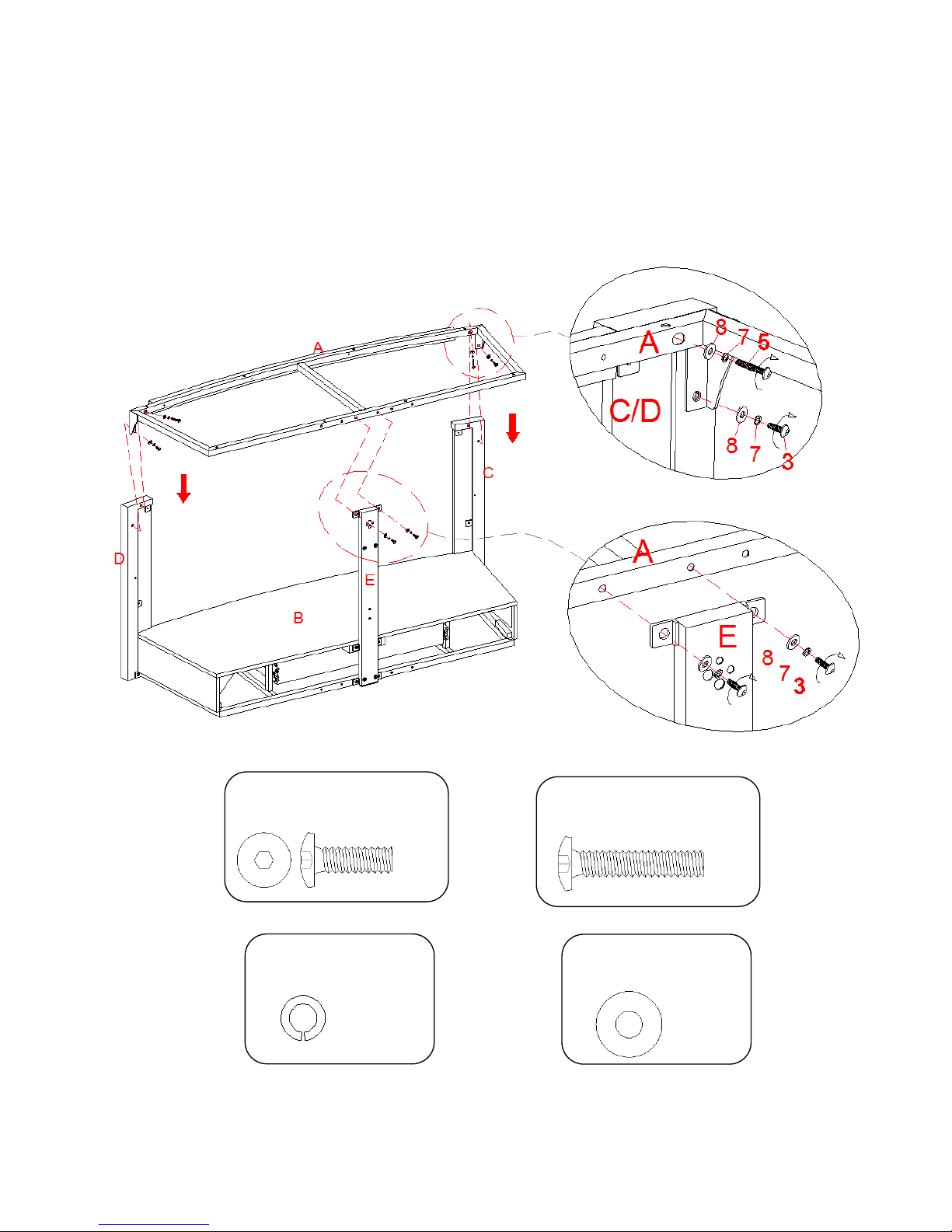

4. Align and attach the Top Shelf Frame (A) between the Front Posts (C and D) and Spine (E).
Make sure that the top edges are flush with each other and that the gaps and offsets
between the front rail of the Top Shelf Frame and the Posts are equal. Loosen the bolts and
adjust if necessary.
3/4” Bolt
(4 used in this step)
③
1-1/4” Bolt
(2 used in this step)
⑤
Lock Washer
(6 used in this step)
⑦
Flat Washer
(6 used in this step)
⑧

Model # XLGTD52-7K
VAS® Page 8 Factory # 33-10944
Assembly Instructions

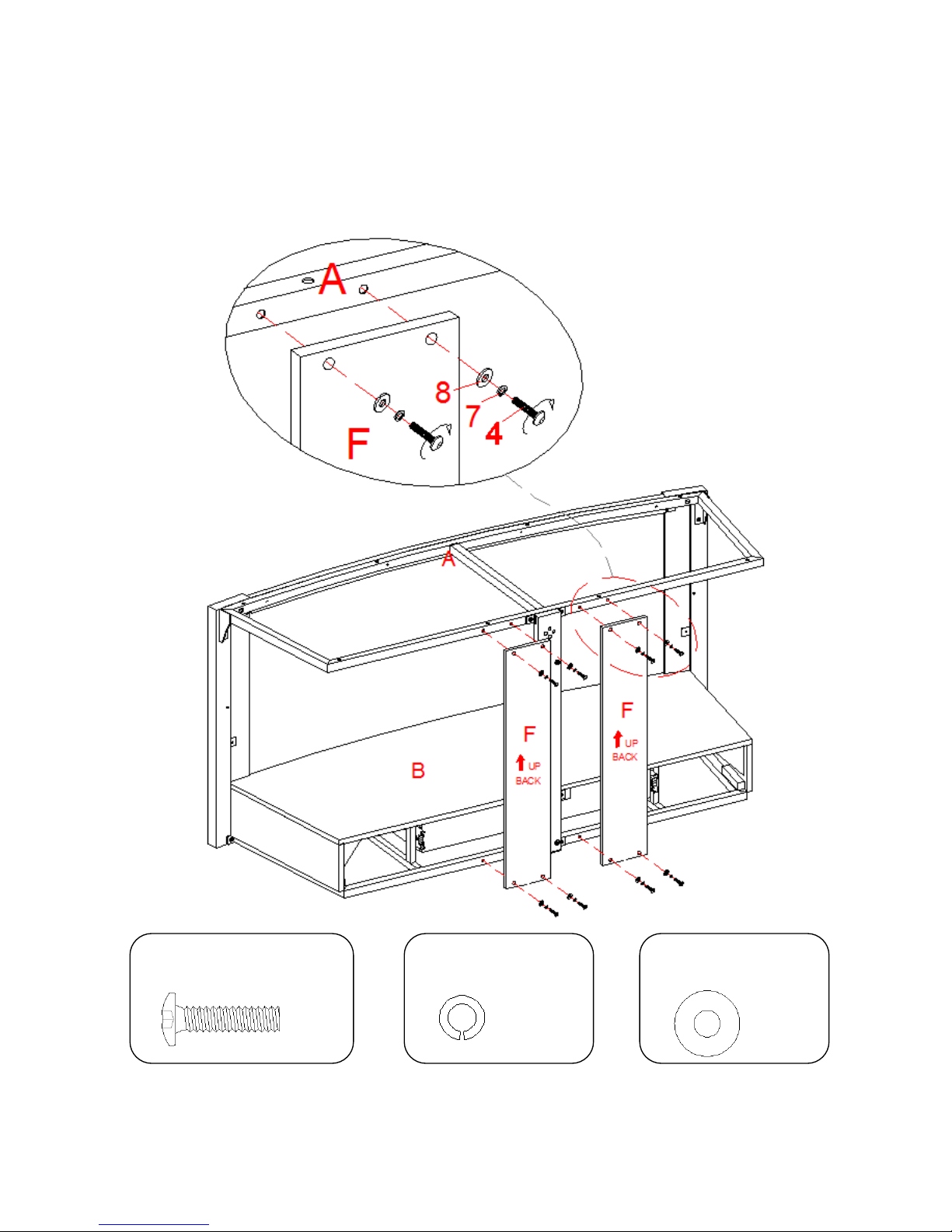

5. Attach 2 Wood Back Supports (F) to the back rail of the Metal Frames (A and B) using eight
1” Bolts (4) with Washers (7 and 8). Make sure all the threaded inserts for the Glass Clamps
are level with each other.
Lock Washer
(8 used in this step)
⑦
Flat Washer
(8 used in this step)
⑧
1” Bolt
(8 used in this step)
④

Model # XLGTD52-7K
VAS® Page 9 Factory # 33-10944
Assembly Instructions
6. Go back and tighten all the bolts with the enclosed Allen Wrench.
7. Adjust the pre-attached Floor Levelers on the bottom of the Base Assembly (B) and Front
Posts (C and D) to level the unit.

Model # XLGTD52-7K
VAS® Page 10 Factory # 33-10944
Assembly Instructions

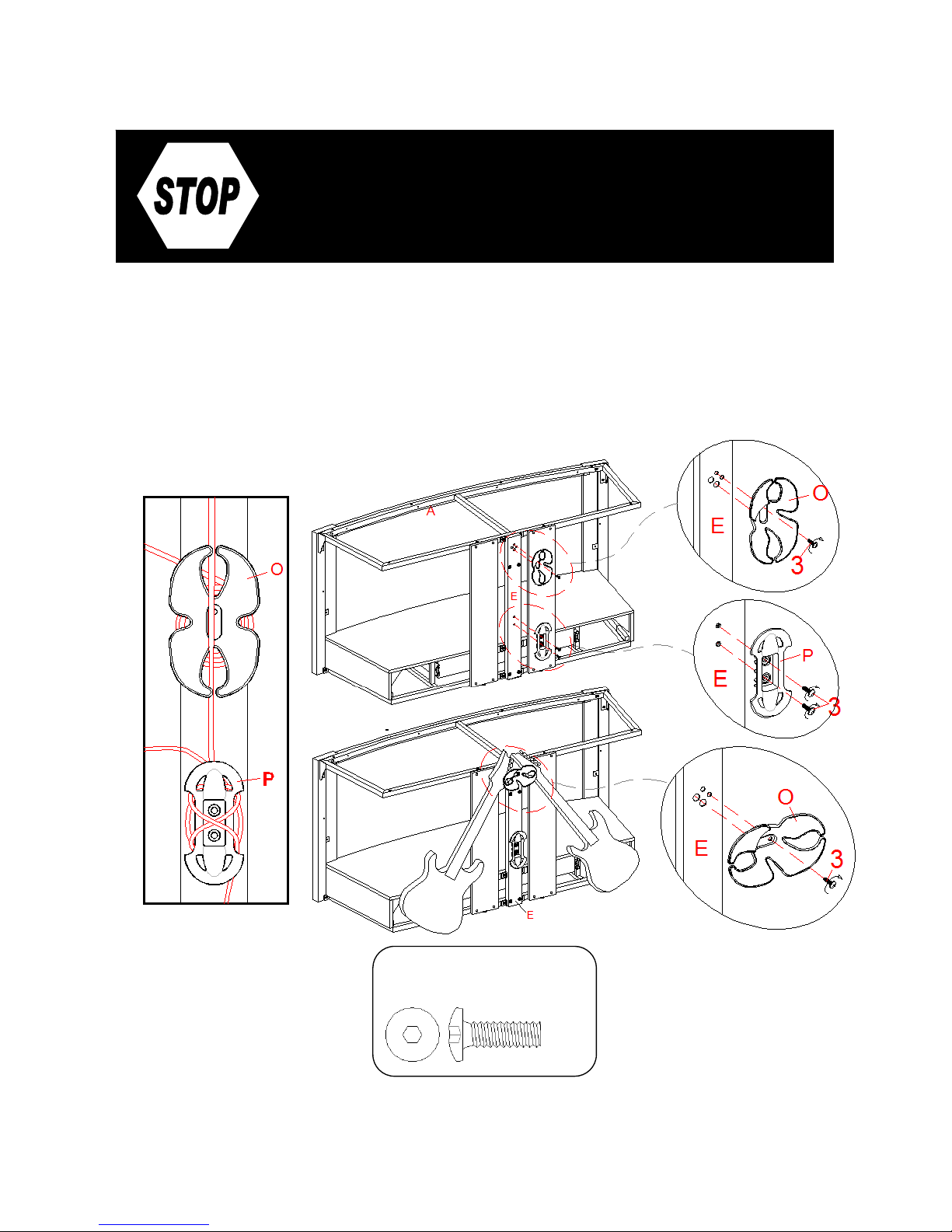

8. Attach the Gaming Guitar Clip (O) and Cable Wheel (P) vertical onto the backside of Short
Spine (E). You can treat them as cable controls to help keep your entertainment center’s
cables and cords organized.
9. The Gaming Guitar Clip (O) can provide storage of gaming guitar controllers when you
attach it horizontally onto the backside of the Spine.
3/4” Bolt
(3 used in this step)
③
If you choose Table-top configuration,
continue to next step.
If mounting TV with the Swinging Floater,
skip ahead to PAGE 14.

Model # XLGTD52-7K
VAS® Page 11 Factory # 33-10944
Assembly Instructions
10.Put the Suction Cups (1) firmly into the top holes of Top Shelf Frame (A) and attach the
Glass Clamps (9) to the threaded inserts on both Front Posts (C and D) and Wood Back
Supports (F). Make sure the set screw on the Glass Clamp is on the bottom.
TIP: If a suction cup resists insertion, try pressing down on the middle of the cup with the
Allen Wrench while twisting it clockwise into the hole.

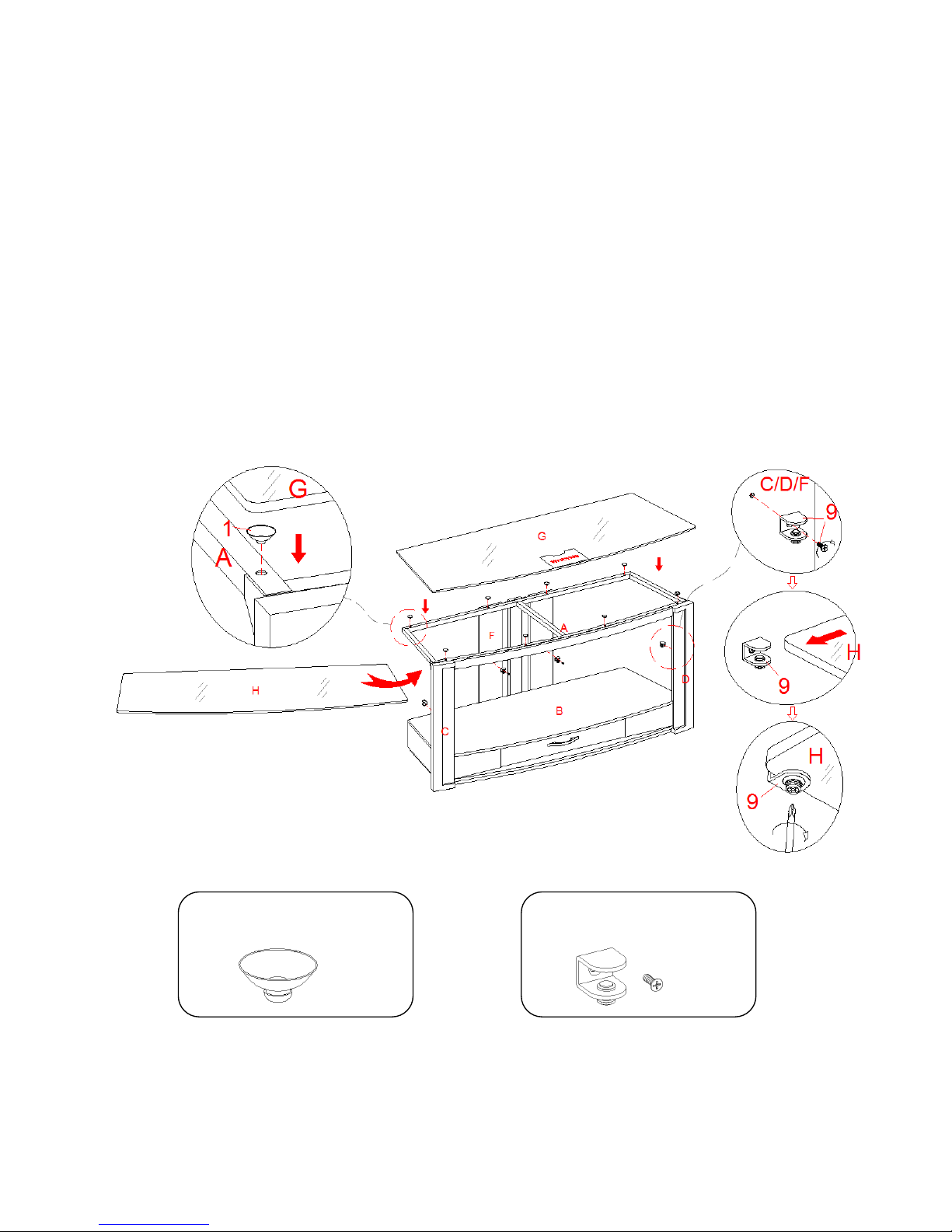

11.Properly install the Glass Top and Glass Shelf (G and H) with the black side of the glass
shelf down. Tighten the Set Screw located on the bottom side of the Glass Clamps by
turning the screw clockwise. This will help secure the Glass Shelf in place to prevent the
shelf from falling easily and getting damaged.
NOTE: If a glass shelf is scratched, you can minimize the damage by using a BLACK
marker and filling in scratched area from underneath.
Glass Clamp w/Bolt
(4 used in this step)
⑨
Suction Cup
(8 used in this step)
①

Model # XLGTD52-7K
VAS® Page 12 Factory # 33-10944
Assembly Instructions

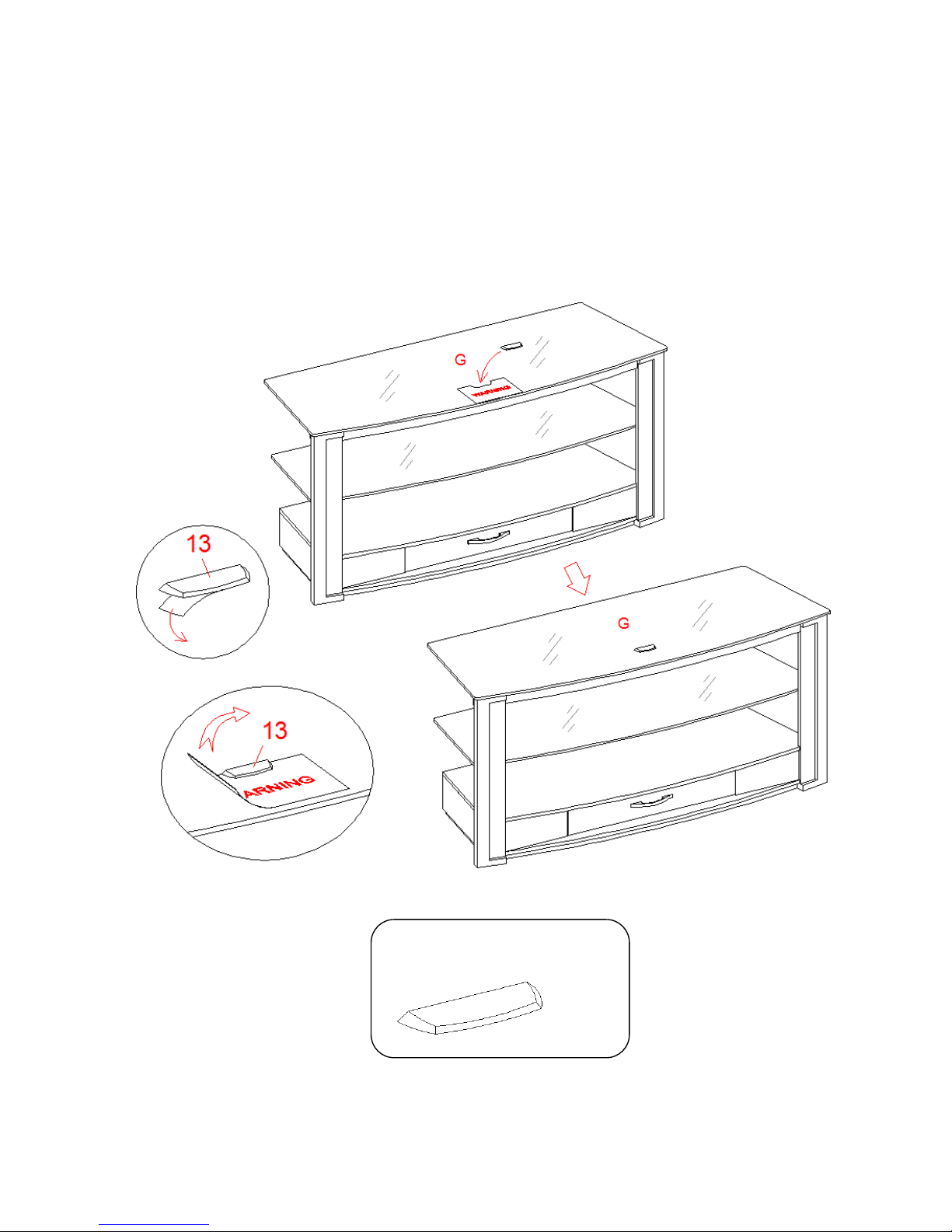

12.Remove the tape of Acrylic Stopper (13) and place it in the cut-out of the Acrylic Stopper
template on the front of the Glass Top (G). Make sure it is properly aligned before applying
pressure.
13.Remove the Acrylic Stopper template carefully.
Acrylic Stopper
(1 used in this step)
⑬

Model # XLGTD52-7K
VAS® Page 13 Factory # 33-10944
Assembly Instructions

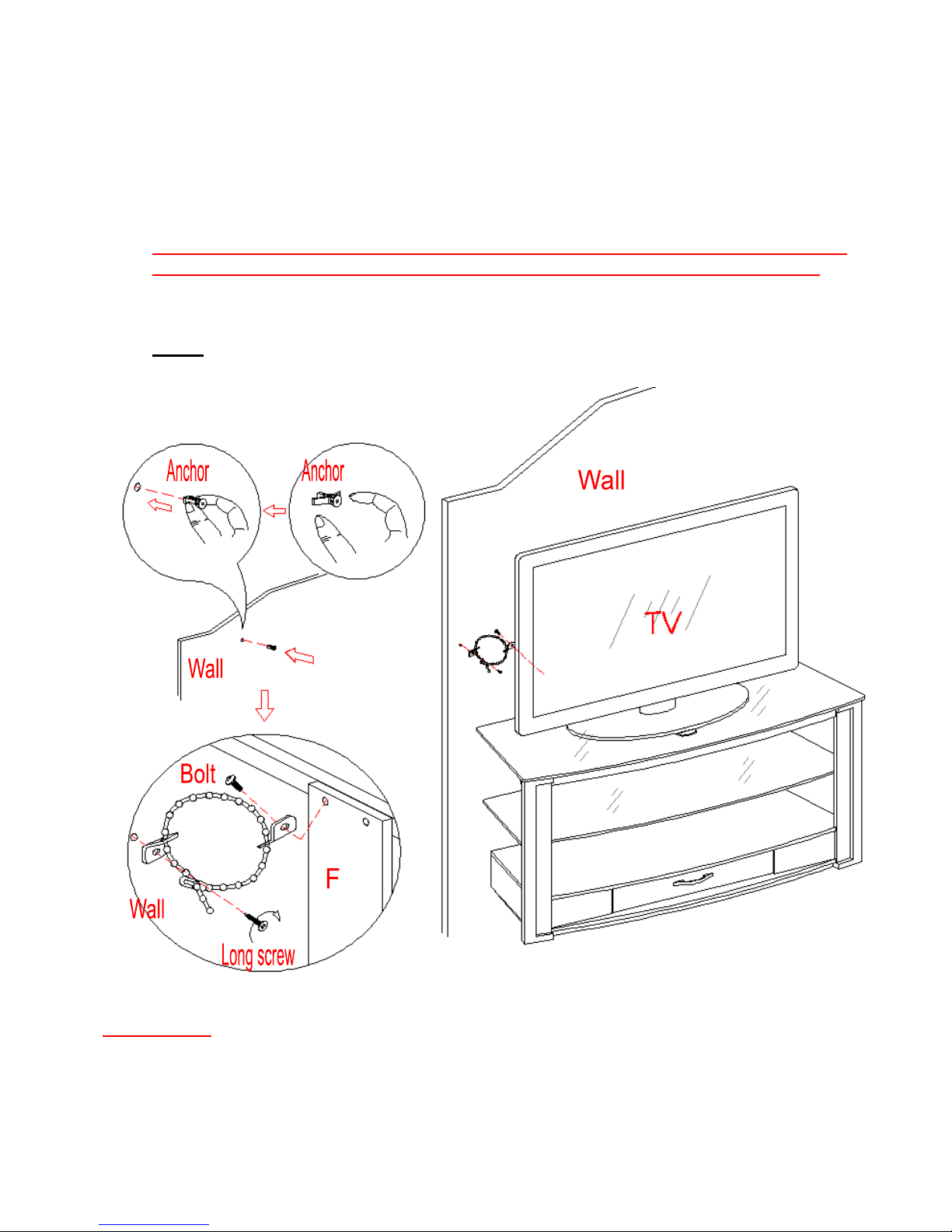

14.Position the assembled console in the desired location against a wall. Now, follow the
instructions printed on the plastic bag containing the Tipping Restraint Hardware to mount
the Tipping Restraint Hardware Kit to one Wood Back Support (F) and the wall.
NOTE: YOU MUST USE THIS TIPPING RESTRAINT TO ATTACH THIS UNIT TO
THE WALL, TO PREVENT TIPPING CAUSING ACCIDENTS AND/OR INJURIES.
15.The console is now ready for use. Be sure to position your TV in the center of the console,
behind the Acrylic Stopper (13).
NOTE: If you choose the Wall Mounted configuration, proceed to PAGE 22.
Tools required: Allen Wrench (provided), Phillips Screwdriver, Mallet, Power Drill, and 3/8” Drill Bit.

Model # XLGTD52-7K
VAS® Page 14 Factory # 33-10944

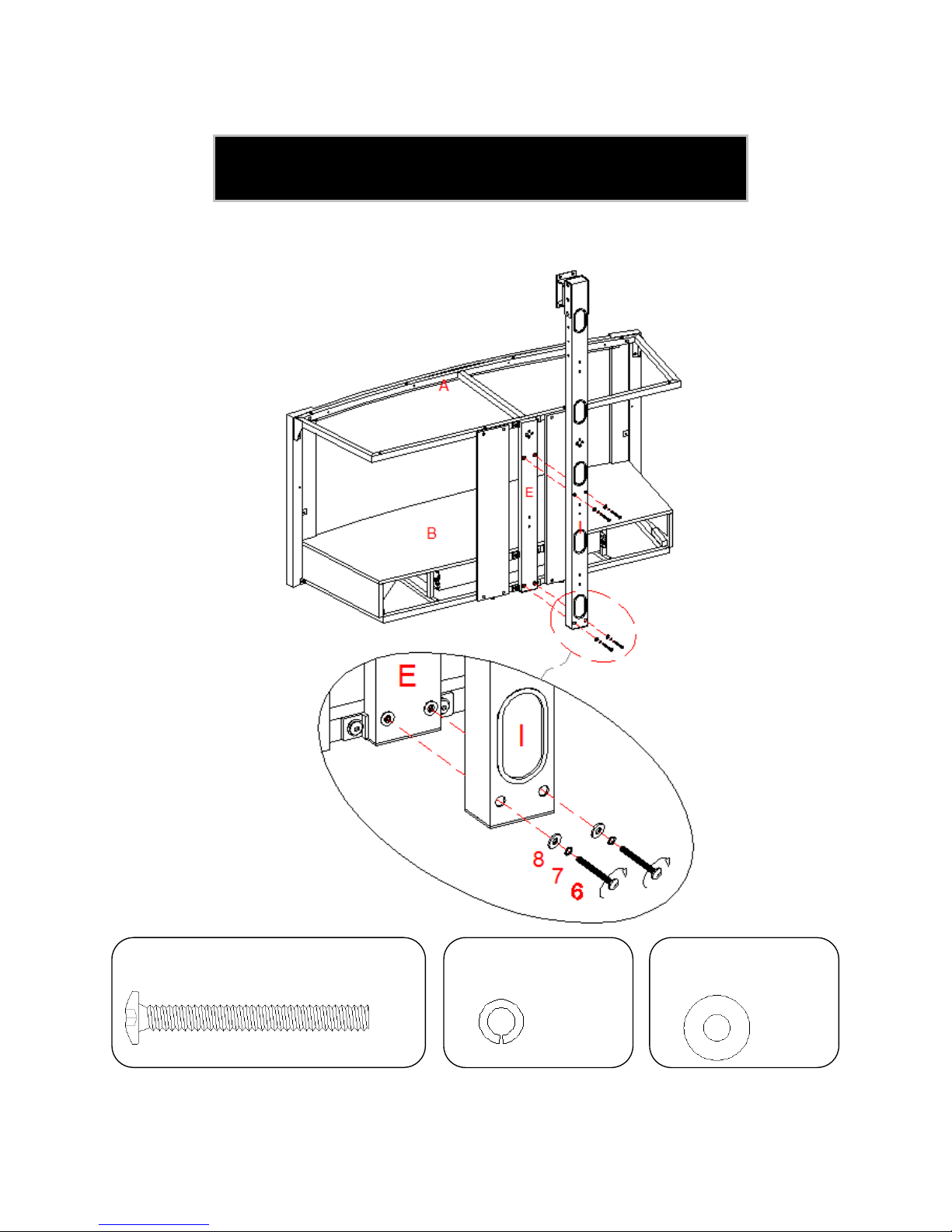

16.Align and attach the Swiveling Floater Post (I) to the back of the Short Spine (E). Make sure
the sockets for the Cable Wheels are facing backward.
Lock Washer
(4 used in this step)
⑦
Flat Washer
(4 used in this step)
⑧
Assembly Instructions for
Floating Swivel Mount
2-1/4” Bolt
(4 used in this step)
⑥

Model # XLGTD52-7K
VAS® Page 15 Factory # 33-10944
Assembly Instructions

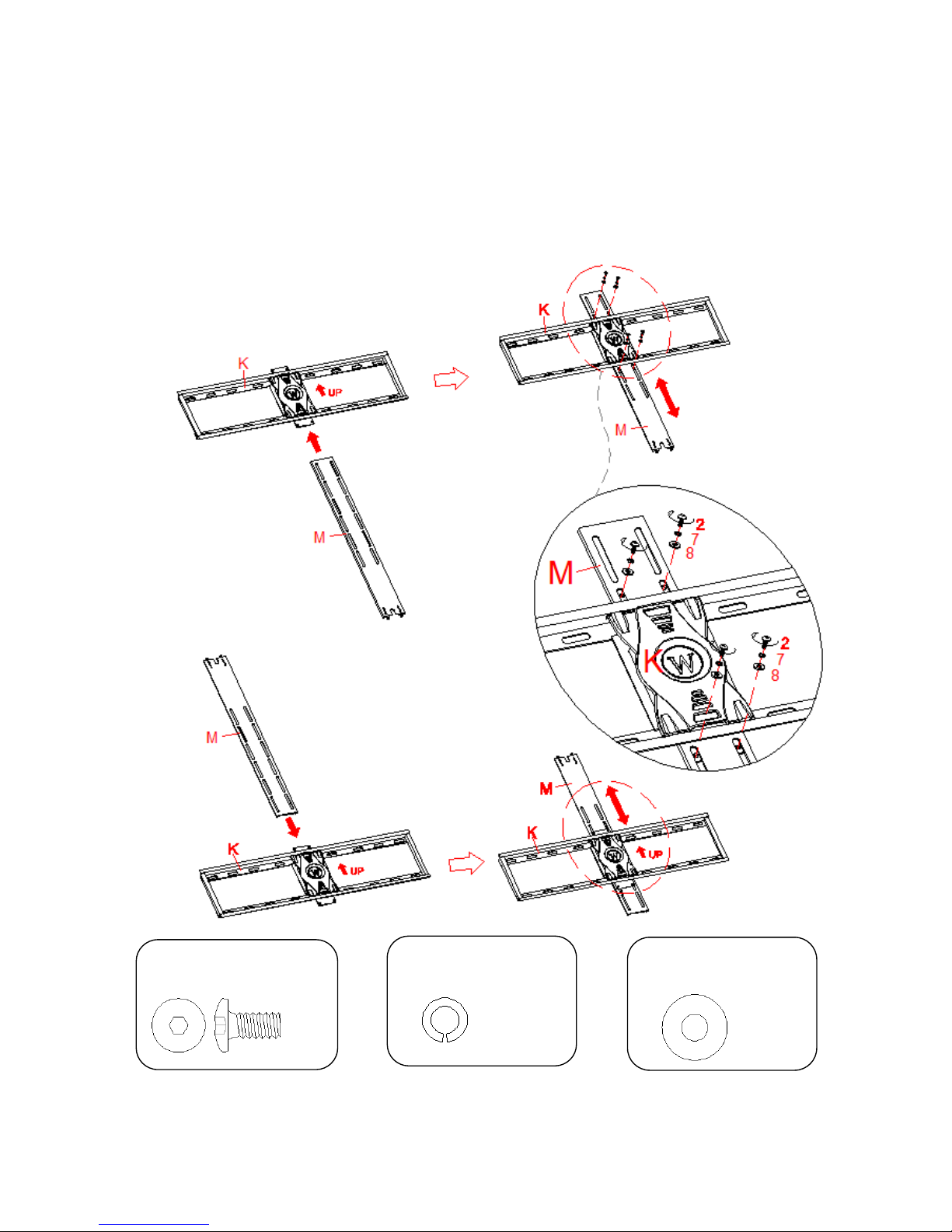

17.The Sensor/Sound Shelf (N) provides two options: positioned above the TV or below the TV.
Depending on the option you prefer, slide the SSS Spine (M) onto the Mounting Frame (K)
properly. Adjust the height of SSS Spine so that it will be the correct distance above or
below your TV and attach it in place using the ½ inch Bolts (2) with Washers (7 and 8).
Lock Washer
(4 used in this step)
⑦
Flat Washer
(4 used in this step)
⑧
1/2” Bolt
(4 used in this step)
②

Model # XLGTD52-7K
VAS® Page 16 Factory # 33-10944
Assembly Instructions

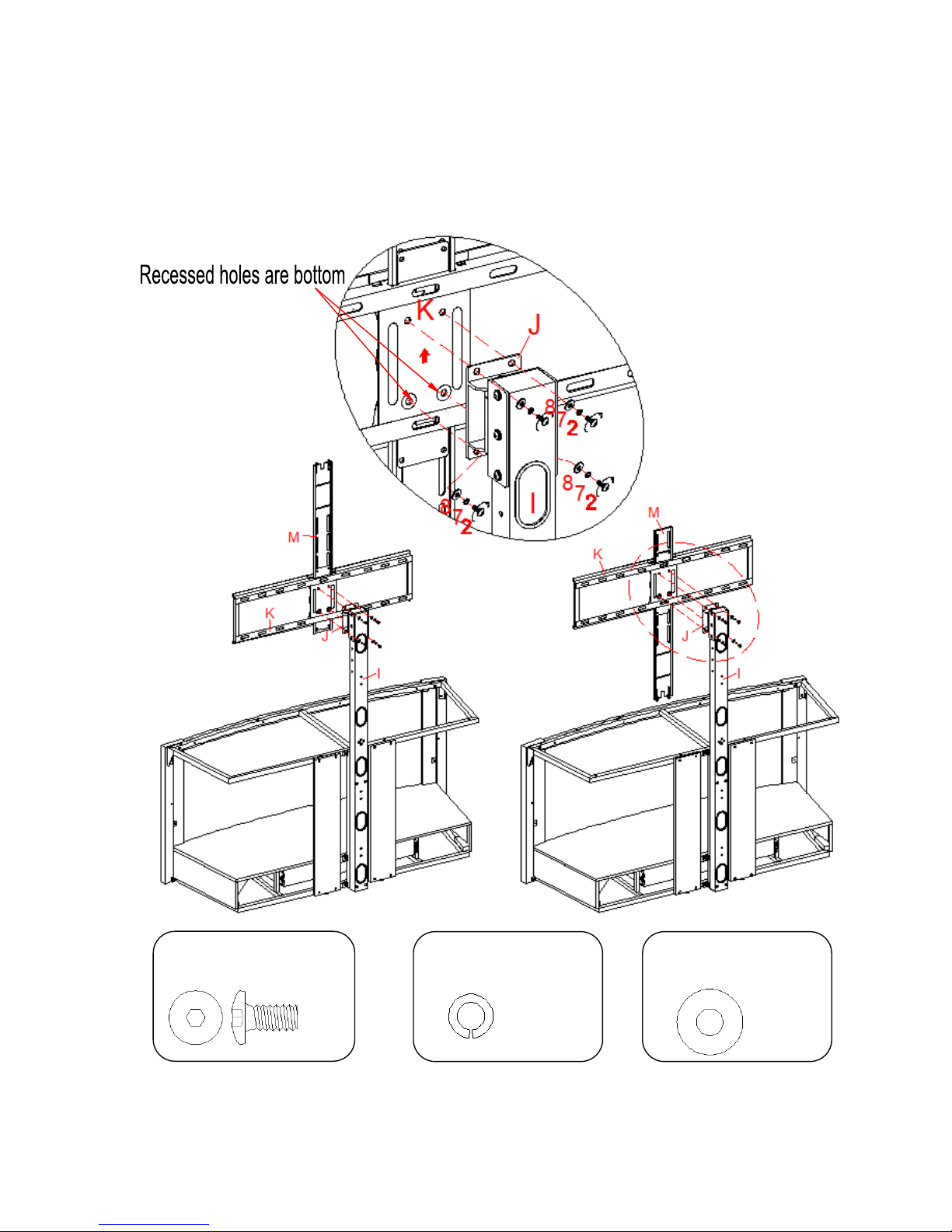

18.Hold and attach the flat side of the Mounting Frame (K) onto the Swiveling Bracket (J).
Make sure the recess holes on the Mounting Frame are at the bottom. Securely tighten with
the enclosed Allen Wrench.
Lock Washer
(4 used in this step)
⑦
Flat Washer
(4 used in this step)
⑧
1/2” Bolt
(4 used in this step)
②

Model # XLGTD52-7K
VAS® Page 17 Factory # 33-10944
Assembly Instructions

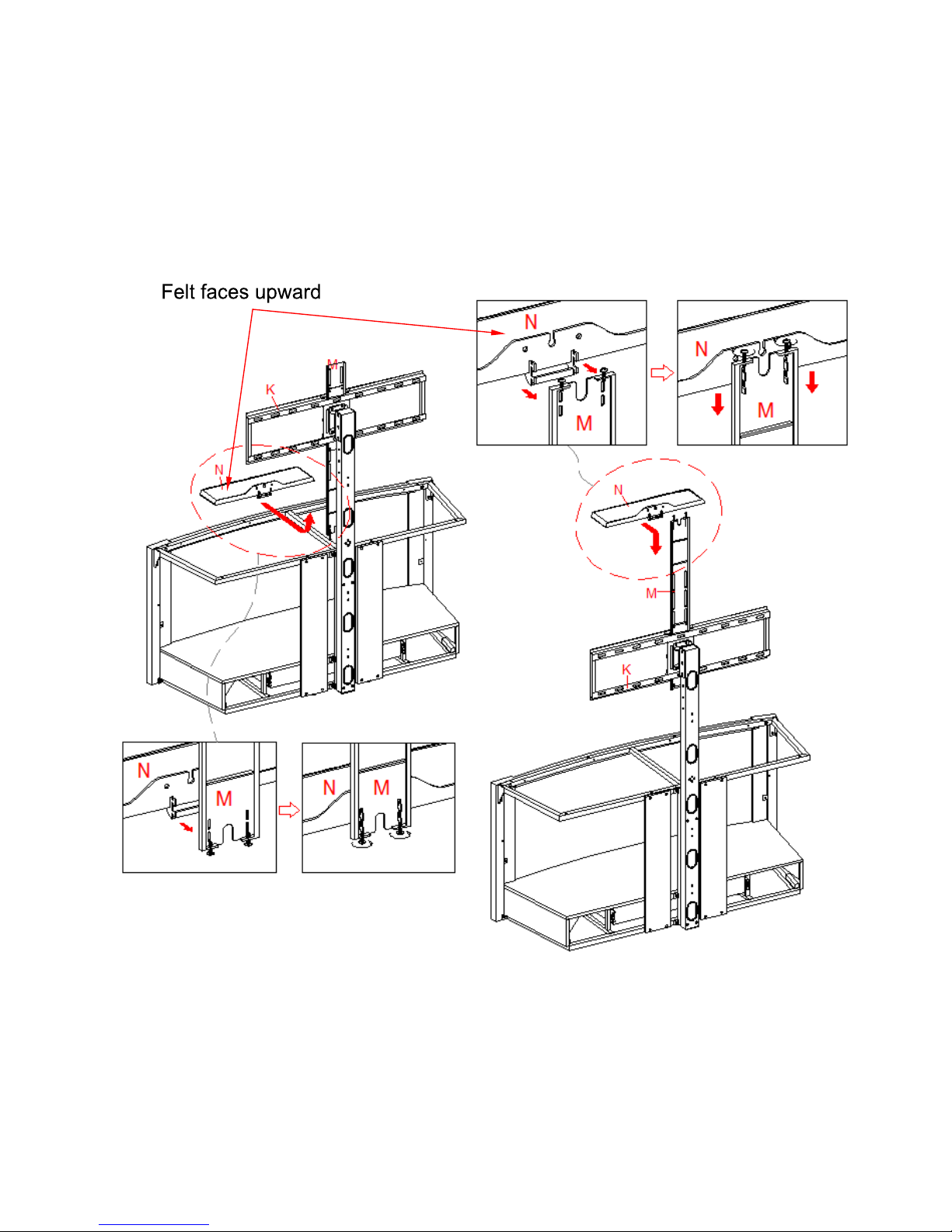

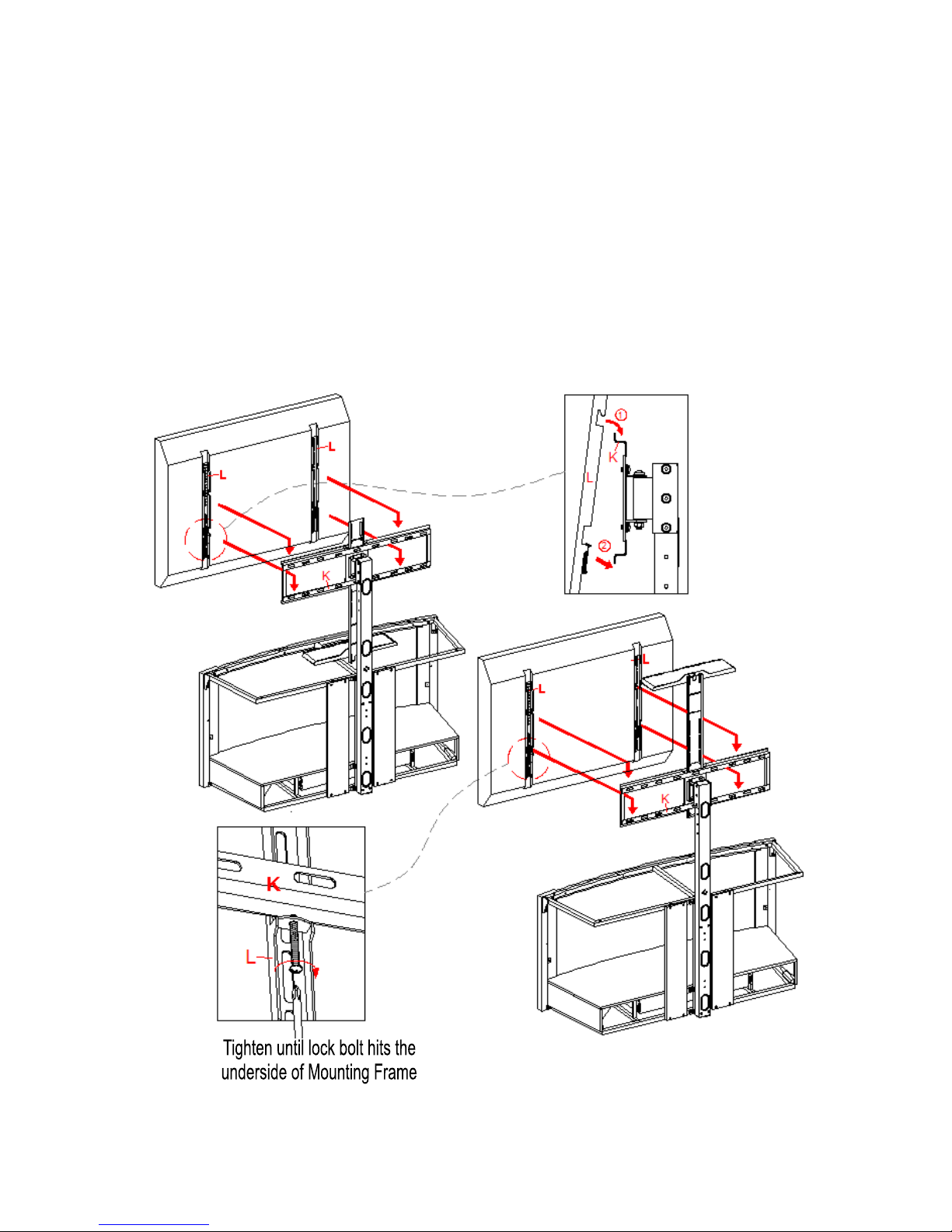

19.Pick up the Sensor/Sound Shelf (N) and securely fit the back tabs into the small slots of the
SSS Spine (M). Tighten both lock bolts which are pre-attached on the SSS Spine with a
Phillips screwdriver until they hit the back tabs of the Sensor/Sound Shelf.

Model # XLGTD52-7K
VAS® Page 18 Factory # 33-10944

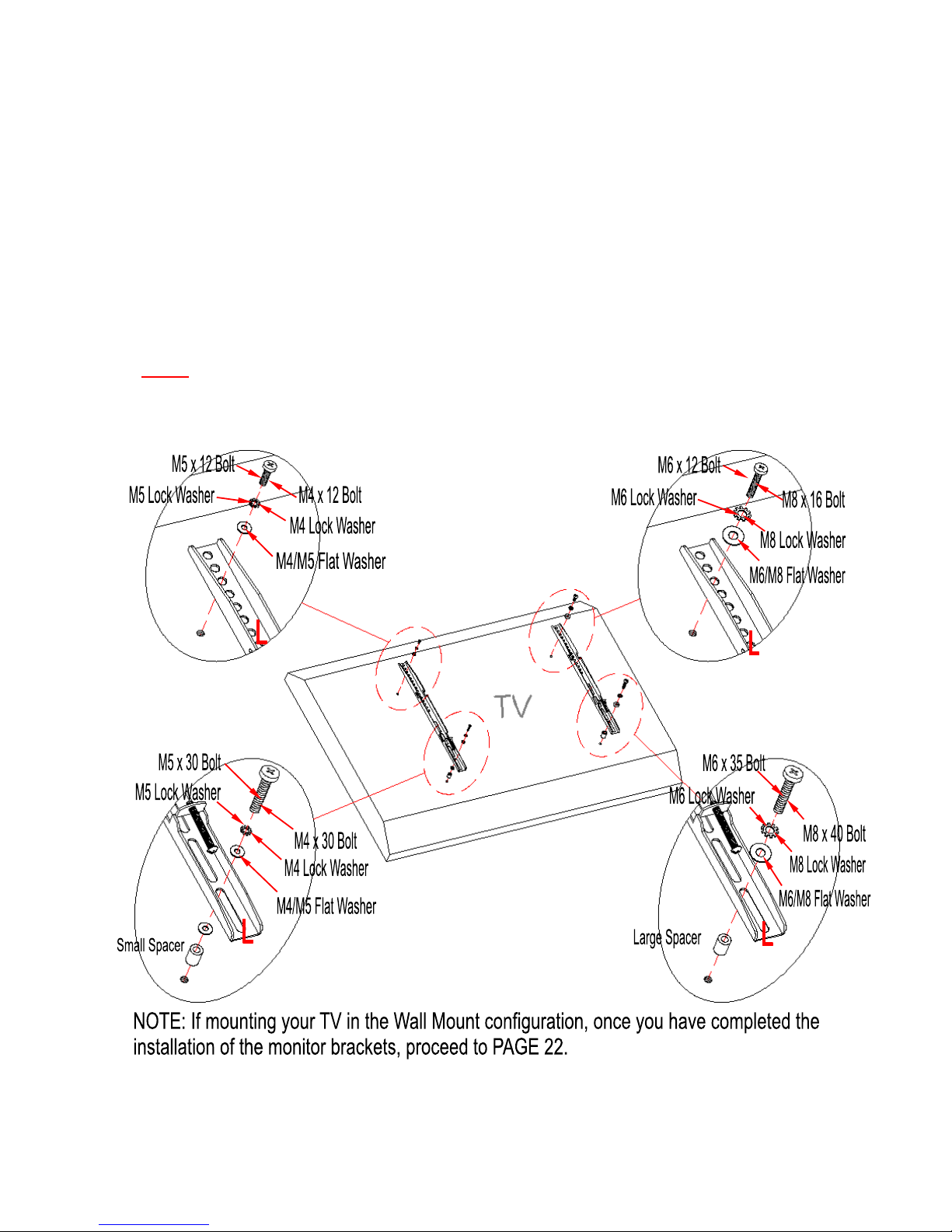

Mounting Monitor Bracket to a television with a flat back
Note: For televisions with a curved back or recessed back, proceed directly to next page.
20.Determine the correct diameter of the bolt your TV requires by hand threading them into the
threaded inserts on the back of the TV. If you encounter any resistance, stop immediately. If
you are unable to find the correct bolt consult a local hardware store.
21.Follow the appropriate diagram below to attach Monitor Brackets (L) to the back of your TV
with the selected fasteners. Make sure the Monitor Brackets are centered and level with
each other. Secure the bolts with a Phillips Screwdriver. DO NOT over tighten the bolts.
NOTE: Lean the TV up against a wall, or other solid surface, when attaching the Monitor
Brackets. DO NOT place the TV face down on the glass as this may cause permanent
damage.

Model # XLGTD52-7K
VAS® Page 19 Factory # 33-10944
Mounting Monitor Bracket to a television with a curved / recess back
22.Determine the correct diameter of the bolt your TV requires by hand threading them into the
threaded insert on the back of the TV. If you encounter any resistance, stop immediately. If
you are unable to find the correct bolt consult a local hardware store.
23.Follow the appropriate diagram below to attach Monitor Brackets (L) to the back of your TV
with selected fasteners. Make sure the Monitor Brackets are vertically centered and level
with each other. Secure the bolts with a Phillips Screwdriver. DO NOT over tighten the bolts.
NOTE: Lean the TV up against a wall, or other solid surface, when attaching the Monitor
Brackets. DO NOT place the TV face down on the glass as this may cause permanent
damage.

Model # XLGTD52-7K
VAS® Page 20 Factory # 33-10944
Assembly Instructions
MAKE SURE ALL BOLTS ARE TIGHT AND THE FLOATER POST IS AT A 90 DEGREE
ANGLE. USE A QUALITY LEVEL TO VERIFY THE MOUNTING FRAME IS LEVEL PRIOR
TO INSTALLATION OF TV.
24.Once the Monitor Brackets (L) are attached onto the back of television, ask for assistance to
lift the television up to attach the Monitor Brackets onto the Mounting Frame (K). Set the
hooks on the Monitor Brackets over the Mounting Frame and then lower them onto the bars
of the Mounting Frame. Loosen the Lock Bolts pre-attached to the Monitor Brackets to
ensure an easy fit at the bottom hooks.
25.Center the television and tighten both Lock bolts with a long Phillips screwdriver until they
hit the underside of the Mounting Frame (K) to secure it in place.
