VAS XLMEC54-LR User manual

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
VAS®Page 1 Factory No. 10944
Date 2014-08-14 Rev. 1 Factory: FOCIDI
54" 3-in-1TM Console
Model # XLMEC54-LR
U.S. Patents 8,079,311 & 8,191,485

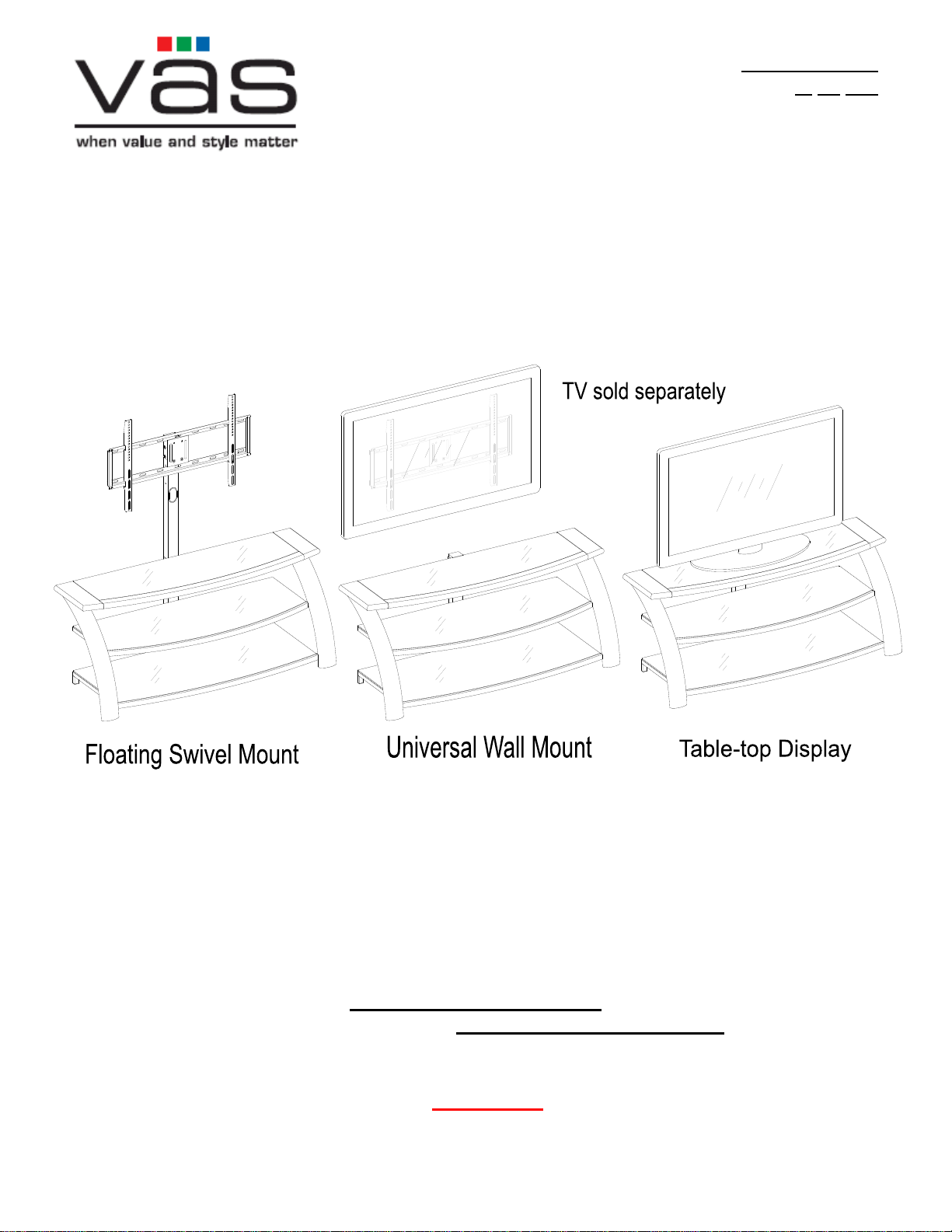

This item is designed to be a 3-in-1 configuration. Please choose the option that best suits your
needs. DO NOT discard any of the hardware or parts that you will not use on your chosen option.
This will allow you to use this TV Console in different configurations at a later date, if desired.
ADULT ASSEMBLY REQUIRED
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the
store where it was purchased. Please call our toll-free customer service number and have your
instructions and parts list ready to provide the model name, part name or factory number:
1-866-942-5362
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday to Friday
Or visit our website 24 hours a day, 7 days a week for product assistance at
www.whalenfurniture.com
Or e-mail your request to [email protected]
LOT NUMBER:
DATE PURCHASED: / /
TV
TV

Model # XLMEC54-LR
Please call for replacement parts or assistance: 1-866-942-5362
VAS®Page 2 Factory No. 10944
MANUFACTURER: VAS®
CATALOG: 54" 3-in-1TM Console (XLMEC54-LR)
DATE OF MANUFACTURE: August 2014
MADE IN CHINA
1. Please read the Assembly Instructions prior to assembling this product.
2. Remove all hardware from the box and sort by size.
3. Check to see that all hardware and parts are present BEFORE assembling.
4. Ask a friend to assist you with the assembly of this furniture.
5. To avoid damage, assemble the product on a sturdy, level and protective surface.
6. Please wait until all steps are completed before fully tightening bolts.
7. Make sure all bolts are tightly fastened before the unit is used.
MAXIMUM RECOMMENDED WEIGHT LOADS
GENERAL INFORMATION
,
TIPS and TRICKS
This product is sold with one set of Tipping Restraint Hardware Kit. You must install the Tipping
Restraint Hardware between the wall and the TV console to prevent any accidents or
damages. When properly installed, this restraint can provide protection against the unexpected
tipping of the unit due to small tremors, bumps or climbing. The restraint is only a deterrent and
is not a substitute for proper adult supervision. Use of tip-over restraints may only reduce, but
not eliminate, the risk of tip-over.
FITS UP TO MOST 65” FLAT PANEL TVs
MAXIMUM LOAD 135 lb. (61.2 kg)
FITS UP TO MOST 65” FLAT PANEL TVs
WITHOUT SWIVELING BRACKET
MAXIMUM LOAD 135 lb. (61.2 kg)
MAXIMUM LOAD 50 lb. (22.6 kg)
THIS UNIT IS NOT INTENDED FOR USE WITH CRT TVS. USE ONLY WITH
FLAT PANEL TVS AND AUDIO/VIDEO EQUIPMENT MEETING RECOMMENDED SIZE AND
WEIGHT LIMITS. NEVER USE WITH LARGER/HEAVIER THAN RECOMMENDED FLAT PANEL
TVS OR EQUIPMENT. TO AVOID INSTABILITY, PLACE FLAT PANEL TV IN THE CENTER OF
THE UNIT; DO NOT ALLOW TV TO OVERHANG UNIT IN ANY DIMENSION. IMPROPERLY
POSITIONED FLAT PANEL TVS, OR FLAT PANEL TVS OR OTHER EQUIPMENT THAT EXCEED
RECOMMENDED SIZE AND WEIGHT LIMITS COULD FALL OFF OR BREAK THE UNIT,
CAUSING POSSIBLE SERIOUS INJURY.

Model # XLMEC54-LR
Please call for replacement parts or assistance: 1-866-942-5362
VAS®Page 3 Factory No. 10944
Parts and Hardware List
Please read completely through the instructions and verify that all listed parts and hardware
are present before beginning assembly.

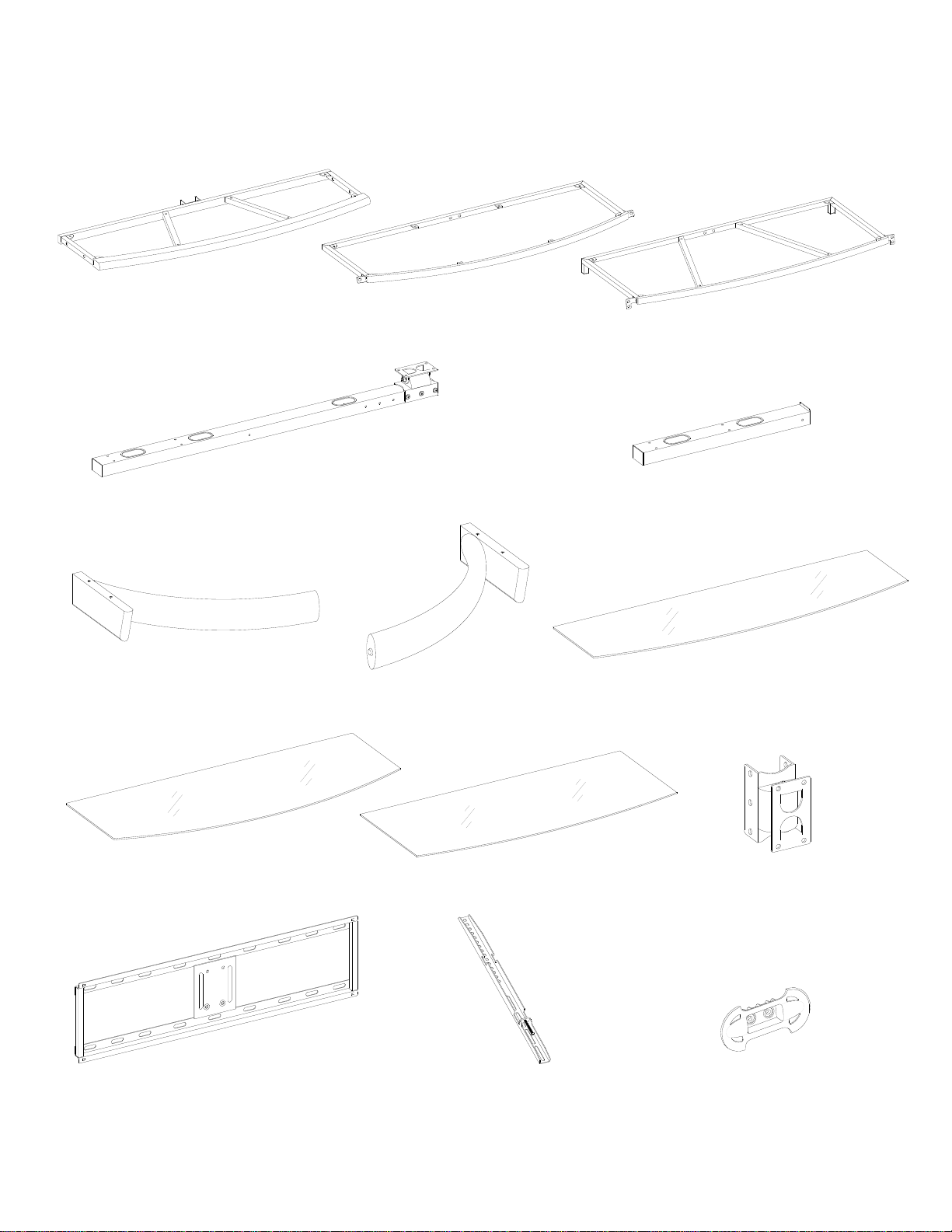

A- Top Shelf Frame (1) B- Middle Shelf Frame (1) C- Bottom Shelf Frame (1)
D- Long Spine (1) D1- Short Spine (1)
E- Left Leg (1) F- Right Leg (1) G- Top Glass (1)
H- Middle Glass Shelf (1) I- Bottom Glass Shelf (1) J- Swiveling Bracket (1)
(Pre-attached on the Spine)
K- Mounting Frame (1) L- Monitor Bracket (2) M- Cable Wheel (2)

Model # XLMEC54-LR
Please call for replacement parts or assistance: 1-866-942-5362
VAS®Page 4 Factory No. 10944
Parts and Hardware List
Please read completely through the instructions and verify that all listed parts and hardware
are present before beginning assembly.
(1) Suction Cup (2) 1/2” Bolt (3) 3/4” Bolt (4) 1-1/4” Bolt (5) Lock Washer
(24+1 extra) (4+1 extra) (12+1 extra) (8+1 extra) (20+1 extra)
(6) Flat Washer (7) Concrete Anchor (8) 2-1/2” Lag Bolt (9) Large Flat Washer
(20+1 extra) (4) (4) (4+1 extra)
4 mm Allen Wrench Touch-up Pen Tipping Restraint Hardware Kit (1)
(2) (1) (Inside Plastic Bag)
TV Mounting Kit
M4 x 12 Bolt (4) M4 x 30 Bolt (4) M5 x 12 Bolt (4) M5 x 30 Bolt (4)
M6 x 12 Bolt (4) M6 x 35 Bolt (4) M8 x 16 Bolt (4) M8 x 40 Bolt (4)
M4 Lock Washer (4) M5 Lock Washer (4) M6 Lock Washer (4) M8 Lock Washer (4)
Large Spacer (4) Small Spacer (4) M4/M5 Flat Washer (8) M6/M8 Flat Washer (4)
Tools required: Allen wrench (provided) and Phillips screwdriver (not provided).

Model # XLMEC54-LR
Please call for replacement parts or assistance: 1-866-942-5362
VAS®Page 5 Factory No. 10944
Assembly Instructions
NOTE: Please do not fully tighten all bolts until you finish assembling all parts. Once assembled,
go back and fully tighten all bolts. This will make the assembly easier.
1. Unpack the unit and confirm that you have all the hardware and required parts.
2. Choose the option suits your needs. For the Floating Swivel Mount option, select the Long
Spine (D). For the other two options, select the Short Spine (D1). Set the Spine back face down
on a scratch free surface, as shown.
3. Align and attach 3 Shelf Frames (A, B and C) to the Spine as shown. Make sure the inside
corner plates on the shelf frames will face up when the unit is turned upright.
3/4” Bolt
(2 used in this step)
③
1-1/4” Bolt
(4 used in this step)
④
Lock Washer
(6 used in this step)
⑤
Flat Washer
(6 used in this step)
⑥
A
B
C
D
A
B
C
D1
B/C
D/D1
4
5
6
3
5
6
356
D/D1
A

Model # XLMEC54-LR
Please call for replacement parts or assistance: 1-866-942-5362
VAS®Page 6 Factory No. 10944
Assembly Instructions
4. Stand the unit upright.

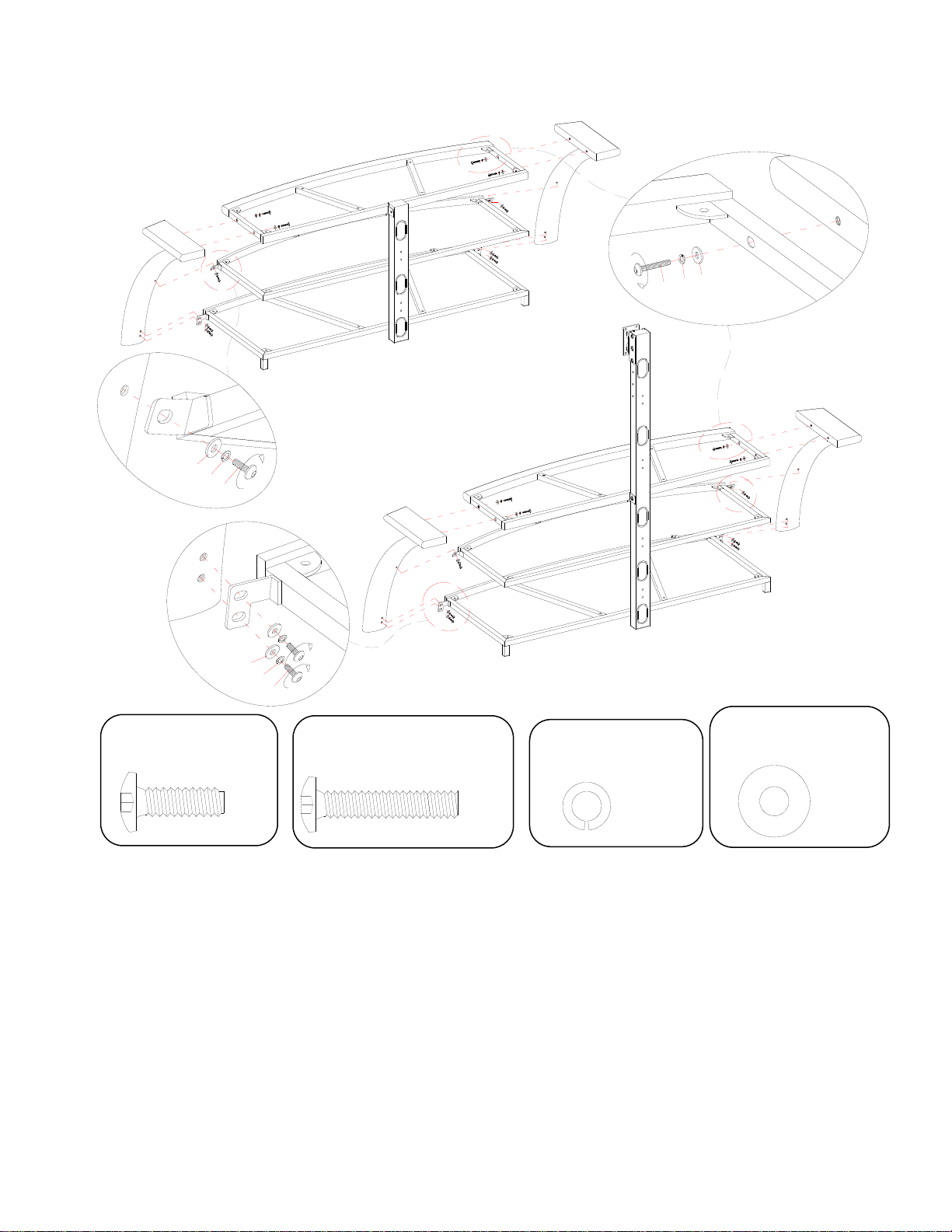

5. Align and attach the Left Leg (E) to the Top Shelf Frame (A) by inserting two 1-1/4” Bolts (4)
with the Washers (5 and 6) from inside the Shelf Frame through the pre-drilled holes on the
side rail and screw into the threaded inserts on the Leg. Make sure that the top rail of Leg is
flush with the wooden front rail of Top Shelf Frame (A). DO NOT tighten the bolts.
6. Secure the Left Leg (E) to the Lower Shelf Frames (B and C) using the 3/4” Bolts (3) with the
Washers (5 and 6) through the end bracket holes and screw into the Leg.
7. Repeat last two steps with the Right Leg (F). Make sure that the gaps between the wooden
front rail of Top Shelf Frame and Legs are equal. Loosen the bolts on the wooden front rail
and adjust, if necessary.
3/4” Bolt
(6 used in this step)
③
1-1/4” Bolt
(4 used in this step)
④
Lock Washer
(10 used in this step)
⑤
Flat Washer
(10 used in this step)
⑥
3
5
6
E/F C
3
65
E/F B
46
5
E/F
A
F
E
A
B
C
D1
F
E
A
B
C
D

Model # XLMEC54-LR
Please call for replacement parts or assistance: 1-866-942-5362
VAS®Page 7 Factory No. 10944
Assembly Instructions
8. Go back and tighten all bolts with the provided Allen wrench.
9. In case of uneven floor, Floor Levelers are provided at the bottom of both Legs (E and F).
Simply tilt the unit back and raise or lower Floor Leveler by hand to correct tilting, as shown
above.
If you choose Table-top Console
configuration, continue to step 10.
If mounting TV with the Floating Swivel
Mount, skip ahead to PAGE 11.
E/F
A
B
C
E
F
A
B
C
E
F
D
D1

Model # XLMEC54-LR
Please call for replacement parts or assistance: 1-866-942-5362
VAS®Page 8 Factory No. 10944
Assembly Instructions for Table-top Console
10.Attach 2 Cable Wheels (M) to the backside of the Short Spine (D1) with the 3/4” Bolts (3).
Tighten the bolts with the provided Allen Wrench.
11.The Cable Wheels (M) enable you to shorten, separate and route cables and cords. Using the
Cable Wheels you can create a system for routing cables through channels, between
components and to power sources without tangled mess or annoying signal interference.
M
3
D1
D1
3/4” Bolt
(4 used in this step)
③

Model # XLMEC54-LR
Please call for replacement parts or assistance: 1-866-942-5362
VAS®Page 9 Factory No. 10944
Assembly Instructions for Table-top Console
12.Put the Suction Cups (1) firmly into top holes and inside corner plates on 3 Shelf Frames (A, B
and C), as shown.
TIP: If a Suction Cup resists insertion, try pressing down on the middle of the cup with the
Allen Wrench while twisting it clockwise into the hole.
13.Place the Top Glass (G) and Glass Shelves (H and I) in place starting from the Bottom Glass
Shelf, as shown above. Make sure the glass shelf is properly centered. Push each glass shelf
all the way back against the Spine. Also, be sure to press down evenly and firmly each glass
shelf onto the Suction Cups to make sure they securely rest onto the Suction Cups.
NOTE: If a glass shelf is scratched, you can minimize the damage by using a BLACK marker
and filling in scratched area from underneath.
A
B
C
E
F
H
I
1
A
G
1
B/C
H/I
G
Suction Cup
(24 used in this step)
①

Model # XLMEC54-LR
Please call for replacement parts or assistance: 1-866-942-5362
VAS®Page 10 Factory No. 10944
Assembly Instructions for Table-top
Tools required: Allen wrench (provided), Phillips screwdriver, Mallet, Power Drill, and 3/8” Drill Bit.

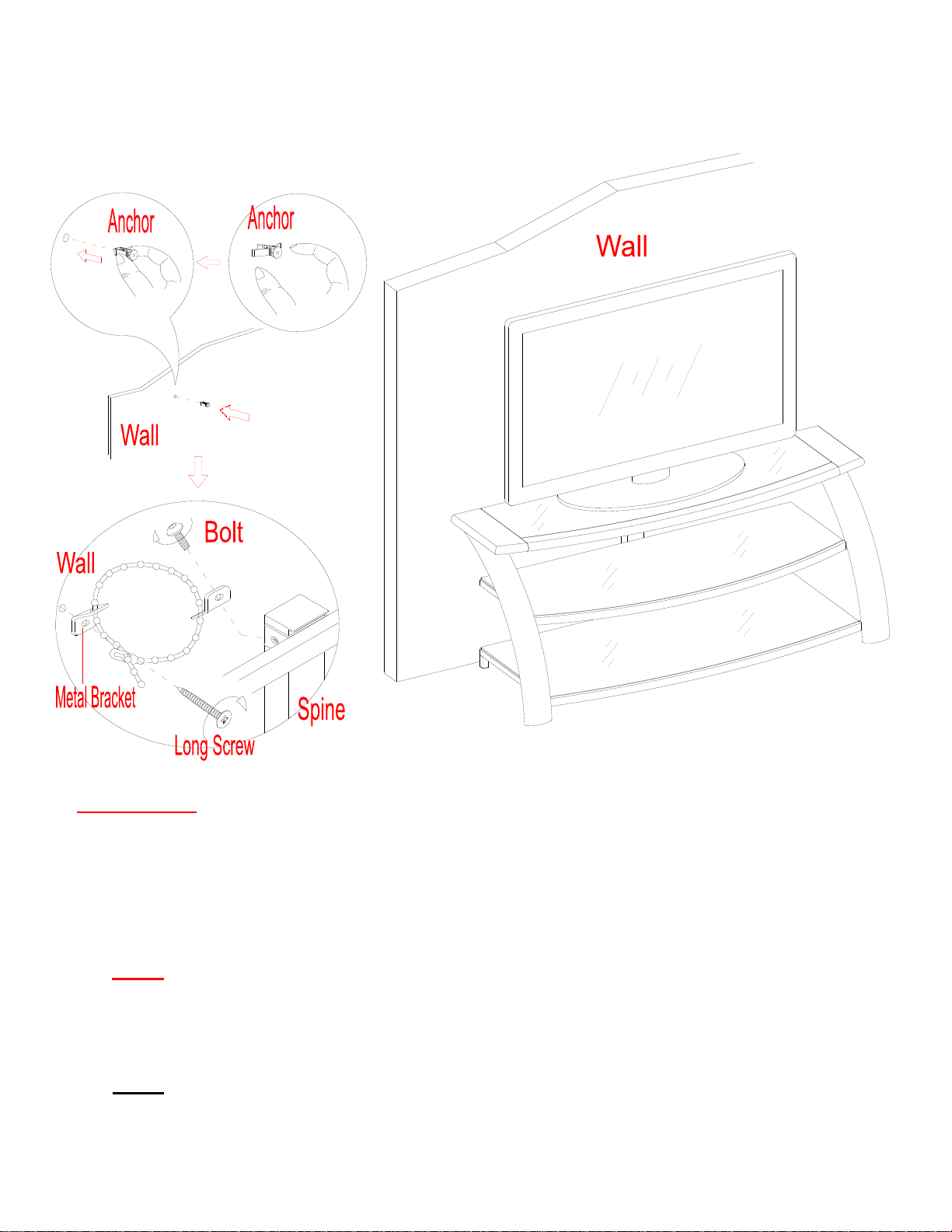

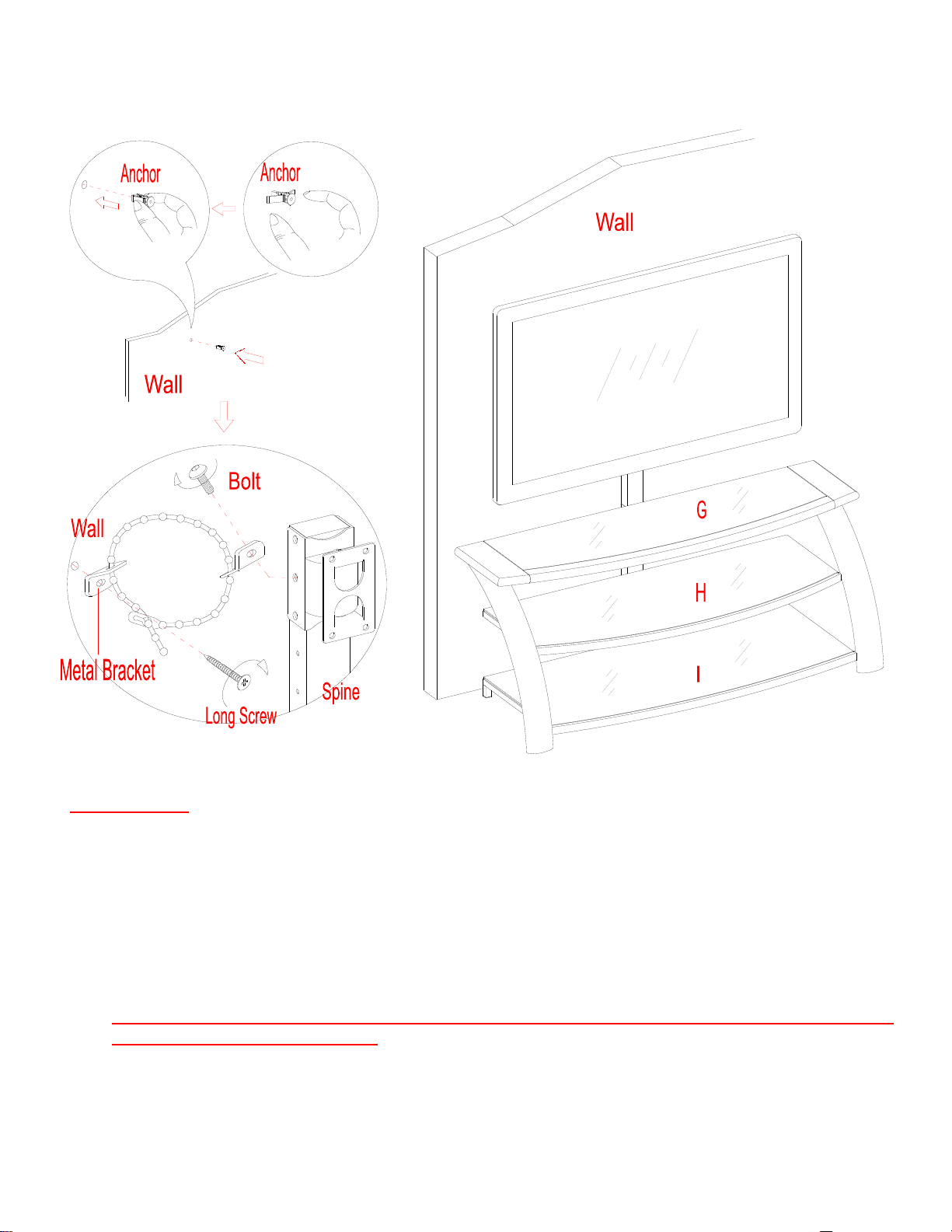

14.Position the assembled console at the desired location against a wall. Now, follow the
instructions printed on the plastic bag containing the Tipping Restraint Hardware to mount the
tipping restraint to the Spine and the wall.
NOTE: YOU MUST USE THIS TIPPING RESTRAINT TO ATTACH THIS UNIT TO THE
WALL, TO PREVENT FROM TIPPING, CAUSING ACCIDENTS AND/OR INJURIES.
15.The console is now ready for use. Be sure to position your Flat Panel TV in the center of the
console.
NOTE: If you choose the Tilting Wall Mount configuration, proceed to PAGE 16.
TV

Model # XLMEC54-LR
Please call for replacement parts or assistance: 1-866-942-5362
VAS®Page 11 Factory No. 10944

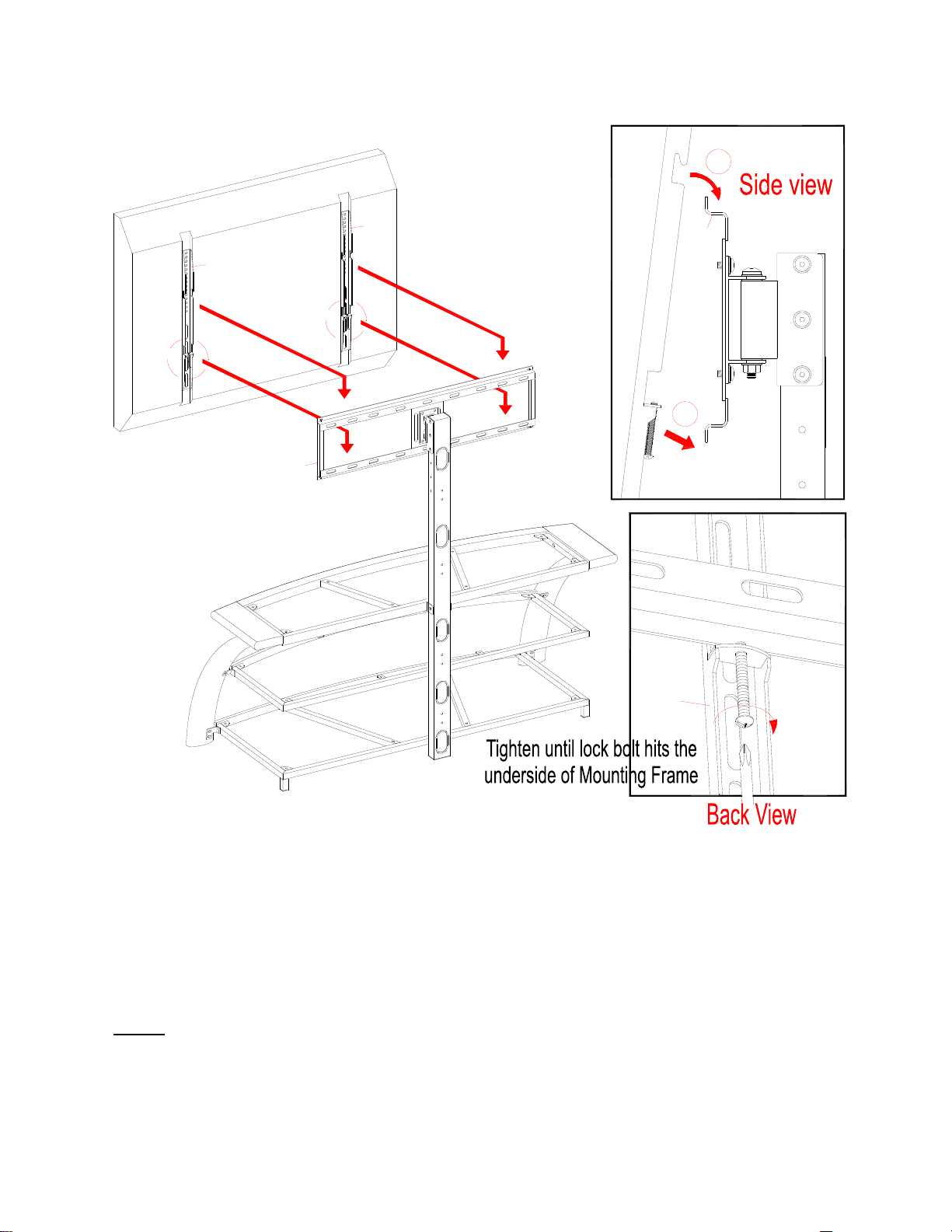

16.Hold and attach the flat side of the Mounting Frame (K) to the Swiveling Bracket (J) on the top
of Long Spine (D) using four 1/2” Bolts (2) and four Washers (5 and 6). Make sure that the
recess holes on the Mounting Frame are at the bottom.
BACK
K
D
J
2
5
6
5
62
5
6
2
K
J
D
Lock Washer
(4 used in this step)
⑤
Flat Washer
(4 used in this step)
⑥
1/2” Bolt
(4 used in this step)
②
Assembly Instructions for
Floating Swivel Mount

Model # XLMEC54-LR
Please call for replacement parts or assistance: 1-866-942-5362
VAS®Page 12 Factory No. 10944
Mounting Monitor Brackets to a Television with a Flat Back
NOTE: For televisions with a curved or recessed back, proceed directly to next page.
17.Determine the correct diameter of the bolt the TV requires by hand threading them into the
threaded insert on the back of the TV. If you encounter any resistance, stop immediately. If
you are unable to find the correct bolt, consult a local hardware store.

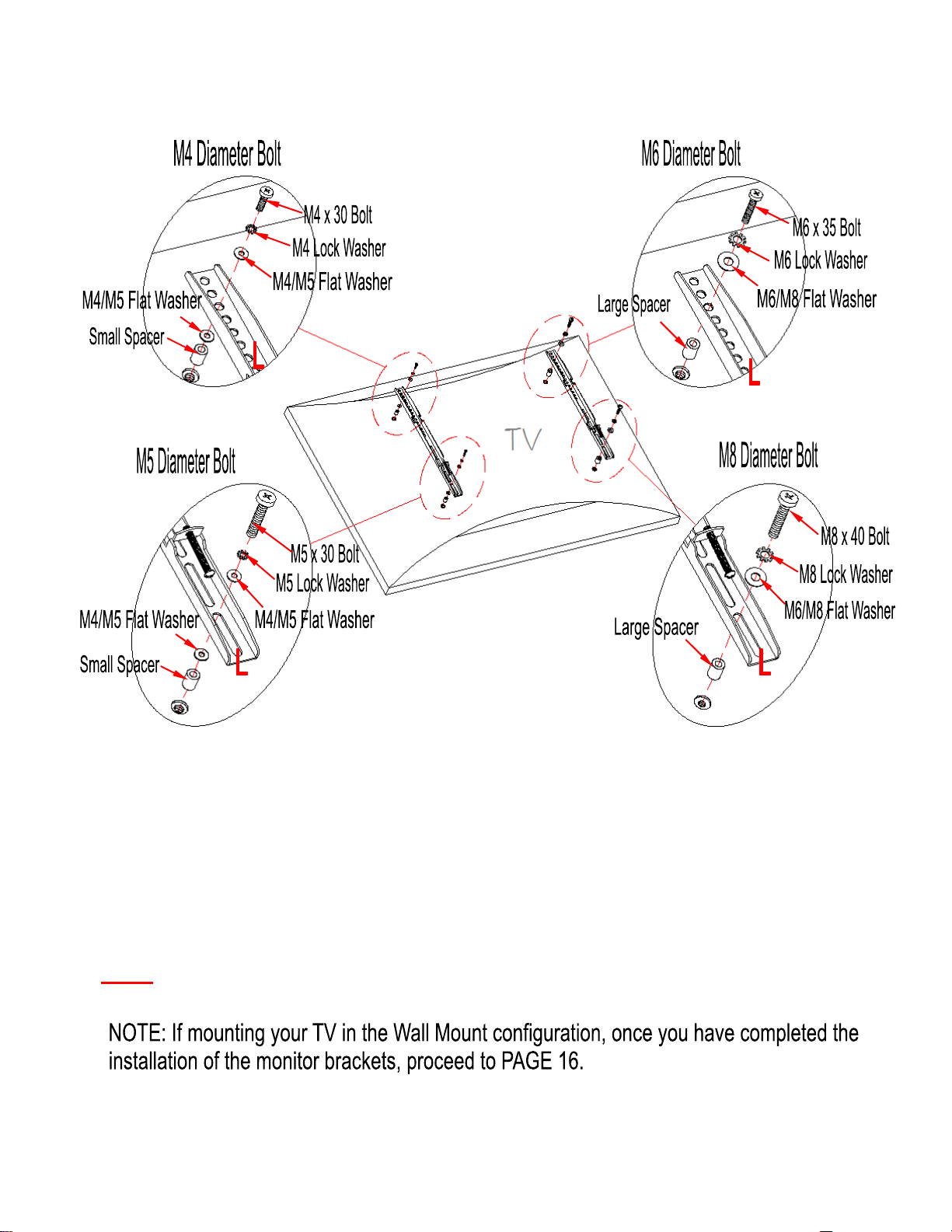

18.Follow the appropriate diagram above to attach the Monitor Brackets (L) to the back of the TV
with the selected fasteners. Make sure the Monitor Brackets are centered and level with each
other. Secure the bolts with a Phillips screwdriver. DO NOT over tighten the bolts.
NOTE: Lean the TV up against a wall or other solid surface when attaching the Monitor
Brackets. DO NOT place the TV face down on the glass as this may cause permanent damage.

Model # XLMEC54-LR
Please call for replacement parts or assistance: 1-866-942-5362
VAS®Page 13 Factory No. 10944
Mounting the Monitor Brackets to a Television with a Curved/Recess Back
19.Determine the correct diameter of the bolt the TV requires by hand threading them into the
threaded insert on the back of the TV. If you encounter any resistance, stop immediately. If
you are unable to find the correct bolt consult a local hardware store.
20.Follow the appropriate diagram above to attach the Monitor Brackets (L) to the back of the TV
with the selected fasteners. Make sure the Monitor Brackets are vertically centered and level
with each other. Secure the bolts with a Phillips Screwdriver. DO NOT over tighten the bolts.
NOTE: Lean the TV up against a wall or other solid surface when attaching the Monitor
Brackets. DO NOT place the TV face down on the glass as this may cause permanent damage.

Model # XLMEC54-LR
Please call for replacement parts or assistance: 1-866-942-5362
VAS®Page 14 Factory No. 10944
Assembly Instructions for Floating Swivel Mount
MAKE SURE ALL BOLTS ARE TIGHT AND THE SPINE IS AT A 90 DEGREE ANGLE AND
VERIFY THE MOUNTING FRAME IS LEVEL, USING A QUALITY LEVEL, PRIOR TO
INSTALLATION OF TV.
21.Once the Monitor Brackets (L) are attached onto the back of television, ask for assistance to
lift the television up to hang the Monitor Brackets (L) onto the Mounting Frame (K). Set the
hooks on the Monitor Brackets over the Mounting Frame and then lower them onto the bars of
the Mounting Frame.
NOTE: Loosen the Lock Bolt that is pre-attached on the Monitor Brackets to ensure an easy fit
at the bottom hooks.
22.Center the television and tighten both Lock Bolts with a long Phillips screwdriver until they hit
the underside of the Mounting Frame (K) to ensure your TV is safe and secure.
1
2
K
L
L
K
K
L
L

Model # XLMEC54-LR
Please call for replacement parts or assistance: 1-866-942-5362
VAS®Page 15 Factory No. 10944
Assembly Instructions for Floating Swivel Mount
Tools required: Allen Wrench (provided), Phillips screwdriver, Mallet, Power Drill, and 3/8” Drill Bit.
23.Repeat steps 10 through 13 to attach the Cable Wheels (L) and install the Top Glass (G)
and Glass Shelves (H and I) in place.
24.Carefully move the console and position it at the desired location against a wall. Now, follow
the instructions printed on the plastic bag containing Tipping Restraint Hardware Kit to mount
the tip-over restraint to the Spine and the wall.
NOTE: You must install the Tipping Restraint Hardware with the unit in use to prevent any
accidents or damage to the unit.
25.The console is now ready for use. Swivel the TV left-or-right for optimum viewing control.
TV

Model # XLMEC54-LR
Please call for replacement parts or assistance: 1-866-942-5362
VAS®Page 16 Factory No. 10944
Assembly Instructions for Universal Wall Mount
Installing the Mounting Frame onto a WOODEN STUD WALL
NOTE: If you are mounting your TV onto brick, solid concrete or concrete block, skip
this section. This assembly requires an electric drill, level and stud finder (not included).
26. Using a stud finder, locate the edges of the wood studs. Find the center line of each stud and
draw a vertical reference line on the wall over each one. Place the Mounting Frame (K) level
against the wall where you intend to mount the TV. Using the Mounting Frame (K) as a
template, mark 4 drill points (2 on top, 2 on bottom) with a pencil on the vertical reference lines
you just drew.
27. With an electric drill (not included) drill 3/16 inch diameter holes to at least 2½ inch deep on
the four drill points. Whileholdingthe BracketPlatein place, loosely screw in the Lag Bolts (8).
28. Secure the Mounting Frame (K) to wall with the Lag Bolts (8) and the Washers (9) at the drill
points. Tighten the bolts firmly, but be careful not to over tighten.
The following steps are only for those who wish to mount their
TV directly to the wall. If you have already mounted your TV to
the Swinging Floater or plan to display your TV on the top
surface of the stand, disregard the following steps.
2.50" (63 mm)
0.20" (5 mm)
Do not over tighten the Lag Bolts. Tighten Lag Bolts only until the Lag
Bolt Washer is pulled firmly against the metal plate of Mounting Frame. If there is a layer
of drywall or other material, this drywall or other material may not exceed 5/8 inch in
thickness. Failure to heed this caution may result property damage and/or personal injury.

Model # XLMEC54-LR
Please call for replacement parts or assistance: 1-866-942-5362
VAS®Page 17 Factory No. 10944

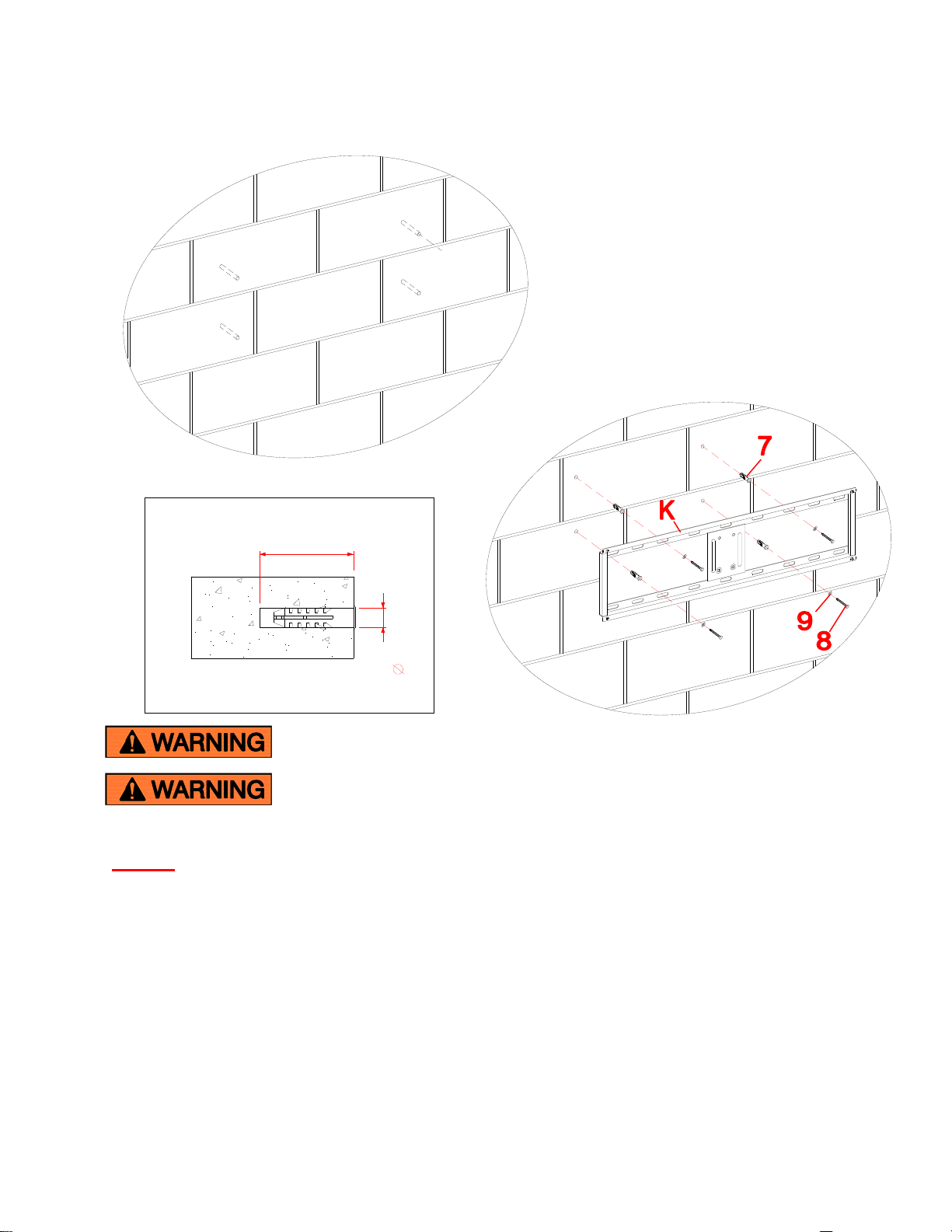

Assembly Instruction for installing the Mounting Frame onto a BRICK, SOLID
CONCRETE OR CONCRETE BLOCK WALL
NOTE: If you are mounting your TV to a wall with wooden studs, skip this section. This
assembly requires an electric drill and level (not included).
29. Begin by placing the Mounting Frame (K) level against the wall where you intend to mount the
TV. Using the Mounting Frame (K) as a template, mark 4 drill points with a pencil.
30. With an electric drill (not included) on its low setting, drill 7/16 inch diameter holes to at least
2½ inch (63 mm) deep. Insert the Concrete Anchors (7) into the pre-drilled holes so that they
are flush with the wall.
31. Place the Mounting Frame (K) level in the desired position against the wall. Secure the
Mounting Frame (K) to wall with the Lag Bolts (8) and the Washers (9) at the drill points.
Tighten the bolts firmly, but be careful not to over tighten.
2.50" (63 mm)
0.4375" (11 mm)
Concrete Anchors should only be used for masonry mounting.
NEVER use the wall anchors to mount the unit to drywall.
Maximum weight 135 lb. (61.2 kg)

Model # XLMEC54-LR
Please call for replacement parts or assistance: 1-866-942-5362
VAS®Page 18 Factory No. 10944
Assembly Instructions
32.Attach the Monitor Brackets (L) to the back of the television following steps 17 & 18, or 19 &
20, depending on the type of TV that you own.
33.Ask for assistance to lift the television up to attach the Monitor Brackets (L) onto the Mounting
Frame (K). Place the hooks of the Monitor Brackets over the Mounting Frame and then lower
them onto the bars of the Mounting Frame (K). Loosen the Lock Bolts that are pre-attached on
the Monitor Brackets to ensure an easy fit at the bottom hooks.
34.Center the television. When the TV is in its intended position, tighten both lock bolts with a
long Phillips screwdriver until they hit underside of the Mounting Frame (K). This will ensure
the TV is safely secured to the wall.
35.Place the assembled console under your TV. Finally, connect the A/V and power cables to
your TV. You are now ready to enjoy your wall-mounted Flat Panel TV.
1
2
K
L
L
L
K
K
L

Model # XLMEC54-LR
Please call for replacement parts or assistance: 1-866-942-5362
VAS®Page 19 Factory No. 10944
Care and Maintenance
Use a soft, clean cloth that will not scratch the surface when dusting.
Use of furniture polish is not necessary. Should you choose to use polish, test first in an
inconspicuous area.
Using solvents of any kind on your furniture may damage the finish.
Never use water to clean your furniture as it may cause damage to the finish.
Always use coasters under beverage glasses and flowerpots.
Liquid spills should be removed immediately. Using a soft clean cloth, blot the spill gently. Avoid
rubbing.
Always use protective pads under hot dishes and plates. Heat can cause chemical changes that
may create spotting within the furniture finish.
Stains or marks from crayons or ink markers will be difficult to remove.
In the event that your furniture is stained or otherwise damaged during use, we recommend that
you call a professional to repair your furniture.
Check bolts/screws periodically and tighten them if necessary.
Further advice about wood furniture care
It is best to keep your furniture in a climate-controlled environment. Extreme temperature and
humidity changes can cause fading, warping, shrinking and splitting of wood. It is advised to keep
furniture away from direct sunlight as sun may damage the finish.
Proper care and cleaning at home will extend the life of your purchase. Following these important
and helpful tips will enhance your furniture as it ages.
A Touch-up Pen has been provided to repair any small nicks or scratches that may occur
during assembly or shipping.
We hope you enjoy your purchase for many years.
Thank you for your purchase.
QUALITY GUARANTEE
We are confident that you will be delighted with your VAS®purchase.
Should this product be defective in workmanship or materials or fail under normal use, we
will repair or replace it for up to one (1) year from date of purchase. Every VAS®product is
designed to meet your highest expectations. We guarantee that you will immediately see
the value of our fine furniture.
This warranty gives you specific legal rights and you may also have other rights which vary
from State to State.
Customer Service: 1-866-942-5362
8:30 a.m. - 4:30 p.m., PST, Monday to Friday
www.whalenfurniture.com

IF YOU NEED TO ORDER ANY REPLACEMENT PARTS, PLEASE USE THE LIST BELOW
54" 3-in-1TM Console (XLMEC54-LR)
*XLMEC54-LR-1-LS Long Spine *XLMEC54-LR-17-OPG Oval Plastic Grommet *XLMEC54-LR-2-TG Top Glass *XLMEC54-LR-18-CW Cable Wheel *XLMEC54-LR-3-MGS Middle Glass Shelf *XLMEC54-LR-19-1/2B 1/2” Bolt *XLMEC54-LR-4-BGS Bottom Glass Shelf *XLMEC54-LR-20-3/4B 3/4” Bolt *XLMEC54-LR-5-LL Left Leg *XLMEC54-LR-21-1 1/4B 1-1/4” Bolt *XLMEC54-LR-6-RL Right Leg *XLMEC54-LR-22-LW Lock Washer *XLMEC54-LR-7-MF Mounting Frame *XLMEC54-LR-23-FW Flat Washer *XLMEC54-LR-8-MB Monitor Bracket *XLMEC54-LR-24-LFW Large Flat Washer *XLMEC54-LR-9-SB Swiveling Bracket *XLMEC54-LR-25-SC Suction Cup *XLMEC54-LR-10-SS Short Spine *XLMEC54-LR-26-CA Concrete Anchor *XLMEC54-LR-11-SEC Spine End Cap (40 x 60 mm) *XLMEC54-LR-27-2 1/2LB 2-1/2” Lag Bolt *XLMEC54-LR-12-TSF Top Shelf Frame *XLMEC54-LR-28-M4AW 4 mm Allen Wrench *XLMEC54-LR-13-MSF Middle Shelf Frame *XLMEC54-LR-29-TRHK Tipping Restraint Hardware Kit *XLMEC54-LR-14-BSF Bottom Shelf Frame *XLMEC54-LR-30-TUP Touch-up Pen *XLMEC54-LR-15-PEC Plastic End Cap (20 x 20 mm) *XLMEC54-LR-TVMK TV Mounting Kit *XLMEC54-LR-16-FL Floor Leveler *XLMEC54-LR-CH Complete Hardware
