VAS XL-1 User manual

VAS Furniture Mfg. Inc.
Factory No. 33-10944
Page # 1
“ADULT ASSEMBLY REQUIRED”
If you have any questions regarding assembly or if you are
missing parts, do not return this item to the
Retailer Store
Please call our customer service number and have your
instructions and parts list ready to provide the model name,
part name or factory number:
1-866-942-5362
Pacific Standard Time: 8:30 am - 4:30 pm Monday to Friday

Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg. Inc.
Factory No. 33-10944
Page # 2
Furniture Tipping Restraint
Young children may be injured by tipping furniture and the use of a tipping
restraint is highly recommended. This hardware, when properly installed,
could provide protection against the unexpected tipping of furniture due to
improper use.
Warning: This product is only a deterrent and is not a substitute for proper
adult supervision.
Follow instruction printed on the White bag inside the hardware for this unit.
You must install the hardware with the product in use.
TV Mounting Configuration
Determine the correct length of the required Bolt. Televisions with a flat
back will require one of the shorter Bolts without a spacer. Some
televisions have a curved back or have recessed back. This may require a
longer Bolt along with a Spacer placed between the television and the
Monitor Bracket. Follow the diagrams upper to see what additional
hardware you will need to mount the Monitor Brackets to your television.
Caution: Apply only one detail configuration to the TV depending on the
type of Plasma TV you have.
Care and Maintenance
We use only top quality materials. To preserve the luster and beauty we
recommend you treat this furniture regularly with quality cleaning Oil.
Compare this furniture and you will find we offer one of the Best Values
in the marketplace today.
We hope you enjoy your purchase for many years
M4 lock
washer
M4 lock
washer
M5 lock
washer
M5 lock
washer
M6 lock
washer
M6 lock
washer
M8 lock
washer
M8 lock
washer
Large
washer
Large
washer
Large
washer
Large
washer
Large spacer
Large spacer
Large
washer
Large
washer
Small
spacer
Small
spacer

Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg. Inc.
Factory No. 33-10944
Page # 3

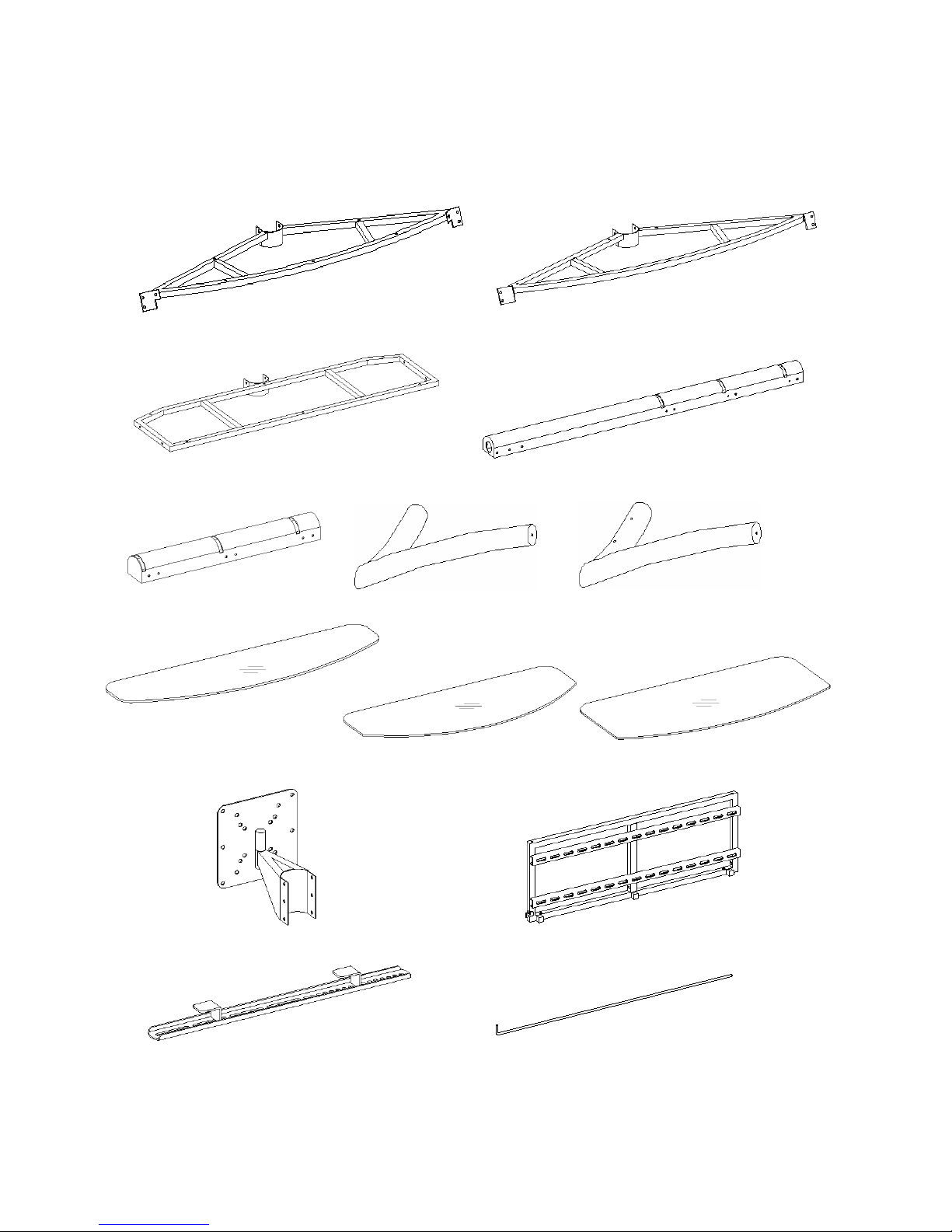

Parts List
Please read completely through the instructions and verify that all
parts listed are present before beginning assembly.
A-Top Frame (1) B- Shelf Frame (1)
C- Bottom Frame (1) D- Long Spine (1)
D1- Short Spine (1) EL- Left Side Leg (1) ER- Right Side Leg (1)
F- Top Glass (1) G- Middle Shelf (1) H- Bottom Glass Shelf (1)
I- Deluxe Plasma Bracket (1) J- Mounting Frame (1)
K- Monitor Bracket (2) L- Safety Bar (1)

Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg. Inc.
Factory No. 33-10944
Page # 4

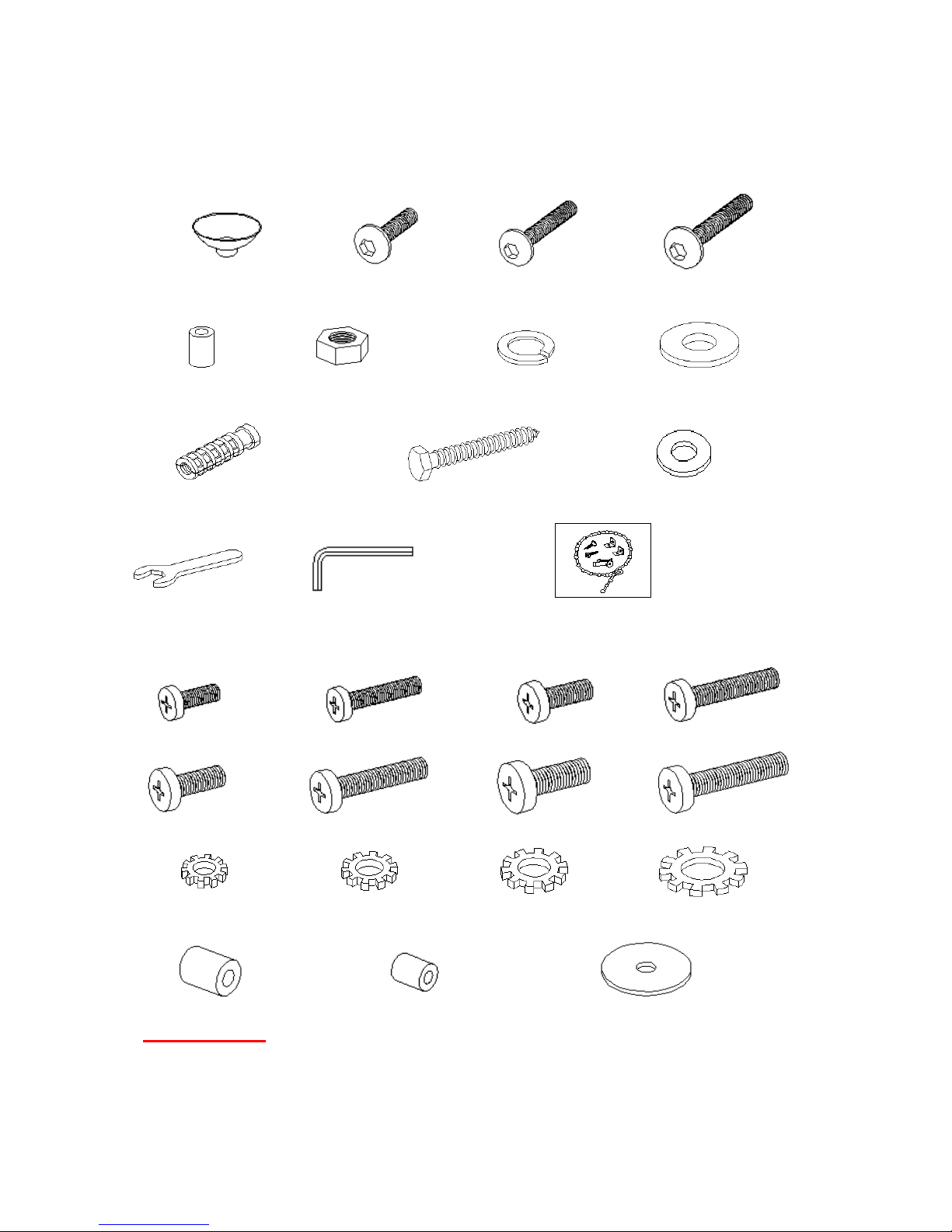

Hardware List
Please read completely through the instructions and verify that all
parts listed are present before beginning assembly.
(1) Suction Cup (2) 5/8” Bolt (3) 3/4” Bolt (4) 1 1/4” Bolt
(18+1 extra) (28+1extra) (4+1extra) (6+1 extra)
(5) Stopper (6) Nut (7) Lock Washer (8) Flat Washer
(2) (4+ 1 extra) (4+1 extra) (8+1 extra)
(9) - Concrete Anchor (10) - Lag Bolt (11) - Lag Bolt Washer
(6) (6) (6)
Open Wrench (1) Allen Wrench (1) Tipping Restraint Hardware Kit (1)
(Inside Plastic White Bag)
TV Mounting Kit
M4 x 12 Bolt (4) M4 x 30 Bolt (4) M5 X 12 Bolt (4) M5 x 30 Bolt (4)
M6 x12 Bolt (4) M6 x 35 Bolt (4) M8x16 Bolt (4) M8 x40 Bolt (4)
M4 Lock Washer M5 Lock Washer M6 Lock Washer M8 Lock Washer
(4) (4) (4) (4)
Large Spacer (4) Small Spacer (4) Large Flat Washer (8)
Tools Required: Phillips Screwdriver, Mallet, Power Drill, 3/8” & 3/16”Drill
Bit, Allen Wrench (provided) and Open Wrench (provided), socket set,
1/2” Masonry Bit for brick concrete, Stud Sensor.

Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg. Inc.
Factory No. 33-10944
Page # 5
Assembly Instructions
Note: Please do not fully tighten all bolts until you finish assembling all
parts, then go back and fully tighten all bolts, this will make it easier
during assembly of unit.
1. Unpack the unit and confirm that you have all the hardware and
required parts listed.
Note: Please decide which configuration you would like to use before
starting to assemble the unit. Once you decide you can continue with
steps #2 through #9, or skip any of the steps you don’t need, according
to your option.
Option #1a Long Spine (Steps #10 & 11) Swinging Mount: DLX Plasma Bracket
Option #1b Long Spine (Steps #12 to 18) Swinging Mount: Mounting Frame
Option #2 Short Spine (Steps #19) Console
Option #3 Short Spine (Steps #20 to 28) Wall Mount
2. Locate the Spine (part D) or Short Spine (part D1) and set back face
down on a scratch free surface, then place the Frames (part A, B & C)
on it, make sure the holes of the bracket aligned with the threaded
inserts of the Spine and the top surface of Frames are flush with the
grooves of Spine. Then assemble the Shelf Frames to Spine with the
5/8” Bolts (part 2). See detail #1.
Parts Required Tools Required
A - Top Frame (1) Allen Wrench
B - Shelf Frame (1)
C - Bottom Frame (1)
D – Long Spine or D1 - Short Spine (1)
2 - 5/8” Bolt (12)

Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg. Inc.
Factory No. 33-10944
Page # 6
Assembly Instructions
3. Stand the unit upright.

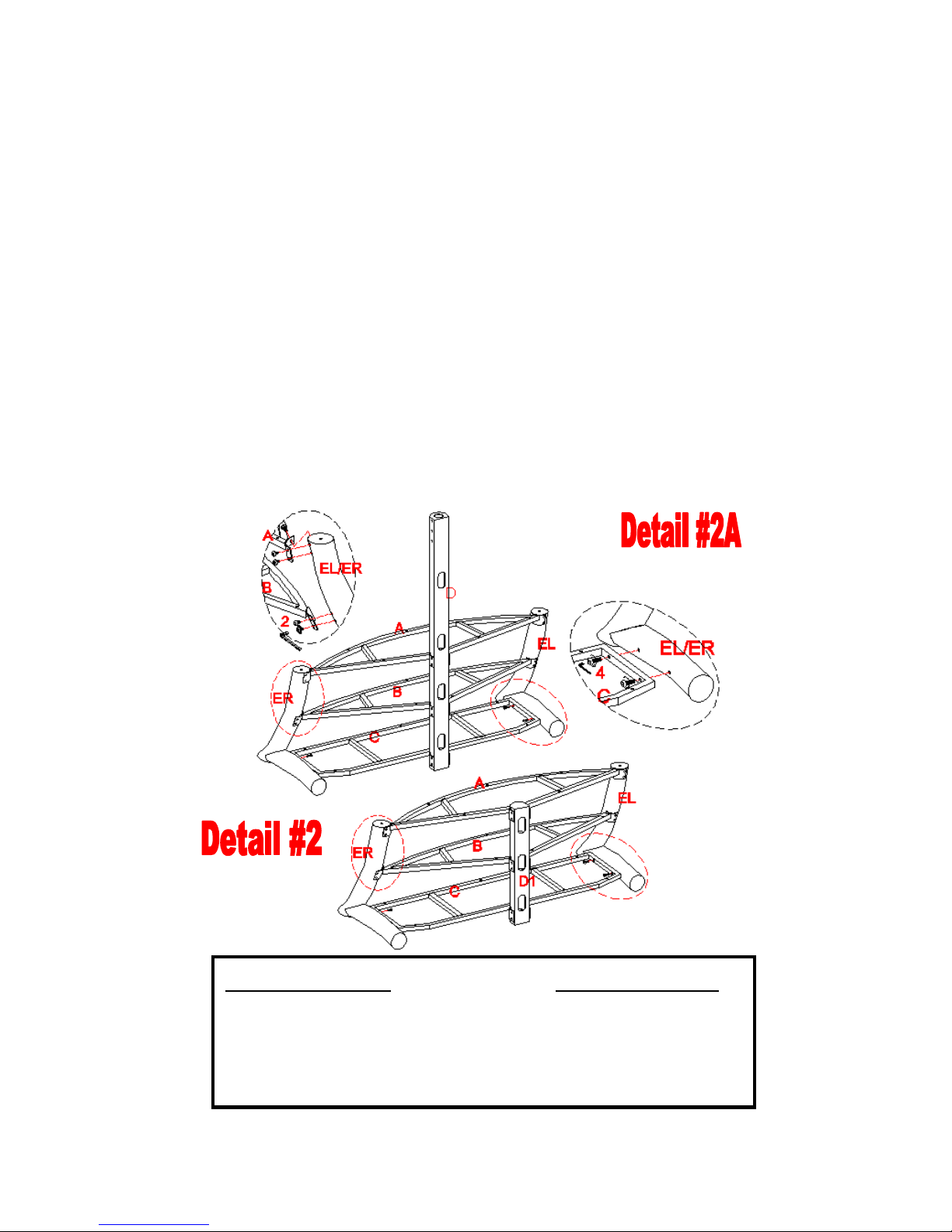

4. Now attach the Side Legs (part EL & ER) to Bottom Frame
(part C), using the four 1 1/4” Bolts (part 4) through the
bottom frame holes from inside. As shown in detail #2A.
5. Proceed to attach the Left and Right Side Legs (part EL &
ER) to Top and Shelf Frames (part A & B), using the 5/8”
Bolts (part 2) through the end bracket holes into the
threaded inserts located on the Side Leg, as shown in detail
#2.
6. Now fully tighten all the bolts.
Note: Ask a friend to help and make sure that the top of legs
are flush with the Top Frame (part A).
Parts Required Tools Required
EL –Left Side Leg (1) Allen Wrench
ER –Right Side Leg (1)
2 - 5/8” Bolt (10)
4- 1 1/4” Bolt (4)

Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg. Inc.
Factory No. 33-10944
Page # 7
Assembly Instructions
7. In case of uneven floor, just tilt the unit back and use your
hand to turn the Floor Levelers attached on the bottom of
Side Legs (part EL & ER) and adjust the height of the unit,
until the unit is level. As shown in detail3.
Parts Required Tools Required
Pre-attached Floor Leveler No Tool Required

Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg. Inc.
Factory No. 33-10944
Page # 8
Assembly Instructions
8. Now put the Suction Cups (part 1) into top holes of all Frames (part A,
B & C) and Left and Right Side Leg (part EL & ER) into place. As
shown in detail #4.
9. Place the Glass Shelf (part F, G & H) in place as shown in detail #4.
Note: Make sure that the Glass sits correctly and goes all the way into the
grooves on the Spine and the Suction Cups go all the way into the pre-
drilled hole to prevent the glass shelf from falling and getting damage.
Parts Required Tools Required
F - Top Glass (1) No Tool Required
G – Middle Glass Shelf (1)
H – Bottom Glass Shelf (1)
1 - Suction Cup (18)

Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg. Inc.
Factory No. 33-10944
Page # 9
Option #1a: SWINGING MOUNT w/Dlx. Plasma Bracket
10. Attach the Deluxe Plasma Bracket (part I) to the Top of
Spine (part D), using six 5/8” Bolts (part 2) through the
bracket into the threaded inserts located on the side of the
Spine (part D), three bolts per each side. See detail #5.
Parts Required Tools Required
I – Deluxe Plasma Bracket (1) Allen Wrench
2 – 5/8” Bolt (6)

Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg. Inc.
Factory No. 33-10944
Page # 10
Assembly Instructions
11. You can install your Plasma / LCD TV directly, using the
Bolts, through the Lock Washers and Flat Washers (provided
with Plasma / LCD TV) through the proper holes of Metal Plate
pre-attached on the Deluxe Plasma Bracket (part I) and then
into the back of the TV set. See detail #6.
Note: You can also install the different Mounting Bracket on the
Floater Panel for your TV set.

Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg. Inc.
Factory No. 33-10944
Page # 11
Option #1b: SWINGING MOUNT W/ MOUNTING FRAME

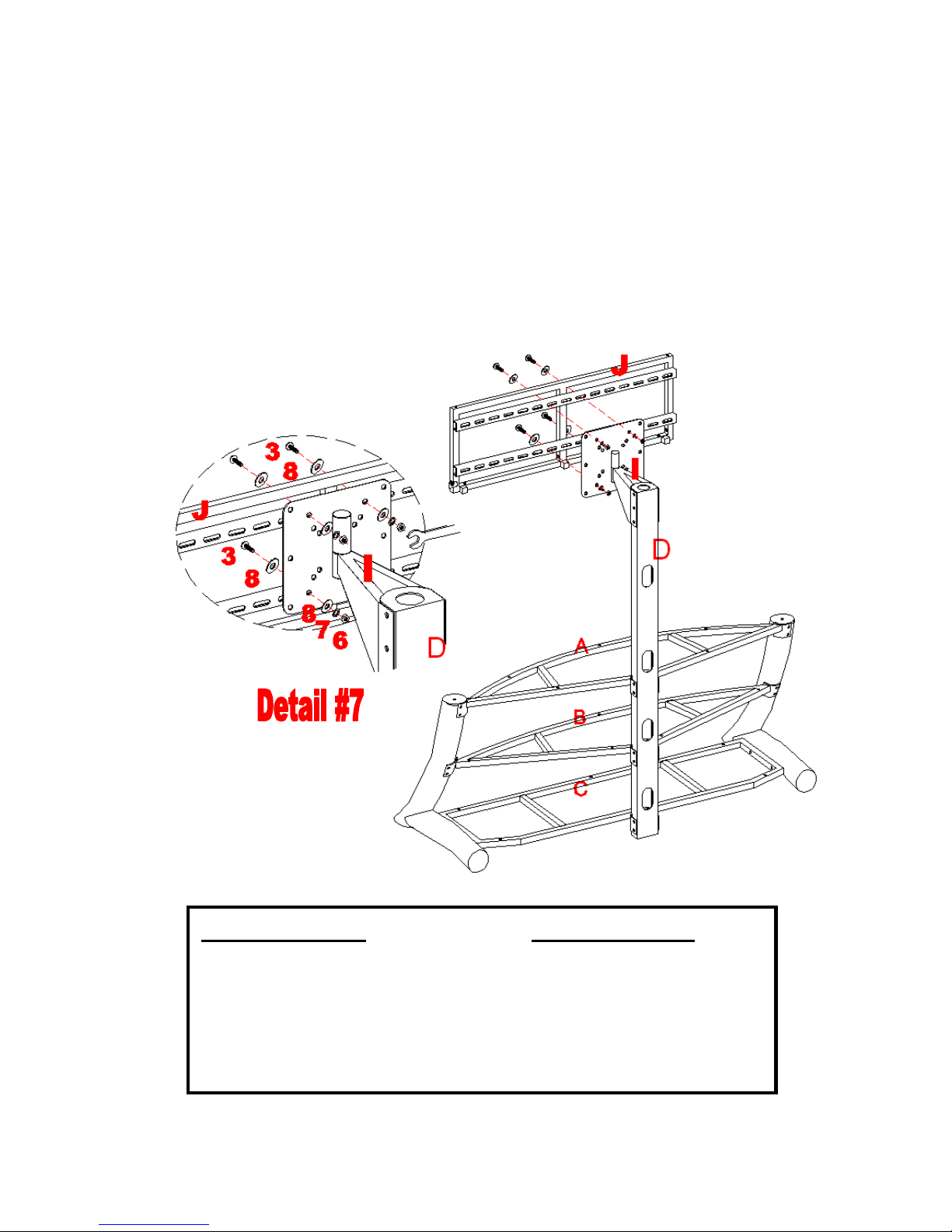

12. Do Step #10. Now attach the Mounting Frame (part J) to the
Deluxe Plasma Bracket (part I), using four 3/4” Bolts (part 3)
through the Flat Washer (part 8) through the holes of
Mounting Frame (part J) and Plasma Mounting Plate,
through the other Flat Washer (part 8) and Lock Washer
(part 7) and secure with the Nut (part 6). See detail #7.
Parts Required Tools Required
J – Mounting Frame (1) Allen Wrench
3 – 3/4” Bolt (4) Open Wrench
6 – Nut (4)
7– Lock Washer (4)
8 – Flat Washer (8)

Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg. Inc.
Factory No. 33-10944
Page # 12
DO NOT LAY THE TELEVISION FACE DOWN ON THE GLASS
Thread bolts carefully with your hand into your TV back and determine
which of the provided bolts has the correct diameter if you are unable to find
the correct one consult a local hardware store.
13. To attach the Monitor Brackets (part K), lean the TV up against a wall
or other solid surface, do not place the TV down on the glass this may
cause permanent damage.

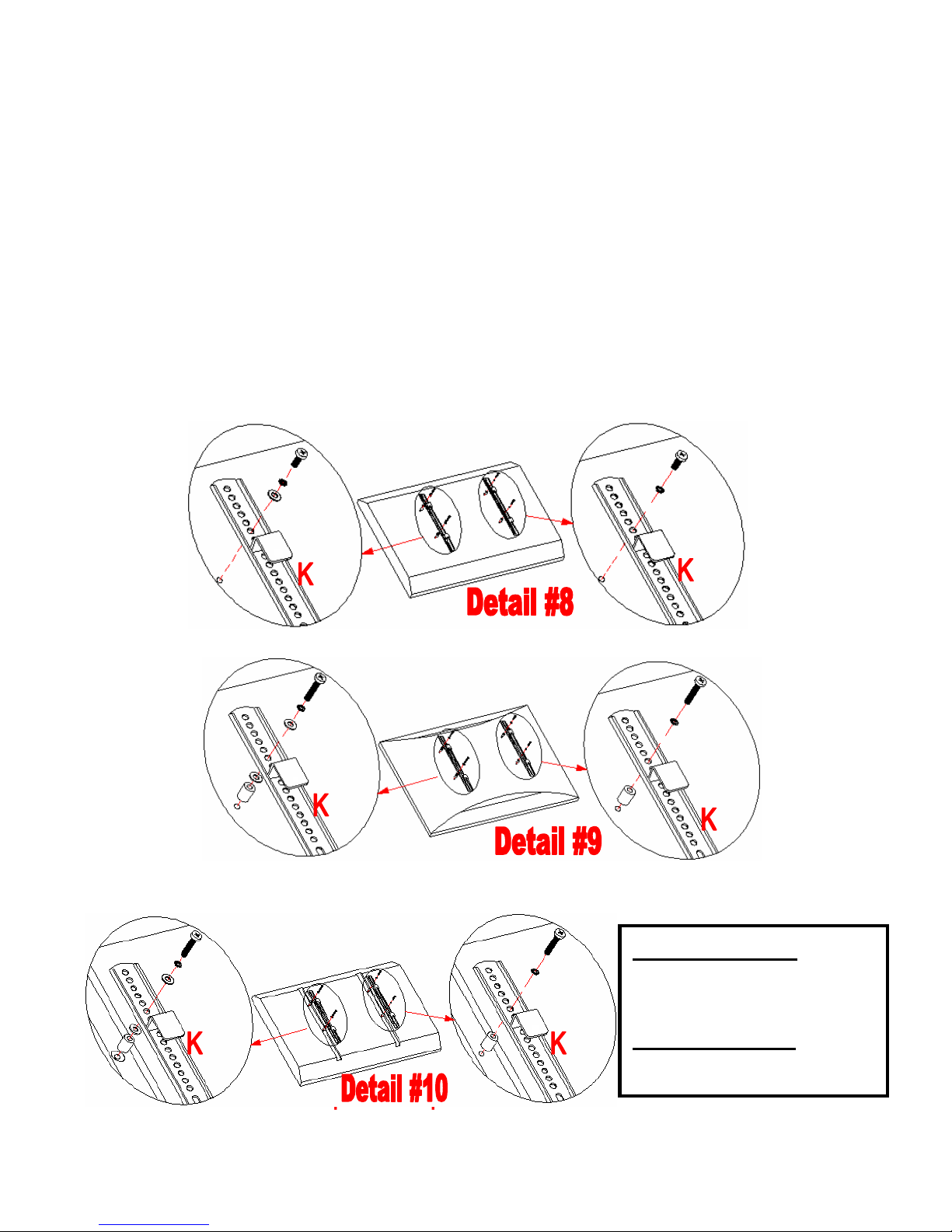

14. Place the Monitor Brackets (part K) vertically as close to the center of
the TV as possible, now attach the brackets with the Hardware required,
do not skip or change any hardware follow details 8, 9 or 10 depending
on the type of Plasma TV you have.
PLASMA TV’s with FLAT BACK
PLASMA TV’s with CURVED BACK
PLASMA TV’s with RECESSED BACK
Parts Required
K – Monitor Bracket (2)
TV Mounting Kit.
Tools Required
Phillips Screwdriver

Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg. Inc.
Factory No. 33-10944
Page # 13
Assembly Instructions

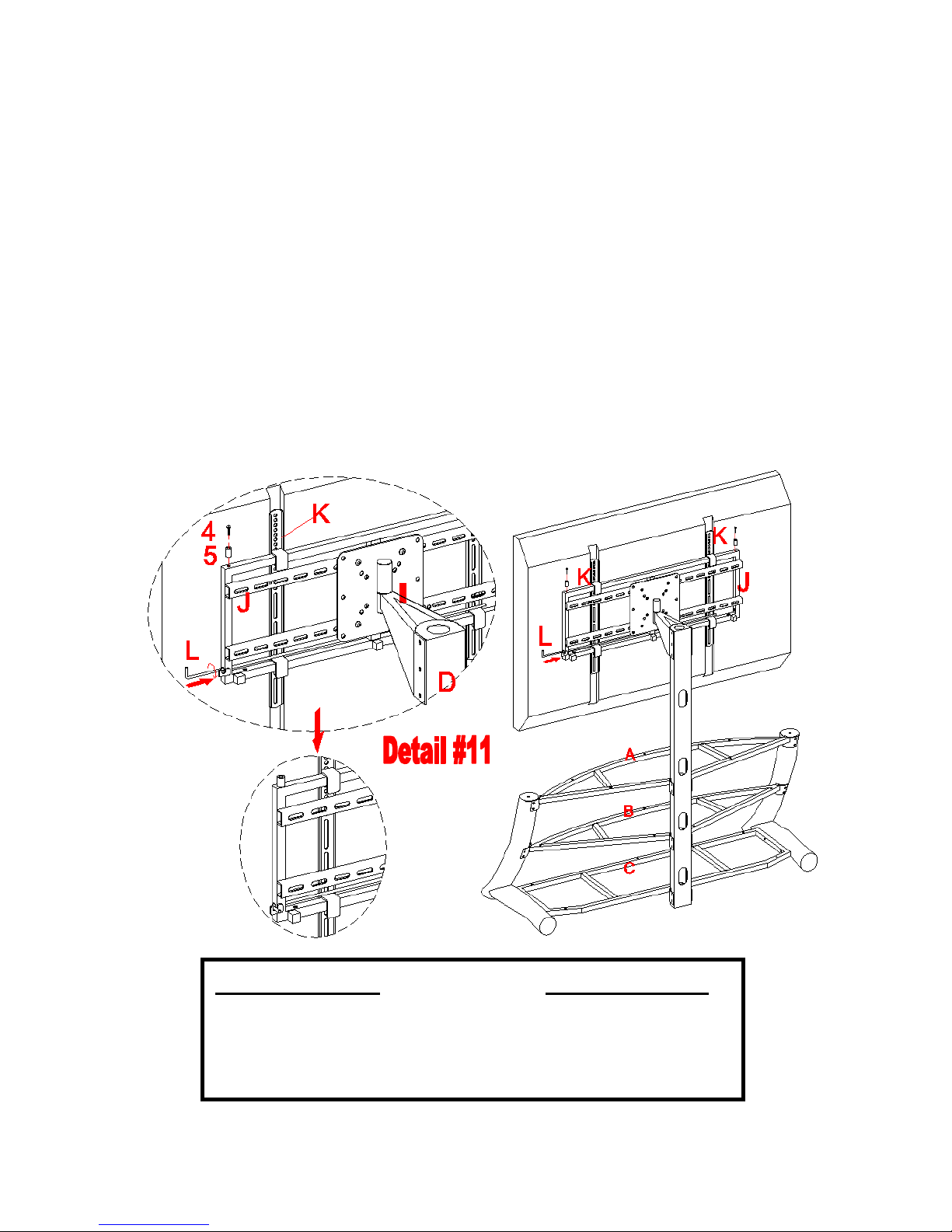

15. Now you can hang your Plasma by placing the Monitor
Bracket (part K) over the Mounting Frame (part J). Once the
TV is in place, insert the Safety Bar (part L) completely into
the bottom taper holes on the Mounting Frame. Make sure
that it sits over the bottom hook of the Monitor Bracket and
the bend end is faced toward wall and turned into the slot of
back hook for additional security. See detail #11.
16. Attach two Stoppers (part 5) with the 1 1/4” Bolt (part 4) at
each end of the Mounting Frame to prevent the TV from
falling. See detail #11.
Parts Required Tools Required
L – Safety Bar (1) Allen Wrench
4 – 1 1/4” Bolt (2)
5 – Stopper (2)

Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg. Inc.
Factory No. 33-10944
Page # 14
Assembly Instructions
17. Now put the Suction Cups (part 1) into top holes of all
Frames (part A, B & C) and Left & Right Side Leg (part EL &
ER)into place. As shown in detail #12.
18. Place the Glass Shelf (part F, G & H) in place as shown in
detail #12.
Note: Make sure that the Glass sits correctly and goes all the way into the
grooves on the Spine and the Suction Cups go all the way into the pre-
drilled hole to prevent the glass shelf from falling and getting damage.
Parts Required Tools Required
F - Top Glass (1) No Tool Required
G – Middle Glass Shelf (1)
H – Bottom Glass Shelf (1)
1 - Suction Cup (18)

Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg. Inc.
Factory No. 33-10944
Page # 15
Option #2: CONSOLE for DLP’s, CRT’s

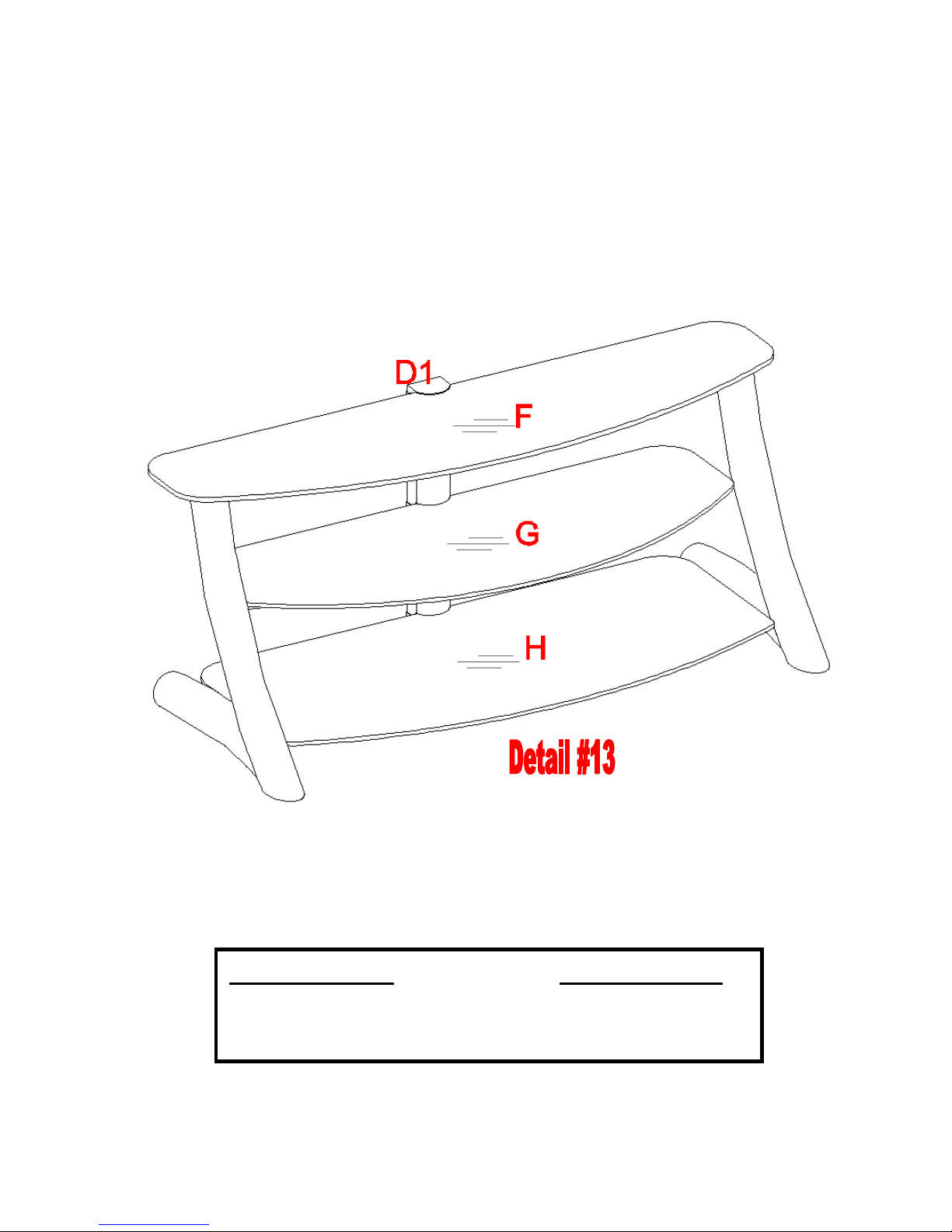

19. Position assembled TV Stand against the wall in the part of
the room you want to place your TV, then with the help of a
friend place the TV on the Top Glass (part F). See detail #13.
Parts Required Tools Required
Assembled TV Stand No Tool Required

Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg. Inc.
Factory No. 33-10944
Page # 16
Option #3: WALL MOUNT w/MOUNTING FRAME
20. In case you want to hang your Plasma TV on the wall, you
can follow these steps.
21. The Mounting Frame must be mounted to two Wood Studs at
least 12” apart, using a high quality stud sensor locate two
adjacent studs, verify with a nail if correct.
22. Pre-drill a 2 1/2" deep hole at the desired height in each stud
using a 3/16” drill bit, make sure that the holes are center
area of the studs and level with each other. Use the Mounting
Frame (part J) as a template to mark the location of the
second hole in each stud and drill another set of holes 2 1/2"
deep with the 3/16” drill bit in the marked location.
23. Now attach the Mounting Frame to the Wall using four Lag
Bolts (part 10) through the Lag Bolt Washer (part 11) through
the Mounting Frame into the holes in the wall. Make sure the
Bracket is oriented so the flat surface of the “U” plate is
against the wall and that a set of Lag Bolts is on each side of
the center rail as shown in detail #14.
Parts Required
J – Mounting Frame (1) 10 – Lag Bolt (4)
11 – Lag Bolt Washer (4)
Tools Required
Stud Sensor, Mallet, Power Drill, 3/16” Drill Bit and Open Wrench

Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg. Inc.
Factory No. 33-10944
Page # 17
MOUNTING FRAME on BRICK, SOLID CONCRETE OR BLOCK
24. Use the Mounting Frame (part J) as a template to mark six holes
location in the wall, three in the top row and three in the bottom
row of slots.
25. Make sure that the holes are level and there is at least 6” between
any two holes, pre-drill these holes with a 1/2” masonry bit to at
least 2 1/2” in depth.
26. Now insert a Concrete Anchor (part 9) into each of these holes;
make sure the anchor is seated completely flush with the concrete
surface even if there is a layer of drywall of other material in front.

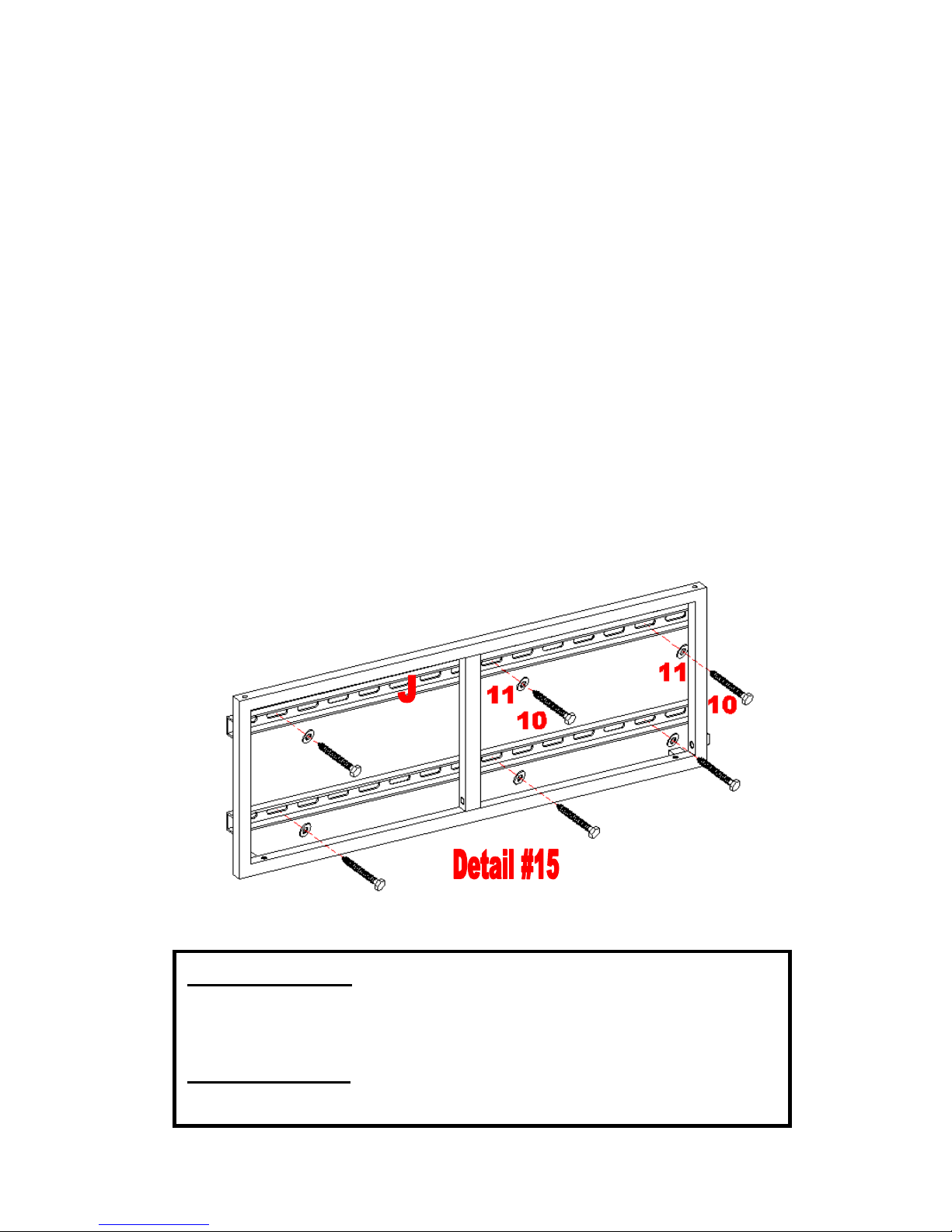

27. Now attach the Mounting Frame (part J) to the Wall using six Lag
Bolts (part 10) through the Lag Bolt Washer (part 11) through the
slot of “U” Plate on Mounting Frame into the holes in the wall.
Make sure the Bracket is oriented so the flat surface in the center
of the plate is against the wall and that a set of Lag Bolts is on
each side of the center rail as shown in detail #14, only in this
case will have three Bolts per side. See detail #15.
28. Repeat steps 13 to 16 to attach the Plasma TV onto the Mounting
Frame.
Parts Required
J – Mounting Frame (1) 9 –Concrete Anchor (6)
10 – Lag Bolt (6) 11 – Lag Bolt Washer (6)
Tools Required
Mallet, Power Drill, 1/2” Masonry Bit and Open Wrench

Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg. Inc.
Factory No. 33-10944
Page # 18

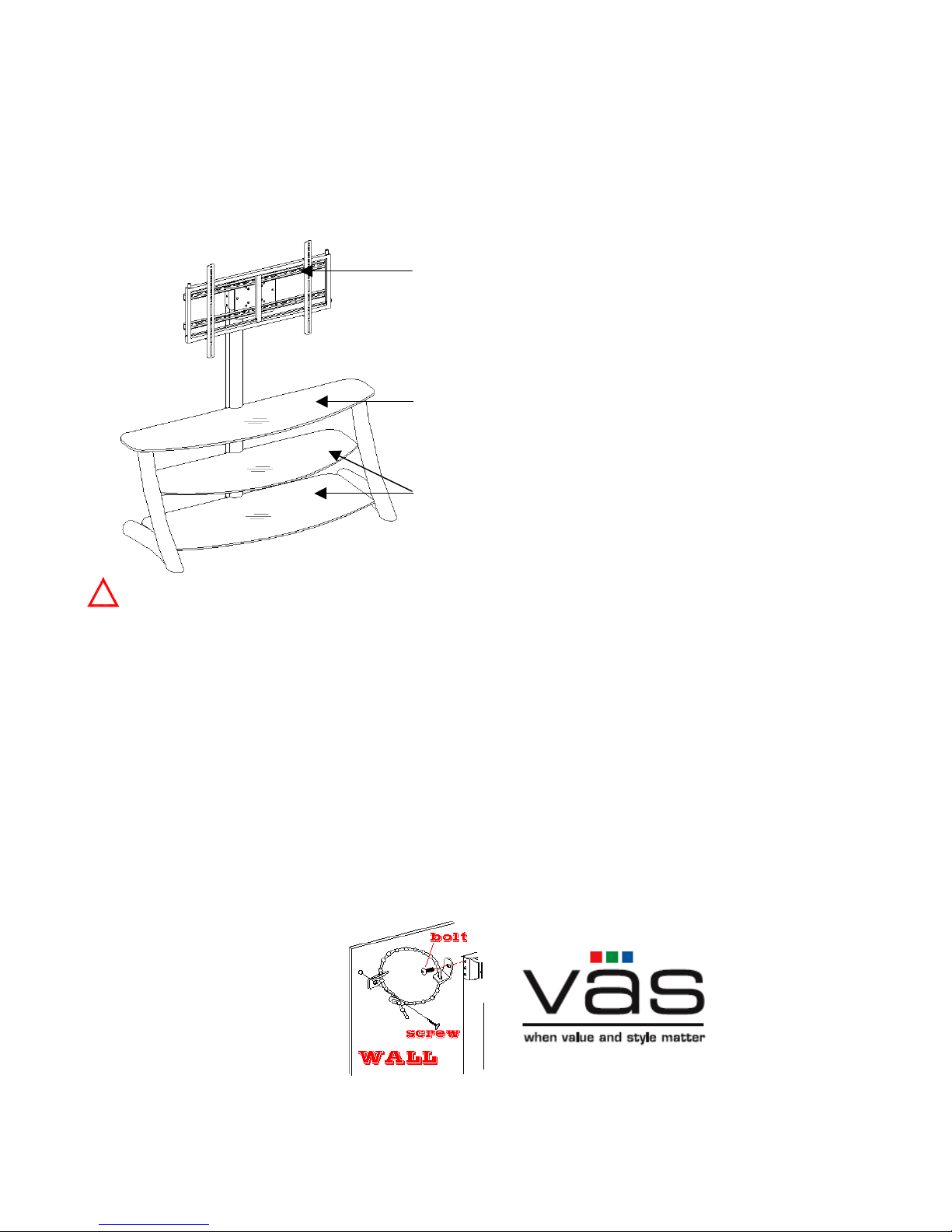

MANUFACTURER: VAS FURNITURE
CATALOG: 3 in 1 Flat Panel Console (XL-1)
DATE OF MANUFACTURE: June, 2007
MADE IN CHINA
FITS UP TO MOST LCD/PLASMA 60”
MAXIMUM LOAD 165 LBS
FITS UP to most 50” DLP and Plasma TVs
FITS UP TO MOST 27” DIAGONAL CRT TVs
MAXIMUM LOAD 135 LBS
MAXIMUM SHELF LOAD 50 LBS
TIPPING RESTRAINT HARDWARE
Note: We have included one Tipping Restraint Hardware bag for this Unit.
When properly installed, this restraint can provide protection against the
unexpected tipping of the unit due to small tremors, bumps or climbing. We
strongly recommend mounting this hardware to a wall stud and your Unit
when installing.
Please carefully read the instructions printed on the bag.
Note: You must install the Tipping Restraint Hardware with the unit in use to
prevent any accidents or damage to the unit.
!
" CAUTION: This unit is intended for use only with the products and
maximum weights indicated. Use with other products or products heavier than
the maximum weights indicated may result in instability causing possible injury."

Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg. Inc.
Factory No. 33-10944
Page # 19
Your assembly should now be complete.
Thank you for your purchase.
