VAS RTG30T1 User manual

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE
READ AND KEEP FOR FUTURE REFERENCE.
VAS Furniture Mfg. Inc. Factory No. 72-14494 Page 1
30”Audio / Video Tower (RTG30T1)
ADULT ASSEMBLY REQUIRED
If you have any questions regarding assembly or if you are missing parts, do not return this
item to the Retailer Store. Please call our toll free customer service number and have your
instructions and parts list ready to provide the model name, part name or factory number:
1-866-942-5362 8:30 a.m. - 4:30 p.m. PST, Monday –Friday
ONLINE: www.whalenfurniture.com EMAIL: [email protected]
Video Instruction Guides
Go to http://whalen.showuhow.com to view step-by-step instructional
videos for assembling and installing your product. Enter the following
product number on the ShowUhow homepage.
LOT NUMBER:
DATE PURCHASED: //
RTG30T1

Model # RTG30T1
Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg. Inc. Factory No. 72-14494 Page 2
QUALITY GUARANTEE
We are confident that you will be delighted with your VAS Furniture purchase.
Should this product be defective in workmanship or materials or fail under
normal use, we will repair or replace it for up to 1 year from date of purchase.
Every VAS Furniture product is designed to meet your highest expectations.
We guarantee that you will immediately see the value of our fine furniture.
This warranty gives you specific legal rights and you may also have other
rights which vary from State to State.
Customer Service: 1-866-942-5362
8:30 a.m. - 4:30 p.m. PST Monday to Friday
www.whalenfurniture.com
MANUFACTURER: VAS FURNITURE
CATALOG: 30”Audio / Video Tower (RTG30T1)
DATE OF MANUFACTURE: April, 2010
MADE IN CHINA
MAXIMUM LOAD 25 LB (11.34 kg)
FITS UP TO MOST 36”FLAT PANEL TV’S
MAXIMUM LOAD 80 LB (36.3 kg)
MAXIMUM LOAD 50 LB (22.7 kg)
This unit is intended for use only with the products and maximum
weights indicated. Use with other products or products heavier than the maximum weights
indicated may result in instability causing possible injury. The base of the television must
be placed squarely in the center of the stand with no overhanging on either side.

Model # RTG30T1
Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg. Inc. Factory No. 72-14494 Page 3
Parts and Hardware List
Please read completely through the instructions and verify that all parts listed are present
before beginning assembly.
A- Top Shelf Frame (1) B- Second Shelf Frame (1)
C- Middle Shelf Frame (1) D- Fourth Shelf Frame (1)
E- Bottom Shelf Frame (1) F- Left Leg (1) G- Right Leg (1)
H- Upper Spine (1) I- Lower Spine (1)
J- Top Glass (1) K- Second Glass Shelf (1)

Model # RTG30T1
Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg. Inc. Factory No. 72-14494 Page 4
Parts and Hardware List
Please read completely through the instructions and verify that all parts listed are present
before beginning assembly.
L- Middle Glass Shelf (1) M- Fourth Glass Shelf (1)
N- Bottom Glass Shelf (1) O- Front Wood Rail (2)
(1)- Suction Cup (20+1 extra) (2)- 5/8” Bolt (36+1 extra) (3)- 1 1/4” Bolt (4+1 extra)
(4)- Lock Washer (40+1 extra) (5)- Flat Washer (40+1 extra) (6)- Glass Raiser (5+1 extra)
(7)- Glass Pin (2) 4mm Allen Wrench (2) Touch-Up Pen (1) Tipping Restraint Hardware Kit (1)
(Inside Plastic Bag)
Tools required: Allen Wrench (provided).

Model # RTG30T1
Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg. Inc. Factory No. 72-14494 Page 5
Assembly Instructions
Note: Please do not fully tighten all bolts until you finish assembling all parts. Once assembled,
go back and fully tighten all bolts. This will make it easier during assembly of unit.
1. Unpack the unit and confirm that you have all the hardware and required parts listed.

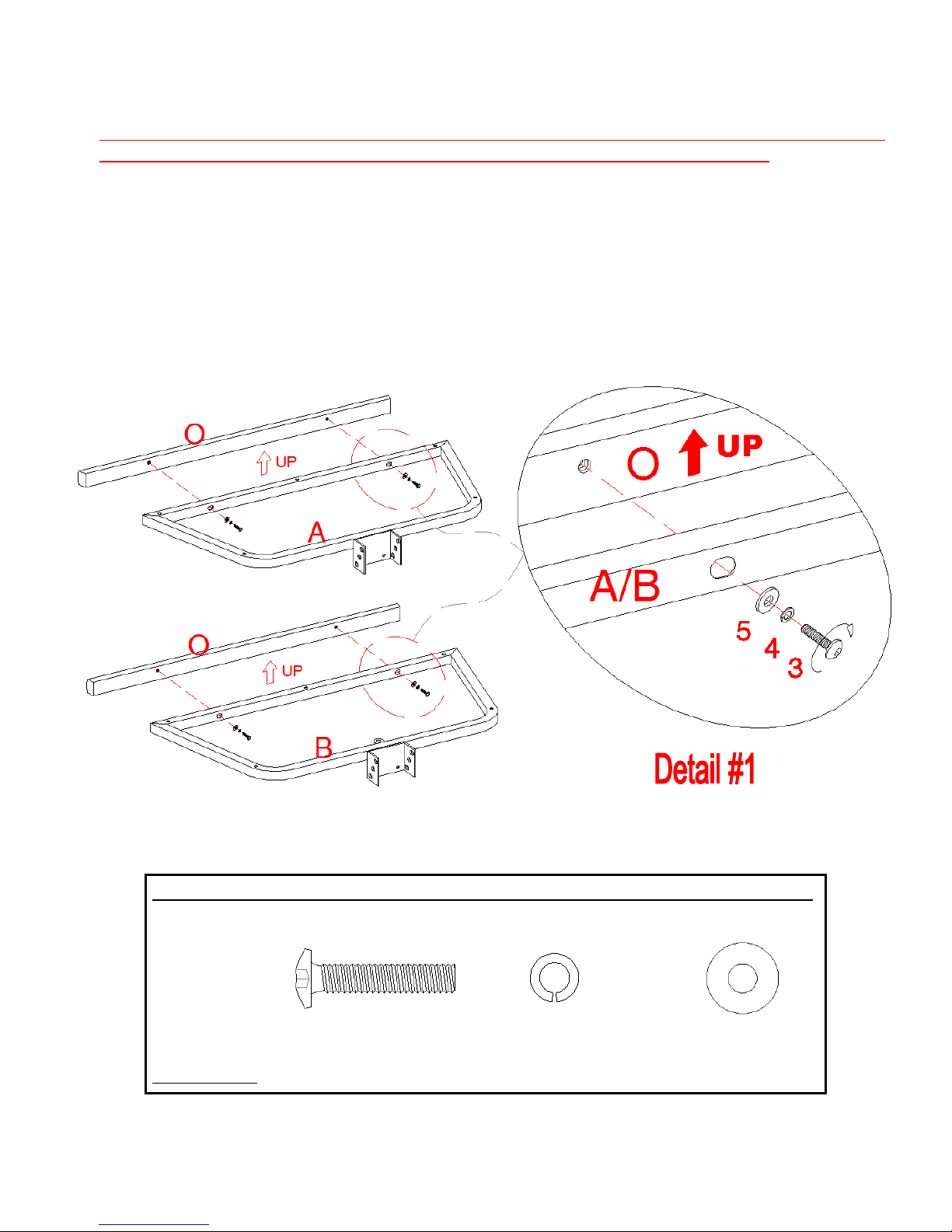

2. Pick up one Wood Front Rail (O) and attach to the Top Shelf Frame (A) by using two 1 1/4”
Bolts (3) with Lock Washers & Flat Washers (4 & 5) into the pre-drilled holes as shown in
detail #2. Make sure the top edges are flush with each other. Tighten the bolts with Allen
Wrench provided.
3. Repeat last step to attach the other Wood Front Rail (O) to Second Shelf Frame (B).
Required hardware in this step
Description: (3)- 1 1/4” Bolt (4)- Lock Washer (5)- Flat Washer
Sketch
Qty. (4 pcs) (4 pcs) (4 pcs)
Tools required: Allen wrench

Model # RTG30T1
Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg. Inc. Factory No. 72-14494 Page 6
Assembly Instructions

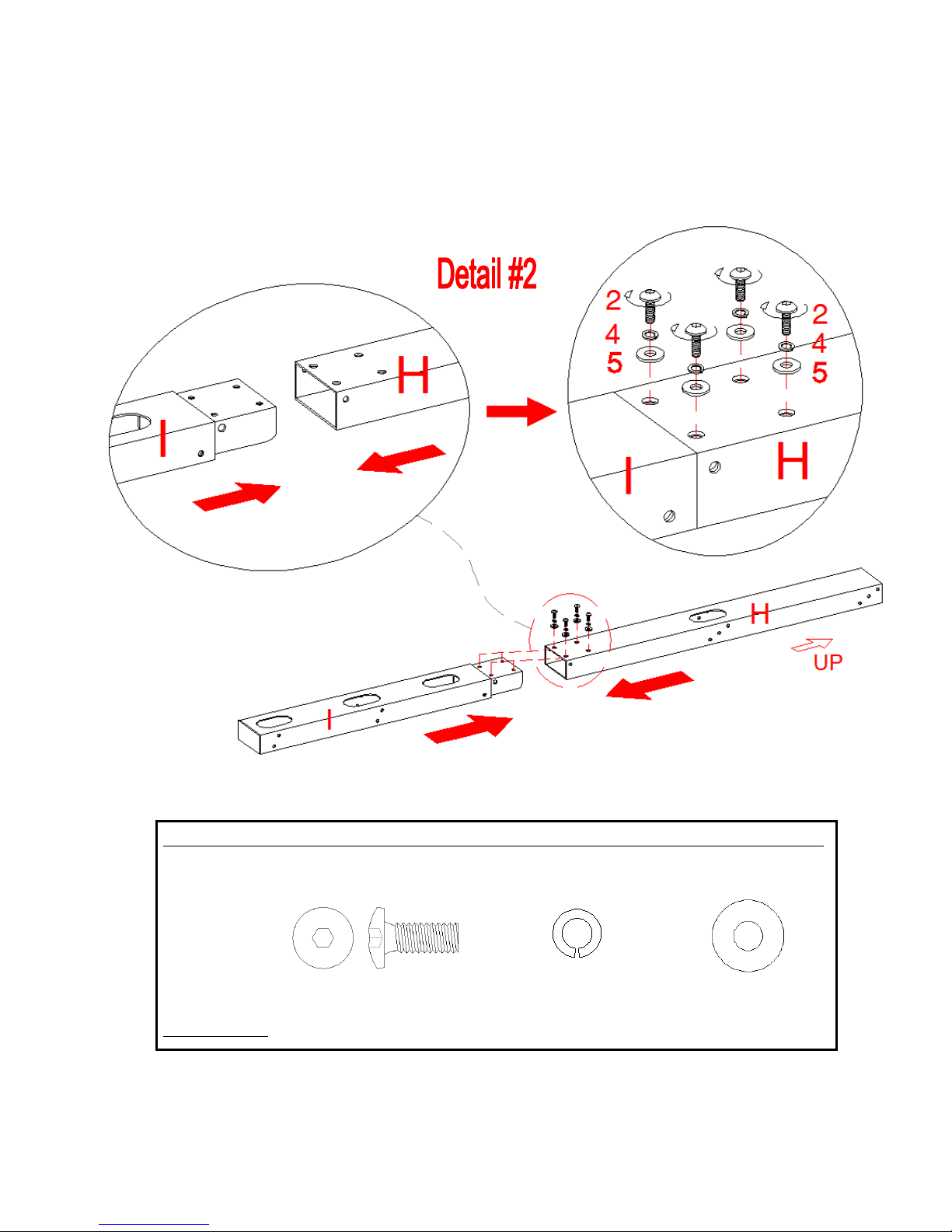

4. Align and attach Upper Spine (H) to the connector of Lower Spine (I) using four 5/8” Bolts (2)
with Washers (4 & 5) through the pre-drilled holes on Upper Spine. See detail #2. Tighten
the bolts with Allen Wrench provided.
Required hardware in this step
Description: (2)- 5/8” Bolt (4)- Lock Washer (5)- Flat Washer
Sketch
Qty. (4 pcs) (4 pcs) (4 pcs)
Tools required: Allen wrench

Model # RTG30T1
Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg. Inc. Factory No. 72-14494 Page 7
Assembly Instructions
5. Locate the assembled Spine on a level and protective surface with the round holes facing up
as shown in detail #3.
6. Align the “U”bracket holes of Top Shelf Frame (A) with the sockets on the top of Spine,
insert and screw 5/8”Bolts (2) with Washers (4 & 5) through the bracket holes into the Spine.
See detail #3.
7. Repeat last procedure to attach the other Shelf Frames (B, C, D & E) onto the Spine in
place as shown in detail #3.
Required hardware in this step
Description: (2)- 5/8” Bolt (4)- Lock Washer (5)- Flat Washer
Sketch
Qty. (24 pcs) (24 pcs) (24 pcs)
Tools required: Allen wrench

Model # RTG30T1
Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg. Inc. Factory No. 72-14494 Page 8
Assembly Instructions

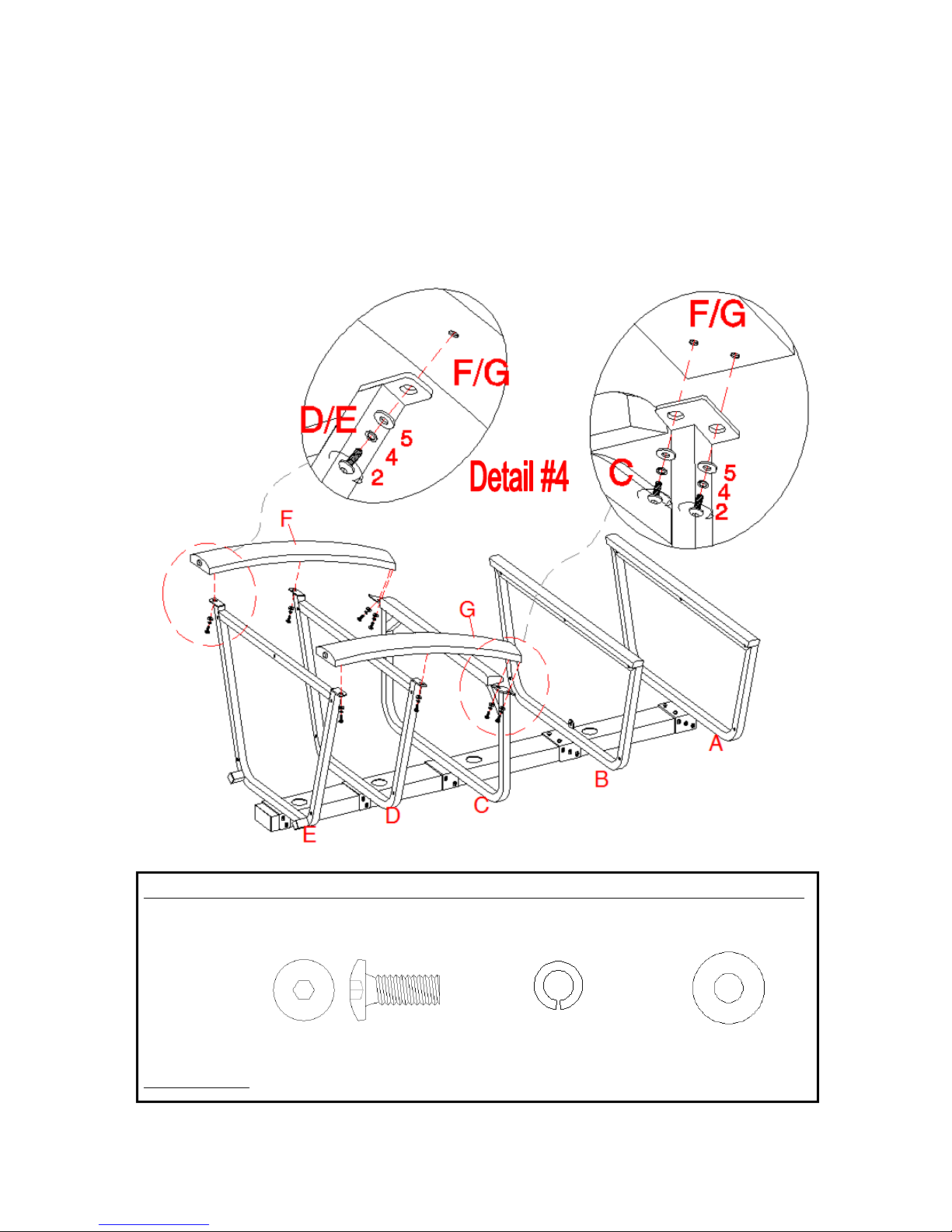

8. Pick up Right Leg (G) and align the back inserted nuts with the end brackets on 3 lower
Shelf Frames (C, D & E) simultaneously, insert and screw the 5/8” Bolts (2) with Washers (4
& 5) through the end brackets as shown in detail #4. DO NOT tighten the bolts.
9. Repeat last step to install Left Leg (F) at the other end. Make sure that both Legs are flush
with the Middle Shelf Frame (C) and that the gaps and offsets between the wooden front rail
of Middle Shelf Frame and the Legs are the same. Loosen the bolts on the end brackets
and wooden front rail and adjust if necessary.
Required hardware in this step
Description: (2)- 5/8” Bolt (4)- Lock Washer (5)- Flat Washer
Sketch
Qty. (8 pcs) (8 pcs) (8 pcs)
Tools required: Allen wrench

Model # RTG30T1
Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg. Inc. Factory No. 72-14494 Page 9
Assembly Instructions
10.Stand the unit upright. Go back and tighten all bolts with Allen Wrench provided.
11.To prevent the Top & Second Shelf Frame (A & B) from sagging, please use the front set
screws for adjustment. See detail #5A.
12.In case of uneven floor, Floor Levelers are provided at the bottom of both Legs (F & G).
Simply tilt the unit back and raise or lower floor leveler by hand to correct tilting as shown in
detail #5.
Parts provided Qty. Tools required
Pre-attached Set Screw (4) Allen Wrench
Pre-attached Floor Leveler (2)

Model # RTG30T1
Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg. Inc. Factory No. 72-14494 Page 10
Assembly Instructions

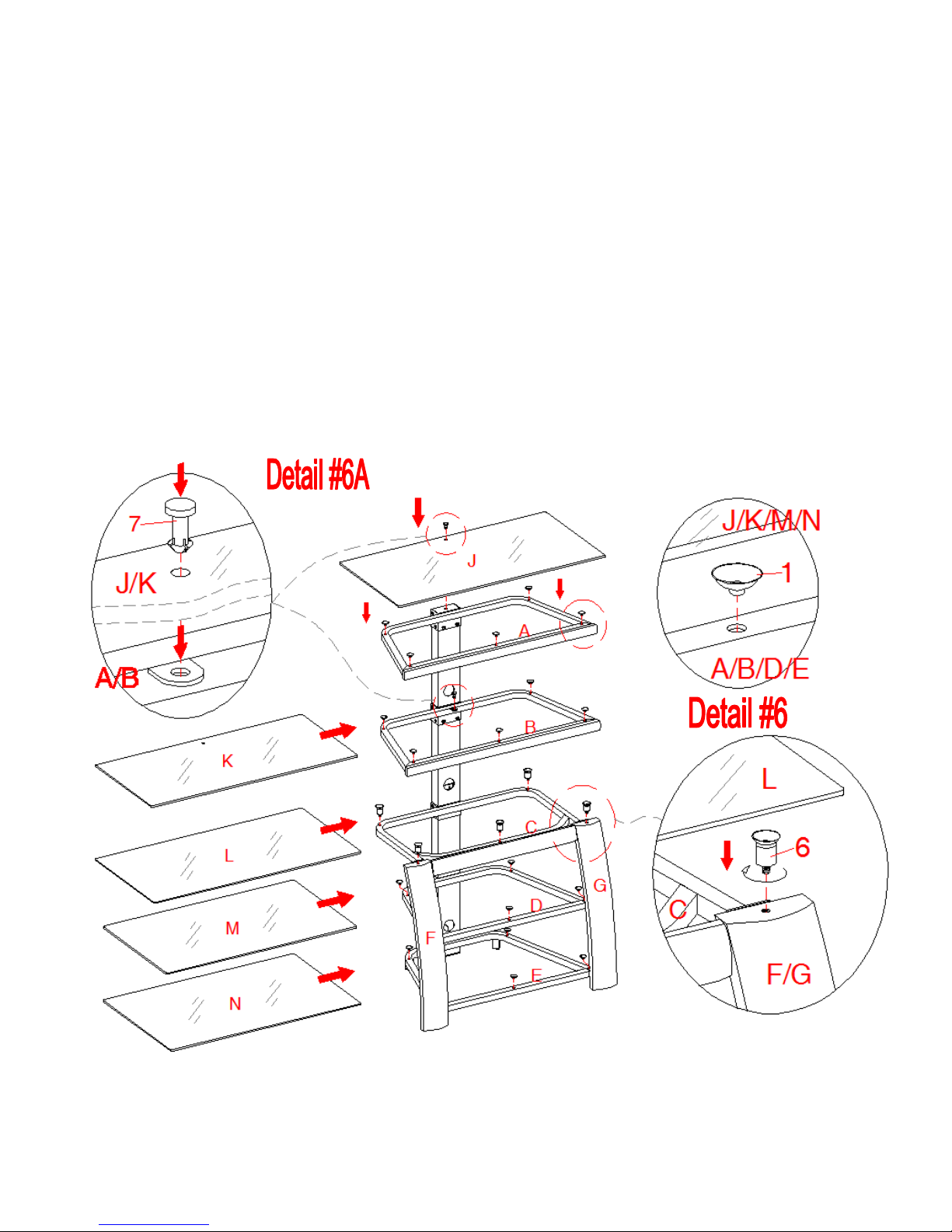

13.Screw five Glass Raisers (6) all the way into the top holes of Middle Shelf Frame (C) and
both Legs (F & G). Put Suction Cups (1) firmly into top holes of the other four Shelf Frames
as shown in detail #6. Make sure that the Suction Cups go all the way into the pre-drilled
holes to prevent the glass shelf from falling and getting damage.
14.Place the Glass Shelves and Top Glass (J) in place begin with Bottom Glass Shelf (N) as
shown in detail #6. Make sure the glass is properly centered and the black side of glass is
down. Also, be sure to press down evenly and firmly each shelf onto the Suction Cups to
make sure they securely rest onto the Suction Cups.
Note: Make sure that the glass sits correctly. If glass is scratched you can minimize the
damage by using a BLACK marker and filling in scratched area from underneath.
15.Proceed to secure the Top Glass (J) & Second Glass Shelf (K) in place by inserting the
Glass Pins (7) through the pre-drilled hole on glass into top hole of the Upper Spine (H) and
the tab welded on the Second Shelf Frame (B) respectively, as shown in detail #6A.

Model # RTG30T1
Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg. Inc. Factory No. 72-14494 Page 11
Assembly Instructions
16.Now follow the instructions printed on the plastic bag in order to mount the Tipping Restraint
Hardware Kit to the Upper Spine (H) properly. As shown in detail #7.
NOTE: YOU MUST USE THIS TIPPING RESTRAINT TO ATTACH THIS UNIT TO
THE WALL, TO PREVENT ACCIDENTS AND/OR INJURIES.
17.The audio video tower is ready for use now. Be sure to position your TV in center of Middle
Glass Shelf (L) with no overhang on either side. If you have a large television, you are
required to remove the Second Shelf Frame (B).
Tools required: Allen Wrench (provided), Phillips Screwdriver, Mallet, Power Drill, and 3/8” Drill Bit.
A Touch-Up Pen has been provided to repair any small nicks or scratches that may occur
during assembly or shipping.
Your assembly should now be complete.
Thank you for your purchase.

IF YOU REQUIRED TO ORDER PARTS PLEASE USE THE LIST BELOW
30” Audio / Video Tower (RTG30T1)
*RTG30T1-1-US Upper Spine *RTG30T1-17-CH Complete Hardware *RTG30T1-2-LS Lower Spine *RTG30T1-18-5/8B 5/8” Bolt *RTG30T1-3-TSF Top Shelf Frame *RTG30T1-19-1 1/4B 1 1/4” Bolt *RTG30T1-4-UWFR Upper Wood Front Rail *RTG30T1-20-LW Lock Washer *RTG30T1-5-SSF Second Shelf Frame *RTG30T1-21-FW Flat Washer *RTG30T1-6-MSF Middle Shelf Frame *RTG30T1-22-GR Glass Raiser *RTG30T1-7-MWFR Middle Wood Front Rail *RTG30T1-23-GP Glass Pin *RTG30T1-8-FSF Fourth Shelf Frame *RTG30T1-24-SC Suction Cup *RTG30T1-9-BSF Bottom Shelf Frame *RTG30T1-25-TUP Touch-Up Pen *RTG30T1-10-LL Left Leg *RTG30T1-26-AW Allen Wrench *RTG30T1-11-RL Right Leg *RTG30T1-27-TRHK Tipping Restraint Hardware Kit *RTG30T1-12-TG Top Glass *RTG30T1-28-FL Floor Leveler *RTG30T1-13-SGS Second Glass Shelf *RTG30T1-29-RPG Round Plastic Grommet *RTG30T1-14-MGS Middle Glass Shelf *RTG30T1-30-OPG Oval Plastic Grommet *RTG30T1-15-FGS Fourth Glass Shelf *RTG30T1-31-PEC Plastic End Cap *RTG30T1-16-BGS Bottom Glass Shelf *RTG30T1-32-SEC Spine End Cap (40 x 80)
