1 About this document
Electronics module • VEGADIS 81
49685-EN-150114
1 About this document
1.1 Function
This operating instructions manual has all the information you need
for quick mounting and setup of a replacement module. Please read
this manual before you start setup.
1.2 Target group
This operating instructions manual is directed to trained specialist
personnel. The contents of this manual should be made available to
these personnel and put into practice by them.
1.3 Symbols used
Information, tip, note
This symbol indicates helpful additional information.
Caution: If this warning is ignored, faults or malfunctions can result.
Warning: If this warning is ignored, injury to persons and/or serious
damage to the instrument can result.
Danger: If this warning is ignored, serious injury to persons and/or
destruction of the instrument can result.
Ex applications
This symbol indicates special instructions for Ex applications.
SIL applications
This symbol indicates instructions for functional safety which must be
taken into account particularly for safety-relevant applications.
• List
The dot set in front indicates a list with no implied sequence.
→ Action
This arrow indicates a single action.
1 Sequence of actions
Numbers set in front indicate successive steps in a procedure.

4
2 For your safety
Electronics module • VEGADIS 81
49685-EN-150114
2 For your safety
2.1 Authorised personnel
All operations described in this operating instructions manual must
be carried out only by trained specialist personnel authorised by the
plant operator.
During work on and with the device the required personal protective
equipment must always be worn.
2.2 Appropriate use
Electronics module, emitting electronics, housing or process compo-
nents are replacement components for existing sensors.
2.3 Safety instructions for Ex areas
PleasenotetheEx-specicsafetyinformationforinstallationandop-
eration in Ex areas. These safety instructions are part of the operating
instructions manual and come with the Ex-approved instruments.
2.4 Environmental instructions
Protection of the environment is one of our most important duties.
That is why we have introduced an environment management system
with the goal of continuously improving company environmental pro-
tection.Theenvironmentmanagementsystemiscertiedaccording
to DIN EN ISO 14001.
Pleasehelpusfulllthisobligationbyobservingtheenvironmental
instructions in this manual:
• Chapter "Packaging, transport and storage"
• Chapter "Disposal"

5
3 Product description
Electronics module • VEGADIS 81
49685-EN-150114
3 Product description
3.1 Conguration
The scope of delivery encompasses:
• Electronics module VEGADIS 81
• Documentation
– this operating instructions manual
3.2 Principle of operation
The electronics module VEGADIS 81 is suitable for exchange with the
external display and adjustment unit VEGADIS 81.
3.3 Packaging, transport and storage
Your instrument was protected by packaging during transport. Its
capacity to handle normal loads during transport is assured by a test
based on ISO 4180.
The packaging of standard instruments consists of environment-
friendly, recyclable cardboard. For special versions, PE foam or PE
foil is also used. Dispose of the packaging material via specialised
recycling companies.
Transport must be carried out in due consideration of the notes on the
transport packaging. Nonobservance of these instructions can cause
damage to the device.
The delivery must be checked for completeness and possible transit
damage immediately at receipt. Ascertained transit damage or con-
cealed defects must be appropriately dealt with.
Up to the time of installation, the packages must be left closed and
stored according to the orientation and storage markings on the
outside.
Unless otherwise indicated, the packages must be stored only under
the following conditions:
• Not in the open
• Dry and dust free
• Not exposed to corrosive media
• Protected against solar radiation
• Avoiding mechanical shock and vibration
• Storage and transport temperature see chapter "Supplement -
Technical data - Ambient conditions"
• Relative humidity 20 … 85 %
Scope of delivery
Area of application
Packaging
Transport
Transport inspection
Storage
Storage and transport
temperature

6
4 Mounting
Electronics module • VEGADIS 81
49685-EN-150114
4 Mounting
4.1 General instructions
If the electronics module is defective, it can be replaced by the user.
In Ex applications, only instruments and electronics modules with ap-
propriate Ex approval may be used.
If there is no electronics module available on site, one can be ordered
from the VEGA agency serving you.
First of all check if you are using the suitable electronics module.
Compare the new electronics module with the existing one. The
specicationsonthetypelabelmustcorrespond.Thisappliesmainly
to instruments with approvals.
Warning:
Switchovoltagesupplybeforestartingtheinstallationprocedure.
The replacement electronics may only be installed when the sensor is
in a de-energised state. Non-observance will damage the electron-
ics!
4.2 Installation procedure
The electronics module is located in the electronics compartment of

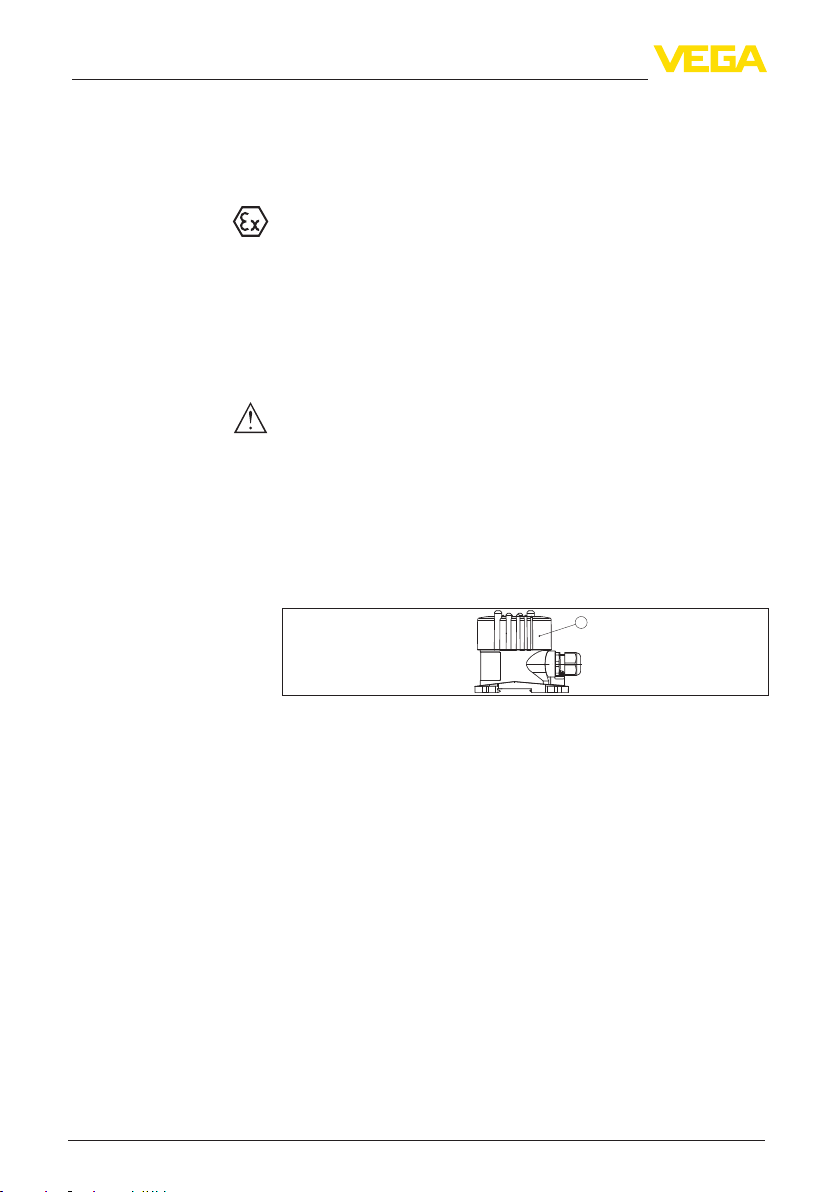

VEGADIS 81. The below illustration shows the position of the elec-
tronics compartment in an external housing.
1
Fig. 1: Housing
1 Position of the electronics compartment in the housing
Proceed as follows:
1. Switchopowersupplyofthesensor
2. Unscrew the lid of the electronics compartment VEGADIS 81
3. Detach terminal block according to the operating instructions of
VEGADIS 81
4. Loosen the two holding screws with a screwdriver (Torx size T 10
or slotted screwdriver size 4)
Assignment
Installation procedure

7
4 Mounting
Electronics module • VEGADIS 81
49685-EN-150114
3
2
1
Display
Fig. 2: Loosen the holding screws
1 Electronics module
2 Screws (2 pcs.)
3 Dismounting tool
5. Pull the previous electronics out with the dismounting tool.
6. Insert new electronics module.
7. Screw in the two holding screws and tighten them
8. Attach terminal block according to the operating instructions of
VEGADIS 81
9. Screw the housing lid back on
Theelectronicsexchangeisnownished.
As a rule, an exchange of electronics must be documented internally
if Ex applications are involved.

8
5 Maintenance
Electronics module • VEGADIS 81
49685-EN-150114
5 Maintenance
5.1 How to proceed if a repair is needed
Youcanndarepairformaswellasdetailedinformationonhowto
proceed at www.vega.com/downloads and "Forms and certicates".
By doing this you help us carry out the repair quickly and without hav-
ing to call back for needed information.
If a repair is necessary, please proceed as follows:
• Printandlloutoneformperinstrument
• Clean the instrument and pack it damage-proof
• Attach the completed form and, if need be, also a safety data
sheet outside on the packaging
• Please contact the agency serving you to get the address for
thereturnshipment.Youcanndtheagencyonourhomepage
www.vega.com.

9
6 Dismount
Electronics module • VEGADIS 81
49685-EN-150114
6 Dismount
6.1 Dismounting steps
Take note of chapters "Mounting" and "Connecting to power supply"
and carry out the listed steps in reverse order.
6.2 Disposal
The replacement module consists of materials which can be recycled
by specialised recycling companies. We have purposely designed the
electronic modules to be easily separable.
WEEE directive 2002/96/EG
This instrument is not subject to the WEEE directive 2002/96/EG
and the respective national laws (in Germany e.g. ElektroG). Pass
the instrument directly on to a specialised recycling company and do
not use the municipal collecting points.These may be used only for
privately used products according to the WEEE directive.
Correctdisposalavoidsnegativeeectsonhumansandtheenviron-
ment and ensures recycling of useful raw materials.
Materials: see chapter "Technical data"
If you have no way to dispose of the replacement module properly,
please contact us concerning return and disposal.

10
7 Supplement
Electronics module • VEGADIS 81
49685-EN-150114
7 Supplement
7.1 Technical data
Technical data
See operating instructions of VEGADIS 81.
