Vega VEGASWING 66 User manual

Operating Instructions
Electronics module
VEGASWING 66
Document ID: 44768

2
Contents
Electronics module • VEGASWING 66
44768-EN-160621
Contents
1 About this document
1.1 Function ........................................................................................................................... 3
1.2 Target group ..................................................................................................................... 3
1.3 Symbols used................................................................................................................... 3
2 For your safety
2.1 Authorised personnel ....................................................................................................... 4
2.2 Appropriate use................................................................................................................ 4
2.3 Safety instructions for Ex areas ........................................................................................ 4
2.4 Environmental instructions ............................................................................................... 4
3 Product description
3.1 Conguration.................................................................................................................... 5
3.2 Principle of operation........................................................................................................ 5
3.3 Packaging, transport and storage..................................................................................... 5
4 Mounting
4.1 Mounting instructions ....................................................................................................... 6
4.2 Mounting preparations ..................................................................................................... 6
4.3 Installation procedure....................................................................................................... 6
5 Setup
5.1 Setup................................................................................................................................ 8
6 Maintenance
6.1 How to proceed if a repair is necessary............................................................................ 9
7 Dismount
7.1 Dismounting steps.......................................................................................................... 10
7.2 Disposal ......................................................................................................................... 10
8 Supplement
8.1 Technical data ................................................................................................................ 11
Editing status: 2016-06-07

3
1 About this document
Electronics module • VEGASWING 66
44768-EN-160621
1 About this document
1.1 Function
This operating instructions manual provides all the information you
need for mounting, connection and setup as well as important instruc-
tionsformaintenanceandfaultrectication.Pleasereadthisinforma-
tion before putting the instrument into operation and keep this manual
accessible in the immediate vicinity of the device.
1.2 Target group
This operating instructions manual is directed to trained specialist
personnel. The contents of this manual should be made available to
these personnel and put into practice by them.

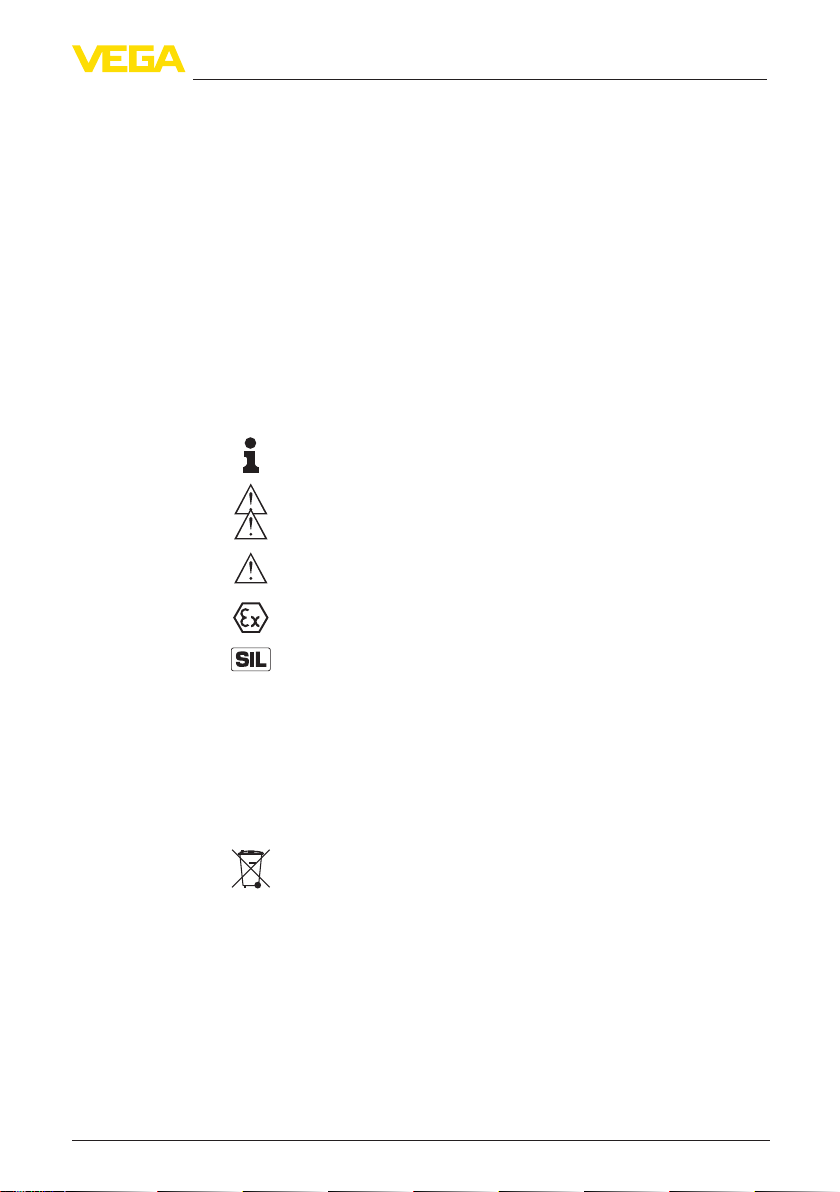

1.3 Symbols used
Information, tip, note
This symbol indicates helpful additional information.
Caution: If this warning is ignored, faults or malfunctions can result.
Warning: If this warning is ignored, injury to persons and/or serious
damage to the instrument can result.
Danger: If this warning is ignored, serious injury to persons and/or
destruction of the instrument can result.
Ex applications
This symbol indicates special instructions for Ex applications.
SIL applications
This symbol indicates instructions for functional safety which must be
taken into account particularly for safety-relevant applications.
• List
The dot set in front indicates a list with no implied sequence.
→ Action
This arrow indicates a single action.
1 Sequence of actions
Numbers set in front indicate successive steps in a procedure.
Battery disposal
This symbol indicates special information about the disposal of bat-
teries and accumulators.

4
2 For your safety
Electronics module • VEGASWING 66
44768-EN-160621
2 For your safety
2.1 Authorised personnel
All operations described in this operating instructions manual must
be carried out only by trained specialist personnel authorised by the
plant operator.
During work on and with the device the required personal protective
equipment must always be worn.
2.2 Appropriate use
The electronics module is a replacement module for VEGASWING 66
vibrating level switches.
2.3 Safety instructions for Ex areas
PleasenotetheEx-specicsafetyinformationforinstallationandop-
eration in Ex areas. These safety instructions are part of the operating
instructions manual and come with the Ex-approved instruments.
2.4 Environmental instructions
Protection of the environment is one of our most important duties.
That is why we have introduced an environment management system
with the goal of continuously improving company environmental pro-
tection.Theenvironmentmanagementsystemiscertiedaccording
to DIN EN ISO 14001.
Pleasehelpusfullthisobligationbyobservingtheenvironmental
instructions in this manual:
• Chapter "Packaging, transport and storage"
• Chapter "Disposal"

5
3 Product description
Electronics module • VEGASWING 66
44768-EN-160621
3 Product description
3.1 Conguration
The scope of delivery encompasses:
• Electronics module for VEGASWING 66
• Documentation
– This operating instructions manual
3.2 Principle of operation
The electronics module (SWING-E.66) is suitable for replacement in
VEGASWING 66 vibrating level switches.
3.3 Packaging, transport and storage
Your instrument was protected by packaging during transport. Its
capacity to handle normal loads during transport is assured by a test
based on ISO 4180.
The packaging of standard instruments consists of environment-
friendly, recyclable cardboard. For special versions, PE foam or PE
foil is also used. Dispose of the packaging material via specialised
recycling companies.
Transport must be carried out in due consideration of the notes on the
transport packaging. Nonobservance of these instructions can cause
damage to the device.
The delivery must be checked for completeness and possible transit
damage immediately at receipt. Ascertained transit damage or con-
cealed defects must be appropriately dealt with.
Up to the time of installation, the packages must be left closed and
stored according to the orientation and storage markings on the
outside.
Unless otherwise indicated, the packages must be stored only under
the following conditions:
• Not in the open
• Dry and dust free
• Not exposed to corrosive media
• Protected against solar radiation
• Avoiding mechanical shock and vibration
• Storage and transport temperature see chapter "Supplement -
Technical data - Ambient conditions"
• Relative humidity 20 … 85 %
Scope of delivery
Application area
Packaging
Transport
Transport inspection
Storage
Storage and transport
temperature

6
4 Mounting
Electronics module • VEGASWING 66
44768-EN-160621
4 Mounting
4.1 Mounting instructions
If the electronics module is defective, it can be replaced by the user.
In Ex applications, only instruments and electronics modules with ap-
propriate Ex approval may be used.
4.2 Mounting preparations
In general, the electronics module can be also exchanged within the
type series against an electronics with another signal output (e.g.
relay against transistor output).
Ifyouwanttouseanelectronicsmodulewithadierentsignaloutput,
you can download the corresponding operating instructions manual
from our homepage under Downloads.
4.3 Installation procedure
To exchange the electronics module, proceed as follows:
1. Switchopowersupply
2. Unscrew the housing lid
3. Lift the opening levers of the terminals with a screwdriver
4. Pull the connection cables out of the terminals
5. Loosen the two screws with a screw driver (Torx size T10 or slot
4)
2
1

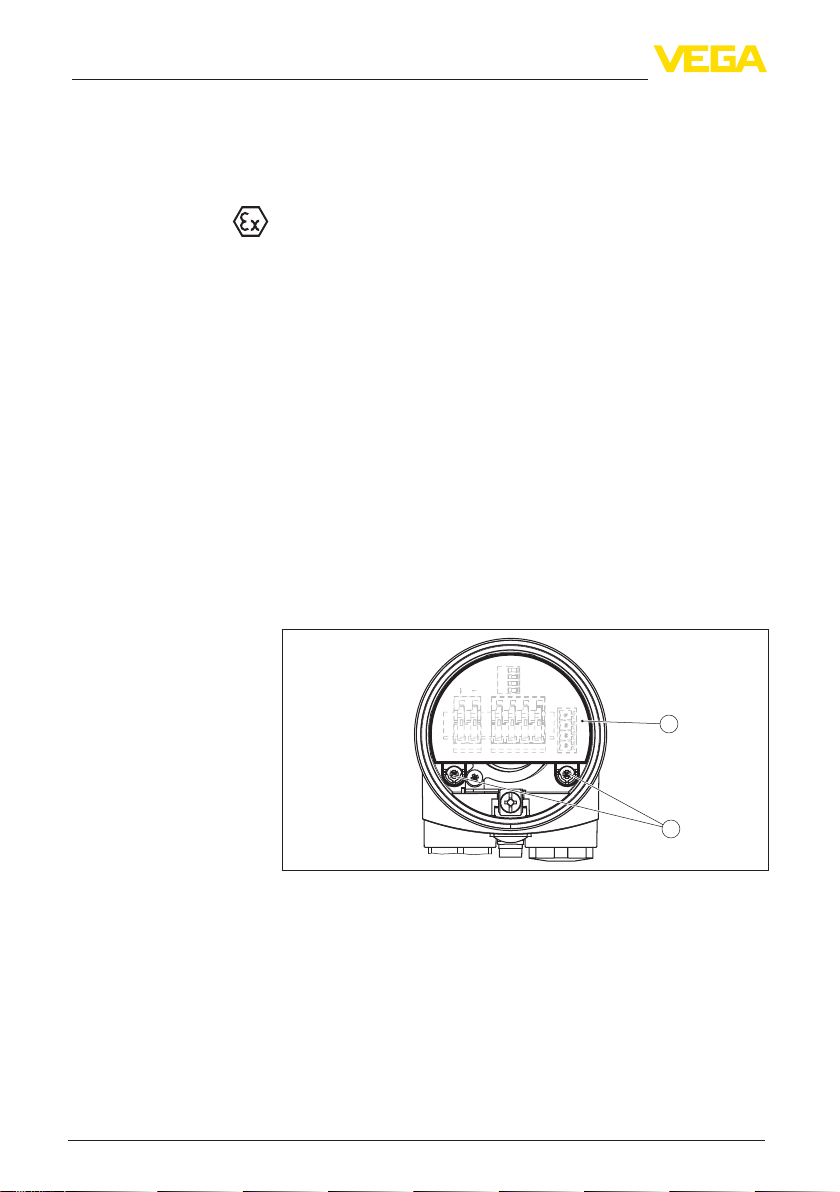

Fig. 1: Loosen the holding screws
1 Electronics module
2 Screws (2 pcs.)
6. Pull out the old electronics module
7. Compare the new electronics module with the old one. The type
label of the electronics module must correspond to that of the old
electronics module.This applies particularly to instruments used
in hazardous areas.
8. Compare the settings of the two electronics modules. Set the
adjustment elements of the new electronics module to the same
setting of the old one.
Installation procedure

7
4 Mounting
Electronics module • VEGASWING 66
44768-EN-160621
Information:
Make sure that the housing is not rotated during the electronics ex-
change.Otherwisetheplugmaybeinadierentpositionlater.
9. Insert the electronics module carefully. Make sure that the plug is
in the correct position.
10. Screw in the two holding screws and tighten them
11. Insert the wire ends into the open terminals according to the wir-
ing plan
12. Press down the opening levers of the terminals, you will hear the
terminal spring closing
13. Check the hold of the wires in the terminals by lightly pulling on
them
14. Check cable gland on tightness.The seal ring must completely
encircle the cable.
15. Screw the housing lid back on
Theelectronicsexchangeisnownished.
As a rule, an exchange of electronics must be documented internally
if Ex applications are involved.

8
5 Setup
Electronics module • VEGASWING 66
44768-EN-160621
5 Setup
5.1 Setup
When replacing the electronics module, make sure that all adjustment
elements are set to the settings of the old electronics module. Hence
the sensor is immediately ready for operation.
In general, the electronics module can be also exchanged within the
type series against an electronics with another signal output (e.g.
relay against transistor output). The electronics modules of the high
temperature version (SWING-E.66), however, cannot be exchanged
against electronics modules of the standard instrument versions
(SWINGE60.).
Ifyouwanttouseanelectronicsmodulewithacompletelydierent
signal output, you have to carry out the complete setup.
The necessary, suitable operating instructions manual can be down-
loaded from our homepage under Downloads.
The adjustment should be carried out according to the description in
the operating instructions manual.
Setup

9
6 Maintenance
Electronics module • VEGASWING 66
44768-EN-160621
6 Maintenance
6.1 How to proceed if a repair is necessary
Youcanndaninstrumentreturnformaswellasdetailedinforma-
tion about the procedure in the download area of our homepage:
www.vega.com.
By doing this you help us carry out the repair quickly and without hav-
ing to call back for needed information.
If a repair is necessary, please proceed as follows:
• Printandlloutoneformperinstrument
• Clean the instrument and pack it damage-proof
• Attach the completed form and, if need be, also a safety data
sheet outside on the packaging
• Please contact the agency serving you to get the address for
thereturnshipment.Youcanndtheagencyonourhomepage
www.vega.com.

10
7 Dismount
Electronics module • VEGASWING 66
44768-EN-160621
7 Dismount
7.1 Dismounting steps
Take note of chapters "Mounting" and "Connecting to power supply"
and carry out the listed steps in reverse order.
7.2 Disposal
The replacement module consists of materials which can be recycled
by specialised recycling companies. We have purposely designed the
electronic modules to be easily separable.
WEEE directive 2002/96/EG
This instrument is not subject to the WEEE directive 2002/96/EG
and the respective national laws (in Germany e.g. ElektroG). Pass
the instrument directly on to a specialised recycling company and do
not use the municipal collecting points.These may be used only for
privately used products according to the WEEE directive.
Correctdisposalavoidsnegativeeectsonhumansandtheenviron-
ment and ensures recycling of useful raw materials.
Materials: see chapter "Technical data"
If you have no way to dispose of the replacement module properly,
please contact us concerning return and disposal.

11
8 Supplement
Electronics module • VEGASWING 66
44768-EN-160621
8 Supplement
8.1 Technical data
Technical data
are stated in the operating instructions manual of the respective sensor.

Printing date:
VEGA Grieshaber KG
Am Hohenstein 113
77761 Schiltach
Germany
44768-EN-160621
All statements concerning scope of delivery, application, practical use and operat-
ing conditions of the sensors and processing systems correspond to the information
available at the time of printing.
Subject to change without prior notice
© VEGA Grieshaber KG, Schiltach/Germany 2016
Phone [phone]
Fax [phone]
E-mail: [email protected]
www.vega.com
