1About this document
1.1Function
This operating instructions manual provides all the information you
need for mounting,connection and setup as well as important
instructions for maintenance and fault rectification.Please read this
information before putting the instrument into operation and keep this
manual accessible in the immediate vicinity of the device.
1.2Target group
This operating instructions manual is directed to trained qualified
personnel.The contents of this manual should be made available to
these personnel and put into practice by them.
1.3Symbolism used
Information,tip,note
This symbol indicates helpful additional information.
Caution:If this warning is ignored,faults or malfunctions can
result.
Warning:If this warning is ignored,injury to persons and/or serious
damage to the instrument can result.
Danger:If this warning is ignored,serious injury to persons and/or
destruction of the instrument can result.
Ex applications
This symbol indicates special instructions for Ex applications.
lList
The dot set in front indicates a list with no implied sequence.
àAction
This arrow indicates a single action.
1Sequence
Numbers set in front indicate successive steps in a procedure.
4VEGABAR 52 •4…20 mA/HART
1About this document
36717-EN-120324

2For your safety
2.1Authorised personnel
All operations described in this operating instructions manual must be
carried out only by trained specialist personnel authorised by the plant
operator.
During work on and with the device the required personal protective
equipment must always be worn.
2.2Appropriate use
VEGABAR 52 is a pressure transmitter for measurement of gauge
pressure,absolute pressure and vacuum.
You can find detailed information on the application range in chapter
"Product description".
Operational reliability is ensured only if the instrument is properly used
according to the specifications in the operating instructions manual as
well as possible supplementary instructions.
For safety and warranty reasons,any invasive work on the device
beyond that described in the operating instructions manual may be
carried out only by personnel authorised by the manufacturer.Arbitrary
conversions or modifications are explicitly forbidden.
2.3Warning about misuse
Inappropriate or incorrect use of the instrument can give rise to
application-specific hazards,e.g.vessel overfill or damage to system
components through incorrect mounting or adjustment.
2.4General safety instructions
This is a high-tech instrument requiring the strict observance of
standard regulations and guidelines.The user must take note of the
safety instructions in this operating instructions manual,the country-
specific installation standards as well as all prevailing safety
regulations and accident prevention rules.
The instrument must only be operated in a technically flawless and
reliable condition.The operator is responsible for trouble-free
operation of the instrument.
During the entire duration of use,the user is obliged to determine the
compliance of the necessary occupational safety measures with the
current valid rules and regulations and also take note of new
regulations.
VEGABAR 52 •4…20 mA/HART 5
2For your safety
36717-EN-120324

2.5Safety label on the instrument
The safety approval markings and safety tips on the device must be
observed.
2.6CE conformity
This device fulfills the legal requirements of the applicable EC
guidelines.By attaching the CE mark,VEGA provides a confirmation
of successful testing.You can find the CE conformity declaration in the
download area of "www.vega.com".
2.7Measuring range -permissible process pres-
sure
Due to the application,a measuring cell with a measuring range higher
than the permissible pressure range of the process fitting may have
been integrated.The permissible process pressure is stated with
"Process pressure"on the type label,see chapter 3.1"Configuration".
For safety reasons,this range must not be exceeded.
2.8Fulfillment of NAMUR recommendations
The device fulfills the requirements of the applicable NAMUR
recommendations.
2.9Safety instructions for Ex areas
Please note the Ex-specific safety information for installation and
operation in Ex areas.These safety instructions are part of the
operating instructions manual and come with the Ex-approved
instruments.
2.10 Environmental instructions
Protection of the environment is one of our most important duties.That
is why we have introduced an environment management system with
the goal of continuously improving company environmental protection.
The environment management system is certified according to DIN
EN ISO 14001.
Please help us fulfil this obligation by observing the environmental
instructions in this manual:
lChapter "Packaging,transport and storage"
lChapter "Disposal"
6VEGABAR 52 •4…20 mA/HART
2For your safety
36717-EN-120324

3Product description
3.1Structure
The scope of delivery encompasses:
lVEGABAR 52 process pressure transmitter
lDocumentation
-this operating instructions manual
-Test certificate for pressure transmitters
-Safety Manual 31637 "VEGABAR series 50 and 60 -
4…20 mA/HART"(optional)
-Operating instructions manual 27835 "Indicating and adjust-
ment module PLICSCOM"(optional)
-Supplementary instructions manual 31708 "Heating for in-
dicating and adjustment module"(optional)
-Supplementary instructions manual "Plug connector for con-
tinuously measuring sensors"(optional)
-Ex-specific"Safety instructions"(with Ex versions)
-if necessary,further certificates
The VEGABAR 52 consists of the components:
lProcess fitting with measuring cell
lHousing with electronics,optionally available with plug connector
lHousing cover,optionally available with indicating and adjustment
module
The components are available in different versions.
1
2
3

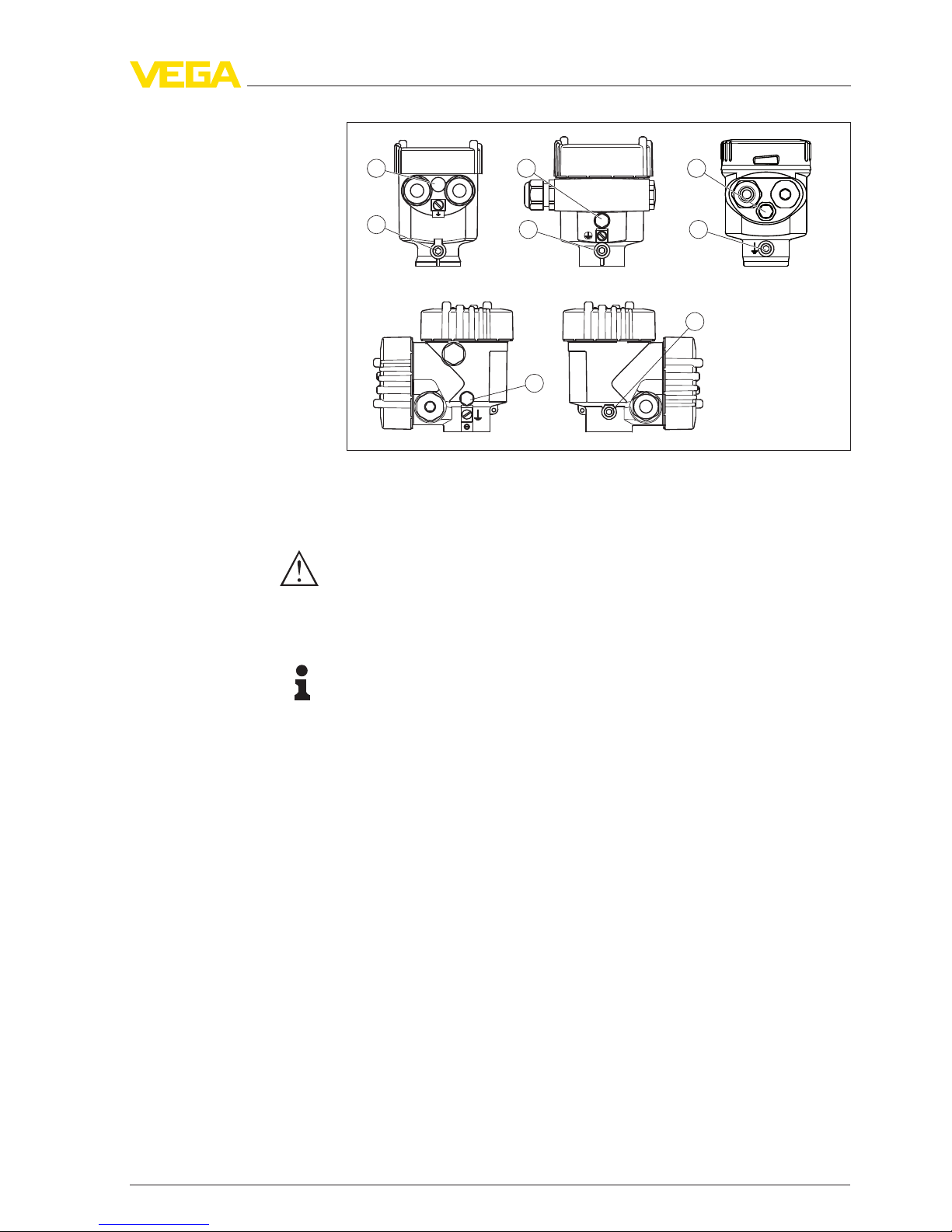

Fig.1:Example of a VEGABAR 52 with manometer connection G½Aaccording
to EN 837 and plastic housing
1Housing cover with integrated indicating and adjustment module (optional)
2Housing with electronics
3Process fitting with measuring cell
Scope of delivery
Constituent parts
VEGABAR 52 •4…20 mA/HART 7
3Product description
36717-EN-120324

The type label contains the most important data for identification and
use of the instrument:
2
1
11
10
5
4
3
6
7
8
9
Fig.2:Structure of the type label (example)
1Instrument type
2Product code
3Approvals
4Measuring range
5Process pressure
6Process temperature
7Electronics
8Protection,material measuring cell seal
9Order number
10 Serial number of the instrument
11 ID numbers,instrument documentation
With the serial number,you can access the delivery data of the
instrument via www.vega.com,"VEGA Tools"and "serial number
search".In addition to the type label outside,you can also find the
serial number on the inside of the instrument.
This operating instructions manual applies to the following instrument
versions:
lSoftware from 3.82
3.2Principle of operation
VEGABAR 52 is a pressure transmitter for use in the paper,food
processing and pharmaceutical industries as well as in water/sewage
water plants.Depending on the version,it is used for level,gauge,
absolute pressure or vacuum measurement.Measured products are
gases,vapours and liquids,also those containing abrasive substan-
ces.
Type label
Scope of the operating
instructions manual
Application area
8VEGABAR 52 •4…20 mA/HART
3Product description
36717-EN-120324

Sensor element is the CERTEC
®
measuring cell with robust,
dependent on the process fitting also front-flush,abrasion-resistant
ceramic diaphragm.The process pressure causes a capacitance
change in the measuring cell via the ceramic diaphragm.This change
is converted into an appropriate output signal and outputted as
measured value.
The CERTEC
®
measuring cell is also equipped with a temperature
sensor.The temperature value can be displayed via the indicating and
adjustment module as well as processed via the signal output (with
digital versions).
As a standard feature,the CERTEC
®
measuring cell is equipped with
a lateral,recessed seal.
Instruments with double seal have an additional front seal.
Instruments with hygienic fitting are equipped with a gap-free form
seal.
4…20 mA/HART two-wire electronics for voltage supply and
measured value transmission on the same cable.
The supply voltage range can differ depending on the instrument
version.
The data for power supply are specified in chapter "Technical data".
The optional background lighting of the indicating and adjustment
module is powered by the sensor.Acertain level of operating voltage
is required for this.You can find the exact voltage specifications in
chapter "Technical data".
The optional heating requires its own operating voltage.You can find
details in the supplementary instructions manual "Heating for indicat-
ing and adjustment module".
This function is generally not available for approved instruments.
3.3Operation
The instrument can be adjusted with the following adjustment media:
lWith indicating and adjustment module
lwith the suitable VEGA DTM in conjunction with an adjustment
software according to the FDT/DTM standard,e.g.PACTware and
PC
lwith manufacturer-specific adjustment programs AMS™or PDM
lWith a HART handheld
3.4Packaging,transport and storage
Your instrument was protected by packaging during transport.Its
capacity to handle normal loads during transport is assured by a test
according to DIN EN 24180.
Functional principle
Seal concept
Voltage supply
Packaging
VEGABAR 52 •4…20 mA/HART 9
3Product description
36717-EN-120324

The packaging of standard instruments consists of environment-
friendly,recyclable cardboard.For special versions,PE foam or PE foil
is also used.Dispose of the packaging material via specialised
recycling companies.
Transport must be carried out under consideration of the notes on the
transport packaging.Nonobservance of these instructions can cause
damage to the device.
The delivery must be checked for completeness and possible transit
damage immediately at receipt.Ascertained transit damage or
concealed defects must be appropriately dealt with.
Up to the time of installation,the packages must be left closed and
stored according to the orientation and storage markings on the
outside.
Unless otherwise indicated,the packages must be stored only under
the following conditions:
lNot in the open
lDry and dust free
lNot exposed to corrosive media
lProtected against solar radiation
lAvoiding mechanical shock and vibration
lStorage and transport temperature see chapter "Supplement -
Technical data -Ambient conditions"
lRelative humidity 20 …85 %
3.5Accessories and replacement parts
The indicating and adjustment module PLICSCOM is used for
measured value indication,adjustment and diagnosis.It can be
inserted into the sensor and removed at any time.
You can find further information in the operating instructions "Indicating
and adjustment module PLICSCOM"(Document-ID 27835).
The interface adapter VEGACONNECT 4enables the connection of
communication-capable instruments to the USB interface of a PC.For
parameter adjustment of these instruments,an adjustment software
such as PACTware with VEGA-DTM is required.
You can find further information in the operating instructions "Interface
adapter VEGACONNECT"(Document-ID 32628).
VEGADIS 61 is suitable for external measured value indication and
adjustment of plics®sensors.It is connected to the sensor with an up
to 25 m long,four-wire,screened standard cable.
You can find further information in the operating instructions
"VEGADIS 61"(Document-ID 27720).
Transport
Transport inspection
Storage
Storage and transport
temperature
Indicating and adjust-
ment module
Interface adapter
External indicating and
adjustment unit
10 VEGABAR 52 •4…20 mA/HART
3Product description
36717-EN-120324

VEGADIS 62 is suitable for measured value indication and adjustment
of sensors with HART protocol.It is looped into the 4…20 mA/HART
signal cable.
VEGADIS 62 is suitable for measured value indication with sensors
without HART protocol.
You can find further information in the operating instructions
"VEGADIS 62"(Document-ID 36469).
Flanges are available in different versions according to the following
standards:DIN 2501,EN 1092-1,ANSI B 16.5,JIS B 2210-1984,
GOST 12821-80.
You can find additional information in the supplementary instructions
manual "Flanges according to DIN-EN-ASME-JIS"(Document-ID
31088).
The measuring instrument holder is used for wall/tube mounting of
VEGABAR series 50 pressure transmitters and VEGAWELL 52
suspension pressure transmitters.Supplied reducers enable the
adaptation to different instrument diameters.The material used is
316L.
The protective cover protects the sensor housing against soiling and
intense heat from solar radiation.
You will find additional information in the supplementary instructions
manual "Protective cover"(Document-ID 34296).
The electronics module is a replacement part for pressure transmitter
VEGABAR.One version is available for each type of signal output.
You find further information in the operating instructions "Electronics
module VEGABAR series 50 and 60 "(Document-ID 30175).
External indicating and
adjustment unit VEGA-
DIS 62
Flanges
Measuring instrument
holder
Protective cover
Electronics module
VEGABAR 52 •4…20 mA/HART 11
3Product description
36717-EN-120324

4Mounting
4.1General instructions
Make sure that all parts of the instrument exposed to the process,in
particular the sensor element,process seal and process fitting,are
suitable for the existing process conditions.These include above all
the process pressure,process temperature as well as the chemical
properties of the medium.
You can find the specifications in chapter "Technical data"and on the
type label.
Select an installation position you can easily reach for mounting and
connecting as well as later retrofitting of an indicating and adjustment
module.The housing can be rotated by 330°without the use of any
tools.You can also install the indicating and adjustment module in four
different positions (each displaced by 90°).
Use the recommended cables (see chapter "Connecting to power
supply")and tighten the cable gland.
You can give your instrument additional protection against moisture
penetration by leading the connection cable downward in front of the
cable entry.Rain and condensation water can thus drain off.This
applies mainly to outdoor mounting as well as installation in areas
where high humidity is expected (e.g.through cleaning processes)or
on cooled or heated vessels.
Fig.3:Measures against moisture penetration
The ventilation of the electronics housing as well as the atmospheric
pressure compensation for the measuring cell are realised via a filter
element in the area of the cable gland.
Suitability for the pro-
cess conditions
Mounting position
Moisture
Ventilation and pressure
compensation
12 VEGABAR 52 •4…20 mA/HART
4Mounting
36717-EN-120324

2
1
2
1
2
1
1
2
Fig.4:Position of the filter element
1Filter element
2Blind stopper
Caution:
Due to the filter effect,the pressure compensation is time delayed.
When opening/closing the housing cover quickly,the measured value
can change for a period of approx.5s by up to 15 mbar.
Information:
Make sure that the filter element is always free of buildup during
operation.Ahigh-pressure cleaner may not be used for cleaning.
With instrument versions in protection IP 66/IP 68,1bar,the ventilation
is realised via the capillaries in the permanently connected cable.The
filter element is replaced by a blind stopper.
Higher process temperatures often mean also higher ambient
temperatures.Make sure that the upper temperature limits stated in
chapter "Technical data"for the environment of the electronics housing
and connection cable are not exceeded.
Temperature limits
VEGABAR 52 •4…20 mA/HART 13
4Mounting
36717-EN-120324

1
2
Fig.5:Temperature ranges
1Process temperature
2Ambient temperature
4.2Mounting steps
For mounting VEGABAR 52,a welded socket is required.You can find
these components in the supplementary instructions manual "Welded
socket and seals".
Seal the thread with teflon,hemp or a similar resistant seal material on
the process fitting thread 1½NPT.
àScrew VEGABAR 52 into the welded socket.Tighten the hexagon
on the process fitting with a suitable wrench.Wrench size,see
chapter "Dimensions".
Warning:
The housing must not be used to screw the instrument in!Applying
tightening force can damage internal parts of the housing.
Seal the flange connections according to DIN/ANSI with a suitable,
resistant seal and mount VEGABAR 52 with suitable screws.
Use the seal suitable for the respective process fitting.You can find
the components in the supplementary instructions manual "Welded
socket and seals".
4.3Mounting steps,external housing
1Mark the holes according to the following drilling template
2Depending on the mounting surface,fasten the wall mounting
plate with 4screws
Welding the socket
Sealing/Screwing in
threaded versions
Sealing/Screwing in
flange versions
Sealing/Screwing in hy-
gienic fittings
Wall mounting
14 VEGABAR 52 •4…20 mA/HART
4Mounting
36717-EN-120324

90 mm (3.54")
R 3,5 mm
(0.14")
3mm
(0.12")
70 mm (2.76") 8 mm
(0.32")
93 mm (3.66")
110 mm (4.33")
Fig.6:Drilling template -wall mounting plate
Tip:
Mount the wall mounting plate so that the cable entry of the socket
housing points downward.The socket housing can be displaced by
180°to the wall mounting plate.
Warning:
The four screws of the socket housing must only be hand screwed.A
torque >5Nm(3.688 lbf ft)can damage the wall mounting plate.
VEGABAR 52 •4…20 mA/HART 15
4Mounting
36717-EN-120324

5Connecting to power supply
5.1Preparing the connection
Always keep in mind the following safety instructions:
lConnect only in the complete absence of line voltage
lIf overvoltage surges are expected,overvoltage arresters should
be installed
Tip:
We recommend using VEGA overvoltage arresters B63-48 and
ÜSB 62-36G.X.
In hazardous areas you must take note of the respective regulations,
conformity and type approval certificates of the sensors and power
supply units.
Power supply and current signal are carried on the same two-wire
cable.The voltage supply range can differ depending on the
instrument version.
The data for power supply are specified in chapter "Technical data".
Provide a reliable separation between the supply circuit and the mains
circuits according to DIN VDE 0106 part 101.The VEGA power supply
units VEGATRENN 149A Ex,VEGASTAB 690 as well as all
VEGAMETs and VEGASCANs meet this requirement.
Keep in mind the following additional factors that influence the
operating voltage:
lOutput voltage of the power supply unit can be lower under
nominal load (with a sensor current of 20.5mAor 22 mAin case of
fault message)
lInfluence of additional instruments in the circuit (see load values in
chapter "Technical data")
The instrument is connected with standard two-wire cable without
screen.If electromagnetic interference is expected which is above the
test values of EN 61326 for industrial areas,screened cable should be
used.
Use cable with round cross-section.Acable outer diameter of 5…9mm
(0.2…0.35 in)ensures the seal effect of the cable gland.If you are
using cable with a different diameter or cross-section,exchange the
seal or use a suitable cable gland.
We generally recommend the use of screened cable for HART
multidrop mode.
On the instrument with cable entry ½NPT and plastic housing there is
a metallic ½" threaded insert moulded into the plastic housing.
Safety instructions
Voltage supply
Connection cable
Cable gland ½NPT
16 VEGABAR 52 •4…20 mA/HART
5Connecting to power supply
36717-EN-120324

Caution:
No grease should be used when screwing the NPT cable gland or
steel tube into the threaded insert.Standard grease can contain
additives that corrode the connection between threaded insert and
housing.This would influence the stability of the connection and the
tightness of the housing.
If screened cable is necessary,connect the cable screen on both ends
to ground potential.In the sensor,the screen must be connected
directly to the internal ground terminal.The ground terminal on the
outside of the housing must be connected to the potential equalisation
(low impedance).
If potential equalisation currents are expected,the connection on the
processing side must be made via a ceramic capacitor (e.g.1nF,
1500 V). The low frequency potential equalisation currents are thus
suppressed,but the protective effect against high frequency interfer-
ence signals remains.
Warning:
Within galvanic plants as well as vessels with cathodic corrosion
protection there are considerable potential differences.Considerably
equalisation currents can be caused via the cable scrren when the
screen is earthed on both ends.To avoid this,the cable screen must
only connected to ground potential on one side of the switching
cabinet in such applications.The cable screen must not be connected
to the internal ground terminal in the sensor and the outer ground
terminal on the housing not to the potential equalisation!
Information:
The metallic parts of the instrument (transmitter,process fitting,etc.)
are conductively connected with the inner and outer ground terminal
on the housing.This connection exists either as a direct metallic
contact or via the shielding of the special connection cable on
instruments with external electronics.You can find specifications on
the potential connections within the instrument in chapter "Technical
data".
Take note of the corresponding installation regulations for Ex
applications.In particular,make sure that no potential equalisation
currents flow over the cable screen.In case of grounding on both sides
this can be achieved by the use of a capacitor or a separate potential
equalisation.
5.2Connection procedure
Proceed as follows:
1Unscrew the housing cover
Cable screening and
grounding
Single/Double chamber
housing
VEGABAR 52 •4…20 mA/HART 17
5Connecting to power supply
36717-EN-120324

2If an indicating and adjustment module is installed,remove it by
turning it to the left.
3Loosen compression nut of the cable entry
4Remove approx.10 cm of the cable mantle,strip approx.1cm
insulation from the individual wires
5Insert the cable into the sensor through the cable entry
6Lift the opening levers of the terminals with a screwdriver (see
following illustration)
7Insert the wire ends into the open terminals according to the wiring
plan
8Press down the opening levers of the terminals,you will hear the
terminal spring closing
9Check the hold of the wires in the terminals by lightly pulling on
them
10 Connect the screen to the internal ground terminal,connect the
outer ground terminal to potential equalisation
11 Tighten the compression nut of the cable entry.The seal ring must
completely encircle the cable
12 Screw the housing cover back on
The electrical connection is finished.
Fig.7:Connection steps 6and 7
Proceed as follows:
1Loosen the four screws on the housing base with an Allen key size
4
IP 68 version with exter-
nal housing
18 VEGABAR 52 •4…20 mA/HART
5Connecting to power supply
36717-EN-120324

2Remove the housing socket from the mounting plate
3
2
1
Fig.8:Components of the external housing
1Screws
2Wall mounting plate
3Cable gland
3Loop the connection cable through the cable entry on the housing
base1)
Information:
The cable gland can be mounted in three positions each displaced by
90°.Simply exchange the cable gland against the blind plug in the
suitable thread opening.
4Connect the wire ends as described under "Single/Double
chamber housing"according to the numbering
5Connect the screen to the internal ground terminal,connect the
outer ground terminal above on the housing to potential equal-
isation
6Tighten the compression nut of the cable entry.The seal ring must
completely encircle the cable
7Attach the mounting plate again and tighten the screws
The electrical connection of the sensor to the external housing is
finished.
1)The connection cable is already preconfectioned.If necessary,shorten it to
the requested length,cut the breather capillaries clean.Remove approx.
5cm of the cable mantle,strip approx.1cm insulation from the ends of the
individual wires.After shortening the cable,fasten the type plate with sup-
port back onto the cable.
VEGABAR 52 •4…20 mA/HART 19
5Connecting to power supply
36717-EN-120324

5.3Wiring plan,single chamber housing
The following illustrations apply to the non-Ex as well as to the Ex-ia
version.
I²C
Display
1 2 5 6 7 8
3
4
1
2
Fig.9:Electronics and connection compartment,single chamber housing
1Plug connector for VEGACONNECT (I²Cinterface)
2Spring-loaded terminals for connection of the external indication VEGADIS
61
3Ground terminal for connection of the cable screen
4Spring-loaded terminals for voltage supply
I2C
Display
1
1 2 5 6 7 8
Fig.10:Wiring plan,single chamber housing
1Voltage supply,signal output
Electronics and connec-
tion compartment
Wiring plan
20 VEGABAR 52 •4…20 mA/HART
5Connecting to power supply
36717-EN-120324
