Verco Oblique Adapt User manual

Oblique Adapt
Assembly and Operating Instructions
June 2013

2
Index
Foreword ..................................................................................................................3
Safety Information ....................................................................................................4
Before installing, uninstalling, or troubleshooting ...............................................5
Before the operation ...........................................................................................5
During the operation ...........................................................................................5
Repairs ....................................................................................................................6
Warranty ..................................................................................................................6
Maintenance / Cleaning ...........................................................................................6
Assembly .................................................................................................................7
Reset .....................................................................................................................11
Operation ...............................................................................................................11
with HDU Unit ..................................................................................................12
Troubleshooting .....................................................................................................15
Error Code in the display of the handset (optional).................................................16
Technical Data........................................................................................................18
Tests and Certifications ..........................................................................................19

3
Foreword
Dear Customer,
We are pleased that you chose our product. This manual explains how this sit-stand
desk is assembled, used and maintained. All sit-stand tables are subjected to
functional and quality tests before leaving our factory. If you still have problems with
your table base, you can always contact our service department.
The assembly of the table frame must be made in accordance with this manual.
Changes to the table frame or improper use may affect the safety, function and life!
This manual is for all OBLIQUE Adapt sit-stand tables with HDU provided.
Due to different models or types pictures can be different.

4
Safety Information
ర Safe use of the sit-stand table is only possible if the instructions are read and
are strictly observed.
Failure to observe instructions could result in significant damage or injuries.
ర Anyone who has assembled this sit-stand desk or is a user of the desk must
have access to these instructions.
ర If the product is obviously damaged, it must not be installed or continue to be
used.
ర This table frame is not intended for use by persons (including children) with
reduced physical, sensory or mental abilities or lack of experience and / or
knowledge. Children should be supervised to ensure that they do not play with
the table.
ర

5
ర Before installing, uninstalling, or troubleshooting
t Stop the sit-stand table.
t Turn the power off and unplug the power cord.
t
Unload the sit-stand table of any weight.
t The opening and exchange of electrical equipment may only be performed by
qualified electricians.
t The table must not to be used in wet areas, e.g. Pools.
t The table must not to be used in hazardous environments.
Before the operation
t
Make sure that the table has been installed in accordance with this manual.
t Check the operating voltage of the table of the local power supply. (see label on
the control, EU-Standard = 230V)
t Set the plug connections from the Handset and the Columns to the control unit.
t Connect the power cable to the controller.
During the operation
t If the drives or the control unit during operation may cause unusual noises or
smells, disconnect the power supply.
t Make sure that the cables are not damaged.
t During operation of the sit-stand table, make sure that no objects or body parts
can be pinched.
All moving parts of the table frame to have a distance of min. 25 mm to adjacent
components.

6
Repairs
To avoid malfunction, all repairs done by authorized service personnel.
ర WARNING! Should the user attempt to repair or open any part of the desk
system then warranty is null and void. In such a case VERCO are not liable for
any failures sustained.
Warranty
These table bases are warranted for a period of 5 years. The warranty covers all
defects in material and manufacturing faults calculated from the production date
(see label). The warranty is valid only on condition that the table frames within the
described parameters are properly and professionally assembled and used. In
addition all maintenance and repair must be performed only by authorized service
personnel.
The sit-stand table must not be handled or used improperly and no changes made
to the table frame are allowed or this will invalidate the warranty. For more
information, please refer to our Terms and Conditions.
Maintenance / Cleaning
Remove dust and dirt on a regular basis from the table frame, especially from the
guide tubes and make sure that no damage or cracks are present.
Check that all mounting screws and all connections, cables and connectors are
tight.
The control unit, the handset and the table frame may be cleaned with a dry or
slightly damp cloth.
Aggressive cleaning agents may cause damage or discoloration to the product. It is
therefore recommended that only an agent with a pH of 6-8 is used.
Make sure that no liquid enters the system (control unit, handset, cables and table
frame).

7
Assembly
In the assembly of the table frame, use only the bolts to the prescribed
specifications.
ర WARNING! Incorrect screws can cause damage to the table.
1. For columns with fixed welded feet continue with step 2. For columns with
bolted feet, they must assembled first on the columns (please use the bolts to
the table frame-drawing). The max. tightening torque is 10 Nm! The max.
Screwing depth of the M10 in the Driving column is 9 mm! With asymmetrical
frames (C-form) please note that a left and a right side panel is required.
2x Screws M10
Foo
t
Column
WARNING! The max. screwing
depth in the Column is 9 mm. If the
Screw goes deeper, then the motor
may become damaged!
Please note that the max. tightening
torque for the screws is 10 Nm

8
2. Now install the two beams and the desktop support on the two Columns. Use
only the M8 screws, according to the frame-drawing! The max. tightening
torque for these screws is 20 Nm The max.
If a CPU holder are
integrated into the
system, please con-
nect these over the
two inner screws,
over the top plate of
the column, to the
beams.
Please note that the max. tightening
torque for the screws is 20 Nm
4x Screws M8
The 2x internal screw are
to screw in the threads of
the beams
The 2x external screw are to
screw in the threads of the
desktop support
Deskto
p
Su
pp
ort
Beams

9
3. Fasten your desktop on the table frame. On the beams holes with an ø6.5 mm
are provided for fixing the desk top (recommended screws ø5.5 to ø6.0 mm).
4. Install the control unit and the handset on the desktop. On the control unit you
have ø5.5 mm holes and at the handset you have ø4.5 mm holes. For the
control unit, you should use screws with a lens or cylinder head.
5. The screws for assembly of the desk top are not included.
Make sure, that the motocables are long enough to connect to the controlbox. If
necessary you can place the controlbox excentric under the tabletop. For very
long tables you can use a motorextension cable.
6. Connect the motorcables form the column to the controlbox.The plug-
connection has to click into place. If a controlbox is used, which has mire plug-
terminals than needed you always have to start to connect to M1 (The
redundand terminals can be left open)
7. Make the connection between the handset and the control unit (HS) and then
plug the power cord into the controller (AC).
Use only the supplied power cable! The control unit “COMPACT“ needs
necessarily a 3-pin power cable with ground wire.
Attach all cables to the table frame or on the underside of the table top so as to
avoid any damage during operation.

10
Connections to the control unit
M1-M3 = Connectors for the drives
HS = Connectors for the handset
AC = Connector for the power cord (3-pin)
Senso
r

11
Reset
The desk may need to be reprogrammed / reset after any of the following:
After assembly; after disconnection from the power supply or after any impact on the
table top.
In the case of a reset becoming necessary downward movement of the table at a
reduced speed is possible. On handset models with display "Reset-LED" will be
indicated. This display clears once the initialization has been completed
successfully.
To reset you have to drive the table to the lowest position by holding the down
button of the hand switch pressed until all drives reach the lowest position. Then
press the down button again and hold it pressed (about 5 seconds) until a slight
movement of the table drops down to the machine zero point and back up to the
operation zero point and the table stops moving, after that release the button. If the
button is released too early, this leads to a malfunction at the table. If this occurs
you must repeat the process.
The upper end position is preset in the control unit. For this reason, only control
units that have been provided for each specific desk frame should be used. Under
no circumstance should a control box from one desk be moved to another.
Operation
Normal mode (with all handset types)
With the Up and Down keys, move the table in the direction up or down, the table
stops when it reaches the end position. Depress the up or down button as required
until the desired position is reached.

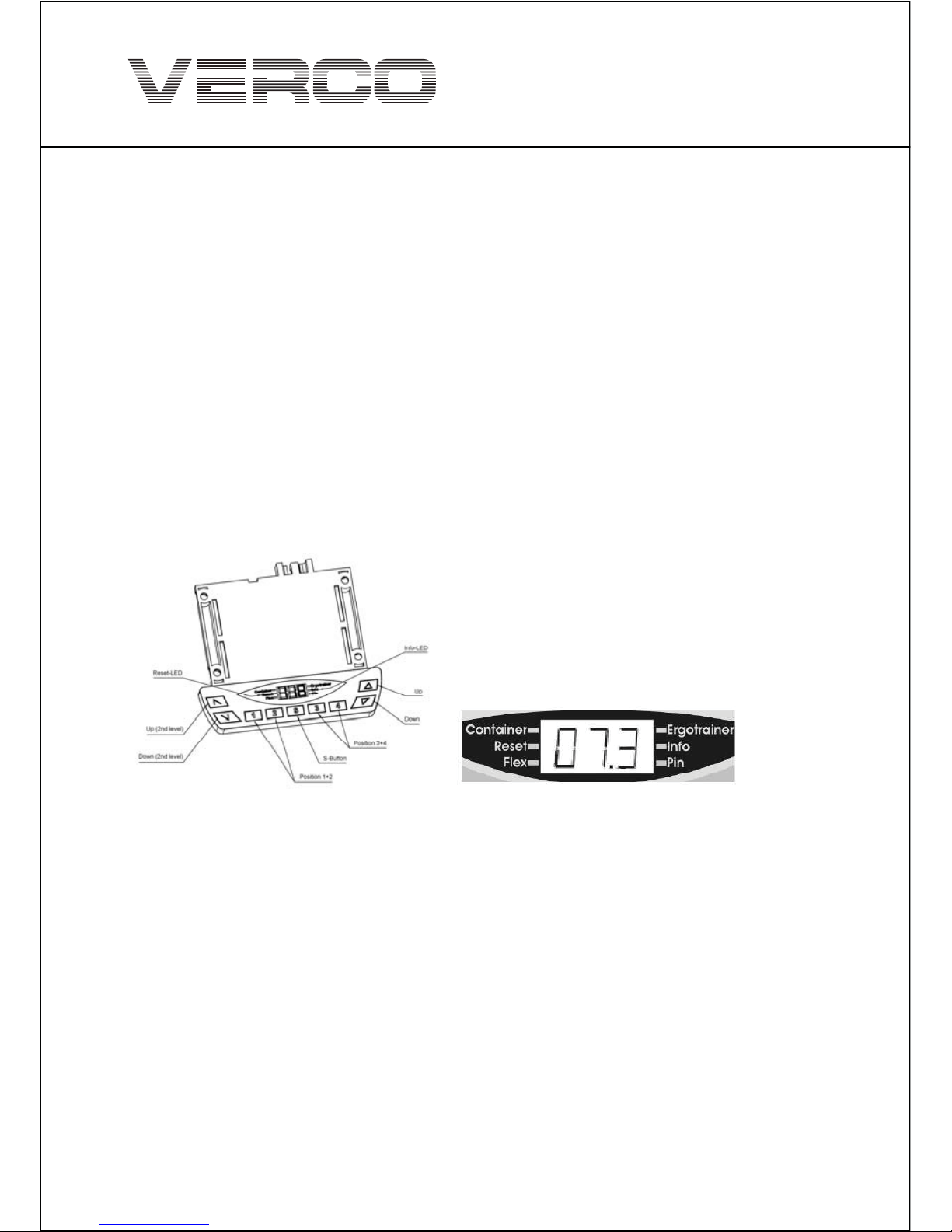

Standard Handset HDU Handset (optional)

12
Adjustment of the altitude display
If the indicated value does not match the actual height of the tabletop, the display
can be corrected as follows:
1. Press the S key and release the button again.
2. Press the DOWN key until the display start to flash (about 5 sec.)
3. Measure the table height and enter the measured value (depending on the
setting in centimeters or inches) with the UP or DOWN button. Confirm the
entry by pressing the S button.
To exit the menu without making a selection, you can wait about 10 seconds and
the height display will appear again.
Operation with HDU handset with display & memory (optional)
This handset is equipped with a display for displaying the current table height in
centimeters or inches, in addition, the storage of 4 "memory" positions (desk height)
is possible.
The Reset-LED indicates that a reset is required (see section - Reset). It lights until
the reset is completed.
The Info-LED indicates that the control unit has detected an error. At the same time
on the display instead of the current table height, an error code "EXX" will be
displayed. To resolve the error, see Section - Troubleshooting.
The LED's "Container, Flex, Ergotrainer and pin" are reserved for optional features
and are not used in standard systems. The key UP (2) and DOWN (2) operate in the
standard model as the buttons UP and DOWN

13
To save a position:
Drive the table with "Up" or "down" to the desired height. Then press the "S" key (in
the display "S -" is displayed) and then a position of the 1-4 buttons (the display will
show as "S1"). The save procedure is confirmed by the control unit with a double
click sound and after about 2 seconds, the LCD shows the current table height. In
this way it is possible to save max. 4 different positions.
Recall a saved position:
Press and hold the desired memory location (1, 2, 3 or 4) key and the table moves
independently from the current position in the saved position. The button must be
pressed until the position is reached, if the button is released, the table will stop
short of the desired height.
Change the height noted in display from cm or inches (S5 Menu)
The height display of the handset can be set both in centimeters, or inches. With the
help of the S5-menus, the unit can be changed. If the display has been set to
centimeters, the height will be displayed in inches after the menu selection of if
inches have previously been displayed you can change to displaying centimeters.
To change the unit, follow these steps:
1. Press the Menu key (3-5 seconds) until the "S x" is displayed (where x is a
number, unless it is already "S 5" displaycontinue with 3)
2. Press the UP or DOWN button until the display shows "S 5".
3. Confirm by pressing the S button. Now the display depending on the. Previous
setting will change to either inches or centimers.
To exit the menu without making a selection, you can wait about 10 seconds and
the altitude display appear again.

14
Adjustment of the height display
If the indicated amount does not match the actual height of the tabletop, the display
can be corrected as follows:
1. Press the S key and release the button again.
2. Press the DOWN key until the display start to flash (about 5 sec.).
3. Measure the table height and enter the measured value (depending on the
setting in centimeters or inches) with the UP or DOWN button. Confirm the
entry by pressing the S button.
To exit the menu without making a selection, you can wait about 10 seconds and
the altitude display appear again.
Optional equipment

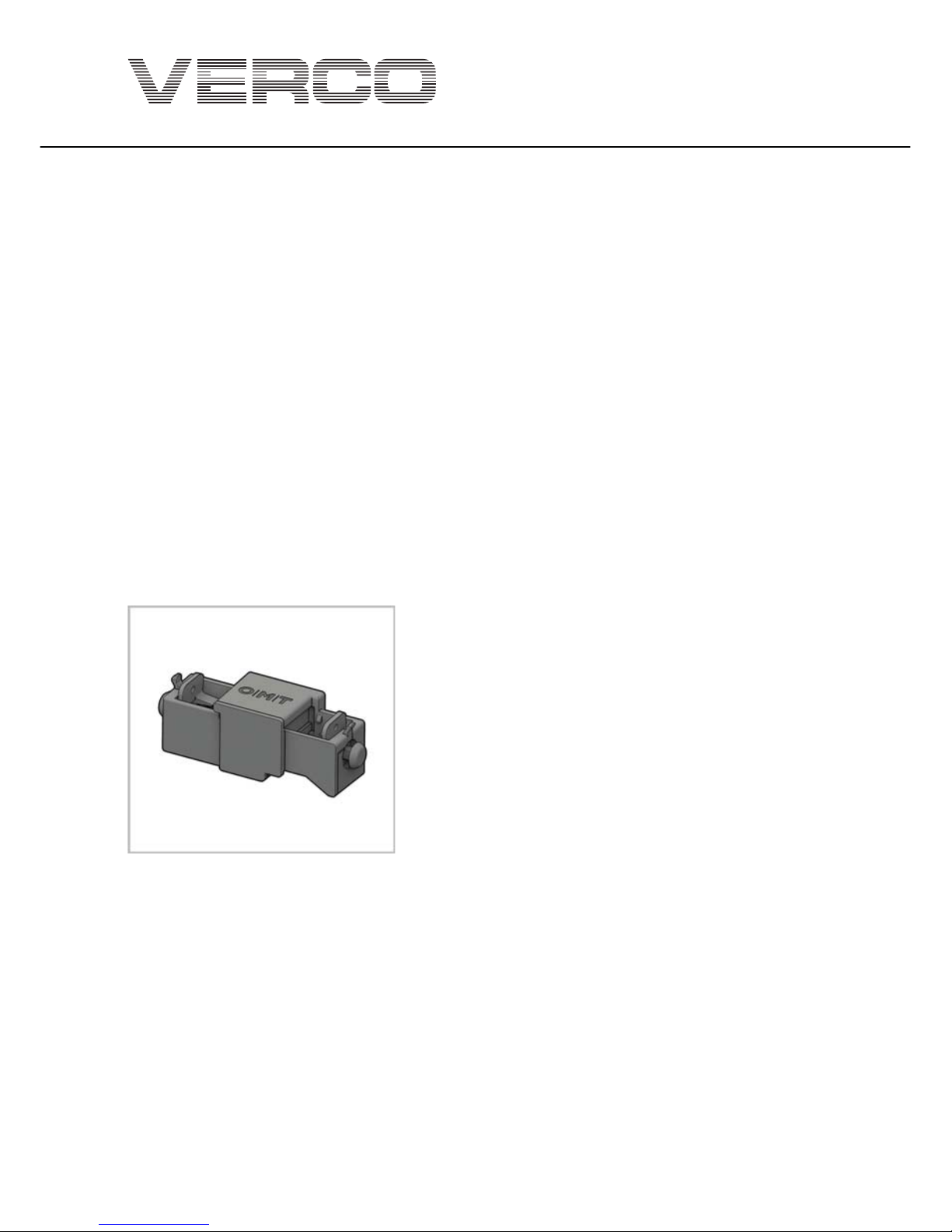

External sensor for collision detection
The sensor bridge (9903 2200) is responsible for
an early detection of a possible collision of the
table frame with other components or objects
provided.
When using the sensor bridge it’s absolutely
necessary to observe strictly the separate
assembly and operating instructions for the
sensor.

15
Troubleshooting
Erro
r
Source Solution
Table does not
move
No power supply Plug in the power cord
if necessary check the connections
on the control unit
None or a loose
connection to the
drives
Verify the plug connections of the
motor cable to the control unit and
the drives, respectively establish it.
No or a loose
connection to the
handset
Verify the plug connections of the
handset to the control unit and the
drives, respectively establish it.
max. lifting capacity is
exceeded
Reduce the weight or load on the
desktop
max. Time limit
exceeded
Control is activated automatically
after about 9 minutes later
Defective drive Contact customer service
Defective control unit Contact customer service
Handset is defective Replace the Handset
Table moves
slowly down
Control unit expects
new reset
see page 11
Table moves only
slowly
max. Lifting capacity is
exceeded
Reduce weight
Table moves on
one side only
briefly and then
stops
None or a loose
connection to the
drives
Verify the plug connections of the
motor cable to the control unit and
the drives, respectively establish it.
Defective drive Contact customer service

16
Error Code in the display of the handset (optional)
Display
Source Remedying
HOT The control unit monitors
the duty cycle (time-
controlled) and its max.
temperature. A value has
been exceeded.
Wait until the "HOT" goes out, then the
table is working properly again.
E00 M1 – Internal fault Unplug! and contact the customer service
E01 M2 – Internal fault
E02 M3 – Internal fault
E12 M1 – Defect Unplug!
Correct the external short circuit and / or
verify the cable to the drives
Take the control unit back in operation.
E13 M2 – Defect
E14 M3 – Defect
E24 M1 – Overcurrent Collision? -> resolve if necessary
max. Load exceeded -> remove the load
from the table.
If the problem still exists after that, please
contact customer service.
E25 M2 – Overcurrent
E26 M3 – Overcurrent
E36 M1 – Not connected Motor not connected
Check cable / connector to the drive
Reset the table.
E37 M2 – Not connected
E38 M3 – Not connected
E48 Overcurrent
drive 1
Collision? -> resolve if necessary
max. Load exceeded -> remove the load
from the table.
E49 Overcurrent
drive 2
E55 Drive 1 – Synchronization
is lost
Motor position to different, if necessary
reduce the load on the table.
Reset the table.
E56 Drive 2 – Synchronization
is lost
E60 Collision identified Optional ISP function.
Remove source.
E61 Drive replaced The Connection to the drive is interrupted
or a new drive is connected.
Reset the table.

17
Displa
y
Source Remedying
E62 Overcurrent Control unit - Overall current overload
E63 External sensor or the
cable is not connected
External sensor or other add-on module
is not connected.
Check the plug connection if necessary
E64 Authentication error Reset the table.
E65 Overcurrent or short circuit If errors occur during the drive.
Collision? -> resolve if necessary
max. Load exceeded -> remove the load
from the table.
E67 Overvoltage Power or power supply fluctuations?
Verify that the correct power voltage/
frequency is applied.
E70 Change of the drive
configuration
Unplug the system and wait 5 Min.
seconds, then reset table.
E81 Internal fault Memory or reset fault?
Reset the table (for service: If necessary
import set of parameters new) .
If it is not possible to resolve an error as described, disconnect the power cord, wait
a few minutes and reset the table again!
If the error still occurs, remove the table from power and contact Customer Support.
(Error Code list is valid from firmware 1.7.5 and higher!)

18
Technical Data
General
Power supply 230 V ±10% / 50 Hz
Standby power consumption, primarily <0.6 W
no condensation 0-35°C
Allowed relative humidity (for operation) 5-85% (no condensation)
Allowed relative humidity (for storage) 5-90% (no condensation)
Protection class I
%01elcycytudmumixaM (2 min. on / 18 min. off)
1 Drive with COMPACT-2
(N006yticapactfilmumixaM ≈60 kg)
Adj. Range, depending on version View drawing
Maximum Power consumption, Primarily 338 W
2 Gear Drive with COMPACT-2
(N057yticapactfilmumixaM ≈75 kg)
Adj. Range, depending on version View drawing
Maximum Power consumption, Primarily 338 W
3 Gear Drive with COMPACT-2
(N057yticapactfilmumixaM ≈75 kg)
Adj. Range, depending on version View drawing
Maximum Power consumption, Primarily 422 W

19
Tests and Certifications
The drive system is tested according to the following standards:
Electromagnetic compatibility (EMC Directive 2004/108/EC)
EN 61000-6-2:2005 Electromagnetic compatibility (EMC)
EN 61000-6-3:2007 Electromagnetic compatibility (EMC)
Electrical Safety (Low Voltage Directive 2006/95/EC)
EN 50366:2003 + A1:2006 Electrical apparatus for household and similar
purposes Electromagnetic Fields
EN 60335-1:2002 + A1:2004 Safety of electrical equipment for
+ A11:2004 + A12:2006 + A2:2006 Household and similar purposes
