Product overview
This chapter includes the following topics:
■About the appliance
■About storage capacity
■About best practices for rack installation
■About the appliance rear panel
■About the mainboard RAID controller
■About the external RAID controller
■About the NetBackup 5230 rear panel configurations
■About the FC HBA port configurations
■About the 2-port 8 Gb FC HBA
■About the dual-port 10 Gb Ethernet card
■About the Veritas 3U16 24TB Storage Shelf / Veritas 3U16 36TB Storage Shelf
■Appliance and storage shelf connections
■NetBackup 5230 documentation
About the appliance
The NetBackup 5230 appliance and the Storage Shelf provide complete
deduplication and backup solutions. This document describes the major hardware
aspects of these devices. This document is available to the general public.
Table 1-1 lists the features of the product.
1
Chapter

Table 1-1 Appliance features
DescriptionFeature
The deduplication engine provides up to 100 times reduction in
storage. The client-side plug-in provides similar levels of bandwidth
reduction.
Space reduction
Due to fingerprinting and RAID redundancy, the overall storage
capabilities are not a simple multiplication of the disk size and the
total number of disks.
See “About storage capacity” on page 9.
Scalable architecture
Supports the redundant hot-swappable disks and power modules.High availability
Provides separate out-of-band management network interfaces.
You can remotely turn on, turn off, and reset appliances through
the network.
Supports remotely configuring and managing the appliances
through KVM over IP.
Supports the SNMP traps and automatically reports alarms.
Supports reporting the disk information through the out-of-band
management channel.
Easy management
64 GB, up to a maximum of 192 GBs
Note: You can purchase additional 64-GB memory kits to
maximize the amount of memory in the NetBackup 5230 Appliance.
You can also use the memory kits to increase the appliance
memory when you add an optional storage shelf to the system.
System memory
configuration (DIMMS)
RAID 1 (standard mirroring) and RAID 6 (block level striping with
double distributed parity) are used as follows:
■Appliance system disks: RAID 1
■Appliance storage disks: RAID 6
■Storage shelf data storage disks: RAID 6
Note: The disk drives in the appliance are pre-formatted before
the appliance is shipped. These drives should not be moved into
different slots or otherwise rearranged.
RAID levels
7Product overview
About the appliance

Table 1-1 Appliance features (continued)
DescriptionFeature
■Supports the high-performance processors with low-power
consumption.
■Provides the high-capacity intra-appliance switching bandwidths
and high I/O throughput.
■Usable capacity can be any combination of up to 144 TB
deduplication pool or 148 TB AdvancedDisk pool
(non-deduplicated storage).
Refer to the following section for capacity details.
See “About storage capacity” on page 9.
■Processor - two 6-core 2.5GHz E5-2620 CPUs
■An appliance with 4-TBs of internal storage and zero storage
shelves contains eight 8Gb DIMMs.
■An appliance with 14-TBs of internal storage and zero storage
shelves contains eight 8Gb DIMMs.
■An appliance with 4-TBs of internal storage and one or more
storage shelves contains sixteen 8Gb DIMMs.
■An appliance with 14-TBs of internal storage and one or more
storage shelves contains sixteen 8Gb DIMMs.
Performance and
capacity
The NetBackup 5230 appliance can be ordered with up to five FC
HBA cards preinstalled. A 10Gb Ethernet card can also be ordered
and preinstalled.
Fibre Channel support
8Product overview
About the appliance

Table 1-1 Appliance features (continued)
DescriptionFeature
Two SAS ports that connect to the storage shelf
One 1 Gb/s IPMI remote management network port
One VGA port
Three USB 2.0 ports
Four 1Gb Ethernet network ports, each with link and activity LEDs.
Two 10Gb Ethernet network ports, each with link and activity LEDs.
These ports support fiber cabling and copper cabling. Two
10GBASE-SR (Short Range) SFP+ transceivers ship with each
server. The customer can use these connectors. Alternately,
customers can provide 10GBASE-LR (Long Range) transceivers
or twin-ax copper cables depending on their network environment.
Contact Technical Support for more information.
The appliance can be ordered with several combinations of SAS
RAID cards, Fibre Channel cards, and 10Gb Ethernet cards
installed.
See “About the NetBackup 5230 rear panel configurations”
on page 16.
Rear panel ports
See “About the
appliance rear panel ”
on page 12.
The technical specification section contains dimensions and weights for both types
of devices.
See “About storage capacity” on page 9.
About storage capacity
The standard NetBackup 5230 Appliance without attached storage shelves provides
4.55 TB of storage capacity. This configuration uses 1-TB storage drives in slots 4
through 11 in the front panel of the appliance. You can also use 3-TB storage drives
in these slots to achieve 13.65 TB of formatted storage without any externally
attached storage shelves. The option of 3-TB appliance drives is available in
NetBackup Appliance release 2.6.0.2 and subsequent releases.
Note: The disk drives in slots 0 and 1 of the appliance are 1-TB drives. These drives
provide the operating system for the appliance.
To expand the NetBackup 5230 Appliance storage capacity, you can connect up
to four storage shelves to the appliance.
9Product overview
About storage capacity

The storage shelf models include the:
■Veritas 3U16 24TB Storage shelf featuring 24TBs of usable MSDP storage
capacity
■Veritas 3U16 36TB Storage shelf featuring 36TBs of usable MSDP storage
capacity
■Veritas 2U12 49TB Storage Shelf featuring 49TB of usable MSDP storage
capacity
See “About the optional Veritas 2U12 49TB Storage Shelf”on page 34.
Table 1-2 provides information regarding the different storage capacity configurations
that are available with the NetBackup 5230 Appliance.
Note: Storage shelves use disk drives with capacities of 2-TB, 3-TB, or 6-TB,
depending on the storage shelf model.
See “About the Veritas 3U16 24TB Storage Shelf / Veritas 3U16 36TB Storage
Shelf” on page 19.
See “About the optional Veritas 2U12 49TB Storage Shelf”on page 34.
Table 1-2 NetBackup 5230 storage capacity options
Appliance
and four
storage
shelves
MSDP
available
storage
capacity (TB)
Appliance
and three
storage
shelves
available
MSDP
storage
capacity
(TB)
Appliance
and two
storage
shelves
available
MSDP
storage
capacity
(TB)
Appliance
and one
storage
shelf
available
MSDP
storage
capacity
(TB)
Storage
shelf
available
MSDP
storage
capacity
(TB)
Storage
shelf
drives
(TB)
Appliance
available
MSDP
storage
capacity
(TB)
Appliance
storage
drives
(TB)
**52.5528.552424.551
148.55112.5576.5540.553634.551
200.55151.55102.5553.5549**64.551
**61.6537.6524213.653
157.65121.6585.6549.6536313.653
10Product overview
About storage capacity

Table 1-2 NetBackup 5230 storage capacity options (continued)
Appliance
and four
storage
shelves
MSDP
available
storage
capacity (TB)
Appliance
and three
storage
shelves
available
MSDP
storage
capacity
(TB)
Appliance
and two
storage
shelves
available
MSDP
storage
capacity
(TB)
Appliance
and one
storage
shelf
available
MSDP
storage
capacity
(TB)
Storage
shelf
available
MSDP
storage
capacity
(TB)
Storage
shelf
drives
(TB)
Appliance
available
MSDP
storage
capacity
(TB)
Appliance
storage
drives
(TB)
* If required, 2-TB storage drives are available.
** You can also add a 2U12 49TB Storage Shelf to an existing 4.55TB appliance with attached 3U16 24TB or 3U16
36TB Storage Shelves. However, you must connect the 2U12 49TB Storage Shelf to the last 3U16 24TB or 36TB
Storage Shelf that is connected to the appliance.
For example, NetBackup 5230 Appliance + 3U16 24TB Storage Shelf + 3U16 24TB Storage Shelf + 3U16 36TB
Storage Shelf + 2U12 49TB Storage Shelf.
In addition, attaching a 2U12 49TB Storage Shelf to a 3U16 24TB or 36TB Storage Shelf requires a SAS3-to-SAS2
cable to connect the shelves. Finally, the SAS3 data transfer rate of the 2U12 49TB Storage Shelf drops to match
the SAS2 data transfer rate of the 3U16 24TB or 36TB Storage Shelf.
See “About the optional Veritas 2U12 49TB Storage Shelf”on page 34.
Note: Connecting up to four Veritas 3U16 24TB or 36TB Storage Shelves requires the NetBackup 5230 Appliance
to be running appliance software version 2.6.0.2 or later.
To connect a Veritas 2U12 49TB Storage Shelf requires the NetBackup 5230 Appliance to be running appliance
software version 3.0 or higher. A patch is available for appliance software version 2.7.3, which you can download
using the following link:
https://www.veritas.com/support/en_US/article.000116670
See “About best practices for rack installation” on page 11.
About best practices for rack installation
The heaviest equipment should be installed at the bottom of a rack. The heavy
devices that are installed at the top of a rack make the rack "top-heavy", or unstable.
Unstable racks jeopardize staff and equipment safety and are subject to risk.
When you install more than one device per rack, do the following:
■Find out how much each device weighs.
■Determine device order and cabling limits.
11Product overview
About best practices for rack installation

A storage device is heavier than an appliance and must always be installed
under the appliance.
■
■Be aware of the depth of the guide rails and the devices. Ensure that the distance
between cabinet posts accommodates the rails and devices.
■The rack rails that are provided for the appliance are extensible to 30”
(752mm). This distance is the maximum depth that is allowed between rack
posts. If the distance between rack posts is longer than 30” (752mm) the
rails and the appliance cannot be properly installed. The width of the
appliance is 19” (482.6mm).
■The rack rails that are provided for the Storage Shelf are extensible to 36”
(914mm). This distance is the maximum depth that is allowed between rack
posts. If the distance between rack posts is longer than 36” (914mm) the
rails and the appliance cannot be properly installed. The width of the storage
shelf is 19” (482.6mm).
■If your rack dimensions do not conform to these requirements contact Veritas
Technical Support.
■Populate the bottom of the rack with heavier devices, such as the storage
devices.
A fully-populated storage device is heavier than an appliance. The storage
devices should always be installed under the appliance.
About the appliance rear panel
The rear panel of the appliance has several access ports and other features, which
are displayed in Figure 1-1.
Figure 1-1 Rear panel access ports and features
12Product overview
About the appliance rear panel

Table 1-3 Rear panel connectors and features
FunctionNumber
Power Supply Modules #1, #2 (120VAC)1, 2
NIC1/eth0, a 1Gb connector that is reserved for private management usage
By default, NIC1 (eth0) is factory set to IP address 192.168.229.233. This private
network address is reserved to provide a direct connection from a laptop to perform
the initial configuration of the appliance. NIC1 (eth0) is typically not connected to
your network environment.
After you complete the initial configuration, you can connect NIC1 (eth0) to an
administrative network that does not provide any backup data transfer.
3
NIC2/eth1, NIC3/eth2, and NIC4/eth3, reserved for public networks. All three are
1Gb connectors.
4, 5, 6
DB-15 VGA connector7
RJ45 Serial-A port (reserved)8
USB connectors9
IPMI remote management port10
NIC5/eth4 and NIC6/eth5, left to right: 10Gb network connectors for public networks11
Add-in PCIe adapter slots (SAS, Fibre Channel, 10Gb Ethernet)12
Serial-B port (reserved)13
Starting in January 2014 NetBackup appliances may include grounding studs in
case your lab environment has such a requirement. The studs are located on the
rear panel of the appliance. You can use standard grounding practices to connect
grounding wires to the studs.

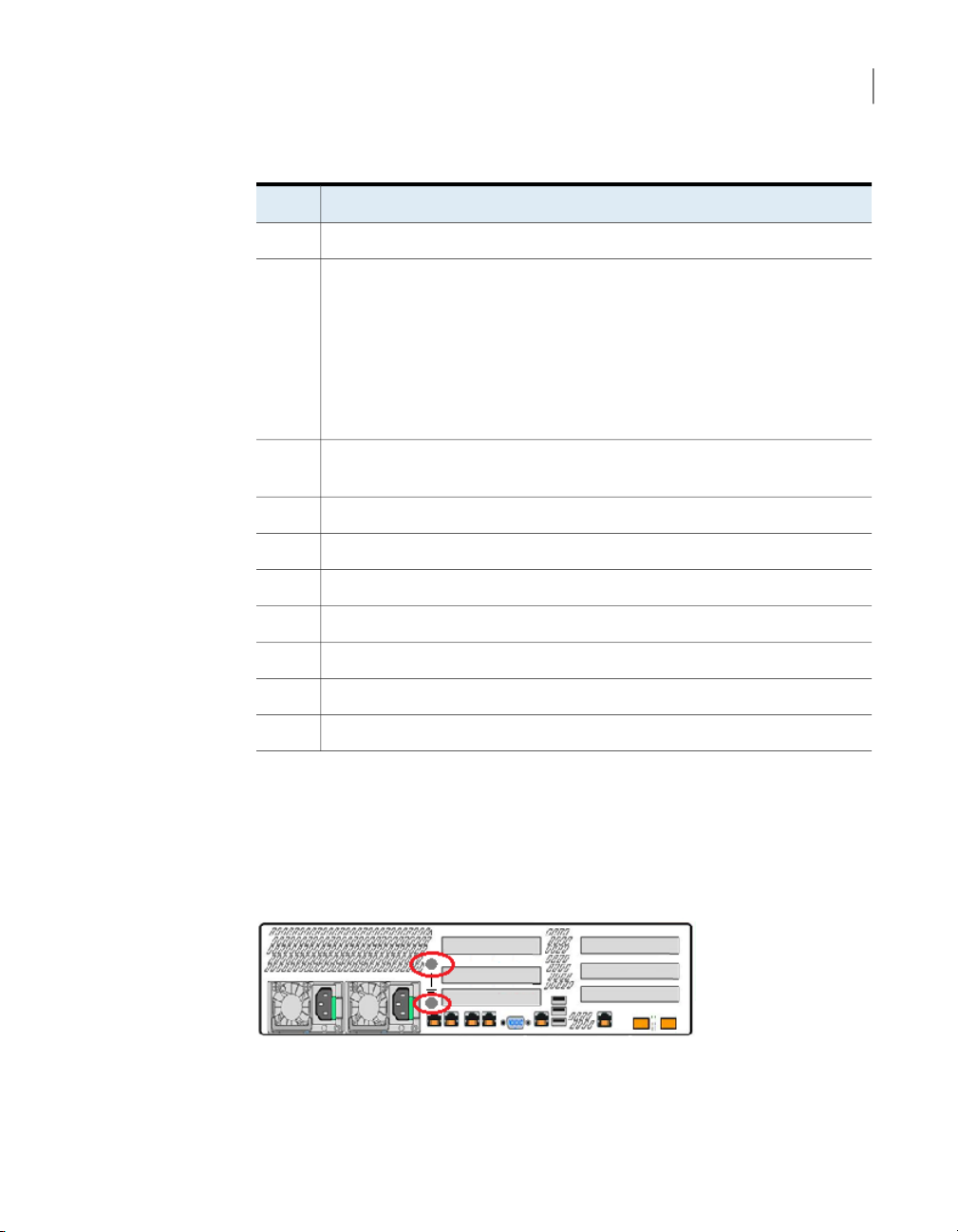

Figure 1-2 Appliance grounding studs
The serial number is located on a vertical bar in the rear panel of the appliance.
13Product overview
About the appliance rear panel

The ports on the rear panel are color-coded for easy identification.
Figure 1-3 Rear panel port colors
The rear panel has two sets of low profile, full height, 3.5" form factor PCIe slots.
The following diagram shows the slot numbers 1 through 6. Riser assembly 2
includes slots 1, 2, and 3. Riser assembly 1 includes slots 4, 5, and 6. Fibre channel
cards are shown in slots 5 and 6. This configuration is one of several options.
Figure 1-4 Rear panel slot numbers
14Product overview
About the appliance rear panel

The NetBackup 5230 appliance add-in cards are available in five configurations.
Several configurations include at least one FC HBA card for VMware, Optimized
Deduplication over FC, or tape library connectivity.
In some configurations the FC HBA cards are installed into some of the PCIe slots.
If the cards are installed in slots 5 and 6, the configuration supports Fibre Transport
media server (FTMS) mode. Port 1 of each card is configured in Target mode (1)
as shown. Port 2 is configured in Initiator mode (2). Only configurations D and E
support FTMS.
Figure 1-5 FC HBA ports in slots 5 and 6
See “About the NetBackup 5230 rear panel configurations” on page 16.
About the mainboard RAID controller
The SAS RAID controller in the appliance is an Intel RMS25CB080 card. The
controller is preinstalled at the factory, on the mainboard of the appliance. This
controller is also known as the internal controller. The SAS RAID controller that is
installed in the PCIe riser slot is known as the external controller.
The mainboard RAID controller includes a maintenance-free backup unit (MFBU)
with a super-capacitor and flash memory. The parameters that are associated with
the controller are as follows:
■Dimensions - 2.713 in x 6.600 in (6.891 cm x 16.764 cm) (low-profile). The card
is full height and low profile.
■Operating voltage - +3.3 V +/-8%, +12 V +/-8%
■PCI power (nominal) - 9W typical, airflow minimum 200 LFM
■Environmental humidity - 0°C to 50°C; 5% to 90% non-condensing, operating
■Environmental humidity - -45°C to 105°C; 5% to 90% non-condensing, storage
See “About the 2-port 8 Gb FC HBA ” on page 18.
About the external RAID controller
When at least one storage shelf is purchased with an appliance, a factory-installed
PCIe RAID card is installed in the following slots:
15Product overview
About the mainboard RAID controller

■Slot 5 - NetBackup 5220 Appliance
■Slot 1 - NetBackup 5230/5240 Appliances
The RAID card contains two SAS ports which connect to the storage shelf with SAS
cables. If the optional external storage shelves are not included in the order at the
time of the appliance purchase, the PCIe RAID card is not included.
Note: The NetBackup 5330 Appliance compute node does not contain an external
RAID controller. NetBackup 5330 Appliance storage shelf RAID functions are
controlled by the NetBackup 5330 Appliance's attached Primary Storage Shelf.
About the NetBackup 5230 rear panel
configurations
The NetBackup 5230 appliance ships in the following configurations. The external
storage shelves can be ordered as separate devices.
Table 1-4 NetBackup 5230 rear panel configurations
Slot 6Slot 5Slot 4Slot 3Slot 2Slot 1Configuration
Not
populated
Not
populated
Not
populated
Not
populated
Not
populated
Not
populated
A
Not
populated
Not
populated
Dual 8 Gb
Fibre
Channel
Not
populated
Not
populated
Not
populated
B
Not
populated
Not
populated
Dual 8 Gb
Fibre
Channel
Dual 10
GbE
Ethernet
Not
populated
Not
populated
C
Dual 8 Gb
Fibre
Channel
Dual 8 Gb
Fibre
Channel
Dual 8 Gb
Fibre
Channel
Dual 10
GbE
Ethernet
Dual 8 Gb
Fibre
Channel
Not
populated
D
Dual 8 Gb
Fibre
Channel
Dual 8 Gb
Fibre
Channel
Dual 8 Gb
Fibre
Channel
Dual 8 Gb
Fibre
Channel
Dual 8 Gb
Fibre
Channel
Not
populated
E
Not
populated
Not
populated
Not
populated
Not
populated
Not
populated
SAS
RAID
controller
A
(with an
external
storage shelf)
16Product overview
About the NetBackup 5230 rear panel configurations

Table 1-4 NetBackup 5230 rear panel configurations (continued)
Slot 6Slot 5Slot 4Slot 3Slot 2Slot 1Configuration
Not
populated
Not
populated
Dual 8 Gb
Fibre
Channel
Not
populated
Not
populated
SAS
RAID
controller
B
(with an
external
storage shelf)
Not
populated
Not
populated
Dual 8 Gb
Fibre
Channel
Dual 10
GbE
Ethernet
Not
populated
SAS
RAID
controller
C
(with an
external
storage shelf)
Dual 8 Gb
Fibre
Channel
Dual 8 Gb
Fibre
Channel
Dual 8 Gb
Fibre
Channel
Dual 10
GbE
Ethernet
Dual 8 Gb
Fibre
Channel
SAS
RAID
controller
D
(with an
external
storage shelf)
Dual 8 Gb
Fibre
Channel
Dual 8 Gb
Fibre
Channel
Dual 8 Gb
Fibre
Channel
Dual 8 Gb
Fibre
Channel
Dual 8 Gb
Fibre
Channel
SAS
RAID
controller
E
(with an
external
storage shelf)
Configuration D notes:
■You can use the FC ports in slots 2 and 4 for VMware, Optimized Deduplication
over FC, or tape library connectivity. Both ports on each card are configured in
Initiator mode.
■You can use the FC ports in slots 5 and 6 for Fibre Transport media server
(FTMS) support.
■Understand that port 1 on the FC HBA cards in slots 5 and 6 is configured in
Target mode. The other port on these cards is configured in Initiator mode.
Configuration E notes:
■You can use the FC ports in slots 2, 3, and 4 for VMware, Optimized
Deduplication over FC, or tape library connectivity. Both ports on each card are
configured in Initiator mode.
■You can use the FC ports in slots 5 and 6 for Fibre Transport media server
(FTMS) support.
■Understand that port 1 on the FC HBA cards in slots 5 and 6 is configured in
Target mode. The other port on these cards is configured in Initiator mode.
17Product overview
About the NetBackup 5230 rear panel configurations

For complete information about FC HBA card usage, see the NetBackup Appliance
Fibre Channel Guide.
See “About the FC HBA port configurations” on page 18.
About the FC HBA port configurations
The NetBackup 5230 appliance add-in cards are available in five configurations.
Several configurations include one FC HBA card for VMware, Optimized
Deduplication over FC, or tape library connectivity.
Configurations D and E support FTMS. In these configurations Port 1 on each FC
HBA card (1) in slots 5 and 6 are configured in Target mode by default when SAN
Client Fibre Transport is enabled. Port 2 in slots 5 and 6 and all of the other FC
ports are configured in Initiator mode.
All configurations support the appliance to work as a replication target for Optimized
Duplication and Auto Image Replication. For more information about available HBA
cards for target port use, refer to the NetBackup Appliance Fibre Channel Guide.
Figure 1-6 FC HBA card target and initiator ports
See “About the NetBackup 5230 rear panel configurations” on page 16.
About the 2-port 8 Gb FC HBA
The Fiber Channel (FC) ports connect the appliance to clients or other devices for
Fibre Transport data transfer.
Dimensions - 2.54 in x 6.6 in (6.4516 cm to 16.764 cm) (low-profile)
Power consumption - Typical: 6.2 watts at 0°C to 55°C (32°F to 131°F)
Operating temperature - 0°C to 55°C
Storage temperature - -40°C to +70°C (-40°F to +158°F)
Storage humidity - 10% RH to 90% RH (operating, non-condensing) and 5% RH
to 93% RH (non-operating, non-condensing)
18Product overview
About the FC HBA port configurations

See “About the dual-port 10 Gb Ethernet card” on page 19.
About the dual-port 10 Gb Ethernet card
A 10Gb Ethernet card is available with the NetBackup appliance.
See the NetBackup™ Appliance and Storage Shelf Product Description, the Veritas
NetBackup™ 5240 Appliance and NetBackup 5240 Storage Shelf Product
Description or the Veritas NetBackup™ 5330 Appliance Product Description for
more information.
See “About the Veritas 3U16 24TB Storage Shelf / Veritas 3U16 36TB Storage
Shelf” on page 19.
About the Veritas 3U16 24TB Storage Shelf /
Veritas 3U16 36TB Storage Shelf
Table 1-5 lists the Veritas 3U16 storage shelf features.
Table 1-5 Veritas 3U16 24TB Storage Shelf / Veritas 3U16 36TB Storage
Shelf features
DescriptionFeature
Holds 16 3.5-inch 2-TB or 3-TB 7,200 rpm SAS disk drives.
Note: The disk capacities that are used in the 3U16 storage shelves
depends on the 3U16 storage shelf model that you purchase.
For example, the Veritas 3U16 24TB Storage Shelf uses 2-TB disks and
offers 24 terabytes of usable storage capacity. The Veritas 3U16 36TB
Storage Shelf uses 3-TB disks and offers 36 terabytes of usable storage
capacity.
Capacity
RAID 6RAID level
Four SAS 6.0-Gbps ports (two per each independent I/O module). Each
I/O module contains one SAS_IN port and one SAS_OUT port. Each 3U16
storage shelf has two I/O modules. Therefore, a 3U16 storage shelf has
two SAS_IN ports and two SAS_OUT ports.
Two serial RJ-11 ports (1 per I/O module) - for Technical Support use only.
I/O ports
Figure 1-7 shows the front and the rear panels of the 3U16 Storage Shelf.
19Product overview
About the dual-port 10 Gb Ethernet card

Figure 1-7 Veritas 3U16 24TB Storage Shelf / Veritas 3U16 36TB Storage
Shelf front panel
Table 1-6 lists the 3U16 storage shelf front panel components that are shown in
Figure 1-7.
Table 1-6 Veritas 3U16 24TB Storage Shelf / Veritas 3U16 36TB Storage
Shelf front panel components
ComponentNumber
Disk module #1 of 16.1
Disk module release button.2
Disk status LED3
Disk power and activity LED4
Slot #16 - hot spare5
Figure 1-8 Veritas 3U16 24TB Storage Shelf / Veritas 3U16 36TB Storage
Shelf rear panel
Table 1-7 lists the 3U16 storage shelf rear panel components that are shown in the
illustration.
20Product overview
About the Veritas 3U16 24TB Storage Shelf / Veritas 3U16 36TB Storage Shelf
