01 /
INTRODUCTION
1.0 Package Contents
1.1 System Requirements
1.2 Features
1.3 Getting to Know Your
Wi-Fi Extender

5
 / INTRODUCTION
support.verizon.com/wifiextender | ©2023 Verizon. All Rights Reserved
Wi-Fi Extender lets you transmit and
distribute digital entertainment and
information to multiple devices in your
home/office.
Your Extender supports networking
using coaxial cables, Ethernet, or Wi-Fi,
making it one of the most versatile and
powerful Wi-Fi extenders available.

GETTING TO KNOW YOUR
WIFI EXTENDER
./ PACKAGE CONTENTS
Your package contains:
• Wi-Fi Extender
• Power adapter
./ SYSTEM REQUIREMENTS
System and software requirements are:
• A computer or other network device supporting Wi-Fi or wired
Ethernet
• A web browser, such as Chrome™, Firefox®, Internet Explorer 8®
or higher, or Safari® 5.1 or higher
./ FEATURES
Your Wi-Fi Extender features include:
• Support for multiple networking standards, including
– LAN – 802.11 a/b/g/n/ac/ax, Gigabit Ethernet and MoCA 2.5
interfaces
• Integrated wired networking with 2-port Ethernet switch and
Coax (MoCA LAN)
– Ethernet supports speeds up to 1000 Mbps
– MoCA 2.5 LAN enabled to support speeds up to 2500 Mbps
over coaxial cable
PACKAGE CONTENTS, SYSTEM
REQUIREMENTS AND FEATURES

7
 / INTRODUCTION
support.verizon.com/wifiextender | ©2023 Verizon. All Rights Reserved
• Self-organizing Network (SON) oers seamless roaming, band
steering, and AP steering to improve the performance of your
Wi-Fi network
• Integrated Wi-Fi networking with 802.11a/b/g/n/ac/ax access
point featuring:
– Backward compatible to 802.11a/b/g/n/ac
– 2.4 GHz 11ax 4x4
– Two 5 GHz 11ax 4x4
• Enterprise-level security, including:
– Advanced Wi-Fi protection featuring WPA2 & WPA3 Modes
and MAC address filtering
– Wi-Fi Multimedia (WMM) for Wi-Fi QoS (quality-of-service)
• Secure remote management using HTTPS
./ GETTING TO KNOW YOUR WIFI EXTENDER
1.3a/ FRONT PANEL
The front panel’s unified button allows
quick access to the Wi-Fi Protected
Setup (WPS) feature and pairing mode.
The Status LED will be on white and
solid when your Wi-Fi Extender is
turned on, connected to the internet,
and functioning normally.

GETTING TO KNOW YOUR
WIFI EXTENDER
Status LED
Condition Status LED Color Wi-Fi Extender
Normal WHITE Normal operation (solid)
Wi-Fi Extender is booting (fast blink)
BLUE Pairing mode (slow blink)
Pairing successful (solid)
GREEN Wi-Fi has been turned o (solid)
Issue(s) YELLOW No internet connection (solid)
Extender is too far from the Router. Poor
backhaul signal (slow blink)
Extender is too close to the Router. Poor
Wi-Fi coverage (fast blink)
RED Hardware/System failure detected (solid)
Overheating (fast blink)
Pairing Failure (slow blink)
Power OFF Power o
Please refer to section 5.0 for details on the rear LEDs.
1.3b/ REAR PANEL
The rear panel of your Wi-Fi Extender has a label that contains
important information about your device, including the default
settings for the Wi-Fi Extender’s Wi-Fi network name (SSID),
Wi-Fi password (WPA2 key), local URL for accessing the
Wi-Fi Extender’s administrative pages, and administrator password.
The label also contains a QR code that you can scan with your
smartphone, tablet, or other camera-equipped Wi-Fi device to allow
you to automatically connect your device to your Wi-Fi network
without typing in a password (requires a QR code reading app with
support for Wi-Fi QR codes).

9
 / INTRODUCTION
support.verizon.com/wifiextender | ©2023 Verizon. All Rights Reserved

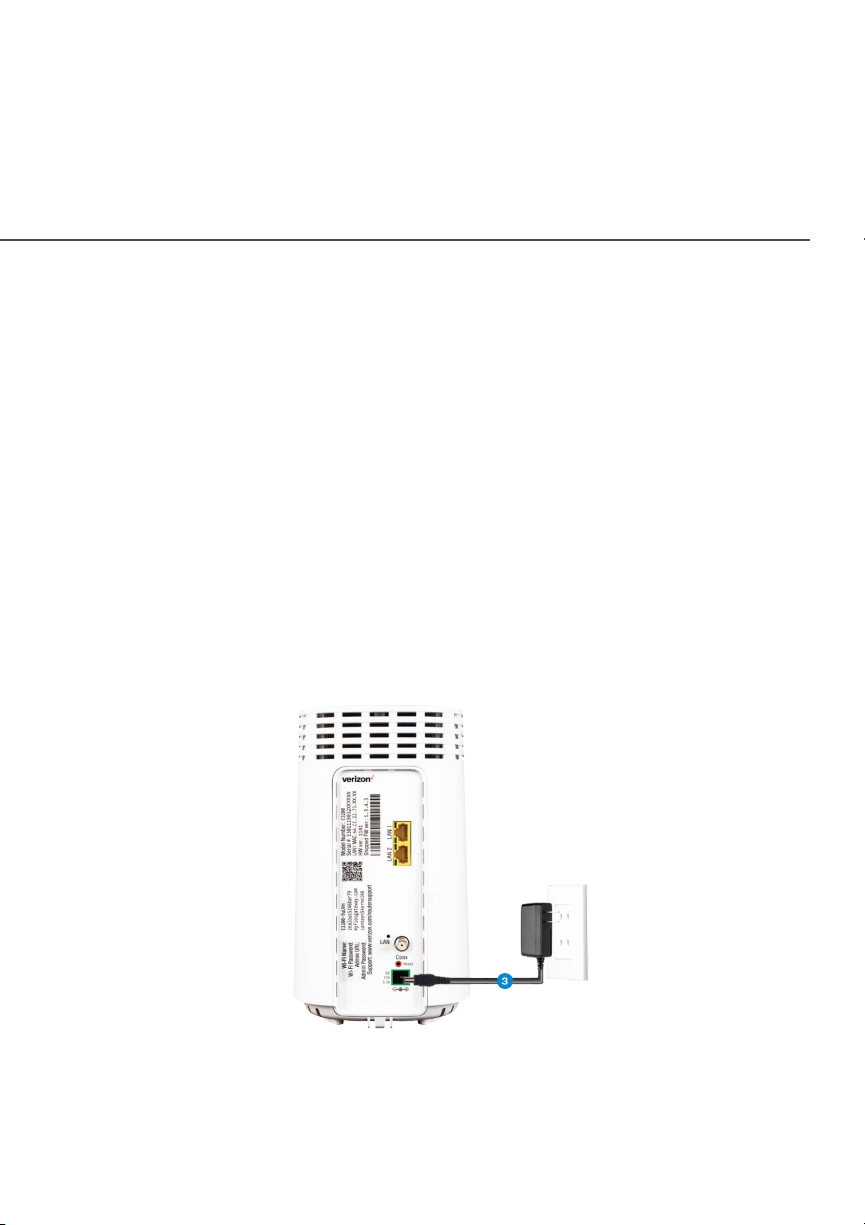

The rear panel has three ports; F-type coax and Ethernet LAN
[two]. The rear panel also includes a DC power jack and a reset
button.

GETTING TO KNOW YOUR
WIFI EXTENDER
• Ethernet LANEthernet LAN - connects devices to your Wi-Fi Extender using
Ethernet cables to join the local area network (LAN). The two
Ethernet LAN ports are 10/100/1000 Mbps auto-sensing and
can be used with either straight-through or crossover Ethernet
cables.
• Coax LANCoax LAN - connects your Wi-Fi Extender to the LAN and/or to
other MoCA devices using a coaxial cable.
• Reset ButtonReset Button - allows you to reset your Wi-Fi Extender to
the factory default settings. To perform a soft reboot, press
and hold the button for at least three seconds. To reset your
Wi-Fi Extender to the factory default settings, press and hold
the button for at least ten seconds.
• PowerPower - connects your Wi-Fi Extender to an electrical wall outlet
using the supplied power adapter.
Warning: The included power adapter is for home use only,
supporting voltages from 105-125 voltage in AC. Do not use in
environments with greater than 125 voltage in AC.

02 /
CONNECTING YOUR
WIFI EXTENDER
2.0 Setting up Your Wi-Fi Extender
2.1 Main Screen

12
 / CONNECTING YOUR
WIFI EXTENDER
support.verizon.com/wifiextender | ©2023 Verizon. All Rights Reserved
Connecting your Wi-Fi Extender and
accessing its web-based User Interface
(UI) are both simple procedures.
Accessing the UI may vary slightly,
depending on your device’s operating
system and web browser.

SETTING UP YOUR WIFI EXTENDER
./ SETTING UP YOUR WIFI EXTENDER
Note: Using a wired backhaul, the Wi-Fi Extender can be placed
at a location distant from the Verizon Router, and positioned for
optimum coverage. Using Wi-Fi backhaul, performance can be
slower and the distance from the Router will be determined by
the reach of Wi-Fi from the Verizon Router, the materials in the
home, and neighboring Wi-Fi trac. Wi-Fi backhaul is eective and
convenient for Wi-Fi configuration, but based on Wi-Fi interference
characteristics, does not perform as well as a wired connection.
2.0a/ WIRED INSTALLATION
A. Connect the Verizon Router to a coax outlet. (If the coax
outlet is already in use, use the coax splitter included in the
box.)
B. Connect the Wi-Fi Extender to a coax outlet - ideally in an
area with spotty Wi-Fi coverage.
C. Connect the power cords to the Router and Extender then
to an electrical outlet.

14
 / CONNECTING YOUR
WIFI EXTENDER
support.verizon.com/wifiextender | ©2023 Verizon. All Rights Reserved
D. After 10 minutes, the light on the Extender should turn solid
white, indicating the connection is complete.
Note: If home is wired for Ethernet, follow same steps as above
using an Ethernet cable instead of a coax cable.
2.0b/ WIRELESS WPS PAIRING
1. Before setting up the Wi-Fi Extender, make sure the internet
gateway or router you use to connect to the internet is
working properly.
2. Plug the Wi-Fi Extender into a power outlet, next to the
internet gateway or router, and wait for its light to turn solid
yellow.

SETTING UP YOUR WIFI EXTENDER
3. Press and hold the pair button on the Wi-Fi Extender for
3 seconds and then press the pair button on the router or
internet gateway (within 2 minutes). Both devices’ lights
will blink blue while pairing. Once you see a solid white or
blinking yellow light, it’s paired. After 10 minutes, the light
on the Extender should turn solid white, indicating the
connection is complete.
4. Unplug the Wi-Fi Extender, move it between the internet
gateway and the weak Wi-Fi coverage area, then plug it in. If
you see a fast blinking yellow light, try moving it a bit further
away from the internet gateway. If you see a slow-blinking
yellow light, try a bit closer. A solid white light means you
have it in the right spot and your setup is complete.
Note: The Wi-Fi Extender has a Wi-Fi Name/Password that is
dierent from the Verizon Router. When the Extender connects to
the Router via Coax, Ethernet, or Wi-Fi, the Extender is assigned
the Wi-Fi Name/Password of the Router. At this time, the Extender
doesn’t have the ability to use the Wi-Fi Name/Password on the
rear label and only uses the same Wi-Fi Name/Password as the
Router.
CONNECTING A WIFI DEVICE USING WPS
For instructions on how to connect devices to Wi-Fi using WPS,
refer to section 3.4 “Wi-Fi Protected Setup” on page 33.

16
 / CONNECTING YOUR
WIFI EXTENDER
support.verizon.com/wifiextender | ©2023 Verizon. All Rights Reserved
./ MAIN SCREEN
2.1a/ Login Primary Option
1. Open a web browser on the device connected to your
Wi-Fi Extender network.
2. In the browser address field (URL), enter the Extender’s IP
address found in the UI of the Verizon Router, then press the
EnterEnter key on your keyboard.
Note: The IP address of the Wi-Fi Extender was assigned by the
Verizon Router if the Extender connects to the Router.
3. Enter the password that is printed next to the Admin
Password on the label on the rear of your Wi-Fi Extender.

MAIN SCREEN
Note: The rear label of the Wi-Fi Extender has an admin password
that is dierent from that of the Verizon Router. When the Extender
connects to the Router via Coax, Ethernet, or Wi-Fi, the extender
is assigned the admin password of the Router. At this time, the
admin password on the rear label of the Wi-Fi Extender should be
ignored.
2.1b/ Login Alternative Option
1. Open a web browser on the device directly connected to
your Wi-Fi Extender.
2. In the browser address field (URL), enter the IP address
192.168.1.254
3. Enter the password that is printed next to the Admin
Password on the label on the rear of your Wi-Fi Extender.

18
 / CONNECTING YOUR
WIFI EXTENDER
support.verizon.com/wifiextender | ©2023 Verizon. All Rights Reserved
When you log into your Wi-Fi Extender, the main screen displays
a dashboard as well as a navigation menu to Wi-Fi, Status, and
Advanced settings.
2.1c/ MENU
Information about the main menu options can be found in the
following chapters:
• System - this chapter
• Wi-Fi - Chapter 3
• Diagnostics & Monitoring - Chapter 4

SYSTEM SETTINGS
./ SYSTEM SETTINGS
Caution: Many of the settings described in this section should only
be configured by experienced network technicians. Changes could
adversely aect the operation of your Wi-Fi Extender and local
network.
You can access the following advanced settings:
• Factory Reset - resets your Wi-Fi Extender to its default
settings.
• Reboot - restarts your Wi-Fi Extender.
• Users - sets the password for administrator access.
2.2a/ SYSTEM STATUS
This section displays information such as the device name and
model, firmware and hardware versions, connection status as well
as the MAC Address and IP information of your Extender.

20
 / CONNECTING YOUR
WIFI EXTENDER
support.verizon.com/wifiextender | ©2023 Verizon. All Rights Reserved
