CYBEX™ SC SERIES SECURE SWITCHES
SC800/900DPH, SC800/900DVI AND SCKM100PP4
Quick Installation Guide
590-2282-501B 1
Before installing your secure
switch, ensure the following:
• The front panel is visible to the
user, unless using the CybexTM
Active Front Panel (AFP) KVM
remote unit.
• The tamper-evident labels are
all intact.
WARNING: The switch is equipped
with active intrusion protection.
Tampering may permanently
disable the switch and void the
warranty. If the enclosure appears
to have been tampered with, or if all
the port LEDs ash sequentially,
contact Technical Support. Broken
or removed tamper-evident seals
will void the warranty.
1. Connecting local
peripherals
Turn o all computers and
displays to be used with the
switch.
For KVM models, plug the
display cables into the
CONSOLE display ports on the
back of the switch. The
SC800/900DPH switch uses a
combination DisplayPort (DP)
and HDMI connector to enable
either video format to be used
as input or output.
Plug the USB keyboard and
mouse cables and speaker or
headphone cable into the
appropriate CONSOLE ports on
the back of the switch.
NOTE: Do not connect a
microphone, including a
headset with an integrated
microphone, to the audio
output port of the switch.
If desired, connect the Cybex™
Active Front Panel (AFP) KVM
remote unit to the RCU port to
control your switch remotely.
Contact your Vertiv
representative for more
information.
NOTE: For security reasons,
the switches do not support
wireless devices.
2. Connecting a Dedicated
Peripheral Port (DPP)
device (if applicable)
Connect a USB device, such as
a smart card reader, to the blue
USB Type-A CONSOLE port on
the back of the switch. The
device must be compliant with
USB 1.1 or 2.0 standards and
included in the adminstrator-
dened list of recognized
devices.
NOTE: By default, the DPP
supports authentication
devices, such as smart card
and biometric readers. Other
devices must be specically
whitelisted. Refer to the Cybex
SC-SCM Switching System
Additional Operations and
Conguration Technical
Bulletin for more information.
3. Connecting each
computer
Using a USB cable, connect
each computer to the keyboard/
mouse USB Type-B port on the
switch.
Plug the display cable from the
corresponding computer into
the appropriate port on the
switch.
If applicable, connect an audio
cable from the computer’s audio
output to the switch’s audio
connection.
If using DPP, use a second USB
cable to connect each computer
to the second USB Type-B port
on the switch. Repeat for all
computers.
3
1
1

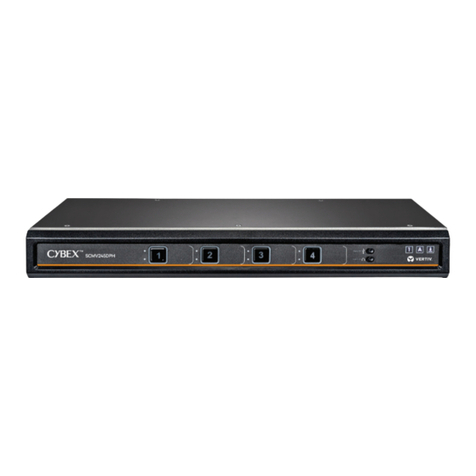

CybexTM SC945DPH KVM Switch Shown
2
4

To contact Vertiv Technical Support: visit www.Vertiv.com
© 2020 Vertiv Group Corp. All rights reserved. Vertiv and the Vertiv logo are trademarks or registered trademarks of Vertiv Group Corp. All other names and logos referred to are trade
names, trademarks or registered trademarks of their respective owners. While every precaution has been taken to ensure accuracy and completeness herein, Vertiv Group Corp. assumes
no responsibility, and disclaims all liability, for damages resulting from use of this information or for any errors or omissions. Specications are subject to change without notice.
CYBEX™ SC SERIES SWITCHES
Quick Installation Guide
2 590-2282-501B
NOTE: The USB cables must
be connected directly to a free
USB port on your computer
with no USB hubs or other
devices in between.
4. Turning on the displays,
switch and computers
NOTE: Installation of local
peripherals to the switch
console must occur prior to
powering up the switch.
Turn power on to the
connected displays.
Using an appropriate wall-
socket adaptor, plug in the
provided power adaptor or
cable into the switch and the
other end into a wall outlet.
The keyboard, mouse and DPP
diagnostic LEDs indicate an
approved device is connected
and ready for use. Each LED
illuminates solid green a few
seconds after power is applied.
• O - no device detected
• Blinking - device is rejected
• On - device is approved
The video diagnostic LED
indicates the Extended Display
Identication Data (EDID)
information has been
successfully read from the
display and stored in memory.
The EDID is only read in the
rst few seconds after the
switch is powered on.
• O - no EDID detected
• Blinking - reading EDID
• On - EDID received
NOTE: Hot-plugging or
swapping displays while the
switch is on is not supported.
To change a display, power
cycle the KVM switch.
Turn on the computers. Ensure
the peripherals for each
computer are connected and
working properly. Repeat for all
computers.
5. Switching between
computers
Press the appropriate front
panel button on the switch to
switch between computers.
The button of the selected
computer illuminates.
I M P O R TA N T: To comply with the
Common Criteria evaluation and to
prevent unauthorized
administrative access to the
switch, the default administrator
username and password must be
changed prior to inital use.
Cables
Use Vertiv cable kits with your
switch to ensure optimal security
and performance.
Contact a Vertiv representative for
ordering details.
DPP Channel Indicator
Audio Channel Indicator
Selected Channel Indicator
Channel Label
DPP Freeze Switch
Audio Freeze Switch
Vertiv Patented Keyboard Lock Indicators
