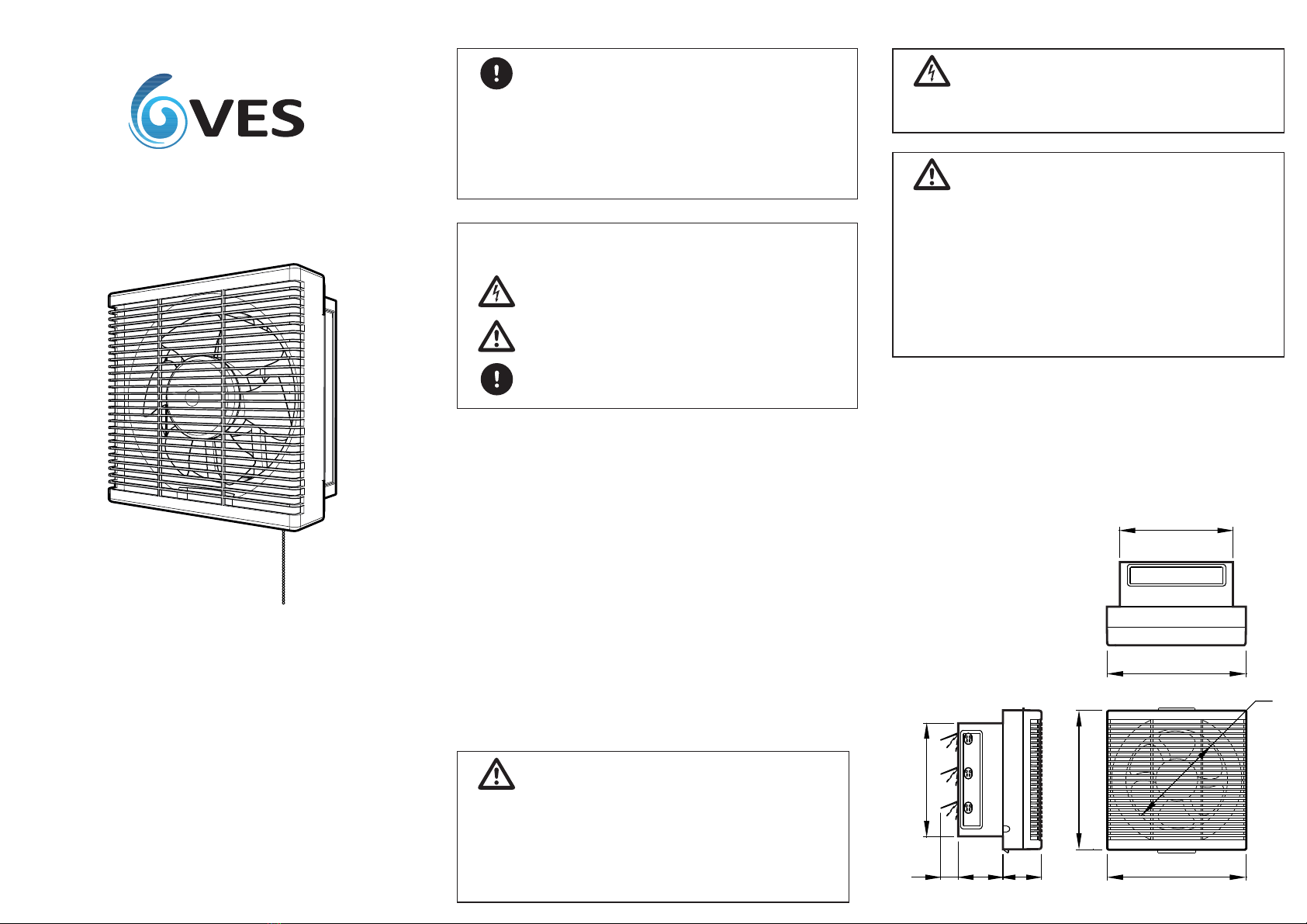

VES VENA240 Instruction manual

VENA240/290
Wall Mounted Axial Fans
VES Andover Ltd Eagle Close Chandlers Ford Ind. Est Eastleigh Hampshire SO53 4NF
Tel: [phone] Fax: [phone] e-mail: [email protected]o.uk web: www.ves.co.uk
Original Instructions : Installation, Operation & Maintenance Manual
ID Ref 916 • March 2010
Original Instructions : Installation, Operation & Maintenance Manual
This manual must be read in full before Installation, Operation and
Maintenance of the units supplied. Please ensure that this document is
passed to the end user. This manual forms an integral part of the product
and should be kept for the working life of the product. Additional copies of
this and supporting documents are available by contacting VES or by
visiting www.ves.co.uk and following the 'Download O & M's' link.
IMPORTANT
The following symbols used within this document refer to potential dangers
or advice for safe operation
Indicates hazards associated with electric current and high
voltages
Indicates hazards that require safety advice for personnel
and/or potential unit/property damage
Indicates important information
Unit Description
The VENA wall mounted axial fans is suitable for a range of light commercial
applications including; shops, sports halls, warehouses. For full unit details
please see the unit specification later in the document.
Immediately upon receipt of your VENA fan, check there is no damage to
the fan, and that the four fixing screws and matching wall plugs are
included within the ancillary bag.
In the event of any damage having occurred or if any item is found to be
missing, it is essential to inform VES Andover Ltd. within 7 days of delivery
quoting sales order number and the unit type. After this period, VES would
be unable to accept any claim for damaged or missing goods.
Part Number Description
VENA240/BS/PC ................................Wall mounted axial fan, c/w back
draught shutters & pull cord operation
VENA290/BS/PC ................................Wall mounted axial fan, c/w back
draught shutters & pull cord operation
Dimensions AB C D E F(mm) Ø
VENA240/BS/PC
VENA290/BS/PC
215 240 295 81 90 37
267 290 340 85 90 30
IMPORTANT
Before attempting to carry out any work on our units, all accompanying
documentation including warning labels on the unit must be referenced.
Should it be necessary to remove any component ensure that these are
secured into position once reinstalled. It is critical that after any
maintenance work has been conducted that all components removed
/replaced be refitted correctly by a competent engineer.
FED
B
C
C
ØA
B
C
VENA
Dimension drawings
Original Instructions : Installation, Operation & Maintenance Manual
IMPORTANT
VENA fans should be installed in accordance with current IEE Regulations
BS7671 and the appropriate Building Regulations.
IMPORTANT
VENA fans are designed for wall mounting only. These fans are not suitable
for ceiling mounting.
For fan positioning refer to Building Regulation for specific requirements.
If installed in a room containing a fuel burning device without a balanced
flue, it is the installers responsibility to ensure that is enough replacement
air to prevent any fumes being drawn back down the flue when the fan is
operating at full speed.
The fan should be installed with an appropriate duct kit and consideration
must be given to ensure that access to all moving parts of the fan are
restricted when the fan is in use.

IMPORTANT
Before attempting to carry out any maintenance or repair work on our
units, the unit MUST BE COMPLETELY ISOLATED from its electrical supply.
Ensure a minimum of two minutes after electrical disconnection before
attempting access. This will allow any moving parts to come to a rest.
VES Andover Ltd Eagle Close Chandlers Ford Ind. Est Eastleigh Hampshire SO53 4NF
Tel: [phone] Fax: [phone] e-mail: [email protected]o.uk web: www.ves.co.uk
Original Instructions : Installation, Operation & Maintenance ManualOriginal Instructions : Installation, Operation & Maintenance Manual
WEEE Directive
At the end of their useful life the packaging and product should
be disposed of via a suitable recycling centre. Do not dispose of
with normal household waste. Do not burn.
Standards
VENA fans conform to all relevant British and European
standards and directives. Further information is available
from VES Andover Ltd on request
Please ensure that this document is passed on to the end user
We reserve the right to alter the specification without notice
©VES Andover Ltd. 2010. No part of this publication may be
photocopied or otherwise reproduced without the prior
permission in writing of VES Andover Ltd.
Wiring Diagrams
Maintenance
1. Before cleaning, isolate the fan completely from the mains supply.
2. Carefully remove the front cover
3. To clean the front cover, either wipe it with a damp, lint free cloth or
wash it in warm soapy water. Thoroughly dry the front cover and refit.
4. Do not immerse the fan in water or other liquids to clean any other parts
of the fan.
5. Never use strong solvents to clean the fan.
6. Apart from cleaning, no other maintenance is required.
For replacement fans or install kits please visit www.vesdirect.co.uk
Specification
Power Supply 230VAC 50Hz
Operating Temperature 0~40°C
Insulation Class 1
Motor Protection IPX2
Motor Type Ball bearing
Speed (rpm) 1420
Power (W) (240/290) 30/50
Current (A) (240/290) 0.13/0.16
Warranty
The fan is guaranteed against defects for 1 year from the date of purchase.
If you have any problems, contact VES at the address shown below.
Using the fan chasis as a
template, mark centre holes
on mounting surface
Remove the front cover
from the fan by hand - tools
not required
Original Instructions : Installation, Operation & Maintenance Manual
Wire the fan as per
wiring diagram &
instructions
Prepare a hole in mounting
surface for the fan spigot &
plug mounting holes as
required
Carefully replace the
front fan cover
Installation continued
Secure fan backing
plate to mounting
surface
Standard Wiring
(Typical Installation)
IMPORTANT
All electrical work should be carried out by a qualified engineer and in
accordance with the current IEE Regulations.
Before attempting to carry out any maintenance or repair work on our
units, the unit MUST BE COMPLETELY ISOLATED from its electrical supply.
Ensure a minimum of two minutes after electrical disconnection before
attempting access. This will allow any moving parts to come to a rest.
Fuse
Double Pole
Isolating Switch
L
N
E
Fan
Terminals
Not Used
Not Used
L
N
E
Remove terminal cover
retaining fixings
Make the connection as per the
wiring diagram as above. Replace the
terminal cover.
IMPORTANT
The fan must be fused at 3A unless it forms part of a 5A lighting circuit.
An isolator should be installed to isolate all poles to the fan.
